AEKA00127

To Whom it may concern: I made a mistake of the 731 Form . This device IS NOT a composite device and its associated receiver IS NOT subject to authorization. It is a Part 15, 27 MHz, R/C transmitter. Sorry for the error, Mike Nicolay

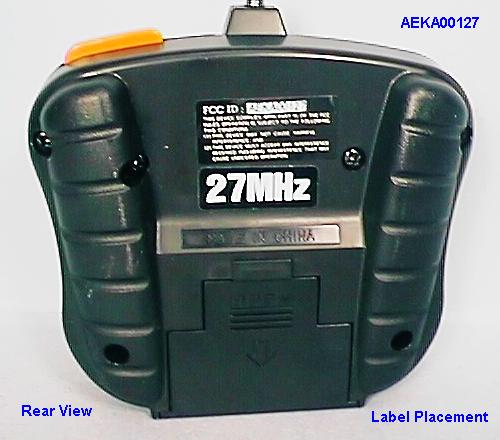

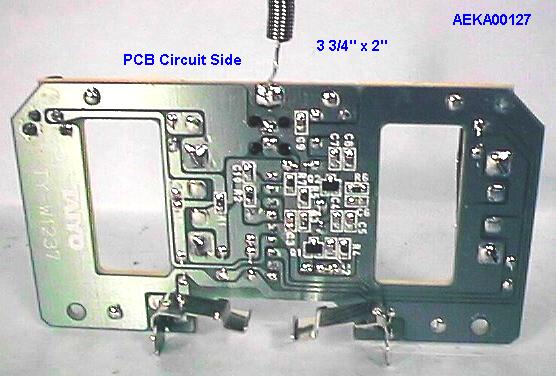

STATEMENT OF MICHAEL A. NICOLAY In Connection With APPLICATION FOR CERTIFICATION THE BEAST R/C TRANSMITTER FCC ID: AEKA00127 This application is for a certification under Part 15 of the FCC Rules for a Radio Control Transmitter, Part 15, paragraph 15.227. I am an Engineer, an employee in the firm of Carl T. Jones Corporation, with offices located in Springfield, Virginia. My education and experience are a matter of record with the Federal Communications Commission. All of the measurements contained in this test report were performed by me or under my supervision, and I attest to the accuracy of each. I submit that, to the best of my knowledge, the test sample meets the technical standards set forth in the Commission's Rules and Regulations. DATED: March 1, 2000 Michael A. Nicolay Carl T. Jones Corporation 7901 Yarnwood Court Springfield, VA 22153 (703) 569-7704 [email protected]

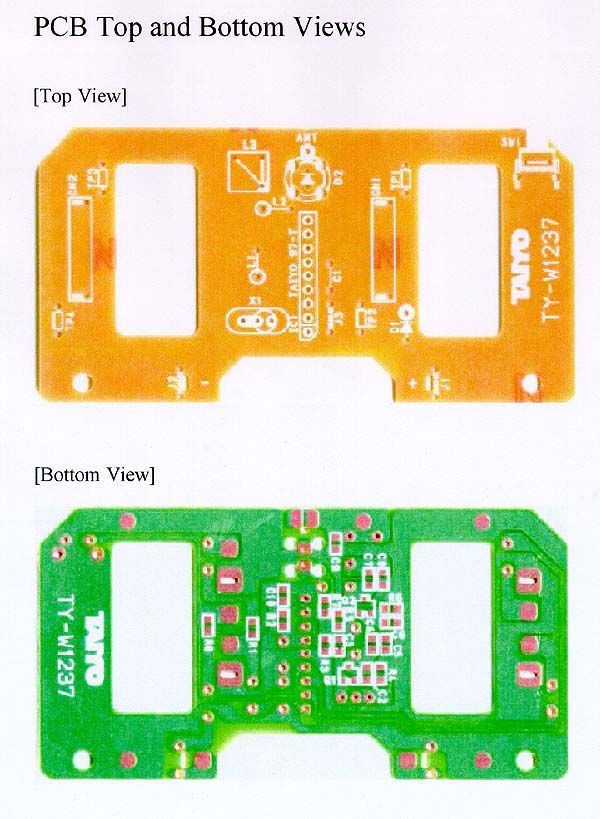

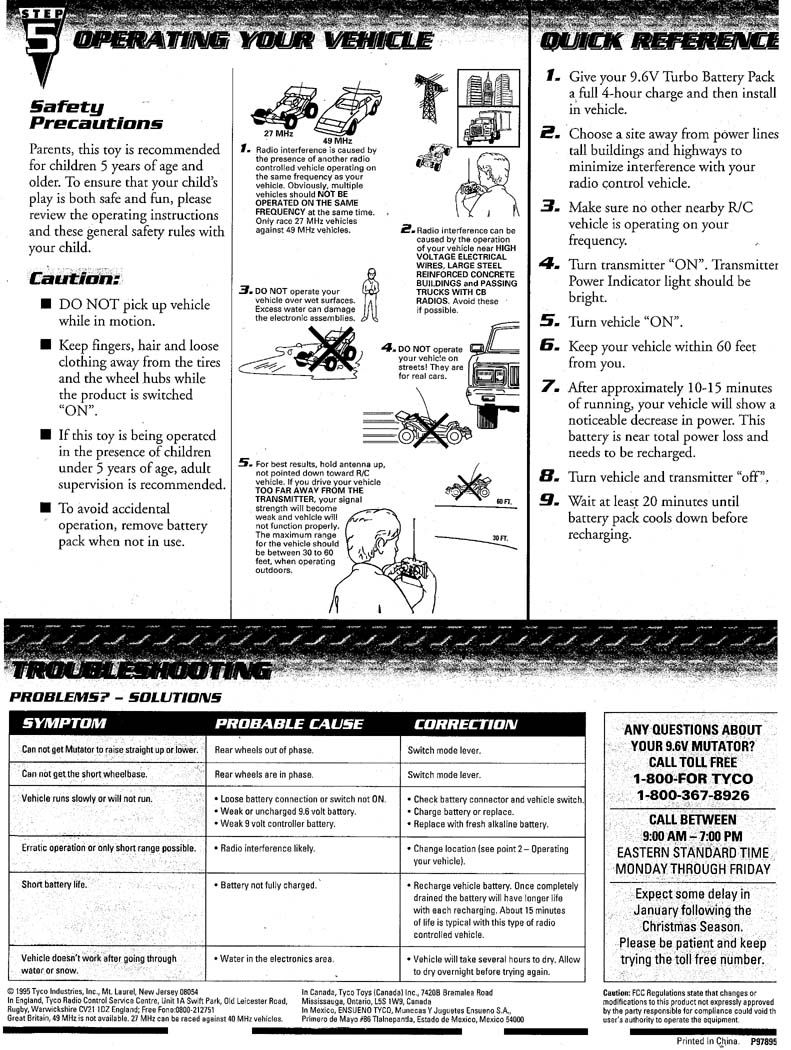

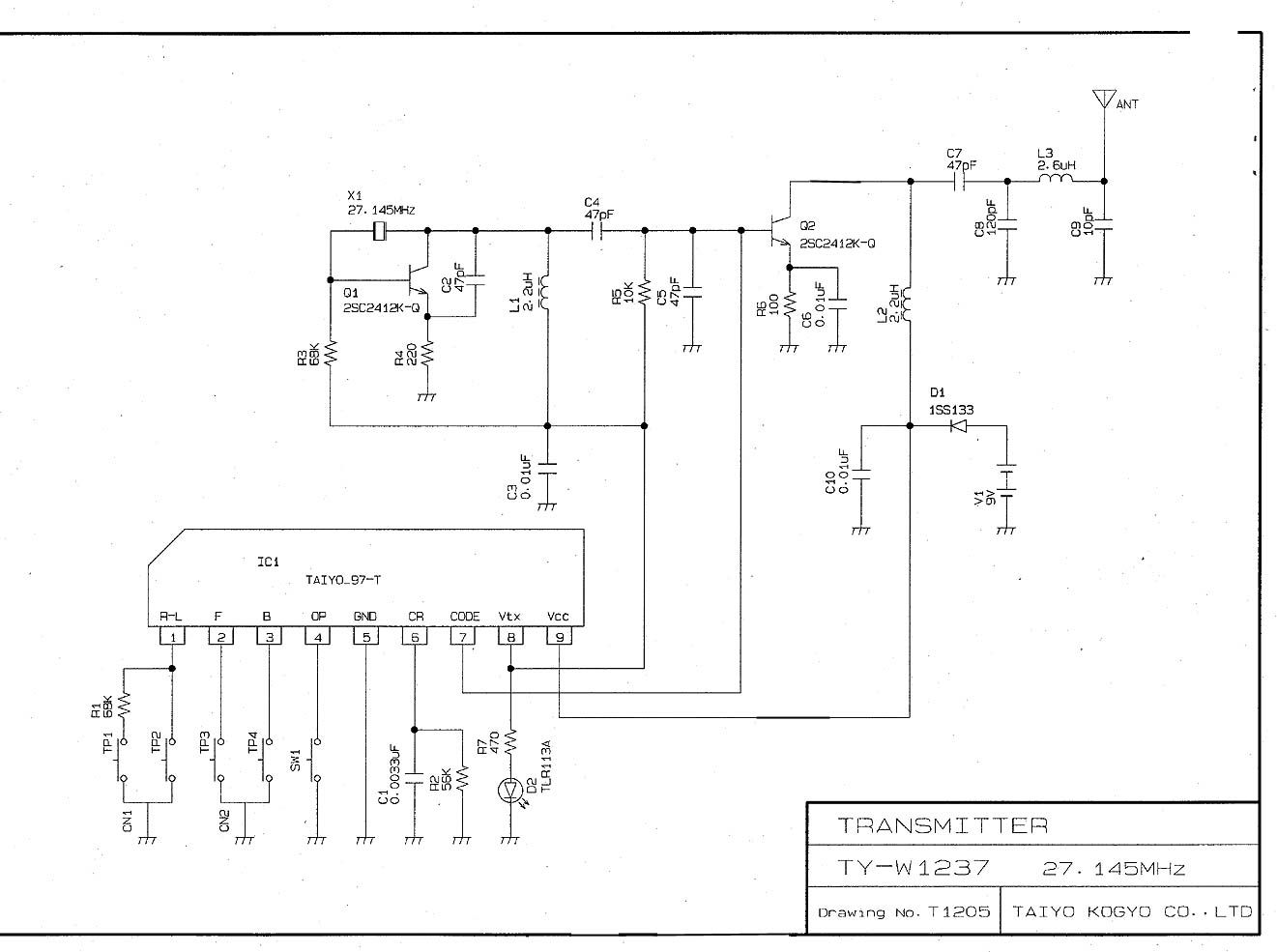

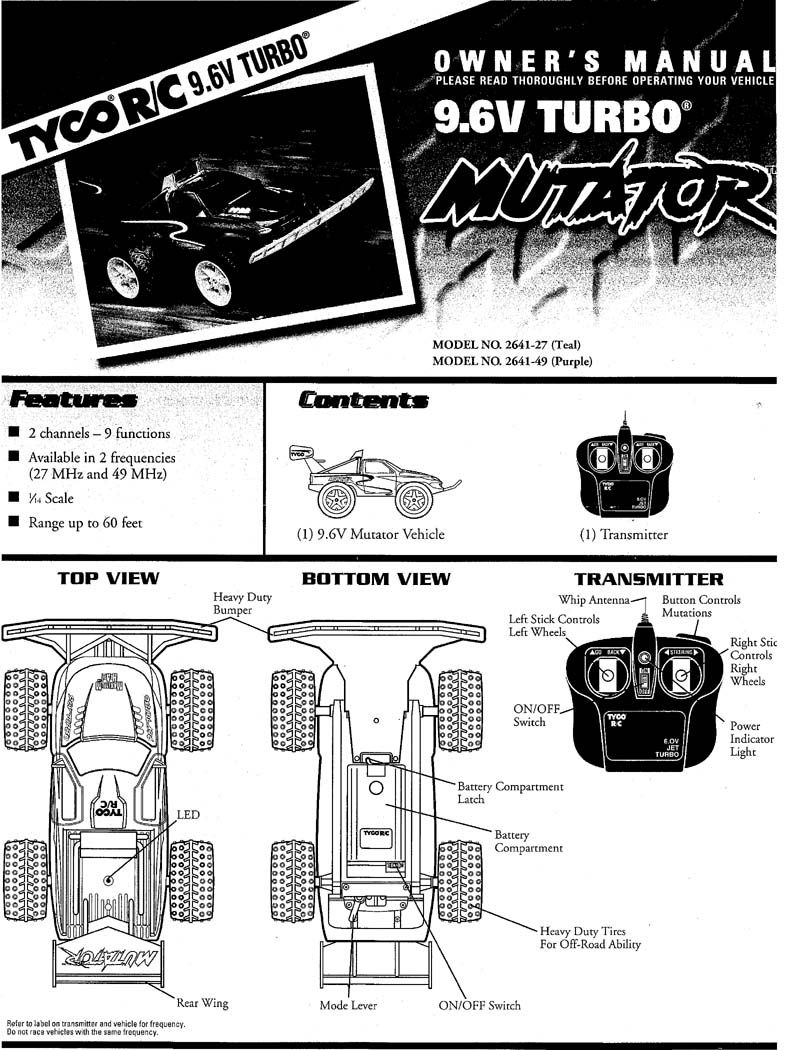

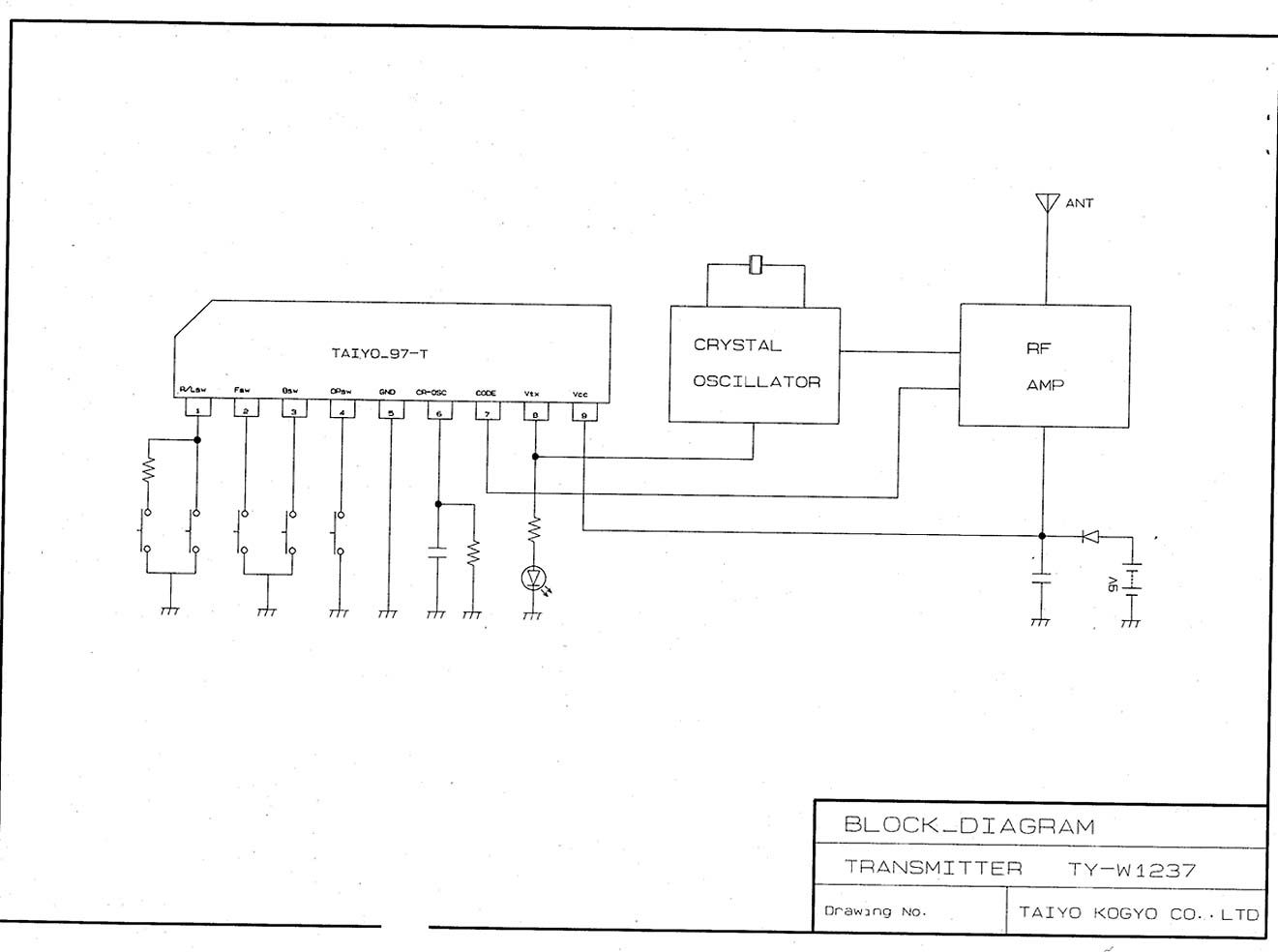

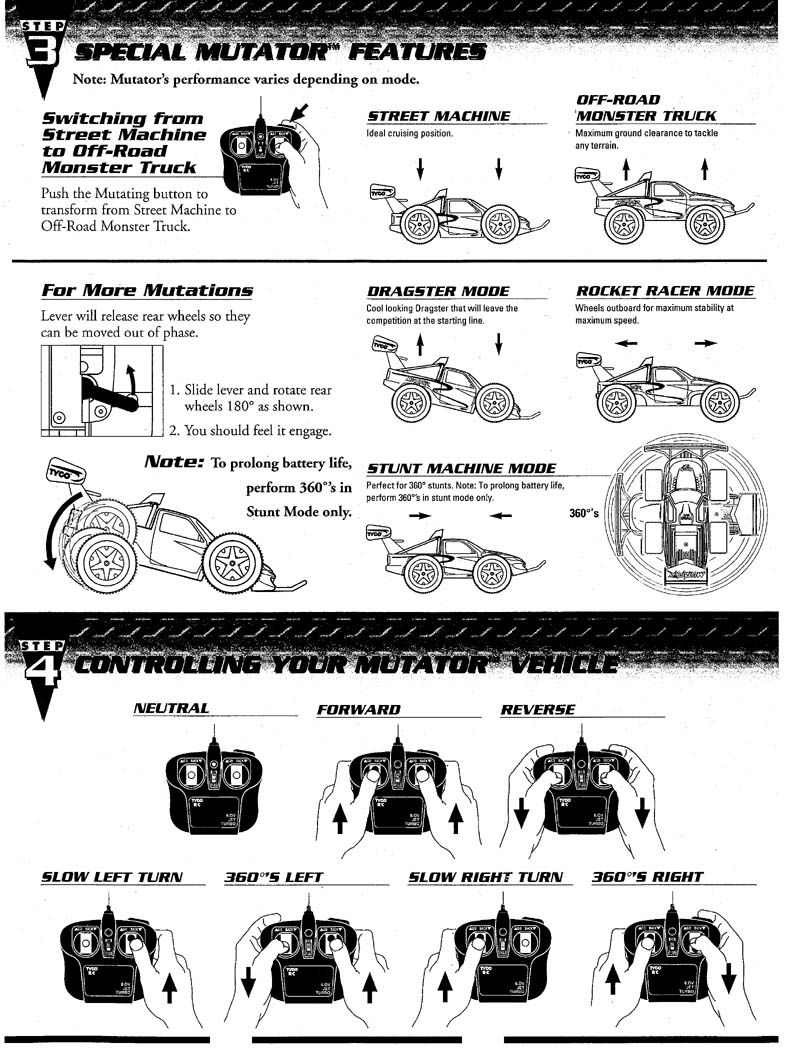

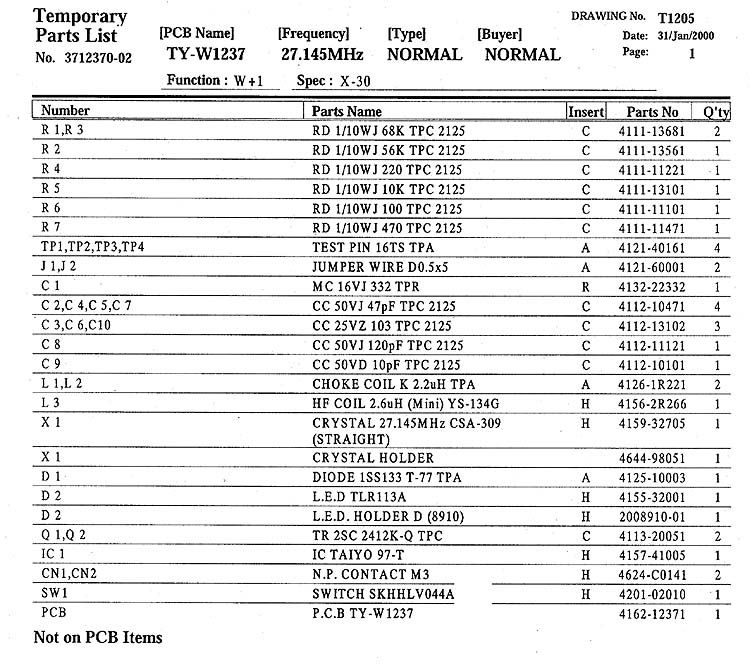

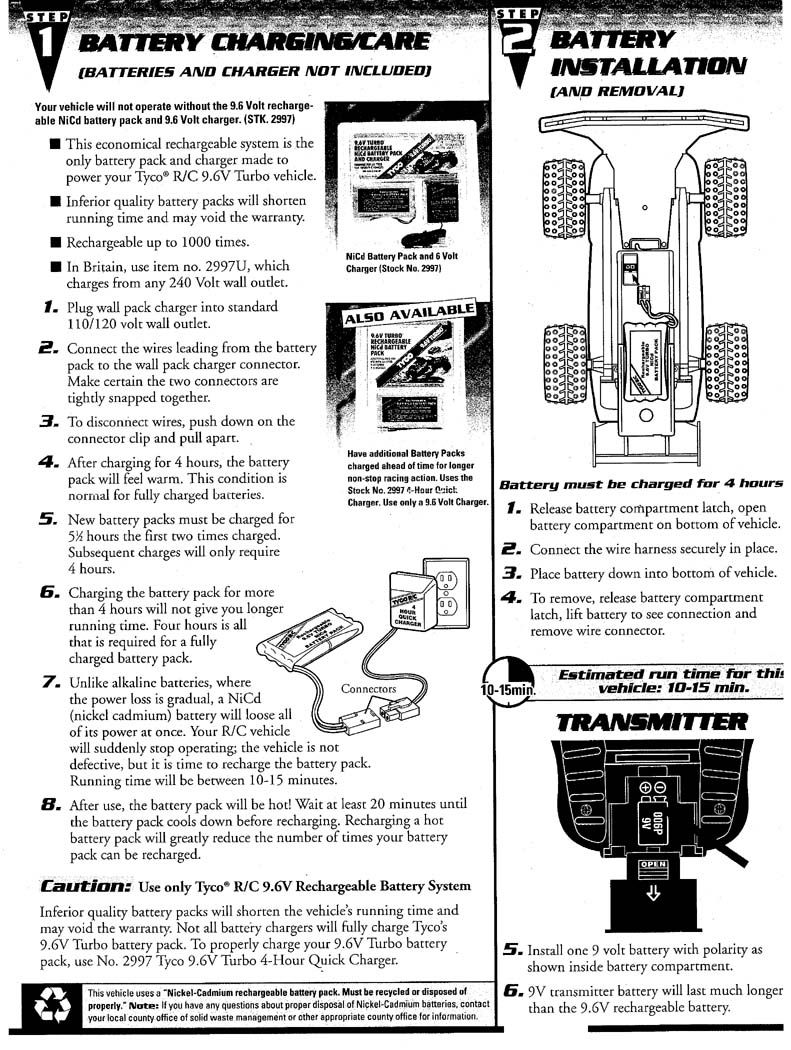

DRAFT MANUAL I am not sure which, or if, the manuals ever got uploaded to you. The Internet was giving my computer fits when I tried to upload them. The manuals I submitted, or tried to, are DRAFT Manuals. The final manuals will appear as the ones I submitted except the NAME and PICTURES of the product will represent this product. All their manuals are the same except for their names and pictures.

Tune-Up Procedure The EUT is factory tuned by qualified technicians. No adjustments or tuning is required by the end user.

TEST EQUIPMENT USED FOR FCC COMPLIANCE TESTING BY CARL T. JONES CORPORATION MANUFACTURERDEVICE MODEL NUMBER QUANTITY Hewlett PackardSpectrum Analyzer8568B1 Hewlett PackardQuasi-Peak Adapter8565OA1 Hewlett PackardSpectrum Analyzer141 T1 Hewlett PackardRF Section8555A1 Hewlett PackardRF Section8553B1 Hewlett PackardIF Section8552A1 TektronixSpectrum Analyzer7L131 Electro-MetricsSpectrum AnalyzerESA-10002 Hewlett PackardFrequency Counter5245L1 Hewlett PackardFrequency Converter5253B1 Hewlett PackardPre-Amplifier8447E2 Hewlett PackardSignal Generator8656B2 Hewlett PackardSignal Generator606B1 Boonton ElectronicsSignal Generator102B1 Boonton ElectronicsPower Meter42B1 TektronixOscilloscope4751 Marconi InstrumentsAM/FM Modulation MeterTF23001 Compliance Design20 MHz-1000 MHz AntennasRoberts tm 1 Set Solar Electronics50 Microhenry LISN8028-50-TS-24-BNC1 Solar Electronics50 Microhenry LISN8012-50-R-24-BNC2

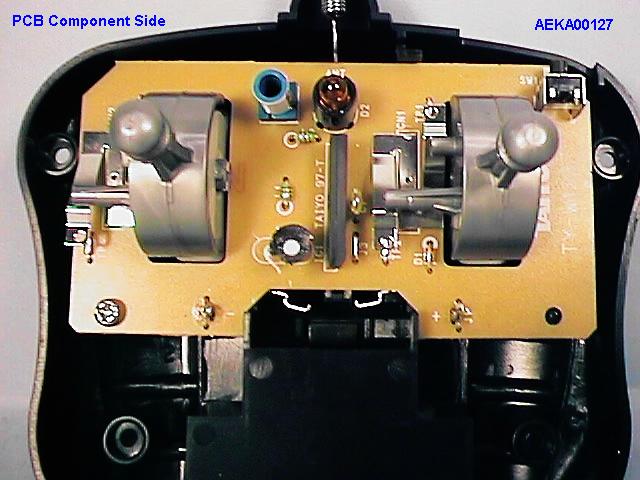

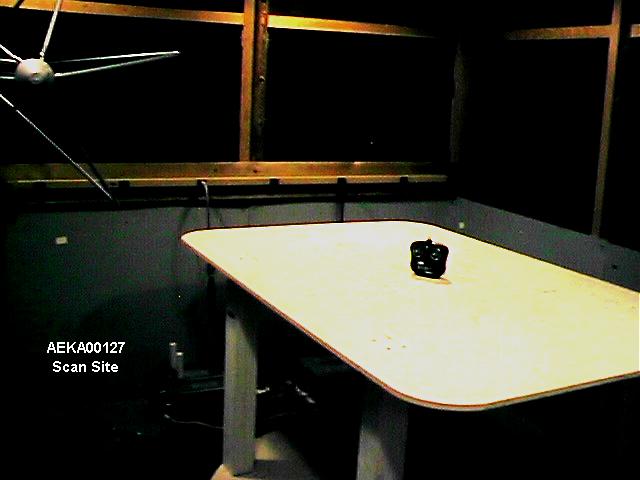

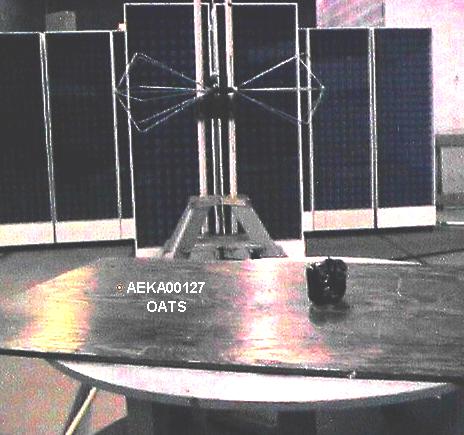

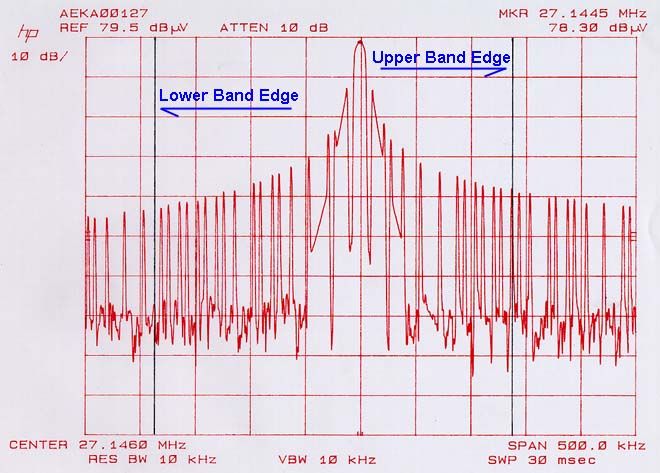

TABLE 1 FIELD STRENGTH RADIATED EMISSIONS DATA SHEET ANTENNA FACTORFCC EMISSIONANTENNAEMISSIONANDEMISSIONLIMIT FREQUENCY POLARITYLEVELCABLE LOSSLEVEL(3 METERS) (MHZ)(H,V)(dBuV)(dB)(dBuV/m)(dBuV/m) 27.145V69.00.069.080 27.145H66.20.066.280 54.292V31.35.436.740 81.438V&H23.39.232.540 108.584V&H<10.513.2<23.740 135.730V&H<10.515.5<26.040 162.871V&H<10.517.1<27.640 190.022V&H<10.519.0<29.540 217.168V&H<10.519.9<30.446 244.314V&H<10.520.9<31.446 271.460V&H<10.522.0<32.546 All limits are specified in Quasi-Peak, all data reported in Peak. CLIENT:TAIYO KOGYO FCC ID:AEKA00127 MODEL:The Beast TEST DATE:03/01/00 TEST ENGINEER:Michael A. Nicolay

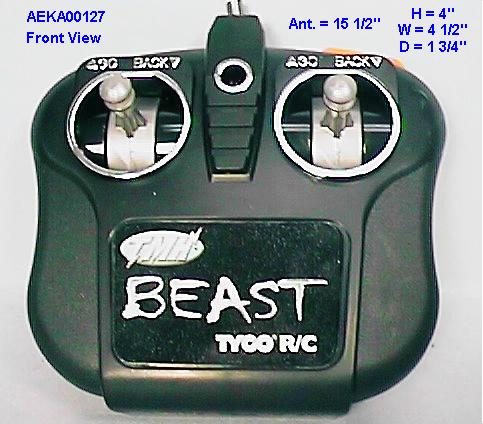

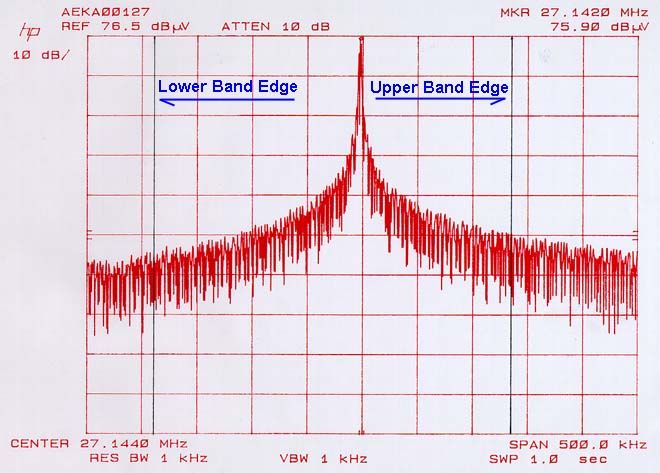

FCC ID:AEKA00127 1 CERTIFICATION MEASUREMENT REPORT I. INTRODUCTION This measurement report is submitted in support of an Application for Certification in accordance with Part 2, Subpart J and Part 15, Subpart C (effective 6/23/89) of the Federal Communications Commission's Rules and Regulations. The equipment under test (EUT) is a low power pulsed RF transmitter. This transmitter operates at a fixed frequency within the band from 26.99 MHz to 27.28 MHz and is powered by one 9.6 Volt battery. It is identified as the 9.6V The Beast Transmitter (FCC ID: AEKA00127). Operation under the transition provisions of Paragraph 15.37 is not requested for this device. The measurements contained in this report demonstrate compliance with the limitations in effect since 6/23/89. II. INFORMATION REQUIRED FOR CERTIFICATION Paragraph(s) 2.1033(a) This Application for Certification is filed on FCC Form 731 with all questions answered. An application fee of $940 was submitted. 2.1033(b)(1) The full name and mailing address of the manufacturer of the device and applicant for certification is: Taiyo Kogyo Co., Ltd. No. 1-23-17, Higashiyotsugi Katsushika-ku, Tokyo 124 Japan (2) The FCC Identifier of the device is AEKA00127. (3) A copy of the installation and operating instructions to be furnished to the user is included in the exhibits section of this application. (4) The transmitter is a hand-held unit and is powered by one 9.6 Volt battery. It is designed to operate on one of the following fixed frequencies: 26.995 MHz, 27.045 MHz, 27.095 MHz, 27.145 MHz, and 27.195 MHz. Complete circuit schematics are provided in the exhibits section. (5) A block diagram of the device is included in Exhibits. (6) A report of measurements is included in this report. (7) Photographs of this device showing the FCC label placement FCC ID:AEKA00127 2 (actual label sample photograph included), chassis assembly, and circuit layout are included as Exhibits in this application. (8) This equipment is a stand-alone unit. No peripherals or accessories are involved. (9) Certification under the transition provisions of Paragraph 15.37 is not being requested for this device. (10) N/A. III. GENERAL TEST CONDITIONS AND PROCEDURES Measurement procedures were used as outlined in MP-1 as specified in Part 15.31, except as noted herein . The open-field tests were performed on a three-meter range maintained by Carl T. Jones Corporation at the Springfield facility. Complete description and measurement data for the site have been placed on file with the Commission. Carl T. Jones Corporation is listed by the FCC as a facility available to do measurement work for others on a contract basis. Prior to open-field testing, the equipment was placed in a shielded enclosure and scanned at a close distance to determine its emission characteristics. IV. RADIATED EMISSION MEASUREMENTS The transmitter was assembled on a rotatable wooden test stand 0.8 meters in height. The transmitter's antenna was fully extended. The emission spectrum was examined up to 1000 MHz using a Hewlett-Packard 8568B spectrum analyzer and Compliance Design "Roberts" tuned dipole antennas. At each emission frequency, the EUT was rotated 360 degrees, and the antenna was raised and lowered from one to four meters to determine the maximum emission levels. Measurements were taken using both horizontal and vertical antenna polarizations. The spectrum analyzer's 6 dB bandwidth was set to 100 kHz. The analyzer was operated using its peak detection mode for measurements of emissions less than 1000 MHz. No post-detector video filters were used. The EUT was investigated in three orthogonal planes. The highest emission amplitudes relative to the appropriate limit were measured and have been recorded in Table 1. FCC ID:AEKA00127 3 The actual field intensity in decibels above one microvolt per meter (dBuV/m) is determined by algebraically adding the measured level in dBuV, the antenna factor (dB), and the cable loss (dB) at the appropriate frequency. FI a (dBuV/m) = FI m (dBuV) + AF (dB) + CL (dB) FI a = Actual Field Intensity FI m = Measured Field Intensity AF = Antenna Factor CL = Cable Loss As a sample calculation, assume a particular device emits a signal with a frequency of 27.145 MHz. The received signal level is measured as 62.9 dBuV. The total attenuation factor (antenna factor plus cable loss) for 27.145 MHz is 0 dB. The actual radiated field is calculated as follows: 69.0 dB μ V + (0 dB) = 69.0 dB μ V/m @ 3 meters, or 2818.4 μ V/m @ 3 meters The field strength of the fundamental did not exceed 10,000 μ V/m (80 dB μ V/m) at 3 meters, as specified in Paragraph 15.227. As per the requirements defined in 15.209, the radiated emission limit at the band edges is 49.5 dB μ V/m at 3 meters. As per the occupied bandwidth spectral plot, the highest emission level below the lower band edge is 42 dB below the modulated carrier. At the upper band edge the highest emission recorded is 37 dB below the modulated carrier. Note: because the EUT complies using peak detection (worst case) quasi-peak detection was not used. Based on the maximized peak radiation measurements of the carrier, these emission levels are: Lower Band Edge 69.0 dB μ V/m - 42 dB = 27.0 dB μ μμ μ V/m (peak) at 3 meters ( Limit = 49.5 dB μ V/m, quasi-peak ) Upper Band Edge 69.0 dB μ V/m - 37 dB = 32.0 dB μ μμ μ V/m (peak) at 3 meters (Limit = 49.5 dB μ V/m, quasi-peak) FCC ID:AEKA00127 4 Radiated measurements to the EUT's 10th harmonic are included in this report as Table 1. All other emissions were found to be in compliance with the restrictions of Paragraph 15.209(a) of the Commission's Rules. Because the emissions were below the limits using peak detection, average to peak ratio's were not calculated. V. OCCUPIED BANDWIDTH MEASUREMENTS In order to demonstrate that the EUT's fundamental frequency is within the 26.96 to 27.28 MHz frequency band an occupied bandwidth spectral plot of the EUT's fundamental frequency is included. Paragra…
