AEKA2192727 MHz Remote Control TX

Circuit Description for Taiyo Kogyo Co., LTD. AEKA21927 Q2 is the crystal oscillator. This feeds the RF amp Q3. L3, L4, and C7 through C9 are the harmonic suppression and antenna matching network. IC 1 supplies the modulation which is base modulated onto the base of Q3. Energy is supplied by a 9V primary cell battery and regulated down to 5.1 Volts by Zener diode D11. This unit uses a fixed antenna of a 6 inch long spring wire. No external ground is available and the only ground is that of the printed circuit board. TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 EXHIBIT #: 11

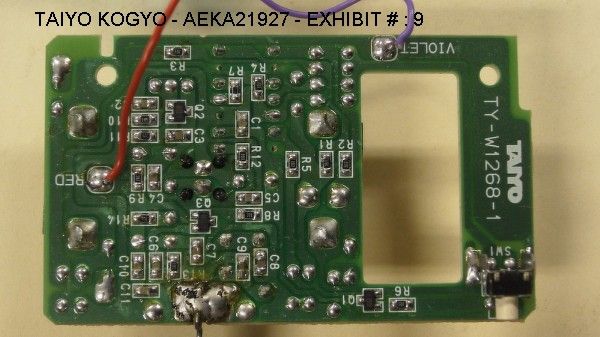

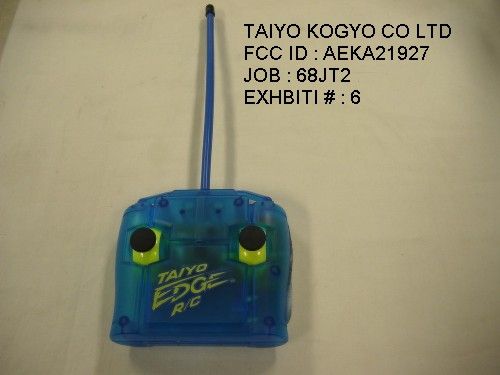

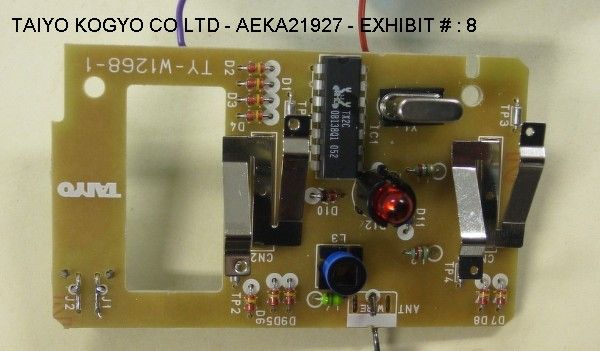

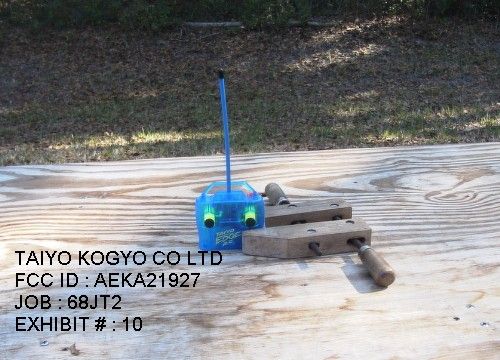

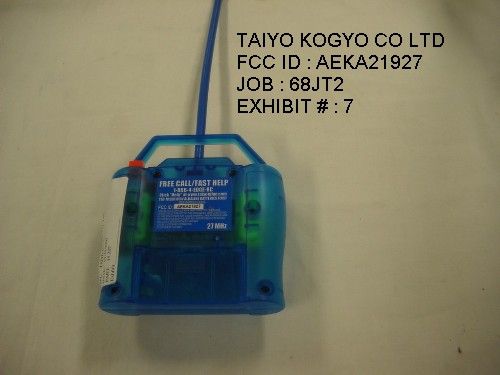

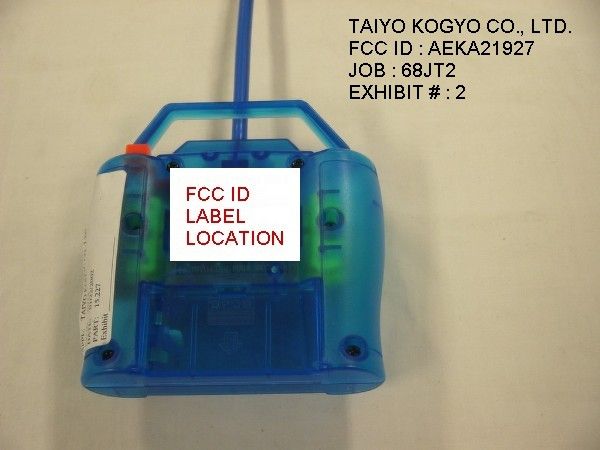

TABLE OF CONTENTS APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST PAGE 2......TEST PROCEDURE PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA PAGE 5......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............FCC ID LABEL SAMPLE EXHIBIT 2............SKETCH OF LABEL LOCATION EXHIBIT 3............BLOCK DIAGRAM EXHIBIT 4............SCHEMATIC EXHIBIT 5............USERS MANUAL EXHIBIT 6............EXTERNAL PHOTO - FRONT VIEW EXHIBIT 7............EXTERNAL PHOTO – REAR VIEW EXHIBIT 8............INTERNAL PHOTO - COMPONENT VIEW EXHIBIT 9............INTERNAL PHOTO - COPPER VIEW EXHIBIT 10...........TEST SET UP PHOTO EXHIBIT 11...........CIRCUIT DESCRIPTION APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 REPORT #: T\TAIYO\68JT2\68JT2RPT.doc PAGE: TABLE OF CONTENTS LIST APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3.__ Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 10/15/01 Due 10/15/02 5.__ Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 10/16/01 Due 10/16/02 6.__ Log-Periodic Antenna: Electro-Metrics Model LPA-25, S/N 1122 Char. 2/10/01 Due 3/10/02 7.__ Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 12/19/01 Due 12/19/02 8.__ 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 9.__ Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 10.__ Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 11.__ Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/22/02 Due 1/22/03 12.__ Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 12/11/01 Due 12/11/02 13.__ Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 14._X_Open Area Test Site #1-3meters Cal. 12/22/99 15.__ Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 16._X_Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 7/10/01 Due 7/10/02 17.__ Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 152 Cal. 3/21/01 Due 3/21/02 18.__ AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 19._X_Digital Multimeter: Fluke Model 77, S/N 35053830 Char. 1/8/02 Due 1/8/03 20.__ Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 REPORT #: T\TAIYO\68JT2\68JT2RPT.doc PAGE #: 1 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 72º with a humidity of 75%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 REPORT #: T\TAIYO\68JT2\68JT2RPT.doc PAGE #: 2 APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuV Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuV/m Margin dB 27.15 41.3 H 0.31 13.96 55.57 24.43 27.15 65.4 v 0.31 13.96 79.67 0.33 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: JOE SCOGLIO DATE: FEBRUARY 1, 2002 APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 REPORT #: T\TAIYO\68JT2\68JT2RPT.doc PAGE #: 3 APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.227 REQUIREMENTS: The field strength of any emissions appearing outside the 26.96-27.28 MHz band shall not exceed the general radiated emission limits in (15.209). THE GRAPH ON PAGE 5 OF THIS REPORT REPRESENTS THE WORSE CASE OCCUPIED BANDWIDTH EMISSIONS FOR THIS DEVICE. METHOD OF MEASUREMENT: A small sample of the transmitter output was fed into the spectrum analyzer and the attached plot was taken. The vertical scale is set to 10 dB per division. The horizontal scale is set to 10 kHz per division. TEST RESULTS: The unit DOES meet the FCC requirements. PERFORMED BY: JOE SCOGLIO APPLICANT: TAIYO KOGYO CO., LTD. FCC ID: AEKA21927 REPORT #: T\TAIYO\68JT2\68JT2RPT.doc PAGE #: 4 APPLICANT: TAIYO K…
