AEKA22049R49 MHz Receiver
Taiyo Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- CRR - Superregenerative Receiver
- Date of Grant
- Mar 26, 2002
- Application Purpose
- Original Equipment
- Date of Application
- Mar 26, 2002
- Equipment Note
- 49 MHz Receiver
- Frequency Range
- 49.82000000 - 49.90000000
- Company
- Taiyo Co., Ltd.
- Country
- Japan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Operational Description

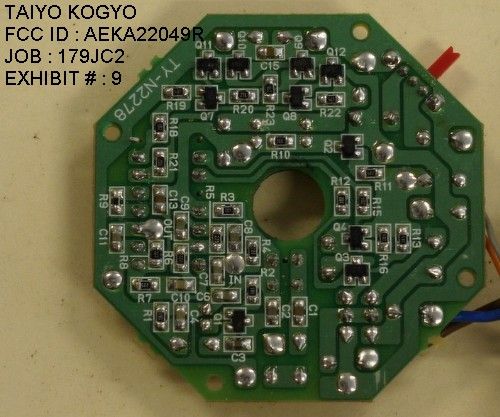

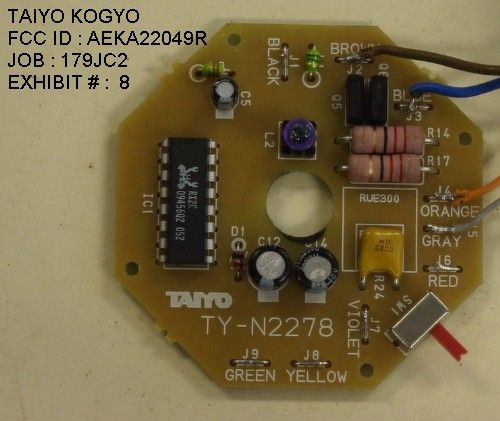

Circuit Description for Taiyo AEKA22049R This is a super-regenative receiver consisting of Q1 and its tuned circuit L2 and C2. IC1 is a decoder integrated circuit that generates the signals to drive the motors. The energy source is a 7.2 V battery that is regulated down to 3.3 Volts by Q2 and zener diode D1. Antenna and Ground. The antenna consists of a 6 inch wire inside the toy. There is no external ground connection. The printed circuit board pathways are the only ground connections.
Contact Information
Applicant
Hiroyuki Sasaki(Manager of Quality Assurance Section)
Test Firm
Timco Engineering, Inc.S Sanders
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | 49.82 MHz - 49.9 MHz | - |
