AEZA1303SASingle-Mode Cellular Phone (CDMA)

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone 1 2 3 4 5 6 Light (lights up in red) au telephone (with battery pack attached) Desktop charging holder Sanyo AC adapter 02 AC wall outlet 7 8 9 10 11 12 13 14 15 16 17 18 19 20

April 14, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO ELECTRIC Co., Ltd. FCC ID: AEZA1303SA Part 22 Certification Gentlemen: Submitted herewith, on behalf of SANYO ELECTRIC Co., Ltd., is an application for Part 22 Certification of the Single-Mode CDMA phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SANYO ELECTRIC Co., Ltd.

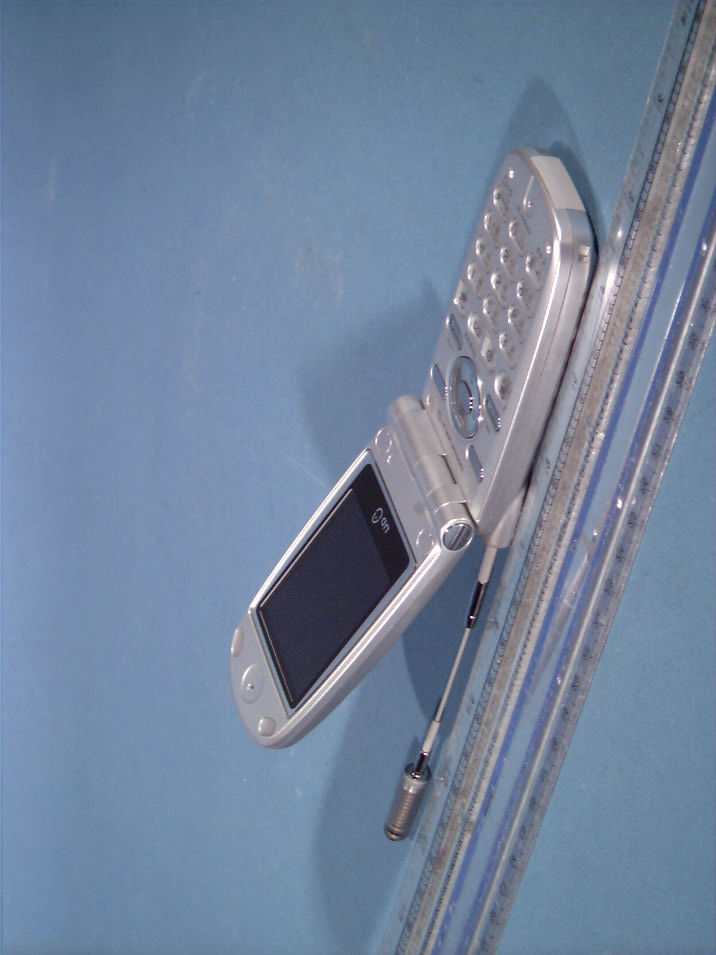

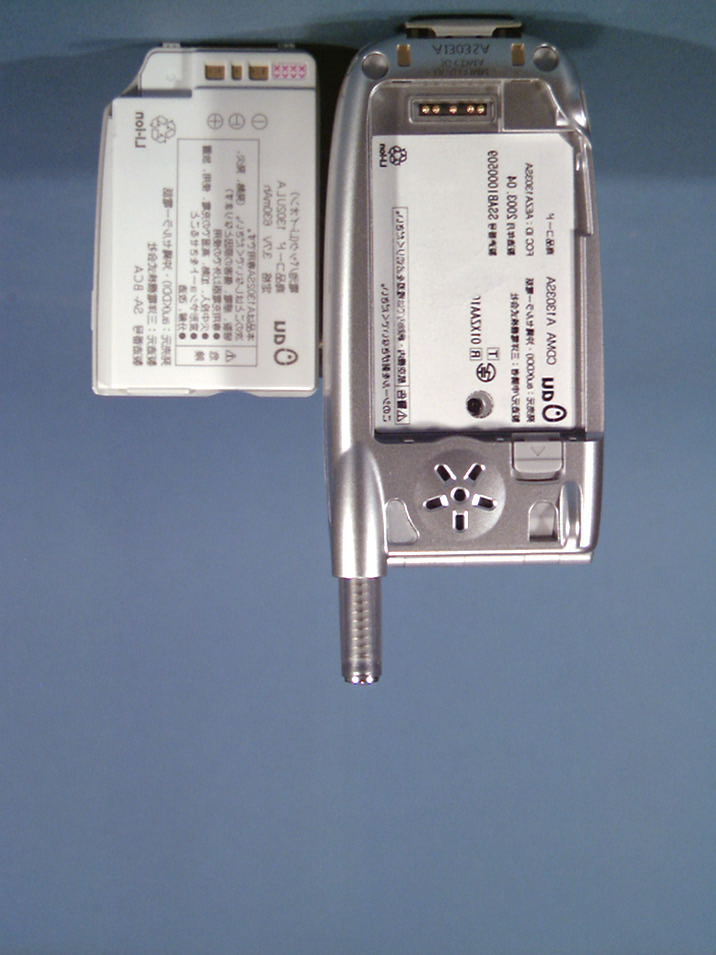

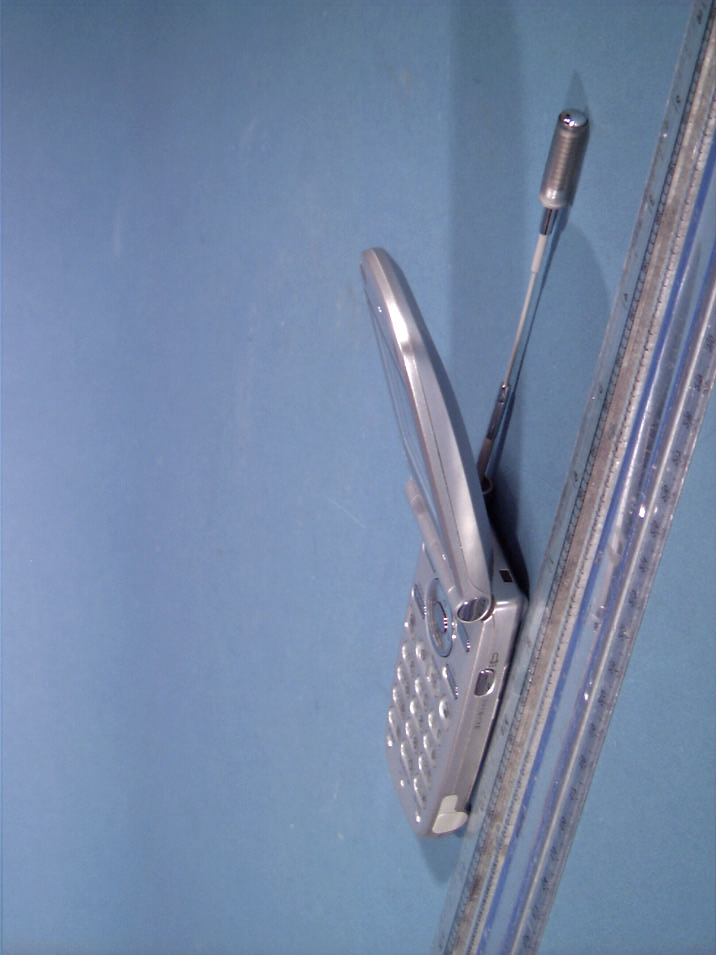

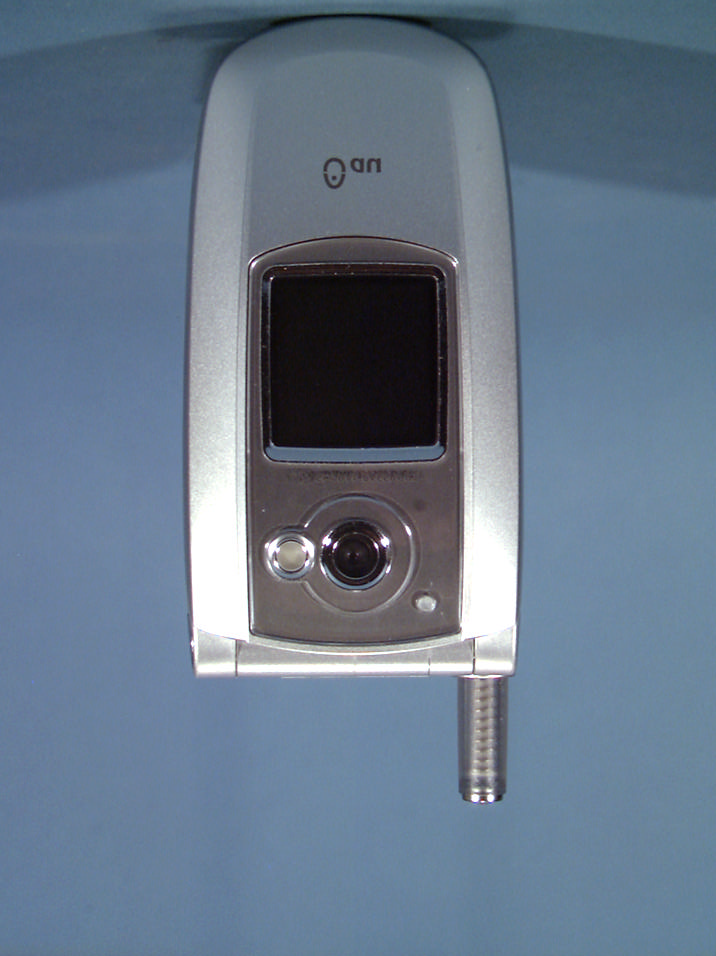

SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA

© 2003 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA

SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230407182.AEZ Test Dates: April 8-10, 2003 Phone Type: Single-Mode CDMA FCC ID: AEZA1303SA Page 1 of 25 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC Co., Ltd. Dates of Tests: April 8-10, 2003 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: SAR.230407182.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) FCC ID: AEZA1303SA APPLICANT: SANYO ELECTRIC CO., LTD. EUT Type: Single-Mode Cellular Phone (CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.317 W ERP CDMA (25.013 dBm) / 23.5 dBm Conducted Max. SAR Measurement: 1.42 W/kg CDMA Head SAR; 1.29 W/kg CDMA Body SAR Trade Name/Model(s): A1303SA FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230407182.AEZ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230407182.AEZ Test Dates: April 8-10, 2003 Phone Type: Single-Mode CDMA FCC ID: AEZA1303SA Page 2 of 25 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION ..........................................................................................3 SAR DEFINITION .........................................................................................3 2. SAR MEASUREMENT SETUP...........................................................................4 Robotic System..............................................................................................4 System Hardware...........................................................................................4 System Electronics..........................................................................................4 3. DASY3 E-FIELD PROBE SYSTEM......................................................................5 Probe Measurement System.............................................................................5 Probe Specifications.......................................................................................5 4. Probe Calibration Process................................................................................6 Dosimetric Assessment Procedure....................................................................6 Free Space Assessment....................................................................................6 Temperature Assessment.................................................................................6 5. PHANTOM & EQUIVALENT TISSUES..............................................................7 SAM Phantom................................................................................................7 Brain & Muscle Simulating Mixture Characterization..........................................7 Device Holder for Transmitters........................................................................7 6. TEST SYSTEM SPECIFICATIONS.......................................................................8 Automated Test System Specifications...............................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................9 Measurement Procedure.................................................................................9 Specific Anthropomorphic Mannequin (SAM) Specifications...............................9 8. DEFINITION OF REFERENCE POINTS............................................................10 EAR Reference Point.....................................................................................10 Handset Reference Points..............................................................................10 9. TEST CONFIGURATION POSITIONS.............................................................11 Positioning for Cheek/Touch..........................................................................11 Positioning for Ear / 15° Tilt...........................................................................12 Body Holster /Belt Clip Configurations............................................................13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS...............................................14 Uncontrolle…

Text truncated - open the document above for the full version.

PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230407183.AEZ Test Dates: April 8-10, 2003 Phone Type: Single Mode CDMA FCC ID: AEZA1303SA Page 1 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. 0 PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SANYO ELECTRIC Co., Ltd. Dates of Tests: April 8-10, 2003 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: 22.230407183.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) FCC ID AEZA1303SA APPLICANT SANYO ELECTRIC Co., Ltd. Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular Phone (CDMA) Model: A1303SA Tx Frequency Range: 824.70 – 848.31MHz (CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) Max. RF Output Power: 0.317 W ERP CDMA (25.013 dBm) Max. SAR Measurement: 1.42 W/kg CDMA Head SAR; 1.29 W/kg CDMA Body SAR Emission Designator(s): 1M25F9W Test Device Serial No. Identical Prototype [S/N: 1) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230407183.AEZ PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230407183.AEZ Test Dates: April 8-10, 2003 Phone Type: Single Mode CDMA FCC ID: AEZA1303SA Page 2 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EFFECTIVE RADIATED POWER OUTPUT 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT K: SCHEMATIC DIAGRAM(S) ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230407183.AEZ Test Dates: April 8-10, 2003 Phone Type: Single Mode CDMA FCC ID: AEZA1303SA Page 3 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SANYO ELECTRIC Co., Ltd. Address: c/o Sanyo Sales & Supply (USA) Corp. 900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 Attention: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) • FCC ID: AEZA1303SA • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) • Max. Power Rating: 0.317 W ERP CDMA (25.013 dBm) • FCC Classification(s): Non-Broadcast Transmitter Held to Ear (TNE) • Equipment (EUT) Type: Single-Mode Cellular Phone (CDMA) • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): §22.901(d), §2 • Dates of Tests: April 8-10, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.230407183.A3L PCTEST PT. 22 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22.230407183.AEZ Test Dates: April 8-10, 2003 Phone Type: Single Mode CDMA FCC ID: AEZA1303SA Page 4 of 17 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The …

Text truncated - open the document above for the full version.

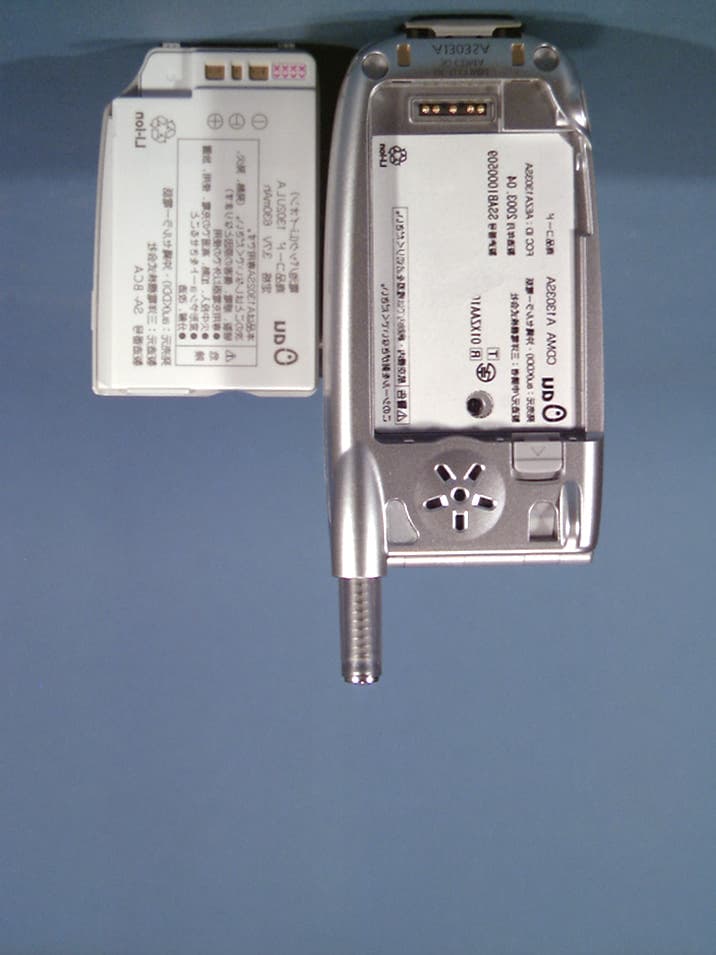

SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA SANYO FCC ID: AEZA1303SA EUT Photographs © 2003 PCTEST Lab. Single-Mode Cellular Phone (CDMA) Model: A1303SA
