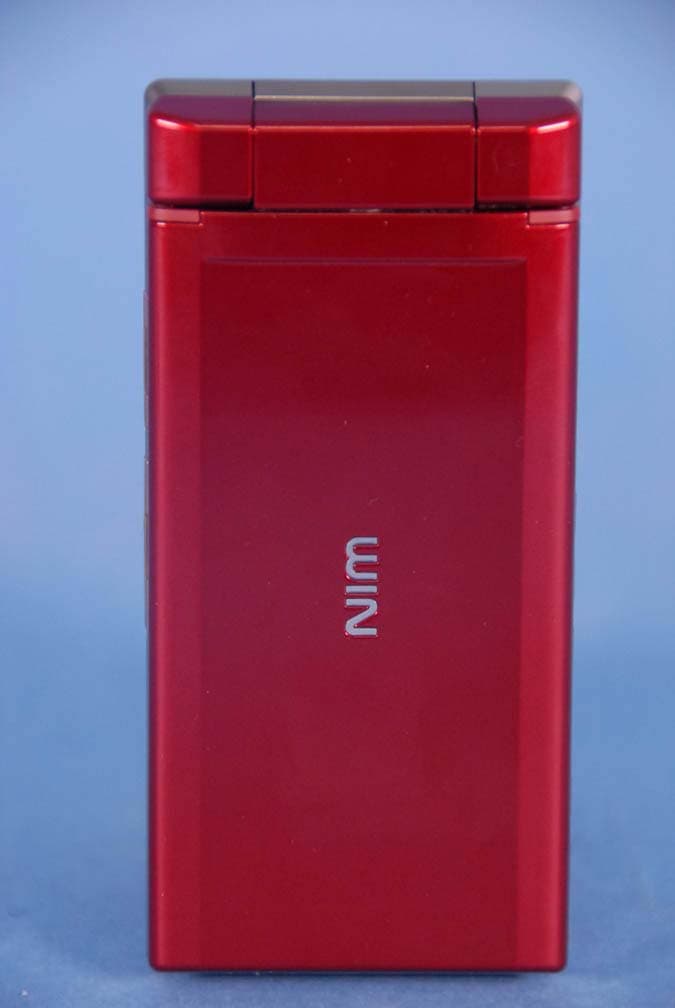

AEZW63SACellular CDMA Phone with Bluetooth

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Mar 30, 2008
Application Purpose: Original Equipment
Date of Application: Mar 30, 2008
Equipment Note: Cellular CDMA Phone with Bluetooth
Frequency Range: 824.70000000 - 848.31000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Operating Instructions Name & Function of Parts a Sub Camera b Earpiece c Display d Address book key e Mail key f Cursor key g Send / Pair key h Dial keys i Optical Sensor j Center key k EZ apps key l EZweb key m Clear / Memo key n Power / End key o Microphone p Incoming indicator q Flat-type Earphone Jack s Manner key t TV key u Side key v Pocket light key w Camera key x microSD Memory Card Slot y External Connector z Charging Terminals A Built-in Antenna B Infrares Port C Strap Hole D Flash/ Pocket light E Main Camera F Shooting illuminator G Speaker H Battery Pack Cover/ Battery Pack I Whip Antenna r Multi key - 1 - ■ Power saving during standby In order to minimize the power consumption, the W63SA display turns automatically to power saving mode when key operation is stopped for a while. The indication restores with key operation. ■key In this manual, the point at which to press the key is indicated as shown below. Example) Press or→ Getting Ready to Make a Call 1. Charging with the AC Adapter The battery charger can be charged by directly inserting the AC Adapter connector into the external connection terminal on the W63SA Main Unit. 2. Turning the power on Press and holdor more than one second. ◆Turning the power off Press and hold for more than one second. Switch to English 1. Presson the standby screen. 2. Select "機能設定" and press (選択). 3. Press . 4. Select "English" and press (設定). Displaying your own phone number 1. Presson the standby screen. 2. Select "Function" and press (Select) . 3 Press to display your au telephone number. Making a Call 1. Enter the phone number you want to call on the standby screen. Area code - Local code - Subscriber's number. <Example> 03-0001-XXXX Always include the area code, even when calling to a number in the same area you are in. If you enter a wrong number: ● Press briefly - the last dialed digit will be deleted. ● Press and hold - the entire phone number will be deleted. 2. Press to make a call. - 2 - Making an International Call 1. Enter the phone number you want to call using the following pattern on the standby screen. International dial code - Country code - Area code - Subscriber's number 2. Pressto make a call. <Example> to call United States, number 212-123-XXXX in the USA. Operation Explanation 1 Pressing "005345" Access code 2 Pressing "1" Country code of United States: 1 3 Pressing "212" Area code ※ : 212 4 Pressing "123-XXXX" Subscriber's number: 123-XXXX 5 Press The following operation is the same as the normal telephone operation. ※ When the first number of the area code is "0", press the area code number without "0". Adjusting the receiver volume 1. During a call, press . : Volume level raised. : Volume level lowered. Answering a call 1. The ringer tone sounds/vibrator buzzes, and the incoming call lamp flashes. 2. Press to answer the call. An incoming call can also be answered by pressing any of the ～ ,,, ,keys. If you do not answer the call or the caller disconnects before the call is answered, " Missed Call X " will be displayed. (A number appears in the "X".) Entering characters This is the method of entering names for registering address book and writing mail. 1. Press (Char.Type). 2. Select the entry mode you want. 漢字 "Kanji", "Hiragana" entry mode (full size) 1234 "Number" entry mode (half size) カナ "Katakana" entry mode (full size) "Pictographs" entry mode ｶﾀｶﾅ "Katakana" entry mode (half size) Sym "Symbol" entry mode AB・ab "Alphanumeric" entry mode (full size) Face "Face marks" entry mode １２ "Number" entry mode (full size) ABCD・ abcd "Alphanumeric" entry mode (half size) When you press the(Undo) just after the characters are confirmed, the characters return to the previous state. - 3 - [Assignment of characters and key functions] Characters are assigned to each key as shown below. Press a key repeatedly to cycle through characters assigned to that key. Entry mode key Kanji・Hiragana 漢字 Katakana カナ・ｶﾀｶﾅ Alphanumeric ＡＢ・ABCD Alphanumeric ａｂ・abcd Number １２・1234 あいうえおぁぃぅぇぉアイウエオァィゥェォ . @ - _ / : ～ 1 . @ - _ / : ～ 1 1 かきくけこカキクケコ ABC2 abc2 2 さしすせそサシスセソ DEF3 def3 3 たちつてとっタチツテトッ GHI4 ghi4 4 なにぬねのナニヌネノ JKL5 jkl5 5 はひふへほハヒフヘホ MNO6 mno6 6 まみむめもマミムメモ PQRS7 pqrs7 7 やゆよゃゅょヤユヨャュョ TUV8 tuv8 8 らりるれろラリルレロ WXYZ9 wxyz9 9 [カナ]ワヲンヮ､｡ー－･.！？（space）0 [ＡＢ] [ａｂ] 0（space）! ? ・， ’ ”＿．－わをんゎ、。－・～！？（space） [ｶﾀｶﾅ] ワヲン､｡ー－･.！？（space）0 [ABCD] [abcd] 0（space） ! " #$%& ' ( )＊ + , - . / : ; <=>?@[¥]^_` { | } ～ 0 (before confirm) ゙ (Voiced Sound symbol) ゚(Semi-voiced Sound symbol) Switches lowercase/uppercase (before confirm) Switcheslowercase/uppercase (after confirm) 、。－・～！？（スペース） (after confirm) ．，－！？． (before confirm)Reverse toggle of entered characters (after confirm)line change line change Remarks: ■ “～”can be inputted only when inputting full-sized characters.It changes to“ ～”when inputting helf-sized characters. ■ It is not likely to be able to change line on the input of part of character screen. ■ Inputting voiced sound symbol/semi-voiced sound symbol or switching uppercase/lowcase can be done by pressing after inputting the character. (A list of Pictographs, Face marks, and Characters is displayed if you press it after the inputted character is set.) < Example >つ→っ→づ→つハ→バ→パ→ハ a→A→a - 4 - Registering in the Address Book You can register frequently used phone numbers and E-mail addresses. Up to 1000 addresses can be registered in the address book. ■ Registering in the address book 1. Press and hold for more than one second on the standby screen. The address book registration screen list is displayed. 2. Enter the item you want. Select the icon of the item you want by and press(Select) to enter it. As for the items you can enter, see "Items to register in the address book". 3. Press (Reg) . ■ Items to register in the address book The following data can be put in the address book. Name Up to 12 full size (24 half size) characters. Reading Up to 24 half size characters. Registered automatically after "Name" is entered. Phone No.1～3 Up t…

Text truncated - open the document above for the full version.

Cover Letter(s)

1 From: Koichi Takahashi Sent: Monday, March 31, 2008 12:39 PM To: PCTEST TCB Subject: Fw: Questions Regarding FCC ID: AEZW63SA Dear Mr. Gregory Czumak, Sorry for missing to respond #1 and #7 questions. 1. When we ship the handset, battery pack and battery cover are not attached to the handset, and our customer will see the FCC ID label at the time of purchase. The attached file is an example of label. 7. EUT will not be connected to a pc in the States, though the USB connector is provided, which will be usd only in Japan, where PAM, or phone as modem, is supported by KDDI. Koichi Takahashi ----- Original Message ----- From: "PCTEST TCB" <[email protected]> Sent: Friday, March 28, 2008 12:44 PM Subject: Follow-Up Questions for FCC ID: AEZW63SA Dear Mr. Takahashi-san, Thank you for your response to the referenced application. Please see below follow-up question pertaining to your submittal. Follow-Up RT: 1. We note, however, that you did not respond to questions 1 and 7 (copied below). Please respond to these questions. All that the FCC requires for the first is a statement from the manufacturer that, since the EUT will be marketed without the battery and battery compartment door installed, the FCC ID label will be clearly visible at the time of purchase. For question 7, if the EUT cannot connect to a pc, please state that. If it can, please inform us if that portion of the EUT (pc peripheral) will be authorized under DoC, and submit the new FCC ID label showing the FCC DoC logo. Or, if you prefer to authorize it under Certification, please inform PCTEST, so that they can generate the required test report. 1. Please verify that the FCC ID label will be visible at the time of purchase, as required. 7. Does the EUT connect to a pc? We note that the user's manual references an External Connector, and the block diagram shows USB function. If it does, then it is also a pc peripheral, subject to either DoC or Certification. Please address. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 2 Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non- business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

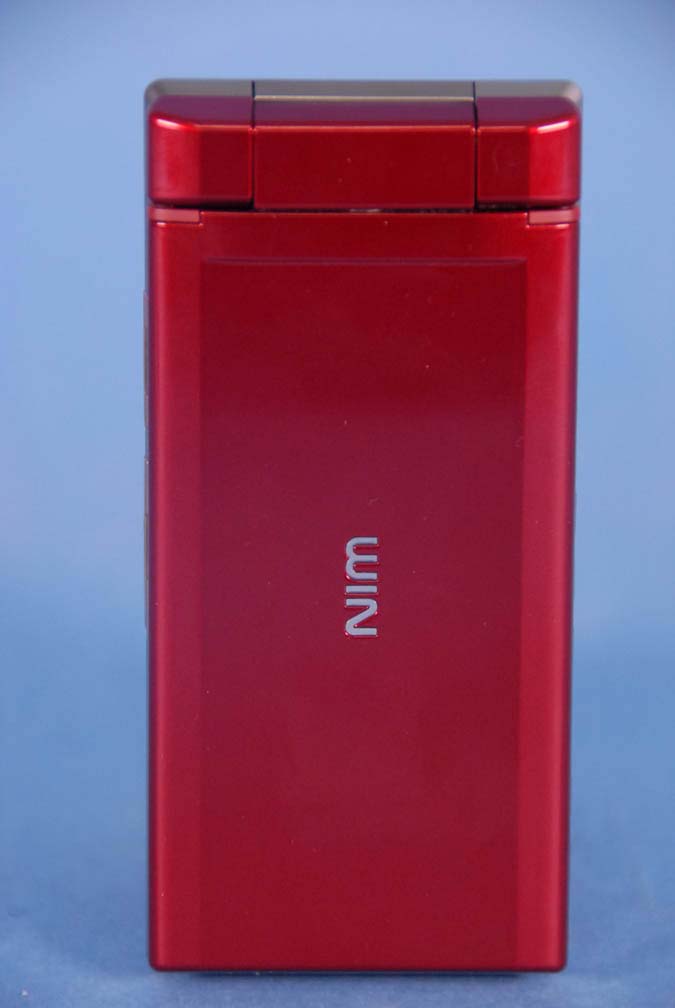

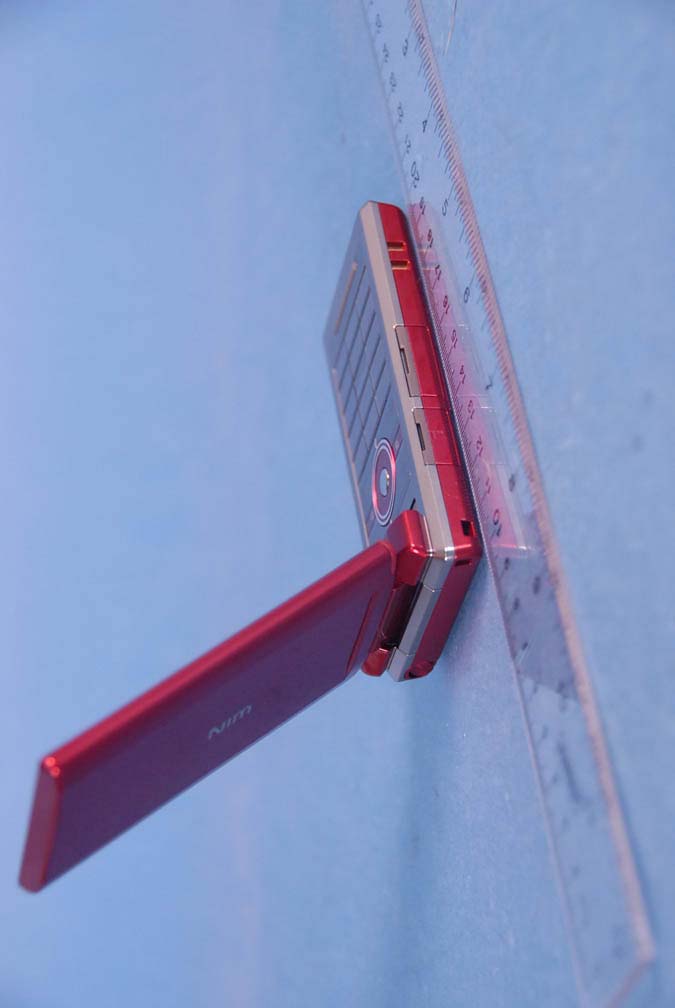

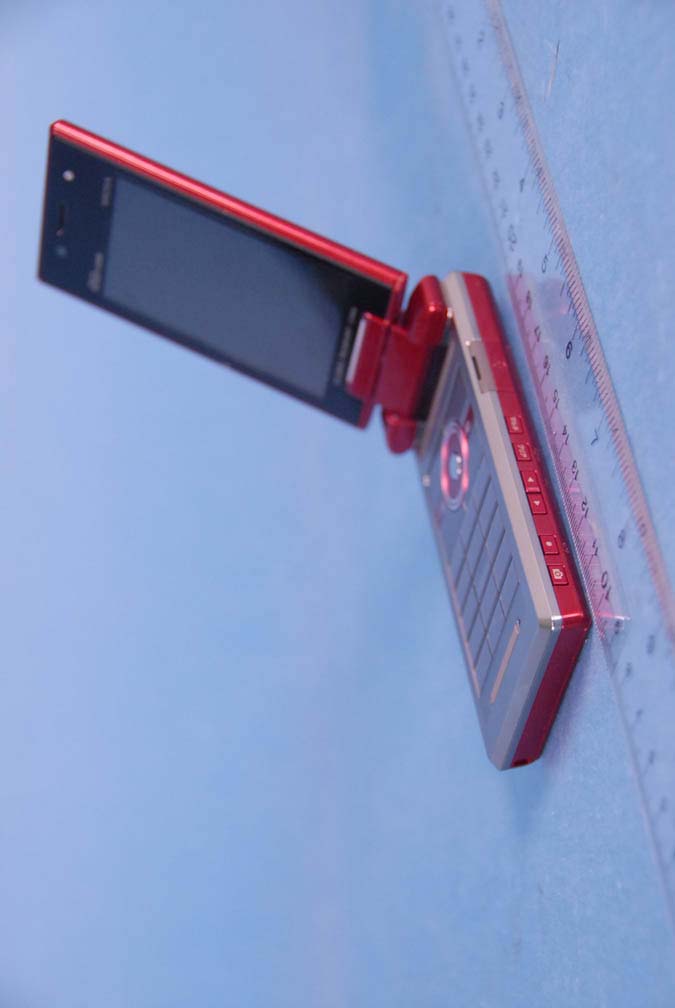

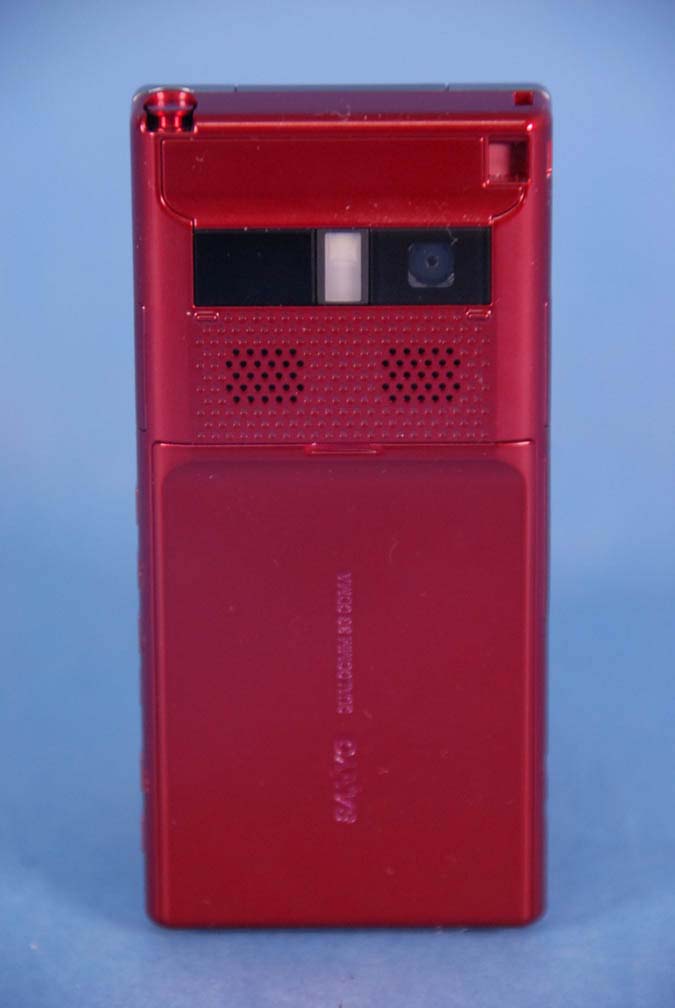

External Photos

Internal Photos

RF Exposure Info

Reviewed by: FCC ID: AEZW63SA CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0801300126.AEZ 02/04/08 - 02/05/08 Cellular CDMA Phone with Bluetooth Page 1 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.7C 01/03/08 Applicant Name: Date of Testing: Sanyo Fisher Company 02/04/08 - 02/05/08 21605 Plummer Street Test Site/Location: Chatsworth, CA 91311 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0801300126.AEZ FCC ID: AEZW63SA APPLICANT: SANYO FISHER COMPANY EUT Type: Cellular CDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): W63SA Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) Conducted Power: 23.36 dBm Cellular CDMA Max. SAR Measurement: 0.447 W/kg CDMA Head SAR / 0.658 W/kg CDMA Body SAR Test Device Serial No.: Pre-Production [S/N: SSAEB000353] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: AEZW63SA CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0801300126.AEZ 02/04/08 - 02/05/08 Cellular CDMA Phone with Bluetooth Page 2 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.7C 01/03/08 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 17 14 SAR DATA SUMMARY ................................................................................................................. 19 15 EQUIPMENT LIST......................................................................................................................... 21 16 CONCLUSION............................................................................................................................... 22 17 REFERENCES .............................................................................................................................. 23 Reviewed by: FCC ID: AEZW63SA CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0801300126.AEZ 02/04/08 - 02/05/08 Cellular CDMA Phone with Bluetooth Page 3 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 4.7C 01/03/08 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electr…

Text truncated - open the document above for the full version.

Test Report

Reviewed by: FCC ID: AEZW63SA FCC Pt. 22 CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801300125.AEZ February 7, 2008 Cellular CDMA Phone with Bluetooth Page 1 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 7.3C 02/07/2008 Applicant Name: Date of Testing: Sanyo Fisher Company February 7, 2008 21605 Plummer Street Test Site/Location: Chatsworth, CA 91311 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0801300125.AEZ FCC ID: AEZW63SA APPLICANT: SANYO FISHER COMPANY Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2; §22(H) EUT Type: Cellular CDMA Phone with Bluetooth Model(s): W63SA Tx Frequency Range: 824.70 - 848.31MHz (Cell. CDMA) Max. RF Output Power: 0.27 W ERP Cell. CDMA (24.31 dBm) Emission Designator(s): 1M27F9W (CDMA) Test Device Serial No.: identical prototype [S/N: SSAEB000354] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Reviewed by: FCC ID: AEZW63SA FCC Pt. 22 CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801300125.AEZ February 7, 2008 Cellular CDMA Phone with Bluetooth Page 2 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 7.3C 02/07/2008 TABLE OF CONTENTS FCC PART 22 MEASUREMENT REPORT.................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 7 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS................................................................................... 7 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 8 3.6 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 8 3.7 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 CELLULAR CDMA RADIATED MEASUREMENTS........................................................................... 13 6.4 CELLULAR CDMA FREQUENCY STABILITY MEASUREMENTS ................................................... 16 7.0 PLOT(S) OF EMISSIONS ..............................................................................................................18 8.0 CONCLUSION................................................................................................................................24 Reviewed by: FCC ID: AEZW63SA FCC Pt. 22 CDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0801300125.AEZ February 7, 2008 Cellular CDMA Phone with Bluetooth Page 3 of 24 © 2008 PCTEST Engineering Laboratory, Inc. REV 7.3C 02/07/2008 MEASUREMENT REPORT FCC Part 22 §2.1033 General Information APPLICANT: Sanyo Fisher Company APPLICANT ADDRESS: 21605 Plummer Street Chatsworth, CA 91311 TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 6660-B Dobbin Road, Columbia, MD 21045 USA FCC RULE PART(S): §…

Text truncated - open the document above for the full version.

Test Setup Photos

Sanyo FCC ID: AEZW63SA Model: W63SA SAR Test Setup Photos Cellular CDMA Phone with Bluetooth Page 1 of 5 © 2008 PCTEST Lab. REV 2.1 05/24/2007 1. Right Head SAR 2. Left Head SAR Sanyo FCC ID: AEZW63SA Model: W63SA SAR Test Setup Photos Cellular CDMA Phone with Bluetooth Page 2 of 5 © 2008 PCTEST Lab. REV 2.1 05/24/2007 3. Right Head SAR, Cheek Touch 4. Right Head SAR, 15 ̊ Tilt Sanyo FCC ID: AEZW63SA Model: W63SA SAR Test Setup Photos Cellular CDMA Phone with Bluetooth Page 3 of 5 © 2008 PCTEST Lab. REV 2.1 05/24/2007 5. Left Head SAR, Cheek Touch 6. Left Head SAR, 15 ̊ Tilt Sanyo FCC ID: AEZW63SA Model: W63SA SAR Test Setup Photos Cellular CDMA Phone with Bluetooth Page 4 of 5 © 2008 PCTEST Lab. REV 2.1 05/24/2007 7. Body SAR 8. Body SAR, Front Side with 15mm Space Sanyo FCC ID: AEZW63SA Model: W63SA SAR Test Setup Photos Cellular CDMA Phone with Bluetooth Page 5 of 5 © 2008 PCTEST Lab. REV 2.1 05/24/2007 9. Body SAR, Back Side with 15mm Space

Contact Information

Applicant

Hideaki Mukaida

[email protected]818-998-7322Fax: 818-701-4192

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.7 MHz - 848.31 MHz	270.00 mW	1M27F9W	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP. SAR compliance for body-worn operation is based on a separation distance of 1.5 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not listed in this filing may not contain metallic components. The highest reported SAR values are: Head: 0.447 W/kg; Body-worn: 0.658 W/kg.
