AEZA5505SADual-Band CDMA Phone

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.9 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.9 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone 1 q w e r t y u i o !0 !1 !2 !3 !4 !5 !6 !7 q w e r t y u i o !0 !1 !2 !3 !4 !5 !6 !7 2 !8 !9 @0 @1 @2 @3 @4 @5 @6 @7 @9 #0 #1 #2 @8 !8 !9 @0 @1 @2 @3 @4 @5 @6 @7 @8 @9 #0 #1 #2 3 4 5 6 7 8 9 10 11 12 13 14

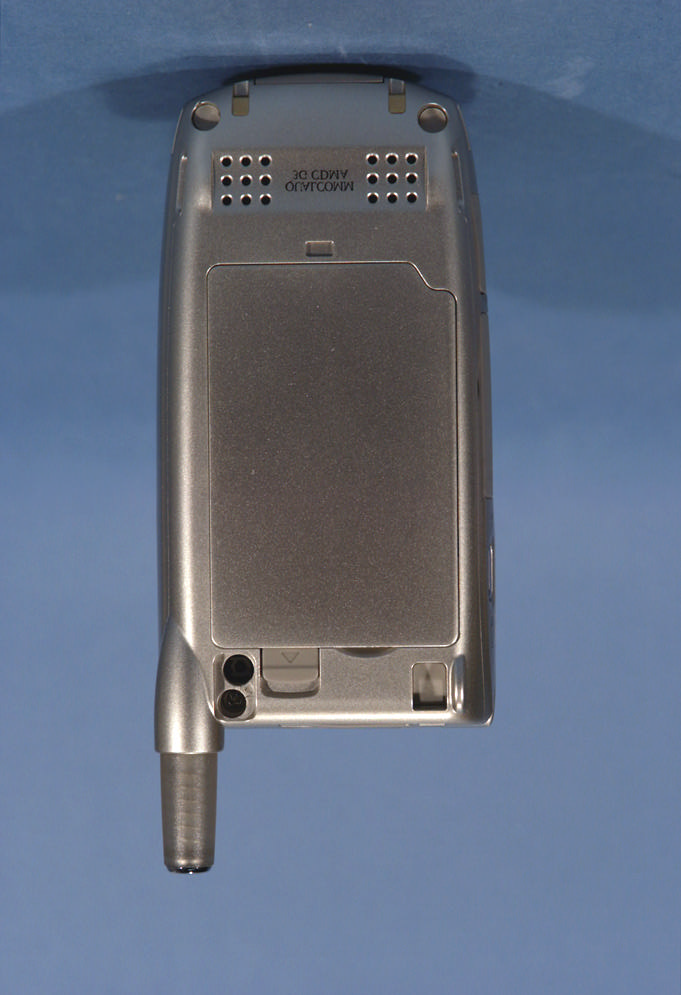

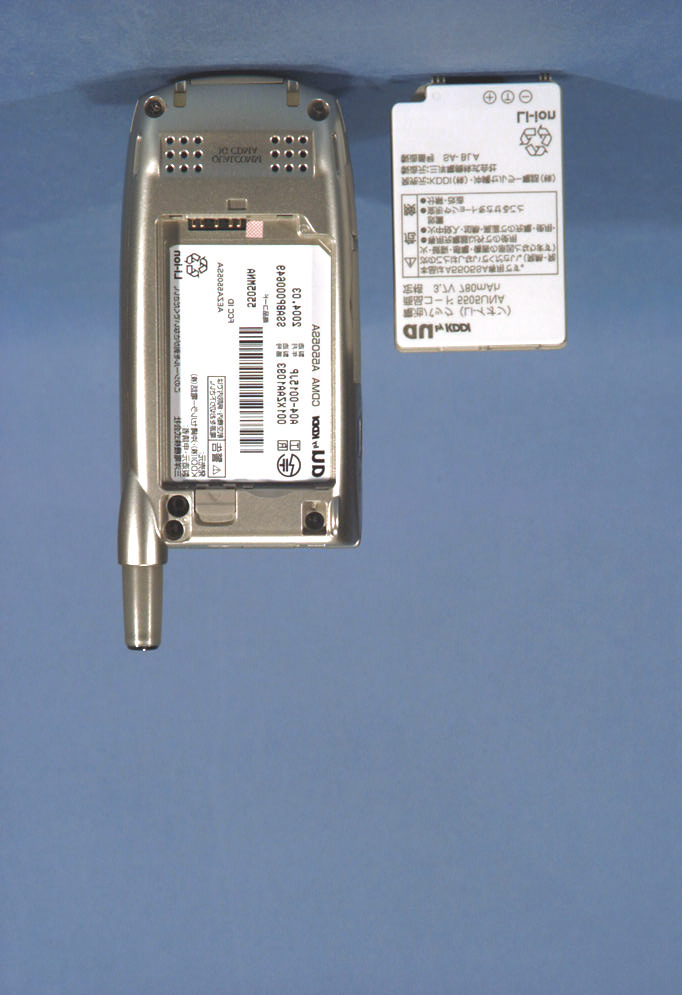

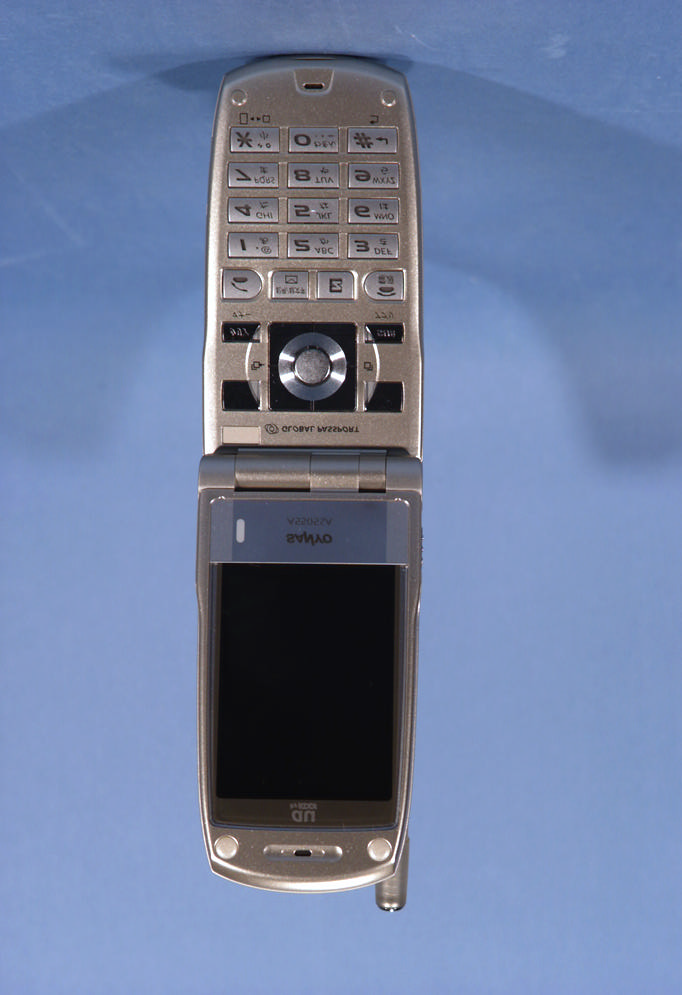

SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.240209132.AEZ Test Dates: DEC. 8-10, 2003 & March 8-10, 2004 EUT Type: Dual-Band Phone FCC ID: AEZA5505SA Page 1 of 1 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

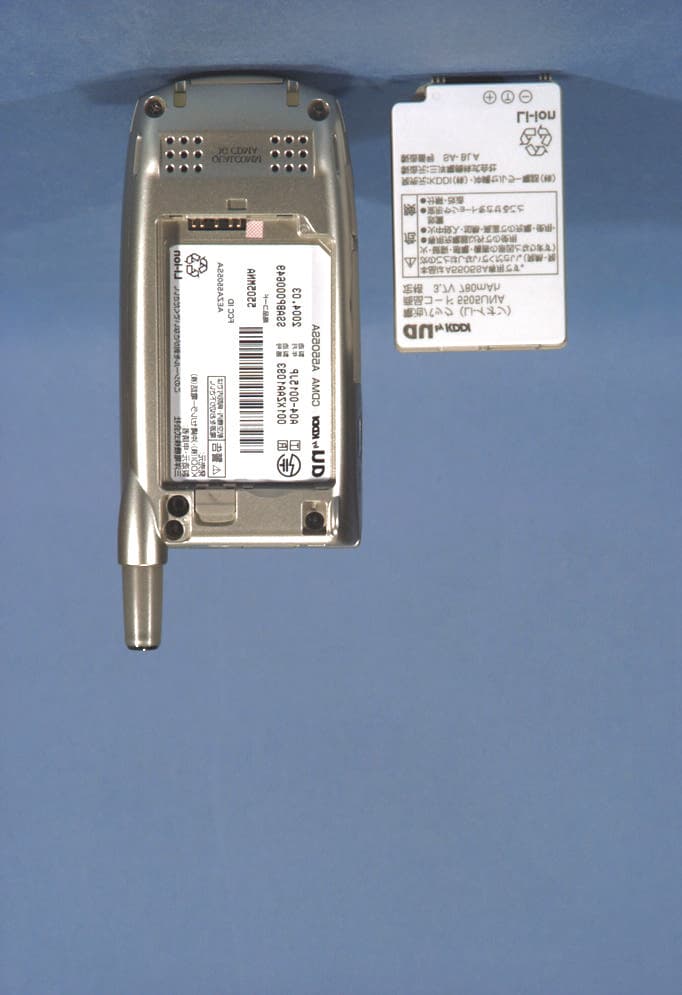

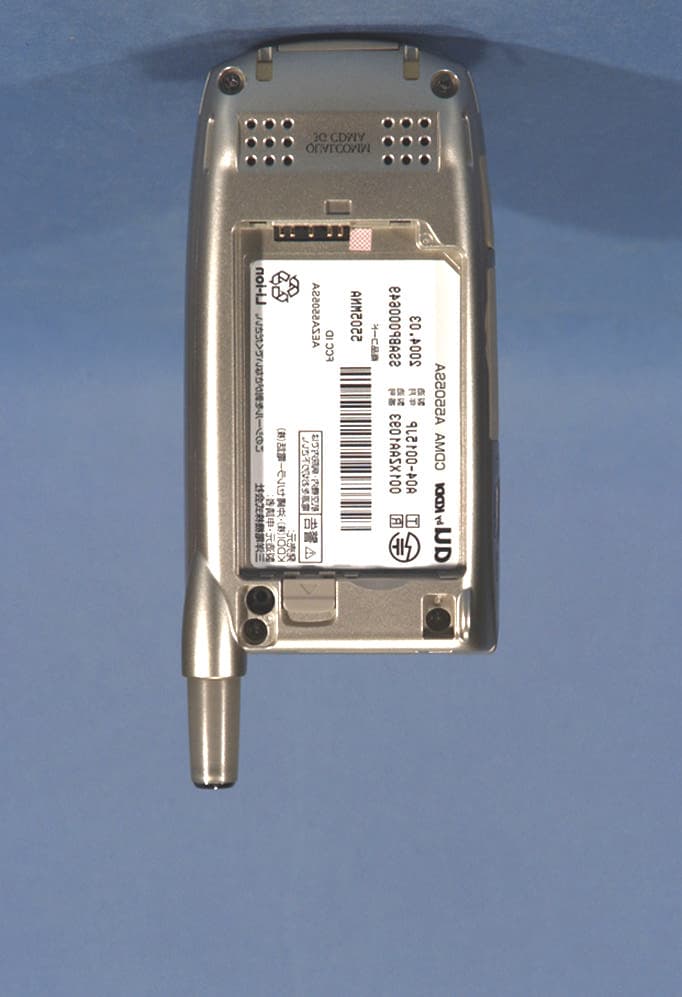

SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231204602.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band Phone FCC ID: AEZ5505SA Page 1 of 30 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC Co., Ltd. Dates of Tests: December 8-10, 2003 & c/o Sanyo Sales & Supply (USA) Corp. March 8-10, 2004 900 North Arlington Heights Road, Suite 300 Test Report S/N: SAR.231204602.AEZ Itasca, IL 60143-2844 Test Site: PCTEST Lab, Columbia MD FCC ID: AEZA5505SA APPLICANT: SANYO ELECTRIC Co., Ltd. EUT Type: Dual-Band CDMA Phone Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.355 W ERP CDMA (25.503 dBm) / 24.5 dBm Conducted 0.355 W EIRP PCS CDMA (25.501 dBm) / 23.0 dBm Conducted Max. SAR Measurement: 0.581 W/kg CDMA Head SAR; 0.934 W/kg CDMA Body SAR; 0.591 W/kg PCS CDMA Head SAR; 0.652 W/kg PCS CDMA Body SAR Trade Name/Model(s): A5505SA FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: FCC1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231204602.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band Phone FCC ID: AEZ5505SA Page 2 of 30 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS..........................................................................11-13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17 14. SAR DATA SUMMARY (Continued).............................................................................18-27 15. SAR TEST EQUIPMENT...................................................................................................28 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231204602.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band Phone FCC ID: AEZ5505SA Page 3 of 30 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New Y…

Text truncated - open the document above for the full version.

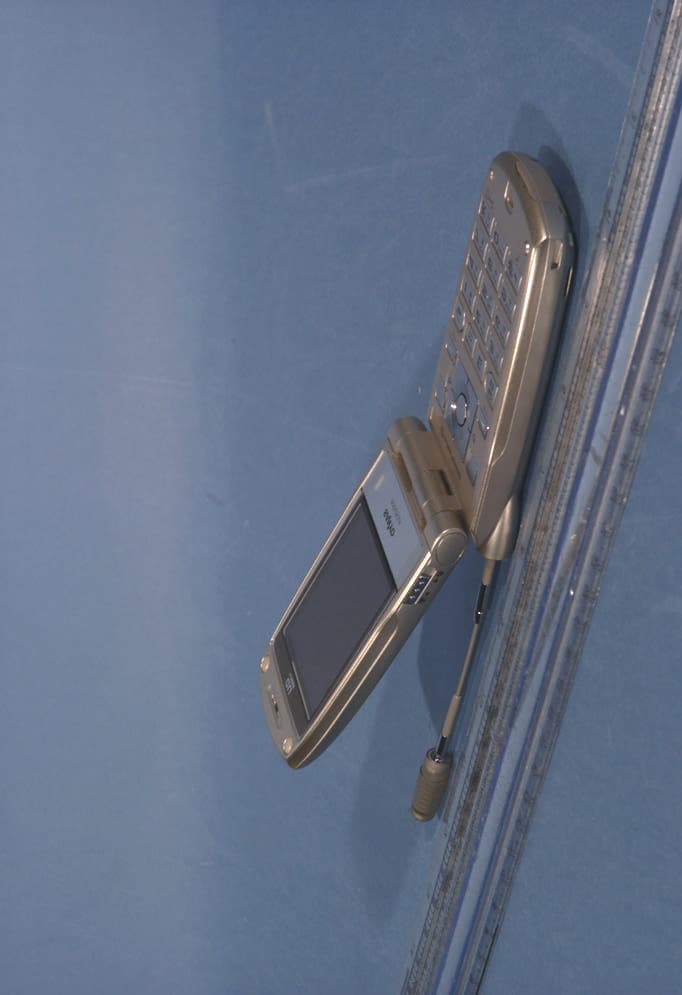

SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA SANYO FCC ID: AEZA5505SA EUT Photographs © 2004 PCTEST Lab. Dual-Band PCS Phone Model: A5505SA

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231204601.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band CDMA Phone FCC ID: AEZA5505SA Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification SANYO ELECTRIC Co., Ltd. Dates of Tests: December 8-10, 2003 & c/o Sanyo Sales & Supply (USA) Corp. March 8-10, 2004 900 North Arlington Heights Road, Suite 300 Test Report S/N: 22/24.231204601.AEZ Itasca, IL 60143-2844 Test Site: PCTEST Lab, Columbia MD FCC ID AEZA5505SA APPLICANT SANYO ELECTRIC CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Dual-Band CDMA Phone Model: A5505SA Tx Frequency Range: 824.70 – 848.31MHz (CDMA) / 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA) / 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.356 W ERP CDMA (25.501 dBm) / 0.355 W EIRP PCS CDMA (25.503 dBm) Max. SAR Measurement: 0.581 W/kg CDMA Head SAR; 0.934 W/kg CDMA Body SAR; 0.591 W/kg PCS CDMA Head SAR; 0.652 W/kg PCS CDMA Body SAR Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: FCC1 ] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231204601.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band CDMA Phone FCC ID: AEZA5505SA Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231204601.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band CDMA Phone FCC ID: AEZA5505SA Page 3 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SANYO ELECTRIC Co., Ltd. Address: c/o Sanyo Sales & Supply (USA) Corp. 900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 Attention: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) • FCC ID: AEZA5505SA • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.355 W ERP CDMA (25.503 dBm) 0.355 W EIRP PCS CDMA (25.502 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: December 8-10, 2003 & March 8-10, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.231204601.AEZ PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231204601.AEZ Test Dates: Dec. 8-10, 2003 & March 8-10, 2004 Phone Type: Dual-Band CDMA Phone FCC ID: AEZA5505SA Page 4 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambien…
