AEZC412SASingle-Mode Cellular Phone (CDMA)

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: May 07, 2001
Application Purpose: Original Equipment
Date of Application: Mar 07, 2001
Equipment Note: Single-Mode Cellular Phone (CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

March 7, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO ELECTRIC CO., LTD FCC ID: AEZC412SA Part 22 Certification Gentlemen: Attached herewith, on behalf of SANYO ELECTRIC CO., LTD., is an application for Part 22.901(d) Certification of the following Single Mode Cellular CDMA Phone: FCC ID: AEZC412SA TRADE / MODEL(s): SANYO AEZC412SA EUT Classification: Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.290 W ERP CDMA (24.623 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Koichi Takahashi V.P. Marketing SANYO Fisher (USA) Corporation

Cover Letter(s)

May 7, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Liemer SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZC412SA 731 Confirmation No.: EA100276 Correspondence Reference No.: 19036 Request for Tech. Info.: 05/04/2001 Dear Andy: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated May 4, 2001. 1. Please find attached the revised RF Warning Statement. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

External Photos

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

© 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone © 2001 PCTEST Lab FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 SANYO Single Mode Cellular Phone

RF Exposure Info

Peak SAR Location © 2001 PCTEST Lab SANYO FCC ID: AEZC412SA (Model: C412SA) NVLAP Lab Code: 100431-0 Single-Mode Phone (CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01022608_ZOOM.VLT Start : 26-Feb-101 11:51:25 am End : 26-Feb-101 12:02:46 pm Radio Type : SANYO Model Number : C412SA Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.225 W Start Trans. Pwr: 0.225 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SANYO CDMA-MODE PHONE CHAN 1013 Conducted 23.5 dBm SANYO CDMA-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.000, Y = -2.000, Z = 0.000 (cm) Value = 21.940 Measured Values (volts) = 2.125E-002 1.820E-002 1.571E-002 1.368E-002 1.195E-002 1.061E-002 9.528E-003 8.613E-003 7.506E-003 6.605E-003 5.770E-003 4.702E-003 3.929E-003 3.272E-003 2.661E-003 2.264E-003 2.067E-003 1.869E-003 1.807E-003 1.812E-003 1.804E-003 Calc. Voltage @ Surface (Vs) = 0.0247 Voltage @ 1.00 cm (Vt) = 0.0137 Ave. Voltage (Vs+Vt)/2 = 0.0192 Ave. SAR over 1 g (mW/g) = 1.4007 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01022608_ZOOM Start : 26-Feb-101 11:51:25 am End : 26-Feb-101 12:02:46 pm SANYO/C412SA/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01022608_ZOOM Start : 26-Feb-101 11:51:25 am End : 26-Feb-101 12:02:46 pm SANYO/C412SA/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.60 1.46 1.32 1.18 1.04 0.90 0.76 0.61 0.47 0.33 File : 01022608_ZOOM Start : 26-Feb-101 11:51:25 am End : 26-Feb-101 12:02:46 pm SANYO/C412SA/1;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.60 1.46 1.32 1.18 1.04 0.90 0.76 0.61 0.47 0.33 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01022615_ZOOM.VLT Start : 26-Feb-101 03:52:43 pm End : 26-Feb-101 04:03:56 pm Radio Type : SANYO Model Number : C412SA Serial Number : 1 Frequency : 824.70 MHz Peak Trans. Pwr : 0.225 W Start Trans. Pwr: 0.225 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SANYO CDMA-MODE PHONE CHAN 1013 Conducted 23.5 dBm SANYO CDMA-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.250, Y = -2.250, Z = 0.000 (cm) Value = 17.303 Measured Values (volts) = 1.626E-002 1.513E-002 1.284E-002 1.108E-002 9.476E-003 8.474E-003 7.374E-003 6.480E-003 5.472E-003 4.638E-003 3.715E-003 3.035E-003 2.488E-003 2.005E-003 1.625E-003 1.517E-003 1.458E-003 1.451E-003 1.468E-003 1.432E-003 1.410E-003 Calc. Voltage @ Surface (Vs) = 0.0183 Voltage @ 1.00 cm (Vt) = 0.0111 Ave. Voltage (Vs+Vt)/2 = 0.0147 Ave. SAR over 1 g (mW/g) = 1.0725 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 01022615_ZOOM Start : 26-Feb-101 03:52:43 pm End : 26-Feb-101 04:03:56 pm SANYO/C412SA/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01022615_ZOOM Start : 26-Feb-101 03:52:43 pm End : 26-Feb-101 04:03:56 pm SANYO/C412SA/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.26 1.15 1.03 0.91 0.80 0.68 0.56 0.45 0.33 0.21 File : 01022615_ZOOM Start : 26-Feb-101 03:52:43 pm End : 26-Feb-101 04:03:56 pm SANYO/C412SA/1;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.26 1.15 1.03 0.91 0.80 0.68 0.56 0.45 0.33 0.21 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01022616_ZOOM.VLT Start : 26-Feb-101 04:07:24 pm End : 26-Feb-101 04:16:56 pm Radio Type : SANYO Model Number : C412SA Serial Number : 1 Frequency : 835.89 MHz Peak Trans. Pwr : 0.240 W Start Trans. Pwr: 0.240 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 41.500 Mixture Conductivity = 0.900 Comment : SANYO CDMA-MODE PHONE CHAN 0363 Conducted 23.8 dBm SANYO CDMA-MODE PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.250, Y = -2.250, Z = 0.000 (cm) Value = 22.696 Measured Values (volts) = 2.080E-002 1.827E-002 1.609E-002 1.404E-002 1.232E-002 1.092E-002 9.449E-003 8.564E-003 7.285E-003 6.240E-003 5.154E-003 4.227E-003 3.426E-003 2.813E-003 2.281E-003 2.071E-003 1.904E-003 1.895E-003 1.879E-003 1.864E-003 1.782E-003 Calc. Voltage @ Surface (Vs) = 0.0236 Voltage @ 1.00 cm (Vt) = 0.0140 Ave. Voltage (Vs+Vt)/2 = 0.0188 Ave. SAR over 1 g (mW/g) = 1.3747 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 01022616_ZOOM Start : 26-Feb-101 04:07:24 pm End : 26-Feb-101 04:16:56 pm SANYO/C412SA/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 File : 01022616_ZOOM Start : 26-Feb-101 04:07:24 pm End : 26-Feb-101 04:16:56 pm SANYO/C412SA/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.66 1.50 1.35 1.19 1.04 0.89 0.73 0.58 0.43 0.27 File : 01022616_ZOOM Start : 26-Feb-101 04:07:24 pm End : 26-Feb-101 04:16:56 pm SANYO/C412SA/1;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/41.500/0.900 1.66 1.50 1.35 1.19 1.04 0.89 0.73 0.58 0.43 0.27 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01022610_ZOOM.VLT…

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SANYO ELECTRIC CO., LTD. Dates of Tests: Feb. 26 - 27, 2001 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: SAR.210226106.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia, MD USA Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. Engineering SANYO Fisher Company (USA) FCC ID AEZC412SA APPLICANT SANYO Electric Co., Ltd. EUT Type: Single Mode Cellular Phone (CDMA) Tx Frequency: 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.290 W ERP CDMA (25.13 dBm) Trade Name/Model(s): SANYO C412SA FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Antenna Model: NIPPON ANTENNA SA4349 Whip Antenna Maximum SAR: 1.4007 W/kg (Brain SAR) 1.2890 W/kg (Body SAR) 2.1506 W/kg Avg. over 10gm (Hand SAR) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210226106.AEZ Test Report S/N: SAR.210226106.AEZ SAR Measurement Report Test Dates: FEB. 26 - 27, 2001 FCC Part 22Certification Table of Contents 1.1 SCOPE........................................................................................................................1 2.1 INTRODUCTION.......................................................................................................2 2.2 SAR Definition......................................................................................................2 3.1 SAR MEASUREMENT SET-UP............................................................................3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM..............................................................4 5.1 E-field PROBE CALIBRATION PROCESS.........................................................5 6.1 PHANTOM AND EQUIVALENT TISSUES..........................................................7 7.1 SYSTEM SPECIFICATIONS..................................................................................8 8.1 MEASUREMENT PROCESS.................................................................................9 9.1 TEST POSITION OF THE PHONE......................................................................10 10.1 BODY-WORN TEST SETUP..............................................................................11 11.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS........................................12 12.1 MEASUREMENT UNCERTAINTIES.................................................................13 13.1 SAR TEST DATA SUMMARY............................................................................14 14.1 SAR TEST EQUIPMENT.....................................................................................17 15.1 CONCLUSION.......................................................................................................18 Test Report S/N: SAR.210226106.AEZ SAR Measurement Report Test Dates: Feb. 26 - 27, 2001 FCC Part 22 Certification FCC ID: AEZC412SA (Model: C412SA) © 2001 PCTEST Lab SANYO Single Mode Cellular Phone 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name: SANYO ELECTRIC CO., LTD. Address: c/o Sanyo Sales & Supply (USA) Corp. 900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 Attention: Mr. Koichi Takahashi, V.P. Engineering SANYO Fisher Company (USA) • EUT Type: Single Mode Cellular Phone (CDMA) • Trade Name: SANYO • Model(s): C412SA • FCC IDENTIFIER: AEZC412SA • Tx Frequency: 824.70 – 848.32 MHz (CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max RF. Output Power: 0.290W ERP CDMA (24.62 dBm) • Date(s) of Tests: Feb. 26 - 27, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210226106.AEZ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210226106.AEZ SAR Measurement Report Test Dates: Feb. 26 - 27, 2001 FCC Part 22 Certification FCC ID: AEZC412SA (Model: C412SA) © 2001 PCTEST Lab SANYO Single Mode Cellular Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published…

Text truncated - open the document above for the full version.

RF Exposure Info

FCC RF EXPOSURE INFORMATION WARNING! Read this information before using your phone In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damage antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.71 inches (1.8 cm) from body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.71 inches (1.8 cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holster and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.71 inch (1.8 cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov

Test Report

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification SANYO ELECTRIC CO., LTD Dates of Tests: February 26-27, 2001 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: 22.210226126.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia, MD Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation FCC ID AEZC412SA APPLICANT SANYO ELECTRIC CO., LTD Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: Single-Mode Cellular Phone (CDMA) Trade Name/Model(s): SANYO C412SA Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 ~ 893.31 MHz Max. RF Output Power: 0.290 W ERP (24.623 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C.862. 200418172.AEZ FCC Part 22 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 DESCRIPTION OF INSERTS 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7 6.1 RADIATED MEASUREMENTS 8-10 7.1 FREQUENCY STABILITY 11-12 8.1 PLOTS OF EMISSIONS 13 9.1 LIST OF TEST EQUIPMENT 14 10.1 SAMPLE CALCULATIONS 15 11.1 CONCLUSION 16 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.210226126.AEZ FCC Part 22 Test Dates: February 26-27, 2001 Certification © 2001 PCTEST Lab FCC ID: AEZC412SA (Tx 824-849MHz) 1 SANYO Cellular CDMA Phone (Model: C412SA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant Name: SANYO ELECTRIC CO., LTD. c/o Sanyo Sales & Supply (USA) Corp. Address: 900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 Attention: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation • FCC ID: AEZC412SA • Trade Name: SANYO • Model(s): C412SA • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 824.70 – 848.31 MHz Rx Freq. Range: 869.70 – 893.31 MHz • Equipment Class: Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type: Single-Mode Cellular Phone (CDMA) • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.290W ERP (24.623 dBm) • FCC Rule Part(s): §22.201(d), §2 • Battery Pack: 3.7 VDC 600 mAh Li-Ion • Dates of Tests: February 26-27, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.210226126.AEZ Test Report S/N: 22.210226126.AEZ FCC Part 22 Test Dates: February 26-27, 2001 Certification © 2001 PCTEST Lab FCC ID: AEZC412SA (Tx 824-849MHz) 2 SANYO Cellular CDMA Phone (Model: C412SA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Figure 2. 3-Meter Outdoor Test Site Test Report S/N: 22.210226126.AEZ FCC Part 22 Test Dat…

Text truncated - open the document above for the full version.

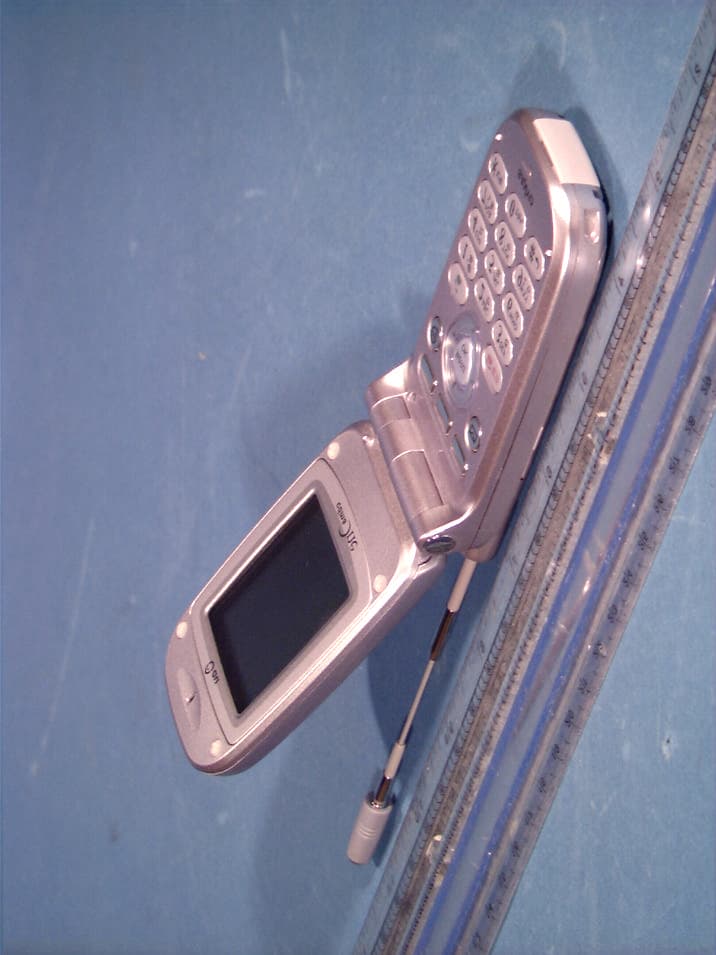

Test Setup Photos
