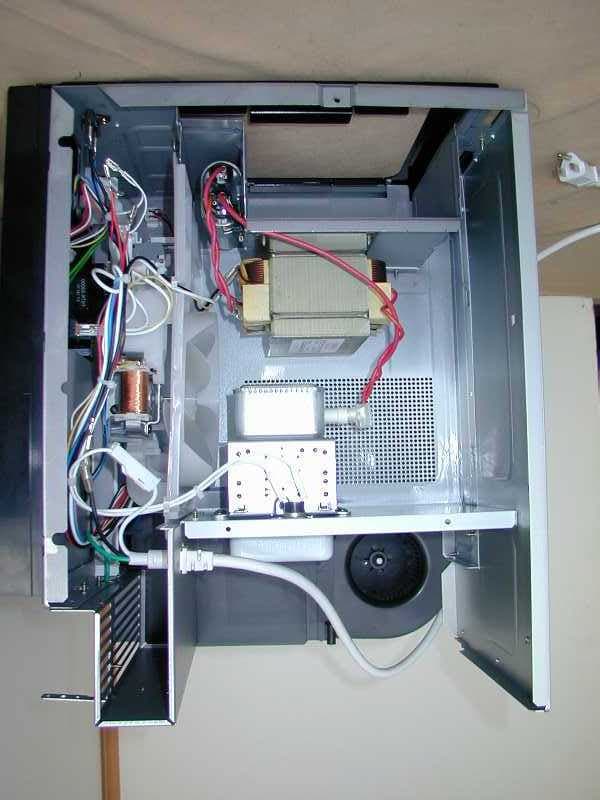

AEZM904Microwave Oven

1 INSTRUCTION MANUAL AND COOKING GUIDE EM-Z9011N Over-The-Range Microwave Oven Read these instructions carefully before using your microwave oven. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS Front.fm Page 1 Tuesday, February 19, 2002 1:06 PM 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open- door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) DOOR (bent) (2) HINGES AND LATCHES (broken or loosened) (3) DOOR SEALS AND SEALING SURFACES (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. SPECIFICATIONS Specifications subject to change without notice. *According to IEC-705 test procedure. The IEC-705 test procedure is an internationally recognized method of rating microwave wattage output. Please record your product’s information When you call to request service, you need to know your complete model number and serial number. Please fill in the information below. Please also record purchase date, price and where purchased. Model:EM-Z9011N Power Source: AC 110-120V, 60 Hz Power Consumption: 1500W Maximum Output: 950W* Oven Capacity: 1.4 cu. ft. Turntable Diameter: 10- 13 / 16 " Dimensions: (w x h x d) 29- 7 / 8 " x 17" x 14 - 1 / 2 " Weight: Approx. 59.5 lbs. Model Number: (Located on the front of the oven) Serial Number: (Located on the front of the oven) Date of Purchase: Purchase Price: Where Purchased: Front.fm Page 2 Tuesday, February 19, 2002 1:06 PM 3 TABLE OF CONTENTS SAFETY nProper and Safe Use of Your Oven. . . . . . . . . . . . . . . . . . . . . . . 4 nImportant Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 nGrounding Instructions . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 nUtensils . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 SETTING UP YOUR OVEN nNames of Oven Parts and Accessories. . . . . . . . . . . . . . . . . . . . 8 nTurntable Installation . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 nCharcoal Filter Installation.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 nGrease Filter Installation . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 OPERATION nControl Panel and Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 nSelecting Ventilation Direction . . . . . . . . . . . . . . . . . . . . . . . . . . 12 nSetting Clock . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 nChild Lock-Out . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 nKitchen Timer . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 nTimed Cooking . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 nDirect Access Cooking . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 nOptional Settings . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 nAutomatic Defrost By Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 nAdd 30 Seconds . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 nQuick-On Cooking. . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 nTurntable Setting . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 nFan Speed Control . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 nLight. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 COOKING GUIDE nCooking Principles and Techniques . . . . . . . . . . . . . . . . . . . . . . 21 nDirect Access Cooking . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 nAppetizers and Snacks . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 nRice . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 nVegetables. . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 nMeats, Poultry and Fish . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 nEggs . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 nBaked Goods and Desserts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 MAINTENANCE nTroubleshooting . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 nQuestions and Answers. . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 nCare and Cleaning . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 nWarranty . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 SAFETY SET UP OPERATION COOKING GUIDE MAINTENANCE Front.fm Page 3 Tuesday, February 19, 2002 1:06 PM 4 SAFETY PROPER AND SAFE USE OF YOUR OVEN • The oven must be level. • The turntable and turntable roller rest must be in the oven during cooking. • Place cookware gently on the turntable and handle it carefully to avoid possible breakage. • Incorrect use of browning dish may cause the turntable to break. See page 7. • When using the Popcorn feature of this microwave oven, use only the bag sizes specified in the instruction manual. • The oven has several built-in safety switches to ensure that the power remains off when the door is open. Do not tamper with these switches. • Do not operate the microwave oven empty. Operating the oven with no food or food that is extremely low in moisture can cause fire, c…
