AEZNVM-4030PND (Personal Navigation Device)

SANYO Contents Index Portable Navigation Device (NVM-4030) Reference Manual User instructions for operating the SANYO NVM-4030 SANYO Contents Index Portable Navigation Device 2 Introduction SANYO Contents Index Warnings and Notices For your safety, do not operate the controls of the product while driving. GPS satellite signals cannot typically pass through solid materials (except glass). GPS location information is not typically available inside buildings, tun- nels, or underground parking lots. A minimum of 4 GPS satellite signals is needed to calculate your GPS position. Signal reception can be affected by weather events or overhead obstacles (e.g. dense foliage and tall buildings). Other wireless devices in the vehicle may interfere with the reception of satel- lite signals and cause the reception to be unstable. Adapter Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture. Do not use the adapter if the cord becomes damaged. Connect the adapter to the proper power source. The voltage requirements are found on the product case and/or packaging. Battery This unit contains a non-replaceable internal Lithium Ion battery. The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, puncture, or dispose of in fire or water. Use only the specified charger approved by the manufacturer. WARNING: The Lithium-Ion battery in the device must be recycled or dis- posed of properly. 2 Introduction Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. SANYO Contents Index SANYO Contents Index Table of Contents Chapter 1 NVM-4030 PND Features and Specifications ................ 6 1.1 SANYO NVM-4030 PND features ...................................................6 1.2 NVM_4030 Specifications ...................................................................6 Chapter 2 Getting Started ................................................................ 8 2.1 Hardware overview ............................................................................8 2.1.1 Packing list ................................................................................8 2.1.2 Front Panel ................................................................................8 Chapter 3 Using the NVM-4030 ...................................................... 12 3.1 NVM-4030 Operating Basics ............................................................12 3.2 To turn on and calibrate the device: ................................................12 3.3 To configure system settings: ..........................................................13 3.4 Additional System settings ..............................................................15 3.5 Backlight ..........................................................................................15 3.6 Volume ............................................................................................15 3.7 Power ...............................................................................................15 3.8 System Information .........................................................................16 Chapter 4 Synchronization with a PC ........................................... 17 4.1 Exchanging data between the RNS-3200 and your PC ...................17 4.1.1 Using the SD/MMC slot .........................................................17 4.1.2 To insert a storage card: ..........................................................17 4.1.3 To remove a storage card: .......................................................17 4.1.4 Establishing device-PC connection .........................................17 4.2 Installing Microsoft ActiveSync ......................................................18 4.2.1 Minimum installation requirements: .......................................18 4.2.2 To install Microsoft ActiveSync on your computer: ..............18 4.3 Installing Contacts Manager ............................................................19 4.3.1 To install Contacts Manager: ..................................................19 4.3.2 Creating a partnership .............................................................20 Chapter 5 Contacts Management ..................................................21 5.1 Contacts ................................................…

Text truncated - open the document above for the full version.

SANYO Electric Co., Ltd. 5-5, Keihan-Hondori ZChome, Moriguchi City, Osaka 570-8677, Japan Tel: +81-72-870-4401 Fax: +81-72-870-6000 FCC ID: AEZNVM-4030 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0,459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, TETSURO MlNAMl I Senior Manager Sanyo Electric Co., Ltd. TEL: +81-72-870-4401 FAX: +8 1 -72-870-6000 E-mail: [email protected]

SANYO Electric Co., Ltd. 5-5, Kei han-Hondori 2-Chome, Moriguchi City, Osaka 570-8677, Japan Tel : +81-72-870-4401 Fax : +81-72-870-6000 AUTHORIZATION LETTER To whom it may concern: We, the undersigned, SANYO Electrfe Co., Ltd., hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely yours, TETSURO MINAMI I Senior Manager Sanyo Electric Co., Ltd. TEL: +81-72-870-4401 FAX: +8 1 -72-870-6000 E-mail: [email protected]

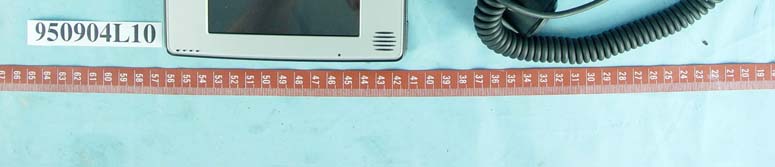

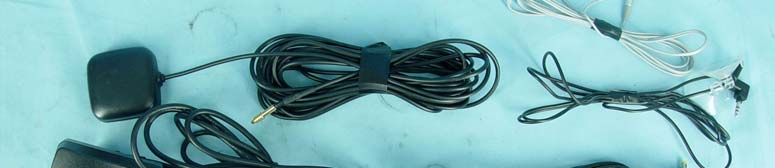

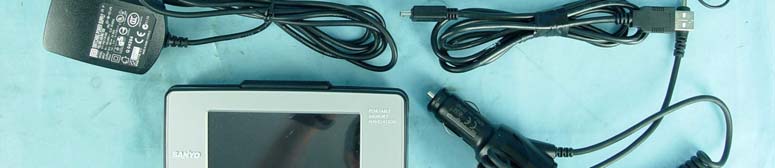

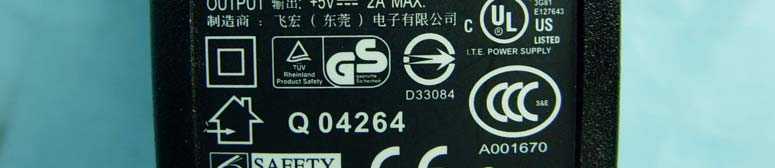

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

950904L10-I04 (2560x1920x16M jpeg)

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: AEZNVM-4030 Report No. RF950904L10 Operational Description The transmitter of the EUT (PND (Personal Navigation Device) is powered from 3.7Vdc batteries and 5Vdc from Adapter and car charger. The antenna is Omni-directional Chip antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF950904L101Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950904L10 MODEL NO.: NVM-4030 RECEIVED: Sep. 04, 2006 TESTED: Sep. 13 ~ Sep. 18, 2006 ISSUED: Sep. 20, 2006 APPLICANT: Sanyo Electric Co Ltd ADDRESS: c/o Sanyo Fisher Company 21605 Plummer Street, Chatsworth, CA 91311, United States ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 33 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. NO. 2177-01 Report No.: RF950904L102Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................... .................3 2.SUMMARY OF TEST RESULTS............................................................ .........4 2.1MEASUREMENT UNCERTAINTY ..............................................................................4 3.GENERAL INFORMATION................................................................ .............5 3.1 GENERAL DESCRIPTION OF EUT............................................................................5 3.2 DESCRIPTION OF TEST MODES..............................................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................8 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................10 3.2.4 DESCRIPTION OF SUPPORT UNITS ......................................................................10 4.TEST TYPES AND RESULTS....................................................................... 11 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................ 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................... 11 4.1.3 TEST PROCEDURES ...............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .....................................................................12 4.1.5 TEST SETUP ............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ..............................................................................13 4.1.7 TEST RESULTS ........................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT .................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................20 4.2.2 TEST INSTRUMENTS...............................................................................................21 4.2.3 TEST PROCEDURES ...............................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD .....................................................................22 4.2.5 TEST SETUP ............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ..............................................................................23 4.2.7 TEST RESULTS ........................................................................................................24 4.3 BAND EDGES MEASUREMENT ..............................................................................29 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ...........................................................29 4.3.2 TEST INSTRUMENTS...............................................................................................29 4.3.3 TEST PROCEDURE .................................................................................................29 4.3.4 DEVIATION FROM TEST STANDARD .....................................................................29 4.3.5 EUT OPERATING CONDITION ................................................................................29 4.3.6 TEST RESULTS ........................................................................................................29 5.INFORMATION ON THE TESTING LABORATORIES.............................. ..........32 APPENDIX-A .......................................................................................................................................A-1 Report No.: RF950904L103Report Format Version 2.0.4 1. CERTIFICATION PRODUCT: PND (Personal Navigation Device) MODEL NO.: NVM-4030 BRAND NAME: SANYO APPLICANT: Sanyo Electric Co Ltd TESTED: Sep. 13 ~ Sep. 18, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249), ANSI C63.4-2003 The above equipment have been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Sep. 20, 2006 ( Windy Chou ) TECHNICAL ACCEPTANCE: , DATE:Sep. 20, 2006 Responsible for RF ( Long Chen ) APPROVED BY:, DATE:Sep. 20, 2006 ( Gary Chang / Supervisor ) Report No.: RF950904L104Report Format Version 2.0.4 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the followin…

Text truncated - open the document above for the full version.

Report No.: RF950904L10 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950904L10 2 RADIATED EMISSION TEST _ Test Mode A Report No.: RF950904L10 3 RADIATED EMISSION TEST _ Test Mode B
