AEZSCP-24HTri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)

SCP-2400 Operating Guide (Draft) Table of Contents Getting to Know Your Phone .............................................................................................. 6 Front View of Phone .............................................................................................................................. 6 Key Functions ........................................................................................................................................ 7 Viewing the Display Screen .................................................................................................................. 8 Turning Your Phone On and Off .......................................................................................................... 9 Unlocking Your Phone........................................................................................................................... 9 Using Your Phone’s Battery ................................................................................................................ 10 Displaying Your Phone Number ........................................................................................................ 11 Making and Answering Calls........................................................................................... 12 Making Calls ........................................................................................................................................ 12 Dialing Options .................................................................................................................................... 12 Answering Calls ................................................................................................................................... 13 Using the Speakerphone..................................................................................................................... 13 Changing the Ringer Volume ............................................................................................................. 14 Adjusting Volume During a Conversation ........................................................................................ 14 Muting a Call ....................................................................................................................................... 14 Missed Call Notification...................................................................................................................... 14 Calling Emergency Numbers ............................................................................................................. 14 In-Call Options..................................................................................................................................... 15 End-of-Call Options ............................................................................................................................. 15 Saving a Phone Number ..................................................................................................................... 16 Finding a Phone Number ................................................................................................................... 16 Dialing and Saving Phone Numbers With Pauses ..........................................................................16 Abbreviated Dialing............................................................................................................................. 17 Dialing From the Contacts List.......................................................................................................... 17 Using Speed Dialing ............................................................................................................................ 17 Entering Text...............................................................................................................................18 Selecting a Character Input Mode ..................................................................................................... 18 Entering Characters Using T9 Text Input........................................................................................18 Adding a Word to the T9 Database.................................................................................................... 18 Entering Characters by Using Alphabet Mode ................................................................................ 19 Entering Numbers, Symbols, Smileys and Preset Messages ......................................................... 20 Controlling Your Phone’s Settings................................................................................ 21 Sound Settings ..................................................................................................................................... 21 Ringer Types......................................................................................................................................... 21 Selecting Ringer Types for Voice Calls............................................................................................... 21 1 Selecting Ringer Types for Messages................................................................................................. 21 Selecting Ringer Types for Voicemail or Calendar/Alarm ............................................................... 22 Setting Tone Length, Start-up/Power-off Tone, Voice Prompt or Key Press Echo........................ 22 Adjusting the Phone’s Volume Settings............................................................................................. 22 Alert Notification ................................................................................................................................. 23 Silence All ............................................................................................................................................. 23 Display Settings ....................................................................…

Text truncated - open the document above for the full version.

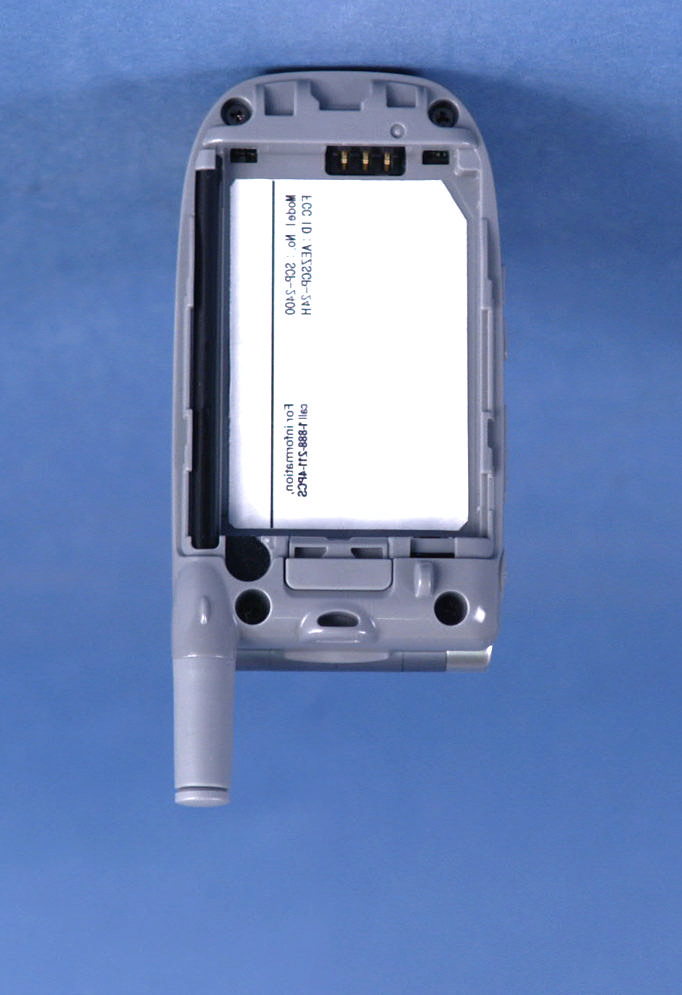

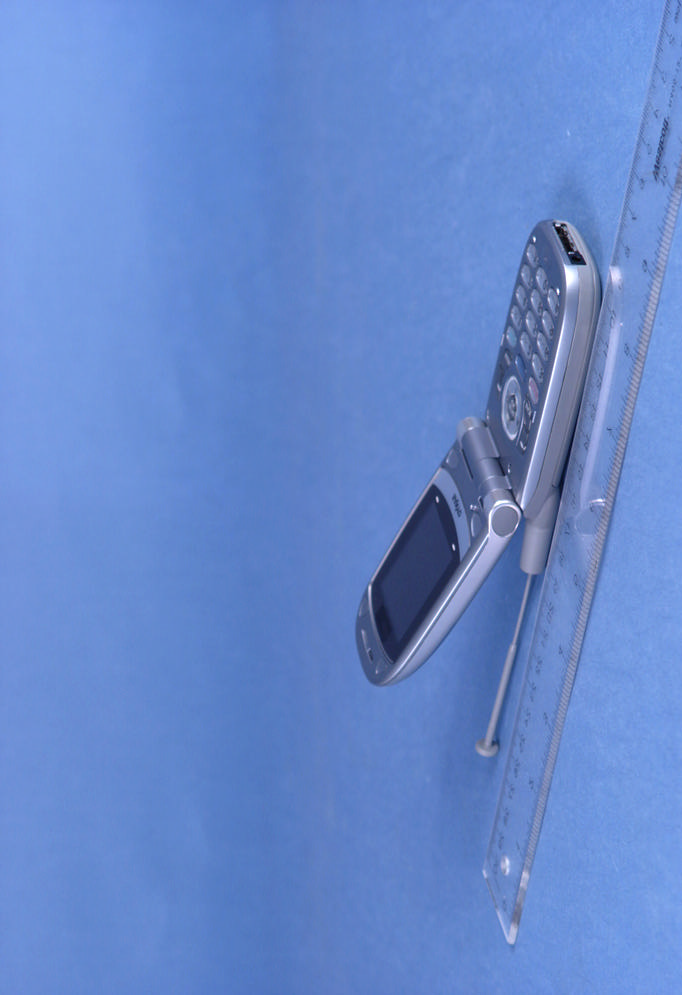

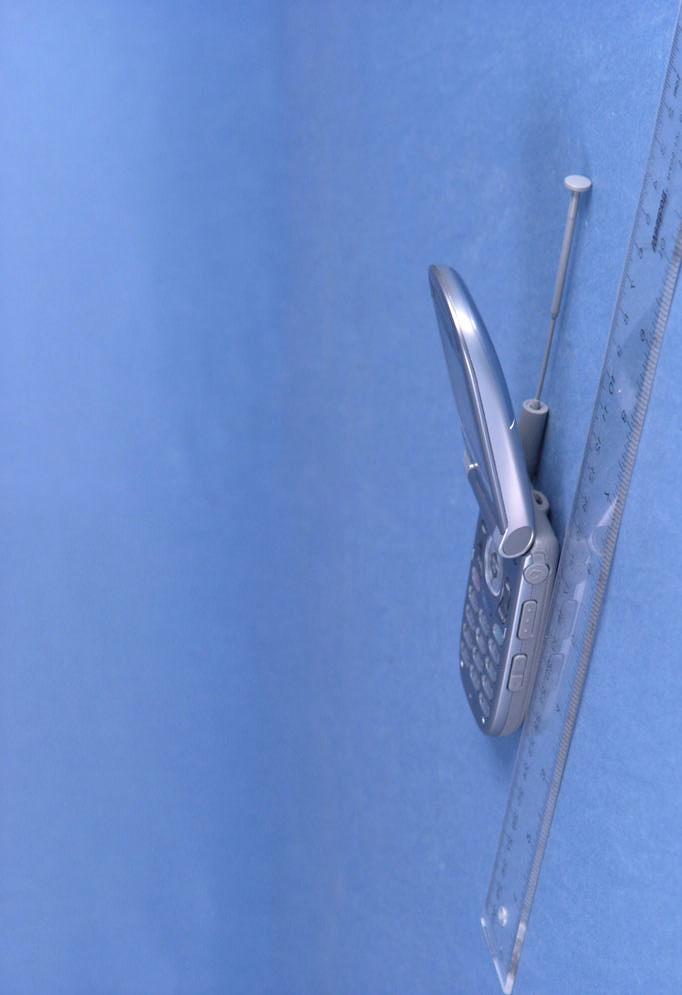

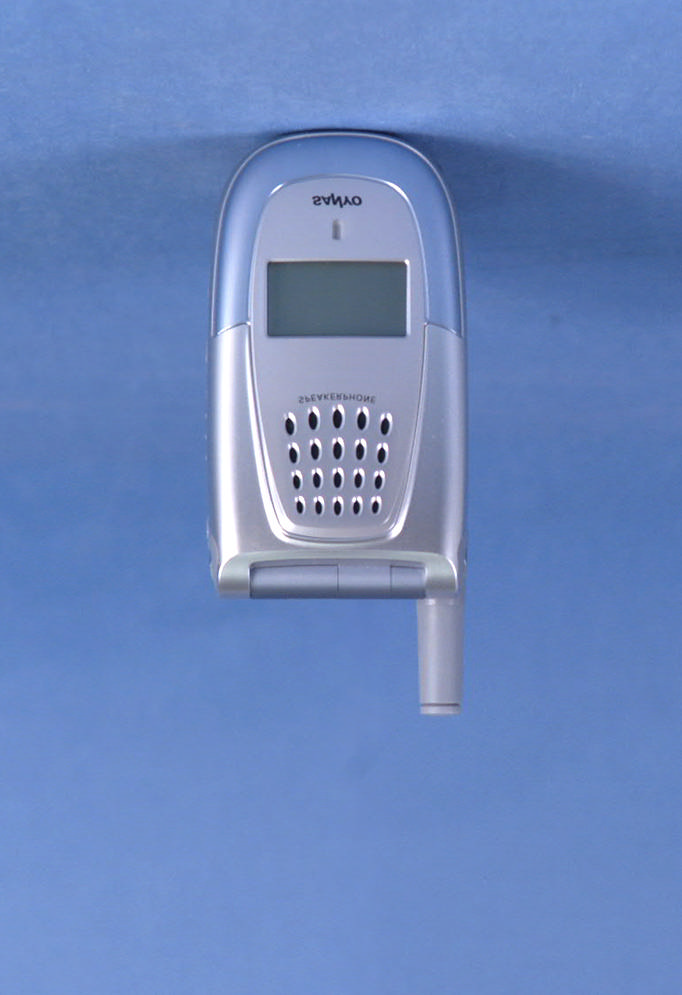

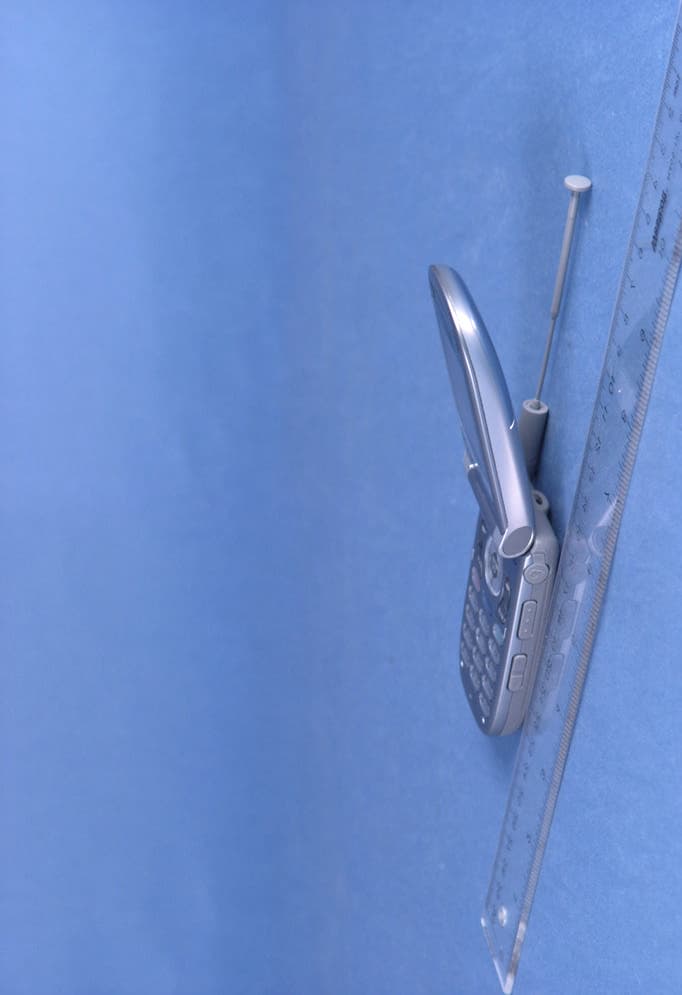

SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400

© 2006 PCTEST ENGINEERING LABORATORY, INC FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SCP-2400 Rating Label

SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400 SANYO FCC ID: AEZSCP-24H Tri-Mode EUT Photographs © 2006 PCTEST Lab. Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-2400

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603160184-R1 Test Dates: March 20-23, 2006 Phone Type: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) FCC ID: AEZSCP-24H Page 1 of 38 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC Co., Ltd. Dates of Tests: March 20-23, 2006 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: 0603160184-R1 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 FCC ID: AEZSCP-24H APPLICANT: SANYO ELECTRIC CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.425 W ERP AMPS (26.285 dBm) / 24.5 dBm Conducted 0.353 W ERP CDMA (25.483 dBm) / 23.7 dBm Conducted 0.448 W EIRP PCS CDMA (26.501dBm) / 23.5 dBm Conducted Max. SAR Measurement: 1.270 W/kg AMPS Head SAR; 0.921 W/kg AMPS Body SAR; 1.220 W/kg CDMA Head SAR; 0.755 W/kg CDMA Body SAR; 1.050 W/kg PCS CDMA Head SAR; 1.050W/kg PCS CDMA Body SAR; 0.095 W/kg PTT Flip Open; 0.159 W/kg PTT Flip Closed Trade Name/Model(s): SCP-2400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 24710029056] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528- 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. SAR compliance for Push–to-Talk PTT operating configuration is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603160184-R1 Test Dates: March 20-23, 2006 Phone Type: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) FCC ID: AEZSCP-24H Page 2 of 38 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION......................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.............................................................................................5 4. Probe Calibration Process........................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS...................................................................................10 9. TEST CONFIGURATION POSITIONS.....................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.......................................................................14 11. MEASUREMENT UNCERTAINTIES.......................................................................................15 12. SYSTEM VERIFICATION.....................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17-35 15. SAR TEST EQUIPMENT..............................................................................................36 16. CONCLUSION.................................................................................................................37 17. REFERENCES...................................................................................................................38 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603160184-R1 Test Dates: March 20-23, 2006 Phone Type: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) FCC ID: AEZSCP-24H Page 3 of 38 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental …

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.88 mho/m, ε r = 40.69, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-20-2006; Ambient Temp: 23.3°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: AMPS, Right Head, Touch, High.ch, Ant.In, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.5 V/m Peak SAR (extrapolated) = 1.93 W/kg SAR(1 g) = 1.27 mW/g; SAR(10 g) = 0.818 mW/g 0 dB = 1.50mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.88 mho/m, ε r = 40.69, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-20-2006; Ambient Temp: 23.3°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: AMPS, Right Head, Tilt, Mid.ch, Ant.In, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.82 V/m Peak SAR (extrapolated) = 0.249 W/kg SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.147 mW/g 0 dB = 0.211mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.88 mho/m, ε r = 40.69, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-20-2006; Ambient Temp: 23.3°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 1mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: AMPS, Left Head, Touch, Low.ch, Ant.In, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.08 V/m Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.699 mW/g 0 dB = 1.54mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.88 mho/m, ε r = 40.69, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-20-2006; Ambient Temp: 23.3°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: AMPS, Left Head, Tilt, Mid.ch, Ant.In, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.08 V/m Peak SAR (extrapolated) = 0.228 W/kg SAR(1 g) = 0.182 mW/g; SAR(10 g) = 0.141 mW/g 0 dB = 0.199mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 23.7 dBm Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.88 mho/m, ε r = 40.69, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-21-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: CDMA, Right Head, Touch, High.ch, Ant.In, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.7 V/m Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 1.22 mW/g; SAR(10 g) = 0.777 mW/g 0 dB = 1.44mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 23.7 dBm Communication System: Cellular CDMA; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.88 mho/m, ε r = 40.69, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-21-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Mode: CDMA, Right Head, Tilt, Mid.ch, Ant.In, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.48 V/m Peak SAR (extrapolated) = 0.254 W/kg SAR(1 g) = 0.196 mW/g; SAR(10 g) = 0.148 mW/g 0 dB = 0.217mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-2400; Type: SANYO Tri Mode Phone; Serial: 24710029056; Conducted Power: 23.7 dBm Communication System: Cellular CDMA; Frequ…

Text truncated - open the document above for the full version.

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603190183-R1 Test Dates: J MARCH 16-17, 2006 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-24H Page 1 of 32 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SANYO ELECTRIC Co., Ltd. Dates of Tests: March 16-17, 2006 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: 0603160183-R1 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 FCC ID AEZSCP-24H APPLICANT SANYO ELECTRIC CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) Model: SCP-2400 Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.425 W ERP AMPS (26.285 dBm) / 24.5 dBm Conducted 0.353 W ERP CDMA (25.483 dBm) / 23.7 dBm Conducted 0.448 W EIRP PCS CDMA (26.501 dBm) / 23.5 dBm Conducted Max. SAR Measurement: 1.270 W/kg AMPS Head SAR; 0.921 W/kg AMPS Body SAR; 1.220 W/kg CDMA Head SAR; 0.755 W/kg CDMA Body SAR; 1.050 W/kg PCS CDMA Head SAR; 1.050 W/kg PCS CDMA Body SAR; 0.095 W/kg PTT Flip Open; 0.159 W/kg PTT Flip Closed Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: 24710029056] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. SAR compliance for Push–to-Talk PTT operating configuration is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603190183-R1 Test Dates: J MARCH 16-17, 2006 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-24H Page 2 of 32 © 2006 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-10 5.1 EFFECTIVE RADIATED POWER OUTPUT 11-12 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 13 7.1 RADIATED MEASUREMENTS 14-22 8.1 FREQUENCY STABILITY 23-28 9.1 PLOTS OF EMISSIONS 29 10.1 LIST OF TEST EQUIPMENT 30 11.1 SAMPLE CALCULATIONS 31 12.1 CONCLUSION 32 ATTACHMENT A: TEST PLOTS ATTACHMENT B: FCC ID LABEL / LOCATION ATTACHMENT C: TEST SETUP PHOTOGRAPHS ATTACHMENT D: EXTERNAL PHOTOGRAPHS ATTACHMENT E: INTERNAL PHOTOGRAPHS PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603190183-R1 Test Dates: J MARCH 16-17, 2006 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-24H Page 3 of 32 © 2006 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SANYO ELECTRIC Co., Ltd. Address: c/o Sanyo Sales & Supply (USA) Corp. 900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 • FCC ID: AEZSCP-24H • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.425 W ERP AMPS (26.285 dBm)/ 0.353 W ERP CDMA (25.483 dBm) 0.448 W EIRP PCS CDMA (26.501 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/ CDMA) • Modulation(s): CDMA/ AMPS • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: March 16-17, 2006 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0603160183-R1 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603190183-R1 Test Dates: J MARCH 16-17, 2006 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-24H Page 4 of 32 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are …

Text truncated - open the document above for the full version.

© 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab © 2006 PCTEST Lab

Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0603160182.AEZ March 28-30, 2006 Dual-Band Phone AEZSCP-24H Page 1 of 70 © 2006 PCTEST Engineering Laboratory, Inc. v03.00 Applicant Name: Date of Testing: Sanyo Electric Co Ltd March 28-30, 2006 c/o Sanyo Fisher Company Test Site/Location: 21605 Plummer Street PCTEST Lab, Columbia, MD, USA Chatsworth, CA 91311 Test Report Serial No.: United States HAC.0603160182.AEZ FCC ID: AEZSCP-24H APPLICANT: SANYO ELECTRIC CO LTD Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI PC63.19-2005 D3.6 FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band Phone Model(s): SCP-2400 Tx Frequency: 824.70 - 848.31 MHz (CDMA) 1851.25 - 1908.75 MHz (PCS) Test Device Serial No.: Pre-Production Sample [S/N: F7990800] PC63.19 HAC Rated Category: M3 (RF EMISSIONS) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. PC63.19 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY CERTIFICATE Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0603160182.AEZ March 28-30, 2006 Dual-Band Phone AEZSCP-24H Page 2 of 70 © 2006 PCTEST Engineering Laboratory, Inc. v03.00 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE PC63.19 PERFORMANCE CATEGORIES .................................................................. 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 14 7. SYSTEM CHECK .......................................................................................................................... 16 8. MODULATION FACTOR...............................................................................................................19 9. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 10. EQUIPMENT LIST......................................................................................................................... 24 11. MEASUREMENT UNCERTAINTY ................................................................................................ 25 12. TEST DATA ............…

Text truncated - open the document above for the full version.
