AEZSCP-3000Dual Band Analog/PCS Phone

SANYO SCP-3000 User Guide Sprint Personal Communication Services SM Sprint PCS ™ Sprint PCS. SM It’s not just a better phone. It’s a better connection. SM This phone will work only with service from Sprint PCS, which must be purchased separately. See Term and Conditions of Service. ©1997 Sprint Spectrum L.P. All rights reserved. No reproduction in whole or in part without prior written approval. Sprint and the diamond logo are registered trademarks of Sprint Communications Company L.P. Sprint PCS and Sprint Personal Communication Services are trademarks of Sprint Com- munications Company L.P. used under license. SANYO is a registered trade- marks of SANYO Electric Co., Ltd. All other trademarks are the property of their respective owners. Printed in Japan 1 First things first: Call us to get activated. Before you can use your new Sprint PCS Phone™, you need to open your Sprint PCS Account – in other words, activate your phone. You do that by calling 1-888-715-4588 (in Southern California, call 1-800-PCS-6699) from any phone other than your new Sprint PCS Phone. This call is toll-free. Note: If a Sprint PCS Sales Representative has already activated your phone, then there’s no need to place this call. Instead, see “How to unlock your phone” on the next page. What you should know before you call. The call may take up to 30 minutes, but may take longer at peak time. A credit check will be run. Your Sprint PCS Phone will be ready for use about an hour after this call is finished. What you should have handy. Your new Sprint PCS Phone The original packaging for your new phone 2 Your billing address Your social security number or tax ID number Your driver’s license number Pen and paper to write down your new Sprint PCS Phone Number During this call, a Sprint PCS Customer Advocate will collect your information as well as help you select your Sprint PCS Service Features and a calling plan. Once you’ve made all your selections, the advocate will guide you through the activation process. How to unlock your phone. If you received your phone in the mail, you need to unlock it before you can begin making calls. Just follow these simple steps: 1. Press POWER to turn on the phone. 2. Press under [UNLOCK]. 3. Enter the four-digit lock code. (This code typically is the last four digits of your Sprint PCS Phone Number or the last four digits of your social security number.) 3 How to get help. If you need help with this or anything else, we hope you’ll call Sprint PCS Customer Care at 1-888-211-4PCS (4727). In Southern California, call 1-800-455-4551. You also can press TALK from your activated Sprint PCS Phone (in Southern Califor- nia, press TALK ). A Sprint PCS Customer Advocate will answer (24 hours a day) and be happy to assist you. Our services are provided to you under certain terms and condi- tions – all of which are listed in the brochures included in the box your phone came in. 4 5 Table of Contents First things first: Call us to get activated.1 What you should know before you call.1 What you should have handy.1 How to unlock your phone.2 How to get help.3 Introduction.9 Getting to know your phone.10 Function keys12 Display icons: What they tell you.14 Using the battery.15 Installing and removing the battery.15 Charging the battery.15 Charging with the AC adapter.16 Turning your phone on and off.17 Standby status.17 Power Save mode.18 Basic functions.19 Making a call.19 Correcting dialing mistakes.19 Answering calls20 Where you can use your phone.20 6 What you’ll see.21 Calling experience.22 Using Caller ID.23 Responding to Call Waiting.24 Using Three-Way Calling.25 Using Call Forwarding.25 Redialing calls.26 Getting your own phone number.26 Adjusting volume.27 Locking the keypad.27 Emergency dialing.28 Calling 911.28 Saving and editing emergency numbers.28 Dialing other emergency numbers.29 Dialing Sprint PCS Directory Assistance.30 Dialing Sprint PCS Operator Services.30 Setting up your voicemail.31 Finding out you have a message.32 Internal phone book, Call history and Scratch pad.33 Understanding your phone’s memory.33 Saving and storing a phone number.33 Looking up a phone number.35 Finding a number using a person’s name.35 Finding a number when you know at least four digits.36 Editing a phone number.37 Erasing a phone number.38 7 Finding a number using its memory location.38 Using One-Touch/Two-Touch Dialing.39 For memory locations 1to 9:39 For memory locations 10 to 99:39 Using Speed Dial.38 Reviewing your Recent Call History.40 Saving in Scratch Pad Memory41 Reviewing your Scratch Pad memory.42 The scratch pad memory will be erased when:42 Advanced features.43 Using the pause feature to dial faster.43 Inserting a pause in a number.44 Punctuating names.44 Using uppercase and lowercase letters.45 Dialing from your phone book to a different area code.45 Help guidance for the internal phone book.46 Main menu.47 Navigating through the menu.47 Taking a menu shortcut.47 Understanding menu items.48 Adjusting your phone’s volume.48 Choosing what you see on the screen.49 Choosing the vibration.50 Choosing the right alerts.51 Keeping track of calls.51 Maintaining phone security.52 Customizing the way your phone works.55 8 Choosing the analog system.57 Preventing accidental key press.57 Usage guidelines: All about performance and safety.58 Keeping tabs on signal strength.58 Understanding Power Save mode.58 Understanding how your phone operates.59 Radio frequency safety.59 Maintaining your phone’s peak performance.60 Protecting your battery.61 Using your phone while driving.62 Disposal of Lithium Ion batteries.63 Following safety guidelines.63 Using your phone near other electronic devices.63 Turn off your phone before flying.64 Restricting children’s access to your phone.64 Turn off your phone in dangerous areas.65 Cautions.66 FCC notice.66 Index68 9 Introduction. Congratulations on your purchase of a Sprint PCS Phone. This phone is quite versatile because it lets you make and receive calls in so many…

Text truncated - open the document above for the full version.

July 23, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SANYO Electric Co., Ltd. FCC ID: AEZSCP-3000 Part 24/22 Type Acceptance Gentlemen: Attached herewith, on behalf of SANYO Electric Co., Ltd., is an application for Part 24/22 Type Acceptance of the following dual band Analog/PCS phone: FCC ID:AEZSCP-3000 TRADE / MODEL(s):SANYO SCP-3000, SPRINT ® EUT TYPE:Dual Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range:1851.25 – 1908.75 MHz (CDMA) 824.04 – 849.97 MHz (AMPS) Max. Output Power:0.4 Watts (AMPS) / 0.2 Watts (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Koichi Takahashi Vice President SANYO Fisher (USA) Corp.

Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd.

Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd. Test Report S/N: 24/22.980713484.AEZFCC Parts 24 & 22 Test Date(s): July 13-17, 1998Type Acceptance © 1998 PCTEST LabFCC ID: AEZSCP-3000 NVLAP Lab Code: 100431-0 SANYO Electric Co., Ltd.

Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP3000 Description Information Subsection 2.983(a) Applicant 2.983(b) 2.983 (c) 2.983(d) 2.983(d)(l) 2.983(d)(2) 2.983(d)(3) Description : SANYO ELECTRIC CO., LTD. 1-I Keihan hondori 2-chome, Moriguchi City Osaka, Japan Manufacture : SANYO ELECTRIC CO., LTD. FCC ID : AEZSCP3000 Quantity : Quantity production is planned. Technical Description: See Exhibit xx Emission Type : AMPS wide band mode: PCS wide band CDMA mode: 40KF8W and 40KOFl D 1 M25F9W Frequency Range: AMPS wide band mode: 824.04 to 848.97 MHz PCS wide band CDMA mode: 1851.25 to 1908.75 MHz Range of Operating Power: AMPS wide band mode: +7.8dBm to +26.0dBm with the Capacity of reducing the maximum power in five steps of 4 dB each on command from a land station. Each power level is maintained with in +2/-4dB of its normal level over the temperature range of -30 to +60 degrees Centigrade and -0.5 V/+0.5 V change of the Battery voltage. PCS wide band CDMA mode: -5OdBm to +23dBm with the capacity of reducing the maximum power in 73 steps of IdB each on command from land station. A Transmitter transmits a power in two (2) state. One is an access state, another is a traffic channel state. In an access state, a power level is in proportion to an estimated receiving signal strength and is maintained with -8dB/+7dB of it normal level. In traffic channel state, a power level is determined by a 1 dB up or down command from a land station, that is , a power level of next transmit timing is a current power level added or submitted 1 dB according to a command. Each power level is maintained over the temperature range of -30 to +60 degrees Centigrade and -0.5 V/+0.5 V change of the Battery voltage. EXHIBIT 5 PAGE 1 of 14

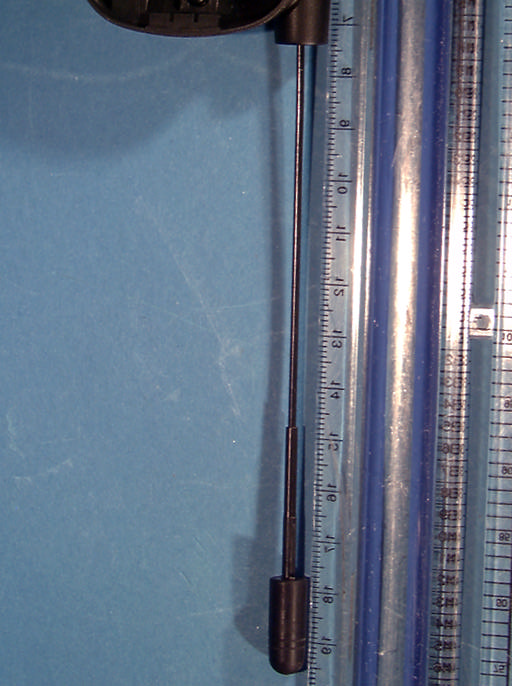

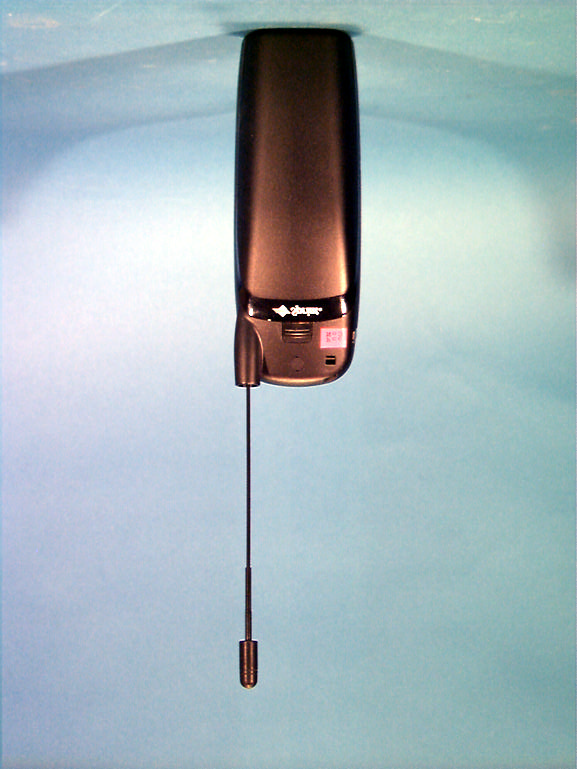

SANYO Electric Co.,Ltd.Transmitter Type: AEZSCP3000 Antenna Gain (Peak Value) Extended (Whip) Retracted (Helical) AMPS +2.2+0.7 PCS +1.6+1.0 (Unit: dBi)

Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 1 / 7 Page FCC TEST MODE Inspection Manual FCC TEST MODE OPERATION MANUAL [FCC TEST Start Up] 1): Push “POWER” Key and “7” Key simultaneously 2): Push “2” Key, then entered the FCC TEST Mode.  PCS AMPS [CDMA Inspection Mode] [AMPS Inspection Mode] When the above screen, push either left or right “^” key. Push “^” Key (left),then switched CDMA mode (PCS Band) (Displayed the Initiate Screen of CDMA Mode) Push “^” Key (right),then switched AMPS Mode (Displayed the Initiate Screen of AMPS Mode) (The Initiate Screen of AMPS Mode is RX setting screen;See Page 3) Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 2 / 7 Page FCC TEST MODE Inspection Manual 1) RX Mode (Receiving only) (LCD Display) MODE CHANNEL ( No display) ( No display) MODE: “RX” CHANNEL: “CH: Current Channel Number” 2) RX and TX mode (LCD Display) MODE CHANNEL RV PATH COMPRESSOR POWER VOICE PATH MODE: “TX” CHANNEL: “CH: Current Channel Number” COMPRESER: “Comp : ON” or “Comp : OFF” POWER: “Tx Pwr : Number of 0 to 7” 0 =1 = 2 = 25.8 dBm 3 = 23.8 dBm 4 = 19.8 dBm 5 = 15.8 dBm 6 = 11.8 dBm 7 = 7.8 dBm RV PATH: “Dis or Ena” (Dis =Disable Receiving voice path) (Ena =Enable Receiving voice path) VOICE PATH: “FREE, HAND or HEAD” 3) R X Mode (default) (LCD Display) Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 3 / 7 Page FCC TEST MODE Inspection Manual RX : (Receiving only) 383 (Channel Number) 1) Setting the channel Push the “*” Key. (Cyclic change the channel number “CH : 383 ‡ 799 ‡ 991 ‡383) 2) Switch the mod. (RX mode to RX/TX Mode) Push the “TALK” Key. (Switched to RX/TX Mode) <RX Mode Parameter> TX/RX Voice Path : DisTX : OFF Mic : OFFRX : ON Speaker : ONANT : Inner Antenna active Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 4 / 7 Page FCC TEST MODE Inspection Manual 4) RX / TX Mode (LCD Display) TX : VOICE (Modulation) CH : 383 (current Channel No.) Comp : OFF (Compressor Off) Tx Pwr : 0 (Transmission Power level) 1) Setting the Channel Push “*” Key (Cyclic change the Channel No, that is, 383 -> 799 ->911 ->383 Note : If displayed TX : SAT+DTMF, can not set the Channel. Please change another modulation. (See next section) 2) Setting the Modulation Push “INFO” Key (Cyclic change the Modulation, that is, displayed “TX : No Modul -> VOICE -> WBT ->SAT -> ST -> SAT+VOICE -> SAT+ST -> SAT+DTMF -> No Modul) No Modul: No Modulation VOICE: Mic ON, that is, activated Audio path. WBD: Activated Wide Band Data SAT: Output SAT ST: Output ST SAT+VOICE: Mic. ON, modulation signal is Voice added SAT. SAT+ST: the modulation signal is SAT added ST. SAT+DTMF: the modulation signal is SAT added DTMF. 3) Setting the compressor push the “MUTE” Key: Compressor ON (displayed “Comp : ON”) Push the “CLR” Key: Compressor OFF (displayed “Comp: OFF”) Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 5 / 7 Page FCC TEST MODE Inspection Manual 4) Setting the transmission power level. Displayed the transmission level No, that is, 0 to 7. Push “VOL ^(up)” Key. (Up the transmission level, decrement a number) Push “VOL \/(down)” Key. (Down the transmission level, increment a number) 5) Switch the Mode. (TX Mode -‡ RX Mode) Push the “END” Key. 6) Setting the Voice path Push the “1” Key. (Enable the receiving voice path) Push the “2” Key. (Disable the receiving voice path) Note: When set the SAT+DTMF Mode, then can not to set the receiving voice path. 7) Change the CODEC path. Push the “#” Key. (Cyclic change the CODEC path, “FREE‡ HAND‡ HEAD‡ FREE” Note: Except VOICE and SAT+VOICE modes, can not change the voice path. FREE: External I/F active HAND: Internal Mic active HEAD: Ear/Mic active Whe input the voice signal, let you set the “FREE” and use the External I/F. Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 6 / 7 Page FCC TEST MODE Inspection Manual CDMA Mode 5. Tx, TRx and Rx Mode (Tx mode) (LCD Display) Tx : 25 (Channel Number) XX (Don’t Care) XX (Don’t Care) (TRx mode) (LCD Display) TRx : 25 (Channel Number) XX (Don’t Care) XX (Don’t Care) (Tx/Rx Mode) (LCD Display) Rx : CH : 25 (current Channel No.) XX (Don’t Care) XX (Don’t Care) CDMA Initial screen is Tx mode. 1) Mode switch Push “INFO” Key.Sequentially switched “Tx mode‡‡ TRx mode ‡‡ Rx mode” Applicant; SANYO Electric Co., Ltd..Transmitter Type: AEZSCP3000 7 / 7 Page FCC TEST MODE Inspection Manual 2) Channel Number setting Push “*” Key.Sequentially switched “25 ‡ 600 ‡ 1175” 3) Quit Push “END” Key(Display change the initial Screen, see page 1) POWER OFF PUSH “POWER” Key more than one (1) second.

Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 1/9 TUNEUP PROCEDURE 1 SET-UP FOR TUNE-UP OF TRANSMITTER SCP-3000 RF Cable Handset Under Alignment CDMA Moble Station set Set-up Frequency = any CHANNEL at CDMA RX Output Level = 21dBm~106dBm (CDMA RX-RASRAM-TABLE) RF Power Meter Deviation Meter CDMA Moble Station set DC Power Supply 3.6 Volts Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 2/9 2 ALIGNMENT PROCEDURE Setting into Alignment Mode Input of a Alignment Command Alignment Memorizing a Alignment Value into EEPROM END Power off Settlement a alignment value Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 3/9 3 KEY OPERATION FROM HANDSET (1) AMPS ALIGNMENT (AMPS POWER, Freq Sense Gain) a Setting into Alignment Mode Push keys at sametime b Input of a Alignment Command Push keys c Alignment Increasing alignment value Push a key Decreasing alignment value Push a key d Settlement a alignment value Push a key e Continue c,d (TOTAL 6 Times at AMPS POWER) f Memorizing a alignment value into EEPROM Push a key g Cancel of the Alignment Command Push a key 7POWER 32 2 1 # TALK END Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 4/9 (2) CDMA TX ALIGNMENT ( CHANNELTABLELIMIT) a Setting into Alignment Mode Push keys at sametime b Input of a Alignment Command Push keys c Alignment Increasing alignment value Push a key Decreasing alignment value Push a key d Settlement a alignment value Push a key e Continue c,d (TOTAL 16 TIMES at RASRAM TABLE) (TOTAL 17 TIMES at TX LIMIT) f Memorizing a alignment value into EEPROM Push a key g Cancel of the Alignment Command Push a key 7POWER 5 4 3 # END TALK Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 5/9 (3) CDMA RX ALIGNMENT (RX-TABLE) a Setting into Normal Mode Push a key b Input of a Alignment Command Push keys c Alignment Select CHANNEL Increasing CHANNEL Push a key Decreasing CHANNEL Push a key Set select CHANNEL Push a key Receive any Input Level from Signal Generator d Settlement a alignment value Push a key e Continue c,d (TOTAL 17 Times) f Memorizing a alignment value into EEPROM Push a key g Cancel of the Alignment Command Push a key POWER MENUE7000070 9 8 0 # TALK END Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 6/9 4 Alignment Value Alignment Measurement Frequency (MHz) Alignment Range Command (CHANNEL) --------------------------------------------------------------------------------------------------------------------- 3-2-3-2 AMPS Power 836.49 Level 0 (383) +25.8 ±1.0dBm Level 3 +23.8 ±1.0dBm Level 4 +19.8 ±1.0dBm Level 5 +15.8 ±1.0dBm Level 6 +11.8 ±1.0dBm Level 7 +7.8 ±1.0dBm 3-2-1-4 AMPS Freq Sense 836.49 +8.0 ±0.1kHzdev Gain (383) (WIDE BAND DATA) Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 7/9 Alignment Measurement Frequency (MHz) Alignment Range Command (CHANNEL) ------------------------------------------------------------------------------------------------------------------ 5-1-1 CDMA CHANNEL any CHANNEL SELECT(TX) 5-1-2 CDMA TX- any channel RASRAM TABLE 1 TIME +24.6 ±1.0dBm 2 TIME +19.3 ±1.0dBm 3 TIME +14.0 ±1.0dBm 4 TIME + 8.7 ±1.0dBm 5 TIME + 3.4 ±1.0dBm 6 TIME  1.9 ±1.0dBm 7 TIME  7.2 ±1.0dBm 8 TIME 12.5 ±1.0dBm 9 TIME 17.9 ±1.0dBm 10 TIME 23.2 ±1.0dBm 11 TIME 28.5 ±1.0dBm 12 TIME 33.8 ±1.0dBm 13 TIME 39.1 ±1.0dBm 14 TIME 44.4 ±1.0dBm 15 TIME 49.7 ±1.0dBm 16 TIME 55.0 ±1.0dBm Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 8/9 Alignment Measurement Frequency (MHz) Alignment Range Command (CHANNEL) ------------------------------------------------------------------------------------------------------------------ 5-1-5 CDMA TX- any channel LIMIT 1 TIME + 8.75±0.5dBm 2 TIME +10.1 ±0.5dBm 3 TIME +11.4 ±0.5dBm 4 TIME +12.7 ±0.5dBm 5 TIME +14.1 ±0.5dBm 6 TIME +15.4 ±0.5dBm 7 TIME +16.7 ±0.5dBm 8 TIME +18.1 ±0.5dBm 9 TIME +19.4 ±0.5dBm 10 TIME +20.7 ±0.5dBm 11 TIME +22.1 ±0.5dBm 12 TIME +23.4 ±0.5dBm 13 TIME +24.7 ±0.5dBm 14 TIME +26.0 ±0.5dBm 15 TIME +27.4 ±0.5dBm 16 TIME +28.7 ±0.5dBm 17 TIME +30.0 ±0.5dBm Applicant: SANYO Electric Co.,Ltd.Transmitter Type : AEZSCP3000 9/9 Alignment Measurement Frequency(MHz) Alignment Range Command (CHANNEL) MENUE-7-0 CDMA RX- any channel RECEIVE LEVEL 0000-7 RASRAM TABLE (NORMAL MODE) 1 TIME 106.0 dBm 2 TIME 100.6 dBm 3 TIME  95.3 dBm 4 TIME  90.0 dBm 5 TIME  84.7 dBm 6 TIME  79.4 dBm 7 TIME  74.1 dBm 8 TIME  68.8 dBm 9 TIME  63.5 dBm 10 TIME  58.1 dBm 11 TIME  52.8 dBm 12 TIME  47.5 dBm 13 TIME  42.2 dBm 14 TIME  36.9 dBm 15 TIME  31.6 dBm 16 TIME  26.3 dBm 17 TIME  21.0 dBm

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SANYO ELECTRIC CO., LTD.Dates of Tests: July 13-17, 1998 c/o Sanyo Sales & Supply (USA) Corp.Test Report S/N: SAR.980713484.AEZ 900 North Arlington Heights Road, Suite 300Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. – SANYO Fisher (USA) Corp. FCC ID AEZSCP-3000 APPLICANT SANYO ELECTRIC CO., LTD. EUT Type:Dual Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency:1851.25 – 1908.75 MHz (CDMA) 824.04 – 849.97 MHz (AMPS) Rx Frequency:1931.25 – 1988.75 MHz (CDMA) 869.04 – 893.97 MHz (AMPS) Max Output Power:0.4 W (AMPS) / 0.2 W (CDMA) Trade Name/Model(s):SANYO SCP-3000, SPRINT ® FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Type Acceptance Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E); 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) © 1998 PCTEST Engineering Lab., Inc. 980713485.AEZ SAR Measurement ReportFCC Parts 24 & 22 Type Acceptance © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY (AMPS) ..........................................13 TEST DATA SUMMARY (CDMA) .......................................... 14 SAR TEST EQUIPMENT LIST .............................................. 15 CONCLUSION / REFERENCES ...........................................16 Test Report S/N: SAR.980713484.AEZSAR Measurement Report Test Dates: July 13-17, 1998FCC Parts 24 & 22 (Type Acceptance) Dual Band Analog/PCS Phone (AMPS/CDMA) © 1998 PCTEST Lab SANYO FCC ID: AEZSCP-3000 (Model: SCP-3000)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SANYO ELECTRIC CO., LTD. ADDRESS:c/o Sanyo Sales & Supply (USA) Corp. 900 North Arlington Heights Road Itasca, IL 60143-2844 Attention:Mr. Koichi Takahashi, Vice President SANYO Fisher (USA) Corporation • EUT Type:Dual Band Analog/PCS Phone • Trade Name:SANYO, SPRINT ® • FCC IDENTIFIER:AEZSCP-3000 • Model:SCP-3000 • S/N:Pre-production • Tx Frequency: (AMPS)824.04 - 848.97 MHz (CDMA)1851.25 -1908.75 MHz • Rx Frequency: (AMPS)869.04 – 893.97 MHz (CDMA)1931.25 – 1988.75 MHz • Application Type: Type Acceptance • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 22(H); § 24(E); § 2.1093, Docket 96-326 • Max. Output Power:0.4W (Analog) / 0.2W (CDMA) • Modulation:AMPS/CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:11.9 cm. (Length) • Dates of Test(s):July 13-17, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.980713484.AEZ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.980713484.AEZSAR Measurement Report Test Dates: July 13-17, 1998FCC Parts 24 & 22 (Type Acceptance) Dual Band Analog/PCS Phone (AMPS/CDMA) © 1998 PCTEST Lab SANYO FCC ID: AEZSCP-3000 (Model: SCP-3000)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98071406_ZOOM.VLT Start : 14-Jul-98 02:10:16 pm End : 14-Jul-98 02:18:41 pm Radio Type : SANYO Model Number : SCP-3000 Serial Number : 0001 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 0283 FM MODE DUAL BAND PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.750, Y = 1.000, Z = 0.000 (cm) Value = 4.498 Measured Values (volts) = 4.584E-003 3.020E-003 1.458E-003 5.755E-004 2.638E-005 -8.081E-004 -7.269E-004 -1.107E-003 -9.882E-004 -1.231E-003 -1.267E-003 -1.093E-003 -1.120E-003 Calc. Voltage @ Surface (Vs) = 0.0055 Voltage @ 1.00 cm (Vt) = 0.0031 Ave. Voltage (Vs+Vt)/2 = 0.0043 Ave. SAR over 1 g (mW/g) = 0.3153 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 mW/g 012345678910 Z centimeters SAR Scan File : 98071406_ZOOM Start : 14-Jul-98 02:10:16 pm End : 14-Jul-98 02:18:41 pm SANYO/SCP-3000/0001;836.49MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98071407_ZOOM.VLT Start : 14-Jul-98 02:25:37 pm End : 14-Jul-98 02:37:34 pm Radio Type : SANYO Model Number : SCP-3000 Serial Number : 0001 Frequency : 824.04 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : CHAN 0991 FM MODE DUAL BAND PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Diode Coefficients: Channel 1 An=-10.851 Bn=86.223 Cn=38.593 Dn=-0.016 Mn=0.026 Yn=0.000 Channel 2 An=-21.618 Bn=92.335 Cn=34.909 Dn=-0.019 Mn=0.029 Yn=0.000 Channel 3 An=-11.171 Bn=50.619 Cn=19.002 Dn=-0.025 Mn=0.052 Yn=0.001 Max Location : X = 2.500, Y = 1.250, Z = 0.000 (cm) Value = 12.050 Measured Values (volts) = 1.219E-002 8.825E-003 4.375E-003 2.250E-003 9.126E-004 1.299E-005 -4.808E-004 -4.286E-004 -6.145E-004 -1.057E-003 -9.719E-004 -8.505E-004 -9.992E-004 Calc. Voltage @ Surface (Vs) = 0.0144 Voltage @ 1.00 cm (Vt) = 0.0090 Ave. Voltage (Vs+Vt)/2 = 0.0117 Ave. SAR over 1 g (mW/g) = 0.8569 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 mW/g 012345678910 Z centimeters SAR Scan File : 98071407_ZOOM Start : 14-Jul-98 02:25:37 pm End : 14-Jul-98 02:37:34 pm SANYO/SCP-3000/0001;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 98071407_ZOOM Start : 14-Jul-98 02:25:37 pm End : 14-Jul-98 02:37:34 pm SANYO/SCP-3000/0001;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.881 0.819 0.756 0.693 0.630 0.567 0.504 0.441 0.378 0.315 File : 98071407_ZOOM Start : 14-Jul-98 02:25:37 pm End : 14-Jul-98 02:37:34 pm SANYO/SCP-3000/0001;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.881 0.819 0.756 0.693 0.630 0.567 0.504 0.441 0.378 0.315 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98071408_ZOOM.VLT Start : 14-Jul-98 02:41:27 pm End : 14-Jul-98 02:53:49 pm Radio Type : SANYO Model Number : SCP-3000 Serial Number : 0001 Frequency : 836.49 MHz Peak Trans. Pwr : 0.400 W Start Trans. Pwr: 0.400 W Antenna Type : Helical Antenna Posn. : In …

Text truncated - open the document above for the full version.
