AEZSCP-310Single-Mode Cellular CDMA Phone

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: Mar 22, 2000
Application Purpose: Original Equipment
Date of Application: Jan 18, 2000
Equipment Note: Single-Mode Cellular CDMA Phone
Frequency Range: 824.70000000 - 848.31000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

i FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.2 inches (0.5cm) from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.2 inches (0.5cm) must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.2 inch (0.5cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. Vehicle Mounted External Antenna (optional, if available.) A minimum separation distance of 7.9 inches (20cm) must be maintained between the user/bystander and the vehicle mounted external antenna to satisfy FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your phone

Cover Letter(s)

January 19, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SANYO ELECTRIC CO., LTD. FCC ID: AEZSCP-310 Part 22 Certification Gentlemen: Attached herewith, on behalf of SANYO ELECTRIC CO., LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID:AEZSCP-310 TRADE / MODEL(s):SANYO SCP-310 EUT TYPE:Single-Mode Cellular CDMA Phone Classification:Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range:824.70 – 848.31 MHz Rx Freq. Range:869.70 – 893.31 MHz Max. RF Output Power:0.264 W ERP (24.22 dBm) Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Kiochi Takahashi V.P. Marketing SANYO Fisher (USA) Corporation

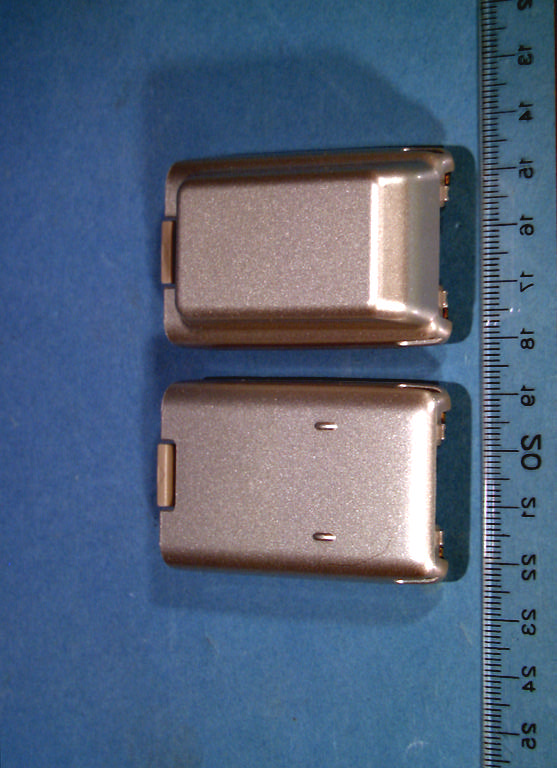

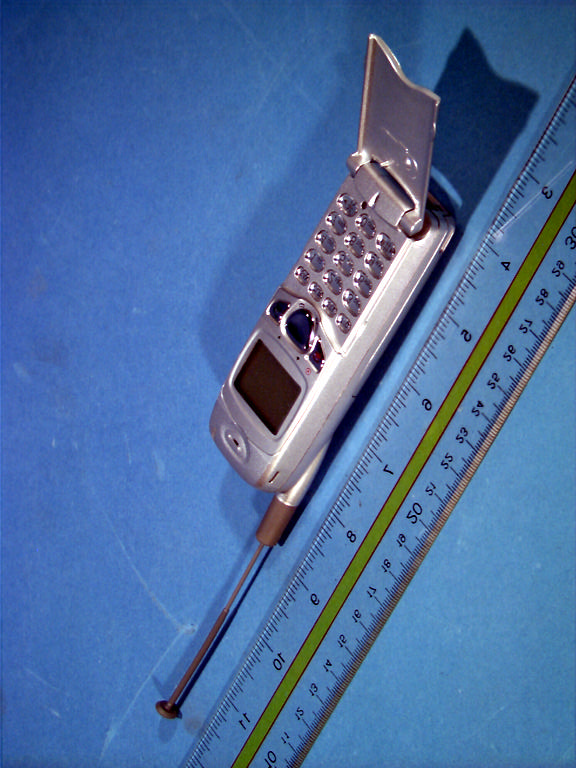

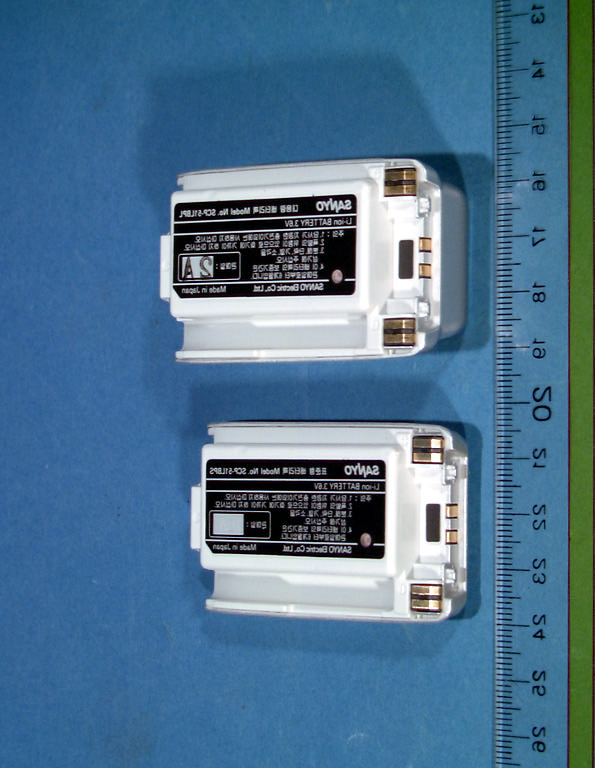

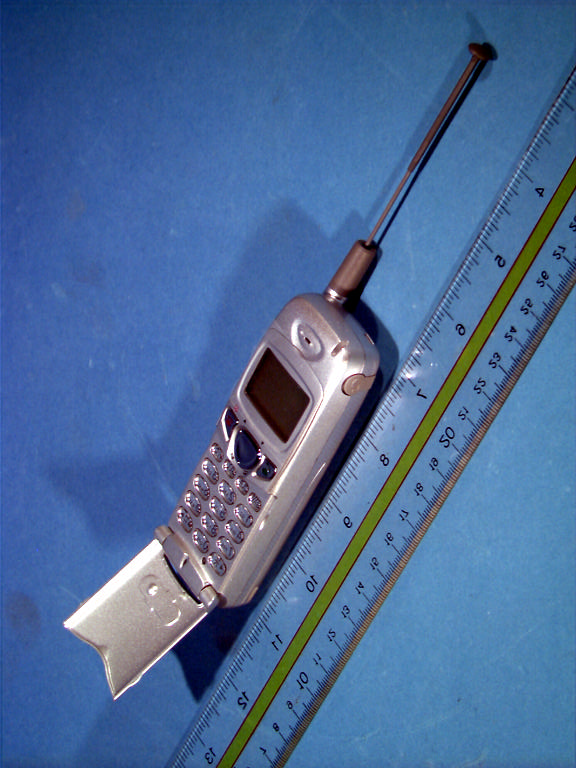

External Photos

Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: 22.200110024.AEZFCC Part 22 Test Date(s): January 10-12, 2000Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD.

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

ID Label/Location Info

Mail your comments or suggestions (To: [email protected]) FCC - Federal Communications Commission - Confirmation Number: EA96529 FCC ID: AEZSCP-310 Wed Feb 2 16:48:02 EST 2000 Status File Size (bytes) File DescriptionExhibit TypeFile Format OK 43837 FCC ID Sample Label and Location ID Label/Location Info Adobe Acrobat PDF Send More Exhibits

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SANYO ELECTRIC CO., LTD. Date(s) of Tests: January 10-12, 2000 c/o Sanyo Sales & Supply (USA) Corp.Test Report S/N: SAR.200110025.AEZ 900 North Arlington Heights Road, Suite 300Test Site: PCTEST Lab, Columbia, MD USA Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation FCC IDAEZSCP-310 APPLICANT SANYO ELECTRIC CO., LTD. EUT Type:Single-Mode Cellular CDMA Phone Tx Frequency:824.70 – 848.31 MHz Rx Frequency:869.70 – 893.31 MHz Max. RF Output Power:0.264 W ERP (24.22 dBm) Trade Name/Model(s):SANYO SCP-310 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22.901(d) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 200110025.AEZ SAR Measurement ReportFCC Part 22 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-15 14.1 SAR TEST EQUIPMENT LIST 16 15.1 CONCLUSION 17 16.1 REFERENCES 18 Test Report S/N: SAR.200110025.AEZSAR Measurement Report Test Date(s): January 10-12, 2000FCC Part 22 Certification FCC ID: AEZSCP-310 (Tx 824-849 MHz) © 2000 PCTEST LabSANYO Single-Mode Cellular CDMA Phone1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SANYO ELECTRIC CO., LTD. c/o Sanyo Sales & Supply (USA) Corp. Address:900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 Attention:Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation • EUT Type:Single-Mode Cellular CDMA Phone • Trade Name:SANYO • Model(s):SCP-310 • FCC IDENTIFIER:AEZSCP-310 • S/N:Pre-production • Tx Frequency:824.70 – 848.31 MHz • Rx Frequency:869.70 – 893.31 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22.901(d) • Modulation(s):CDMA • Max. RF Output Power:0.264 W ERP (24.22 dBm) • Antenna Type:Helical (λ/2) • Antenna Dimensions:9.7 cm. (Length) • Dates of Tests:January 10-12, 2000 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200110025.AEZ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200110025.AEZSAR Measurement Report Test Date(s): January 10-12, 2000FCC Part 22 Certification FCC ID: AEZSCP-310 (Tx 824-849 MHz) © 2000 PCTEST LabSANYO Single-Mode Cellular CDMA Phone2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative …

Text truncated - open the document above for the full version.

RF Exposure Info

SANYO FCC ID: AEZSCP-310 CDMA Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.34 mW/g, SAR (10g): 0.837 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 1013 [824.70MHz] Conducted Power = 23.0dBm [flip = open] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.25E-1 6.24E-1 1.12E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.772 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 1013 [824.70MHz] Conducted Power = 23.0dBm [flip = open] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.15E-1 5.74E-1 1.03E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.31 mW/g, SAR (10g): 0.807 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 363 [835.89MHz] Conducted Power = 23.1dBm [flip = open] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.20E-1 6.02E-1 1.08E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.33 mW/g, SAR (10g): 0.891 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 363 [835.89MHz] Conducted Power = 23.1dBm [flip = open] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.21E-1 6.07E-1 1.09E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.35 mW/g, SAR (10g): 0.835 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 777 [848.31MHz] Conducted Power = 22.8dBm [flip = open] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.24E-1 6.19E-1 1.11E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Brain SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.37 mW/g, SAR (10g): 0.854 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 777 [848.31MHz] Conducted Power = 22.8dBm [flip = open] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.24E-1 6.20E-1 1.12E+0 PCTEST ENGINEERING LAB., INC.

RF Exposure Info

SANYO FCC ID: AEZSCP-310 CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.25 mW/g, SAR (10g): 0.856 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 1013 [824.70MHz] Conducted Power = 23.0dBm [flip = closed; no belt clip or holster, spacing = 0.5cm] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.22E-1 6.12E-1 1.10E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.21 mW/g, SAR (10g): 0.831 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 1013 [824.70MHz] Conducted Power = 23.0dBm [flip = closed; no belt clip or holster, spacing = 0.5cm] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.19E-1 5.94E-1 1.07E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.845 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 363 [835.89MHz] Conducted Power = 23.1dBm [flip = closed; no belt clip or holster, spacing = 0.5cm] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.23E-1 6.13E-1 1.10E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.25 mW/g, SAR (10g): 0.851 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 363 [835.89MHz] Conducted Power = 23.1dBm [flip = closed; no belt clip or holster, spacing = 0.5cm] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.24E-1 6.21E-1 1.12E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 Antenna Position -- In; Crest Factor 1.0 SAR (1g): 1.20 mW/g, SAR (10g): 0.809 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 777 [848.31MHz] Conducted Power = 22.8dBm [flip = closed; no belt clip or holster, spacing = 0.5cm] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.18E-1 5.92E-1 1.06E+0 PCTEST ENGINEERING LAB., INC. SANYO FCC ID: AEZSCP-310 CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.31 mW/g, SAR (10g): 0.884 mW/g SANYO CDMA Only Model:SCP-310 CDMA Mode, Ch. 777 [848.31MHz] Conducted Power = 22.8dBm [flip = closed; no belt clip or holster, spacing = 0.5cm] Test Date -- 01-10-2000 SAR Tot [mW/g] 1.27E-1 6.35E-1 1.14E+0 PCTEST ENGINEERING LAB., INC.

RF Exposure Info

Test Report S/N: SAR.200110024.AEZSAR Measurement Report Test Date(s): January 10-12, 2000FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: SAR.200110024.AEZSAR Measurement Report Test Date(s): January 10-12, 2000FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD.

RF Exposure Info

Test Report S/N: SAR.200110024.AEZSAR Measurement Report Test Date(s): January 12-12, 2000FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD. Test Report S/N: SAR.200110024.AEZSAR Measurement Report Test Date(s): January 12-12, 2000FCC Part 22 Certification © 2000 PCTEST Lab FCC ID: AEZSCP-310 NVLAP Lab Code: 100431-0 SANYO ELECTRIC CO., LTD.

RF Exposure Info

835MHz Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Medium Parameters 835 MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.08 mW/g, SAR (10g): 1.35 mW/g 835MHz Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.65E-1 1.31E+0 2.44E+0 PCTEST ENGINEERING LAB INC. Validation Dipole D835V2 SN:406, d = 15mm Frequency: 835 MHz; Antenna Input Power: 250 [mW] Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0 Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.17 mW/g ± 0.03 dB, SAR (1g): 2.11 mW/g ± 0.03 dB, SAR (10g): 1.41 mW/g ± 0.04 dB, (Worst-case extrapolation) Penetration depth: 13.4 (12.3, 14.9) [mm] Powerdrift: -0.01 dB SAR Tot [mW/g] 2.50E-1 5.00E-1 7.50E-1 1.00E+0 1.25E+0 1.50E+0 1.75E+0 2.00E+0 2.25E+0 2.50E+0 Validation SN406, 07/21/99 Schmid & Partner Engineering AG, Zürich Switzerland

RF Exposure Info

Probe ET3DV5 SN:1368 Manufactured:December 1998 Calibrated:February 1999 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1368 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μV range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ. Page 2 of 8 Page 3 of 8 1 Feature of the DASY Software Tool. ET3DV5 SN:1368 DASY3 – Parameters of Probe: ET3DV5 SN:1368 Sensitivity in Free Space NormX 1.35 mV/(V/m) 2 NormY 1.29 mV/(V/m) 2 NormZ 1.46 mV/(V/m) 2 Diode Compression DCP X 78 mV DCP Y 78 mV DCP Z 78 mV Sensitivity in Tissue Simulating Liquid 450 MHz ConvF X 6.2 extrapolated ConvF Y 6.2 extrapolated ConvF Z 6.2 extrapolated 900 MHz ConvF X 5.8 ± 10% ConvF Y 5.8 ± 10% ConvF Z 5.8 ± 10% 1500 MHzConvF X 5.2 interpolated ConvF Y 5.2 interpolated ConvF Z 5.2 interpolated 1800 MHzConvF X 4.9 ± 10% ConvF Y 4.9 ± 10% ConvF Z 4.9 ± 10% 835 MHz ConvF X 5.7 ± 10% ConvF Y 5.7 ± 10% ConvF Z 5.7 ± 10% 900 MHz ConvF X 5.6 ± 10% ConvF Y 5.6 ± 10% ConvF Z 5.6 ± 10% 19 00 MHzConvF X 4.3 ± 10% ConvF Y 4.3 ± 10% ConvF Z 4.3 ± 10% Sensor Offset Probe Tip to Sensor Center 2.7 mm Surface to Probe Tip 1.7±±0.2mm ε r = 48 ± 5% σ = 0.50 ± 10%mho/m (brain tissue simulating liquid) ε r = 42.5 ± 5% σ = 0.86 ± 10%mho/m (brain tissue simulating liquid) ε r = 41 ± 5% σ = 1.32 ± 10%mho/m (brain tissue simulating liquid) ε r = 41 ± 5% σ = 1.62 ± 10%mho/m (brain tissue simulating liquid) ε r = 56.0 ± 5% σ = 0.97 ± 10%mho/m (muscle tissue simulating liquid) ε r = 54.2 ± 5% σ = 1.85 ± 10%mho/m (muscle tissue simulating liquid) ε r = 56.2 ± 5% σ = 0.95 ± 10%mho/m (muscle tissue simulating liquid) ET3DV5 SN:1368 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1368 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1368 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1368 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.001…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report

Text truncated - open the document above for the full version.
