AEZSCP-47HDual-Band Analog/PCS Phone (AMPS/CDMA)

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jun 21, 2001
Application Purpose: Original Equipment
Date of Application: Jun 06, 2001
Equipment Note: Dual-Band Analog/PCS Phone (AMPS/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Dual-Band Sprint PCS Phone TM Manufactured by SANYO User Guide Please read this manual before operating the phone, and keep it for future reference. DRAFT ONLY Model: SCP-4700 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn & Hand-held Speaker Operation This device was tested for typical body-worn & mouth (rear speaker) operations with the back of the phone and the antenna kept at a minimum distance of 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements: 1. Use only with a 1.5cm spacing between the belt-clip, holster or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt- clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. 2. Hold the transmitter and antenna at least 1.5cm from your face and speak in a normal voice, with the antenna pointed up and away from the face. WARNING! Read this information before using your phone This phone will work only with service from Sprint PCS, which must be purchased separately. See Sprint PCS Terms and Conditions of Service. ©2001 Sprint Spectrum L.P. All rights reserved. No reproduction in whole or in part without prior written approval. Sprint, Sprint PCS Phone, Sprint PCS, Sprint Personal Communication Services, Sprint PCS Wireless Web, Sprint PCS Dialer and the diamond logo are trademarks of Sprint Communications Company L.P. SANYO is a registered trademark of SANYO Electric Co., Ltd. All other trademarks are the property of their respective owners. Printed in Japan ii Welcome to Sprint PCS Sprint PCS built the only all-digital, all-PCS nationwide network from the ground up for clearer calls. We have built our network to give you what we believe you really want from a wireless phone: clear sound, private conversation and time saving features. But Sprint Personal Communication Service ® also has the potential to do something even more far-reaching–simplify your life. Our advanced technology is designed to grow with your communications needs so that one day, you will be able to rely almost entirely on your Sprint PCS Phone™ to stay in touch. This guide will introduce you to our technology and your new Sprint PCS Phone through easy-to-follow instructions. For additional help, just stop by any Sprint PCS Center or call Sprint PCS Customer Care by pressing , , (or ). Thank you for choosing Sprint PCS. iii First things first Read this before you do anything else. Determine if your phone is pre-activated If you received your Sprint PCS Phone TM in the mail or purchased it at a Sprint PCS Center, your phone is already activated and simply needs to be unlocked. See “How to unlock your phone” on the following page. How to activate your phone There are two ways to activate your phone. 1. The fastest way is to call from your new Sprint PCS Phone. Fully charge your battery. (See “Using the battery” section on pages 7 and 8.) Turn on your Sprint PCS Phone. Press , , (or ) while in a Sprint PCS Service Area. You will be connected to a Sprint PCS Customer Advocate who will guide you through the activation process. 2. Another option is to call Sprint PCS Customer Care from any phone other than your new Sprint PCS Phone. Call us toll-free at 1-888-715-4588. iv What you should know before you call The call typically takes about 30 minutes, but may take longer at peak times. Your Sprint PCS Phone will be ready for use approximately one to three hours after this call is complete. What you should have handy Your new Sprint PCS Phone The original packaging for your new phone Your billing address Your Social Security number or Tax ID number Your driver’s license number Pen and paper to write down your new Sprint PCS Phone Number During this call, a Sprint PCS Customer Advocate will collect your information and help you select your Sprint PCS Service Plan. Once you have made all your selections, they will guide you through the activation process. How to unlock your phone If you received your phone in the mail, you need to unlock it before you can begin making calls. Just follow these simple steps: 1. Press to turn on the phone. 2. Highlight and press . v 3. Enter the four-digit lock code (This code typically is the last four digits of your Sprint PCS Phone Number, Social Security number or Tax ID number. If none of these numbers work, call Sprint PCS Customer Care at 1-888-211-4PCS (4727). How to get help If you need help with this or anything else, please call Sprint PCS Customer Care at 1-888-211-4PCS (4727). You can also press , , (or ) from your activated Sprint PCS Phone. A Sprint PCS Customer Advocate will answer (24 hours a day) and will be happy to assist you. Our services are provided to you under certain terms and conditions, all of which are contained in the literature included in your package. vi Table of Contents S…

Text truncated - open the document above for the full version.

Attestation Statements

SANYO Electric Co., Ltd. Multimedia Company Tel: t81-720-70-6288 Fax: +81-720-70-6084 May 30, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti -Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Ekji Kotobuki President Multimedia Company SANYO Electric Co., Ltd.

Cover Letter(s)

June 06, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO Electric Co., Ltd. FCC ID: AEZSCP-47H Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SANYO Electric Co., Ltd., is an application for Part 22/24 Certification of the following dual band Analog/PCS phone: FCC ID: AEZSCP-457H TRADE / MODEL: SANYO SCP-4700 EUT TYPE: Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) 824.04 — 848.97 MHz (AMPS) Max. RF Output Power: 0.630 Watts ERP - AMPS (27.995 dBm) 0.330 Watts EIRP - PCS CDMA (25.180 dBm) Max. SAR Measurements: 1.340 mW/g (1g) AMPS Head SAR; 1.390 mW/g (1g) PCS CDMA Head SAR; 1.270 mW/g (1g) AMPS Body/Mouth SAR; 1.150 mW/g (1g) PCS CDMA Body/Mouth SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, 911 compliance statement, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Koichi Takahashi Vice President, Marketing SANYO Fisher (USA) Corp.

Cover Letter(s)

June 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZSCP-47H 731 Confirmation No.: EA101258 Correspondence Reference No.: 19701 Request for Tech. Info.: 06/20/2001 Dear Andy: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated June 20, 2001. 1. Please find attached the revised PCS Tune-up procedure (23.5dbm). We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

Cover Letter(s)

June 22, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Linda Elliott SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZSCP-47H 731 Confirmation No.: EA101258 Correspondence Reference No.: 19712 Request for Tech. Info.: 06/20/2001 Dear Linda: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated June 20, 2001. 1. Please find attached the revised FCC ID Label (FCC ID: AEZSCP-47H). We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

External Photos

ID Label/Location Info

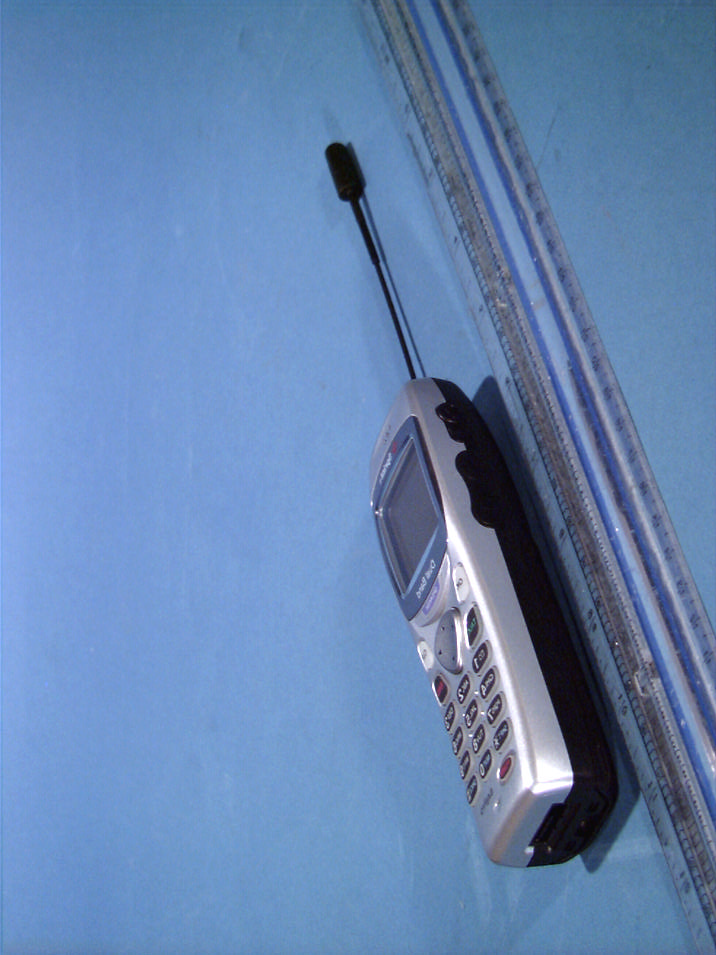

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

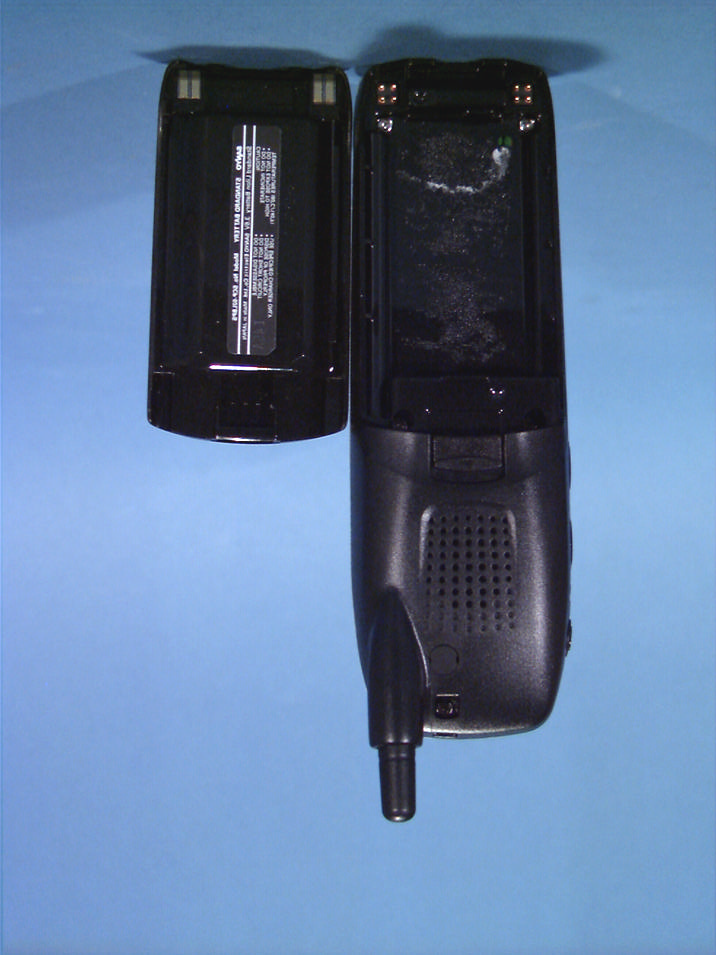

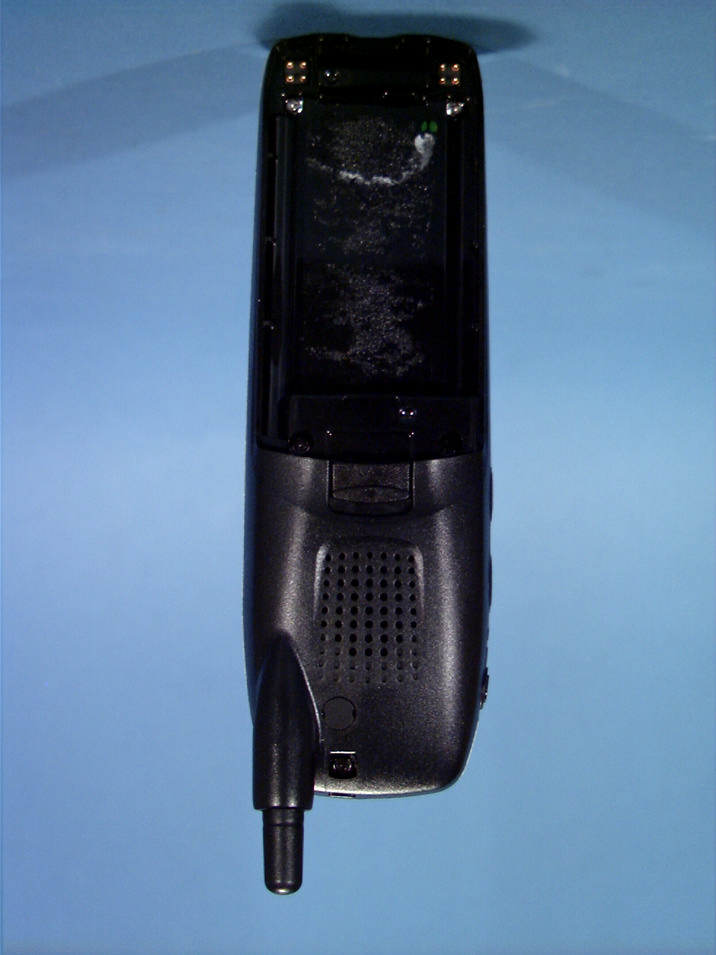

© 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-47H (Model: SCP-4700) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA)

Operational Description

Operational Description FCC ID:AEZSCP-47H Model:SCP-4700 SANYO SCP-4700 is a Dual-Band Mode digital CDMA/AMPS phone. It is designed to comply with Part 15, Part 22 and Part 24 of the CFR. PCS Band (CDMA): TX Frequencies: 1851.25MHz - 1908.75MHz RX Frequencies: 1931.25MHz - 1988.75MHz LO Frequencies: 1720.87MHz - 1778.37MHz TCXO Frequency: 19.68MHz Cellular Band (AMPS) TX Frequencies: 824.040MHz - 848.970MHz RX Frequencies: 869.040MHz - 893.970MHz LO Frequencies: 954.42MHz - 979.35MHz TCXO Frequency: 19.68MHz PCS CDMA Max. Conducted Output Power : +23 .5dBm (0.23W) AMPS Max. Conducted Output Power: +26.0dBm (0.40W) Battery voltage: 3.6V Nominal, Li-ion (Supplied with phone) Frequency Stabilization A voltage controlled temperature compensated crystal oscillator (VCTCXO) is utilized as a frequency reference for all of the transceiver local oscillators. This crystal oscillator is specified to a frequency stability of +/- 2.5ppm over temperature and voltage variations. The synthesizer lock status is constantly monitored by the microprocessor and transmission is disabled whenever an out of lock condition is detected. The mobile is locked to the base station during operation. The mobile receiver constantly monitors the received signal from the base station and makes necessary frequency adjustments on the VCTCXO to correct any frequency errors between the mobile and he base station. Suppression of Spurious Radiation Spurious and harmonic suppression is achieved by proper design with various filters and sufficient use of EMI shields. Rigorous testing at the factory ensures continuous compliance. Limiting Power Each mobile is individually calibrated at the factory to ensure Max. power of no more than +23.5dBm for PCS CDMA and +26.0dBm for AMPS by employing a proper frequency and temperature compensation schemes for both the TX and RX automatic gain control (AGC) amplifiers. There are also hardware circuitries to monitor TX power and software reset limits to limit maximum TX power. Limiting Modulation The audio input is sampled, digitally limited, and then filtered to amplitude and frequency limit the signal applied to the modulator. The device supports AMPS standards and ANSI J-STD-008 for CDMA operation. The device has an operating temperature range of –30 to +60C. The functions include Compandor, PLL lock detector for received SAT, filtering of received data, and audio signal filtering for signals. Applicant; SANYO Electric Co., Ltd. Transmitter Type: AEZSCP-47H FCC TEST MODE Operation Manual Antenna Gain (Peak Value) Extended (Whip) Retracted (Helical) PCS1.80.8 (Unit:dBi) Extended (Whip) Retracted (Helical) AMPS2.10.0 (Unit:dBd)
