AEZSCP-49HDual-Band Analog/PCS Phone (AMPS/CDMA)

SCP-4900 Operating Guide (Draft) Dual Band Table of Contents Getting to Know your Phone................................................6 Front View of Phone.................................................................................6 Viewing the Display Screen....................................................................8 Turning your Phone ON and OFF .........................................................9 Unlocking the Phone................................................................................9 Using the Battery.....................................................................................10 Understanding Roaming ..............................................12 Understanding How Roaming Works.....................................................12 Setting Your Phone’s Roam Mode...........................................................13 Setting an Alert When Roam Charges Apply(Call Guard)...................13 Making and Answering Calls .......................................15 Making Calls.............................................................................................15 Answering Calls.......................................................................................15 Missed Call Notification..........................................................................15 Dialing Options........................................................................................16 In-Call Options.........................................................................................17 Incoming Call Notification......................................................................17 End-of-Call Options.................................................................................18 Saving a Phone Number..........................................................................19 Finding a Phone Number........................................................................19 Dialing and Saving Phone Numbers With Pauses................................20 Four-Digit Dialing....................................................................................20 Calling Emergency Numbers..................................................................21 Using One-Touch Speed Dialing.............................................................21 Displaying your Phone Number..............................................................21 Using Any Key Answer............................................................................21 Using Auto Answer..................................................................................22 Navigating Through Menus and Entering Text ...........23 Menu Navigation......................................................................................23 Working Within the Menu Structure.....................................................23 Viewing the Menus..................................................................................24 Selecting a Character Input Mode..........................................................26 Entering Characters by Tapping the Keypad........................................26 Entering Characters Using T9 Text Input.............................................27 Adding a Word to the T9 Database.........................................................27 Using Smart Punctuation........................................................................28 Entering Symbols and Numbers.............................................................28 Entering SMILEYS..................................................................................29 Adjusting Volume ........................................................30 Changing Ringer/Key Volume................................................................30 Silencing the Ringer................................................................................30 Adjusting Volume During a Conversation.............................................31 Muting a Call............................................................................................31 Managing Messaging.....................................................32 Setting Up Your Voicemail.......................................................................32 Knowing When You Have Messages.......................................................32 New Voicemail Message Alerts...............................................................32 Retrieving Your Voicemail Message........................................................33 Clearing the Voicemail Message Count..................................................33 New Web Messages..................................................................................33 Web Message Storage..............................................................................33 Displaying Web Messages.......................................................................34 Web Message Options..............................................................................35 Prepending a Phone Number From a Web Message.............................36 Extracting Phone Numbers or E-mail/Web Address From a Web Message36 Adding a Folder To the Web Message....................................................38 Moving a Web Message Into the Other Folder......................................38 Changing the Displaying Font Size of a Web Message.........................39 Erasing Individual, All or All Old Web Messages.................................39 Classifying Web Messages.......................................................................40 Managing Call History..................................................42 Viewing the Call History list (Incoming, Outgoing and Missed).........42 Call History Options................................................................................42 Making a Call from the Call History List..............................................42 Prepending a Phone Number From Call History................................…

Text truncated - open the document above for the full version.

against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can the interference by one or more of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help. Cautions Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and voids the phone warranty if said accessories cause damage or a defect to the phone. Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it. Body-Worn Operation To maintain compliance with FCC RF exposure requirements, Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in th e assembly and that provide at least 1.5 cm separation between the device, including its antenna whether extended or retracted, and the user’s body. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov. Specific Absorption Rate (SAR) for Wireless Phones The SAR is a value that corresponds to the relative amount of RF energy absorbed in the head of a user of a wireless handset. The SAR value of a phone is the result of an extensive testing, measuring and calculation process. It does not represent how much RF the phone emits. All phone models are tested at their highest value in strict laboratory settings. But when in operation, the SAR of a phone can be substantially less that the level reported to the FCC. This is because of a variety of factors including its proximity to a base station antenna, phone design and other factors. What is important to remember is that each phone meets strict federal guidelines. Variations in SARs do not represent a variation in safety. All phones must meet the federal standard, which incorporates a substantial margin of safety. As stated above, variations in SAR values between different model phones do not mean variations in safety. SAR values at or below the federal standard of 1.6 W/kg are considered safe for use by the public. The highest reported SAR values of SCP-6200 are: AMPS mode (Part 22) - Head: 1.380 W/kg; Body -worn: 0.924W/kg PCS mode (Part 24) - Head: 1.300W/kg; Body-worn: 0.924W/kgvbe determined by turning the equipment off and on, the user is encouraged to try to correct FCC Radio Frequency Emission This phone meets the FCC Radio Frequency Emission Guidelines. FCC ID number: AEZSCP-49H. More information on the phone’s SAR can be found from the following FCC website: http://www.fcc.gov/oet/fccid

against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can the interference by one or more of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. l Consult the dealer or an experienced radio/TV technician for help. Cautions Any changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and voids the phone warranty if said accessories cause damage or a defect to the phone. Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it. Body-Worn Operation To maintain compliance with FCC RF exposure requirements, Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in th e assembly and that provide at least 1.5 cm separation between the device, including its antenna whether extended or retracted, and the user’s body. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements. For more information about RF exposure, please visit the FCC website at www.fcc.gov. Specific Absorption Rate (SAR) for Wireless Phones The SAR is a value that corresponds to the relative amount of RF energy absorbed in the head of a user of a wireless handset. The SAR value of a phone is the result of an extensive testing, measuring and calculation process. It does not represent how much RF the phone emits. All phone models are tested at their highest value in strict laboratory settings. But when in operation, the SAR of a phone can be substantially less that the level reported to the FCC. This is because of a variety of factors including its proximity to a base station antenna, phone design and other factors. What is important to remember is that each phone meets strict federal guidelines. Variations in SARs do not represent a variation in safety. All phones must meet the federal standard, which incorporates a substantial margin of safety. As stated above, variations in SAR values between different model phones do not mean variations in safety. SAR values at or below the federal standard of 1.6 W/kg are considered safe for use by the public. The highest reported SAR values of SCP-6200 are: AMPS mode (Part 22) - Head: 1.480 W/kg; Body -worn: 1.08 W/kg PCS mode (Part 24) - Head: 1.300 W/kg; Body-worn: 1.150 W/kgbe determined by turning the equipment off and on, the user is encouraged to try to correct FCC Radio Frequency Emission This phone meets the FCC Radio Frequency Emission Guidelines. FCC ID number: AEZSCP-49H. More information on the phone’s SAR can be found from the following FCC website: http://www.fcc.gov/oet/fccid

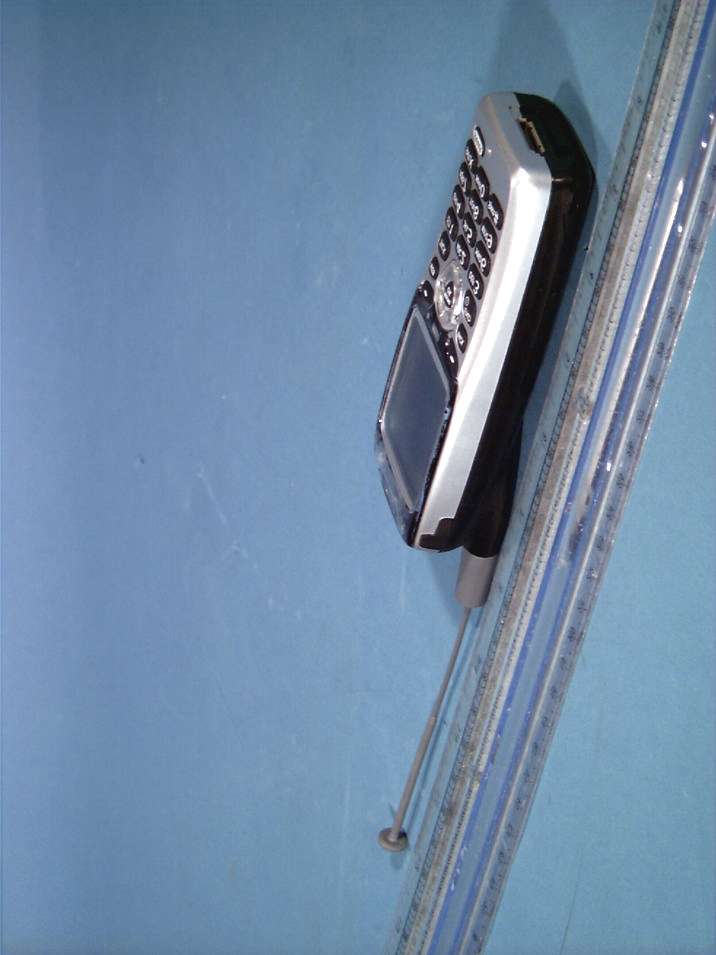

March 19 , 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO Electric Co., Ltd. FCC ID: AEZSCP-49H Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SANYO Electric Co., Ltd., is an application for Part 22/24 Certification of AEZSCP-49H Dual Band Analog/PCS phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, 911 compliance statement, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list (confidential), tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Koichi Takahashi Vice President, Marketing SANYO Fisher (USA) Corp.

May 29, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Diane Poole SUBJECT: Sanyo Electric Co. Ltd. FCC ID: AEZSCP-49H 731 Confirmation No.: EA902825 Correspondence Reference No.: 22877 Request for Tech. Info.: 5/14/02 Dear Diane: Transmitted herewith, on behalf of Sanyo Electric Co. Ltd. is an amendment provided in response to the request for technical information dated May 14, 2002. 1. Please note that in the original filing the ERP and radiated spurious data for the AMPS mode was taken with a conducted power of 25.5 dBm. To correct this situation we retested conducted spurious emissions, conducted power, Occupied BW, and SAR at the proper conducted power. Please find attached the plot these test. 2. We have received new probe calibration sheets from SPEAG that use a single conversion factor for a range of frequencies. We doubted these calibration certifications were suitable with FCC past calibration requirements so we determined the probe conversion factors the way that SPEAG has done them in the past. We have retested the AMPS mode at 25.5 dBm with a SPEAG calibrated probe and received very comparable results so we believe that the new SPEAG calibration in the 800 MHz Band may be suitable for FC requirements. Please find attached the photos of the calibration process. The probe was calibrated according to IEEE std 1528 —200x (A.3.2.2). The validation dipole construction procedures followed the IEEE std. 1528. 3. Please find attached the revised users manual. 4. Please find attached the revised SAR test report pages (21,22, and 25). 5. Sanyo would like to confirm the following accessories that will be used with this device. i. Standard Battery ii. Extended Battery iii. Travel Charger iv. Cigar Lighter Adapter v. Hands Free Car Adapter vi. USB Data Cable 6. Please find attached the revised page 25 of the SAR report indicating the proper battery types used during the SAR testing. We tested the right and left hand AMPS mode worst case channel (383) with the standards and extended battery. SAR was higher with the standard battery so we did a complete set of SAR tests with the standard battery in the 800 MHz band. We tested both the standard and extended batteries in the PCS band in the tilt position. The extended battery yielded the highest SAR value. We then completed a full set of test for the PCS band with the extended battery. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co. Ltd.

June 24, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Diane Poole SUBJECT: Sanyo Electric Co. Ltd. FCC ID: AEZSCP-49H 731 Confirmation No.: EA902825 Correspondence Reference No.: 23117 Request for Tech. Info.: 6/13/02 Dear Diane: Transmitted herewith, on behalf of Sanyo Electric Co. Ltd. is an amendment provided in response to the request for technical information dated June 13, 2002. 1. Please find attached the SAR plots for PCS mode, retested (with new power 25.5dBm) AMPS radiated measurement data, and retested (with new power 25.5dBm) SAR summary table provided for the AMPS mode. 2. Please find attached the Data comparison between Speag probe calibration and PCTEST probe calibration. Please note that this application refers to sample number 1. 3. Please find attached the revised users manual. 4. Please find attached the revised SAR Test Data pages (pages 25 of 30) showing the correct standard battery used during the tests. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co. Ltd.

July 8, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Diane Poole SUBJECT: Sanyo Electric Co. Ltd. FCC ID: AEZSCP-49H 731 Confirmation No.: EA902825 Correspondence Reference No.: 23304 Request for Tech. Info.: 7/3/02 Dear Diane: Transmitted herewith, on behalf of Sanyo Electric Co. Ltd. is an amendment provided in response to the request for technical information dated July 3, 2002. 1. Please find attached the radiated measurements for the AMPS mode. 2. Please find attached the revised complete SAR Test report along with the summary table (on a separate attachment) of what test were performed on which date. 3. We would like to confirm the following exhibits to be deleted from the record. a. SAR Report (Test Dates March 18-23, 2002) b. SAR Test Data (Test Dates March 18-23, 2002) c. SAR Test Photos (Test Dates March 18-23, 2002) d. Dipole Validation (Test Dates March 18-23, 2002) e. Probe Calibration (Test Dates March 18-23, 2002) We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co. Ltd.

© 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA)

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2002 PCTEST Lab SANYO FCC ID: AEZSCP-49H Dual-Band Analog/PCS Phone (AMPS/CDMA)

Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-49H EXHIBIT 5 PAGE 1 of 10 Description Information Subsection Description 2.983 (a) Applicant : SANYO ELECTRIC CO., LTD. 1-1 Sanyo cho, Daito City Osaka, Japan Manufacture : SANYO ELECTRIC CO., LTD. 2.983 (b) FCC ID : AEZSC P-49H 2.983 (c) Quantity : Quantity production is planned. 2.983 (d) Technical Description: See Exhibit xx 2.983 (d)(1) Emission Type : AMPS wide band mode: 40KF8W and 40K0F1D PCS wide band CDMA mode: 1M25F9W 2.983 (d)(2) Frequency Range: AMPS wide band mode: 824.04 to 848.97 MHz PCS wide band CDMA mode: 1851.25 to 1908.75 MHz 2.983 (d)(3) Range of Operating Power: AMPS wide band mode: +7.8dBm to +24.5dBm with the Capacity of reducing the maximum power in five steps of 4 dB each on command from a land station. Each power level is maintained with in +2/-4dB of its normal level over the temperature range of –30 to +60 degrees Centigrade and –0.5 V/+0.5 V change of the Battery voltage. PCS wide band CDMA mode: -50dBm to +23.5dBm with the capacity of reducing the maximum power in 73 steps of 1dB each on command from land station. A Transmitter transmits a power in two (2) state. One is an access state, another is a traffic channel state. In an access state, a power level is in proportion to an estimated receiving signal strength and is maintained with –8dB/+7dB of it normal level. In traffic channel state, a power level is determined by a 1 dB up or down command from a land station, that is , a power level of next transmit timing is a current power level added or submitted 1 dB according to a command. Each power level is maintained over the temperature range of –30 to +60 degrees Centigrade and –0.5 V/+0.5 V change of the Battery voltage. Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-49H EXHIBIT 5 PAGE 2 of 10 Description Information (Continued) Subsection Description 2.983 (d)(4) Maximum Power Rating: 0.63 Watts (AMPS wide band mode) 0.52 Watts (PCS wide band CDMA mode) 2.983 (d)(5) DC Voltage and Current to the Final Amplifier Module: AMPS Supply Voltage : 3.7 V Drain Voltage : 3.7 V Drain Current : 430 mA CDMA Supply Voltage : 3.7 V Drain Voltage : 3.7 V Drain Current : 450 mA Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-49H EXHIBIT 5 PAGE 3 of 10 2.983 (d)(6) Function of Active Devices: See Exhibit (SCP-49h_Part_List.pdf) Description Information (Continued) Subsection Description 2.983 (d)(7) Circuit Diagrams : Transceiver Block Diagram: See Exhibit (AEZSCP-49H_block&schematic_diagram.pdf) Transceiver schematic Diagram: See Exhibit (AEZSCP-49H_block&schematic_diagram.pdf) 2.983 (d)(8) Operating Instruction Book: See Exhibit (AEZSCP-49H_UserGuide.pdf) 2.983 (d)(9) Tune-Up Procedure: See Exhibit (AEZSCP-49H_Tuning&Adjustment.pdf) 2.983 (d)(10) Description of Frequency Stabilization System: (TCXO System) The TCXO System consists of VCXO Circuit (X1400) and Mobile station modem (IC210) included u-processor, DAC and AFC block. With regard to the Frequency Stability: The frequency of the TCXO module (X1400) is 19.2 MHz with stability less than ±2ppm over the temperature range of –30 to +80 degrees Centigrade. The frequency of TCXO module can be controlled by AFC (Auto Frequency Control) circuit block which Mobile station Modem (IC210) includes, so that the receiving frequency agrees with the base station transmit frequency. The frequency stability of TCXO system is maintained within + 150 Hz over the temperature range of –30 to +60 degrees Centigrade. Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-49H EXHIBIT 5 PAGE 4 of 10 Description Information (Continued) Subsection Description 2.983 (d)(11) Description of Circuits for Suppression of Spurious Radiation, for Limiting Modulation, and for Limiting Power: AMPS mode Means for Attenuation of Spurious Emissions: Spurious and Harmonic Suppression is obtained by proper shielding techniques and the use of filters. Means of Limiting Modulation: This transmitter is equipped with a device, which automatically prevents Modulation in excess of 100%. This device an instantaneous deviation control circuit precedes the modulation of the transmitter. It is instantaneous in action for controlling the modulating wave introduced into the transmitter’s frequency modulator. The modulation limiter is incorporated in the Mobil Station Modem LSI (IC210). IC210 includes DSP (Digital Signal Processor) and modulation signals, voice, WBD, SAT and ST is shaped by Digital Filter which DSP performs and DSP calculates modulation signals to limit modulation. The deviation limit can be set to the Channel width Requirement of ±12KHz with DSP incorporated in IC210. The deviation of wide Band Data and Signaling Tone can be set to a maximum of +8KHz in IC210. Means for Limiting Power Power limiting is obtained via the Automatic Power Control (APC) Circuit. APC Circuit contains HDET, IC210 and Flash Memory. The adjustment of the transmitter’s power for each of the 6 levels is made according to data stored in Flash memory IC240. CDMA Mode Means for Attenuation of Spurious Emissions: Spurious and Harmonic Suppression is obtained by proper shielding techniques and the use of filters. Means of Limiting Modulation: Modulation signals are voice signal and signaling message. The CODEC Block included IC210 digitalizes voice signal and u-processor which MSM (IC210) includes generates signaling message. Each signal is a digital signal. IC210 generates the CDMA modulation signal. Digital Filter in IC210 shapes the CDMA modulation signal to limit modulation. Means for Limiting Power Maximum power limiting is obtained via the Automatic Power Control (APC) Circuit. APC Circuit contains HDET, IC210 and FLASH MEMORY. The adjustment of the transmitter’s power for maximum power level is made according to data stored in FLASH MEMORY IC240. Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-49H EXHIBIT 5 PAGE 5 of 10 Description Information (Continued) Subsection Des…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION REPORT Reviewed by: Quality Manager SAR Filename: SAR-220528114.AEZ Test Dates: May 28, 2002 Phone Type: Dual-Band FCC ID: AEZSCP-49H Page 1 of 30 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC CO., LTD. Dates of Tests: May 28, 2002 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: SAR.220528114.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia, MD USA Itasca, IL 60143-2844 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation FCC ID: AEZSCP-49H APPLICANT: SANYO ELECTRIC CO., LTD. EUT Type: Dual-Band Analog/ PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.502 W ERP AMPS (27.007 dBm)/ 25.5 dBm Conducted 0.252 W EIRP PCS CDMA (24.010 dBm)/ 23.5 dBm Conducted Max. SAR Measurement: 1.480mW/g AMPS Head SAR; 1.08mW/g AMPS Body SAR; 1.300mW/g PCS CDMA Head SAR; 1.150 mW/g PCS CDMA Body SAR Trade Name/Model(s): SCP-49H FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype Antenna Manufacturer: SB TELECOM CO. Model No.: NSB149-0200800/1900-SS129 A n t e n n a D i m e n s i o n s : Length = 9.17 cm. [Helical / Whip] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220318134.AEZ PCTEST SAR REPORT FCC CERTIFICATION REPORT Reviewed by: Quality Manager SAR Filename: SAR-220528114.AEZ Test Dates: May 28, 2002 Phone Type: Dual-Band FCC ID: AEZSCP-49H Page 2 of 30 © 2002 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ...…

Text truncated - open the document above for the full version.
