AEZSCP-5150Dual-Band Analog/PCS Phone (AMPS/CDMA)

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96 -326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. CAUTION Use only the supplied or an approved antenna. or attachments could impair call qualiw, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damage antenna comes into contact with the skin, a minor bum may result. Please contact your local dealer for replacement antenna. Unauthorized antennas, modifications. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm from body. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5 must be maintained between the user’s body and the back of the phone, including the antenna, whether extended or retracted. Third -party belt-clips, holster and similar accessories containing metallic components should not be used. Body -worn accessories that cannot maintain 0.6 inch (1.5 cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body -worn operations may not comply with FCC RF exposure limits and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov

SANYO Electric Co., Ltd. Multimedia CompanyTel: +81-720-70-6288 Personal Telecommunication DivisionFax: +81-720-70-6084 September 17, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, _____________________ Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd. SANYO Electric Co., Ltd. Multimedia Company Tel: +81-72-870-6288 Personal Telecommunication DivisionFax: +81-72-870-6084 September 17, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re:SANYO Electric Co., Ltd. FCC ID: AEZSCP-5150 Dual Mode Cellular Phone (AMPS/CDMA) Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Sanyo Electric Co., Ltd. hereby requests confidentiality of the Block Diagram (Attachment I), and Schematic Diagrams (Attachment J) in the attached test report. These documents contain detailed system and equipment description and related information about the product which Sanyo Electric Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Sanyo Corporation considers this information to be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Eiji Kotobuki General Manager Personal Telecommunication division Multimedia Company SANYO Electric Co., Ltd. Applicant: SANYO Electric Co., Ltd.Transmitter Type: AEZSCP-5150 SANYO Electric Co., Ltd. TEL:(81) 720-70-6288 Personal Telecommunication Div. FAX:(81) 720-70-6084 1-1Sanyo-Cho, Daito City, Osaka, Japan AFFIDAVIT I hereby certify that transceiver FCC ID : AEZSCP-5150 manufactured by SANYO Electric Co., Ltd.. complies with all requirements of Part 22 Subpart H and Part 24 of the FCC Rules. SANYO Electric Co., Ltd. Multimedia Company Personal Telecommunication Division 1-1Sanyo-Cho Daito City, Osaka, Japan Date: September 17, 2001 Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd. September 17, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Sanyo Electric Co., Ltd. FCC ID: AEZSCP-5150 Users Manual RF Exposure Warning Statement Dear Frank / Kwok: Sanyo Electric Co., Ltd. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact PCTEST Lab at (301) 596-2120. Sincerely, Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia company SANYO Electric Co., Ltd. cc:Randy Ortanez President, PCTEST Lab SANYO Electric Co., Ltd. Multimedia CompanyTel: +81-72-870-6288 Personal Telecommunication Division Fax: +81-72-870-6084 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone, FCC ID: AEZSCP-5150 is so designed that it complies with all the requirements for ESN protection specified in Section 22.919. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Date: September 17, 2001 ____________________ Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd. SANYO Electric Co., Ltd. TEL:(81) 72-870-6288 Personal Telecommunication Div. FAX:(81) 72-870-6084 1-1Sanyo-Cho, Daito City, Osaka, Japan September 17, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SANYO ELECTRIC CO., LTD. FCC ID: AEZSCP-5150 FCC E911 Requirements Per §22.921 Gentlemen: Sanyo Electric Co., Ltd. hereby certifies that the cellular telephone (FCC ID: AEZSCP-400), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Date: September 17, 2001 _____________________ Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Ele…

Text truncated - open the document above for the full version.

September 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO Electric Co., Ltd. FCC ID: AEZSCP-5150 Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SANYO Electric Co., Ltd., is an application for Part 22/24 Certification of the following dual band Analog/PCS phone: FCC ID: AEZSCP-5150 TRADE / MODEL: SANYO SCP-5150 EUT TYPE: Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) 824.04 — 848.97 MHz (AMPS) Max. RF Output Power: 0.345 Watts ERP - AMPS (25.373 dBm) 0.507 Watts EIRP - PCS CDMA (27.051 dBm) Max. SAR Measurements: 1.3873 mW/g (1g) AMPS Brain SAR; 1.1390 mW/g (1g) PCS CDMA Brain SAR; 1.3380 mW/g (1g) AMPS Body SAR; 1.0297 mW/g (1g) PCS CDMA Body SAR 1.9124 mW/g AMPS Hand SAR (avg. over 10 gms) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, 911 compliance statement, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Koichi Takahashi Vice President, Marketing SANYO Fisher (USA) Corp.

October 2, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Linda Elliott SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZSCP-5150 731 Confirmation No.: EA102457 Correspondence Reference No.: 20793 Request for Tech. Info.: 10/01/2001 Dear Linda: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated October 1, 2001. 1. Please find attached the revised FCC ID Label (FCC ID: AEZSCP-5150). We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

October 30, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Joe Dichoso SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZSCP-5150 731 Confirmation No.: EA102457 Correspondence Reference No.: 21055 Request for Tech. Info.: 10/25/2001 Dear Joe: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated October 25, 2001. 1. Please find the attached revised cover letter, SAR and EMC reports certificates of compliance indicating the maximum SAR in the head configuration in PCS mode as 1.2 W/kg. 2. Please find the attached SAR test data summary and plots for the right side of the head. 3. Please find the data for the retest for brain SAR for the worst channels for AMPS and PCS. The retest was done with our new SAM phantom in 15 cm of liquid. Please note that the SAR values are similar to the original filing. Please find the data for the retest for body SAR for the worst channels for AMPS and PCS. The retest was done in 15 cm of liquid. Please note that the SAR values are similar to the original filing. 4. Please find the attached revised EIRP data from the EMC report. 5. Please find the attached revised operational description. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

October 30, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO Electric Co., Ltd. FCC ID: AEZSCP-5150 Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SANYO Electric Co., Ltd., is an application for Part 22/24 Certification of the following dual band Analog/PCS phone: FCC ID: AEZSCP-5150 TRADE / MODEL: SANYO SCP-5150 EUT TYPE: Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) 824.04 — 848.97 MHz (AMPS) Max. RF Output Power: 0.345 Watts ERP - AMPS (25.373 dBm) 0.507 Watts EIRP - PCS CDMA (27.051 dBm) Max. SAR Measurements: 1.3873 mW/g (1g) AMPS Brain SAR; 1.1993 mW/g (1g) PCS CDMA Brain SAR; 1.3380 mW/g (1g) AMPS Body SAR; 1.0297 mW/g (1g) PCS CDMA Body SAR 1.9124 mW/g AMPS Hand SAR (avg. over 10 gms) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, 911 compliance statement, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Koichi Takahashi Vice President, Marketing SANYO Fisher (USA) Corp.

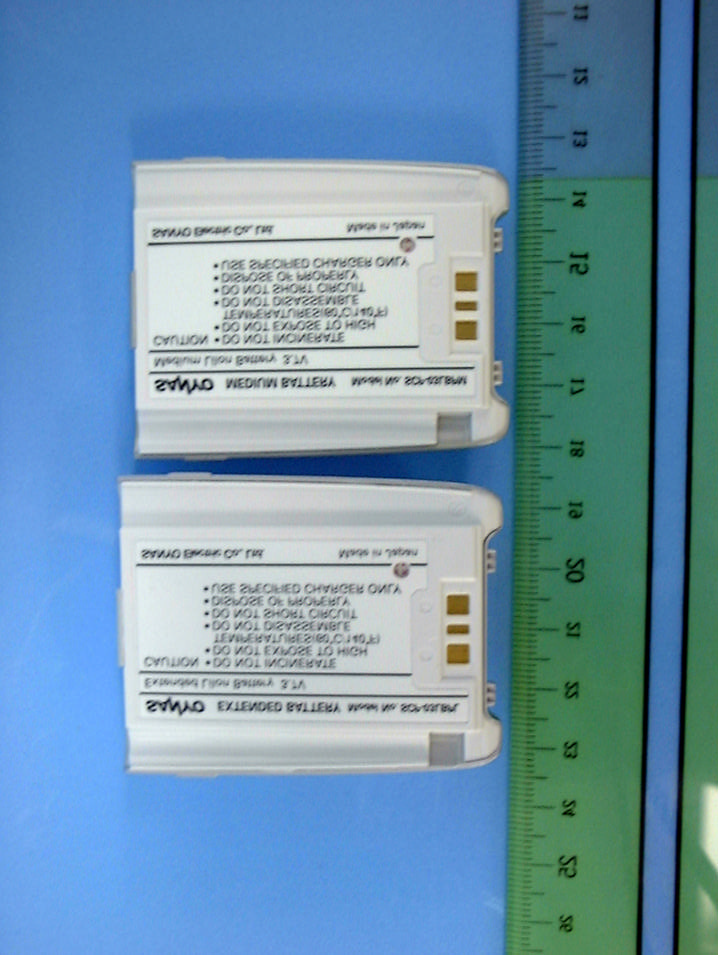

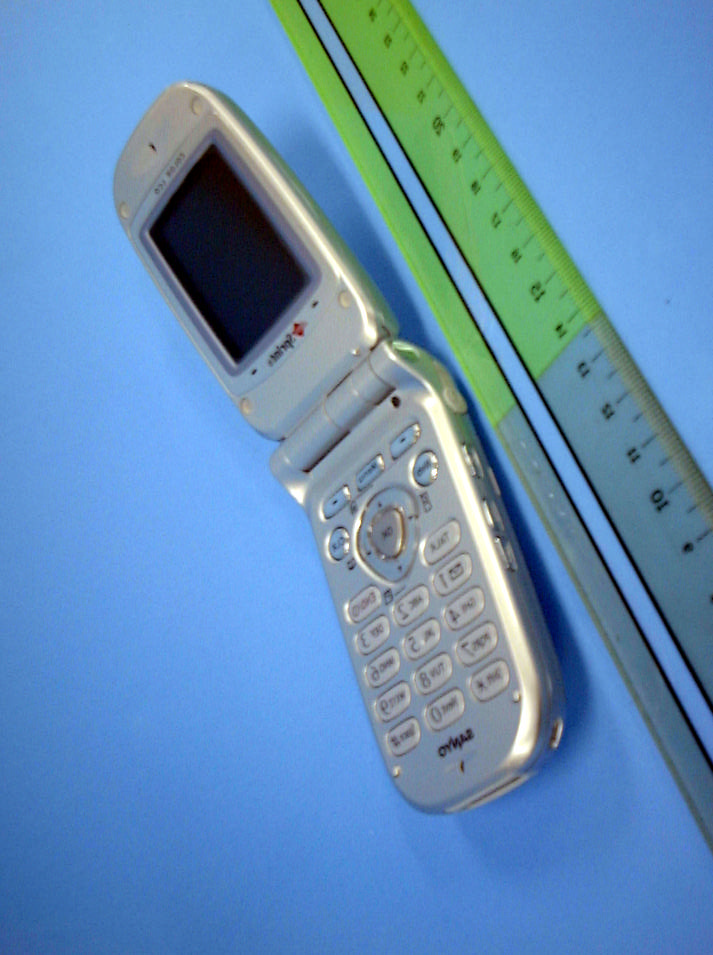

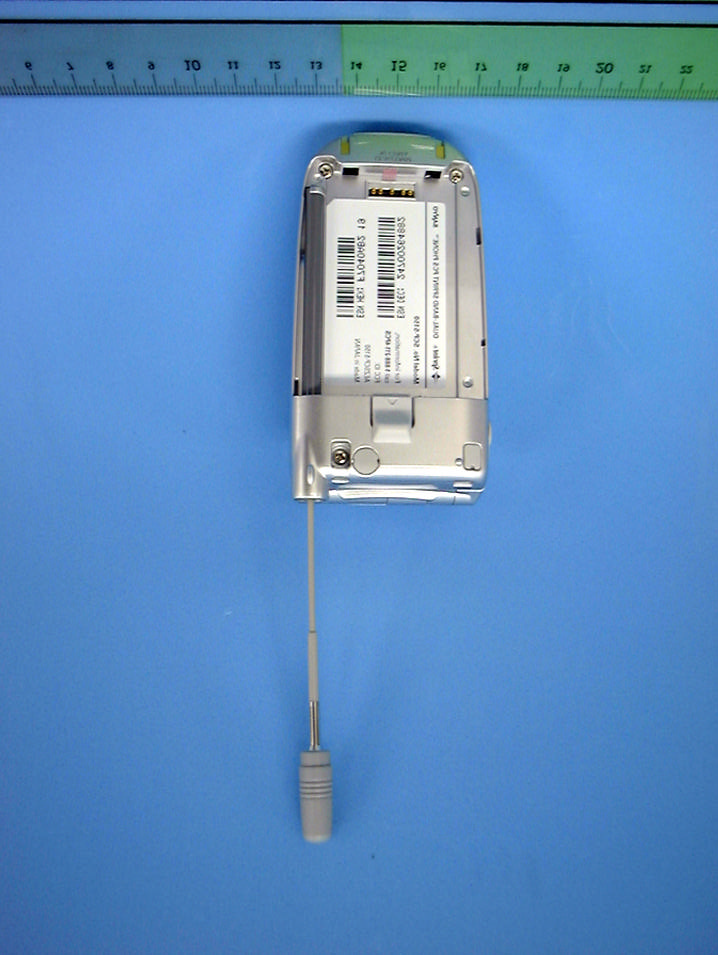

© 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA)

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER § § 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

T Aspfit@ DUAL-BAND SPRINT PCS PHONE" SWO Model No. SCP-5150 For information, call 1-888-211-4PCS FCC ID: AEZSCP-5150 Made in JAPAN

© 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA)

Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-5150 EXHIBIT 1 / 1 TECHNICAL DESCRIPTION This transmitter has been specially designed for the Domestic Personal Communication Service(CDMA) and the Domestic Cellular Radiotelephone Communication Service (AMPS). [PCS mode] The rated maximum power output for PCS is 0.2 watts with the capability of reducing the maximum power in a step of 1 dB on command from the base station. The transmitter output is confirmed correspond to the received power level of the mobile station. Each power level is maintained within +2 /-4 dB of its nominal level over the temperature range from –30 to +60 degrees centigrade and +14 –14% change of the supply voltage. This transmitter operates in the frequency range of 1851.250 MHz to 1908.250 MHz. The frequencies are generated by Phase Locked Loop Frequency Synthesizers, which are controlled by the closest base station in the system. The handset causes the frequency stability of carrier according to the frequency from the base station to become less than + 150 Hz. The transmitter is equipped with a voice processor and a Codec that are included in IC210 MSM5105. The Codec (that is included in IC210 MSM5105) samples a voice signal and a Voice processor codes EVRC or 13K voice data packet. And MSM formats the modulated signals with a voice data packet. The modulation is the Quadrature modulation. The I and Q signals are shaped by the filters whose function is included in MSM. The signals are transformed to BBA (Base Band Analog processor) (IC20). The D/A Converters, that are included in IC210 MSM5105, generate analog I and Q signals. The low pass filters shape the analog I and Q signals to limit Band width 1.25MHz. Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-5150 EXHIBIT 2 / 2 The carrier frequency of transmitter is generated by a RF PLL (Phase Locked Loop) circuit and a local PLL circuit. RF PLL circuit consists of a VCO (X1401), a frequency synthesizer IC (IC141), a loop filter, and a reference frequency oscillator (TCXO) X1400. The TX UP mixer is incorporated in the TX Control IC (IC130). The local PLL circuit consists of a VCO and a frequency synthesizer included in IC130, the loop filter, and the reference frequency oscillator. The TX up mixer is in the TX control IC (IC131). For the TCXO system, see EXHIBIT XX. Each Frequency Synthesizer Circuit (IC141, IC130) has a programmable divider, a reference divider, a phase comparator, and a change pump. The programmable divider of IC141, which is controlled by MSM (IC210) installed CPU, provides a signal to the phase comparator by dividing an output of the VCO (X1401). The programmable divider of IC130 is a fixed divider and it provides a signal to the phase comparator by dividing the VCO frequency by the fixed number. The reference divider provides a reference signal to the phase comparator by dividing an output of the TCXO system. The phase comparator controls a frequency of the VCO through the charge pump and Loop filter so that the phase of the signal from the programmable divider corresponds to the phase of the reference signal. The frequency of the VCO (X1401) for RF-PLL and the VCO (that is included in IC123) for IF PLL, and the TCXO system stability are controlled by IC210 MSM5105. In PCS mode, after mixing and the TX_IF-PLL output on the TX control (IC130), RF output is provided to a bandpass filter, IC131 SAW Filter. In AMPS mode, after mixing and the TX_IF-PLL output on the TX control (IC130), RF output is provided to a bandpass filter, XF135 SAW Filter. The power amplifier circuit, which consists of a PCS Power Amp. (IC133), the Coupler (XF131), and Isolator (XF132), amplifies the Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-5150 EXHIBIT 3 / 3 output from the SAW Filter (IC131) and provides at least (MAX) 25.0 dB output. The output of the PCS power amplifier is connected to the antenna through tow staggered duplexer. The SW (XF110) is connected to an antenna terminal and an external connector RF terminal. The signal (ANT_EXT) from MSM5101 decides which path is appropriate to be output. The output of the power amplifier provides adequate margin to compensate for losses in the duplexer, the isolator, the separator and the SW. The Power Control circuit consists the HDET, an AGC (Auto Gain Control) circuit included in IC130, an AD converter included in IC210. The PCS Power Amp. output level, which is detected by HDET is converted into the digital data by the AD converter included in IC210, and is loaded into MSM5105. The TX power level is confirmed according to the RX power level and a command from the base station. The MSM5105 detects the RX power level in IC and generates an AGC signal corresponding to the TX power level, and adjusts the signal according to a command from the base station and a read value of HDET, and then provides it into the AGC circuit in IC20. The TX power level of the transmitter is controlled by changing the Amplitude of the output power level in AGC circuit according to the AGC control voltage value. IC210 (MSM5105) continuously monitors the power output at the output of HDET. The above is used to adjust the maximum TX power. An AGC value is modified by a monitor value, and it doesn’t exceed a set TX LIMIT value. The transmitter is controlled by a signal from the MSM5105. The TX control IC (IC130), the frequency synthesizer IC (IC141) and PCS Power Amp is enabled. [ AMPS mode ] The rated maximum power output is 0.175 watts with the capability of reducing the maximum power in five steps of 4dB each on command from Applicant: SANYO Electric CO., LTD. Transmitter Type: AEZSCP-5150 EXHIBIT 4 / 4 a Base Station. Each power level is maintained within +2/-4dB of its nominal level per the temperature range from –30 to +60 degrees Centigrade and +14 –14% change of the supply voltage, accumulative. This transmitter operates in the frequency range of 824.04 to 848.97 MHz. The frequencies are generated by…

Text truncated - open the document above for the full version.

DESCPRIPTIVE INFORMATION Parts List Reference No.FunctionPart No. PLL Synthesizer IC 141PLL IC MB15F73SP X 1401PCS/AMPS VCOVC-2R8A26-0967/1750C Q 1402TransisterHN7G03FU Transmitter IC 133PCS Power AmplifierRF2153 IC 134AMPS Power AmplifierPA3100-2 IC 131SwitchUPG158TB IC 132Invert ICTC7SU04FU Q 1302,1303TransisterHN7G03FU D 1304,1305DiodeHSC88 XF 110DiplexerLFDP15N0040A XF 112PCS DuplexerDFYK1R88C1R96HHJ XF 111AMPS DuplexerEFSD836MB1Z1 XF 132PCS IsolatorCE0401R88DCB XF 134AMPS IsolatorCE053R836DCA XF 131PCS CouperLDC10B190J1880 XF 133AMPS CouperLDC10B150J0836 XF 130PCS RF SAW FilterSAFC1867.5T1897.5ML1D0T XF 135AMPS RF SAW FilterSRF836NJC31 Regulator IC 150,151Regulator(3.0V/3.0V)R5321D003A IC 152Regulator(2.9V)R1121N291B Receiver IC 122LNA/MixerRFR3100 IC 121PCS LNANE34018 Q 1201TransisterHN7G03FU XF 121PCS RF SAW FilterTSM196NW2B XF 120AMPS RF SAW FilterSAFS881.5MF1A0T XF 123PCS IF SAW FilterOFWB4910 XF 122AMPS IF SAW FilterSAFC85.380MA15X IF AGC Circuit IC 130TX AGC+Mixer ICRFT3100 IC 123RX AGC ICIFR3000 D 1202,1203,1301,1302DiodeHVC202A D 1201,D1303DiodeDAN235E Q 1203,Q1301TransistorDTC144EE TCXO Circuit X 1400TCXO KT18B-CCV30A-19.200M-T Q 1401Transistor2SC4649 PCS/AMPS-Mode RF Block/Parts List MODEL NO. SCP-5150FCC USE ONIY Ref NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.Description C11011PC12700.1UC135615P C1102100PC1271100PC13572P C110415PC12721000PC13581000P C11051PC12731000PC13591000P C11063PC12741000PC13602.5P C1107100PC127568PC13611U C12061PC127668PC13621U C12071000PC1301390PC136410P C12081000PC1302390PC136510P C12091000PC1303390PC13660.01U C12102PC1304390PC13682.2P C1211100PC130522PC1370100P C12120.1UC13081000PC137110U C12130.1UC13090.1UC1374100P C12151000PC13104700PC14010.01U C1216100PC13110.1UC1403100P C12171000PC13120.01UC14041U C121833PC1313100PC14050.1U C12191000PC13140.01UC14060.1U C1220100PC131547PC14071000P C12210.1UC131647PC140810U C12223PC131747PC14102200P C12231.5PC1318100PC14110.22U C12240.01UC13194PC14121200P C1229100PC13204PC141310U C123010PC13218PC14140.01U C1231100PC13223300PC14151000P C123256PC13233300PC1416100P C12330.1UC1324100PC14174700P C12341.5PC13251000PC14180.47U C123518PC13260.01UC14190.022U C1236100PC13270.01UC14200.01U C12370.01UC13281000PC14211000P C12381000PC13291000PC14221000P C12391000PC13300.12UC14231000P C124022PC1331560PC1424100P C1241100PC13321000PC1425100P C1242100PC1333100PC142627P C12432PC1334100PC1501100P C124510PC133512PC1502100P C1246100PC13360.1UC15031U C12480.01UC1337100PC15042.2U C12490.01UC1338100PC15052.2U C12500.01UC13391000PC1506100P C12514700PC134010PC15071U C12521000PC13414PC15082.2U C12530.01UC13421000PC15092.2U C12540.01UC13431000PC151010U C12550.01UC13441000PC15111U C12561000PC134515PC16011000P C125722PC134615P C125922PC134710P C12600.22UC13480.01U C12611000PC13498.5P C12621000PC135015P C12630.01UC135115P C1264100PC13524.7U C12650.01UC13545.6P PCS/AMPS-Mode RF Block/Parts List MODEL NO. SCP-5150FCC USE ONIY Ref NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.Description R11030R13280 R12060R13291k R12086.8kR13301.8k R120943R133110k R1210100R133256k R12124.7kR133356 R121310kR13340 R12176.8kR133547k R121910R13360 R12201kR1401680 R12213.3kR140215k R12221kR140347k R12233.3R14044.7k R12243.3R1405120k R12251kR1406100k R122610kR14074.7k R122710kR140810k R122810kR140927 R12294.7kR14100 R12300R141110k R12310R14120 R12320R14131.8k R12338.2kR14140 R1234100R14151k R12351kR14161k R12361kR141751 R12371kR14181k R12381kR14191k R12391kR14201k R12401kR142510 R12411kR15011 R12421kR15021 R124527R15030 R12475.6kR15051 R12481kR15061 R13011k R13021k R13030 R130447 R130510k R13060 R130712k R13083.6k R130910k R131010k R131110k R13130 R13150 R1316150 R13170 R131839 R13191k R132036 R132156 R13231.2k R132422k R132512k R132610k PCS/AMPS-Mode RF Block/Parts List MODEL NO. SCP-5150FCC USE ONIY Ref NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.Description L11028.2n L11034.7n L110615n L11076.8n L11084.7n L110912n L11108.2n L120215n L120310n L120447n L120510n L12066.8n L1207150n L12085.6n L120910n L12103.3n L12112.2n L1212120n L1213120n L121447n L121547n L1216220n L121739n L1218220n L121956n L122012n L122112n L122256n L122356n L123022n L130127n L130227n L13034.7n L13044.7n L130510n L130622n L13074.7n L13084.7n L13092.7n L13102.7n L13113.3n L13121.5n L131312n L131415n L131510n L13185.6n L1320600 Ohm L1321600 Ohm L1322600 Ohm L13302.7n 1PAGE SCP-5150 Adjustment Discription for Mass production. APPROVECHECKISSUE 1-163-415-00SCP-5150/H.US Eng. SectionPersonal Telecommunication Division Technical Engineering Department RF Group NAMEH.Araki A.Shimahara No.Contents 1Set-Up for Tune-Up and Adjustment of Transmitter 2Alignment Procedure 3Adjust Value 4Measurement Specification of Adjustment Minor Change Version PAGE 2 1.Set-Up for Tune-Up and Adjustment of Transmitter PC-OUT/POWER-SUPPLY RF Cable *HP8924 Must need to Calibrate before Adjustment. 1. Power on and Setup to Config Menu(Shift + Test Key). 2. Setup to Service Menu and Change to "TEMP_SENSE" of Voltmeter Connection . 3. After 30 minutes, Check for TEMP_SENSE Meter Stabilization or 0.5V(=50 C degree). 4. Setup to RF chan std is " US PCS" and Alt pwr ms cal band is "MS AMPS". SCP-5150 Handset5. Change to CDMA Scrns and Change AVG Power mode to Chan Power mode. Shield Box6. Start Calibration(About 3 minutes : Transmitter tester calibration). 7. Next, Return to Config Menu and Start Rfgen Lvl Calibration(few Seconds). GPIB Control Cable DC-POWER SUPPLY Controller Personal Computer HP8924 CDMA Mobile Station Test Set PAGE 3 2Alignment Procedure (1)Adjustment Procedure Controller(Personal Computer) SETUPIAMPS Adjustment ModeIICDMA Adjustment Mode SCP-5150 Handset Connect,Power ONTx-Power ADJ.Rx-RASRAM ADJ. Division of NG IAMPS Mesurement ModeRSSI ADJ.Rx-Frequency ADJ. NG Adjustment, Adjustment Value SettingFrequency Sens. ADJ.LNA ADJ. NV Value Compare with Specification Tx Frequency ADJ.Tx-RASRAM,LIMIT ADJ. OK Write Value to EE…

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-5150 (Model: SCP-5150) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) 1800 MHz Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01091105_ZOOM.VLT Start : 11-Sep-101 10:56:00 am End : 11-Sep-101 11:05:19 am Radio Type : SANYO Model Number : SCP-5150 Serial Number : 1 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : SANYO DUAL-BAND PHONE - PCS MODE CH 0025 Conducted 25.0 dBm SANYO DUAL-BAND PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 1.500, Y = -1.250, Z = 0.000 (cm) Value = 10.850 Measured Values (volts) = 1.054E-002 8.355E-003 6.134E-003 4.482E-003 3.233E-003 2.427E-003 1.686E-003 1.249E-003 9.014E-004 6.148E-004 4.267E-004 2.503E-004 1.289E-004 9.780E-005 7.200E-005 3.357E-005 0.000E+000 3.738E-007 0.000E+000 0.000E+000 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0138 Voltage @ 1.00 cm (Vt) = 0.0045 Ave. Voltage (Vs+Vt)/2 = 0.0092 Ave. SAR over 1 g (mW/g) = 1.0179 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01091120_ZOOM.VLT Start : 11-Sep-101 02:26:12 pm End : 11-Sep-101 02:35:34 pm Radio Type : SANYO Model Number : SCP-5150 Serial Number : 1 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 40.400 Mixture Conductivity = 1.620 Comment : SANYO DUAL-BAND PHONE - PCS MODE CH 0025 Conducted 25.0 dBm SANYO DUAL-BAND PHONE Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.201 PCTEST Amplifier Channel Settings : 0.245 0.231 0.224 Max Location : X = 1.500, Y = -1.250, Z = 0.000 (cm) Value = 8.997 Measured Values (volts) = 8.990E-003 6.841E-003 5.003E-003 3.542E-003 2.542E-003 1.918E-003 1.376E-003 1.034E-003 6.846E-004 4.999E-004 3.673E-004 2.341E-004 1.330E-004 6.931E-005 3.365E-005 1.802E-005 0.000E+000 0.000E+000 0.000E+000 0.000E+000 0.000E+000 Calc. Voltage @ Surface (Vs) = 0.0121 Voltage @ 1.00 cm (Vt) = 0.0035 Ave. Voltage (Vs+Vt)/2 = 0.0078 Ave. SAR over 1 g (mW/g) = 0.8671 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01091108_ZOOM.VLT Start : 11-Sep-101 11:30:06 am End : 11-Sep-101 11:39:26 am Radio Type : SANYO Model Number : SCP-5150 Serial Number : 1 Frequency : 1880.00 MHz Peak Trans.…
