AEZSCP-54HTri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 25, 2003
Application Purpose: Original Equipment
Date of Application: Aug 25, 2003
Equipment Note: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

July 14, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO ELECTRIC Co., Ltd. FCC ID: AEZSCP-54H Part 22/ 24 Certification Gentlemen: Submitted herewith, on behalf of SANYO ELECTRIC Co., Ltd., is an application for Part 22/ 24 Certification of the Tri-Mode Dual-Band Analog/ PCS phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SANYO ELECTRIC Co., Ltd.

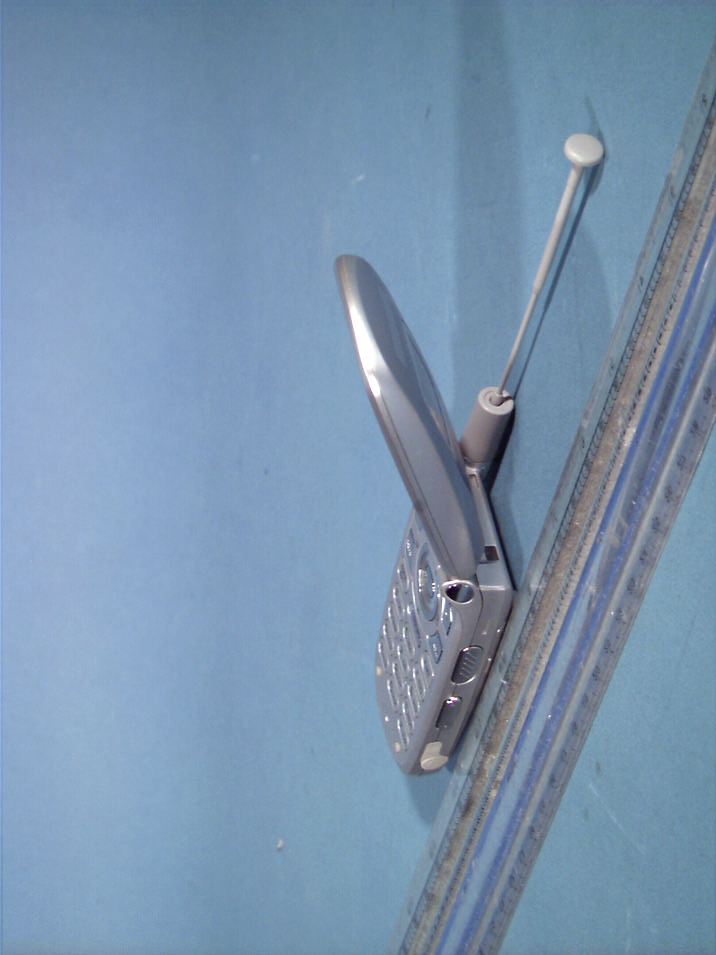

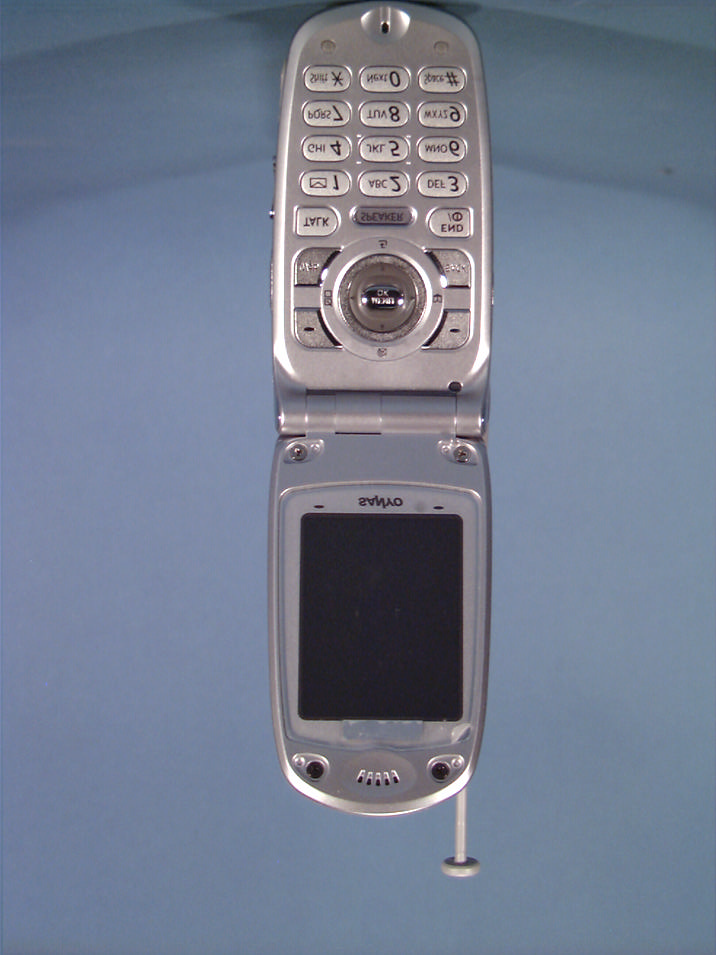

External Photos

ID Label/Location Info

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230609274.AEZ Test Dates: JUNE 9-12, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-54H Page 1 of 1 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230609274.AEZ Test Dates: JUNE 9-12, 2003 EUT Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-54H Page 2 of 1

ID Label/Location Info

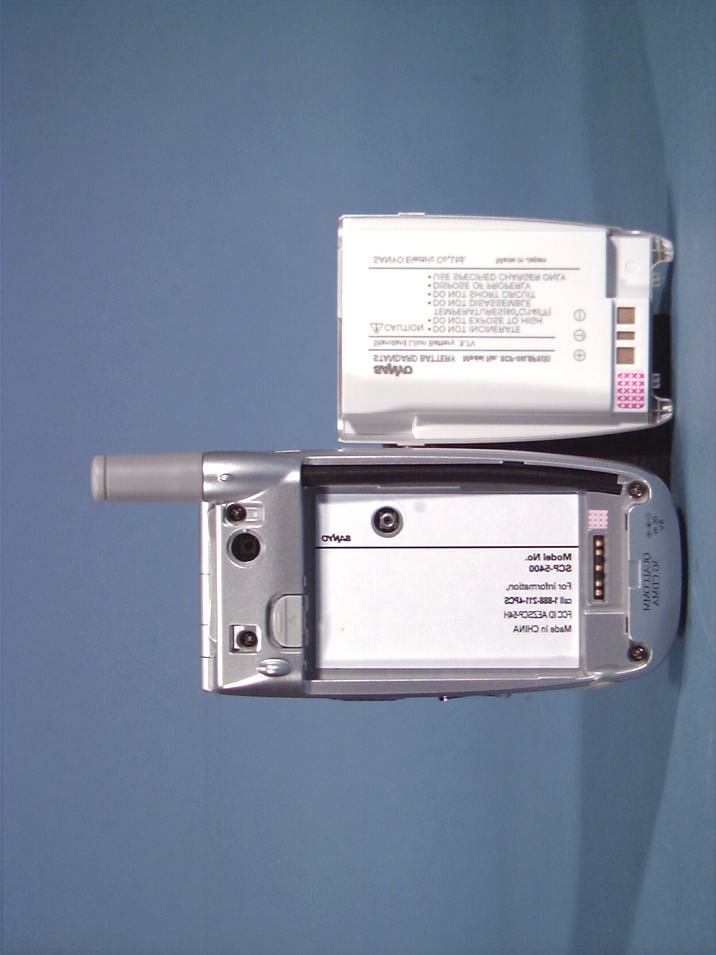

Internal Photos

SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400 SANYO FCC ID: AEZSCP-54H EUT Photographs © 2003 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS CDMA Phone Model: SCP-5400

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230609273.AEZ Test Dates: June 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-54H Page 1 of 41 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC CO., LTD. Dates of Tests: June 9-12, 2003 c/o SANYO Fisher (USA) Corp. Test Report S/N: 22/24.230609274.AEZ 218 Route 17 North Test Site: PCTEST Lab, Columbia MD Rochelle Park, NJ 07662 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) FCC ID: AEZSCP-54H APPLICANT: SANYO ELECTRIC CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.399 W ERP AMPS (26.009 dBm) / 24.5 dBm Conducted 0.397 W ERP CDMA (25.993 dBm) / 24.5 dBm Conducted 0.428 W EIRP PCS CDMA (26.301 dBm) / 24.0 dBm Conducted Max. SAR Measurement: 0.910 W/kg AMPS Head SAR; 0.543W/kg AMPS Body SAR; 0.709W/kg CDMA Head SAR; 0.435W/kg CDMA Body SAR; 1.160 W/kg PCS CDMA Head SAR; 0.881 W/kg PCS CDMA Body SAR 0.216 W/kg AMPS Mouth (Flip Open); 0.259 W/kg AMPS Mouth (Flip Close); 0.212 W/kg CDMA Mouth (Flip Open); 0.261 W/kg CDMA Mouth (Flip Close); 0.191 W/kg PCS CDMA Mouth (Flip Open); 0.193 W/kg PCS CDMA Mouth (Flip Close) Trade Name/Model(s): SCP-5400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #FCC1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230505222.BEJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230609273.AEZ Test Dates: June 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-54H Page 2 of 41 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-38 15. SAR TEST EQUIPMENT...................................................................................................39 16. CONCLUSION...............................................................................................................40 17. REFERENCES..................................................................................................................41 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-230609273.AEZ Test Dates: June 8-12, 2003 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-54H Page 3 of 41 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published …

Text truncated - open the document above for the full version.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-5400; Type: Sanyo Tri Mode Phone; Serial: FCC 1 Program: SCP-5400; AMPS Mode Ch: 991; Conducted Power = 24.5dBm. Communication System: AMPS; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.93 mho/m, ε r = 40.78, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06-09- 2003; Ambient Temp: 22.9°C ; Tissue Temp: 20.3°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch, Ch.0991, Ant Out, Standard Battery/Area Scan (61x141x1): Measurement grid: dx=15mm, dy=15mm Touch, Ch.0991, Ant Out, Standard Battery/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.4 W/kg SAR(1 g) = 0.91 mW/g; SAR(10 g) = 0.579 mW/g Reference Value = 8.97 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-5400; Type: Sanyo Tri Mode Phone; Serial: FCC 1 Program: SCP-5400; AMPS Mode Ch: 991; Conducted Power = 24.5dBm. Communication System: Cellular CDMA; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.93 mho/m, ε r = 40.78, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06-09- 2003; Ambient Temp: 22.9°C ; Tissue Temp: 20.3°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt, Ch.1013, Ant Out, Standard Battery/Area Scan (61x141x1): Measurement grid: dx=15mm, dy=15mm Tilt, Ch.1013, Ant Out, Standard Battery/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.223 W/kg SAR(1 g) = 0.178 mW/g; SAR(10 g) = 0.139 mW/g Reference Value = 11.4 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-5400; Type: Sanyo Tri Mode Phone; Serial: FCC 1 Program: SCP-5400; AMPS Mode Ch: 383; Conducted Power = 24.5dBm. Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.93 mho/m, ε r = 40.78, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 06-09- 2003; Ambient Temp: 22.9°C ; Tissue Temp:20.3°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch, Ch.0383, Ant Out, Extended Battery/Area Scan (61x141x1): Measurement grid: dx=15mm, dy=15mm Touch, Ch.0383, Ant Out, Extended Battery/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.18 W/kg SAR(1 g) = 0.751 mW/g; SAR(10 g) = 0.486 mW/g Reference Value = 7.52 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-5400; Type: Sanyo Tri Mode Phone; Serial: FCC 1 Program:SCP-5400; AMPS Mode Ch: 383; Conducted Power = 24.5dBm. Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.93 mho/m, ε r = 40.78, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 06-09- 2003; Ambient Temp: 22.9°C ; Tissue Temp: 20.3°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt, Ch.0383, Ant Out, Standard Battery/Area Scan (41x131x1): Measurement grid: dx=15mm, dy=15mm Tilt, Ch.0383, Ant Out, Standard Battery/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.207 W/kg SAR(1 g) = 0.162 mW/g; SAR(10 g) = 0.123 mW/g Reference Value = 10.2 V/m 0 dB = 0.17mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-5400; Type: Sanyo Tri Mode Phone; Serial: FCC 1 Program: SCP-5400; CDMA Mode Ch:1013; Conducted Power = 24.5dBm. Communication System: Cellular CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 40.89, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06-09- 2003; Ambient Temp: 22.9°C ; Tissue Temp: 20.3°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Touch, Ch.1013, Ant Out, Standard Battery/Area Scan (61x141x1): Measurement grid: dx=15mm, dy=15mm Touch, Ch.1013, Ant Out, Standard Battery/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.709 mW/g; SAR(10 g) = 0.457 mW/g Reference Value = 8.2 V/m PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-5400; Type: Sanyo Tri Mode Phone; Serial: FCC 1 Program: SCP-5400; CDMA Mode Ch: 1013; Conducted Power = 24.5dBm. Communication System: Cellular CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 40.89, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 06-09- 2003; Ambient Temp: 22.9°C ; Tissue Temp: 20.3°C Probe: ET3DV6 - SN1560; ConvF(6.9, 6.9, 6.9); Calibrated: 9/27/2002 Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) Electronics: DAE3 SN330; Calibrated: 12/1/2002 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Tilt, Ch.1013, Ant Out, Standard Battery/Area Scan (61x141x1): Measurement grid: dx=15mm, dy=15mm Tilt, Ch.1013, Ant Out, Standard Battery/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak S…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230609274.AEZ Test Dates: June 9-12, 2003 Phone Type: Tri-Mode Dual-Band Analog/PCS CDMA FCC ID: AEZSCP-54H Page 1 of 29 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SANYO ELECTRIC CO., LTD. Dates of Tests: June 9-12, 2003 c/o SANYO Fisher (USA) Corp. Test Report S/N: 22/24.230609274.AEZ 218 Route 17 North Test Site: PCTEST Lab, Columbia MD Rochelle Park, NJ 07662 Attn: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) FCC ID AEZSCP-54H APPLICANT SANYO ELECTRIC CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA) Model: SCP-5400 Tx Frequency Range: 824.04MHz — 848.97MHz (AMPS) / 824.70 — 848.31MHz (CDMA) 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz — 893.97MHz (AMPS) / 869.70 — 893.31MHz (CDMA) 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.399 W ERP AMPS (26.009 dBm) / 0.397 W ERP CDMA (25.993 dBm) 0.428 W EIRP PCS CDMA (26.301 dBm) Max. SAR Measurement: 0.910 W/kg AMPS Head SAR; 0.543W/kg AMPS Body SAR; 0.709W/kg CDMA Head SAR; 0.435W/kg CDMA Body SAR; 1.160 W/kg PCS CDMA Head SAR; 0.881 W/kg PCS CDMA Body SAR 0.216 W/kg AMPS Mouth (Flip Open); 0.259 W/kg AMPS Mouth (Flip Close); 0.212 W/kg CDMA Mouth (Flip Open; 0.261 W/kg CDMA Mouth (Flip Close); 0.191 W/kg PCS CDMA Mouth (Flip Open); 0.193 W/kg PCS CDMA Mouth (Flip Close) Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: # FCC 1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230609274.AEZ PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230609274.AEZ Test Dates: June 9-12, 2003 Phone Type: Tri-Mode Dual-Band Analog/PCS CDMA FCC ID: AEZSCP-54H Page 2 of 29 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10-11 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 12 7.1 RADIATED MEASUREMENTS 13-21 8.1 FREQUENCY STABILITY 22-25 9.1 PLOTS OF EMISSIONS 26 10.1 LIST OF TEST EQUIPMENT 27 11.1 SAMPLE CALCULATIONS 28 12.1 CONCLUSION 29 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT DATA ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230609274.AEZ Test Dates: June 9-12, 2003 Phone Type: Tri-Mode Dual-Band Analog/PCS CDMA FCC ID: AEZSCP-54H Page 3 of 29 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SANYO ELECTRIC CO., LTD. Address: c/o SANYO Fisher (USA) Corp. 218 Route 17 North Rochelle Park, NJ 07662 Attention: Mr. Koichi Takahashi, V.P. Marketing SANYO Fisher (USA) Corporation) • FCC ID: AEZSCP-54H • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.399 W ERP AMPS (26.009 dBm) / 0.397 W ERP CDMA (25.993 dBm) 0.428 W EIRP PCS CDMA (26.301 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H), §22.901(d) • Dates of Tests: June 9-12, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.230609274.A3L PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.230609274.AEZ Test Dates: June 9-12, 2003 Phone Type: Tri-Mode Dual-Band Analog/PCS CDMA FCC ID: AEZSCP-54H Page 4 of 29 © 2003 PCTEST ENGINEER…

Text truncated - open the document above for the full version.

Test Report

© 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H AMPS Band Edge Ch. 991 AMPS Band Edge Ch. 799 © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H Cellular CDMA Band Edge Ch. 1013 Cellular CDMA Band Edge Ch. 777 Cellular CDMA Ch. 1013 4 MHz. Span © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H Cellular CDMA Ch. 777 4 MHz. Span Cellular CDMA Block Edge Ch. 310 © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H Cellular CDMA Block Edge Ch. 357 © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H Cellular CDMA Block Edge Ch. 643 Cellular CDMA Block Edge Ch. 690 © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H Cellular CDMA Block Edge Ch. 693 Cellular CDMA Block Edge Ch. 740 © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H PCS CDMA Ch. 0025 4 MHz. Span PCS CDMA Ch. 1175 4 MHz. Span © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H © 2003 PCTEST Lab SANYO FCC ID: AEZSCP-54H

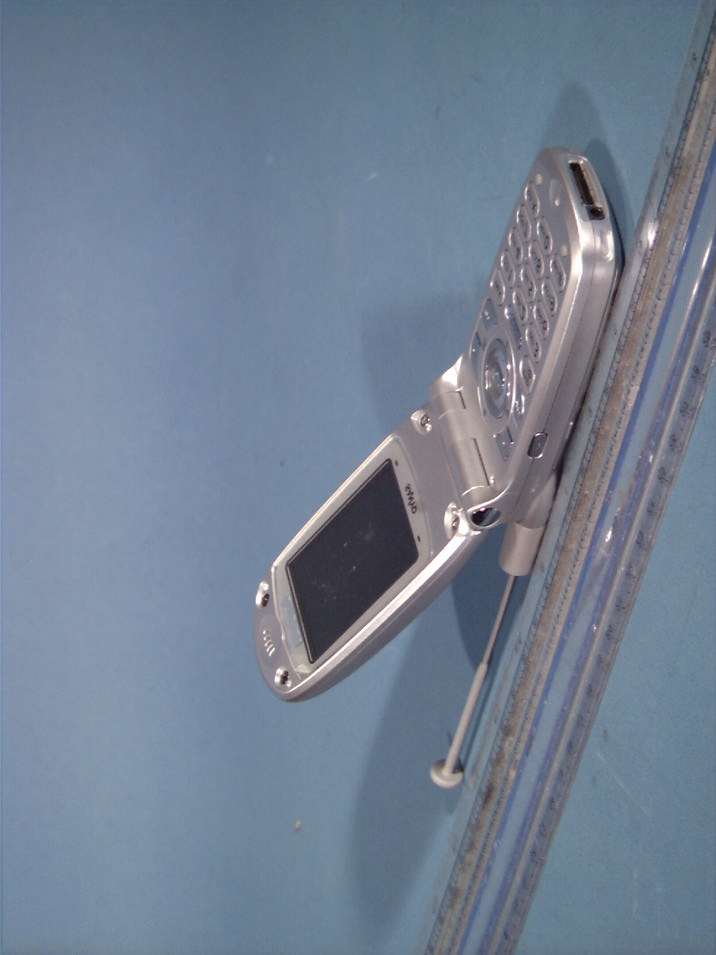

Test Setup Photos

Contact Information

Applicant

Hideaki Mukaida

[email protected]818-998-7322Fax: 818-701-4192

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Non-Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	428.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. Push-to-Talk PTT operating configuration is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters must not contain metallic components. The highest reported SAR value under this FCC ID: are AMPS/CDMA modes (Part 22) - Head: 0.910 W/kg; Body-worn: 0.543 W/kg; PCS mode (Part 24) - Head: 1.160 W/kg; Body-worn: 0.881 W/kg.
