AEZSCP-62HDual-Band Analog/PCS Phone (AMPS/CDMA)

SCP-6200 Operating Guide (Draft) Dual Band Table of Contents Getting to Know your Phone..........................................................6 Parts Name............................................................................................6 Viewing the Display Screen....................................................................8 Turning your Phone ON and OFF .........................................................9 Unlocking the Phone.............................................................................9 Using the Battery..................................................................................9 Understanding Roaming ..........................................11 Understanding How Roaming Works....................................................11 Setting Your Phone’s Roam Mode.........................................................12 Setting an Alert When Roam Charges Apply(Call Guard)...................12 Making and Answering Calls .....................................14 Making Calls..........................................................................................14 Answering Calls.....................................................................................14 Missed Call Notification........................................................................14 Dialing Options......................................................................................15 In-Call Options......................................................................................16 Incoming Call Notification.....................................................................17 End-of-Call Options...............................................................................18 Saving a Phone Number........................................................................19 Finding a Phone Number......................................................................19 Dialing and Saving Phone Numbers With Pauses................................20 Four-Digit Dialing.................................................................................20 Calling Emergency Numbers.................................................................20 Using One-Touch Speed Dialing...........................................................20 Displaying your Phone Number............................................................21 Using Any Key Answer..........................................................................21 Using Auto Answer................................................................................21 Navigating Through Menus and Entering Text ...............22 Menu Navigation...................................................................................22 Working Within the Menu Structure....................................................22 Viewing the Menus................................................................................23 Selecting a Character Input Mode........................................................28 Entering Characters by Tapping the Keypad.......................................28 Entering Characters Using T9 Text Input............................................29 Adding a Word to the T9 Database.......................................................29 Using Smart Punctuation......................................................................29 Entering Symbols and Numbers...........................................................30 Adjusting Volume ..................................................31 Changing Ringer/Key Volume...............................................................31 Silencing the Ringer..............................................................................31 Adjusting Volume During a Conversation............................................32 Muting a Call.........................................................................................32 Managing Messaging...............................................33 Setting Up Your Voicemail.....................................................................33 Knowing When You Have Messages......................................................33 New Voicemail Message Alerts..............................................................33 Retrieving Your Voicemail Message.......................................................34 Clearing the Voicemail Message Icon....................................................34 New Web Messages................................................................................34 Web Message Storage............................................................................34 Displaying Web Messages.....................................................................35 Web Message Options............................................................................36 Prepending a Phone Number From a Web Message.............................36 Extracting Phone Numbers or E-mail/Web Address From a Web Message37 Adding a Folder To the Web Message...................................................38 Moving a Web Message Into the Other Folder......................................38 Changing the Displaying Font Size of a Web Message.........................39 Erasing Individual, All or All Old Web Messages.................................39 Classifying Web Messages.....................................................................40 New Web Alerts.....................................................................................41 Displaying Web Alerts...........................................................................41 Managing Call History.............................................42 Viewing the Call History list (Incoming, Outgoing and Missed)..........42 Call History Options..............................................................................42 Making a Call from the Call History List..............................................42 Prepending a Phone Number From Call History...................…

Text truncated - open the document above for the full version.

SANYO Electric Co., Ltd. Multimedia CompanyTel: +81-720-70-6288 Personal Telecommunication DivisionFax: +81-720-70-6084 September 17, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 853(a). Sincerely, _____________________ Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd. Applicant: SANYO Electric Co., Ltd. Transmitter Type: AEZSCP-62H SANYO Electric Co., Ltd. TEL:(81) 720-70-6288 Personal Telecommunication Div. FAX:(81) 720-70-6084 1-1Sanyo-Cho, Daito City, Osaka, Japan AFFIDAVIT I hereby certify that transceiver FCC ID : AEZSCP-62H manufactured by SANYO Electric Co., Ltd.. complies with all requirements of Part 22 Subpart H and Part 24 of the FCC Rules. SANYO Electric Co., Ltd. Multimedia Company Personal Telecommunication Division 1-1Sanyo-Cho Daito City, Osaka, Japan Date: November 26, 2001 Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd. November 26, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Sanyo Electric Co., Ltd. FCC ID: AEZSCP-62H Users Manual RF Exposure Warning Statement Dear Frank / Kwok: Sanyo Electric Co., Ltd. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact PCTEST Lab at (301) 596-2120. Sincerely, Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia company SANYO Electric Co., Ltd. cc:Randy Ortanez President, PCTEST Lab SANYO Electric Co., Ltd. Multimedia CompanyTel: +81-72-870-6288 Personal Telecommunication Division Fax: +81-72-870-6084 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone, FCC ID: AEZSCP-62H is so designed that it complies with all the requirements for ESN protection specified in Section 22.919. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Date: November 26, 2001 ____________________ Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd. SANYO Electric Co., Ltd. TEL:(81) 72-870-6288 Personal Telecommunication Div. FAX:(81) 72-870-6084 1-1Sanyo-Cho, Daito City, Osaka, Japan November 26, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SANYO ELECTRIC CO., LTD. FCC ID: AEZSCP-62H FCC E911 Requirements Per §22.921 Gentlemen: Sanyo Electric Co., Ltd. hereby certifies that the cellular telephone (FCC ID: AEZSCP-62H), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, _____________________ Eiji Kotobuki General Manager Personal Telecommunication Division Multimedia Company SANYO Electric Co., Ltd.

SANYO Electric Co., Ltd. Multimedia Company Tel: +81-72-870-6288 Personal Telecommunication DivisionFax: +81-72-870-6084 November 26, 2001 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re:SANYO Electric Co., Ltd. FCC ID: AEZSCP-62H Dual Mode Cellular Phone (AMPS/CDMA) Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Sanyo Electric Co., Ltd. hereby requests confidentiality of the Block Diagram (Attachment I), and Schematic Diagrams (Attachment J) in the attached test report. These documents contain detailed system and equipment description and related information about the product which Sanyo Electric Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Sanyo Corporation considers this information to be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Eiji Kotobuki General Manager Personal Telecommunication division Multimedia Company SANYO Electric Co., Ltd.

December 3, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO Electric Co., Ltd. FCC ID: AEZSCP-62H Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SANYO Electric Co., Ltd., is an application for Part 22/24 Certification of the following Dual-Band Analog/PCS phone (AMPS/CDMA): FCC ID: AEZSCP-62H TRADE / MODEL: SANYO SCP-6200 EUT TYPE: Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range: 1851.25 — 1908.75 MHz (PCS CDMA) 824.04 — 848.97 MHz (AMPS) Max. RF Output Power: 0.387 Watts ERP - AMPS (25.873 dBm) 0.211 Watts EIRP - PCS CDMA (23.251 dBm) Max. SAR Measurements: 0.9325 mW/g (1g) AMPS Brain SAR; 1.4657 mW/g (1g) PCS CDMA Brain SAR; 1.2057 mW/g (1g) AMPS Body SAR; 1.2673 mW/g (1g) PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, 911 compliance statement, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Koichi Takahashi Vice President, Marketing SANYO Fisher (USA) Corp.

February 4, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZSCP-62H 731 Confirmation No.: EA759383 Correspondence Reference No.: 21838 Request for Tech. Info.: 01/23/2002 Dear Martin: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated January 23, 2002. EMC: 1. Example: Channel 991 AMPS Mode 2 nd Harmonic (1648.08 MHz) The receive analyzer reading at 3 meters with the EUT on the turntable was —85.8 dBm. The gain of the substituted antenna is 6.1 dBd. The signal generator connected to the substituted antenna terminals is adjusted to produce a reading of 85.8 dBm on the receive analyzer. The cable loss of the cable between the signal generator and the terminals of the substituted antenna is 1.0 dB at 1648.08 MHz. So 5.1 dB is added to the signal generator reading of —46.77 dBm yielding —41.67 dBm. The fundamental ERP was 25.273 dBm so this harmonic was 25.273 dBm — (-44.17) = 66.9 dBc. 2. Please find the attached plot showing compliance with Section 22.917(f). SAR: 1. Please find the attached revised page of the user’s manual with the corrected warning statement for body worn operation. 2. Please note that the antenna protrudes backward as opposed to straight up when extended, therefore, it was not possible to place the phone parallel with the phantom. During the body worn SAR test, we placed the phone in such a way to ensure that the hottest areas of the back of the phone were within 1.8 cm of the phantom. Please find the attached illustration of the body SAR test setup. 3. Please find the attached system validation information. 4. Please find the attached probe calibration data and certificate. 5. Since we had not yet installed the ventilation system for glycol safety issues, for PCS brain we used tissue with a higher conductivity than required by Supplement C. This led to an overestimation of SAR. The conductivity was 14% higher than the specified value, which is in direct proportion to the SAR value. 6. Please find the corrected data pages showing the proper distance between the probe and the antenna of the phone. Please note that the antenna is recessed back from the front of the phone, hence the 1.3 cm distance. 7. Please find the attached course scan data for both bands showing that the hottest area of the phone was tested. 8. We found no discernable difference between the standard and the extended battery during the ERP and EIRP tests. During the body SAR test, we used the extended battery first because of the closer distance to the phantom. Please note that we retested the highest channel again with the standard battery and obtained similar results. We tested the standard battery completely for brain SAR and tested the highest SAR channel again with the extended battery with similar results. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

February 5, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: Sanyo Electric Co., Ltd. FCC ID: AEZSCP-62H 731 Confirmation No.: EA759383 Correspondence Reference No.: 21838 Request for Tech. Info.: 01/23/2002 Dear Martin: Transmitted herewith, on behalf of Sanyo Electric Co., Ltd., is an amendment provided in response to the request for technical information dated January 23, 2002. 1. Per our conversation on Feb. 5, 2002 concerning CRN 21838, please find the attached spurious data for the AMPS mode, a retest of the highest channel for PCS Brain SAR and a scan of the back of the phone showing that the hottest portion of the phone was tested in the original filing. We trust this information is sufficient to issue the grant as soon as possible. If you have any further questions, please do not hesitate to contact us. cc: Sanyo Electric Co., Ltd.

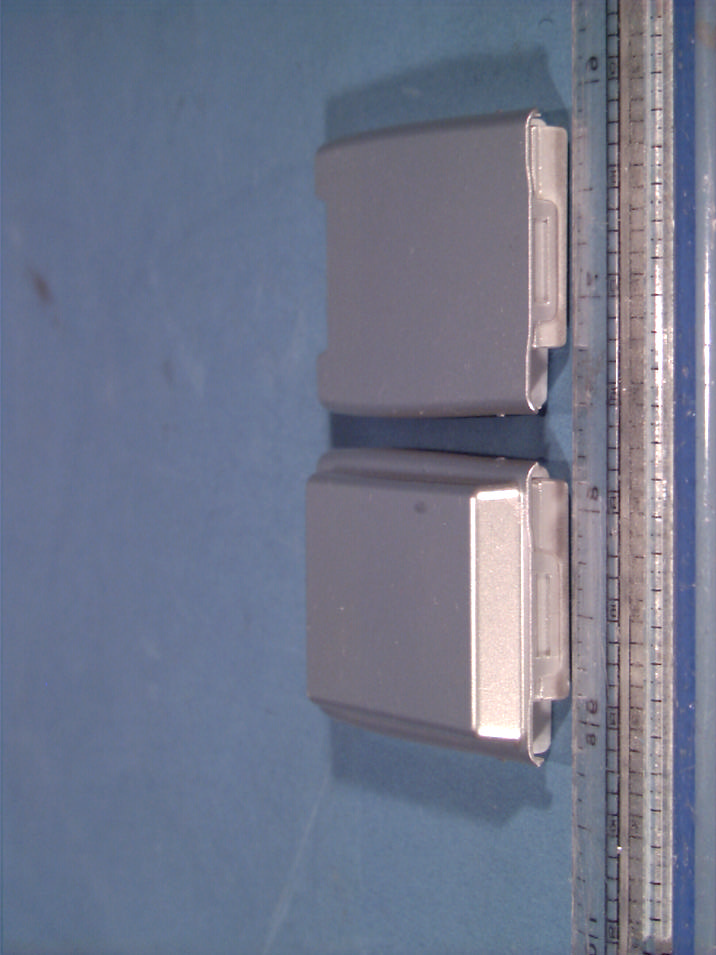

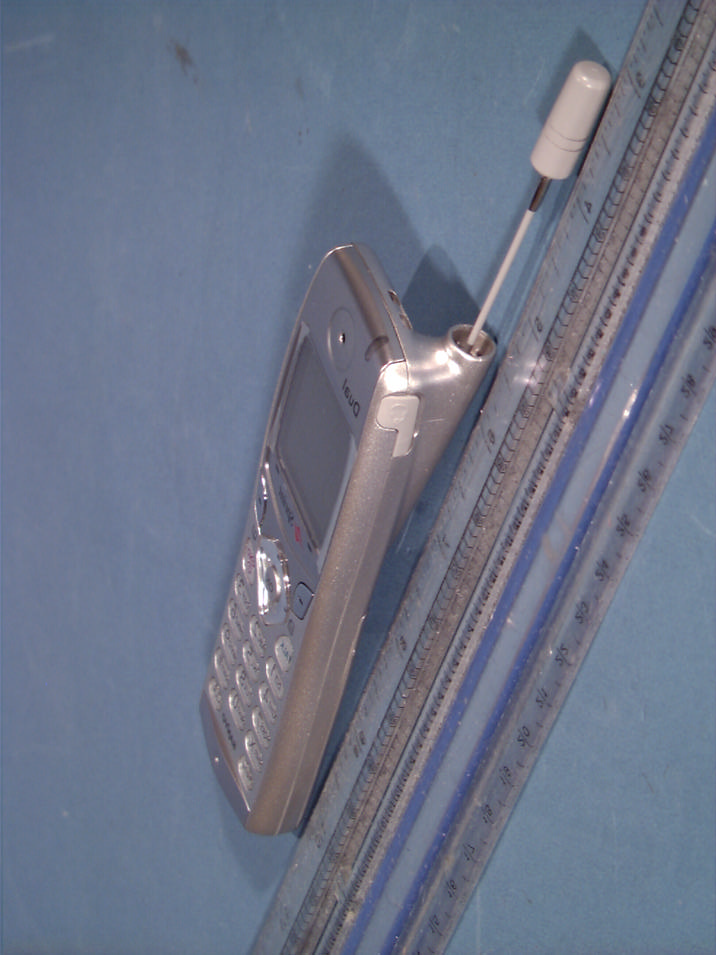

© 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA)

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA) © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/PCS CDMA)

© 2001 PCTEST Lab ATTACHMENT K – OPERATIONAL DESCRIPTION Operational Description FCC ID:AEZSCP-62H Model: SCP-62 00 SANYO SCP-6200 is a Dual-Band Analog/PCS digital phone. It is designed to comply with Part 15 and Part 24 of the CFR. TX Frequencies: 824.04 - 848.97(AMPS) / 1851.25MHz - 1908.75MHz(PCS CDMA) RX Frequencies: 869.04 - 893.97(AMPS) / 1931.25MHz - 1988.75MHz(PCS CDMA) Max. Conducted Output Power : +24.3dBm (0.27W) AMPS / +22.2dBm (0.17W) PCS CDMA Battery voltage: 3.7V Nominal, 3.4 Min., V Li-ion (Supplied with phone) Frequency Stabilization A voltage controlled temperature compensated crystal oscillator (VCTCXO) is utilized as a frequency reference for all of the transceiver local oscillators. This crystal oscillator is specified to a frequency stability of +/- 2.5ppm over temperature and voltage variations. The synthesizer lock status is constantly monitored by the microprocessor and transmission is disabled whenever an out of lock condition is detected. The mobile is locked to the base station during operation. The mobile receiver constantly monitors the received signal from the base station and makes necessary frequency adjustments on the VCTCXO to correct any frequency errors between the mobile and he base station. Suppression of Spurious Radiation Spurious and harmonic suppression is achieved by proper design with various filters and sufficient use of EMI shields. Rigorous testing at the factory ensures continuous compliance. Limiting Power Each mobile is individually calibrated at the factory to ensure Max. conducted power of no more than +22.2dBm for PCS CDMA and +24.3dBm for AMPS by employing a proper frequency and temperature compensation schemes for both the TX and RX automatic gain control (AGC) amplifiers. There are also hardware circuitries to monitor TX power and software reset limits to limit maximum TX power. Limiting Modulation The audio input is sampled, digitally limited, and then filtered to amplitude and frequency limit the signal applied to the modulator. The device supports AMPS standards and ANSI J-STD-008 for CDMA operation. The device has an operating temperature range of –30 to +60C. The functions include Compandor, PLL lock detector for received SAT, filtering of received data, and audio signal filtering for signals.

DESCPRIPTIVE INFORMATION Parts List Reference No.FunctionPart No. PLL Synthesizer IC 141PLL IC MB15F73SP X 1401PCS/AMPS VCOVC-2R8A26-0967/1750C Transmitter IC 133PCS Power AmplifierRF5154 IC 134AMPS Power AmplifierRF2192 IC 131SwitchUPG2008TK Q 1312,1314TransisterDTC144EE Q 1313,1314TransisterDTA124XE D 1304,1305DiodeHSC88 XF 110DiplexerLFDP15N0040A XF 112PCS DuplexerDFYK91G88LDGAA XF 111AMPS DuplexerFAR-D5CN-881M50-D1N4 XF 132PCS IsolatorCE0411G88DCA XF 134AMPS IsolatorCE053R836DCB XF 131PCS CouperLDC10B190J1880 XF 133AMPS CouperLDC10B150J0836 XF 130PCS RF SAW FilterSF25-1880H8UU04 XF 135AMPS RF SAW FilterSAFSE836MAL0T Regulator IC 151Regulator(3.0V)R1140Q301B IC 153Regulator(2.9V)R1141Q291B Receiver IC 122LNA/MixerRF2496 IC 121PCS LNANE34018 Q 1205Transister2SC4617 XF 121PCS/AMPS RF SAW FilterSAWCD881MFA0T XF 123PCS IF SAW FilterB4915 XF 122AMPS IF SAW FilterSAFC85.380MA15X IF AGC Circuit IC 130TX AGC+Mixer ICRFT3100 IC 123RX AGC ICIFR3000 D 1202,1203,1301,1302DiodeHVC202A D 1201,D1303DiodeDAN235E Q 1203,Q1301TransistorDTC144EE TCXO Circuit X 1400TCXO KT18B-CCV30A-19.200M-T Q 1401Transistor2SC4649 PCS/AMPS-Mode RF Block/Parts List MODEL NO. SCP-6200FCC USE ONIY Ref NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.Description C11023PC128033PC13622.5PC239833P C110412PC128133PC136510PC239933P C1107100PC12820.01UC13660.01UC266022P C1120100PC12831000PC13701UC26617P C12041PC12853PC13711UC26627P C1205100PC12860.033UC1373100PC26637P C120856PC12878PC13748PC26647P C12112.5PC12902.2UC1375100PC26657P C12130.5PC1301390PC1376100PC26667P C12151000PC1302390PC13787PC26677P C1216100PC1303390PC1379100PC26687P C121733PC1304390PC13804.7UC26697P C12181000PC130522PC1381100PC26717P C12191000PC13081000PC13820.01UC26727P C1220100PC13090.1UC1383100PC26737P C12210.1UC13104700PC1384100PC267422P C12222PC13110.1UC13850.01UC267522P C12240.01UC13120.01UC14010.01UC26761U C12250.01UC1313100PC14060.1UC26771U C12300.033UC13140.01UC14071000PC26781U C12311000PC131547PC140810UC26791U C12320.033UC131647PC14102200PC26811U C12342PC131747PC14110.22UC26821U C12361000PC1318100PC14121200PC26830.47U C12370.01UC13194PC141310UC26840.47U C12381000PC13204PC14140.01UC26850.22U C12391000PC13218PC14151000PC26860.22U C12400.01UC13223300PC1416100PC26870.22U C12418PC13233300PC14174700PC26880.22U C12428PC1324100PC14180.47UC26890.22U C12430.5PC13250.1UC14190.022UC26910.22U C12455PC13260.01UC14200.01UC26920.47U C12460.01UC13270.01UC14211000PC26930.47U C12480.01UC13281000PC14221000PC26940.47U C12490.01UC13291000PC14231000PC26960.1U C12500.01UC13300.12UC1424100PC26970.1U C12514700PC1331560PC1425100PC26980.1U C12521000PC13321000PC142627PC26990.1U C12530.01UC133382PC14270.01U C12540.01UC133482PC150110U C12550.01UC13357PC15021U C12561000PC13360.01UC15062.2U C125722PC1337100PC15071U C125922PC1338100PC1508100P C12600.1UC133956P C12611000PC13402P C12621000PC1341100P C12630.01UC13421000P C1264100PC13431000P C12650.01UC134415P C12660.1UC134515P C12670.01UC13466P C12700.1UC134815P C1271100PC135015P C12731000PC13510.01U C12751000PC135212P C12761000PC13534.7U C12771000PC13573P PCS/AMPS-Mode RF Block/Parts List MODEL NO. SCP-6200FCC USE ONIY Ref NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.Description R11010R135022R239610 R11030R13520R239710 R11070R136047kR23981k R120610kR1401680R2683100k R120710kR140215kR2684150 R120810kR140347kR2685150 R120947R140927R26881k R1210100R14100R2689330k R121110kR141110kR2692150 R121210kR14120R269368 R121710kR14131.8kR2694150 R121910kR14140R269568 R122013kR14151kR2696150 R12216.8kR14161kR269768 R12221kR141751R2698150 R12233.3R14181kR2699330 R12243.3R14191kRB1211kX4 R12251kR14201kRB1221kX4 R122610kR142510TH16168k R122710kR15100 R122810kR160118k R12294.7kR160268k R123010 R12338.2k R1234100 R124522 R12472.7k R1248100 R12495.1k R125015k R12516.8k R125510 R12600 R129056 R13011k R13021k R13030 R130447 R130510k R13060 R130712k R13083.6k R130910k R131010k R131110k R1314100 R13151.5k R13161k R132156 R1323270 R13240 R1325120 R13291k R13301.8k R133110k R133256k R133356 R13350 PCS/AMPS-Mode RF Block/Parts List MODEL NO. SCP-6200FCC USE ONIY Ref NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.DescriptionRef NO.Description L11003.3nL2396220n L11028.2nL2397220n L11033.9nL2398220n L110518nL2399220n L11081.8n L110912n L120210n L120382n L12051n L12071.5n L12084.7n L120922n L12103.3n L12125.6n L1213120n L121443n L121543n L1216270n L121768n L1218270n L121947n L122012n L122112n L122256n L122356n L12241.5n L122627n L1251220n L130127n L130227n L13034.7n L13044.7n L130510n L130627n L13078.2n L130812n L13098.2n L13104.7n L13111.5n L131215n L13132.2n L13164.7n L13185.6n L1320600 Ohm L1321600 Ohm L1322600 Ohm L13305.6n L133139n L133222n L13343.9n L13361n Applicant; SANYO Electric Co., Ltd. Transmitter Type: AEZSCP-62H 1 / 9 Page FCC TEST MODE Operation Manual FCC TEST MODE OPERATION MANUAL [ FCC TEST Start Up ] 1): Push the “POWER” Key. (LCD Display) === START SCREEN === *** Un-decision *** 2): It transits to “Test_Mode” . Push the “menu” Key and Push the “Left” Key . (LCD Display) Test Mode Push: 2 2:FCC TEST 3): Push the “2” Key, then entered the FCC TEST Mode. Applicant; SANYO Electric Co., Ltd. Transmitter Type: AEZSCP-62H 2 / 9 Page FCC TEST MODE Operation Manual (LCD Display) TestMode FCC test [ PCS ] [ AMPS ] [PCS Inspection Mode] [AMPS Inspection Mode] When the above screen, push either the “ (left)” Key or the “ (right)” Key. Push the “ (left)” Key, then switched PCS mode (Displayed the Initial Screen of PCS Mode) (The Initial Screen of PCS Mode is TX setting screen; See Page 7) Push the “ (right)” Key, then switched AMPS Mode (Displayed the Initial Screen of AMPS Mode) (The Initial Screen of AMPS Mode is RX setting screen; See Page 3) Applicant; SANYO Electric Co., Ltd. Transmitter Type: AEZSCP-62H 3 / 9 Page FCC TEST MODE Operation Manual [ AMPS Mode ] 1) RX Mode (Receiving only) (LCD Display) FCC AMPS RX MODE CHANNEL RV PATH MODE : “RX” CHANNEL : “CH: Current Channel Number” RV PAT…

Text truncated - open the document above for the full version.

Peak SAR Location © 2001 PCTEST Lab SANYO FCC ID: AEZSCP-62H (Model: SCP-6200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) 800 MHz Body SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01112707_ZOOM.VLT Start : 27-Nov-101 11:20:01 am End : 27-Nov-101 11:33:41 am Radio Type : SANYO Model Number : SCP-6200 Serial Number : 2 Frequency : 824.04 MHz Peak Trans. Pwr : 0.270 W Start Trans. Pwr: 0.270 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 56.100 Mixture Conductivity = 0.950 Comment : SANYO DUAL-BAND PHONE - AMPS MODE CH 0991 Conducted 24.3 dBm SANYO DUAL-BAND PHONE - BODY SAR Robot : PCTEST Probe Offset = 0.20 cm Sensor Factor = 0.0108 Conversion Factor = 0.423 PCTEST Amplifier Channel Settings : 0.239 0.278 0.294 Max Location : X = 2.500, Y = -0.500, Z = 0.000 (cm) Value = 34.924 Measured Values (volts) = 3.447E-002 3.085E-002 2.683E-002 2.402E-002 2.123E-002 1.892E-002 1.706E-002 1.468E-002 1.301E-002 1.184E-002 1.081E-002 9.909E-003 8.719E-003 8.163E-003 7.390E-003 6.621E-003 5.668E-003 4.910E-003 4.430E-003 4.009E-003 3.745E-003 Calc. Voltage @ Surface (Vs) = 0.0381 Voltage @ 1.00 cm (Vt) = 0.0235 Ave. Voltage (Vs+Vt)/2 = 0.0308 Ave. SAR over 1 g (mW/g) = 1.2057 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 01112707_ZOOM Start : 27-Nov-101 11:20:01 am End : 27-Nov-101 11:33:41 am SANYO/SCP-6200/2;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/56.100/0.950 File : 01112707_ZOOM Start : 27-Nov-101 11:20:01 am End : 27-Nov-101 11:33:41 am SANYO/SCP-6200/2;824.04MHz;W;Helical/In; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/56.100/0.950 1.368 1.276 1.184 1.092 1.000 0.907 0.815 0.723 0.631 0.539 File : 01112707_ZOOM Sta…
