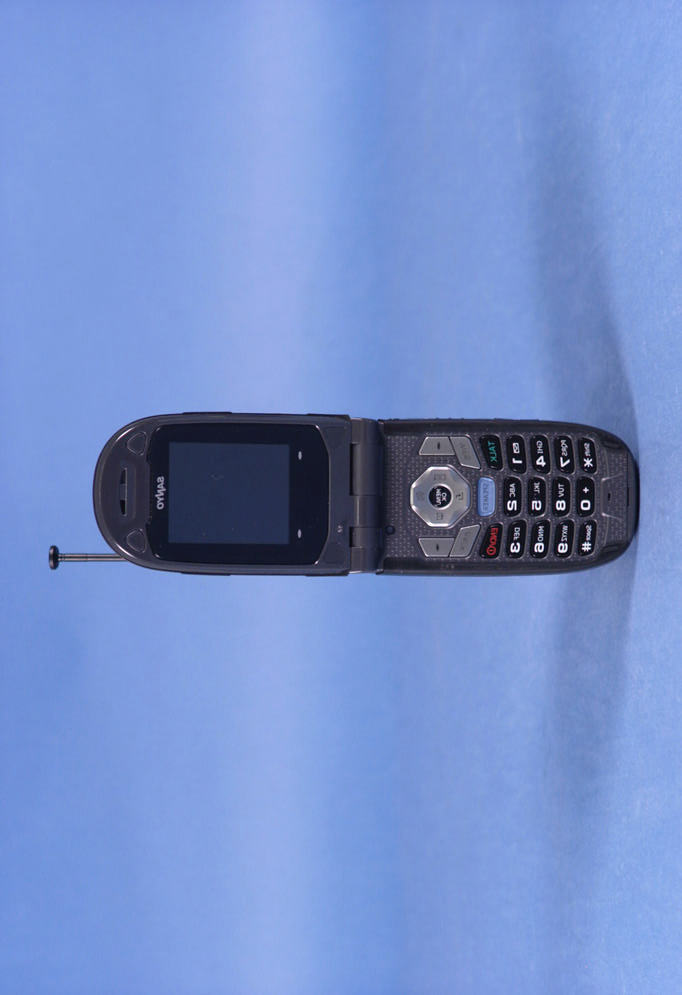

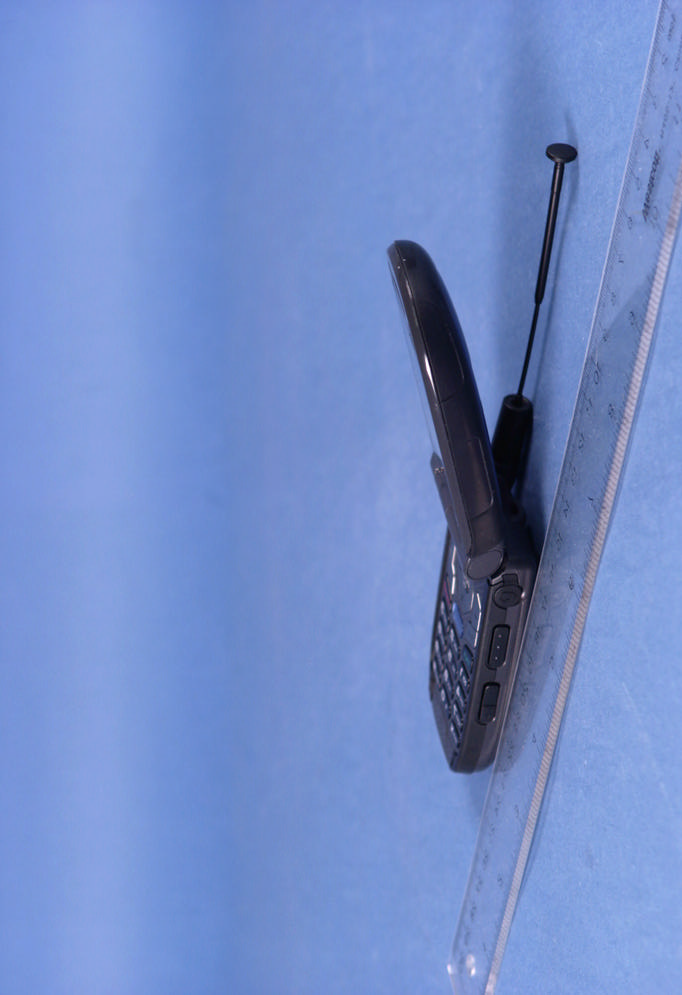

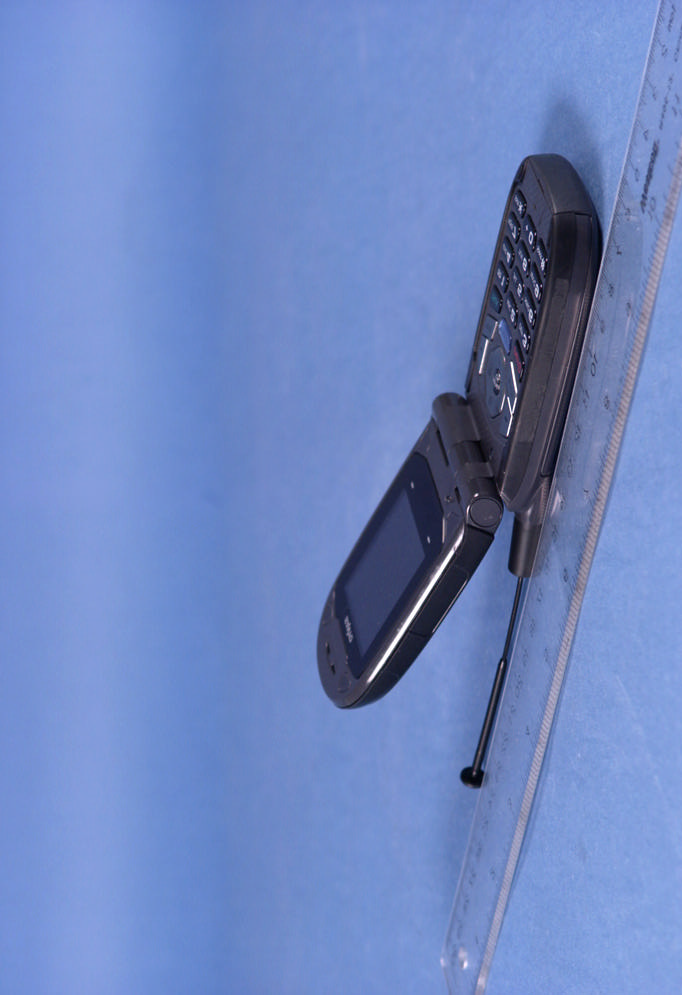

SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000

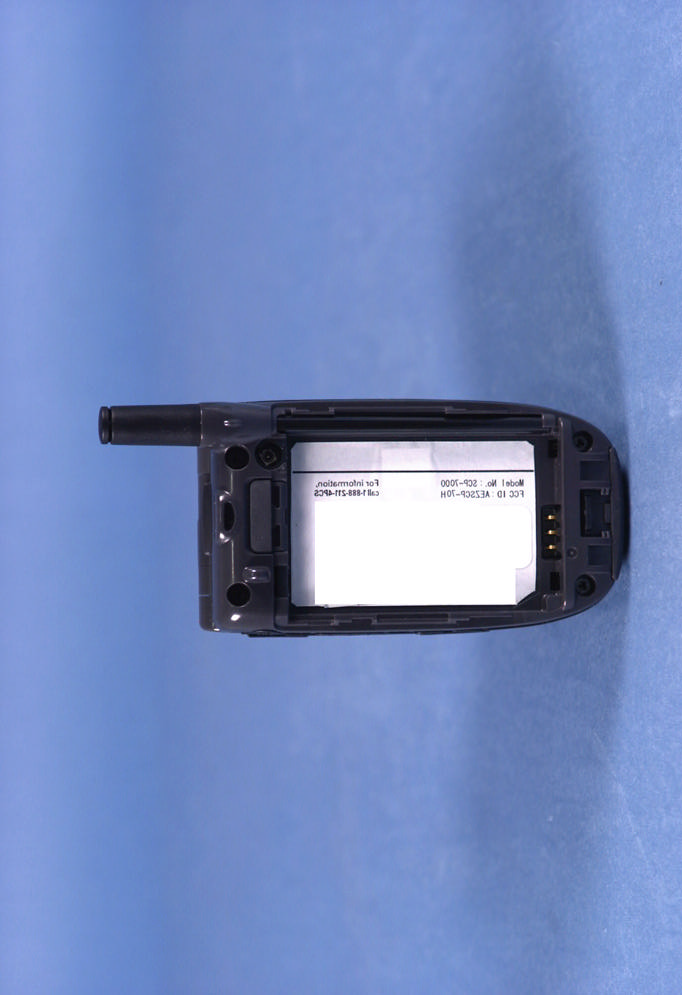

SCP-7000 Rating Label

SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000

Reviewed by: FCC ID: AEZSCP-70H CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0607240632 07/24/2006 - 07/27/2006 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Page 1 of 27 © 2006 PCTEST Engineering Laboratory, Inc. v 3.1 Applicant Name: Date of Testing: Sanyo Fisher Company 07/24/2006 - 07/27/2006 21605 Plummer Street Test Site/Location: Chatsworth, CA 91311 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0607240632 FCC ID: AEZSCP-70H APPLICANT: SANYO FISHER COMPANY EUT Type: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): SCP-7000 Tx Frequency: 824.04 - 848.97 MHz (AMPS) / 824.70 – 848.331 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Conducted Power: 24.5 dBm Conducted (AMPS)/ 23.5 dBm Conducted (CDMA)/ 23.5 dBm Conducted (PCS) Max. SAR Measurement: 1.08 W/kg AMPS Head SAR / 0.756 W/kg AMPS Body SAR 0.900 W/kg CDMA Head SAR / 0.602 W/kg CDMA Body SAR 0.782 W/kg PCS Head SAR / 0.780 W/kg PCS Body SAR Test Device Serial No.: Pre-Production [S/N: 24710034071] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.2 cm between the back of the unit and the body of the user. Push-to-Talk operating configuration is based on a separation distance of 2.5 cm between the front on the unit and the face of the user. End- users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: AEZSCP-70H CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0607240632 07/24/2006 - 07/27/2006 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Page 2 of 27 © 2006 PCTEST Engineering Laboratory, Inc. v 3.1 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1 - 2005 RF EXPOSURE LIMITS....................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006........................................................... 17 14 SAR DATA SUMMARY ................................................................................................................. 19 15 EQUIPMENT LIST......................................................................................................................... 24 16 CONCLUSION............................................................................................................................... 25 17 REFERENCES .............................................................................................................................. 26 Reviewed by: FCC ID: AEZSCP-70H CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0607240632 07/24/2006 - 07/27/2006 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Page 3 of 27 © 2006 PCTEST Engineering Laboratory, Inc. v 3.1 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels wit…

Text truncated - open the document above for the full version.

Reviewed by: PCTEST™ PT. 22/24 TRI- MODE TEST REPORT FCC MEASUREMENT REPORT (AMPS / CDMA) Quality Manager Test Report S/N: Test Dates: EUT Type: 0607240631 August 1 - 4, 2006 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: AEZSCP-70H Page 1 of 32 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.5 Applicant Name: Date of Testing: Sanyo Electric Co Ltd August 1 - 4, 2006 c/o Sanyo Fisher Company Test Site/Location: 21605 Plummer Street PCTEST Lab, Columbia, MD, USA Chatsworth, CA 91311 Test Report Serial No.: USA 0607240631 FCC ID: AEZSCP-70H APPLICANT: SANYO ELECTRIC CO LTD Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model(s): SCP-7000 Tx Frequency Range: 824.04 - 848.97MHz (AMPS) / 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04 - 893.97MHz (AMPS) / 869.70 - 893.31MHz (Cell. CDMA) / 1931.25 - 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.427 W ERP AMPS (26.304 dBm) / 0.339 W ERP Cell. CDMA (25.308 dBm) / 0.646 W EIRP PCS CDMA (28.101 dBm) Max. SAR Measurement: 1.080 W/kg AMPS Head SAR, 0.756 W/kg AMPS Body SAR; 0.900 W/kg Cell. CDMA Head SAR, 0.602 W/kg Cell. CDMA Body SAR; 0.782 W/kg PCS CDMA Head SAR, 0.780 W/kg PCS CDMA Body SAR; Emission Designator(s): 40K0F8W / 40K0F4D (AMPS), 1M25F9W (CDMA) Test Device Serial No.: identical prototype [S/N: F7991B97] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.2cm between the back of the unit and the body of the user. Push-to-Talk operating configuration is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Reviewed by: PCTEST™ PT. 22/24 TRI- MODE TEST REPORT FCC MEASUREMENT REPORT (AMPS / CDMA) Quality Manager Test Report S/N: Test Dates: EUT Type: 0607240631 August 1 - 4, 2006 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) FCC ID: AEZSCP-70H Page 2 of 32 © 2006 PCTEST Engineering Laboratory, Inc. Ver. 3.5 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................................... 3 2.0 INTRODUCTION .................................................................................................................................................................... 4 2.1 TESTING FACILITY .................................................................................................................................................. 4 2.2 MEASUREMENT PROCEDURE .............................................................................................................................. 4 3.0 INSERTS ................................................................................................................................................................................ 5 4.0 DESCRIPTION OF TESTS..................................................................................................................................................... 6 4.1 TRANSMITTER AUDIO FREQUENCY RESPONSE ................................................................................................ 6 4.2 AUDIO LOW PASS FILTER FREQUENCY RESPONSE ......................................................................................... 6 4.3 MODULATION LIMITING .......................................................................................................................................... 6 4.4 OCCUPIED BANDWIDTH EMISSION LIMITS ......................................................................................................... 7 4.5 CELLULAR - BASE FREQUENCY BLOCKS ............................................................................................................ 7 4.6 CELLULAR - MOBILE FREQUENCY BLOCKS ........................................................................................................ 7 4.7 PCS - BASE FREQUENCY BLOCKS ....................................................................................................................... 8 4.8 PCS - MOBILE FREQUENCY BLOCKS ................................................................................................................... 8 4.9 OCCUPIED BANDWIDTH......................................................................................................................................... 9 4.10 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .................................................................. 9 4.11 FREQUENCIES ........................................................................................................................................................ 9 4.12 RADIATED SPURIOUS AND HARMONIC EMISSIONS ...............…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: AEZSCP-70H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0607240634 July 28 - 31, 2006 Tri-Mode Dual-Band Analog/PCS Phone Page 1 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 Applicant Name: Date of Testing: Sanyo Electric Co Ltd July 28 - 31, 2006 c/o Sanyo Fisher Company 21605 Plummer Street Test Site/Location: Chatsworth, CA 91311 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0607240634 FCC ID: AEZSCP-70H APPLICANT: SANYO ELECTRIC CO LTD Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2006 v3.12 FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Tri-Mode Dual-Band Analog/PCS Phone Model(s): SCP-7000 Tx Frequency: 824.04 - 848.97 MHz (AMPS) 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: 24710034071] C63.19 HAC Rated Category: M3 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2006 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY CERTIFICATE Reviewed by: FCC ID: AEZSCP-70H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0607240634 July 28 - 31, 2006 Tri-Mode Dual-Band Analog/PCS Phone Page 2 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES..................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. OVERALL MEASUREMENT SUMMARY ..................................................................................... 20 10. EQUIPMENT LIST......................................................................................................................... 23 11. MEASUREMENT UNCERTAINTY ................................................................................................ 24 12. TEST DATA ................................................................................................................................... 25 13. CALIBRATION CERTIFICATES.................................................................................................... 34 14. CONCLUSION............................................................................................................................... 64 15. REFERENCES .............................................................................................................................. 65 APPENDIX A. TEST PHOTOGRAPHS...................................................................................................... 67 Reviewed by: FCC ID: AEZSCP-70H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0607240634 July 28 - 31, 2006 Tri-Mode Dual-Band Analog/PCS Phone Page 3 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: ƒ RF Electric-field emissions ƒ RF Magnetic-field emissions ƒ T-coil mode, magnetic-signal strength in the audio band ƒ T-coil mode, magnetic-signal frequency response through the audio band ƒ T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for: ƒ RF immunity in microphone mode ƒ RF immunity in T-coil mode In the following test…

Text truncated - open the document above for the full version.

SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000 SANYO FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA) Model: SCP-7000

Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000

Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000 Brand Name FCC ID: AEZSCP-70H EUT Photographs © 2006 PCTEST Lab. Tri Mode Cellular Phone Model: SCP-7000

Reviewed by: FCC ID: AEZSCP-70H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0607240634 July 28 - 31, 2006 Tri-Mode Dual-Band Analog/PCS Phone Page 67 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 APPENDIX A. TEST PHOTOGRAPHS See following Attached Pages for setup photographs. Reviewed by: FCC ID: AEZSCP-70H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0607240634 July 28 - 31, 2006 Tri-Mode Dual-Band Analog/PCS Phone Page 68 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 Figure 27 Figure 28 Reviewed by: FCC ID: AEZSCP-70H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0607240634 July 28 - 31, 2006 Tri-Mode Dual-Band Analog/PCS Phone Page 69 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 Figure 29 5x5 Scan grid above WD Figure 30 E-Field WD Scan overlay Figure 31 H-Field WD Scan overlay
