AEZSCP-74HTri-Mode Dual-Band Analog/ PCS Phone

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Oct 07, 2004
Application Purpose: Original Equipment
Date of Application: Oct 07, 2004
Equipment Note: Tri-Mode Dual-Band Analog/ PCS Phone
Frequency Range: 1851.25000000 - 1908.75000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SCP-7400 Operating Guide (Draft) Dual-Band /Tri-Mode Table of Contents Getting to Know Your Phone .............................................................................................. 6 Front View of Phone .............................................................................................................................. 6 Key Functions ........................................................................................................................................ 7 Viewing the Display Screen .................................................................................................................. 8 Turning Your Phone On and Off .......................................................................................................... 9 Unlocking the Phone ............................................................................................................................. 9 Using the Battery ................................................................................................................................ 10 Displaying Your Phone Number ........................................................................................................ 11 Making and Answering Calls........................................................................................... 11 Making Calls ........................................................................................................................................ 11 Dialing Options .................................................................................................................................... 11 Answering Calls ................................................................................................................................... 12 Using the Speakerphone..................................................................................................................... 13 Changing the Ringer Volume ............................................................................................................. 13 Adjusting Volume During a Conversation ........................................................................................ 13 Muting a Call ....................................................................................................................................... 13 Missed Call Notification...................................................................................................................... 13 Calling Emergency Numbers ............................................................................................................. 14 In-Call Options..................................................................................................................................... 14 End-of-Call Options ............................................................................................................................. 14 Saving a Phone Number ..................................................................................................................... 15 Finding a Phone Number ................................................................................................................... 15 Dialing and Saving Phone Numbers With Pauses ..........................................................................15 Abbreviated Dialing............................................................................................................................. 16 Dialing From the Contacts Directory ................................................................................................ 16 Using Speed Dialing ............................................................................................................................ 16 Entering Text...............................................................................................................................17 Selecting a Character Input Mode ..................................................................................................... 17 Entering Characters Using T9 Text Input........................................................................................17 Adding a Word to the T9 Database.................................................................................................... 17 Entering Characters by Tapping the Keypad................................................................................... 18 Entering Numbers, Symbols, Preset Suffix and Smileys................................................................ 19 Controlling Your Phone’s Settings................................................................................ 20 Sound Settings ..................................................................................................................................... 20 Ringer Types......................................................................................................................................... 20 Selecting Ringer Types for Voice Calls............................................................................................... 20 Selecting Ringer Types for Voicemail................................................................................................. 20 Selecting Ringer Types for Messages................................................................................................. 21 Setting Tone Length, Start-up/Power-off Tone or Voice Prompt..................................................... 21 Adjusting the Phone’s Volume Settings............................................................................................. 22 Alert Notification ................................................................................................................................. 22 Silence All ............................................................................................................................................. 23 Display Settings ............…

Text truncated - open the document above for the full version.

Cover Letter(s)

May 6, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SANYO ELECTRIC Co., Ltd. FCC ID: AEZSCP-74H Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SANYO ELECTRIC Co., Ltd., is an application for Part 22/ 24 Certification of the Tri-Mode Dual-Band Analog/ PCS phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, E911 Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SANYO ELECTRIC Co., Ltd.

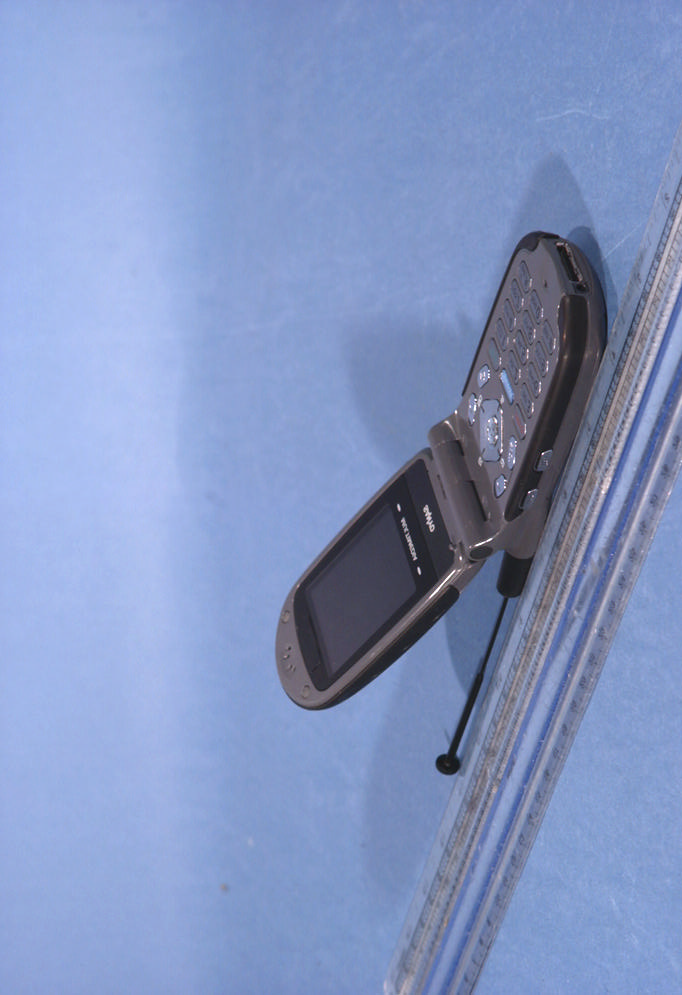

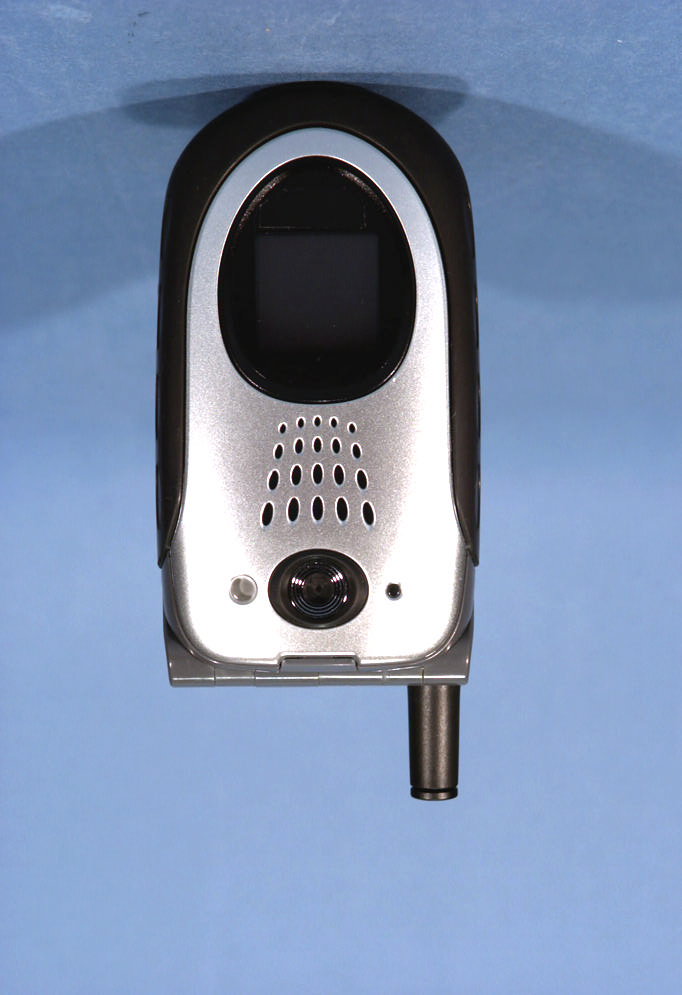

External Photos

ID Label/Location Info

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.240428272.AEZ Test Dates: MaY 3-6, 2004 EUT Type: Tri-Mode Dual-Band Analog/ PCS Phone FCC ID: AEZSCP-74H Page 1 of 1 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

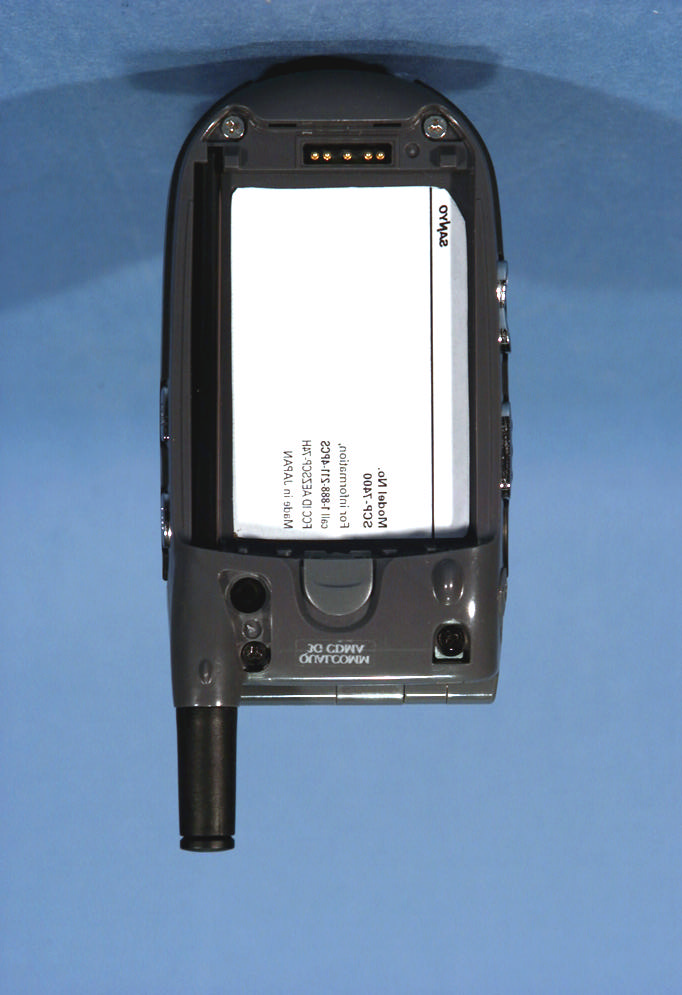

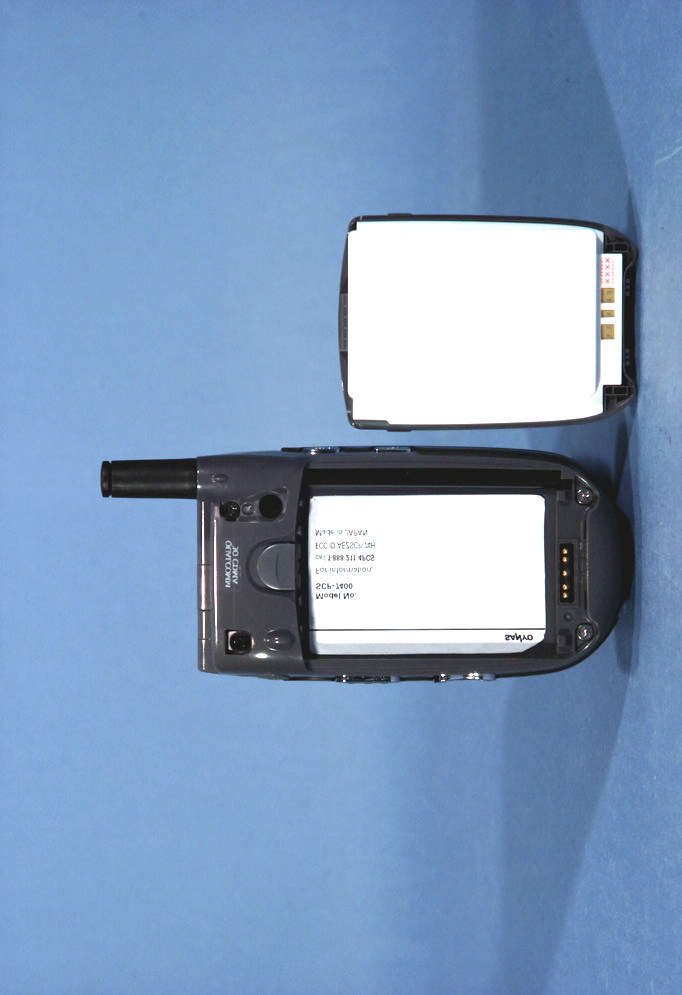

SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400 SANYO FCC ID: AEZSCP-74H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-7400

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240428273.AEZ Test Dates: May 3-6, 2004 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-74H Page 1 of 37 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC Co., Ltd. Dates of Tests: May 3-6, 2004 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: SAR.240428273.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 FCC ID: AEZSCP-74H APPLICANT: SANYO ELECTRIC CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.424 W ERP AMPS (26.273 dBm) / 24.5 dBm Conducted 0.337 W ERP CDMA (25.273 dBm) / 23.5 dBm Conducted 0.647 W EIRP PCS CDMA (28.101 dBm) / 23.5 dBm Conducted Max. SAR Measurement: 1.390 W/kg AMPS Head SAR; 0.940 W/kg AMPS Body SAR; 0.966 W/kg CDMA Head SAR; 0.763 W/kg CDMA Body SAR; 0.951 W/kg PCS CDMA Head SAR; 1.150 W/kg PCS CDMA Body SAR; 0.073 W/kg PTT Face/ Flip Open; 0.172 W/kg PTT Face/ Flip Close Trade Name/Model(s): SCP-7400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: FCC1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 2.2 cm between the back of the unit and the body of the user. Push-to-Talk PTT operating configuration is based on a separation distance of 2.5 cm from the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240428273.AEZ Test Dates: May 3-6, 2004 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-74H Page 2 of 37 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-33 15. SAR TEST EQUIPMENT..........................................................................................34 16. CONCLUSION...............................................................................................................36 17. REFERENCES..................................................................................................................37 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240428273.AEZ Test Dates: May 3-6, 2004 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-74H Page 3 of 37 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate…

Text truncated - open the document above for the full version.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 824.04 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-03-2004; Ambient Temp: 22.8°C; Tissue Temp: 20.5°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Touch, Ch.0991, Ant.Out, Standard Battery Area Scan (51x141x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 2.09 W/kg SAR(1 g) = 1.39 mW/g; SAR(10 g) = 0.908 mW/g Reference Value = 12.1 V/m 0 dB = 1.63mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-03-2004; Ambient Temp: 22.8°C; Tissue Temp: 20.5°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Tilt, Ch.0383, Ant.In, Standard Battery Area Scan (51x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.272 W/kg SAR(1 g) = 0.217 mW/g; SAR(10 g) = 0.168 mW/g Reference Value = 11.1 V/m 0 dB = 0.237mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 848.97 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-03-2004; Ambient Temp: 22.8°C; Tissue Temp: 20.5°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Touch, Ch.0799, Ant.In, Standard Battery Area Scan (51x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.764 mW/g Reference Value = 10.6 V/m 0 dB = 1.27mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 24.5 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-03-2004; Ambient Temp: 22.8°C; Tissue Temp: 20.5°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Tilt, Ch.0383, Ant.In, Standard Battery Area Scan (51x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.290 W/kg SAR(1 g) = 0.235 mW/g; SAR(10 g) = 0.183 mW/g Reference Value = 10.9 V/m 0 dB = 0.255mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 23.5 dBm Communication System: Cellular CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-06-2004; Ambient Temp: 22.6°C; Tissue Temp: 20.7°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Touch, Ch.1013, Ant.Out, Standard Battery Area Scan (61x141x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 1.44 W/kg SAR(1 g) = 0.966 mW/g; SAR(10 g) = 0.631 mW/g Reference Value = 10.2 V/m 0 dB = 1.13mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 23.5 dBm Communication System: Cellular CDMA; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-06-2004; Ambient Temp: 22.6°C; Tissue Temp: 20.7°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Tilt, Ch.0383, Ant.In, Standard Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.211 W/kg SAR(1 g) = 0.170 mW/g; SAR(10 g) = 0.131 mW/g Reference Value = 10.4 V/m 0 dB = 0.185mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SCP-7400; Type: SANYO Tri Mode Phone; Serial: FCC1; Conducted Power: 23.5 dBm Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 05-06-2004; Ambient Temp: 22.6°C; Tissue Temp: 20.7°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, …

Text truncated - open the document above for the full version.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 406 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.82, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 05-03-2004; Ambient Temp: 22.8°C; Tissue Temp: 20.5°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 835 MHz Dipole Validation Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.54 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = -0.21 % 0 dB = 2.79mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.39 mho/m, ε r = 40.88, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 05-04-2004; Ambient Temp: 23.4°C; Tissue Temp: 21.2°C Probe: ES3DV2 - SN3022; ConvF(5, 5, 5); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 1900 MHz Dipole Validation Area Scan (41x51x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.76 mW/g; SAR(10 g) = 1.88 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = -5.28 % 0 dB = 4.92mW/g

RF Exposure Info

ES3DV2-SN:3022 Page 1 of 2 December 3, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich December 3, 2003 September 23, 2003 ES3DV2-SN:3022 Page 2 of 2 December 3, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 1950 MHz ConvF 4.7 ± 9.5% e r = 40.0 ± 5% s = 1.40 ± 5% mho/m (head tissue) 1950 MHz ConvF 4. 3 ± 9.5% e r = 53.3 ± 5% s = 1.52 ± 5% mho/m (body tissue) ES3DV2-SN:3022Page 1 of 2November 28, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich November 28, 2003 September 23, 2003 ES3DV2-SN:3022Page 2 of 2November 28, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 1600 MHzConvF5.2 ± 8% e r =40.3 ± 5% s =1.29 ± 5% mho/m (head tissue) 1600 MHzConvF4.9 ± 8% e r =53.8 ± 5% s =1.40 ± 5% mho/m (body tissue) ES3DV2-SN:3022Page 1 of 2December 9, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich December 9, 2003 September 23, 2003 ES3DV2-SN:3022Page 2 of 2December 9, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 2140 MHzConvF4.5 ± 8% e r =39.8 ± 5% s =1.49 ± 5% mho/m (brain tissue)

RF Exposure Info

Test Report

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240428272.AEZ Test Dates: May 3-6, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-74H Page 1 of 32 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SANYO ELECTRIC Co., Ltd. Dates of Tests: May 3-6, 2004 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: 22/24.240428272.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 FCC ID AEZSCP-74H APPLICANT SANYO ELECTRIC CO., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model: SCP-7400 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.424 W ERP AMPS (26.273 dBm) / 0.337 W ERP CDMA (25.273 dBm) 0.647 W EIRP PCS CDMA (28.101 dBm) Max. SAR Measurement: 1.390 W/kg AMPS Head SAR; 0.940 W/kg AMPS Body SAR; 0.966 W/kg CDMA Head SAR; 0.763 W/kg CDMA Body SAR; 0.951 W/kg PCS CDMA Head SAR; 1.150 W/kg PCS CDMA B…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Hideaki Mukaida

[email protected]818-998-7322Fax: 818-701-4192

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	647.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.2 cm between the back of the unit and the body of the user. Push-to-Talk PTT operating configuration is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values under this FCC ID: are AMPS/ CDMA modes (Part 22) - Head: 1.390 W/kg; Body-worn: 0.940 W/kg, PCS mode (Part 24) - Head: 0.951 W/kg; Body-worn: 1.150 W/kg.
