AEZSCP-82HTri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 18, 2004
Application Purpose: Original Equipment
Date of Application: Mar 18, 2004
Equipment Note: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SCP-8200 Operating Guide (Draft) Dual-Band /Tri-Mode Table of Contents Table of ContentsTable of Contents Table of Contents Getting to Know Your Phone .................................................................................................6 Front View of Phone ............................................................................................................................6 Key Functions ........................................................................................................................................7 Viewing the Display Screen .............................................................................................................8 Turning Your Phone On and Off .....................................................................................................9 Unlocking the Phone ...........................................................................................................................9 Using the Battery .............................................................................................................................. 10 Displaying Your Phone Number ...................................................................................................11 Making and Answering Calls ............................................................................................ 12 Making Calls ....................................................................................................................................... 12 Answering Calls ................................................................................................................................. 12 Using the Speakerphone ................................................................................................................ 13 Changing the Ringer Volume ....................................................................................................... 13 Adjusting Volume During a Conversation .............................................................................. 13 Muting a Call ...................................................................................................................................... 13 Missed Call Notification ................................................................................................................. 14 Calling Emergency Numbers ....................................................................................................... 14 Dialing Options .................................................................................................................................. 14 In-Call Options ................................................................................................................................... 15 End-of-Call Options .......................................................................................................................... 16 Saving a Phone Number ................................................................................................................. 16 Finding a Phone Number ............................................................................................................... 16 Dialing and Saving Phone Numbers With Pauses .............................................................. 17 Abbreviated Dialing ......................................................................................................................... 17 Dialing From the Contacts Directory ........................................................................................ 17 Using Speed Dialing ......................................................................................................................... 18 Controlling Your Phone’s Settings .................................................................................. 19 Sound Settings .................................................................................................................................... 19 Ringer Types ........................................................................................................................................ 19 Selecting Ringer Types for Voice Calls ...................................................................................... 19 Selecting Ringer Types for Voicemail ........................................................................................ 19 Selecting Ringer Types for Messages ........................................................................................ 20 Setting Tone Length, Start-up/Power-off Tone or Voice Prompt .................................... 20 Adjusting the Phone’s Volume Settings .................................................................................... 20 Alert Notification ...............................................................................................................................21 Silence All ............................................................................................................................................. 21 Display Settings ................................................................................................................................. 22 Changing the Text Greeting .......................................................................................................... 22 Changing the Backlight Time Length ...................................................................................... 22 Changing the Display Screen ....................................................................................................... 22 Changing the Display for Incoming Calls ............................................................................... 23 Changing the Display for the Standby Mode ......................................................................... 23 Changing the Screen Saver .....................................................................................................…

Text truncated - open the document above for the full version.

External Photos

ID Label/Location Info

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.231230012.AEZ Test Dates: JANUARY 5-8, 2004 EUT Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-82H Page 1 of 1 FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231230013.AEZ Test Dates: Jan. 5-8, 2004 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-82H Page 1 of 37 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SANYO ELECTRIC Co., Ltd. Dates of Tests: January 5-8, 2004 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: SAR.231230013.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 FCC ID: AEZSCP-82H APPLICANT: SANYO ELECTRIC Co., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.439 W ERP AMPS (26.429 dBm) / 24.7 dBm Conducted 0.374 W ERP CDMA (25.733 dBm) / 24.0 dBm Conducted 0.564 W EIRP PCS CDMA (27.501 dBm) / 23.5 dBm Conducted Max. SAR Measurement: 1.30 W/kg AMPS Head SAR; 1.01 W/kg AMPS Body SAR; 1.21 W/kg CDMA Head SAR; 0.908 W/kg CDMA Body SAR; 1.13 W/kg PCS CDMA Head SAR; 1.01 W/kg PCS CDMA Body SAR; 0.095 W/kg CDMA Face (Flip Open); 0.199 W/kg CDMA Face (Flip Close) Trade Name/Model(s): SCP-8200 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: FCC1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. Push-to-Talk PTT operating configuration is based on a separation distance of 2.5 cm from the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231230013.AEZ Test Dates: Jan. 5-8, 2004 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-82H Page 2 of 37 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-35 16. CONCLUSION...............................................................................................................36 17. REFERENCES..................................................................................................................37 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231230013.AEZ Test Dates: Jan. 5-8, 2004 Phone Type: Tri-Mode Dual-Band Phone FCC ID: AEZSCP-82H Page 3 of 37 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagne…

Text truncated - open the document above for the full version.

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 406 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 40.24, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 01-06-2004; Ambient Temp: 22.5°C; Tissue Temp: 20.8°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 SN330; Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 835MHz Dipole Validation Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.41 mW/g; SAR(10 g) = 1.56 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = +1.47 % 0 dB = 2.83mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.39 mho/m, ε r = 41.89, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 01-05-2004; Ambient Temp: 21.8°C; Tissue Temp: 20.4°C Probe: ES3DV2 - SN3022; ConvF(5, 5, 5); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 SN330; Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.8 Build 62 1900MHz Dipole Validation Area Scan (41x51x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.58 mW/g; SAR(10 g) = 1.79 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = -9.82 % 0 dB = 4.67mW/g APPENDIX C: PROBE CALIBRATION ES3DV2-SN:3022 Page 1 of 2 December 3, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich December 3, 2003 September 23, 2003 ES3DV2-SN:3022 Page 2 of 2 December 3, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 1950 MHz ConvF 4.7 ± 9.5% e r = 40.0 ± 5% s = 1.40 ± 5% mho/m (head tissue) 1950 MHz ConvF 4. 3 ± 9.5% e r = 53.3 ± 5% s = 1.52 ± 5% mho/m (body tissue) ES3DV2-SN:3022Page 1 of 2November 28, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich November 28, 2003 September 23, 2003 ES3DV2-SN:3022Page 2 of 2November 28, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 1600 MHzConvF5.2 ± 8% e r =40.3 ± 5% s =1.29 ± 5% mho/m (head tissue) 1600 MHzConvF4.9 ± 8% e r =53.8 ± 5% s =1.40 ± 5% mho/m (body tissue) ES3DV2-SN:3022Page 1 of 2December 9, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich December 9, 2003 September 23, 2003 ES3DV2-SN:3022Page 2 of 2December 9, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 2140 MHzConvF4.5 ± 8% e r =39.8 ± 5% s =1.49 ± 5% mho/m (brain tissue)

RF Exposure Info

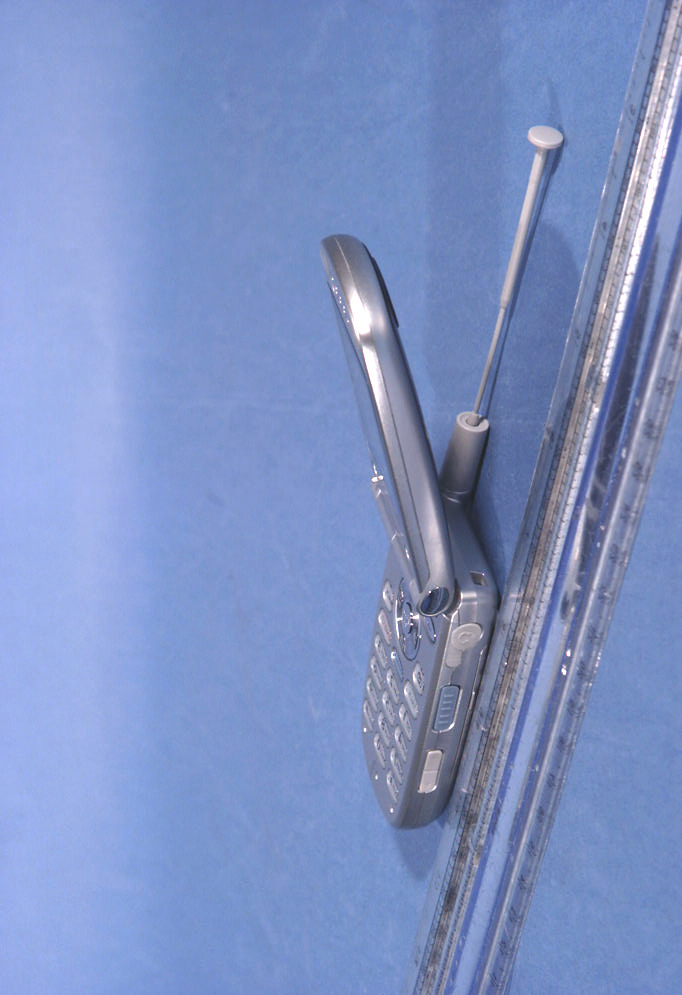

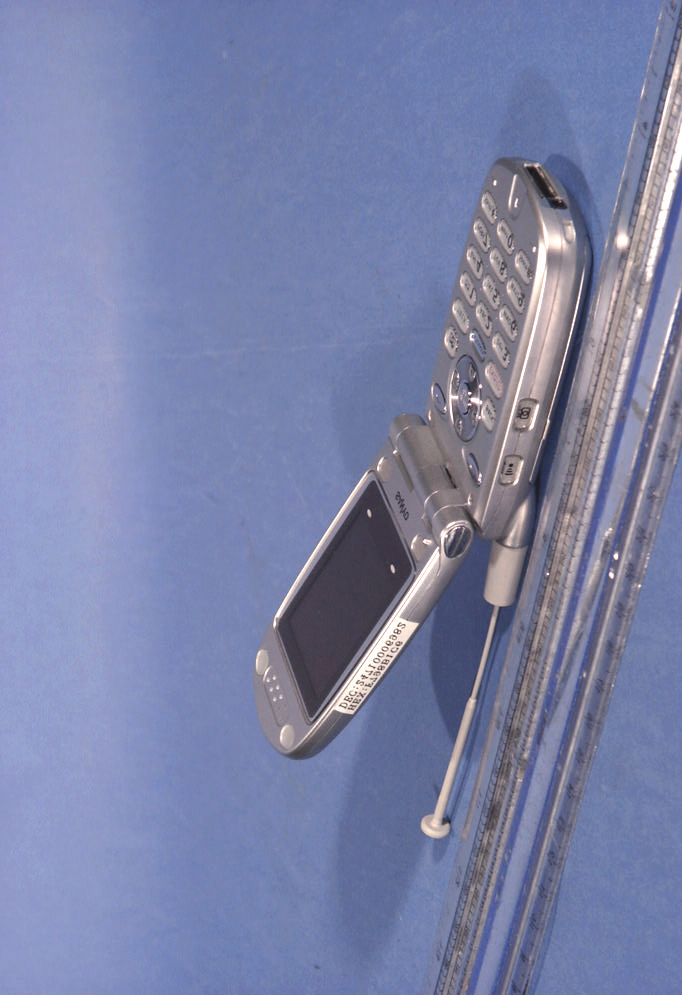

SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200 SANYO FCC ID: AEZSCP-82H EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SCP-8200

RF Exposure Info

Test Report

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231230012.AEZ Test Dates: January 5-8, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-82H Page 1 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification SANYO ELECTRIC Co., Ltd. Dates of Tests: January 5-8, 2004 c/o Sanyo Sales & Supply (USA) Corp. Test Report S/N: 22/24.231230012.AEZ 900 North Arlington Heights Road, Suite 300 Test Site: PCTEST Lab, Columbia MD Itasca, IL 60143-2844 FCC ID AEZSCP-82H APPLICANT SANYO ELECTRIC Co., LTD. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Model: SCP-8200 Tx Frequency Range: 824.04MHz – 848.97MHz (AMPS) / 824.70 – 848.31MHz (CDMA) 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz – 893.97MHz (AMPS) / 869.70 – 893.31MHz (CDMA) 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.439 W ERP AMPS (26.429 dBm) / 0.374 W ERP CDMA (25.733 dBm) 0.564 W EIRP PCS CDMA (27.501 dBm) Max. SAR Measurement: 1.30 W/kg AMPS Head SAR; 1.01 W/kg AMPS Body SAR; 1.21 W/kg CDMA Head SAR; 0.908 W/kg CDMA Body SAR; 1.13 W/kg PCS CDMA Head SAR; 1.01 W/kg PCS CDMA Body SAR; 0.095 W/kg CDMA Face (Flip Open); 0.199 W/kg CDMA Face (Flip Close) Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: FCC1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. Push –to-Talk PTT operating configuration is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 230818400.BEJ PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231230012.AEZ Test Dates: January 5-8, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-82H Page 2 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-10 5.1 EFFECTIVE RADIATED POWER OUTPUT 11-12 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 13 7.1 RADIATED MEASUREMENTS 14-22 8.1 FREQUENCY STABILITY 23-28 9.1 PLOTS OF EMISSIONS 29 10.1 LIST OF TEST EQUIPMENT 30 11.1 SAMPLE CALCULATIONS 31 12.1 CONCLUSION 32 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231230012.AEZ Test Dates: January 5-8, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-82H Page 3 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: SANYO ELECTRIC Co., Ltd. Address: c/o Sanyo Sales & Supply (USA) Corp. 900 North Arlington Heights Road, Suite 300 Itasca, IL 60143-2844 • FCC ID: AEZSCP-82H • Quantity: Quantity production is planned • Emission Designators: 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) • Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.439 W ERP AMPS (26.429 dBm) / 0.374 W ERP CDMA (25.733 dBm) 0.564 W EIRP PCS CDMA (27.501 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/ CDMA) • Modulation(s): AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: January 5-8, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.231230012.AEZ PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.231230012.AEZ Test Dates: January 5-8, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: AEZSCP-82H Page 4 of 32 © 2003 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Pa…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Hideaki Mukaida

[email protected]818-998-7322Fax: 818-701-4192

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	564.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. Push-to-Talk PTT operating configurations is based on a separation distance of 2.5 cm between the front of the unit and the face of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt-clips or holsters must not contain metallic components. The highest reported SAR values under this FCC ID are: AMPS/ CDMA modes (Part 22)- Head: 1.30 W/kg; Body-worn: 1.01 W/kg; PCS mode (Part 24) - Head: 1.13 W/kg; Body-worn: 1.01 W/kg.
