AEZSCP-84HDual-Band CDMA Phone with Bluetooth

Sanyo Electric Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 20, 2006
Application Purpose: Original Equipment
Date of Application: Aug 20, 2006
Equipment Note: Dual-Band CDMA Phone with Bluetooth
Frequency Range: 1851.25000000 - 1908.75000000
Company: Sanyo Electric Co Ltd
Country: United States

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

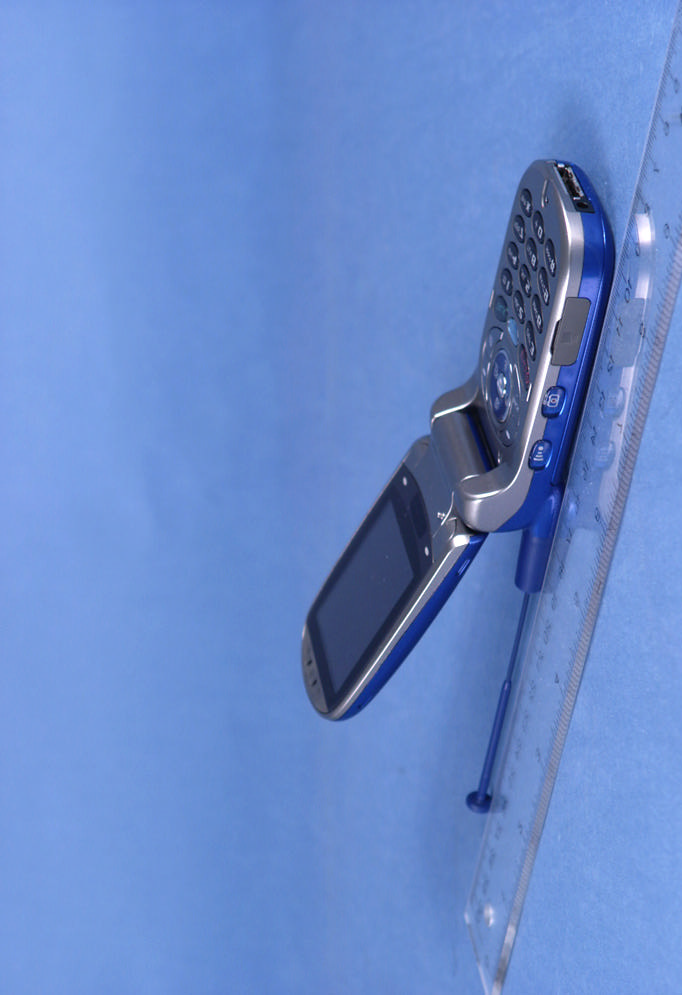

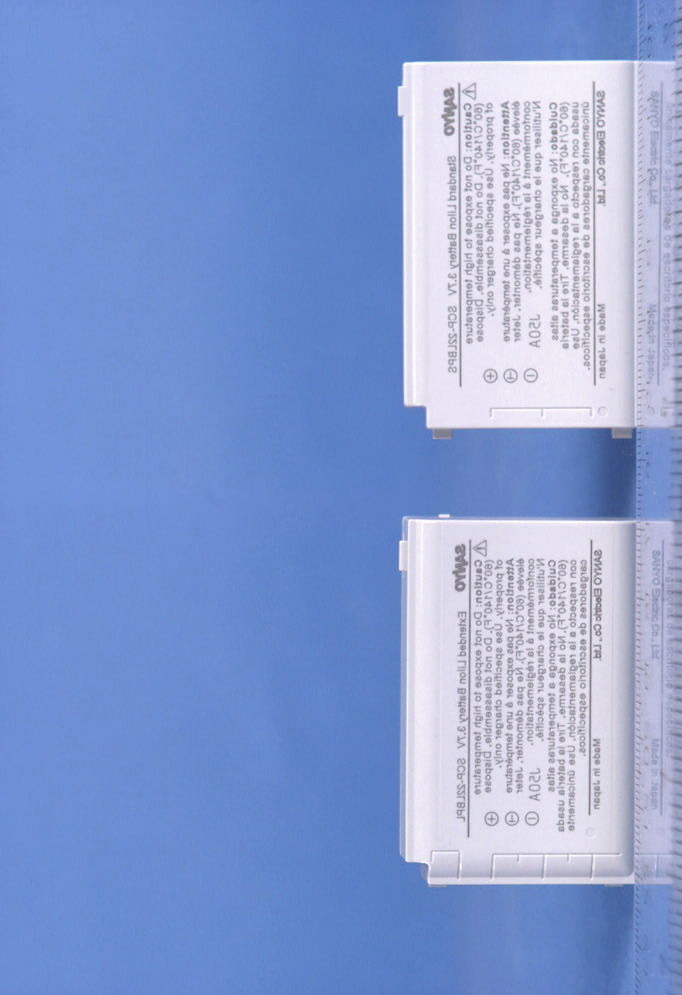

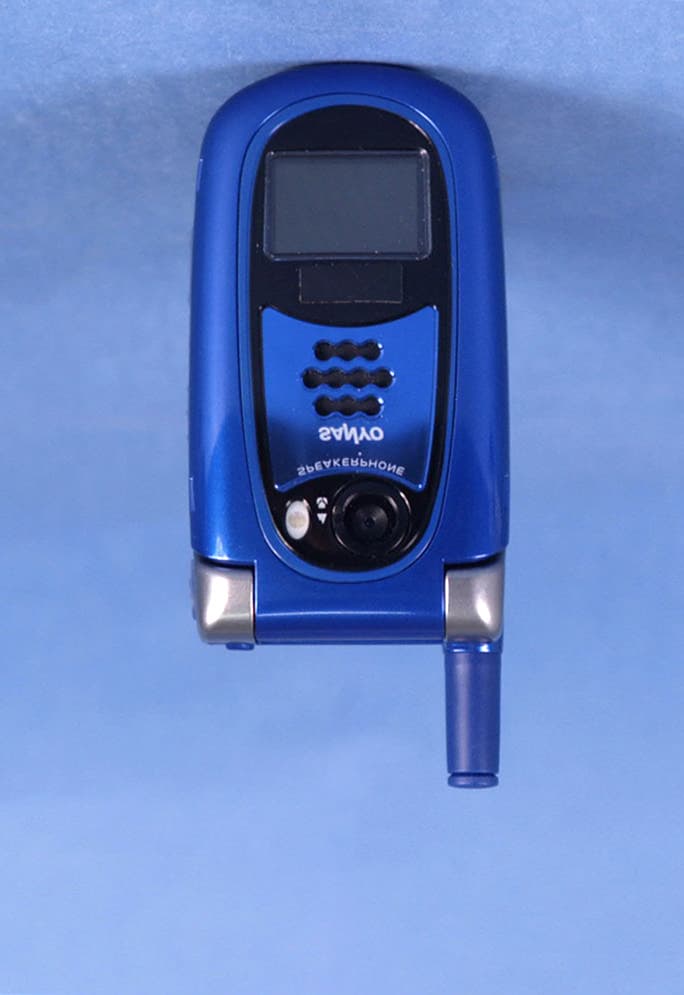

SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400 SANYO FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. CDMA Phone w/ Bluetooth Model: SCP-8400

ID Label/Location Info

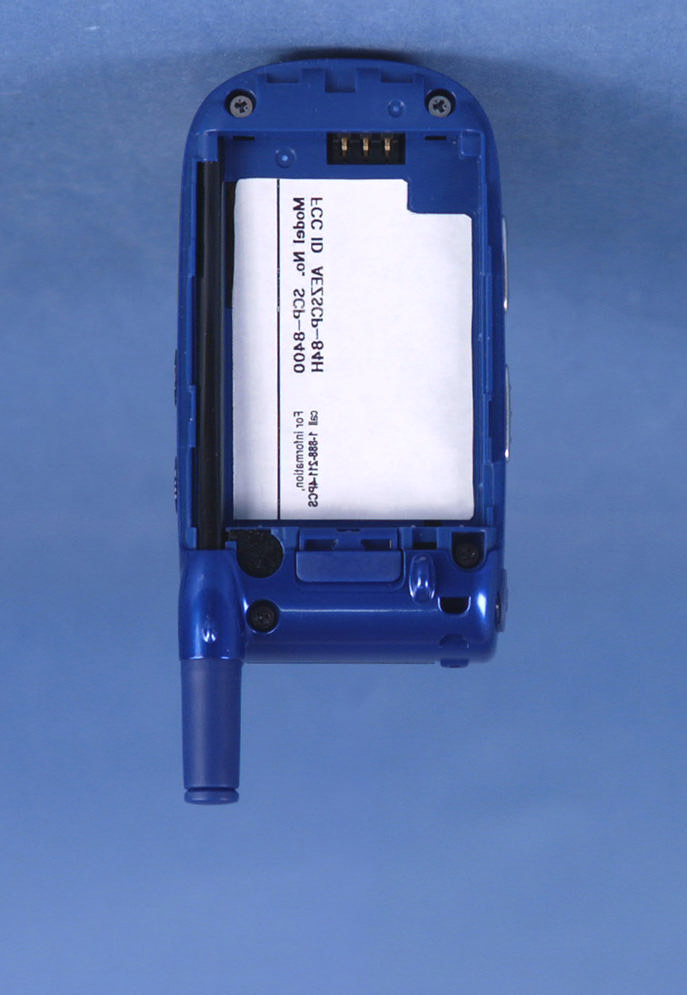

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SCP-8400 Rating Label

Internal Photos

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603060154-R1 Test Dates: March 6-9, 2006 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: AEZSCP-84H Page 1 of 33 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: Sanyo Fisher Company Dates of Tests: March 6-9, 2006 21605 Plummer Street Test Report S/N: 0603060154-R1 Chatsworth, CA 91311 Test Site: PCTEST Lab, Columbia MD USA FCC ID: AEZSCP-84H APPLICANT: SANYO FISHER COMPANY EUT Type: Dual-Band CDMA Phone with Bluetooth Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.319 W ERP CDMA (25.033 dBm) / 23.5 dBm Conducted 0.670 W EIRP PCS CDMA (28.251 dBm)/ 24.0 dBm Conducted Max. SAR Measurement: 1.08 W/kg CDMA Head SAR; 0.706 W/kg CDMA Body SAR; 1.10 W/kg PCS CDMA Head SAR; 1.33 W/kg PCS CDMA Body SAR; 0.148 W/kg PTT Flip Open/ 0.268 W/kg PTT Flip Close Trade Name/Model(s): SCP-8400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 24710026650] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603060154-R1 Test Dates: March 6-9, 2006 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: AEZSCP-84H Page 2 of 33 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION......................................................................................3 2. SAR MEASUREMENT SETUP................................................................................................. 4 3. DASY4 E-FIELD PROBE SYSTEM.............................................................................................5 4. Probe Calibration Process........................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS...................................................................................10 9. TEST CONFIGURATION POSITIONS.....................................................................................11 10. ANSI/IEEE C95.1 - 2005 RF EXPOSURE LIMITS.......................................................................14 11. MEASUREMENT UNCERTAINTIES.......................................................................................15 12. SYSTEM VERIFICATION.....................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17-30 15. SAR TEST EQUIPMENT.................................................................................................31 16. CONCLUSION.................................................................................................................32 17. REFERENCES...................................................................................................................33 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0603060154-R1 Test Dates: March 6-9, 2006 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: AEZSCP-84H Page 3 of 33 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2002 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEE…

Text truncated - open the document above for the full version.

Test Report

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603060153-R1 Test Dates: J March 6-9, 2006 Phone Type: Dual-Band CDMA with Bluetooth FCC ID: AEZSCP-84H Page 1 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification Sanyo GFisher Company Dates of Tests: March 6-9, 2006 21605 Plummer Street Test Report S/N: 0603060153-R1 Chatsworth, CA 91311 Test Site: PCTEST Lab, Columbia MD USA FCC ID AEZSCP-84H APPLICANT SANYO FISHER COMPANY Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band CDMA Phone with Bluetooth Model: SCP-8400 Tx Frequency Range: 824.70 – 848.31MHz (CDMA)/ 1851.25MHz – 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.70 – 893.31MHz (CDMA)/ 1931.25MHz – 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.319 W ERP CDMA (25.033 dBm) / 0.670 W EIRP PCS CDMA (28.251 dBm) Max. SAR Measurement: 1.08 W/kg CDMA Head SAR; 0.706 W/kg CDMA Body SAR; 1.10 W/kg PCS CDMA Head SAR; 1.33 W/kg PCS CDMA Body SAR; 0.148 W/kg PTT Flip Open/ 0.268 W/kg PTT Flip Close Emission Designator(s): 1M25F9W (CDMA) Test Device Serial No. Identical Prototype [S/N: 24710026650] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.9 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603060153-R1 Test Dates: J March 6-9, 2006 Phone Type: Dual-Band CDMA with Bluetooth FCC ID: AEZSCP-84H Page 2 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-10 5.1 EFFECTIVE RADIATED POWER OUTPUT 11-12 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 13 7.1 RADIATED MEASUREMENTS 14-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 EXHIBIT A: TEST PLOTS EXHIBIT B: TEST SETUP PHOTOGRAPHS EXHIBIT C: EXTERNAL PHOTOGRAPHS EXHIBIT D: INTERNAL PHOTOGRAPHS PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603060153-R1 Test Dates: J March 6-9, 2006 Phone Type: Dual-Band CDMA with Bluetooth FCC ID: AEZSCP-84H Page 3 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: Sanyo Fisher Company Address: 21605 Plummer Street Chatsworth, CA 91311 USA • FCC ID: AEZSCP-84H • Quantity: Quantity production is planned • Emission Designators: 1M25F9W (CDMA) • Tx Freq. Range: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Freq. Range: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.319 W ERP CDMA (25.033 dBm)/ 0.670 W EIRP PCS CDMA (28.251 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band CDMA Phone with Bluetooth • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: March 6-9, 2006 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0603060153-R1 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0603060153-R1 Test Dates: J March 6-9, 2006 Phone Type: Dual-Band CDMA with Bluetooth FCC ID: AEZSCP-84H Page 4 of 25 © 2006 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4-2003 on January 27, 2006 and Industry Canada. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half-wave dipole was substituted in place of t…

Text truncated - open the document above for the full version.

Test Report

Reviewed by: FCC ID: AEZSCP-84H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0603060152 March 21-22, 2006 Dual-Band CDMA Phone with Bluetooth Page 1 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 Applicant Name: Date of Testing: Sanyo Fisher Company March 21-22, 2006 21605 Plummer Street Test Site/Location: Chatsworth, CA 91311 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0603060152 FCC ID: AEZSCP-84H APPLICANT: SANYO FISHER COMPANY Application Type: Certification FCC Rule Part(s): § 20.19(b), §6.3(v), §7.3(v) HAC Standard: ANSI C63.19-2006 v3.12 FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band CDMA Phone with Bluetooth Model(s): SCP-8400 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: F798FEDB] C63.19 HAC Rated Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2006 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY CERTIFICATE Reviewed by: FCC ID: AEZSCP-84H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0603060152 March 21-22, 2006 Dual-Band CDMA Phone with Bluetooth Page 2 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES..................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. OVERALL MEASUREMENT SUMMARY ..................................................................................... 20 10. EQUIPMENT LIST......................................................................................................................... 23 11. MEASUREMENT UNCERTAINTY ................................................................................................ 24 12. TEST DATA ................................................................................................................................... 25 13. CALIBRATION CERTIFICATES.................................................................................................... 34 14. CONCLUSION............................................................................................................................... 64 15. REFERENCES .............................................................................................................................. 65 APPENDIX A. TEST PHOTOGRAPHS...................................................................................................... 67 Reviewed by: FCC ID: AEZSCP-84H C63.19-2006 v3.12 TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0603060152 March 21-22, 2006 Dual-Band CDMA Phone with Bluetooth Page 3 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v4.2 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids. Approximately 500 million people worldwide suffer from hearing loss. Compatibility Tests Involved: The standard calls for wireless communications devices to be measured for: RF Electric-field emissions RF Magnetic-field emissions T-coil mode, magnetic-signal strength in the audio band T-coil mode, magnetic-signal frequency response through the audio band T-coil mode, magnetic-signal and noise articulation index The hearing aid must be measured for: RF immunity in microphone mode RF immunity in T-coil mode In the following tests and results, this report includes the evaluation for a wire…

Text truncated - open the document above for the full version.

Test Setup Photos

Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0603060152.AEZ March 21-22, 2006 Dual-Band Phone AEZSCP-84H Page 68 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v02.14 APPENDIX A. SETUP PHOTOGRAPHS See following Attached Pages for setup photographs. Reviewed by: PCTEST™ HAC REPORT FCC MEASUREMENT REPORT Quality Manager HAC Filename: Test Dates: EUT Type: FCC ID: HAC.0603060152.AEZ March 21-22, 2006 Dual-Band Phone AEZSCP-84H Page 69 of 69 © 2006 PCTEST Engineering Laboratory, Inc. v02.14 Figure 30 Figure 31

Test Setup Photos

Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400 Sanyo FCC ID: AEZSCP-84H EUT Photographs © 2006 PCTEST Lab. Dual Band CDMA Phone Model: SCP-8400

Test Setup Photos

Contact Information

Applicant

Hideaki Mukaida

[email protected]818-998-7322Fax: 818-701-4192

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	24E	1.85 GHz - 1.91 GHz	670.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operation is based on a separation distance of 1.9 cm between the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. SAR compliance was evaluated with the integral Bluetooth active. The highest reported SAR values are: Part 22 - Head: 1.08 W/kg; Body-worn: 0.706 W/kg; Part 24 - Head: 1.1 W/kg; Body-worn: 1.33 W/kg. HAC Rating: M4
