INSTRUCTION MANUAL MARINE RADAR MR-1000R™ (Radome type) MR-1000T™ (Open array type) This device complies with Part 15 of the FCC Rules. Opera- tion is subject to the condition that this device does not cause harmful interference. MR-1000R2_T2_FCC.qxd 05.5.17 9:18 Page 1 i •EX-2714(Radome type unit) Qty. qSystem cable (OPC-1188: 15 m) ......................... 1 wInstallation bolts (M10×50) .................................. 4 eInstallation bolts (M10×25) .................................. 4 rInstallation nuts (M10) ......................................... 4 tFlat washers (M10) .............................................. 4 ySpring washers (M10) ......................................... 4 •EX-2780(Open array type unit) Qty. qSystem cable (OPC-1189: 20 m) .......................... 1 wInstallation bolts (M10×40) .................................. 4 eInstallation nuts (M10) ......................................... 4 rFlat washers (M10) .............................................. 4 tSpring washers (M10) ......................................... 4 yHex head wrench ................................................. 1 uCap bolts (M8×18) ............................................... 4 iDish washers (M8) ............................................... 4 oSealing washers (T) ............................................. 4 !0Flat washers (M8) ................................................ 4 !1Grounding terminal (R5.5-10) .............................. 1 !2Ferrite bead ......................................................... 1 •SX-2713/2779(10 inch CRT display unit) Qty. qNMEA connector (FM14-8P) ................................ 1 wSpare fuse (FGB 10 A) ........................................ 1 eSpare fuse (FGB 5 A: for over 24 V power supply) ............................................................................ 1 rDC power cable (OPC-928-1) .............................. 1 tViewing hood (2363 HOOD) ................................. 1 yMounting bracket (2363 ANGLE(A)) ..................... 1 uMounting screw knobs (2363 KNOB BOLT) ......... 2 iSelf-tapping screws (M6 ×30) .............................. 5 oSpring washers (M6) ........................................... 5 !0Flat washers (M6) ................................................ 5 !1Instruction manual ............................................... 1 !2Operating guide ................................................... 1 !3NMEA connector (FM14-7P) ............................... 1 SYSTEM COMPONENTS SUPPLIED ACCESSORIES Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United states, the United Kingdom, Germany, France, Spain, Russia and/or other countries. MODEL NAMECRT DISPLAYSCANNER UNIT MR-1000RIISX-2713 (10-inch CRT)EX-2714 (Radome type) MR-1000TIISX-2779 (10-inch CRT)EX-2780 (Open array type) MR-1000R2_T2_FCC.qxd 05.5.17 9:18 Page 2 ii FOREWORD Thank you for purchasing Icom’sMR-1000RII/TII MA- RINE RADAR. The radar is designed especially for fishing boats. It has powerful transmission power, 10 inch CRT display and many other advanced features. If you have any questions regarding the operation of the radar, contact your nearest authorized Icom Inc. dealer. IMPORTANT READ ALL INSTRUCTIONS carefully and com- pletely before attempting to operate the marine radar. SAVE THIS INSTRUCTION MANUAL.This manual contains important safety and operating in- structions for the MR-1000RII/TII. EXPLICIT DEFINITIONS The following explicit definitions apply to this instruc- tion manual. PRECAUTION RNEVERlet metal, wire or other objects touch any internal part of the radar. RNEVERplace the radar within the reach of chil- dren. RNEVERexpose the display unit to rain, salt water or any other liquids. NEVERconnect the radar to AC or more than 42 V DC. This will damage the radar. AVOIDusing the radar near any magnetic materials, such as a loudspeaker or a large power transformer, as this can cause distortion of the CRT display. AVOIDplacing the display unit in excessively dusty en- vironments. AVOIDplacing the display unit near heating equipment or in direct sunlight or where hot or cold air blows di- rectly onto it. AVOID using the scanner unit in areas where the tem- perature is below –25 ̊C (–13 ̊F) or above +70 ̊C (+158 ̊F). AVOID using the display unit in areas where the temperature is below –15 ̊C (+5 ̊F) or above +55 ̊C (+131 ̊F). AVOID using strong solvents such as benzene or al- cohol for cleaning the radar, as they may damage the surfaces. BE CAREFUL! SARTsignal may not be detected and may not be displayed on the screen depending on the SEA, RAINor IRsettings. Follow the settings as below to detect the SART signal on the screen. qSelect the screen range between 6 NM to 12 NM with [+/–]. (p. 2) wSet the [GAIN]as high as possible. (p. 3) eSet the [SEA]to minimum. (p. 3) rSet the [RAIN]to minimum. (p. 3) tTurn the [IR]OFF. yTurn the [STRETCH]OFF. WORD R WARNING CAUTION NOTE DEFINITION Personal injury, fire hazard or electric shock may occur. Equipment damage may occur. If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. MR-1000R2_T2_FCC.qxd 05.5.17 9:18 Page 3 iii SYSTEM COMPONENTS .......................................... i SUPPLIED ACCESSORIES ....................................... i FOREWORD ............................................................ ii IMPORTANT ............................................................. ii EXPLICIT DEFINITIONS .......................................... ii PRECAUTION .......................................................... ii TABLE OF CONTENTS ........................................... iii 1 CAUTION ............................................................. 1 DANGER! HIGH VOLTAGE .................................. 1 RADIATION HAZARD ........................................... 1 2 PANEL DESCRIPTION .................................... 2–5 Front panel ........................................................ 2 Screen…

Text truncated - open the document above for the full version.

August 24, 2005 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Equipment Authorization Application under FCC CFR 47, Parts 2 and 80 - Marine Radars Operating in the Frequency Band 9300-9500 MHz. Applicant: Icom Incorporated Product: Marine Radar Model: MR-1000TII FCC ID: AFJ278000 Dear Sir/Madam, As appointed agent for Icom Incorporated, we would like to submit the application for FCC certification of the above product. Please review all files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

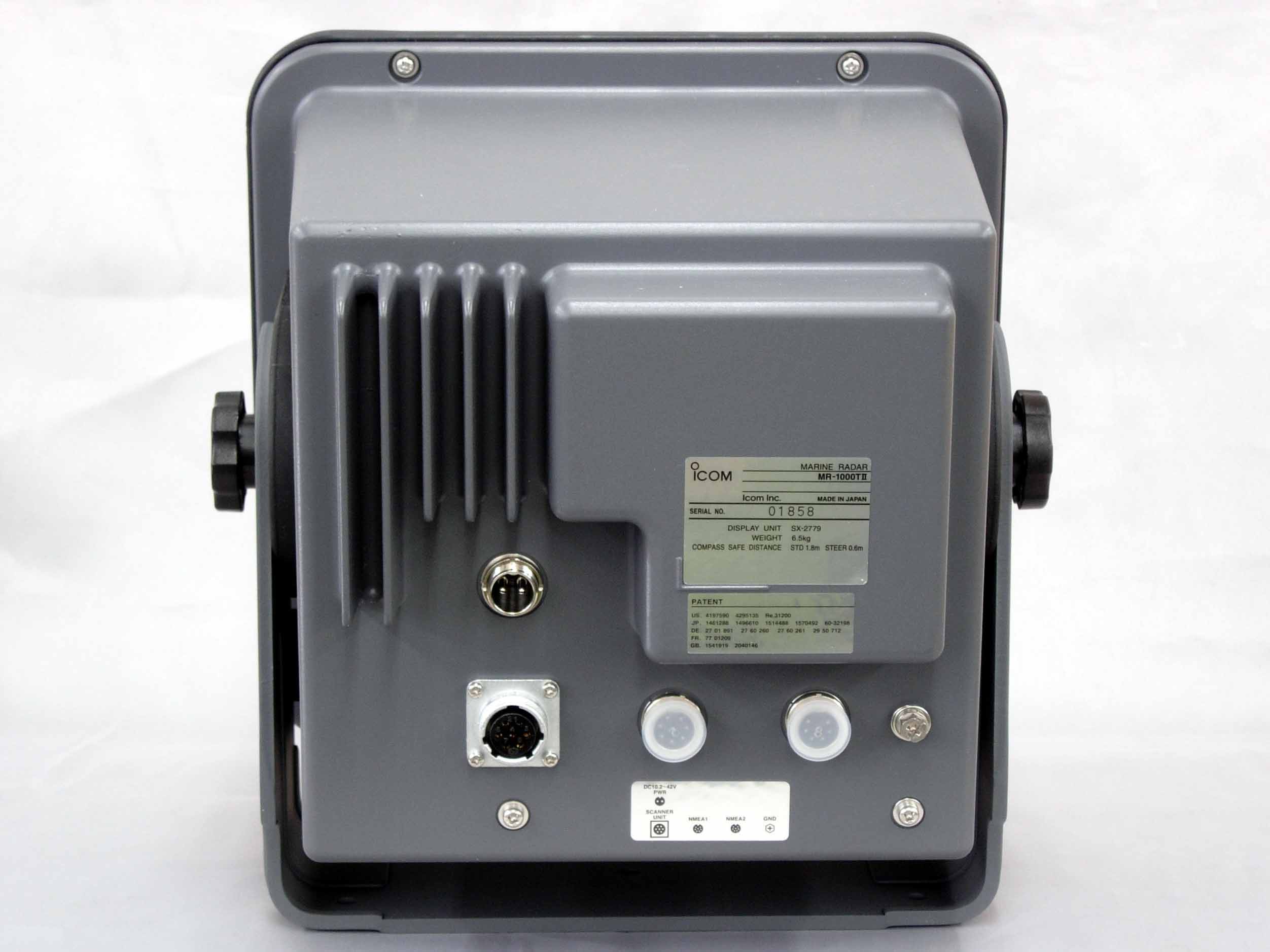

12. Photographs of the equipment Front view Rear view 12. Photographs of the equipment Front view Rear view Side view Internal view Front view Rear view Front view Rear view Side view Internal View

4. Identification of Equipment ID Label ID Label Location

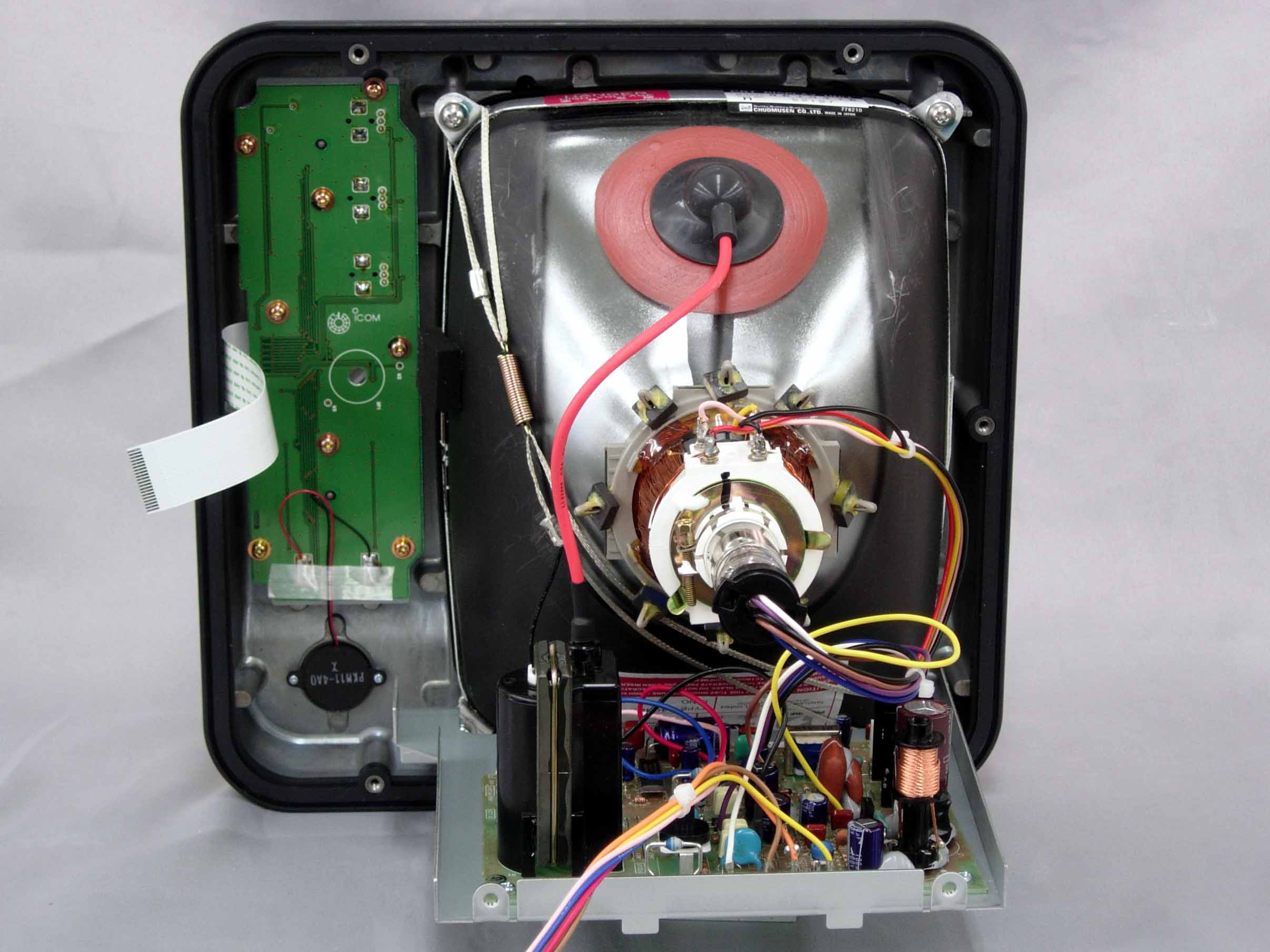

Side view Internal view Internal view MAIN Unit Internal view MAIN Unit SW Unit DISP Unit SW Unit DISP Unit Side view Internal View PA Unit IF Unit PA Unit IF Unit HARNESS Unit MARKER Unit HARNESS Unit MARKER Unit

5 - 1 11. ADJUSTMENT PROCEDURES 5-2 ANTENNA ADJUSTMENT 5-2-1 PROOFREADING OF TEST EQUIPMENT qConnect a spectrum analyzer, standard signal generator and 100% reflective metal plate instead of antenna to the directional coupler as shown below. wAdjustment condition • Set the SSG as: Frequency: 9.41 GHz • Set the spectrum analyzer as: Center frequency : 9.41 GHz Frequency span : 200 MHz ePreset the spectrum waveform to 0 dB adjusting by the SSG output level. 5-2-2 ADJUSTMENT OF ANT UNIT qRemove the metal plate and replace the antenna, and connect to the direc- tional coupler. NOTE:Do not place any objects within 5 meters. (or if can not remove the ob- ject, place a wave absorber on the front of the scanner radiator.) wEX-2714; Radome – Watching the spectrum analyzer, turn MP24 on the ANT unit to minimum spectrum level. After adjustment, lock MP24 tightening MP25. EX-2780; Open array– Watching the spectrum analyzer, turn MP11 on the CHASSIS unit to minimum spectrum level. After adjust- ment, lock MP11 tightening MP53. eVerify the spectrum level is more than –14 dB. Spectrum analyzer Standard signal generator Antenna Metal plate Directional coupler This cable should be short as possible. or 5-1 PREPARATION ‘‘ REQUIRED TEST EQUIPMENT EQUIPMENT DC power supply Frequency counter Crystal detector Standard signal generator (SSG) Directional coupler GRADE AND RANGE Output voltage: 11–40 V DC Current capacity: 5 A or more Frequency range: 0.1–200 kHz Frequency accuracy : ±1 ppm or better Sensitivity: 100 mV or better Input frequency: At least 10 GHz Peak input level: At least 1 W Average input level : At least 100 mW Frequency range: 10 kHz–10 GHz Output level: 0.1 μV–32 mV (–127 to –17 dBm) Power attenuation: 20 dB EQUIPMENT Oscilloscope Terminator Attenuator Spectrum analyzer DC voltmeter DC ammeter GRADE AND RANGE Frequency range: DC–100 MHz Measuring range: 0.01–10 V Resistance: 50 Ω Peak power level: At least 6 kW Average power level: At least 5 W Power attenuation: 20, 23 and 50 dB Peak power level: At least 100 W Average power level : At least 5 W Frequency range: At least 10 GHz Spectrum bandwidth: ±100 kHz or more Input impedance: 50 kΩ/V DC or better Measurement capability: 5 A 0 dBSSG output level VALUEADJUSTMENT POINT Minimum MP24 (EX-2714; Radome) MP11 (EX-2780; Open array) –14 dBVerify VALUEADJUSTMENT POINT 5 - 2 MP24 MP11 MP53 MP11 Bottom view MP25 MP41 ‘‘ EX-2714 (Radome) ‘‘ EX-2780 (Open array) 5 - 3 5-3 SCANNER ADJUSTMENT ‘‘ EX-2714 (Radome) NOTE:Preheating is necessary for magnetron for 90 sec. qConnect the SCANNER UNIT and test equipment as shown below. 1) PREPARATION BEFORE ADJUSTMENTS qPreset the adjustment points on the PA unit. R18: center position R54, R58, R62, R66: 1 /3rotated position wConnect the DISPLAY UNIT to SCANNER UNIT and turn power ON. • Verify the voltage at the each check point on the PA unit. CP8: 10.0 to 11.2 V CP9: 4.8 to 5.2 V 2) MAGNETRON ADJUSTMENT qConnect an oscilloscope to the check point CP11 on the PA unit. wWatching the oscilloscope, adjust R64 on the PA unit while 8 NM transmitting, and set the voltage to 5.4 V at (A) point as illustration at right. 3) PULSE WIDTH ADJUSTMENT qConnect an oscilloscope to the directional coupler through the detector. wWatching the oscilloscope, adjust R54 on the PA unit while 8 NM trans- mitting, and set the pulse width to 900 nS. eAdjust R58 on the PA unit while 4 NM transmitting, and set the pulse width to 350 nS. rAdjust R62 on the PA unit while 2 NM transmitting, and set the pulse width to 250 nS. tAdjust R66 on the PA unit while 1 NM transmitting, and set the pulse width to 80 nS. yVerify this adjustment from step w. Remove the antenna and motor Directional coupler (20 dB) PA IF Attenuator 20+3 dB Terminator Terminator 50 Ω Oscilloscope Oscilloscope Crystal detector Front-end Limiter Circulator Magnetron Magnetron Adjustment Pulse width Adjustment CP11 CP810.0 to 11.2 VVerify CP94.8 to 5.2 VVerify CK. POINTVALUEADJUSTMENT POINT 900 nSR54 350 nSR58 250 nSR62 80 nSR66 VALUEADJUSTMENT POINT CP115.4 VR18 CK. POINTVALUEADJUSTMENT POINT WARNING:Approx 4 kV of high voltages are used in PA unit. BEWAREof high voltage when adjusting this unit. Center position 1 / 3 rotated position approx 0.99 V A Set to 5.4 V NOTE:In this adjustment, pulse width is measured when the detector output voltage is 70% of peak voltage.

51 RADAR OPERATOR WARNING Icom requires the radar operator to meet the FCC Requirements for Radio Fre- quency Exposure. A slotted waveguide array antenna with gain not greater than 27 dBi must be mounted a minimum of 5.5 meters (measured from the lowest point of the antenna) vertically above the main deck and all possi- ble personnel. This is the minimum safe separation distance estimated to meet all RF exposure compli- ance requirements. This 5.5 meter distance is based on the FCC Safe Maximum Permissible Exposure (MPE)distance of 3.5 meters added to the height of an adult (2 meters)and is appropriate for all vessels. For watercraft without suitable structures, the antenna must be mounted so as to maintain a minimum of 1 meter vertically between the antenna, (measured from the lowest point of the antenna) , to the heads of all per- sons AND all persons must stay outside of the 3 5 meter MPE radius. Do not transmit with radar and antenna when persons are within the MPE radius of the antenna, unless such persons (such as driver or radar operator)are shielded from antenna field by a grounded metallic barrier. The MPE Radius is the minimum distance from the an- tenna axis that person should maintain in order to avoid RF exposure higher than the allowable MPE level set by FCC. FAILURE TO OBSERVE THESE LIMITS MAY ALLOW THOSE WITHIN THE MPE RADIUS TO EX- PERIENCE RF RADIATION ABSORPTION WHICH EXCEEDS THE FCC MAXIMUM PERMISSIBLE EX- POSURE (MPE)LIMIT. IT IS THE RESPONSIBILITY OF THE RADAR OP- ERATOR TO ENSURE THAT THE MAXIMUM PER- MISSIBLE EXPOSURE LIMITS ARE OBSERVED AT ALL TIMES DURING RADAR TRANSMISSION. THE RADAR OPERATOR IS TO ENSURE THAT NO BY- STANDERS COME WITHIN THE RADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURE LIMITS. Determining MPE Radius THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RADIUS HAS BEEN ESTIMATED TO BE A RADIUS OF ABOUT 3.5 M PER OET BULLETIN 65 OF THE FCC. THIS ESTIMATE IS MADE ASSUMING THE MAXI- MUM POWER OF THE RADAR AND ANTENNAS WITH A MAXIMUM GAIN OF 27 dBi ARE USED FOR A SHIP MOUNTED SYSTEM. WARNING MR-1000R2_T2_FCC.qxd 05.9.5 16:39 Page 51

Marine Radar Model No.: MR-1000TII FCC ID: AFJ278000 Applicant: Icom Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka 547-0003 Japan Tested in Accordance With Federal Communications Commission (FCC) CFR 47, Parts 2 and 80 - Marine Radar @ 9300 - 9500 MHz UltraTech's File No.: ICOM-114F80RADAR This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: August 24, 2005 Report Prepared by: Dan Huynh Issued Date: August 24, 2005 Tested by: Wayne Wu & Hung Trinh Test Dates: July 4 August 17, 2005 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC PARTS 2 & 80 – Marine Radar @ 9300 - 9500 MHz Contens i Marine Radar, Model MR-1000TII FCC ID: AFJ278000 ULTRATECH GROUP OF LABS File #: ICOM-114F80RADAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 24, 2005 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ................................................................................................................................................................1 1.1. SCOPE ............................................................................................................................................................................................1 1.2. RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................................1 1.3. NORMATIVE REFERENCES .......................................................................................................................................................1 EXHIBIT 2. PERFORMANCE ASSESSMENT......................................................................................................................................2 2.1. CLIENT INFORMATION ..............................................................................................................................................................2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION.................................................................................................................2 2.3. EUT’S TECHNICAL SPECIFICATIONS......................................................................................................................................3 2.4. LIST OF EUT’S PORTS.................................................................................................................................................................4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .......................................................5 3.1. CLIMATE TEST CONDITIONS ...................................................................................................................................................5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS.................................................................5 EXHIBIT 4. SUMMARY OF TEST RESULTS ......................................................................................................................................6 4.1. LOCATION OF TESTS..................................................................................................................................................................6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ..................................................................................6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.....................................................6 4.4. DEVIATION OF STANDARD TEST PROCEDURES .................................................................................................................6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ......................................................7 5.1. TEST PROCEDURES ....................................................................................................................................................................7 5.2. MEASUREMENT UNCERTAINTIES ..........................................................................................................................................7 5.3. MEASUREMENT EQUIPMENT USED .......................................................................................................................................7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................................7 5.5. RF POWER OUTPUT [§§ 2.1046 & 80.215] .................................................................................................................................8 5.6. MODULATION CHARACTERISTICS [§§ 2.1047 & 80.213(g)].............................................................................................. 10 5.7. EMISSION LIMITATIONS & OCCUPIED BANDWIDTH [§§ 2.1049, 80.211 (f) & 80.209 (b)]............................................. 16 5.8. SPURIOUS EMISSIONS AT ANTENNA TERMINALS [§§ 2.1051, 2.1057 & 80.211(f)]........................................................ 23 5.9. FIELD STRENGTH OF SPURIOUS RADIATION [§§ 2.1053, 2.1057 & 80.211(f)]................................................................. 34 5.10. TRANSMITTER FREQUENCY TOLERANCE [§§ 2.1055 & 80.209 (b)]....................................…
