AFJ298002UHF Mobile Transceiver

INSTRUCTION MANUAL VHF MOBILE TRANSCEIVER iF5063 iF5061 UHF MOBILE TRANSCEIVER iF6063 iF6061 i EXPLICIT DEFINITIONS R WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electricshock. NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruinthe transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting,the transceiver might be damaged. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodilyinjury. NEVER allow children to touch the transceiver. NEVER expose the transceiver to rain, snow or any liquids. USE the specified microphone only. Other microphones have different pin assignments and may damage the trans-ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), orin areas subject to direct sunlight, such as the dashboard. PRECAUTIONS WORD DEFINITION R WARNING Personal injury, fire hazard or electric shockmay occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No riskof personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructionsfor the IC-F5061, IC-F5063, IC-F6061 and IC-F6063 VHF/UHF MOBILE TRANSCEIVERS . IMPORTANTIcom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany,France, Spain, Russia and/or other countries.LTR is a registered trademark of the E.F.Johnson Company.All other products or brands are registered trademarks or trademarks of theirrespective holders. See the operating guide for details of BIIS, MDC and LTR ® system operations. Ask your dealer for details. ii AVOID operating the transceiver without running the vehi- cle’s engine. The vehicle’s battery will quickly run out if thetransceiver transmits while the vehicle’s engine OFF.AVOID placing the transceiver in excessively dusty envi- ronments. AVOID placing the transceiver against walls. Otherwise heat dissipation will be obstructed.AVOID the use of chemical agents such as benzine or alcohol when cleaning, as they damage the transceiver sur-faces.BE CAREFUL! The transceiver will become hot when operating continuously for long periods.For U.S.A. onlyCAUTION: Changes or modifications to this transceiver, not ex- pressly approved by Icom Inc., could void your authority to operatethis transceiver under FCC regulations. TABLE OF CONTENTSIMPORTANT .................................................................................... iEXPLICIT DEFINITIONS ................................................................. iPRECAUTIONS ............................................................................... iTABLE OF CONTENTS .................................................................. ii1 PANEL DESCRIPTION ........................................................... 1–7  Front panel ............................................................................... 1  Function display ....................................................................... 2  Programmable function keys ................................................... 3 2 BASIC OPERATION ............................................................. 8–14  Turning power ON .................................................................... 8  Channel selection .................................................................... 8  Call procedure .......................................................................... 9  Receiving and transmitting ....................................................... 9 D Transmitting notes ............................................................... 10 D TX code channel selection .................................................. 10 D TX code number edit............................................................ 11 D Talkgroup ID code selection ................................................ 12 D TX Status message selection .............................................. 12 D DTMF transmission ............................................................. 13  Scrambler function ................................................................. 13  User set mode ........................................................................ 14 3 CONNECTION AND MAINTENANCE ................................ 15–17  Rear panel connection ........................................................... 15  Supplied Accessories ............................................................. 16  Mounting the transceiver......................................................... 16  Antenna................................................................................... 17  Fuse replacement .................................................................. 17  Cleaning ................................................................................. 17  Options ................................................................................... 17 4 SAFETY TRAINING INFORMATION ........................................ 18 1 1 PANEL DESCRIPTION IcomInc. qe y Speaker Function display (p. 2) w r t  Front panel q AF VOLUME CONTROL KNOB [VOL]Rotate the knob to adjust the audio output level.• Minimum audio level is pre-programmed. w LED INDICATOR ➥ Lights red while transmitting a signal. ➥ Lights green while receiving a signal. e UP/DOWN KEYS [CH Up]/[CH Down]Push to select an operating channel, etc.*The desired function can be assigned by your dealer. (p. 3) r POWER SWITCH [ ] Push to turn the power ON and OFF.• Automatic scan start, Password prompt and Set mode access are available at power ON. t DEALER-PROGRAMMABLE KEYS Desired functions can be programmed independently byyour d…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 26, 2007 RE: FCC ID: AFJ298002_ATCB004688 Attention: Tri Luu I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the the occupied bandwidth plots on pages 30, 34, 35 and 36 of the report do not show the delta markers at the proper dBc points. The actual occupied bandwidth on page 30 appears to be at least 3kHz and possibly 6kHz greater than reported; and the actual bandwidth on pages 34, 35 and 36 appears to be also 3 to 6kHz greater than stated. Please note that the occupied bandwidth measurements must include ALL signal levels greater than the dBc measurement points and not just the first occurrence of the dBc point. Please explain why the delta markers on the plots did not consider the two side lobes which show signal levels higher than the dBc for occupied bandwidths. 2. Please remember that the MPE file is a separate file when uploaded to the FCC. Please provide a separate MPE report for this application. 3. Please note that the manual states 38cm separation for MPE for the IC-F6061 (see page 18 of the manual), but the MPE section of the report states the 48cm. Please correct the manual to be in line with the actual calculated MPE for the system. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

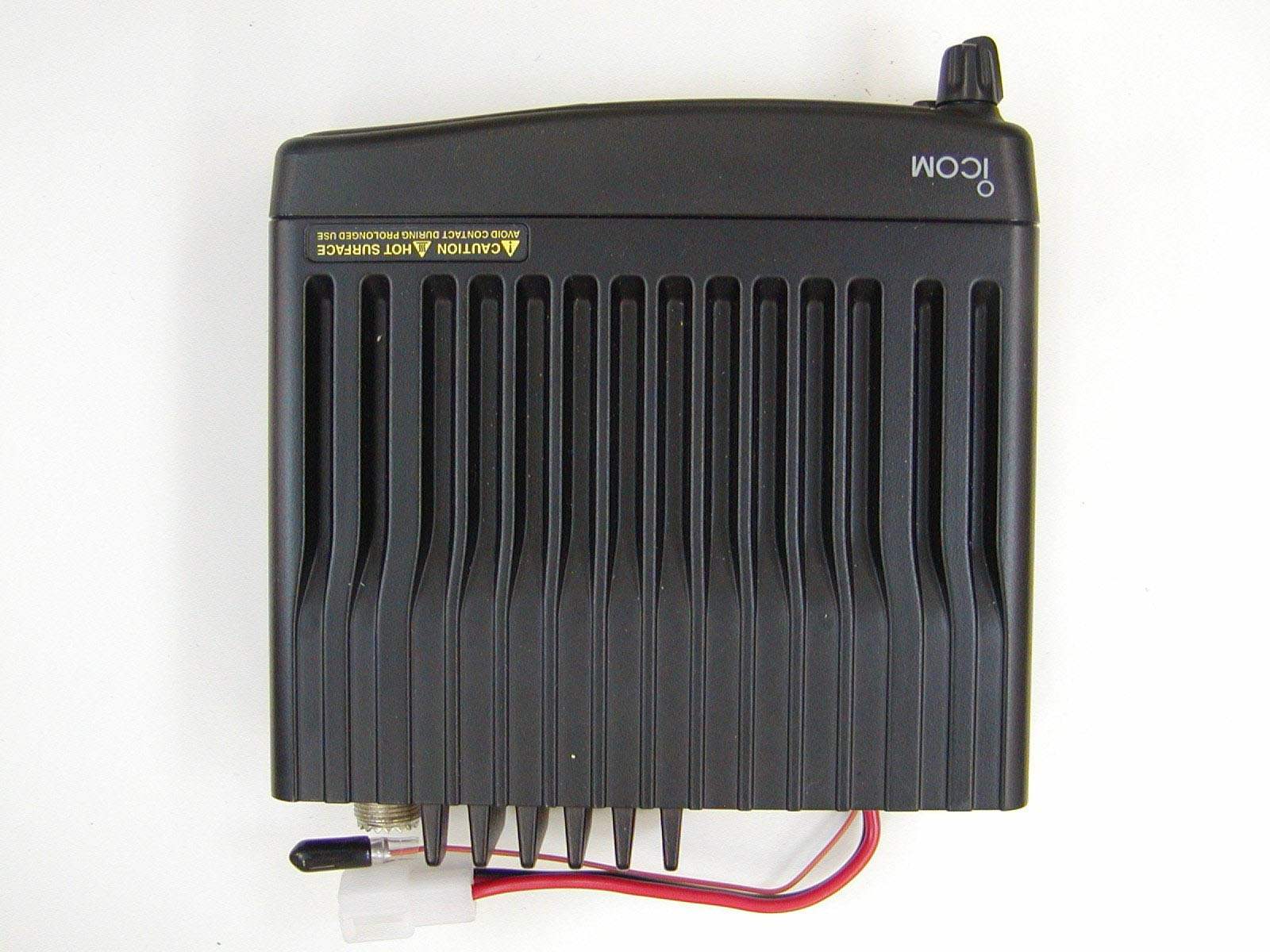

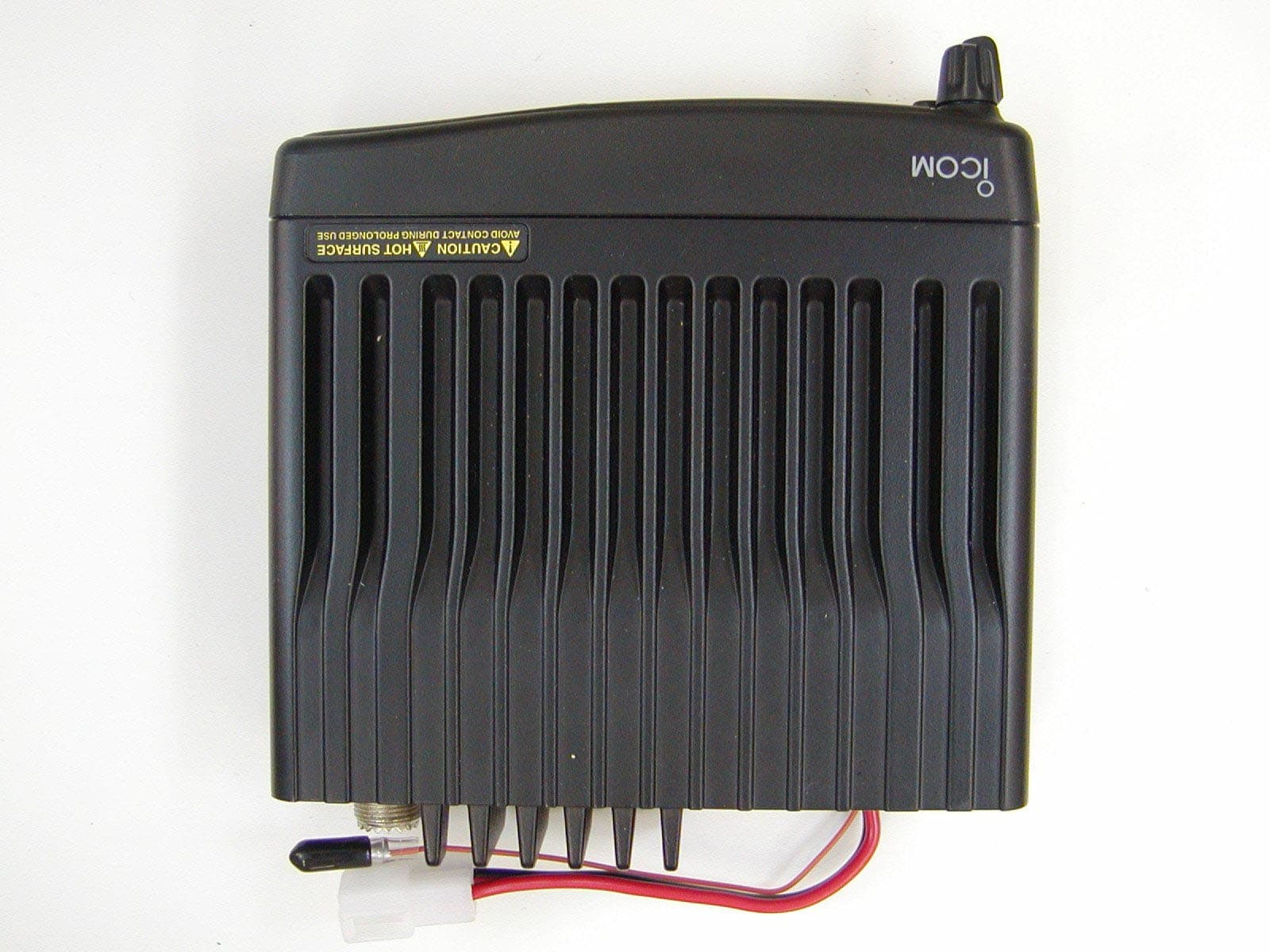

FRONT LEFT BACK RIGHT TOP BOTTOM SERIAL

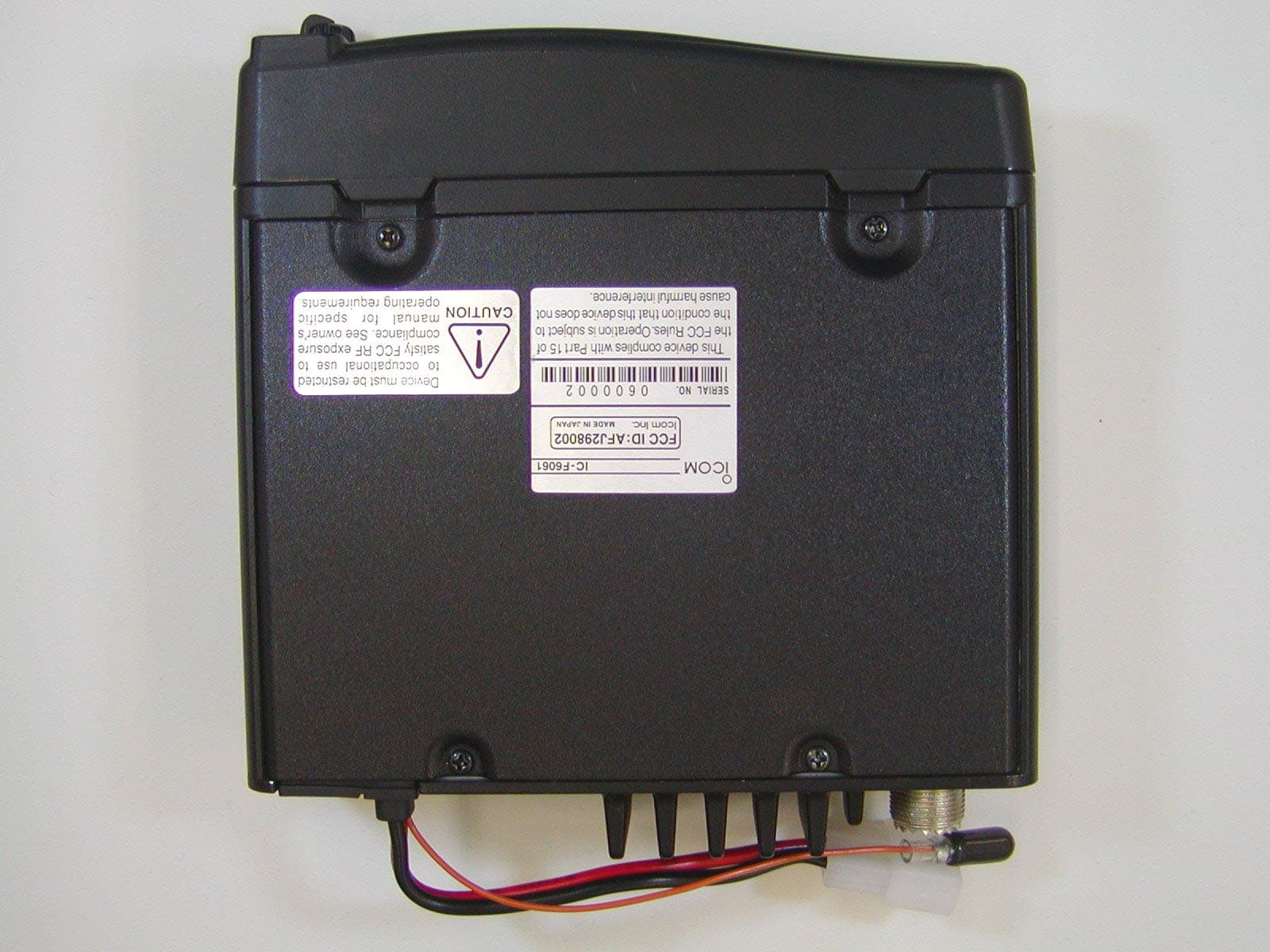

IC-F6061 FCC ID LABEL CAUTION LABEL

MAIN side A MAIN side B FRONT side A FRONT side B CONNECT side A CONNECT side B UT-119 side A UT-119 side B

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 112 UHF Mobile Transceiver, Model IC-F6061 FCC ID: AFJ298002 ULTRATECH GROUP OF LABS File #: ICOM-146F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 15, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.13. RF EXPOSURE REQUIRMENTS [ 1.1310 & 2.1091] The following criteria shall be used to evaluate the environmental impact of human exposure to RF radiation: FCC 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 ......................... 614 1.63 *(100) 6 3.0–30 .......................... 1842/f 4.89/f *(900/f 2 ) 6 30–300 ......................... 61.4 0.163 1.0 6 300–1500 ..................... .............................. .............................. f/300 6 1500–100,000 ............... .............................. .............................. 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 ...................... 614 1.63 *(100) 30 1.34–30 ....................... 824/f 2.19/f *(180/f 2 ) 30 30–300 ......................... 27.5 0.073 0.2 30 300–1500 ..................... .............................. .............................. f/1500 30 1500–100,000 ............. .............................. .............................. 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be ex- posed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Calculation Method of RF Safety Distance : S = PG/4Πr 2 = EIRP/4πr 2 ==> r = SPGπ4/ = SEIRPπ4/ Where: P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to center of radiation in cm FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 113 UHF Mobile Transceiver, Model IC-F6061 FCC ID: AFJ298002 ULTRATECH GROUP OF LABS File #: ICOM-146F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 15, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) MPE Evaluation Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 35 cm Manufacturer’ instruction for separation distance between antenna and persons required: 38 cm Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement See user manual. Caution statements and/or warning labels that are necessary in order to comply with the exposure limits See user manual. Any other RF exposure related issues that may affect MPE compliance None. Limits for General Population/Uncontrolled Exposure: Antenna Gain = 0 dBi = 10 (0/10) numeric Pp = 46.53 dBm (Rated peak power) Duty Cycle = 50 % (Use-based Time Averaging) Pa = Pp + 10*log(Duty Cycle) = 46.53 dBm + 10*log(50/100) dBm = 43.53 dBm = 22500 mW (rated average power) S = f/300 = 1.5 mW/cm 2 (Limit for General Population/Uncontrolled Exposure) r = SGP a π4/ = () SmWπ4/122500×= 35 cm

UHF Mobile Transceiver Model No.: IC-F6061 FCC ID: AFJ298002 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-146F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: March 15, 2007 Report Prepared by: JaeWook Choi Issued Date: March 15, 2007 Tested by: Wayne Wu, Hung Trinh Test Dates: February 8 ~ February 9, February 12 ~ February 13 & February 20, 2007 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i UHF Mobile Transceiver, Model IC-F6061 FCC ID: AFJ298002 ULTRATECH GROUP OF LABS File #: ICOM-146F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 15, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 5 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 6 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................ 6 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .............................................. 6 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 7 5.1. LOCATION OF TESTS .............................................................................................................................................. 7 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ........................................................................ 7 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ........................................ 7 5.4. DEVIATION OF STANDARD TEST PROCEDURES.............................................................................................. 7 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 8 6.1. TEST PROCEDURES................................................................................................................................................. 8 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 8 6.3. MEASUREMENT EQUIPMENT USED.................................................................................................................... 8 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ......................................... 8 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] .............................................................................................................. 9 6.6. FREQUENCY STABILITY [§§ 2.1055 & 90.213]................................................................................................... 10 6.7. AUDIO FREQUENCY RESPONSE [§90.242(B)(8) & § 2.1047(A)] ....................................................................... 13 6.8. MODULATION LIMITING [§90.210 & §2.1047(B)] .............................................................................................. 18 6.9. OCCUPIED BANDWIDTH & EMISSION MASK [§90.209, §90.210 & §2.1049] ................................................. 23 6.10. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§ 90.210] ..... 86 6.11. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§ 90.210] .......................................... 100 6.12. TRANSIENT FREQUENCY BEHAVIOR [§ 90.214]........................................................................................ 104 6.13.…

Text truncated - open the document above for the full version.
