AFJ305600VHF Mobile Transceiver

INSTRUCTION MANUAL This device complies with Par t 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VHF MOBILE TRANSCEIVER iF9511S iF9511T i RWARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruin the transceiver. NEVER cut the DC power cable between the DC plug and fuse holder. If an incorrect connection is made after cutting, the transceiver might be damaged. NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. NEVER allow children to touch the transceiver. NEVER expose the transceiver to rain, snow or any liq- uids. USE the specified microphone only. Other microphones have different pin assignments and may damage the trans- ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), or in areas subject to direct sunlight, such as the dashboard. PRECAUTIONS WORD DEFINITION RWARNING Personal injur y, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructions for the IC-F9511S/T VHF MOBILE TRANSCEIVERS. IMPORTANT Icom, Icom Inc. and the logo are registered trademarks of Icom Incorpo- rated (Japan) in the United states, the United Kingdom, Germany, France, Spain, Russia and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. EXPLICIT DEFINITIONS See the operating guide for details of MDC 1200 system and P25 Trunking system operations. Ask your dealer for details. ii PRECAUTIONS AVOID operating the transceiver without running the ve- hicle’s engine. The vehicle’s battery will quickly run out if the transceiver transmits while the vehicle’s engine OFF. AVOID placing the transceiver in excessively dusty envi- ronments. AVOID placing the transceiver against walls. This will ob- struct heat dissipation. AVOID the use of chemical agents such as benzine or alcohol when cleaning, as they damage the transceiver sur- faces. BE CAREFUL! The transceiver will become hot when operating continuously for long periods. For U.S.A. only CAUTION: Changes or modifications to this transceiver, not ex- pressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations. ABOUT APCO PROJECT 25 This device made under license under one or more of the following US patents: #4,590,473, #4,636,791, #5,148,482, #5,185,796, #5,271,017, #5,377,229. The IMBE™ voice coding Technology embodied in this prod- uct is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed solely for use within this Communications Equipment. The user of this Tech- nology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974, # 5 , 7 0 1 , 3 9 0 , # 5 , 7 1 5 , 3 6 5 , # 5 , 6 4 9 , 0 5 0 , # 5 , 6 3 0 , 0 1 1 , # 5 , 5 8 1 , 6 5 6 , # 5 , 5 1 7 , 5 1 1 , # 5 , 4 9 1 , 7 7 2 , # 5 , 2 4 7 , 5 7 9 , #5,226,084, #5,195,166. iii TABLE OF CONTENTS IMPORTANT ..........................................................................i EXPLICIT DEFINITIONS .......................................................i PRECAUTIONS .....................................................................i ABOUT APCO PROJECT 25 ...............................................ii TABLE OF CONTENTS .......................................................iii 1 PANEL DESCRIPTION ................................................1–8 n Front panel ...................................................................1 n Function display ...........................................................2 n Programmable function keys ........................................3 2 BASIC OPERATION ..................................................9–13 n Turning power ON ........................................................9 n Channel selection .........................................................9 n Call procedure ............................................................10 n Receiving and transmitting .........................................10 n User set mode ............................................................13 n Scrambler function .....................................................13 3 CONNECTION AND MAINTENANCE ....................14–16 n Rear panel connection ...............................................14 n Supplied Accessories .................................................15 n Mounting the transceiver ............................................16 n Antenna ......................................................................16 n Fuse replacement ......................................................16 n Cleaning .....................................................................16 4 OPTIONS .......................................................................17 5 SAFETY TRAINING INFORMATION .............................18 1 1 PANEL DESCRIPTION 1 IcomInc yoru ti q e*w e* IC-F9511S IC-F9511T n Front panel q AF VOLUME CONTROL KNOB Rotate the knob to adjust the audio output level. • Minimum audio level is pre-programmed. w FUNCTION DISPLAY (p. 2) Displays a variety of information, such as an operating channel number/name, 2-tone code, DTMF numbers and audible condition, etc. e DIAL or UP/DOWN KEYS • IC-F9511S: DIAL Rotate to select …

Text truncated - open the document above for the full version.

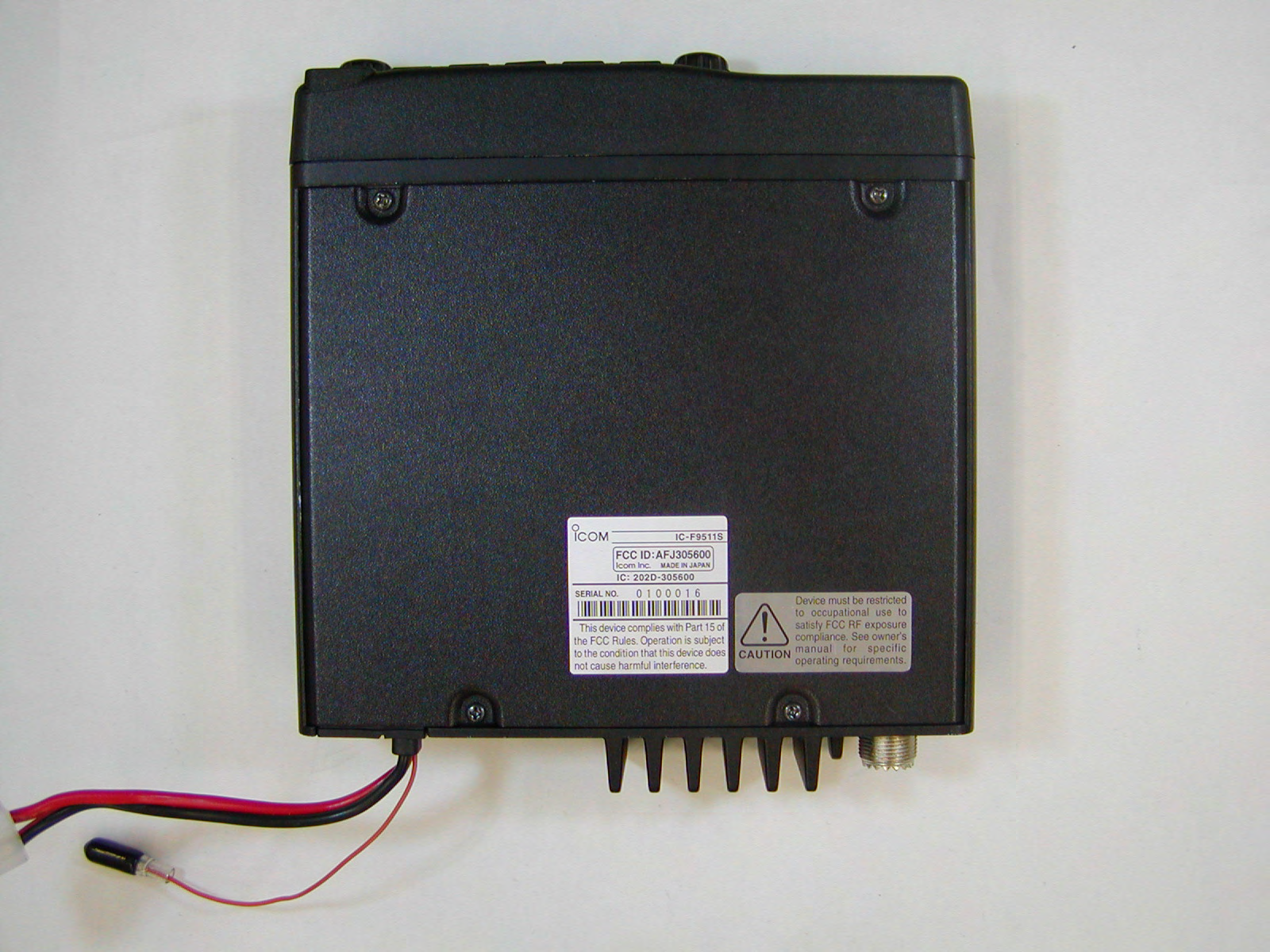

IC-F9511S/T FCC ID LABEL CAUTION LABEL

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 72 VHF Mobile Transceiver, Model IC-F9511S and IC-F9511T FCC ID: AFJ305600 ULTRATECH GROUP OF LABS File #: ICOM-162F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 06, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.13. RF Exposure Requirement [§1.1310 & 2.1091] 6.13.1. Limits ƒ § 1.1310:- The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). 6.13.2. Method of Measurements Refer to Sections 1.1310, 2.1091 and Public Notice DA 00-705 (March 30, 2000) In order to demonstrate compliance with MPE requirements (see Section 2.1091), the following information is typically needed: (1) Calculation that estimates the minimum separation distance (20 cm or more) between an antenna and persons required to satisfy power density limits defined for free space. (2) Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement (3) Any caution statements and/or warning labels that are necessary in order to comply with the exposure limits (4) Any other RF exposure related issues that may affect MPE compliance Calculation Method of RF Safety Distance : 22 44r EIRP r GP S ⋅⋅ = ⋅⋅ ⋅ = ππ Where: P: power input to the antenna in mW FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 73 VHF Mobile Transceiver, Model IC-F9511S and IC-F9511T FCC ID: AFJ305600 ULTRATECH GROUP OF LABS File #: ICOM-162F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 06, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) EIRP: Equivalent (effective) isotropic radiated power S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm 6.13.3. Test Arrangement Refer to Section 2.6 of this test report for test setup. 6.13.4. Test Equipment List Test Instruments Manufacturer Model No. Serial No. Frequency Range Spectrum Analyzer/ EMI Receiver Rohde & Schwarz FSEK30 100077 20 Hz – 40 GHz Amplifier Hewlett Packard 8449B 3008A00769 1 GHz – 26.5 GHz Horn Antenna EMCO 3155 9701-5061 1 GHz – 18 GHz Biconilog Antenna EMCO 3143 1029 20 MHz – 2 GHz FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 74 VHF Mobile Transceiver, Model IC-F9511S and IC-F9511T FCC ID: AFJ305600 ULTRATECH GROUP OF LABS File #: ICOM-162F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 06, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.13.5. Test Data Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: *46.2 cm Manufacturer’ instruction for separation distance between antenna and persons required: 48 cm. Antenna installation and device operating instructions for installers (professional/unskilled users), and the parties responsible for ensuring compliance with the RF exposure requirement Antenna installation and device operating instructions shall be provided to installers to maintain and ensure compliance with RF exposure requirements. Caution statements and/or warning labels that are necessary in order to comply with the exposure limits Refer to User’s Manual for RF Exposure Information. Any other RF exposure related issues that may affect MPE compliance None. *The minimum separation distance between the antenna and bodies of users are calculated using the following formula: RF EXPOSURE DISTANCE LIMITS S EIRP S GP r ⋅⋅ = ⋅⋅ ⋅ = ππ44 (S Limit ) = 1.0 mW/cm 2 (Maximum Conducted Power Measured) = 47.29 dBm ≈ 10 4.729 = 53579 mW (Maximum User-based Time-average Factor for PTT) = 50% = 0.5 (Maximum Antenna Gain Suggested by Manufacturer, G) = 0 dBi = 1.0 (Minimum Safe Distance, r) = cm S GP 2.46 0.14 0.15.053579 4 ≈ ⋅⋅ ×× = ⋅⋅ ⋅ ππ

VHF Mobile Transceiver Model No.: IC-F9511S and IC-F9511T FCC ID: AFJ305600 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-162F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 06, 2007 Report Prepared by: JaeWook Choi Issued Date: November 06, 2007 Tested by: Wayne Wu Test Dates: October 15 - 18, 2007 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i VHF Mobile Transceiver, Model IC-F9511S and IC-F9511T FCC ID: AFJ305600 ULTRATECH GROUP OF LABS File #: ICOM-162F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 06, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 4 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 5 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................ 5 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .............................................. 5 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 6 5.1. LOCATION OF TESTS .............................................................................................................................................. 6 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ........................................................................ 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ........................................ 6 5.4. DEVIATION OF STANDARD TEST PROCEDURES.............................................................................................. 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 7 6.1. TEST PROCEDURES................................................................................................................................................. 7 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 7 6.3. MEASUREMENT EQUIPMENT USED.................................................................................................................... 7 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ......................................... 7 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] .............................................................................................................. 8 6.6. FREQUENCY STABILITY [§§ 2.1055 & 90.213]..................................................................................................... 9 6.7. AUDIO FREQUENCY RESPONSE [§ 2.1047(A)]................................................................................................... 11 6.8. MODULATION LIMITING [§§ 2.1047(B) & 90.210] ............................................................................................. 16 6.9. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210] .................................................. 21 6.10. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§ 90.210] ..... 50 6.11. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§ 90.210] ............................................ 64 6.12. TRANSIENT FREQUENCY BEHAVIOR [§ 90.214].......................................................................................... 66 6.13. RF EXP…

Text truncated - open the document above for the full version.

Test Setup Photographs – ICOM VHF Mobile Transceiver (M/N: IC-F9511S & IC- F9511T)
