AFJ306000VHF Transceiver

INSTRUCTION MANUAL This device complies with Part 15 of theFCC Rules. Operation is subject to thecondition that this device does not causeharmful interference.UHF TRANSCEIVER iF60V VHF TRANSCEIVERiF50V i ii SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and clas-sified as “Occupational Use Only”, meaning it must beused only during the course of employment by individualsaware of the hazards, and the ways to minimize such haz-ards. This radio is NOT intended for use by the “GeneralPopulation” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure lim-its for “Occupational Use Only”. In addition, your Icom radio complies withthe following Standards and Guidelines with regard to RF energy andelectromagnetic energy levels and evaluation of such levels for exposureto humans: • FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Com- pliance with FCC Guidelines for Human Exposure to Radio Fre-quency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-quency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recom- mended Practice for the Measurement of Potentially Hazardous Elec-tromagnetic Fields– RF and Microwave. • The following accessories are authorized for use with this product. Use of accessories other than those specified may result in RF ex-posure levels exceeding the FCC requirements for wireless RF ex-posure.; Belt Clip (MB-98), Rechargeable Li-Ion Battery Pack(BP-227), Alkaline Battery Case (BP-226) and Speaker-microphone(HM-168). To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-tional use, always adhere to the following guidelines: CAUTION WARNING • DO NOT operate the radio without a proper antenna attached, as this may damaged the radio and may also cause you to exceed FCC RFexposure limits. A proper antenna is the antenna supplied with thisradio by the manufacturer or antenna specifically authorized by themanufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCCRF exposure compliance requirements to be exceeded. The radio istransmitting when the “TX indicator” lights red. You can cause theradio to transmit by pressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clip which is listedon page 38 when attaching the radio to your belt, etc., to ensure FCCRF exposure compliance requirements are not exceeded. To providethe recipients of your transmission the best sound quality, hold theantenna at least 5 cm (2 inches) from your mouth, and slightly off toone side. The information listed above provides the user with the informationneeded to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio.Electromagnetic Interference/CompatibilityDuring transmissions, your Icom radio generates RF energy that can pos-sibly cause interference with other devices or systems. To avoid such in-terference, turn off the radio in areas where signs are posted to do so.DO NOT operate the transmitter in areas that are sensitive to electro- magnetic radiation such as hospitals, aircraft, and blasting sites.Occupational/Controlled UseThe radio transmitter is used in situations in which persons are exposedas consequence of their employment provided those persons are fullyaware of the potential for exposure and can exercise control over theirexposure. iv iii IMPORTANTREAD ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This instruction manual contains important operating instructions for the IC-F50V VHF TRANSCEIVER and IC-F60V UHF TRANSCEIVER . EXPLICIT DEFINITIONSOPERATING NOTES• When transmitting with a portable radio, hold the radio in a vertical po- sition with its microphone 5 to 10 cm (2 to 4 inches) away from yourmouth. Keep the antenna at least 2.5 cm (1 inch) from your head andbody. • If you wear a portable two-way radio on your body, ensure that the an- tenna is at least 2.5 centimeters (1 inch) from your body when trans-mitting. WORD DEFINITION R WARNING Personal injury, fire hazard or electric shock may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. CAUTION Equipment damage may occur. PRECAUTIONSR WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially theface or eyes, while transmitting. The transceiver will perform best if themicrophone is 5 to 10 cm (2 to 4 inches) away from the lips and thetransceiver is vertical. R WARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. CAUTION! NEVER short the terminals of the battery pack. NEVER connect the transceiver to a power source other than the BP- 226 or BP-227. Such a connection will ruin the transceiver.DO NOT push the PTT when not actually desiring to transmit. AVOID using or placing the transceiver in direct sunlight or in areas with temperatures below –30°C (–22°F) or above +60°C (+140°F).DO NOT modify the transceiver for any reason. MAKE SURE the flexible antenna and battery pack are securely at- tached to the transceiver, and that the antenna and battery pack are drybefore attachment. Exposing the inside of the transceiver to water willresult in serious damage to the transceiver.BE CAREFUL! The IC-F50V/F60V series transceivers employ wa- terproof construction, which corresponds to IPX7 of the internationalstandard IEC 60529 (2001), 1 m depth for 30 minutes. However, oncethe transceiver has been dropped, waterproofing cannot …

Text truncated - open the document above for the full version.

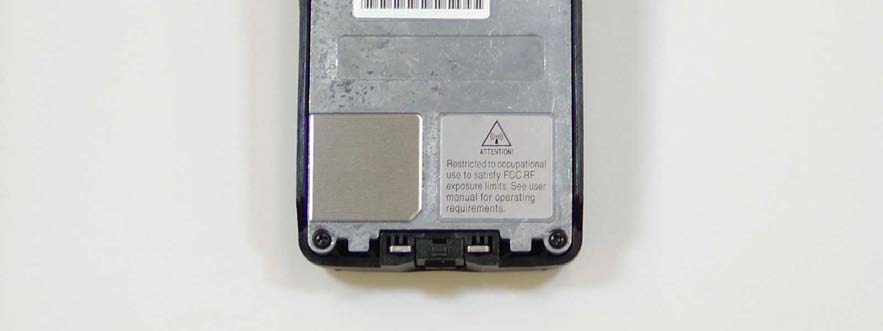

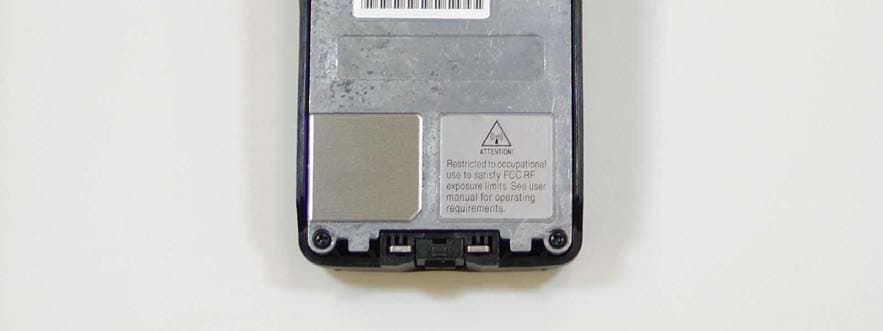

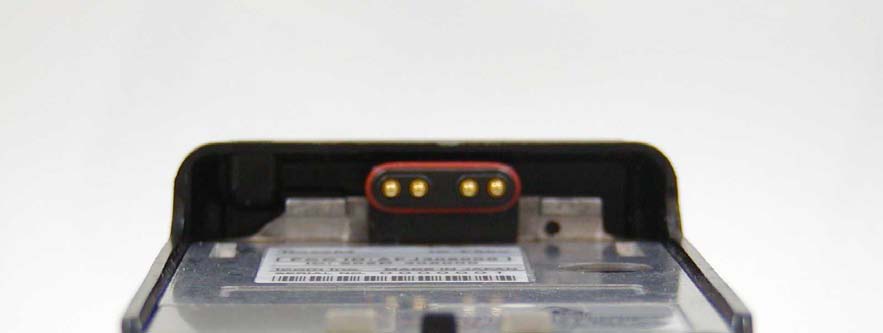

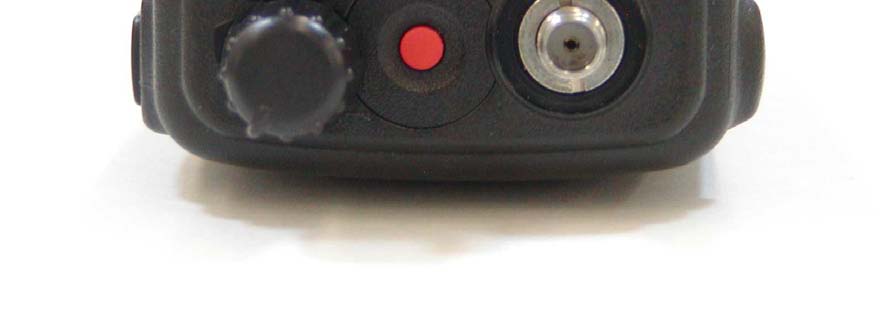

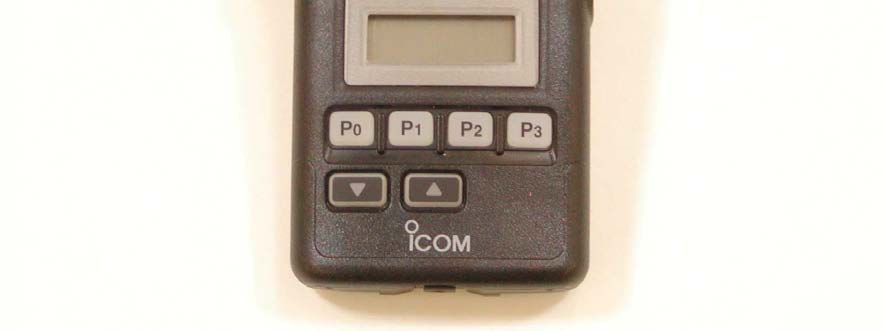

IC-F50V Serial Seal Location Serial Seal SAR Warning Label FCC Serial Seal (Include SAR sticker) Instructions Seal

VHF Transceiver - IC-F50V (FCC ID: AFJ306000) FCC power thresholds: f GHz 900/f Face-held controlled d >= 2.5 cm 0.155 5,806 mW 0.15 6,000 mW 1. 900/f = face-held controlled 2. d is the distance to a person’s body. No evaluation required if power is below this threshold: f GHz P out 0.155 5,806 mW (or 11,613 mW with 50% duty cycle) RF conducted peak power measured = 5,407 mW User-based time-average factor = 50 % = 0.5 Antenna Gain = -15.37 dBi Threshold for no SAR evaluation is 5,806 mW Transmitter power is 5,407 mW X 0.5 = 2,703 mW. Conclusion: No SAR evaluation required since Transmitter Power is below FCC power thresholds Pic.#1 Distance from the antenna with the thinnest belt-clip (M/N: MB-98) mounted Antenna Information M/N: FA-S59V Manufacturer: ICOM Gain: -15.37 dBi Type: Helical whip antenna Remark: The above information had been provided by the manufacturer

VHF Transceiver Model No.: IC-F50V FCC ID: AFJ306000 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-152F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: August 13, 2007 Report Prepared by: JaeWook Choi Issued Date: August 13, 2007 Tested by: Wayne Wu Test Dates: July 25 - 27, 2007 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i VHF Transceiver, Model IC-F50V FCC ID: AFJ306000 ULTRATECH GROUP OF LABS File #: ICOM-152F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 13, 2007 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST........................................................................................................................ 1 EXHIBIT 2. INTRODUCTION ......................................................................................................................................... 2 2.1. SCOPE......................................................................................................................................................................... 2 2.2. RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 2 2.3. NORMATIVE REFERENCES ................................................................................................................................... 2 EXHIBIT 3. PERFORMANCE ASSESSMENT .............................................................................................................. 3 3.1. CLIENT INFORMATION .......................................................................................................................................... 3 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................. 3 3.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................4 3.4. LIST OF EUT’S PORTS ............................................................................................................................................. 4 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 5 4.1. CLIMATE TEST CONDITIONS ................................................................................................................................ 5 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .............................................. 5 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................... 6 5.1. LOCATION OF TESTS .............................................................................................................................................. 6 5.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ........................................................................ 6 5.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ........................................ 6 5.4. DEVIATION OF STANDARD TEST PROCEDURES.............................................................................................. 6 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 7 6.1. TEST PROCEDURES................................................................................................................................................. 7 6.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 7 6.3. MEASUREMENT EQUIPMENT USED.................................................................................................................... 7 6.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ......................................... 7 6.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] .............................................................................................................. 8 6.6. FREQUENCY STABILITY [§§ 2.1055 & 90.213]..................................................................................................... 9 6.7. AUDIO FREQUENCY RESPONSE [§ 2.1047(A)]................................................................................................... 11 6.8. MODULATION LIMITING [§§ 2.1047(B) & 90.210] ............................................................................................. 16 6.9. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210] .................................................. 21 6.10. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§ 90.210] ..... 59 6.11. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§ 90.210] ............................................ 72 6.12. TRANSIENT FREQUENCY BEHAVIOR [§ 90.214].......................................................................................... 74 EXHIBIT 7. MEASUREMENT UNCERTAINTY.................................…

Text truncated - open the document above for the full version.
