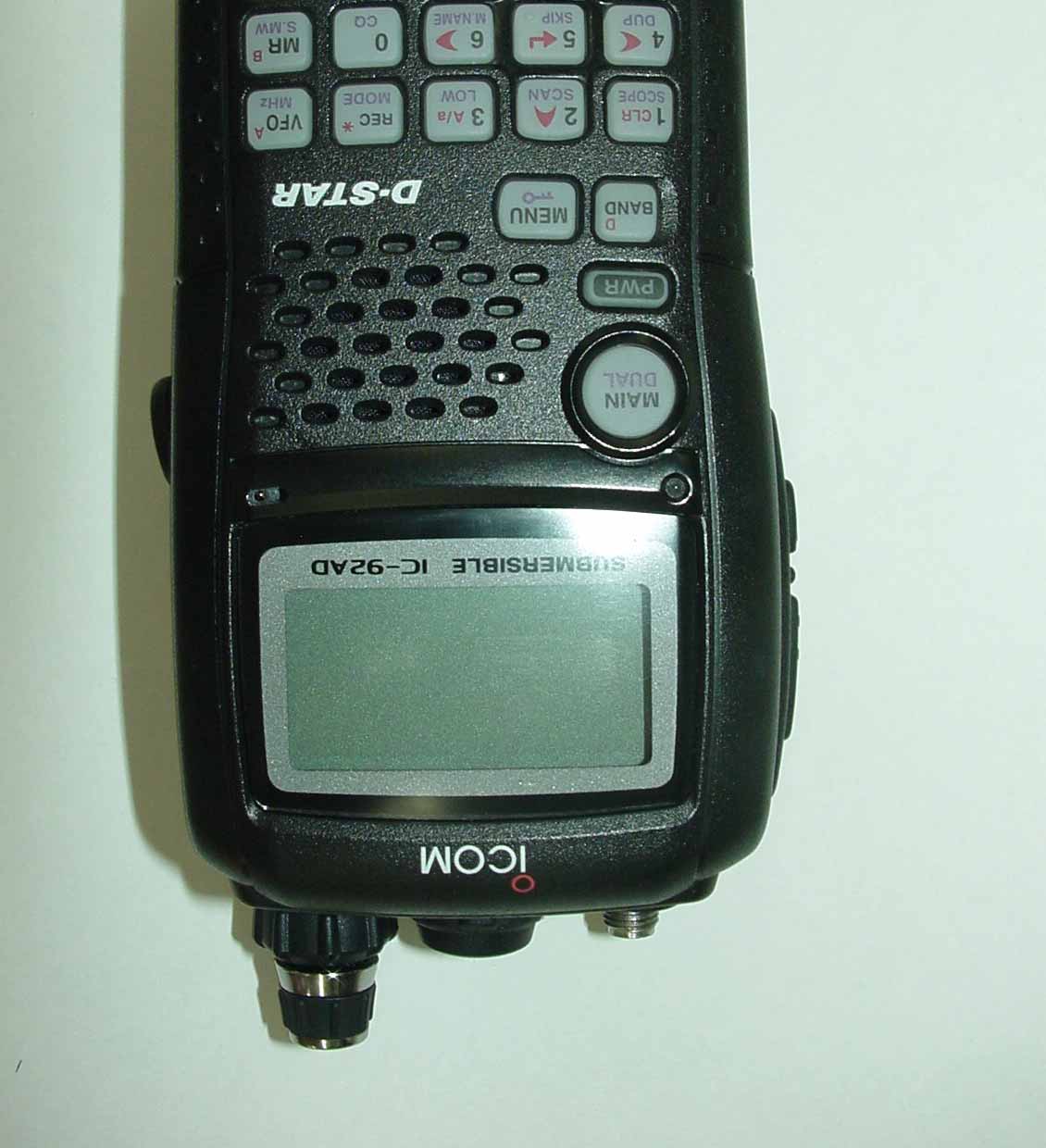

AFJ306600VHF/UHF Digital Transceiver

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CEL- LULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. INSTRUCTION MANUAL New2001 Y - The above photo shows IC-92AD. i92AVHF/UHF FM TRANSCEIVERi92AD VHF/UHF DIGITAL TRANSCEIVER i New2001 FOREWORDThank you for purchase of this fine Icom product. We un-derstand you have a choice of many different radios in the market place. Many hours of research and development went into the design of your IC-92A/92AD, following Icom’s philosophy of “technology fi rst.” The IC-92A/92AD VHF / UHF FM TRANSCEIVER is designed with Icom’s superior technology and craftsmanship combining traditional analog technologies with the new digital D-STAR technologies for a balanced packaged. With proper care, this product should provide you with years of trouble-free operation. We want to take a couple of mo-ments of your time to thank you for making your IC-92A/92AD your radio of choice, and hope you agree with Icom’s philosophy of “technology fi rst.” EXPLICIT DEFINITIONS FEATURES ❍ DV mode (Digital voice + Low-speed data communication) operation is ready – GPS receiver connection – Text message and call sign exchange (Optional UT-121 DIGITAL UNIT is required for IC-92A.) ❍ Simple band scope ❍ Dualwatch operation ❍ Optional PC remote control IMPORTANTREAD ALL INSTRUCTIONS carefully and completely before using the transceiver. SAVE THIS INSTRUCTION MANUAL— This in- struction manual contains important operating instructions for the IC-92A/92AD. WORD DEFINITION R -WARNING! CAUTION NOTE Personal injury, fire hazard or electric shock may occur.Equipment damage may occur.Recommended for optimum use. No risk of personal injury, fi re or electric shock. Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. 12345678910111213141516 R WARNING RF EXPOSURE! This device emits Radio Frequency (RF) energy. Caution should be observed when operating this device. If you have any questions re-garding RF exposure and safety standards please refer to the Federal Communications Commission Office of Engi-neering and Technology’s report on Evaluating Compliance with FCC Guidelines for Human Radio Frequency Electro-magnetic Fields (OET Bulletin 65) R WARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. The transceiver will perform best if the microphone is 5 to 10 cm (2 to 4-inches) away from the lips and the transceiver is verti-cal. R WARNING! NEVER operate the transceiver with a earphone, headphones or other audio accessories at high volume levels. Hearing experts advise against continuous high volume operation. If you experience a ringing in your ears, reduce the volume level or discontinue use. R WARNING! NEVER operate the transceiver while driving a vehicle. Safe driving requires your full attention—anything less may result in an accident. NEVER connect the transceiver to a power source of more than 16 V DC. This will ruin the transceiver. NEVER connect the transceiver to a power source using reverse polarity. This will ruin the transceiver. NEVER expose the transceiver to rain, snow or any liq- uids. The transceiver may be damaged. NEVER operate or touch the transceiver with wet hands. This may result in an electric shock or damage the trans-ceiver. DO NOT operate the transceiver near unshielded electri- cal blasting caps or in an explosive atmosphere. DO NOT push the PTT when not actually desiring to trans- mit. BE CAREFUL! The transceiver will become hot when operating it continuously for long periods. DO NOT use or place the transceiver in direct sunlight or in areas with temperatures below –20°C (–4 ̊F) or above +60°C (+140 ̊F).Place the unit in a secure place to avoid inadvertent use by children. DO NOT use of chemical agents such as benzine or al- cohol when cleaning, as they can damage the transceiver’s surfaces.For U.S.A. only CAUTION!: Changes or modifications to this device, not expressly approved by Icom Inc., could void your authority to operate this device under FCC regulations. 171819 ii PRECAUTIONS Ne iii New2001 FOREWORD i EXPLICIT DEFINITIONS i FEATURES i IMPORTANT i PRECAUTIONS ii TABLE OF CONTENTS iii SUPPLIED ACCESSORIES v 1 ACCESSORY ATTACHMENT 1 ■ Antenna 1 ■ Belt clip 1 ■ Handstrap 1 ■ Battery pack 1 2 PANEL DESCRIPTION 2–7 ■ Front, top and side panels 2 ■ Function display 6 3 BATTERY CHARGING 8–13 ■ Caution 8 ■ Regular charging 10 ■ Rapid charging 11 ■ Optional battery case 12 ■ Battery information 12 ■ External DC power operation 13 4 FREQUENCY AND CHANNEL SETTING 14–19 ■ Main band selection 14 ■ Mode selection 15 ■ Operating band selection 16 ■ Setting a tuning step 18 ■ Setting a frequency 18 5 BASIC OPERATION 20–28 ■ Receiving 20 ■ Setting audio volume 20 ■ Setting squelch level 21 ■ Operating mode selection 21 ■ Monitor function 22 ■ Attenuator function 22 ■ Band scope 23 ■ Transmitting 24 ■ Transmit power selection 24 ■ Lock function 25 ■ Dualwatch operation 25 ■ TV channel operation 28 6 REPEATER AND DUPLEX OPERATIONS 29–33 ■ Repeater operation 29 ■ Duplex operation 31 ■ Auto repeater function 32 ■ 1750 Hz tone 33 7 DV MODE OPERATION (Optional UT-121 is required for IC-92A) 34–63 ■ Digital mode operation 34 ■ Call sign programming 34 ■ Digital voice mode operation 38 ■ About D-STAR system 40 ■ Digital repeater operation 41 ■ Received call sign 46 ■ Copying the call sign 48 ■ Break-in communication 51 ■ Message operation 52 ■ Automatic reply function 54 TABLE OF CONTENTS iv New2001 ■ EMR communication 56 ■ Low-speed data comm…

Text truncated - open the document above for the full version.

December 06, 2007 AmericanTCB, Inc. 6731 Whittier Avenue, Suite C110 McLean, VA 22101 Subject: Certification Testing in accordance with FCC CFR 47, Part 15, Subpart B - Scanning Receivers Operating in the Frequency Band 0.495 to 999.990 MHz (excluding cellular bands). Product: VHF/UHF Digital Transceiver Model No.: IC-92AD FCC ID: AFJ306600 Dear Sir/Madam As appointed agent for ICOM Incorporated, we would like to submit the application for FCC certification of the above product. Please review all files uploaded to AmericanTCB electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 SL2-IN-E-1119R 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

VHF/UHF Digital Transceiver Model No.: IC-92AD FCC ID: AFJ306600 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Part 15, Subpart B Scanning Receivers Operating in the Frequency Band 0.495 to 999.990 MHz (excluding cellular bands) UltraTech's File No.: ICOM-163FCC15RX This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 06, 2007 Report Prepared by: Dharmajit Solanki, RF Engineer Issued Date: December 06, 2007 Tested by: Wayne Wu, EMI/RFI Technician Test Dates: Oct. 30 & Nov. 19-23, 2007 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] 2 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R 00-034 FCC Part 15, Subpart B, Part 15.121 Page 1 VHF/UHF Digital Transceiver, Models: IC-92AD FCC ID: AFJ306600 ULTRATECH GROUP OF LABS File #: ICOM-163FCC15RX 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 06, 2007 Tel.: 905-829-1570, Fax. : 905-829-8050 All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. SUBMITTAL CHECK LIST..................................................................................................................... 2 EXHIBIT 2. INTRODUCTION ...................................................................................................................................... 3 2.1. SCOPE...................................................................................................................................................................... 3 2.2. RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................... 3 2.3. NORMATIVE REFERENCES ................................................................................................................................ 3 EXHIBIT 3. PERFORMANCE ASSESSMENT ........................................................................................................... 4 3.1. CLIENT INFORMATION ....................................................................................................................................... 4 3.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .........................................................................................4 3.3. EUT’S TECHNICAL SPECIFICATIONS .............................................................................................................. 5 3.4. LIST OF EUT’S PORTS.......................................................................................................................................... 5 3.5. ANCILLARY EQUIPMENT ................................................................................................................................... 5 3.6. DRAWING OF TEST SETUP ................................................................................................................................. 6 EXHIBIT 4. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................ 7 4.1. CLIMATE TEST CONDITIONS ............................................................................................................................ 7 4.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS.......................................... 7 EXHIBIT 5. SUMMARY OF TEST RESULTS ............................................................................................................ 8 5.1. LOCATION OF TESTS........................................................................................................................................... 8 5.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS .......................................................... 8 5.3. MODIFICATIONS REQUIRED FOR COMPLIANCE..........................................................................................8 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................ 9 6.1. TEST PROCEDURES.............................................................................................................................................. 9 6.2. MEASUREMENT UNCERTAINTIES ................................................................................................................... 9 6.3. MEASUREMENT EQUIPMENT USED ................................................................................................................ 9 6.4. AC POWER LINE CONDUCTED EMISSIONS [§ 15.107(A)]........................................................................... 10 6.5. RECEIVER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§15.111(A)] ........ 13 6.6. RECEIVER SPURIOUS/HARMONIC RADIATED EMISSIONS [§ 15.109(A)] ............................................... 22 6.7. RADIATED EMISSIONS FROM CLASS B UNINTENTIONAL RADIATORS (DIGITAL DEVICES) [§ 15.109(A)] .............................................................................................................................................................. 25 6.8. REQUIREMENTS FOR SCANNING RECEIVERS [47 CFR 15.121] ................................................................ 27 EXHIBIT 7. MEASUREMENT UNCERTAINTY...................................................................................................... 32 7.1. LINE CONDUCTED EMISSION MEASUREMENT UNCERTAINTY ............................................................. 32 7.2. RADIATED EMISSION MEASUREMENT UNCERTAINTY .........…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Inc. Communication Receiver, Model: IC-R2500 FCC ID: AFJ287901, IC: 202D-287900 Photo #1: AC Powerline Conducted Emissions ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Inc. Communication Receiver, Model: IC-R2500 FCC ID: AFJ287901, IC: 202D-287900 Photo #2: AC Powerline Conducted Emissions ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Inc. Communication Receiver, Model: IC-R2500 FCC ID: AFJ287901, IC: 202D-287900 Photo #3: Receiver Radiated Emissions at 3 meters ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Inc. Communication Receiver, Model: IC-R2500 FCC ID: AFJ287901, IC: 202D-287900 Photo # 4: Radiated Emissions at 3 meters ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Inc. Communication Receiver, Model: IC-R2500 FCC ID: AFJ287901, IC: 202D-287900 Photo # 5: Radiated Emissions at 3 meters ANNEX 1 - TEST SETUP PHOTOGRAPHS Icom Inc. Communication Receiver, Model: IC-R2500 FCC ID: AFJ287901, IC: 202D-287900 Photo # 6: Radiated Emissions at 3 meters
