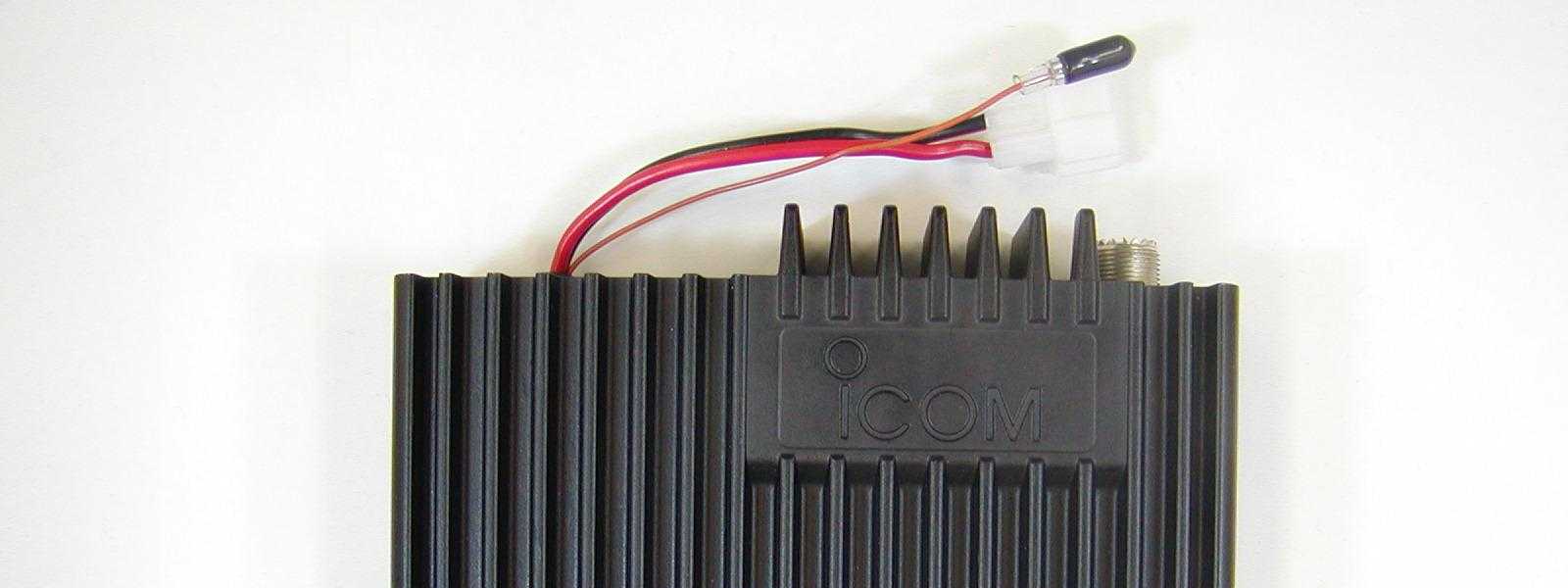

AFJ307701UHF P25 Trunking Mobile Transceiver

INSTRUCTION MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. VHF P25 TRUNKING MOBILE TRANSCEIVERS iF9511S iF9511T The photo shows the 10-key version transceiver. UHF P25 TRUNKING MOBILE TRANSCEIVERS iF9521S/T iF9523S/T i IMPORTANT READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instruc- tions for the IC-F9511S/IC-F9511T VHF P25 TRUNKING MOBILE TRANSCEIVERS and the IC-F9521S/IC-F9521T/ IC-F9523S/IC-F9523T UHF P25 TRUNKING MOBILE TRANSCEIVERS. ✔ When the optional UT-125 aes/des encryption unit is installed: If re-exporting this product and/or AES encryption of this product is activated, you must comply with the export regula- tions of your country, which can be highly restrictive. YOUR FAILURE TO COMPLY WITH EXPORT REGULATIONS MAY SUBJECT YOU TO FINES OR PENALTIES. AES encryption products including this software fall under the control of the Japanese Government as described in Appendix I: Export Le- gal Controls and Appendix: Exchange Legal Controls. Please consult with your dealer or sales representative for details. EXPLICIT DEFINITIONS WORDDEFINITION RWARNING Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. See the operating guide for details of Analog and P25 Trunking/Conventional system operations. Consult your Icom dealer or system operator for details concerning your transceivers programming. ✔ INFORMATION: In this instruction manual, the following descriptions are used; IC-F9511S/IC-F9521S/IC-F9523S : “Simple type” IC-F9511T/IC-F9521T/IC-F9523T : “10-key type” Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor- porated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. ii FCC INFORMATION • FOR CLASS B UNINTENTIONAL RADIATORS: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac- cordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guaran- tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor- rect the interference by one or more of the following meas- ures: • Reor ient or relocate the receiving antenna. • Increase the separation between the equipment and re - ceiver. • Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV techni- cian for help. ABOUT IPR This device is made under license under one or more of the following U.S. Patents: #4,590,473; #4,636,791; #5,148,482; # 5 , 1 8 5 , 7 9 6 ; # 5 , 2 7 1 , 0 1 7 ; # 5 , 3 7 7 , 2 2 9 ; # 4 , 7 1 6 , 4 0 7 ; # 4 , 9 7 2 , 4 6 0 ; # 5 , 5 0 2 , 7 6 7 ; # 5 , 1 4 6 , 4 9 7 ; # 5 , 1 6 4 , 9 8 6 ; #5,185,795; #5,164,986, #5,185,795, and #5,146,497. * IPR means ‘Intellectual Property Rights.’ VOICE CODING TECHNOLOGY The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed sole- ly for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassem- ble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. # 5 , 8 7 0 , 4 0 5 , # 5 , 8 2 6 , 2 2 2 , # 5 , 7 5 4 , 9 7 4 , # 5 , 7 0 1 , 3 9 0 , # 5 , 7 1 5 , 3 6 5 , # 5 , 6 4 9 , 0 5 0 , # 5 , 6 3 0 , 0 1 1 , # 5 , 5 8 1 , 6 5 6 , #5,517,511, #5,491,772, #5,247,579, #5,226,084 and #5,195,166. iii RWARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. RWARNING! NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruin the transceiver. RWARNING! NEVER cut the DC power cable be- tween the DC plug and fuse holder. If an incorrect connec- tion is made after cutting, the transceiver might be damaged. RWARNING! NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. CAUTION! NEVER allow children to touch the transceiver. CAUTION! NEVER expose the transceiver to rain, snow or any liquids. The transceiver may be damaged. USE the specified microphone only. Other microphones have different pin assignments and may damage the transceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), or in areas subject to direct sunlight, such as the dashboard. DO NOT place the transceiver in excessively dusty envi- ronments. DO NOT operate the transceiver without running the ve- hicle’s engine. The vehicle’s battery will quickly run out if the transceiver transmits while the vehicle’s engine OFF. DO NOT place the transceiver against walls. This will ob- struct heat dissipation. DO NOT use chemical agents such as benzine or alcohol when cleaning, as they damage the transceiver surfaces. BE CAREFUL! The transceiver will become hot when operating continuously for long peri…

Text truncated - open the document above for the full version.

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 31040/SIT 1309 46390-2049 200093-0 SL2-IN-E-1119R Korea RRL 2005-82 & 83 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] May 4, 2009 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 406.1-470 MHz (25 KHz and 12.5 KHz Channel Spacings). Applicant: ICOM Incorporated Product: UHF P25 TRUNKING MOBILE TRANSCEIVER Model: IC-F9521S AND IC-F9521T FCC ID: AFJ307701 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, JaeWook Choi Authorized Agent JaeWook Choi

18 5 SAFETY TRAINING INFORMATION 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 W AR N IN G Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by indi- viduals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. For compliance with FCC and Industry Canada RF Exposure Requirements, the transmitter antenna installation shall comply with the following two conditions: 1. The transmitter antenna gain shall not exceed 0 dBi. 2. IC-F9511S/T: The antenna is required to be located outside of a vehicle and kept at a distance of 48 cm or more between the transmitting antenna of this device and any persons during operation. For small vehicle as worst case, the antenna shall be located on the roof top at any place on the centre line along the vehicle in order to achieve 48 cm separation distance. In order to ensure this distance is met, the installation of the antenna must be mounted at least 48 cm away from the nearest edge of the vehicle in order to protect against exposure to bystanders. IC-F9521S/T : The antenna is required to be located outside of a vehicle and kept at a distance of 38.6 cm or more between the transmitting antenna of this device and any persons during operation. For small vehicle as worst case, the antenna shall be located on the roof top at any place o n the centre line along the vehicle in order to achieve 38.6 cm separa- tion distance. In order to ensure this distance is met, the installation of the antenna must be mounted at least 38.6 cm away from the nearest edge of the vehicle in order to protect against exposure to bystanders. 3. IC-F9511S/T : Transmit only when people outside the vehicle are at least the recom- mended minimum distance of 100 cm away from the properly installed an- tenna. This separation distance will ensure that there is sufficient distance from a properly installed externally-mounted antenna to satisfy the RF ex- posure requirements in the applicable RF exposure compliance standards. IC-F9521S/T: Transmit only when people outside the vehicle are at least the recom- mended minimum distance of 86.4 cm away from the properly installed an- tenna. This separation distance will ensure that there is sufficient distance from a properly installed externally-mounted antenna to satisfy the RF ex- posure requirements in the applicable RF exposure compliance standards. C AU TIO N To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for occupa- tional use, always adhere to the following guide- lines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF ex- posure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manu- facturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). “50% duty cycle” is also applicable to PSTN (Public Switched Telephone Network) mode. Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is transmitting when the “TX indicator” lights red. You can cause the radio to transmit by pressing the “PTT” switch. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF energy that can pos- sibly cause interference with other devices or systems. To avoid such in- terference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, aircraft, and blasting sites. FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 8 UHF P25 TRUNKING MOBILE TRANSCEIVER, Model IC-F9521S AND IC-F9521T FCC ID: AFJ307701 ULTRATECH GROUP OF LABS File #: ICOM-208F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 4, 2009 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.5. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091] 5.5.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 (B) Limits for General Population/Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 Note: f is frequency in MHz 5.5.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S ⋅ = ⋅ = ππ Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r ⋅ = ⋅ = ππ44 FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device. FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 9 UHF P25 TRUNKING MOBILE TRANSCEIVER, Model IC-F9521S AND IC-F9521T FCC ID: AFJ307701 ULTRATECH GROUP OF LABS File #: ICOM-208F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 4, 2009 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NI…

Text truncated - open the document above for the full version.

UHF P25 TRUNKING MOBILE TRANSCEIVER Model No.: IC-F9521S AND IC-F9521T FCC ID: AFJ307701 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-208F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: May 4, 2009 Report Prepared by: JaeWook Choi Issued Date: May 4, 2009 Tested by: Wayne Wu Test Dates: April 6~8, 15 & 21, 2009 ƒ The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ƒ This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] Korea MIC-RRL 0685 31040/SIT 1309 46390-2049 200093-0 SL2-IN-E-1119R 2005-82 & 83 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i UHF P25 TRUNKING MOBILE TRANSCEIVER, Model IC-F9521S AND IC-F9521T FCC ID: AFJ307701 ULTRATECH GROUP OF LABS File #: ICOM-208F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 4, 2009 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES....................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION................................................................................................. 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS................................................................................................................................................. 4 2.5. GENERAL TEST SETUP..................................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................... 5 3.1. CLIMATE TEST CONDITIONS ................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS.................................................. 5 EXHIBIT 4. SUMMARY OF TEST RESULTS .................................................................................................................. 6 4.1. LOCATION OF TESTS ................................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS............................................................................ 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ............................................ 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................. 7 5.1. TEST PROCEDURES .................................................................................................................................................... 7 5.2. MEASUREMENT UNCERTAINTIES.......................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED ....................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................ 7 5.5. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091]............................................................................................ 8 5.6. RF POWER OUTPUT [§§ 2.1046 & 90.205] ............................................................................................................... 10 5.7. AUDIO FREQUENCY RESPONSE [§§ 2.1047(A) & 90.242(B)(8)] ........................................................................... 11 5.8. MODULATION LIMITING [§§ 2.1047 (B) & 90.210] ................................................................................................ 18 5.9. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210] ...................................................... 23 5.10. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§§ 2.1051, 2.1057 & 90.210] .................................................................................................................................................................................. 52 5.11. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 2.1053, 2.1057…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Radiated emission test, Tx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Radiated emission test, Tx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Radiated emission test, Tx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Radiated emission test, Rx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Radiated emission test, Rx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Radiated emission test, Rx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Power line conducted emission test, Tx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Power line conducted emission test, Tx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Power line conducted emission test, Rx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Power line conducted emission test, Rx mode > ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF P25 Trunking Mobile Transceiver, M/N: IC-F9521S and IC-F9521T FCC ID:AFJ307701, IC: 202D-307701 < Power line conducted emission test, Rx mode >
