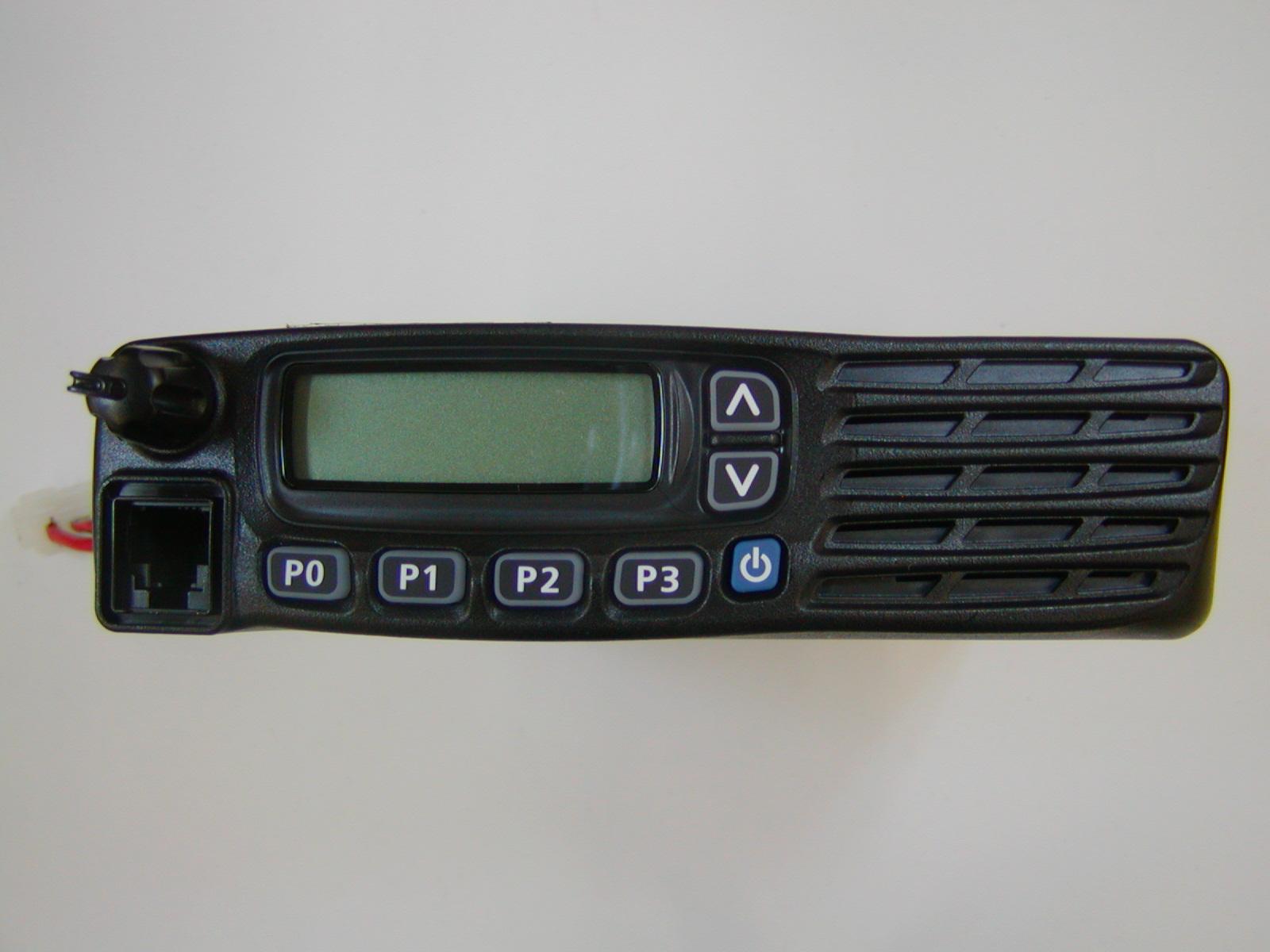

INSTRUCTION MANUAL VHF MOBILE TRANSCEIVERS iF5120D Series UHF MOBILE TRANSCEIVERS iF6120D Series Limited functions onlyLimited functions only i Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor- porated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. IMPORTANT READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important operating instructions for the IC-F5121D, IC-F5123D VHF MOBILE TRANSCEIV- ERS and the IC-F6121D, F6123D UHF MOBILE TRANS- CEIVERS. EXPLICIT DEFINITIONS WORDDEFINITION RWARNING Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. FCC INFORMATION • FOR CLASS B UNINTENTIONAL RADIATORS: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter- ference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and re - ceiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ii PRECAUTIONS RWARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. RWARNING! NEVER connect the transceiver to a power source of more than 16 V DC such as a 24 V battery. This connection will ruin the transceiver. RWARNING! NEVER cut the DC power cable be- tween the DC plug and fuse holder. If an incorrect connection is made after cutting, the transceiver might be damaged. RWARNING! NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. CAUTION! NEVER allow children to touch the trans- ceiver. CAUTION! NEVER expose the transceiver to rain, snow or any liquids. USE the specified microphone only. Other microphones have different pin assignments and may damage the transceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), or in areas subject to direct sunlight, such as the dashboard. DO NOT operate the transceiver without running the ve- hicle’s engine. The vehicle’s battery will quickly run out when the transceiver transmits while the vehicle’s engine is OFF. DO NOT place the transceiver in excessively dusty envi- ronments. DO NOT place the transceiver against walls. This will ob- struct heat dissipation. DO NOT use chemical agents such as benzine or alcohol when cleaning, as they damage the transceiver surfaces. BE CAREFUL! The transceiver will become hot when operating continuously for long periods. For U.S.A. only CAUTION! Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations. Approved Icom optional equipment is designed for optimal performance when used with an Icom transceiver. Icom is not responsible for the destruction or damage to an Icom transceiver in the event the Icom transceiver is used with equipment that is not manufactured or approved by Icom. iii TABLE OF CONTENTS IMPORTANT ..........................................................................i EXPLICIT DEFINITIONS .......................................................i FCC INFORMATION .............................................................i PRECAUTIONS ....................................................................ii TABLE OF CONTENTS .......................................................iii 1.ANEL DESCRI.TION.ANEL DESCRI.TION ................................................ 1–6 ■ Front panel ...................................................................1 ■ Function display ...........................................................2 ■ Programmable function keys ........................................3 2 BASIC O.ERATIONBASIC O.ERATION .................................................. 7–13 ■ Turning power ON ........................................................7 ■ Channel selection .........................................................7 ■ Call procedure ..............................................................8 ■ Receiving and transmitting ...........................................8 ■ User set mode ............................................................11 ■ Scrambler function .....................................................12 ■ Emergency transmission ............................................12 ■ Stun function ..............................................................12 ■ Priority A channel selection ........................................12 ■ MDC 1200 system operation ......................................13 3 CONNECTION AND MAINTENANCE ....................14–16 ■ Rear panel connection ...............................................14 ■ Supplied Accessories .................................................15 ■ Mounting the transceiver ............................................15 ■ Antenna ..........................…

Text truncated - open the document above for the full version.

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] February 18. 2011 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 406.1-470 MHz Applicant: ICOM Incorporated Product: UHF Mobile Transceiver Model: IC-F6121D FCC ID: AFJ333201 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we would like to submit the application for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, DanHuynh Dan Huynh Authorized Agent

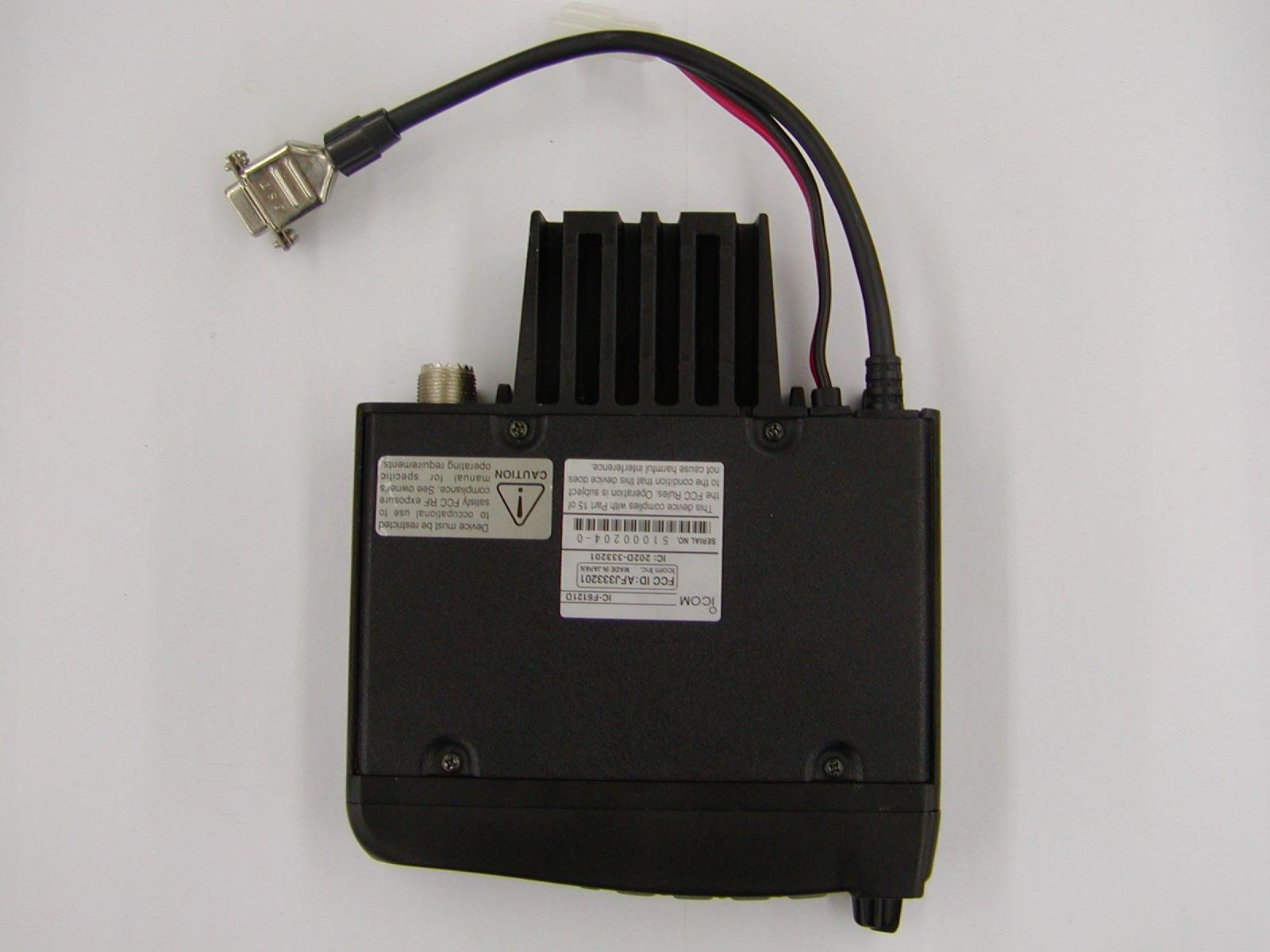

Serial Plate Layout

FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Page 9 UHF Mobile Transceiver, Model IC-F6121D FCC ID: AFJ333201 ULTRATECH GROUP OF LABS File #: ICOM-268F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 February 18. 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091] 5.6.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 (B) Limits for General Population/Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 Note: f is frequency in MHz 5.6.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r     44 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Page 10 UHF Mobile Transceiver, Model IC-F6121D FCC ID: AFJ333201 ULTRATECH GROUP OF LABS File #: ICOM-268F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 February 18. 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6.3. Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P conducted [dBm] = 46.60 (rated power) Maximum Antenna Gain, G[dBi] = 0 Maximum EIRP, P EIRP [dBm] = 46.60 User-based time-average for PTT = 50% MPE Limit for Occupational/Controlled Exposure, S controlled [mW/cm 2 ] = 406.20/300 = 1.35 MPE Limit for General Population/Uncontrolled Exposure, S uncontrolled [mW/cm 2 ] = 406.20/1500 = 0.27 Calculated RF Safety Distance for Occupational/Controlled Exposure, r safety_controlled [cm] = 36.70 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r safety_uncontrolled [cm] = 82.07

UHF Mobile Transceiver Model No.: IC-F6121D FCC ID: AFJ333201 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-268F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: February 18, 2011 Report Prepared by: Dan Huynh Issued Date: February 18, 2011 Tested by: Wei Wu Test Dates: February 9 - 17, 2011  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Contents i UHF Mobile Transceiver, Model IC-F6121D FCC ID: AFJ333201 ULTRATECH GROUP OF LABS File #: ICOM-268F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 February 18. 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................................... 1 1.1. SCOPE................................................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................................... 1 1.3. NORMATIVE REFERENCES........................................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT..................................................................................................................................... 2 2.1. CLIENT INFORMATION.................................................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .....................................................................................................................2 2.3. EUT’S TECHNICAL SPECIFICATIONS.......................................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ..................................................................................................................................................................... 4 2.5. G ENERAL TEST SETUP.......................................................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ...................................................... 5 3.1. CLIMATE TEST CONDITIONS ....................................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ...................................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................................... 6 4.1. LOCATION OF TESTS...................................................................................................................................................................... 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ................................................................................................ 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES................................................................. 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS...................................................... 7 5.1. TEST PROCEDURES ........................................................................................................................................................................ 7 5.2. MEASUREMENT UNCERTAINTIES .............................................................................................................................................. 7 5.3. MEASUREMENT EQUIPMENT USED ........................................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ................................................................. 7 5.5. RF POWER OUTPUT [§§ 2.1046 & 90.205]...................................................................................................................................... 8 5.6. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091]................................................................................................................ 9 5.7. AUDIO FREQUENCY RESPONSE [§§ 2.1047(A) & 90.242(B)(8)] ................................................................................................ 11 5.8. MODULATION LIMITING [§§ 2.1047 (B) & 90.210].....................................................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6121D FCC ID: AFJ333201 Radiated Transmitter Emission Test at 3m, 30 MHz to 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6121D FCC ID: AFJ333201 Radiated Transmitter Emission Test at 3m, Above 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6121D FCC ID: AFJ333201 Radiated Transmitter Emission Test
