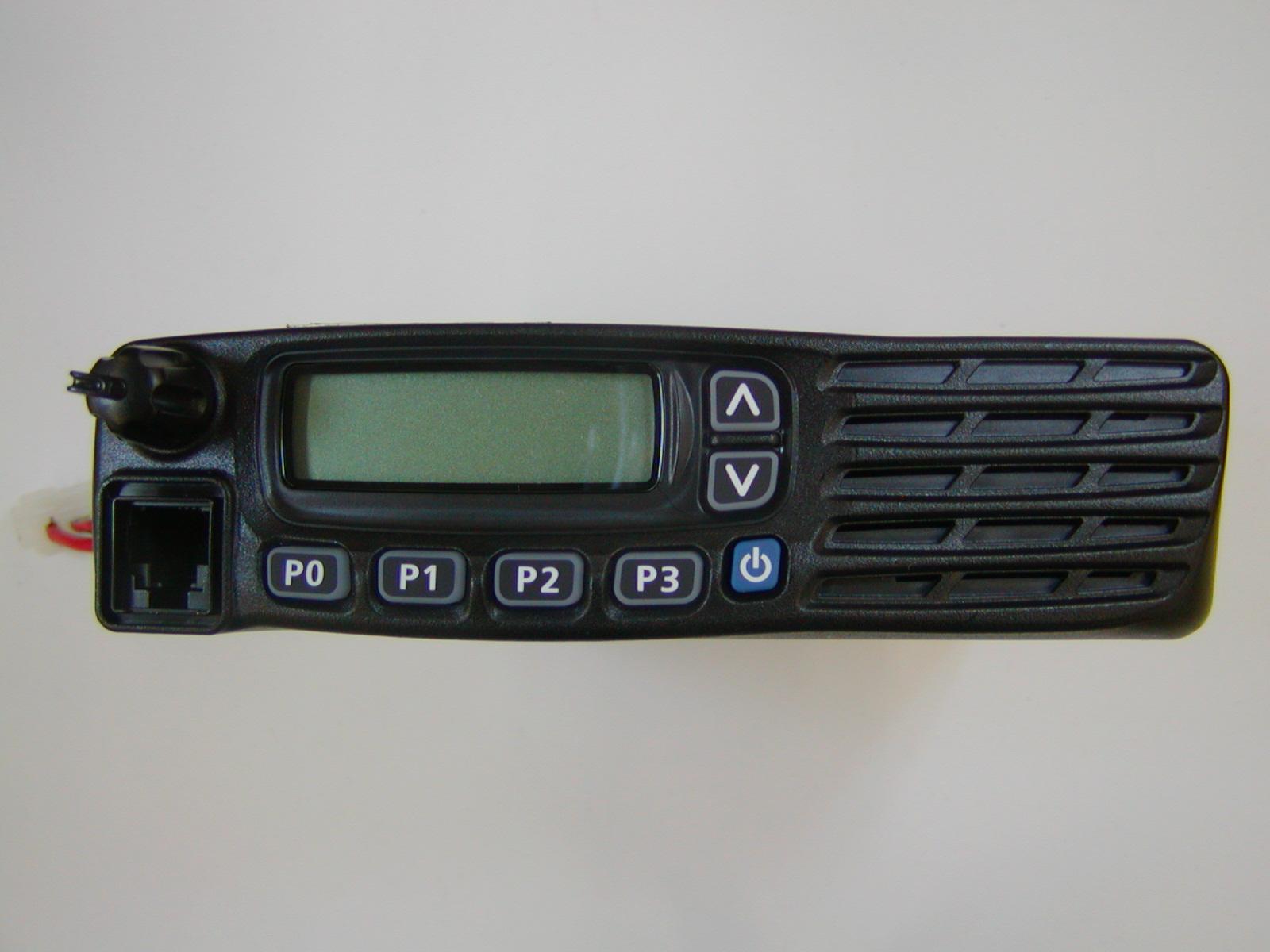

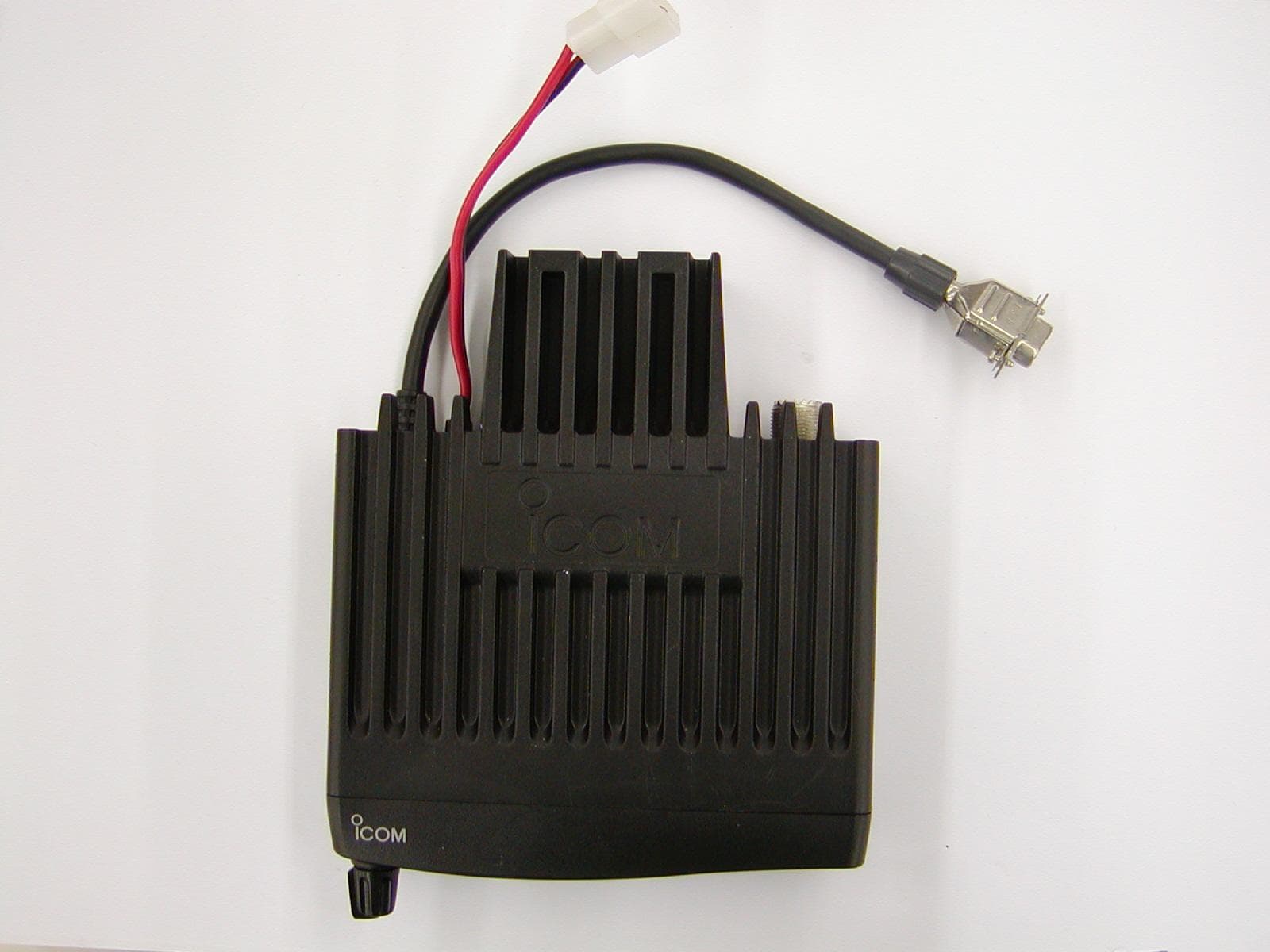

INSTRUCTION MANUAL VHF MOBILE TRANSCEIVERS iF5120D Series UHF MOBILE TRANSCEIVERS iF6120D Series i IMPORTANT READ ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important oper ating instruc- tions for the IC-F5121D, IC-F5123D, IC-F5128D VHF MO- BILE TRANSCEIVERS and the IC-F6121D, IC-F6123D, IC- F6128D UHF MOBILE TRANSCEIVERS. EXPLICIT DEFINITIONS WORDDEFINITION R WARNING! Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. FCC INFORMATION • FOR CLASS B UNINTENTIONAL RADIATORS: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac- cordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guaran- tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and re- ceiver. • Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your au- thority to operate this transceiver under FCC regulations. For Canada: This device complies with RSS-310 of Industry Canada. Op- eration is subject to the condition that this device does not cause harmful interference. Cet appareil est conforme au CNR-310 d’Industrie Canada. Son exploitation est autorisée sous réserve que l’appareil ne cause pas de brouillage préjudiciable. ii PRECAUTIONS R WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. R WARNING! NEVER connect the transceiver to a power source of more than 16 V DC or use reverse polarity. This could cause a fire or damage the transceiver. R WARNING! NEVER cut the DC power cable be- tween the DC plug and fuse holder. If an incorrect connection is made after cutting, the transceiver might be damaged. R WARNING! NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. CAUTION: NEVER allow children to touch the trans- ceiver. CAUTION: NEVER expose the transceiver to rain, snow or any liquids. USE the specified microphone only. Other microphones have different pin assignments and may damage the trans- ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), or in areas subject to direct sunlight, such as the dashboard. DO NOT operate the transceiver without running the ve- hicle’s engine. The vehicle’s battery will quickly run out when the transceiver transmits while the vehicle’s engine is OFF. DO NOT place the transceiver in excessively dusty envi- ronments. DO NOT place the transceiver against walls. This will ob- struct heat dissipation. DO NOT use harsh solvents such as benzine or alcohol when cleaning, as they will damage the transceiver sur- faces. BE CAREFUL! The transceiver will become hot when operating continuously for long periods of time. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United King- dom, Germany, France, Spain, Russia and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. iii TABLE OF CONTENTS IMPORTANT ..........................................................................i EXPLICIT DEFINITIONS .......................................................i FCC INFORMATION .............................................................i PRECAUTIONS ....................................................................ii TABLE OF CONTENTS .......................................................iii 1 PANEL DESCRIPTION ................................................1–7 ■ Front panel ...................................................................1 ■ Function display ...........................................................2 ■ Programmable function keys ........................................3 2 BASIC OPERATION ..................................................8–14 ■ Turning ON the power ..................................................8 ■ Channel selection .........................................................8 ■ Call procedure ..............................................................9 ■ Receiving and transmitting ...........................................9 ■ User Set mode ...........................................................12 ■ Encryption function .....................................................13 ■ Emergency transmission ............................................13 ■ Stun function ..............................................................14 ■ Priority A channel selection ........................................14 ■ Power OFF Emergency function ........................................14 3 CONNECTION AND MAINTENANCE ....................15–17 ■ Rear panel connection ...............................................15 ■ Supplied Accessories .................................................16 ■ Mounting the transceiver ............................................16 ■ Antenna .......................…

Text truncated - open the document above for the full version.

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] May 17, 2011 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 450-512 MHz Applicant: ICOM Incorporated Product: UHF Mobile Transceiver Model: IC-F6121D FCC ID: AFJ333202 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we would like to submit the application for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us. Yours truly, DHARMAJIT SOLANKI Dharmajit Solanki, Authorized Agent

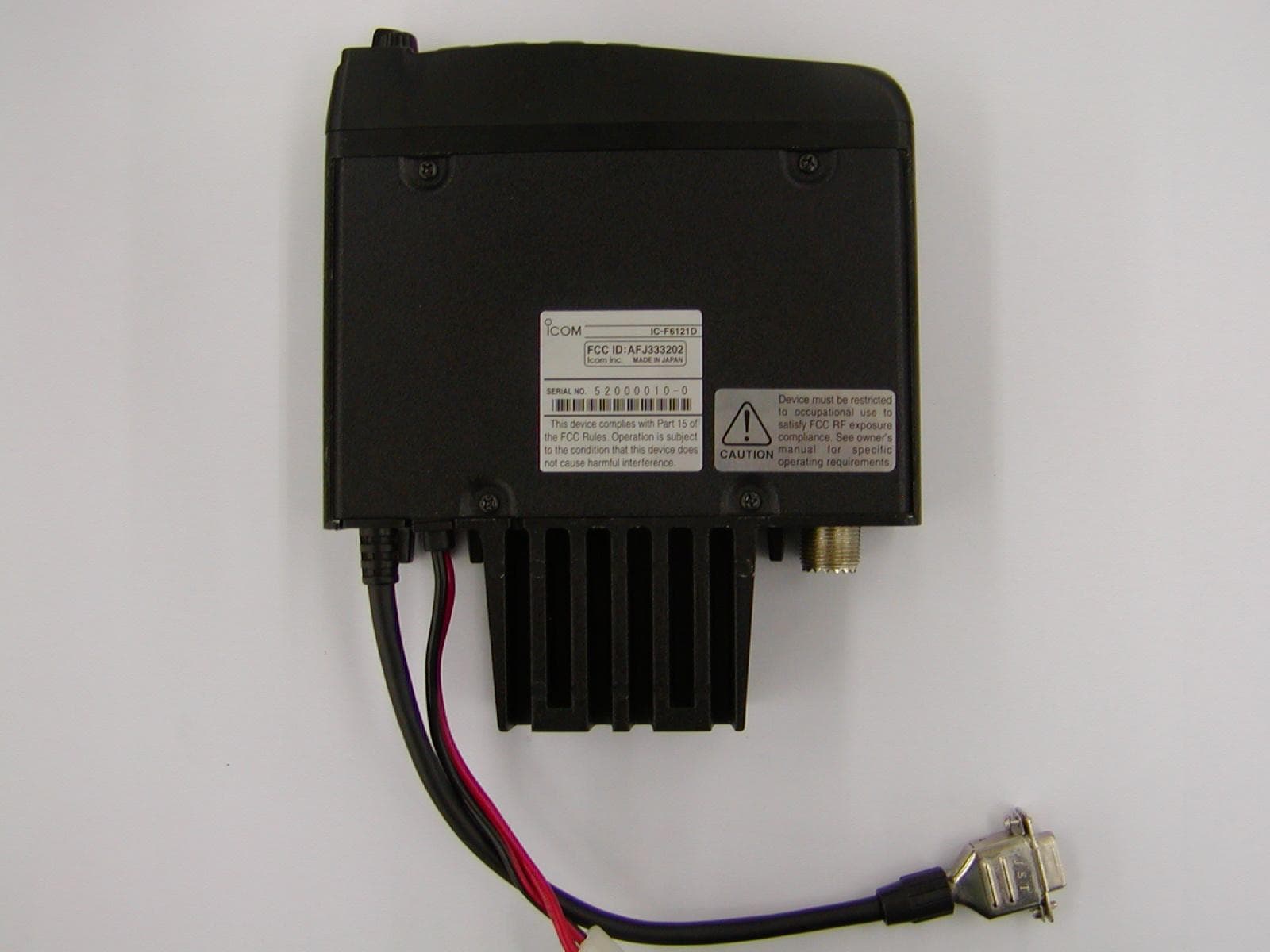

Serial Plate Layout

FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Page 9 UHF Mobile Transceiver, Model: IC-F6121D FCC ID: AFJ333202 ULTRATECH GROUP OF LABS File #: ICOM-271FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 17, 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091] 5.6.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 (B) Limits for General Population/Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 Note: f is frequency in MHz 5.6.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r     44 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Page 10 UHF Mobile Transceiver, Model: IC-F6121D FCC ID: AFJ333202 ULTRATECH GROUP OF LABS File #: ICOM-271FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 17, 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6.3. Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P conducted [dBm] = 47.04 (rated power) Maximum Antenna Gain, G[dBi] = 0 Maximum EIRP, P EIRP [dBm] = 47.04 User-based time-average for PTT = 50%, So EIRP for Calculation = 25291 mW MPE Limit for Occupational/Controlled Exposure, S controlled [mW/cm 2 ] = 450.1/300 = 1.50 MPE Limit for General Population/Uncontrolled Exposure, S uncontrolled [mW/cm 2 ] = 450.1/1500 = 0.30 Calculated RF Safety Distance for Occupational/Controlled Exposure, r safety_controlled [cm] = 36.63 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r safety_uncontrolled [cm] = 81.90 4 SAFETY TRAINING INFORMATION 18 WARNING Your Icom radio generates RF electromagnetic en- ergy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Popula- tion” in an uncontrolled environment. • For compliance with FCC and Industry Canada RF Exposure Re- quirements, the transmitter antenna installation shall comply with the following two conditions: 1. The transmitter antenna gain shall not exceed 0 dBi. 2. IC-F5121D: The antenna is required to be located outside of a vehicle and kept at a distance of 45 centimeters or more between the trans- mitting antenna of this device and any persons during operation. For small vehicle as worst case, the antenna shall be located on the roof top at any place on the centre line along the vehicle in order to achieve 45 centimeters separation distance. In order to ensure this distance is met, the installation of the antenna must be mounted at least 45 centimeters away from the nearest edge of the vehicle in order to protect against exposure to bystanders. 2. IC-F6121D: The antenna is required to be located outside of a vehicle and kept at a distance of 37 centimeters or more between the trans- mitting antenna of this device and any persons during operation. For small vehicle as worst case, the antenna shall be located on the roof top at any place on the centre line along the vehicle in order to achieve 37 centimeters separation distance. In order to ensure this distance is met, the installation of the antenna must be mounted at least 37 centimeters away from the nearest edge of the vehicle in order to protect against exposure to bystanders. 3. IC-F5121D: Transmit only when people outside the vehicle are at least the recommended minimum distance of 100 centimeters away from the properly installed antenna. This separation distance will en- sure that there is sufficient distance from a properly installed externally-mounted antenna to satisfy the RF exposure require- ments in the applicable RF exposure compliance standards. 3. IC-F6121D: Transmit only when people outside the vehicle are at least the recommended minimum distance of 82 centimeters away from the properly installed antenna. This separation distance will en- sure that there is sufficient distance from a properly installed externally-mounted antenna to satisfy the RF exposure require- ments in the applicable RF exposure compliance standards. SAFETY TRAINING INFORMATION 4 1 2 16 15 14 13 12 11 10 9 8 7 6 5 4 19 3 CAUTION To ensure that your exposure to RF electromag- netic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. The radio is t…

Text truncated - open the document above for the full version.

UHF Mobile Transceiver Model No.: IC-F6121D FCC ID: AFJ333202 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku,Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-271FCC90 This Test report is Issued under the Authority of Tri M. Luu, BASc, Vice President of Engineering UltraTech Group of Labs Date: May 17, 2011 Report Prepared by: Dharmajit Solanki Issued Date: May 17, 2011 Tested by: Wei Wu Test Dates: April 28 – May 3, 2011  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Contents i UHF Mobile Transceiver, Model IC-F6121D FCC ID: AFJ333202 ULTRATECH GROUP OF LABS File #: ICOM-271FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 May 17, 2011 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ...................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT.................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................ 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ................................................................................................................................................ 4 2.5. GENERAL TEST SETUP .............................................................................................................................................. 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS................................... 5 3.1. CLIMATE TEST CONDITIONS................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ................................................ 5 EXHIBIT 4. SUMMARY OF TEST RESULTS .................................................................................................................. 6 4.1. LOCATION OF TESTS ................................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS........................................................................... 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES .......................................... 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................. 7 5.1. TEST PROCEDURES .................................................................................................................................................... 7 5.2. MEASUREMENT UNCERTAINTIES.......................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED....................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ........................................... 7 5.5. RF POWER OUTPUT [§§ 2.1046 & 90.205] ................................................................................................................ 8 5.6. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091]........................................................................................... 9 5.7. AUDIO FREQUENCY RESPONSE [§§ 2.1047(A) & 90.242(B)(8)].........................................................................11 5.8. MODULATION LIMITING [§§ 2.1047 (B) & 90.210] .............................................................................................. 14 5.9. OCCUPIED BANDWIDTH & EMISSION MASK [§§ 2.1049, 90.209 & 90.210] .................................................... 17 5.10. TRANSMITTER ANTENNA POWER SPURIOUS/HARMONIC CONDUCTED EMISSIONS [§§ 2.1051, 2.1057 & 90.210]...................................................................................................................................................................... 37 5.11. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 2.1053, 2.1057 & 90.210].................... 62 5.12. FREQUENCY STABILITY [§§ 2.1055 & 90.213] .............…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6121D FCC ID: AFJ333202 Radiated Transmitter Emission Test at 3m, 30 MHz to 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6121D FCC ID: AFJ333202 Radiated Transmitter Emission Test at 3m, Above 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6121D FCC ID: AFJ333202 Radiated Transmitter Emission Test
