AFJ333400VHF Mobile Transceiver

ICOM Incorporated

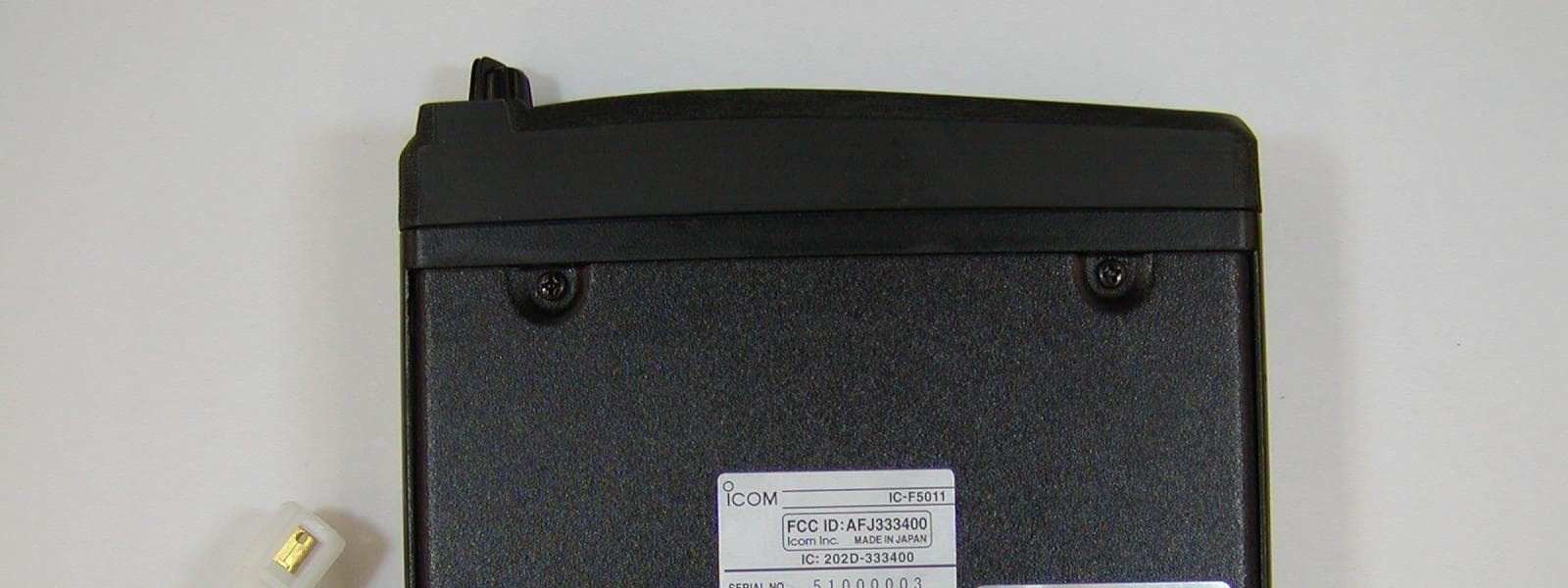

VHF Mobile Transceiver - FCC ID AFJ333400 - ICOM Incorporated
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Sep 30, 2010
Application Purpose
Original Equipment
Date of Application
Sep 30, 2010
Equipment Note
VHF Mobile Transceiver
Frequency Range
136.00000000 - 174.00000000
Company
ICOM Incorporated
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Cover Letter(s)

↗
↗
↗

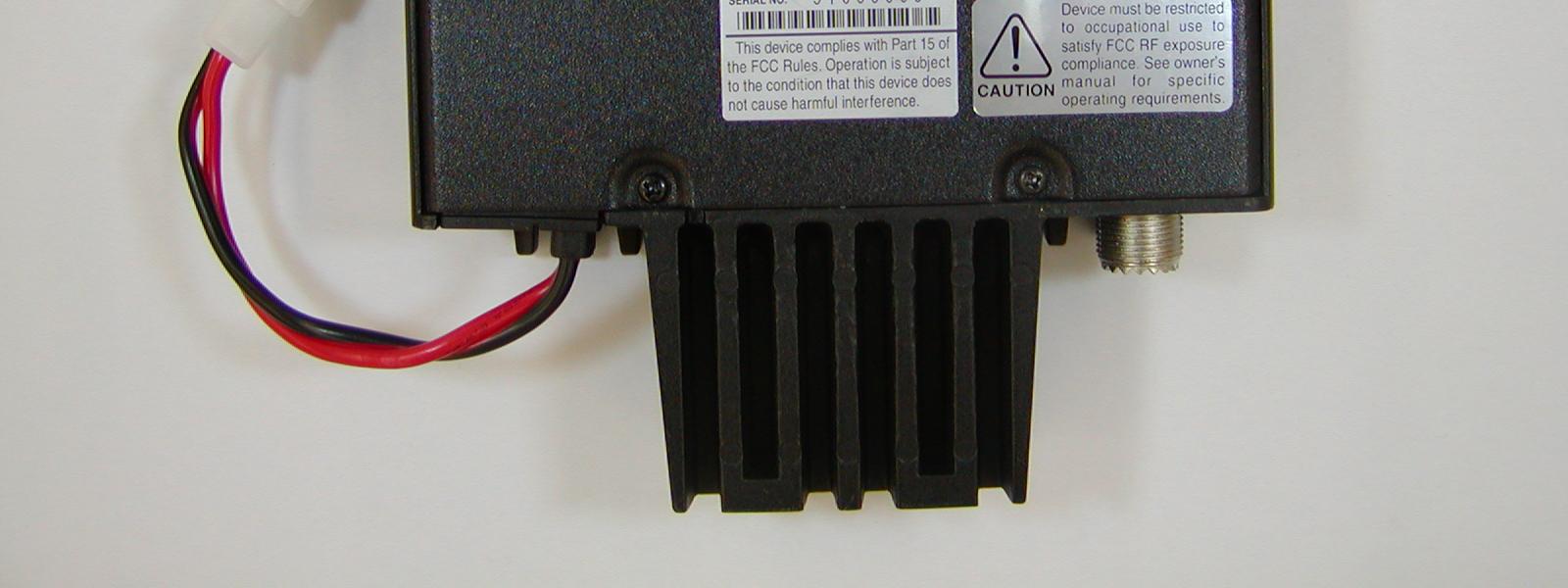

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

Serial Plate Layout

RF Exposure Info

FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 9 VHF Mobile Transceiver, Model IC-F5011 FCC ID: AFJ333400 ULTRATECH GROUP OF LABS File #: ICOM-239F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 17, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.2. RF EXPOSURE REQUIREMENTS [§ 1.1310 & 2.1091] 5.2.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 (B) Limits for General Population/Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 Note: f is frequency in MHz 5.2.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r     44 FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device. FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Page 10 VHF Mobile Transceiver, Model IC-F5011 FCC ID: AFJ333400 ULTRATECH GROUP OF LABS File #: ICOM-239F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 17, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.2.3. Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P conducted [dBm] = 46.99 Maximum Antenna Gain, G[dBi] = 0 Maximum EIRP, P EIRP [dBm] = 46.99 User-based time-average for PTT = 50% MPE Limit for Occupational/Controlled Exposure, S controlled [mW/cm 2 ] = 1.0 MPE Limit for General Population/Uncontrolled Exposure, S uncontrolled [mW/cm 2 ] = 0.2 Calculation of Minimum RF Safety Distance Limits: Calculated RF Safety Distance for Occupational/Controlled Exposure, r safety_controlled [cm] = 44.66 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r safety_uncontrolled [cm] = 99.86 22 44r EIRP r PG S      S (W/m 2 ) = (50*0.5) / (4*3.1416*1) = 2.0 W/m 2 Results: Manufacturer declares RF Safety Distance of 45 cm for Occupational/Controlled Exposure and 100 cm for General Population/Uncontrolled Exposure which met the FCC Limits. Please refer to Users Manual for details of RF Exposure Information.

Test Report

September 17, 2010 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (25 KHz and 12.5 KHz Channel Spacings). Applicant: ICOM Incorporated Product: VHF Mobile Transceiver Model: IC-F5011 FCC ID: AFJ333400 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, xutianlu Steven (Xu Tian) Lu Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 W ebsite: www.ultratech-labs.com September 17, 2010 Icom America, Inc. 2380 116 th Ave. N.E. Bellevue, Washington USA, 98004 Attn.: Mr. Masaaki Takahashi Subject: Certification Testing in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (25 KHz and 12.5 KHz Channel Spacings). Product: VHF Mobile Transceiver Model: IC-F5011 FCC ID: AFJ333400 Dear Mr. Takahashi, The product sample has been tested in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (25 KHz and 12.5 KHz Channel Spacings), and the results and observation were recorded in the engineering report, Our File No.: ICOM-239F90. Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, xutianlu Steven (Xu Tian) Lu Authorized Agent Encl. UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 W ebsite: www.ultratech-labs.com VHF Mobile Transceiver Model No.: IC-F5011 FCC ID: AFJ333400 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-239F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 9, 2009 Report Prepared by: Steven (Xu Tian) Lu Issued Date: September 17, 2010 Tested by: Wayne Wu, RFI/EMI Technician Test Dates: August 28 ~ 31, September 1, 2010  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i VHF Mobile Transceiver, Model IC-F5011 FCC ID: AFJ333400 ULTRATECH GROUP OF LABS File #: ICOM-239F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 17, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ....................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................. 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ................................................................................................................................................. 4 2.5. GENERAL TEST SETUP ..................................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ................................... 5 3.1. CLIMATE TEST CONDITIONS ................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .................................................. 5 EXHIBIT 4. SUMMARY OF TEST RES…

Text truncated - open the document above for the full version.

Test Setup Photos

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F5011 FCC ID: AFJ333400, IC: 202D-333400 Plot #1: Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F5011 FCC ID: AFJ333400, IC: 202D-333400 Plot #2: Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F5011 FCC ID: AFJ333400, IC: 202D-333400 Plot #3: Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F5011 FCC ID: AFJ333400, IC: 202D-333400 Plot #4: Radiated Emission Test Setup

Contact Information

Applicant

Atsushi Tomiyama(General Manager)
[email protected]+81667938424Fax: +81667933336

Technical Contact

UltraTech Engineering Labs Inc.Steven Lu
[email protected]905-829-1570

3000 Bristol Circle · Oakville, ON · Canada

Test Firm

UltraTech Engineering Labs Inc.Tri Luu
[email protected]905-829-1570Fax: 905-829-8050

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
49136 MHz - 174 MHz50 W16K0F3E5 ppm
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device must be restricted to work related operations in an Occupational/Controlled RF Exposure Environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration, and the exposure conditions and/or duration of their passengers and bystanders, to comply with the General Population/Uncontrolled MPE limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. Users must be provided with the training information, antenna installation and transmitter operating conditions for satisfying RF Exposure Compliance. The antenna(s) used for this transmitter must be installed to provide configurations and separation distances as described in this filing.
