AFJ333501UHF Mobile Transceiver

ICOM Incorporated

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Sep 28, 2010
Application Purpose: Original Equipment
Date of Application: Sep 28, 2010
Equipment Note: UHF Mobile Transceiver
Frequency Range: 400.00000000 - 470.00000000
Company: ICOM Incorporated
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

ID Label/Location Info

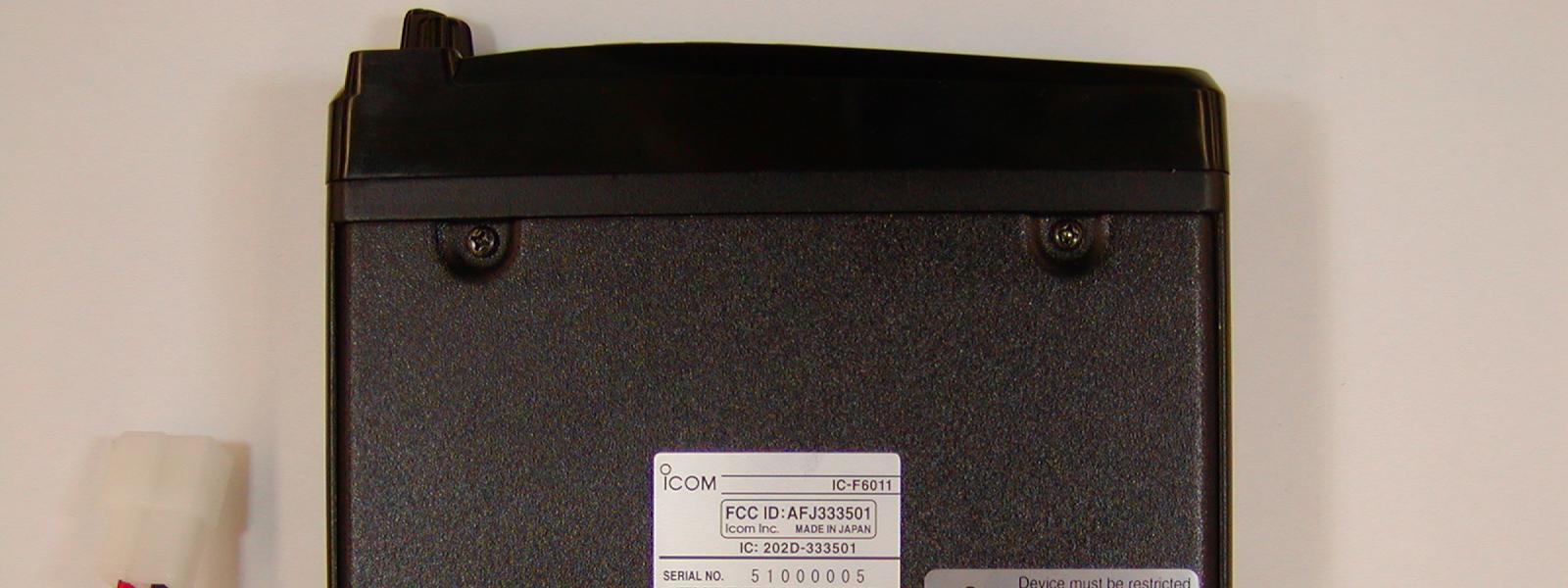

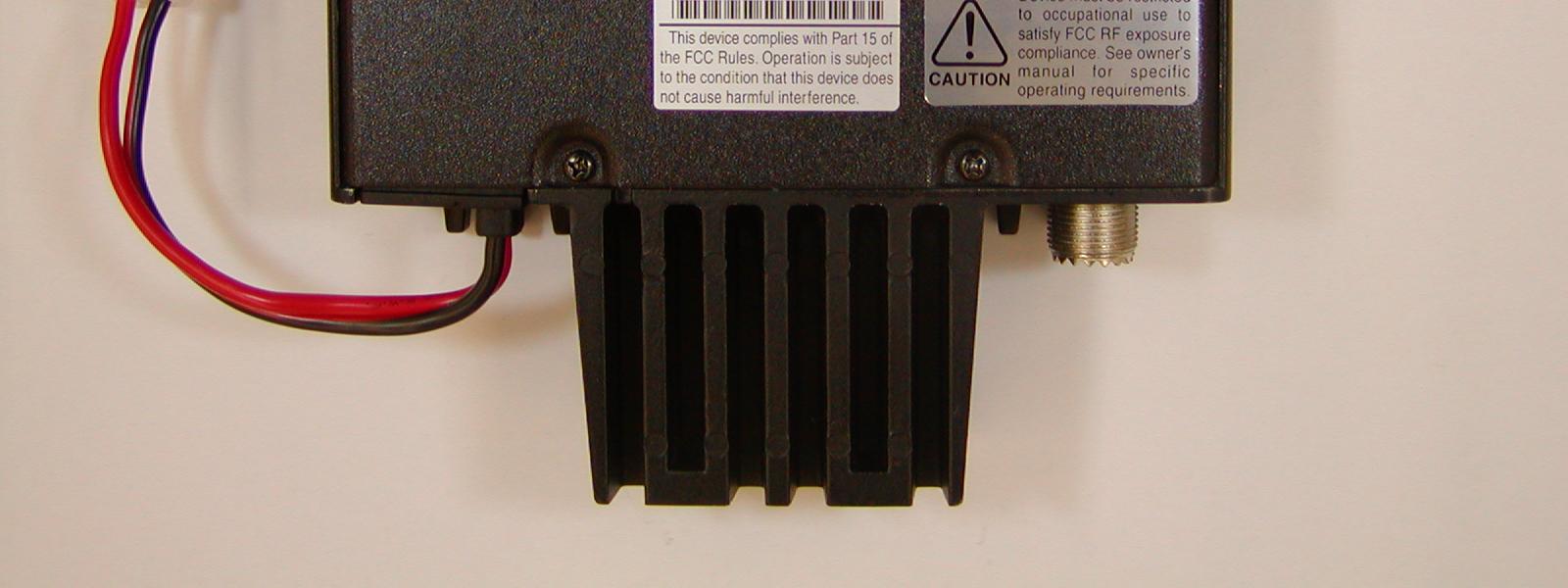

Serial Plate Layout

Test Report

September 9, 2010 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 406.1-470 MHz (25 KHz and 12.5 KHz Channel Spacings). Applicant: ICOM Incorporated Product: UHF Mobile Transceiver Model: IC-F6011 FCC ID: AFJ333501 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, xutianlu Steven (Xu Tian) Lu Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com September 9, 2010 Icom America, Inc. 2380 116 th Ave. N.E. Bellevue, Washington USA, 98004 Attn.: Mr. Masaaki Takahashi Subject: Certification Testing in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 406.1-470 MHz (25 KHz and 12.5 KHz Channel Spacings). Product: UHF Mobile Transceiver Model: IC-F6011 FCC ID: AFJ333501 Dear Mr. Takahashi, The product sample has been tested in accordance with FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 406.1-470 MHz (25 KHz and 12.5 KHz Channel Spacings), and the results and observation were recorded in the engineering report, Our File No.: ICOM- 240F90. Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com UHF Mobile Transceiver Model No.: IC-F6011 FCC ID: AFJ333501 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-240F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: November 9, 2009 Report Prepared by: Steven (Xu Tian) Lu Issued Date: September 9, 2010 Tested by: Hung Trinh, Technician Test Dates: August 28 ~ 31, September 1, 2010  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC PARTS 2 & 90, SUBPART I, NON-BROADCAST RADIO TRANSCEIVERS Contents i UHF Mobile Transceiver, Model IC-F6011 FCC ID: AFJ333501 ULTRATECH GROUP OF LABS File #: ICOM-240F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 September 9, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ....................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................. 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ................................................................................................................................................. 4 2.5. GENERAL TEST SETUP ..................................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ................................... 5 3.1. CLIMATE TEST CONDITIONS ................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .................................................. 5 EXHIBIT 4. SUMMARY OF TEST RESUL…

Text truncated - open the document above for the full version.

Test Setup Photos

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333501, IC: 202D-333501 Plot #1: Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333501, IC: 202D-333501 Plot #2: Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333501, IC: 202D-333501 Plot #3: Radiated Emission Test Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333501, IC: 202D-333501 Plot #4: Radiated Emission Test Setup

Contact Information

Applicant

Atsushi Tomiyama(General Manager)

[email protected]+81667938424Fax: +81667933336

Technical Contact

UltraTech Engineering Labs Inc.Steven Lu

[email protected]905-829-1570

3000 Bristol Circle · Oakville, ON · Canada

Test Firm

UltraTech Engineering Labs Inc.Tri Luu

[email protected]905-829-1570Fax: 905-829-8050

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	9	400 MHz - 470 MHz	45 W	11K0F3E	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power listed is conducted. This device must be restricted to work related operations in an Occupational/Controlled RF Exposure Environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration, and the exposure conditions and/or duration of their passengers and bystanders, to comply with the General Population/Uncontrolled MPE limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements. Users must be provided with the training information, antenna installation and transmitter operating conditions for satisfying RF Exposure Compliance. The antenna(s) used for this transmitter must be installed to provide configurations and separation distances as described in this filing.
