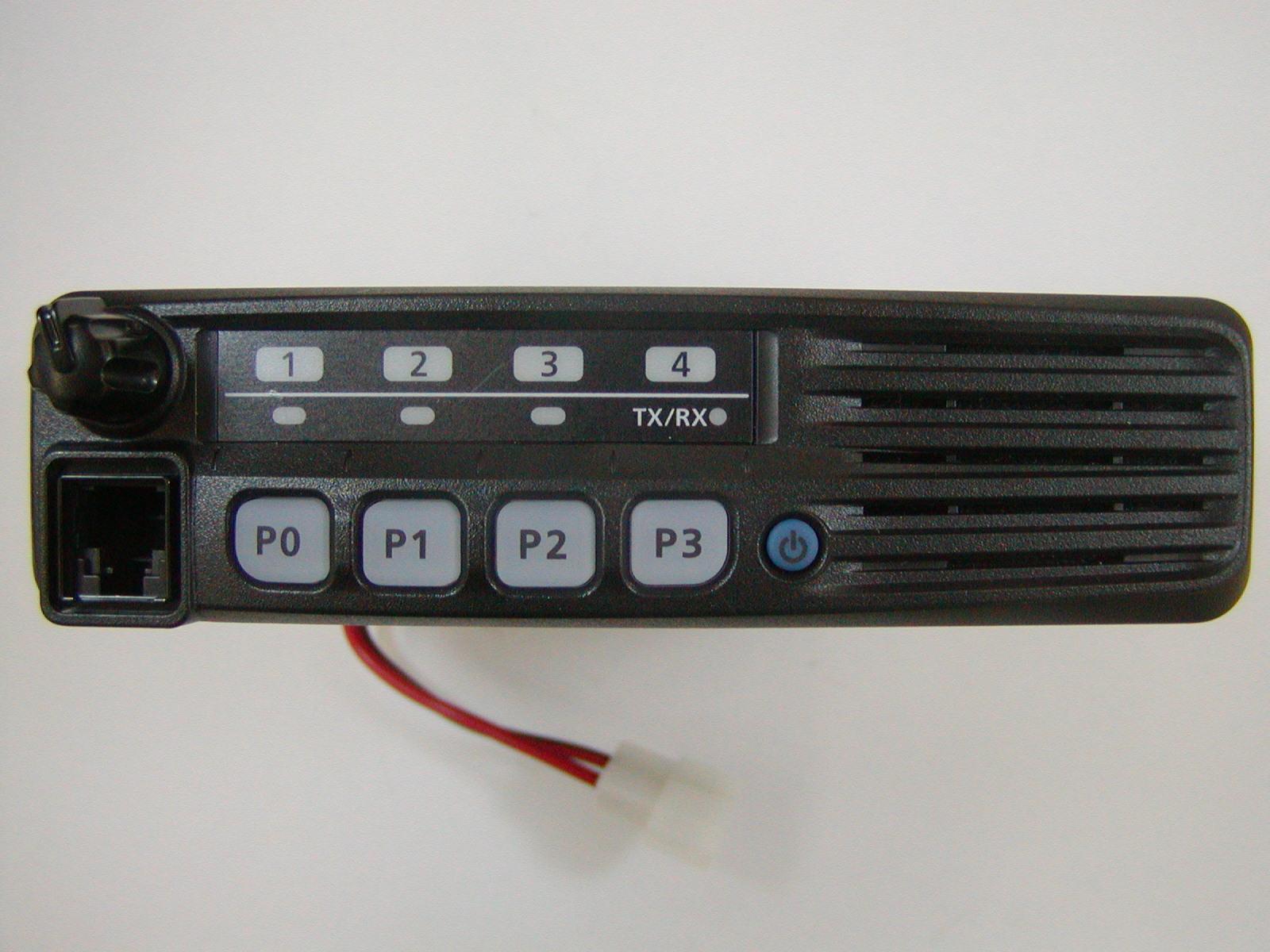

AFJ333502UHF Mobile Transceiver

INSTRUCTION MANUAL VHF MOBILE TRANSCEIVERS iF5010 Series UHF MOBILE TRANSCEIVERS iF6010 Series Limited functions only i IMPORTANTREAD ALL INSTRUCTIONS carefully and com- pletely before using the transceiver. SAVE THIS INSTRUCTION MANUAL — This instruction manual contains important oper ating instruc- tions for the IC-F5011, IC-F5013, IC-F5013H VHF MOBILE TRANSCEIVERS and the IC-F6011, IC-F6013, IC-F6013H UHF MOBILE TRANSCEIVERS . EXPLICIT DEFINITIONS WORD DEFINITION R WARNING! Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. FCC INFORMATIONs&/2#,!33"5.).4%.4)/.!,2!$)!4/23This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reason-able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac-cordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guaran-tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: s2EORIENTORRELOCATETHERECEIVINGANTENNA s )NCREASETHESEPARATIONBETWEENTHEEQUIPMENTANDRE - ceiver. s #ONNECTTHEEQUIPMENTINTOANOUTLETONACIRCUITDIFFER - ent from that to which the receiver is connected. s #ONSULTTHEDEALERORANEXPERIENCEDRADIO46TECHNICIAN for help. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United King-DOM 'ERMANY &RANCE 3PAIN 2USSIAANDOROTHERCOUNTRIESAll other products or brands are registered trademarks or trademarks of their respective holders. #!54)/. Changes or modifications to this transceiver, NOT EXPRESSLY APPROVED BY )COM )NC COULD VOID YOUR AU - thority to operate this transceiver under FCC regulations. ii PRECAUTIONSR WARNING! NEVER connect the transceiver to an AC outlet. This may pose a fire hazard or result in an electric shock. R WARNING! NEVER connect the transceiver to a power source of more than 16 V DC or use reverse polarity. This could cause a fire or damage the transceiver. R WARNING! NEVER cut the DC power cable be- tween the DC plug and fuse holder. If an incorrect connection is made after cutting, the transceiver might be damaged. R WARNING! NEVER place the transceiver where normal operation of the vehicle may be hindered or where it could cause bodily injury. #!54)/. NEVER allow children to touch the trans- ceiver. #!54)/. NEVER EXPOSE THE TRANSCEIVER TO RAIN snow or any liquids. USE the specified microphone only. Other microphones have different pin assignments and may damage the trans-ceiver. DO NOT use or place the transceiver in areas with tem- peratures below –30°C (–22°F) or above +60°C (+140°F), or in areas subject to direct sunlight, such as the dashboard. DO NOT operate the transceiver without running the ve- hicle’s engine. The vehicle’s battery will quickly run out when the transceiver transmits while the vehicle’s engine is OFF. DO NOT PLACETHETRANSCEIVERINEXCESSIVELYDUSTYENVI - ronments. DO NOT place the transceiver against walls. This will ob- struct heat dissipation. DO NOT use harsh solvents such as benzine or alcohol when cleaning, as they will damage the transceiver sur-faces. BE CAREFUL! The transceiver will become hot when operating continuously for long periods of time. Approved Icom optional equipment is designed for optimal performance when used with an Icom transceiver. Icom is not responsible for the destruction or damage to an Icom transceiver in the event the Icom transceiver is used with equipment that is not manufactured or approved by Icom. iii TABLE OF CONTENTSIMPORTANT .......................................................................... iEXPLICIT DEFINITIONS ....................................................... iFCC INFORMATION ............................................................. iPRECAUTIONS .................................................................... iiTABLE OF CONTENTS ....................................................... iii1 PANEL DESCRIPTION ................................................ 1–6 N Front panel ................................................................... 1 N Function LED ............................................................... 2 N Programmable function keys ........................................ 3 2 BASIC OPERATION .................................................. 7–13N Turning ON the power .................................................. 7 N Channel selection ......................................................... 7 N Call procedure .............................................................. 8 N Receiving and transmitting ........................................... 8 N User Set mode ........................................................... 10 N Scrambler function ..................................................... 11 N Stun function .............................................................. 11 N Priority A channel selection ........................................ 11 N Emergency transmission ............................................ 12 N MDC 1200 system operation ...................................... 13 3 CONNECTION AND MAINTENANCE .................... 14–16N Rear panel connection ............................................... 14 N Supplied Accessories ................................................. 15 N Mounting the transceiver ............................................ 15 N…

Text truncated - open the document above for the full version.

UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] December 13, 2010 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 450-512 MHz (25 kHz and 12.5 kHz Channel Spacings). Applicant: ICOM Incorporated Product: UHF Mobile Transceiver Model: IC-F6011 FCC ID: AFJ333502 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we would like to submit the application for certification of the above product. Please review all files uploaded to your electronic filing site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.: 1-877-747-6381 Yours truly, DanHuynh Dan Huynh Authorized Agent

Serial Plate Layout

FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Page 9 UHF Mobile Transceiver, Model IC-F6011 FCC ID: AFJ333502 ULTRATECH GROUP OF LABS File #: ICOM-264F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 13, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091] 5.6.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 (B) Limits for General Population/Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 Note: f is frequency in MHz 5.6.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r     44 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Page 10 UHF Mobile Transceiver, Model IC-F6011 FCC ID: AFJ333502 ULTRATECH GROUP OF LABS File #: ICOM-264F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 13, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.6.3. Evaluation of RF Exposure Compliance Requirements Maximum RF Power conducted, P conducted [dBm] = 46.53 (rated power) Maximum Antenna Gain, G[dBi] = 0 Maximum EIRP, P EIRP [dBm] = 46.53 User-based time-average for PTT = 50% MPE Limit for Occupational/Controlled Exposure, S controlled [mW/cm 2 ] = 450/300 = 1.50 MPE Limit for General Population/Uncontrolled Exposure, S uncontrolled [mW/cm 2 ] = 450/1500 = 0.30 Calculated RF Safety Distance for Occupational/Controlled Exposure, r safety_controlled [cm] = 34.55 Calculated RF Safety Distance for General Population/Uncontrolled Exposure, r safety_uncontrolled [cm] = 77.25

UHF Mobile Transceiver Model No.: IC-F6011 FCC ID: AFJ333502 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 90 (Subpart I) UltraTech's File No.: ICOM-264F90 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: December 13, 2010 Report Prepared by: Dan Huynh Issued Date: December 13, 2010 Tested by: Hung Trinh, Technician Test Dates: December 4 - 8, 2010  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NVLAP Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Parts 2 & 90, Subpart I, Non-Broadcast Radio Transceivers Contents i UHF Mobile Transceiver, Model IC-F6011 FCC ID: AFJ333502 ULTRATECH GROUP OF LABS File #: ICOM-264F90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 December 13, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................................... 1 1.1. SCOPE................................................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................................... 1 1.3. NORMATIVE REFERENCES........................................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT..................................................................................................................................... 2 2.1. CLIENT INFORMATION.................................................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .....................................................................................................................2 2.3. EUT’S TECHNICAL SPECIFICATIONS.......................................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ..................................................................................................................................................................... 4 2.5. G ENERAL TEST SETUP.......................................................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ...................................................... 5 3.1. CLIMATE TEST CONDITIONS ....................................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ...................................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................................... 6 4.1. LOCATION OF TESTS...................................................................................................................................................................... 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ................................................................................................ 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES................................................................. 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS...................................................... 7 5.1. TEST PROCEDURES ........................................................................................................................................................................ 7 5.2. MEASUREMENT UNCERTAINTIES .............................................................................................................................................. 7 5.3. MEASUREMENT EQUIPMENT USED ........................................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ................................................................. 7 5.5. RF POWER OUTPUT [§§ 2.1046 & 90.205]...................................................................................................................................... 8 5.6. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091]................................................................................................................ 9 5.7. AUDIO FREQUENCY RESPONSE [§§ 2.1047(A) & 90.242(B)(8)] ................................................................................................ 11 5.8. MODULATION LIMITING [§§ 2.1047 (B) & 90.210]........................................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333502 Radiated Transmitter Emission Test at 3m, 30 MHz to 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333502 Radiated Transmitter Emission Test at 3m, Above 1GHz ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated UHF Mobile Transceiver, M/N: IC-F6011 FCC ID: AFJ333502 Radiated Transmitter Emission Test
