AFJ369600VHF Transceiver

Thank you for choosing the IC-F1000D series v h f d i g i t a l t r a n s c e i v e r s or IC-F2000D series u h f d i g i- t a l t r a n s c e i v e r s. READ ALL PRECAUTIONS carefully and complete- ly before using the transceiver. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A-7xxxX-1EX Printed in Japan © 2015 Icom Inc. EXPLICIT DEFINITIONS WORDDEFINITION RDANGER!Personal death, serious injury or an explosion may occur. RWARNING !Personal injury, fire hazard or electric shock may occur. CAUTIONEquipment damage may occur. NOTEIf disregarded, inconvenience only. No risk of personal injury, fire or electric shock. PRECAUTIONS PRECAUTIONS VHF DIGITAL TRANSCEIVERS Iç-F2000D series UHF DIGITAL TRANSCEIVERS Iç-F1000D series R DANGER! NEVER short the terminals of the battery pack. R DANGER! Use and charge only specified Icom battery packs with Icom radios or Icom chargers. Only Icom battery packs are tested and approved for use with Icom radios or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst. R WARNING! NEVER hold the radio that the antenna is very close to, or touching exposed parts of the body, es- pecially the face or eyes, while transmitting. The radio will perform best if the microphone is 5 to 10 cm (2 to 4 inches) away from the lips and the radio is vertical. R WARNING! NEVER operate the radio with a headset or other audio accessories at high volume levels. Hearing ex- perts advise against continuous high volume operation. If you experience a ringing in your ears, reduce the volume level or discontinue use. R WARNING! NEVER operate the radio while driving a ve- hicle. Safe driving requires your full attention—anything less may result in an accident. CAUTION: MAKE SURE the flexible antenna, battery pack and jack cover are securely attached to the radio, and that the antenna and battery pack are dry before attachment. Ex- posing the inside of the radio to dust or water will result in se- rious damage to the radio. DO NOT operate the radio near unshielded electrical blast- ing caps or in an explosive atmosphere. DO NOT push [PTT] when you do not actually intend to transmit. DO NOT use or place the radio in direct sunlight or in ar- eas with temperatures below –25°C (–13°F) or above +55°C (+131°F): ETS version, below –30°C (–22°F) or above +60°C (+140°F): TIA version. The basic operations, trans- mission and reception of the radio are guaranteed within the specified operating temperature range. However, the LCD display may not be operate correctly, or show an indication in the case of long hours of operation, or after being placed in extremely cold areas. DO NOT modify the radio. The specifications may change and then not comply with the requirements of a correspond- ed regulation. The radio warranty does not cover any prob- lems caused by unauthorized modification. DO NOT use harsh solvents such as benzine or alcohol when cleaning, as they will damage the radio surfaces. BE CAREFUL! The radio will become hot when operating it continuously for long periods of time. BE CAREFUL! The radio meets IP67* requirements for dust-tight and waterproof protection. However, once the ra- dio has been dropped, dust-tight and waterproof protection cannot be guaranteed because of possible damage to the radio’s case or the waterproof seal. *Only when the jack cover or the optional HM-168LWP is attached. Even when the radio power is OFF, a slight current still flows in the circuits. Remove the battery pack from the radio when not using it for a long time. Otherwise, the installed battery pack will become exhausted, and will need to be recharged or replaced. MAKE SURE to turn the radio power OFF before connecting the supplied or optional equipment. - 1 - FCC INFORMATION • FOR CLASS A UNINTENTIONAL RADIATORS: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica- tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. COUNTRY CODE LIST ISO 3166-1 CountryCodesCountryCodes 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Austria Belgium Bulgaria Croatia Czech Republic Cyprus Denmark Estonia Finland France Germany Greece Hungary Iceland Ireland Italy Latvia AT BE BG HR CZ CY DK EE FI FR DE GR HU IS IE IT LV 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 Liechtenstein Lithuania Luxembourg Malta Netherlands Norway Poland Portugal Romania Slovakia Slovenia Spain Sweden Switzerland Turkey United Kingdom LI LT LU MT NL NO PL PT RO SK SI ES SE CH TR GB < Intended Country of Use > AT FI IT PL GB RO BE FR LV PT IS TR CY DE LT SK LI HR CZ GR LU SI NO DK HU MT ES CH EE IE NL SE BG VOICE CODING TECHNOLOGY The AMBE+2™ voice coding Technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. This voice coding Technology is licensed sole- ly for use within this Communications Equipment. The user of this Technology is explicitly prohibited from attempting to extract, remove, decompile, reverse engineer, or disassem- ble the Object Code, or in any other way convert the Object Code into a human-readable form. U.S. Patent Nos. #5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,24…

Text truncated - open the document above for the full version.

Thank you for purchasing the FA-SC61VC VHFANTENNA. Please read these instructions thoroughly before using the FA-SC61VC. 0 145 MHz 150 MHz 155 MHz 160 MHz 165 MHz 170 MHz 175 MHz 140 MHz 136 MHz Antenna cap FA-SC61VC The optimum bandwidth is ±3% of the tuned frequency. For optimum performance tune to the center transmit frequency of the radio. Cutting Instructions qAlign the bottom of the anten- na onto the 0 position of the cutting guide diagram at left. wMark the antenna at the length corresponding to the desired frequency to be tuned. FA-SC61VC A-6532K-1EX-wPrinted in Japan eCut the antenna to the marked length. • Use a wire cutter that can cut at least 1.2 mm (d) of piano wire. rApply adhesiveto the top of the antenna and attach the supplied antenna cap. • Use of Cemedine Co. Super-X No. 8008 black (Icom parts number: 8950002910) or similar is recommended. T h e a n t e n n a c a n b e u s e d a t i t s o r iginal length for this frequency. No tuning (cutting) is necessary. * ©2006-2009 Icom Inc. Antenna Cutting Chart Center frequency (MHz) Length (mm) 174* 169 163 157 151 146 141 137 133 136 140 145 150 155 160 165 170 175 NOTE: A n t e n n a c a p m u s t b e i n s e r t e d a f t e r c u t t i n g t h e e l e m e n t o t h e r w i s e wa t e r immersion makes the element damaged. CAUTION: Making antenna cuts at other than the prescribed lengths specified could void the user's author ity to operate the equipment.

About the LED Indicator D • Lights red while transmitting. • Lights green while receiving a signal, or when the squelch is open. • Lights or blinks orange when the matched 2-Tone or 5-Tone is received, depending on the presetting. • You should charge the battery when the indicator slowly blinks green. • You must charge the battery when the indicator blinks green fast. About the Speaker microphone jack D CAUTION: Only when the jack cover or the optional HM-168LWP, HM-171GPW, HS-94LWP, or HS-95LWP is attached, the transceiver meets IP67 requirements for dust-tight and waterproof protection. Thank you for purchasing the IC-F1000D series v h f d i g i t a l t r a n s c e i v e r s or IC-F2000D series u h f d i g i t a l t r a n s c e i v e r s. READ ALL INSTRUCTIONS carefully and completely before using the transceiver. INSTRUCTIONS PANEL DESCRIPTION A-7206H-2EX Printed in Japan © 2015 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan SUPPLIED ACCESSORIES q w e r t Battery pack* q Battery charger* (BC-213) w Belt clip (MB-133) e Power adapter* (for the battery charger) r Flexible antenna* t * Not supplied, or the shape is different, depending on the transceiver version. VHF DIGITAL TRANSCEIVERS Iç-F2000D series UHF DIGITAL TRANSCEIVERS Iç-F1000D series BATTERY PACKS D BP-278/BP-279/BP-280• b a t t e r y p a c k Battery packVoltageCapacityBattery life* BP-2787.2 V 1130 mAh (minimum) 1190 mAh (typical) 9 hours BP-2797.2 V 1485 mAh (minimum) 1570 mAh (typical) 12 hours BP-280 7.2 V 2280 mAh (minimum) 2400 mhA (typical) 18 hours * When the power save function is turned ON, and the operating periods are calculated under the following conditions. TX : RX : standby = 5 : 5 : 90 CHARGERS D BC-213 • d e s k t o p c h a r g e r + BC-123S a c a d a p t e r To rapid charge a single battery pack. BC-214 • m u l t i c h a r g e r + BC-157S a c a d a p t e r To rapid charge up to 6 battery packs. DC CABLES D CP-23L• c i g a r e t t e l i g h t e r c a b l e Use when charging the battery pack from a 12 V cigarette lighter socket. (Use with the BC-213) OPC-656 • d c p o w e r c a b l e Use with a 13.8 V power source instead of the power adapter. (Use with the BC-214) ANTENNAS D FA-SC25V/ FA-SC55V/ FA-SC62V/ FA-SC63V • v h f a n t e n n a s FA-SC25V: 136–150 MHz FA-SC55V: 150–174 MHz FA-SC62V: 150–160 MHz FA-SC63V: 155–165 MHz FA-SC26VS/FA-SC27VS/FA-SC56VS/FA-SC57VS • v h f s t u b b y a n t e n n a s FA-SC26VS: 136–144 MHz FA-SC27VS: 142–150 MHz FA-SC56VS: 150–162 MHz FA-SC57VS: 160–174 MHz FA-SC61VC • v h f c u t a n t e n n a FA-SC61VC: 136–174 MHz FA-SC25U/FA-SC57U/FA-SC72U/FA-SC73US • u h f a n t e n n a s FA-SC25U: 400–430 MHz FA-SC57U: 430–470 MHz FA-SC72U: 470–520 MHz FA-SC73US: 450–490 MHz FA-SC26US • u h f s t u b b y a n t e n n a FA-SC26US: 400–450 MHz FA-SC01U/FA-SC02U • u h f a n t e n n a FA-SC01U: 350–400 MHz FA-SC02U: 330–380 MHz FA-SC61UC • u h f c u t a n t e n n a FA-SC61UC: 380–520 MHz OTHERS D MB-130 • m o b i l e b r a c k e t Mounts the BC-213 d e s k t o p c h a r g e r on a variety of places in a vehicle. MB-133 • b e l t c l i p HM-158LA/HM-159LA/HM-168LWP/HM-171GPW • s p e a k e r m i c r o p h o n e Combination speaker-microphone that provides convenient operation while the transceiver is hanging on your belt. The HM-171GPW includes high-performance GPS receiver. • Adjust the microphone gain before use. HM-153LA/HM-166LA • e a r p h o n e-m i c r o p h o n e Ideal for hands-free operation. Clip the HM-153LA or HM-166LA (with integrated ptt s w i t c h) to your lapel or breast pocket. • Adjust the microphone gain before use. HS-94/HS-95/HS-97• h e a d s e t + VS-4LA p t t s w i t c h c a b l e /OPC-2004LA a d a p t e r c a b l e HS-94: Ear-hook type HS-95: Neck-arm type HS-97: Throat microphone VS-4LA: To connect to headsets OPC-2004LA: To connect to headsets for VOX operation • Adjust the both microphone and VOX gain before use. HS-94LWP/HS-95LWP• h e a d s e t HS-94LWP: Ear-hook type HS-95LWP: Neck-arm type • Adjust the both microphone and VOX gain before use. OPTIONS Some options may not be available in some countries. Ask your dealer for details. Approved Icom optional equipment is designed for optimal performance when used with an Icom transceiver. Icom is not responsible for the destruction or damage to an Icom transceiver in the event the Icom transceiver is used with equipment that is not manufactured or approved by Icom. - 1 - - 4 - Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, and /or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. [VOL] [Emer] Speaker SPEAKER- MICROPHONE JACK Microphone [PTT] LED INDICATOR ANTENNA CONNECTOR [Upper] (Dealer assignable) [Lower] (Dealer assignable) [ROTARY SELECTOR] Turning power ON D Before using the transceiver for the first time, the battery pack must be fully charged for optimum life and operation. See the instructions on page 2. Rotate [VOL] to turn ON the power. Receiving and Transmitting D CAUTION: Attach an antenna before transmitting. Transmitting without an antenna may damage the transceiver. Receiving: Rotate [ROTARY SELECTOR] to select a channel. q Or, push one of [MR-CH 1], [MR-CH 2], [MR-CH 3], or • [MR-CH 4], if assigned to [Upper] or [Lower]. When receiving a call, adjust the audio output level w to a comfortable listening level. Transmitting: Wait until the channel is clear to avoid interference. While holding down [PTT], speak at a normal voice q level. Release [PTT] to receive. w IMPORTANT: To maximize the readability of your signal: 1. After pushing [PTT], pause briefly before you start speaking. 2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your mouth, then speak at a normal voice level. [VOL] BASIC OPERATION Rapid charging the supplied BC-213 D The BC-213 d e s k t o p c h a r g e r rapidly charges the Li- ion …

Text truncated - open the document above for the full version.

February 11, 2015 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Certification under FCC 47 CFR, Parts 2, 22, 74, 80 and 90 (Subpart I) - Non-Broadcast Radio Transceivers Operating in the Frequency Band 136-174 MHz (25 kHz, 12.5 kHz and 6.25 kHz Channel Spacing) Applicant: ICOM Incorporated Product: VHF Transceiver Model: IC-F1000D FCC ID: AFJ369600 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we would like to submit the application to you for FCC certification of the above product. Please review all files uploaded to your electronic filing site. Note 1: As declared by the applicant in the attestation letter submitted with this filing, 25kHz channel spacing (16K0F3E) operation of this radio is permanently disabled for Part 90 use as required by FCC mandate. Test performed for 25kHz channel spacing are for parts 22, 74 & 80 certifications only. Note 2: ICOM hereby request FCC to list the entire frequency range from 136-174 MHz under FCC rules as per the reasons explained in the attached Frequency Justification letter submitted with this filing. If you have any queries, please do not hesitate to contact us. Yours truly, Dharmajit Solanki Dharmajit Solanki Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E-1119R Korea KCC-RRA CA2049 TL363_B TPTDP DA1300 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

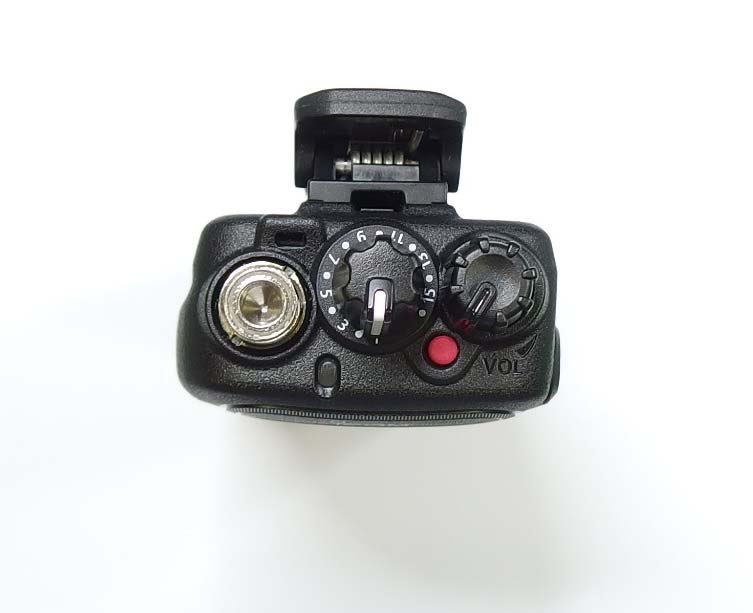

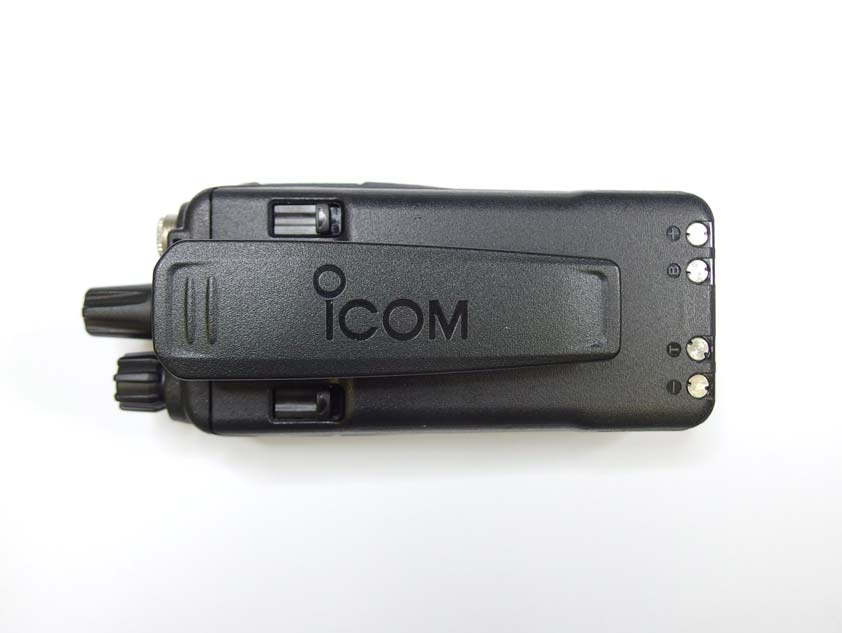

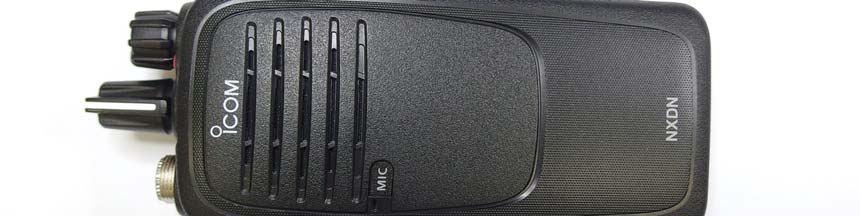

Photographs of the equipment Front view Rear view Photographs of the equipment Front view Rear view Photographs of the equipment Right view Left view Photographs of the equipment Right view Left view Photographs of the equipment Top view Bottom view Photographs of the equipment Top view Bottom view

IC-F1000D Serial Plate

Photographs of the equipment MAIN Board Side-A MAIN Board Side-B ANT Board Side A ANT Board Side B Photographs of the equipment MAIN Board Side-A MAIN Board Side-B ANT Board Side A ANT Board Side B Photographs of the equipment MAIN Board Side-A MAIN Board Side-B ANT Board Side A ANT Board Side B

WARNING Your Icom radio generates RF electromagnet- ic energy during transmit mode. This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only dur- ing the course of employment by individuals aware of the hazards, and the ways to mini- mize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC and IC RF exposure limits for “Occupational Use Only”. In addi- tion, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromag- netic energy levels and evaluation of such levels for expo- sure to humans: FCC OET Bulletin 65 Edition 97-01 Supplement C, Evalu-• ating Compliance with FCC Guidelines for Human Expo- sure to Radio Frequency Electromagnetic Fields. American National Standards Institute (C95.1-1992), IEEE • Standard for Safety Levels with Respect to Human Expo- sure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. American National Standards Institute (C95.3-1992), IEEE • Recommended Practice for the Measurement of Potential- ly Hazardous Electromagnetic Fields– RF and Microwave. The antennas, batteries, belt clips, speaker-microphone, • and other accessories that are listed in “OPTIONS” of the INSTRUCTIONS sheet, are authorized for use with this product. Use of accessories other than those specified may result in RF exposure levels exceeding the FCC and IC requirements for wireless RF exposure. CAUTION To ensure that your expose to RF electro- magnetic energy is within the FCC and IC allowable limits for occupational use, al- ways adhere to the following guidelines: D O N O T• operate the radio without a proper antenna at- tached, as this may damaged the radio and may also cause you to exceed FCC and IC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or antenna specifically authorized by the manufacturer for use with this radio. DO NOT• transmit for more than 50% of total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC and IC RF exposure compliance require- ments to be exceeded. The radio is transmitting when the LED indicator lights red. You can cause the radio to trans- mit by pressing the “PTT” switch. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clips listed in “OPTIONS” of the INSTRUCTIONS sheet when attaching the radio to your belt, etc., to ensure FCC and IC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best sound quality, hold the antenna at least 5 cm (2 inches) from your mouth, and slightly off to one side. The information listed above provides the user with the in- formation needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC and IC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, your Icom radio generates RF ener- gy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. DO NOT operate the transmitter in areas that are sensitive to electromagnetic ra- diation such as hospitals, aircraft, and blasting sites. Occupational/Controlled Use The radio transmitter is used in situations in which persons are exposed as consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. - 2 -- 3 - Battery caution• R DANGER! NEVER short terminals (or charging termi- nals) of the battery pack. Also, current may flow into nearby metal objects such as a necklace, so be careful when plac- ing battery packs (or the radio) in handbags, etc. Simply carrying with or placing near metal objects such as a necklace, etc. may cause shorting. This may damage not only the battery pack, but also the radio. R DANGER! DO NOT hammer or otherwise impact the bat- tery. Do not use the battery if it has been severely impact- ed or dropped, or if the battery has been subjected to heavy pressure. Battery damage may not be visible on the outside of the case. Even if the surface of the battery does not show cracks or any other damage, the cells inside the battery may rupture or catch fire. R DANGER! NEVER use or leave battery pack in areas with temperatures above +60°C (+140°F). High tempera- ture buildup in the battery, such as could occur near fires or stoves, inside a sun heated car, or in direct sunlight may cause the battery to rupture or catch fire. Excessive tem- peratures may also degrade battery performance or short- en battery life. R DANGER! DO NOT expose the battery to rain, snow, seawater, or any other liquids. Do not charge or use a wet battery. If the battery gets wet, be sure to wipe it dry before using. R DANGER! KEEP battery packs away from fire. Fire or heat may cause them to rupture or explode. Dispose of used battery packs in accordance with local regulations. R DANGER! NEVER solder the battery terminals, or NEV- ER modify the battery pack. This may cause heat genera- tion, and the battery may burst, emit smoke or catch fire. R DANGER! Use the battery only with the radio for which it is specified. Never use a battery with any other equipment, or for any purpose that is not specified in this instruction manual. R DANGER! If fluid from inside the battery gets in your eyes, blindness can result. Rinse your eyes with clean wa- ter, without rubbing them, and see a doctor immediately. R WARNING! Immediately stop using the battery if it emits an abnormal odor, heats up, or is discolored or deformed. If any of these conditions occur, contact your Icom dealer or distributor. R WARNING! Immediately wash, using clean water, any part of the body that comes into contact with fluid from in- side the ba…

Text truncated - open the document above for the full version.

VHF Transceivers Model No.: IC-F1000D FCC ID: AFJ369600 IC: 202D-369600 Tested For ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan, 547-0003 In accordance with SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-2005, FCC OET Bulletin 65 (Supplement C) and Industry Canada RSS-102 (Issue 4) UltraTech’s File No.: 15ICOM395_SAR_Rev1 This Test report is Issued under the Authority of Tri M. Luu, BASc, Vice President of Engineering UltraTech Group of Labs Date: Feb 26, 2015 Report Prepared by: Natasha Kee Tested by: Natasha Kee Issued Date: Feb 26, 2015 Test Dates: Jan 1~Jan 7, 2015 The results in this Test Report apply only to the sample(s) tested, which has been randomly selected. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] Korea KCC-RRA 91038 1309 46390-2049 NVLAP LAB CODE 200093-0 SL2-IN-E-1119R CA2049 TL363_B TPTDP DA1300 SPECIFIC ABSORPTION RATE (SAR) Contents i IEEE C95.1-2005, FCC OET Bulletin 65 (Supplement C) and Industry Canada RSS-102 (Issue 4) VHF Transceiver, M/N: IC-F1000D FCC ID: AFJ369600, IC: 202D-369600 ULTRATECH GROUP OF LABS File #: 15ICOM395_SAR_Rev1 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Feb 26, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. REVISION HISTORY ................................................................................................................................................... 1 1.3. REFERENCES ............................................................................................................................................................... 2 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 3 2.1. CLIENT AND MANUFACTURER INFORMATION .................................................................................................. 3 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION ....................................................................................................... 4 2.2.1. PHOTOGRAPH OF D.U.T ..................................................................................................................................... 5 2.3. LIST OF D.U.T.’S ACCESSORIES: ............................................................................................................................. 6 2.3.1. LI-ION CHARGEABLE BATTERY (M/N: BP-278 LI-ION, 7.2V, 1130MAH) ....................................................... 6 2.3.2. LI-ION CHARGEABLE BATTERY (M/N: BP-279 LI-ION, 7.2V, 1485MAH) ....................................................... 7 2.3.3. LI-ION CHARGEABLE BATTERY (M/N: BP-280 LI-ION, 7.2V, 2280MAH) ....................................................... 8 2.3.4. ANTENNA FA-SC25V 163MM 136-150MHZ BLUE TIP ....................................................................................... 9 2.3.5. ANNTENA FA-SC55V 164MM 150-174MHZ RED TIP ......................................................................................... 9 2.3.6. ANTENNA FA-SC62V 255MM 150-160MHZ BROWN TIP ................................................................................. 10 2.3.7. ANTENNA FA-SC63V 240MM 155-165MHZ BLACK TIP .................................................................................. 10 2.3.8. ANTENNA FA-SC26VS 80MM 136-144MHZ BLUE TIP ..................................................................................... 11 2.3.9. ANTENNA FA-SC27VS 80MM 142-150MHZ PURPLE TIP ................................................................................ 11 2.3.10. ANTENNA FA-SC56VS 80MM 150-162MHZ RED TIP ....................................................................................... 12 2.3.11. ANTENNA FA-SC57VS 80MM 160-174MHZ GREEN TIP .................................................................................. 12 2.3.12. CUT ANTENNA FA-SC61VC 150MHZ (156MM), 155MHZ (151MM), 160MHZ (145MM), 170MHZ (136MM) WHITE TIP ........................................................................................................................................................... 13 2.4. SPECIAL CHANGES ON THE D.U.T.’S HARDWARE/SOFTWARE FOR TESTING PURPOSES ...................... 14 2.5. ANCILLARY EQUIPMENT ....................................................................................................................................... 14 2.6. SPECIFIC OPERATING CONDITIONS .................................................................................................................... 15 EXHIBIT 3. SUMMARY OF TEST RESULTS ................................................................................................................ 16 3.1. LOCATION OF TESTS ............................................................................................................................................... 16 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS .............................................................................................. 16 3.3. SUMMARY OF MEASUREMENT RESULTS .......................................................................................................... 17 3.3.1. HEAD CONFIGURATION REPORTED SAR RESULTS FOR FIXED ANTENNAS ............................................…

Text truncated - open the document above for the full version.

SPECIFIC ABSORPTION RATE (SAR) Page 1 of 78 VHF Transceiver M/N: IC-F1000D FCC ID: AFJ369600, IC:202D-369600 ULTRATECH GROUP OF LABS File #: ICOM-395Q-SAR-Appendix 1_Rev1 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Feb 26, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) APPENDIX 1 SAR Measurement Data SPECIFIC ABSORPTION RATE (SAR) Page 2 of 78 VHF Transceiver M/N: IC-F1000D FCC ID: AFJ369600, IC:202D-369600 ULTRATECH GROUP OF LABS File #: ICOM-395Q-SAR-Appendix 1_Rev1 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Feb 26, 2015 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com • All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. HEAD SAR MEASUREMENT SUMMARY ................................................................................................. 3 FILE NAME: BP-279 SC25V 163MM 150MHZ.DA52:0 ................................................................................................................ 5 FILE NAME: BP-279 SC55V 164MM 150MHZ.DA52:0 ................................................................................................................ 7 FILE NAME: BP-279 SC62V 255MM 150MHZ.DA52:0 ................................................................................................................ 9 FILE NAME: BP-279 SC63V 240MM 155MHZ.DA52:0 .............................................................................................................. 11 FILE NAME: BP-279 SC26VS 80MM 144MHZ.DA52:0 ............................................................................................................. 13 FILE NAME: BP-279 SC27VS 80MM 146MHZ.DA52:0 ............................................................................................................. 15 FILE NAME: BP-279 SC56VS 80MM 150MHZ.DA52:0 ............................................................................................................. 17 FILE NAME: BP-279 SC57VS 80MM 160MHZ.DA52:0 ............................................…
