AFJ399510WLAN TRANSCEIVER

INSTRUCTIONS WLAN TRANSCEIVER IP110H 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A7654D-1EX-1a Printed in Japan © 2021–2022 Icom Inc. Mar. 2022 Thank you for choosing this Icom product. READ ALL INSTRUCTIONS carefully and completely before using this product. IMPORTANT SAVE THESE INSTRUCTIONS— These instructions contain basic operating instructions for the IP110H. This instruction sheet includes some functions that are usable only when they are set in the Controller. The transceiver may have other functions and operations that are not described in this instruction sheet. Ask your dealer for details. EXPLICIT DEFINITIONS WORDDEFINITION RDANGER! Personal death, serious injury or an explosion may occur. RWARNING! Personal injury, fire hazard or electric shock may occur. CAUTIONEquipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. Icom is not responsible for the destruction, damage to, or performance of any Icom or non-Icom equipment, if the malfunction is because of: •Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, other natural disasters, disturbances, riots, war, or radioactive contamination. • The use of Icom transceivers with any equipment that is not manufactured or approved by Icom. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Icom Inc. is under license. Other trademarks and trade names are those of their respective owners. PRECAUTIONS RDANGER! NEVER operate the transceiver near unshielded electrical blasting caps or in an explosive atmosphere. This could cause an explosion and death. RDANGER! NEVER charge Icom transceivers with non-Icom chargers. Only Icom transceivers are tested and approved for charged with Icom chargers. Using third- party or counterfeit chargers may cause smoke, fire, or cause the battery to burst. RWARNING RF EXPOSURE! This device emits Radio Frequency (RF) energy. Caution should be observed when operating this device. If you have any questions regarding RF exposure and safety standards, please refer to the Federal Communications Commission Office of Engineering and Technology’s report on Evaluating Compliance with FCC Guidelines for Human Radio Frequency Electromagnetic Fields (OET Bulletin 65). RWARNING! NEVER hold the transceiver so that it is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. RWARNING! NEVER operate or touch the transceiver with wet hands. This could cause an electric shock or damage the transceiver. RWARNING! NEVER operate the transceiver with earphones, a headset, or other audio accessories at high volume levels. The continuous high volume operation may cause a ringing in your ears. If you experience the ringing in your ears, reduce a volume level or discontinue use. CAUTION: DO NOT operate the transceiver while driving a vehicle. Safe driving requires your full attention— anything less may result in an accident. CAUTION: DO NOT use harsh solvents such as Benzine or alcohol when cleaning. This could damage the equipment surfaces. If the surface becomes dusty or dirty, wipe it clean with a soft, dry cloth. CAUTION: DO NOT operate the transceiver unless the jack cap and connector cover are securely attached to the transceiver. Exposing the inside of the transceiver to dust or water will result in serious damage to the transceiver. After exposure to water, clean the transceiver thoroughly with fresh water and dry it completely to remove any water or salt residue. CAUTION: DO NOT use or leave the transceiver in areas with temperatures below –10°C (14°F) or above +60°C (140°F), or in areas subject to direct sunlight, such as the dashboard. NEVER leave the transceiver in an insecure place to avoid use by unauthorized persons. DO NOT push [PTT] unless you actually intend to transmit. DO NOT modify the transceiver. The specifications may change and then the transceiver may not comply with the requirements of required regulations. The transceiver warranty does not cover any problems caused by unauthorized modification. BE CAREFUL! The transceiver may become hot after continuously transmitting for long periods of time. BE CAREFUL! The transceiver meets IP67/IP54* requirements for dust-tight and waterproof protection. However, once the transceiver has been dropped, or the waterproof seal is cracked or damaged, dust-tight and waterproof protection cannot be guaranteed due to the fact that the transceiver may be cracked or the waterproof seal damaged, and so on. * Only when the jack cap and connector cover are attached. DBattery caution Misuse of Li-ion batteries may result in the following hazards: smoke, fire, or the battery may rupture. Misuse can also cause damage to the battery or degradation of battery performance. RDANGER! NEVER incinerate a used transceiver. Internal battery gas may cause an explosion. RDANGER! NEVER strike or otherwise impact the transceiver. Do not use the transceiver if it has been severely impacted or dropped, or if the transceiver has been subjected to heavy pressure. Battery damage may not be visible on the outside of the case. Even if the surface of the transceiver does not show cracks or any other damage, the cells inside the battery may rupture or catch fire. RDANGER! NEVER leave the transceiver in places with temperatures above 60°C (140°F). High temperature buildup in the battery cells, such as could occur near fires or stoves, inside a sun-heated vehicle, or in direct sunlight for long periods of time may cause the battery cells to rupture or catch fire. Excessive temperatures may also degrade the transceiver’s performance or shorten the battery cell’s lif…

Text truncated - open the document above for the full version.

[email protected]

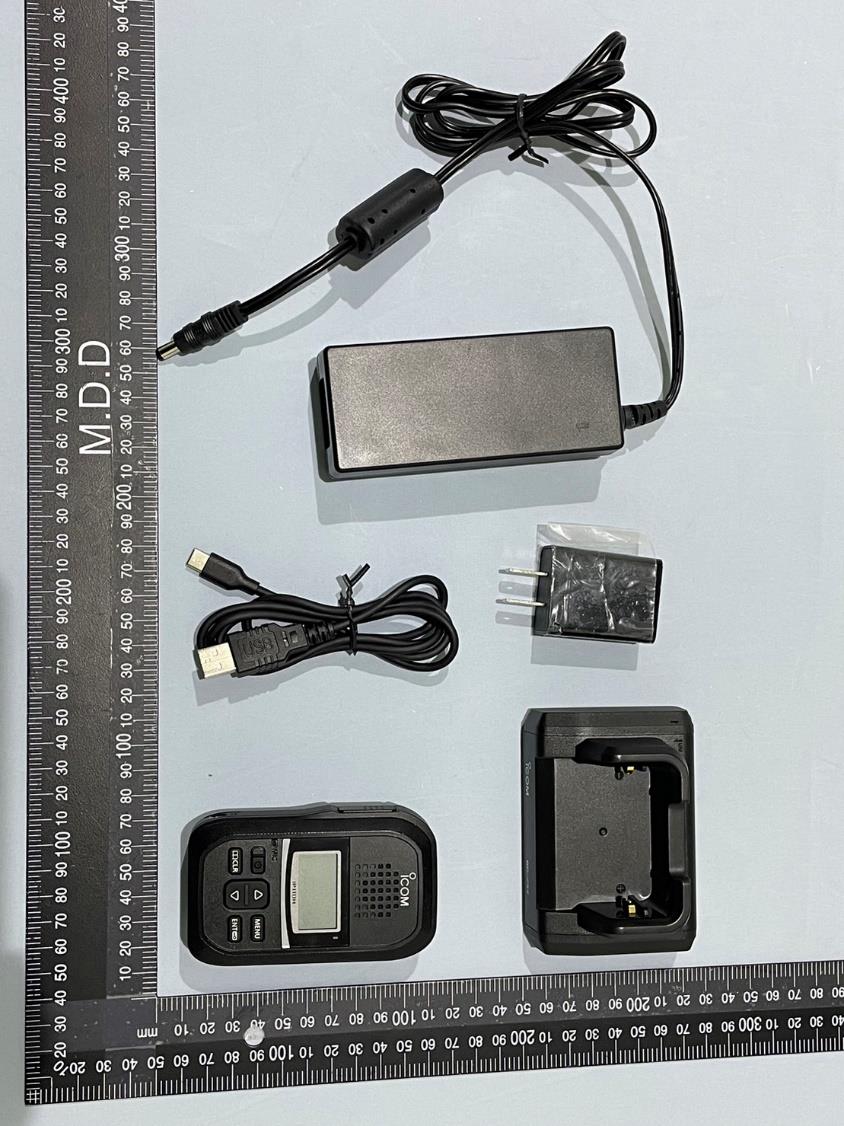

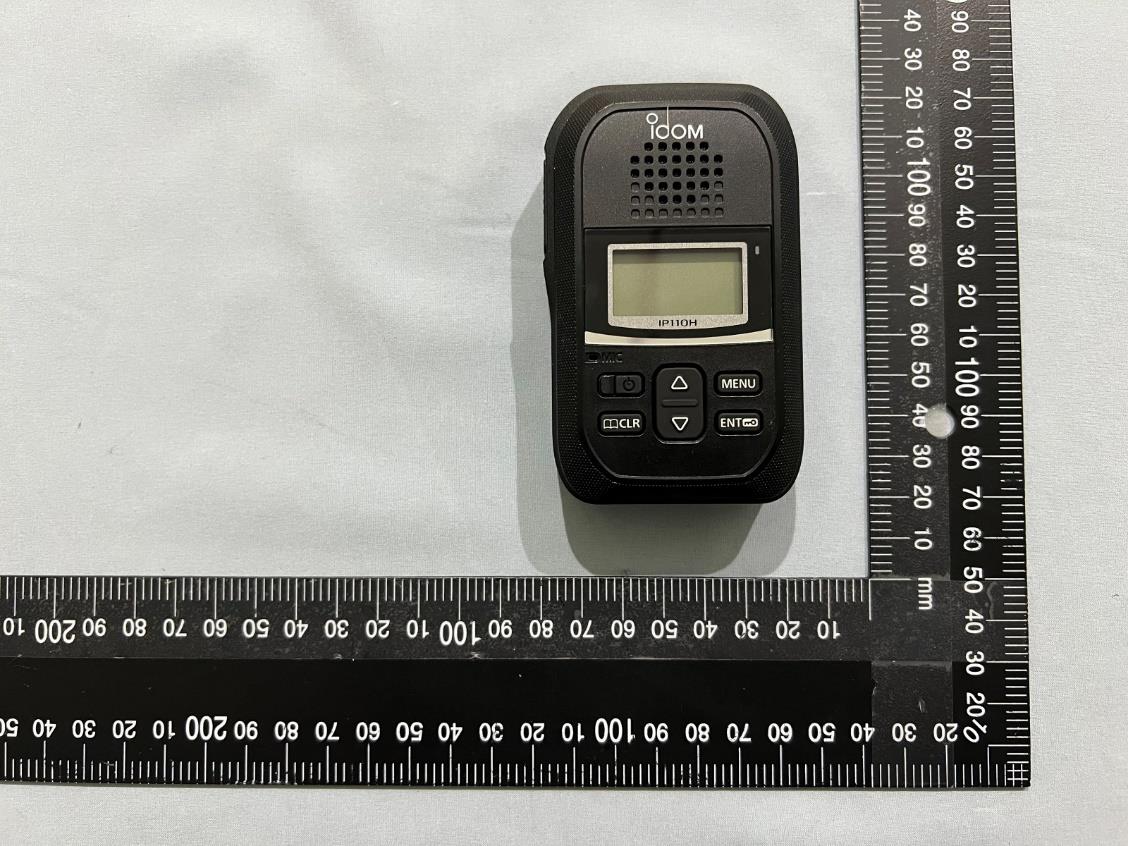

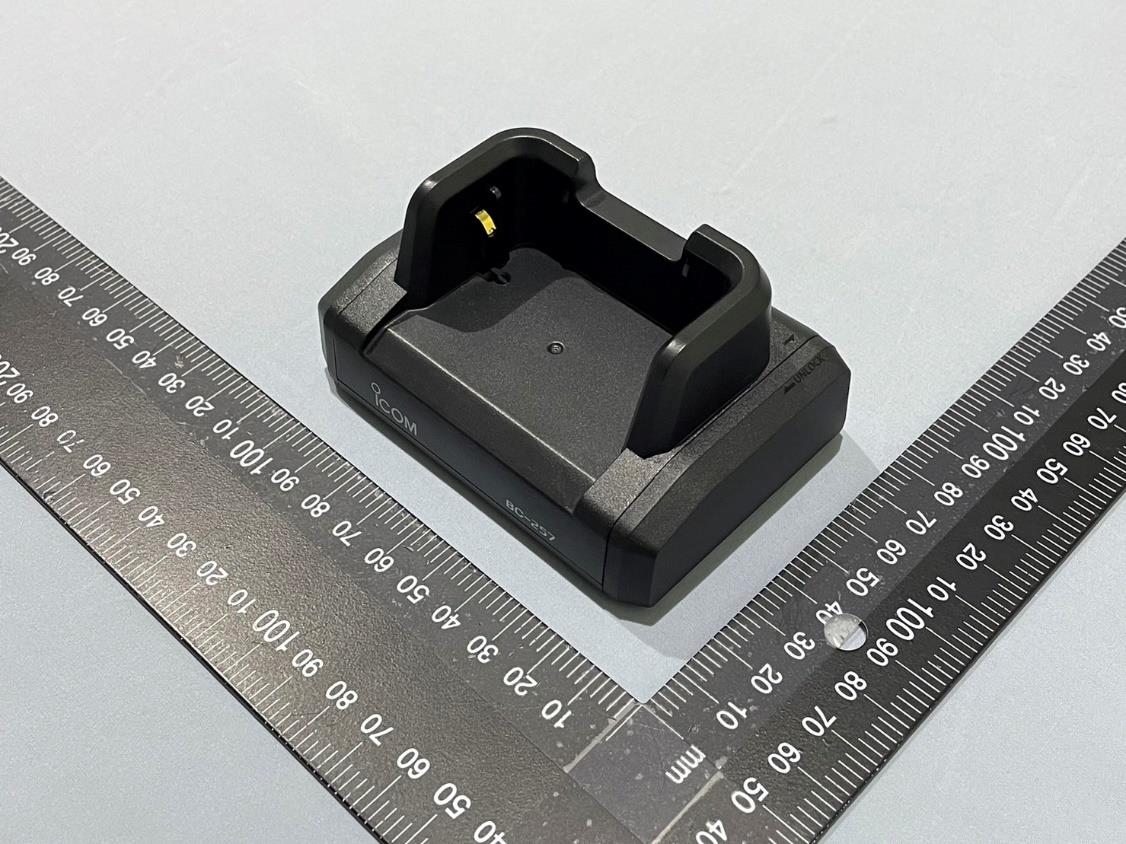

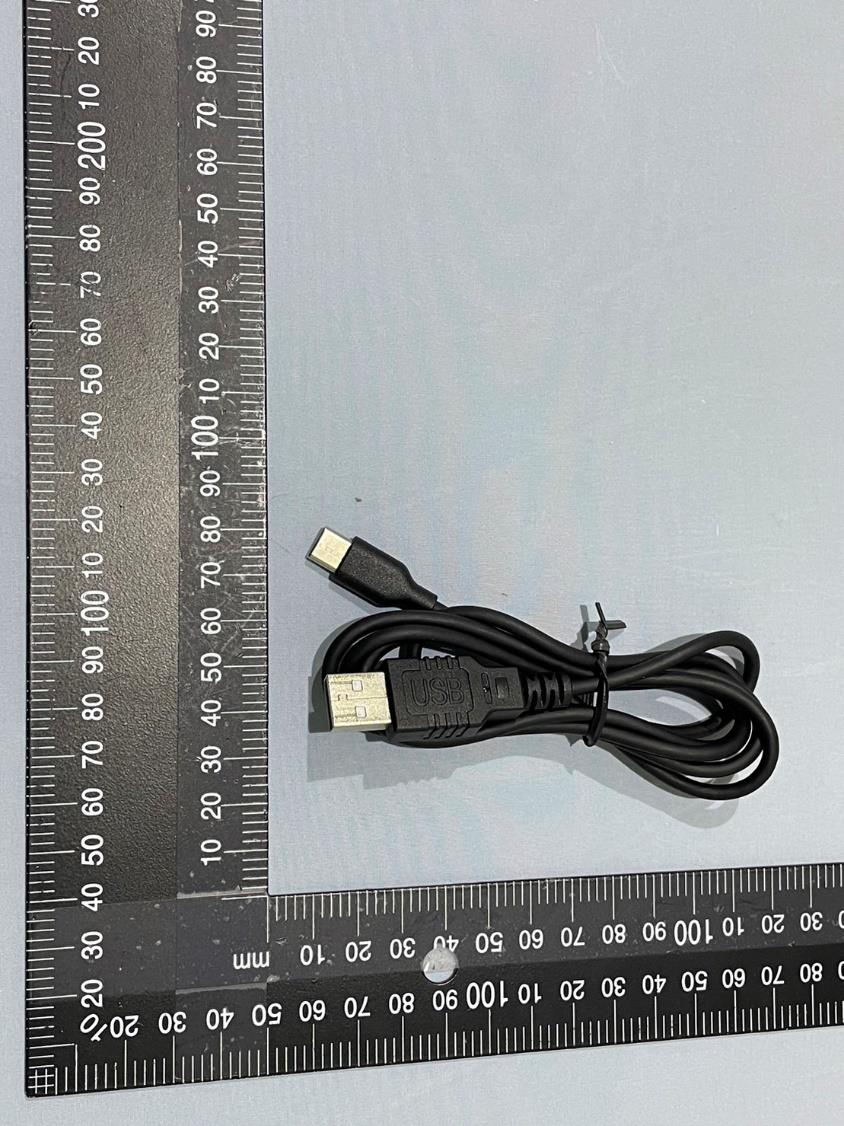

Test report No. : 4790590080-EP Page : 1 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Product Photos External Photos Group Pic 1 Test report No. : 4790590080-EP Page : 2 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: IP110H Pic 1 Outview: IP110H Pic 2 Test report No. : 4790590080-EP Page : 3 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: IP110H Pic 3 Outview: IP110H Pic 4 Test report No. : 4790590080-EP Page : 4 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Outview: IP110H Pic 5 Outview: IP110H Pic 6 Test report No. : 4790590080-EP Page : 5 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: BC-258 Pic 1 Accessory: BC-258 Pic 2 Test report No. : 4790590080-EP Page : 6 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: BC-258 Pic 3 Accessory: BC-258 Pic 4 Test report No. : 4790590080-EP Page : 7 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: OPC-2480 Pic 1 Accessory: OPC-2480 Pic 2 Test report No. : 4790590080-EP Page : 8 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: OPC-2480 Pic 3 Test report No. : 4790590080-EP Page : 9 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: BC-257 Pic 1 Accessory: BC-257 Pic 2 Test report No. : 4790590080-EP Page : 10 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: BC-257 Pic 3 Accessory: BC-257 Pic 4 Test report No. : 4790590080-EP Page : 11 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: BC-228 Pic 1 Accessory: BC-228 Pic 2 Test report No. : 4790590080-EP Page : 12 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Accessory: BC-228 Pic 3

Label format＆Location 1.LCD Display (Authentication screen) 2.Procedure to display the Authentication screen 1. Turn ON the transceiver. Hold down [ ] for 2 seconds. And wait until standby screen displayed. 2. Push [MENU], and push [△/▽] to select “Authentication”. 3. Push [ENT].You can scroll the Authentication screen by [△/▽] keys.

Test report No. : 4790590080-EP Page : 13 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Internal Photos IP110H Pic 1 IP110H Pic 2 Test report No. : 4790590080-EP Page : 14 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 3 IP110H Pic 4 Test report No. : 4790590080-EP Page : 15 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 5 IP110H Pic 6 Test report No. : 4790590080-EP Page : 16 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 7 IP110H Pic 8 WiFi Antenna Test report No. : 4790590080-EP Page : 17 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 9 IP110H Pic 10 Test report No. : 4790590080-EP Page : 18 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 11 IP110H Pic 12 Test report No. : 4790590080-EP Page : 19 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 13 IP110H Pic 14 BT Module Test report No. : 4790590080-EP Page : 20 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 15 IP110H Pic 16 Test report No. : 4790590080-EP Page : 21 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 17 IP110H Pic 18 WIFI Module Test report No. : 4790590080-EP Page : 22 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 19 IP110H Pic 20 Test report No. : 4790590080-EP Page : 23 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 21 IP110H Pic 22 Test report No. : 4790590080-EP Page : 24 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 23 IP110H Pic 24 Test report No. : 4790590080-EP Page : 25 of 25 Issued date : Jan. 17, 2023 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 IP110H Pic 25 IP110H Pic 26

Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 5 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Appendix B: Antenna Dimensions and Separation Distances Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 6 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Rev 1 Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 7 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Rev 1 Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 8 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Appendix C: SAR System Check Plots Test Laboratory:Underwriters Laboratories Taiwan Co., Ltd Date: 2022/10/28 System Performance Check-2450MHz DUT: D2450V2-988 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2450 MHz; σ = 1.803 S/m; ε r = 38.783; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(7.24, 7.24, 7.24) @ 2450 MHz; Calibrated: 2022/7/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn528; Calibrated: 2022/5/19 - Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) System Check/2450MHz/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 22.1 W/kg System Check/2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 113.8 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 13.1 W/kg; SAR(10 g) = 6.08 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 47.7% Maximum value of SAR (measured) = 22.2 W/kg 0 dB = 22.2 W/kg = 13.46 dBW/kg Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 9 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Test Laboratory:Underwriters Laboratories Taiwan Co., Ltd Date: 2022/11/23 System Performance Check-2450MHz DUT: D2450V2-988 Communication System: UID 0, CW (0); Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2450 MHz; σ = 1.863 S/m; ε r = 38.078; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3901; ConvF(7.91, 7.91, 7.91) @ 2450 MHz; Calibrated: 2022/10/18 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1360; Calibrated: 2022/9/29 - Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) System Check/2450MHz/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 20.8 W/kg System Check/2450MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 107.1 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 25.6 W/kg SAR(1 g) = 12.4 W/kg; SAR(10 g) = 5.75 W/kg Smallest distance from peaks to all points 3 dB below = 9 mm Ratio of SAR at M2 to SAR at M1 = 48.6% Maximum value of SAR (measured) = 20.8 W/kg 0 dB = 20.8 W/kg = 13.18 dBW/kg Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 10 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Test Laboratory:Underwriters Laboratories Taiwan Co., Ltd Date: 2022/10/25 System Performance Check-5250MHz DUT: D5GHzV2-1244-5250 Communication System: UID 0, CW (0); Frequency: 5250 MHz;Duty Cycle: 1:1 Medium: HSL 5GHz Medium parameters used: f = 5250 MHz; σ = 4.864 S/m; ε r = 36.659; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(5.35, 5.35, 5.35) @ 5250 MHz; Calibrated: 2022/7/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn528; Calibrated: 2022/5/19 - Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) System Check/5250MHz/Area Scan (91x91x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 19.3 W/kg System Check/5250MHz/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 66.01 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 33.6 W/kg SAR(1 g) = 7.93 W/kg; SAR(10 g) = 2.21 W/kg Smallest distance from peaks to all points 3 dB below = 7.5 mm Ratio of SAR at M2 to SAR at M1 = 63.2% Maximum value of SAR (measured) = 20.0 W/kg 0 dB = 20.0 W/kg = 13.01 dBW/kg Report No.: 4790590080-US-S0-V1 Issue Date: 2/14/2023 Page 11 of 17 Underwriters Laboratories Taiwan Co., Ltd. This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Test Laboratory:Underwriters Laboratories Taiwan Co., Ltd Date: 2022/10/26 System Performance Check-5600MHz DUT: D5GHzV2-1244-5600 Communication System: UID 0, CW (0); Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: HSL 5GHz Medium parameters used: f = 5600 MHz; σ = 4.99 S/m; ε r = 34.184; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3820; ConvF(4.62, 4.62, 4.62) @ 5600 MHz; Calibrated: 2022/7/27 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn528; Calibrated: 2022/5/19 - Phantom: ELI v5.0_1213; Type: QDOVA001BB; Serial: 1213 - Measurement SW: DASY52, Version 5…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Page 1 of 29 17-EM-F0904 Issue: 5.0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For WLAN TRANSCEIVER FCC ID: AFJ399510 Model Name: IP110H Report Number: 4790590080-US-S0-V3 Issue Date: 2023/3/6 Prepared for Icom Incorporated 1-1-32, Kamiminami, Hirano-Ku, Osaka, 547-0003, Japan Prepared by Underwriters Laboratories Taiwan Co., Ltd., Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan TEL: +886-2-7737-3000 FAX: +886-3-583-7948 Website: www.ul.com Report No.: 4790590080-US-S0-V3 Issue Date: 2023/3/6 Page 2 of 29 Underwriters Laboratories Taiwan Co., Ltd. Form No: 17-EM-F0904 Issue: 5.0 This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. REVISION HISTORY Rev. Date Revisions Revised By V0 2022/12/23 Initial Issue Cindy Hsin V1 2023/2/14 1. Revised P. 13 BT Version. 2. Revised P. 15 tune up. 3. Revised P. 23 tune up and add notes. Cindy Hsin V2 2023/3/12023/3/6 1. Revised P. 4 Highest Reported SAR 2. Revised P. 15, P. 19~ P. 21 tune up. 3. Revised P. 25 data 4. Revised P. 28 data Cindy Hsin V3 2023/3/6 1. Revised P. 4 Highest Reported SAR 2. Revised P. 27 Simultaneous Transmission Condition Cindy Hsin Report No.: 4790590080-US-S0-V3 Issue Date: 2023/3/6 Page 3 of 29 Underwriters Laboratories Taiwan Co., Ltd. Form No: 17-EM-F0904 Issue: 5.0 This report shall not be reproduced without the written approval of Underwriters Laboratories Taiwan Co., Ltd. Table of Contents 1. Attestation of Test Results ......................................................................................................... 4 2. Test Specification, Methods and Procedures ............................................................................ 5 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 13 7. RF Exposure Conditions (Test Configurations) ...................................................................... 14 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 14 8. Dielectric Property Measurements & System Check .............................................................. 16 8.1. Dielectric Property Measurements ........................................................................................... 16 8.2. System Check.......................................................................................................................... 18 9. Conducted Output Power Measurements ................................................................................ 19 9.1. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 19 9.2. Wi-Fi 5GHz (U-NII Bands)........................................................................................................ 20 9.3. Bluetooth ................................................................................................................................. 23 10. Measured and Reported (Scaled) SAR Results ....................................................................... 24 10.1. Test Condition ...................................................................................................................... 24 10.2. Wi-Fi (U-NII Band) ................................................................................................................ 25 10.3. Bluetooth .............................................................................................................................. 26 11. Simultaneous Transmission SAR Analysis ............................................................................. 27 11.1. Sum of the SAR for Wi-Fi & BT ............................................................................................ 28 Appendixes .......................................................................................................................................... 29 4790590080-US-S0-V1_Appendix A: SAR Setup Photos ................................................................... 29 4790590080-US-S0-V1_Appendix B: Antenna Dimensions and Separation Distances ....................... 29 4790590080-US-S0-V1_Appendix C: SAR System Check Plots ......................................................... 29 4790590080-US-S0-V1_Appendix D: Highest SAR Test Plots ............................................................ 29 4790590080-US-S0-V1_App…

Text truncated - open the document above for the full version.

Test report No. : 4790590080-US-R0-V1 Page : 1 of 79 Issued date : 2023/2/9 FCC ID : AFJ399510 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 RADIO TEST REPORT The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report are responsible of the test sample(s) provided by the client only and are not to be used to indicate applicability to other similar products. Product : WLAN TRANSCEIVER Model Name : IP110H FCC ID : AFJ399510 Test Regulation : FCC 47 CFR Part 15 Subpart C (Section 15.247) Received Date : 2022/10/19 Test Date : 2022/10/24 ~ 2022/11/4 Issued Date : 2023/2/9 Applicant : Icom Incorporated 1-1-32, Kamiminami, Hirano-Ku, Osaka, 547-0003, Japan Issued By : Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Test report No. : 4790590080-US-R0-V1 Page : 2 of 79 Issued date : 2023/2/9 FCC ID : AFJ399510 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 REVISION HISTORY Original Test Report No.: 4790590080-US-R0-V1 Rev. Test report No. Date Page revised Contents Original 4790590080-US-R0-V0 2022/12/27 - Initial issue V1 4790590080-US-R0-V1 2023/2/9 P.11 P.16 1. Add sample calculation. 2. Add attenuator information into the table of antenna port conducted measurement Test report No. : 4790590080-US-R0-V1 Page : 3 of 79 Issued date : 2023/2/9 FCC ID : AFJ399510 Underwriters Laboratories Taiwan Co., Ltd. Building B and Building E, No. 372-7, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County, Taiwan Telephone :+886-2-7737-3000 Facsimile (FAX ) :+886-3-583-7948 Doc No: Form-ULID-004737 (DCS:17-EM-F0876) / 6.1 Table of Contents 1. Attestation of Test Results .............................................................................................4 2. Summary of Test Results ...............................................................................................5 3. Test Methodology and Reference Procedures .............................................................6 4. Facilities and Accreditation ...........................................................................................6 5. Measurement Uncertainty .............................................................................................7 6. Equipment under Test ...................................................................................................8 6.1. Description of EUT .............................................................................................. 8 6.2. Channel List ....................................................................................................... 10 6.3. Test Condition .................................................................................................... 11 6.4. Description of Available Antennas .................................................................... 12 6.5. Test Mode Applicability and Tested Channel Detail ......................................... 13 6.6. Duty cycle ...........................................................................................…

Text truncated - open the document above for the full version.
