INSTRUCTION MANUAL VHF DIGITAL REPEATER iFR5300 UR-FR5300 UHF DIGITAL REPEATER iFR6300 UR-FR6300 IC-FR5300/IC-FR6300 i IMPORTANT READ THIS INSTRUCTION MANUAL CAREFULLY before attempting to operate the re- peater. SAVE THIS INSTRUCTION MANUAL– This manual contains important safety and operating in- structions for the IC-FR5300/UR-FR5300/IC-FR6300/ UR-FR6300 vhf/uhf digital repeaters. EXPLICIT DEFINITIONS WORDDEFINITION RWARNING! Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. SUPPLIED ACCESSORIES The following accessories are supplied. HandlesFor handles attachment Spacers Screws DC power cable (OPC-1784) DC power cable (CAB-1149) Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. Thank you for choosing this Icom product. This product is designed and built with Icom’ s state of the art technology and craftsmanship. With proper care, this product should provide you with years of trouble-free operation. D FEATURES m Up to 2 channels of operation You can install a channel extension module (op- tional UR-FR5300/UR-FR6300) into a repeater. Two channels can be operated on the same re- peater when a channel extension module is in- stalled. m Built-in 5-Tone, DTMF encoder & decoder Multiple signaling systems are built-in as standard. These systems are fully compatible with Icom F- series radios. m DTMF remote control capability You can control the repeater from a remote location over the air or over a phone line with DTMF. m D-Sub 25 pin ACC port equipped You can use optional equipment through the D-sub 25 pin ACC port on the repeater’s rear panel. m Online control and Digital Trunking opera- tion Online control and digital trunking operation are available when the optional UC-FR5300 trunking/ network controller is installed in the repeater. m Other features - Wide frequency coverage <VHF> IC-FR5300/UR-FR5300 : 136 to 174 MHz <UHF> IC-FR6300/UR-FR6300 : 330 to 400 MHz, 400 to 470 MHz, 450 to 512 MHz, 450 to 520 MHz - PC programmable - 19 inch rack mount Icom is not responsible for the destruction or damage to the Icom transceiver, if the malfunction is because of: • Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, other natu- ral disasters, disturbances, riots, war, or radioactive contamination. • The use of Icom transceivers with any equipment that is not manufactured or approved by Icom. ii R WARNING HIGH VOLTAGE! NEVER touch an an- tenna or internal antenna connector while transmitting. This could cause an electrical shock or RF burn. R WARNING HIGH VOLTAGE! NEVER install the an- tenna at any place that person easily touch the an- tenna while transmitting. This could cause an electrical shock or RF burn. R WARNING! NEVER apply AC power to the DC power receptacle on the repeater rear panel. This could cause a fire or damage the repeater. R WARNING! NEVER apply more than 16 V DC to the DC power receptacle on the repeater rear panel. This could cause a fire or damage the repeater. R WARNING! NEVER reverse the DC power cable polarity. This could cause a fire or damage the re- peater. R WARNING! NEVER let metal, wire or other objects contact the inside of the repeater, or make incorrect contact with connectors on the rear panel. This could cause an electric shock or damage the repeater. CAUTION: DO NOT place or leave the repeater in areas with temperatures below –30°C (–22°F) or above +60°C (+140°F). Be aware that temperatures can ex- ceed 80°C (+176°F), resulting in permanent damage to the repeater if left there for extended periods. CAUTION: DO NOT place or leave the repeater in ex- cessively dusty environments. This could damage the repeater. CAUTION: DO NOT put anything on top of the re- peater. This will obstruct heat dissipation. CAUTION: DO NOT set the repeater’s RF output power to more than your external linear amplifier’s maximum input level, if you use one. Otherwise, a high input could damage the linear amplifier. CAUTION: DO NOT use non-Icom microphones. Other manufacturer’s microphones may have differ- ent pin assignments, and could damage the connector and/or the repeater. BE CAREFUL! The heatsink will become hot when continuously operating the repeater for long periods of time. NEVER expose the repeater to rain, snow or any liq- uids. NEVER leave the repeater in an insecure place to avoid use by unauthorized persons. PRECAUTIONS TABLE OF CONTENTS IMPORTANT ...............................................................i EXPLICIT DEFINITIONS ............................................i SUPPLIED ACCESSORIES.......................................i PRECAUTIONS .........................................................ii SAFETY TRAINING INFORMATION .......................iii INFORMATIONS EN MATIÈRE DE SÉCURITÉ ......iv 1 PANEL DESCRIPTION .............................1–3 n Front panel ........................................................1 D Function display ............................................2 n Rear panel .........................................................2 D Accessory connector ....................................3 2 INSTALLATION AND CONNECTIONS ....4–6 n Unpacking .........................................................4 n Selecting a location ...........................................4 n Antenna connection ..........................................4 n Front panel connection ......................................5 n Rear panel connection ......................................5 n Power supply connection ..................................6 n Mounting the repeater .......................................6 D Using the supplied hand…

Text truncated - open the document above for the full version.

For USA Only Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: Trade Name : ICOM Model Name: : IC-FR6300／UR-FR6300 Responsible party: Company name : Icom America Inc. Address : 12421 Willows Road NE Kirkland, WA 98034 U.S. Contact Information: 800-USA-ICOM (800-872-4266) Monday - Friday 7AM to 5PM PST FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Ult G FCC Ultrate Accre AP S L Ko 3 Te Fa Website Email: traTec Group of Labs C TCB & ISED CB ech’s ditations: PEC TEL CA0001 1309 46390-2049 L2-IN-E-1119R orea KCC-RRA CA0001 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 el.: (905) 829-1570 ax.: (905) 829-8050 : www.ultratech-labs. [email protected] Ju n Ultr 300 Oak L6H Su b App Pro Mo FC C De a As for fili n No t cha req 80 No t und sub If y o Yo u Sa San Aut h B com com ne 9, 2020 ratech Engin 00 Bristol Circ kville, Ontario H 6G4 bject: plicant: oduct: del: C ID: ar Sir/Madam appointed ag FCC certifica ng site. te 1: As decla annel spacing uired by FCC certifications te 2: ICOM he der FCC rules bmitted with th ou have any q urs truly, anthosh Fernand nthosh Ferna thorized Agen neering Labs cle o Certificatio n and 90 (Sub Frequency B ICOM Incorp UHF DIGITA IC-FR6300/ U AFJ409202 m: gent for ICOM ation of the ab ared by the ap g (16K0F3E) o C mandate. Te only. ereby request s as per the re his filing. queries, pleas ndez ndez nt s, Inc. n Testing in a part I) - Non- Band 450-512 porated AL REPEATE UR-FR6300 M Incorporate bove product. pplicant in the operation of th est performed t FCC to list t easons expla se do not hes accordance w -Broadcast R 2 MHz R ed, we would Please revi e e attestation le his radio is pe d for 25kHz ch he entire freq ined in the at sitate to conta with FCC 47 Radio Transc like to submit ew all files up etter submitte ermanently di hannel spacin quency range tached Freq u act us. CFR, Parts 2 ceivers Oper t the applicati loaded to yo u ed with this fil sabled for P a ng are for par from 450-512 uency Justifica 2, 22, 74, 80 rating in the on to you ur electronic ing, 25kHz art 90 use as rts 22, 74 & 2 MHz ation letter

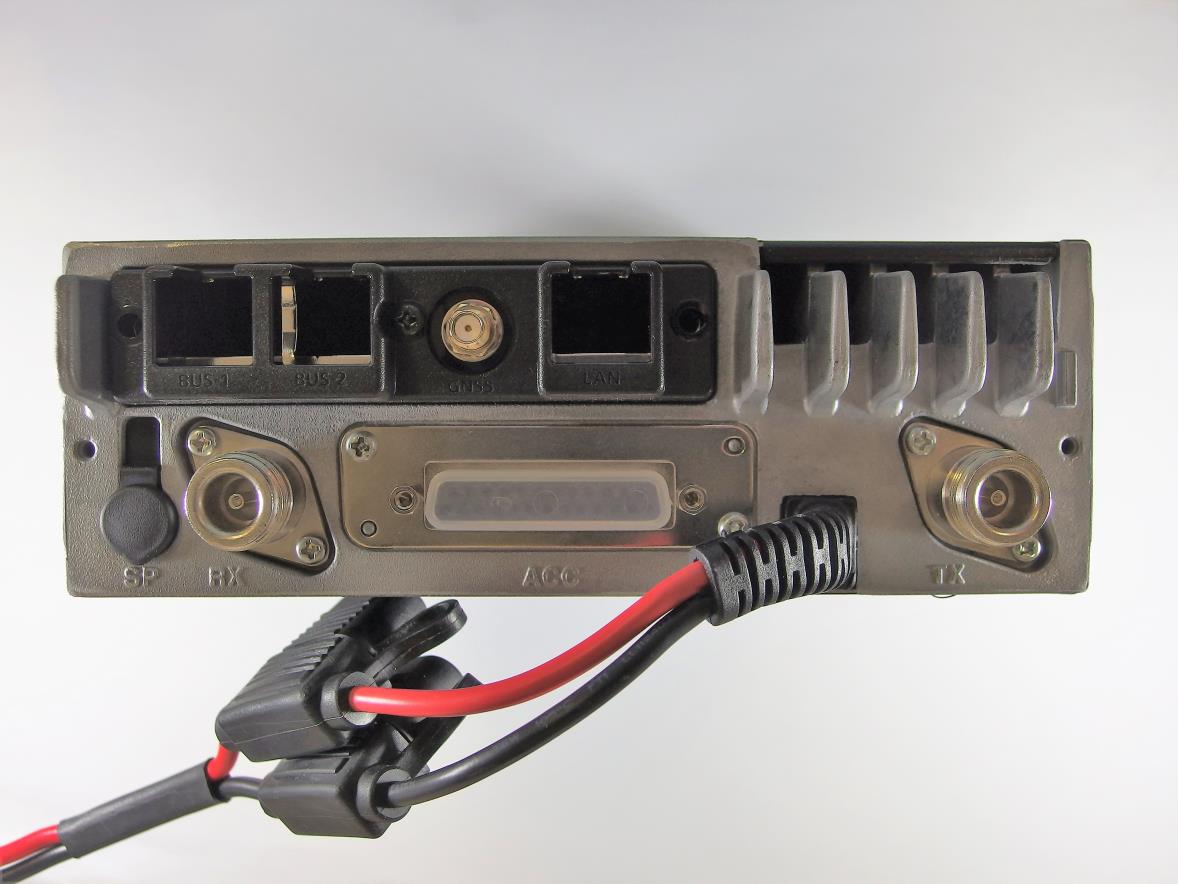

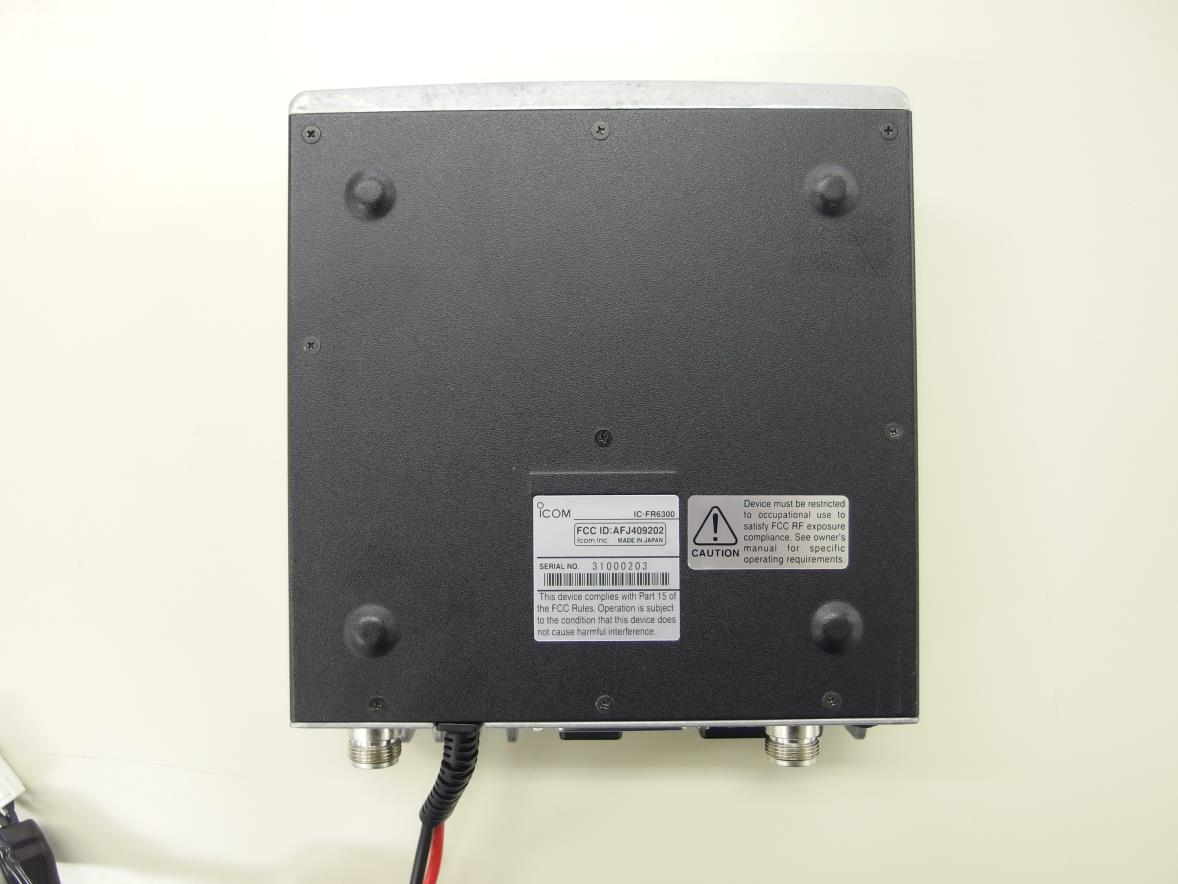

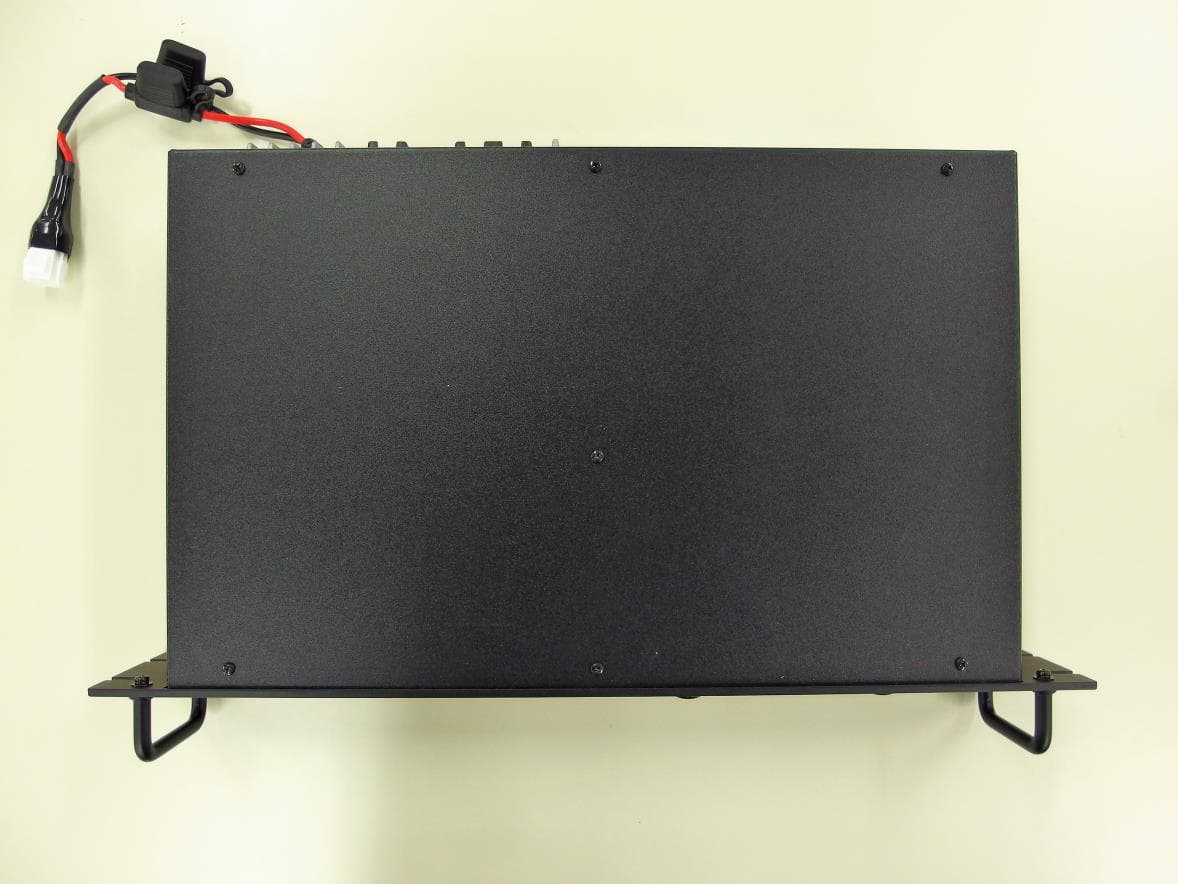

1 IC-FR6300 FRONT SIDE IC-FR6300 REAR SIDE 2 IC-FR6300 TOP SIDE IC-FR6300 BOTTOM SIDE 3 IC-FR6300 COVER OFF UR-FR6300 TOP SIDE 4 UR-FR6300 LEFT SIDE UR-FR6300 RIGHT SIDE 5 UR-FR6300 FRONT SIDE UR-FR6300 REAR SIDE 6 UR-FR6300 BOTTOM SIDE UR-FR6300 BOTTOM IN SIDE

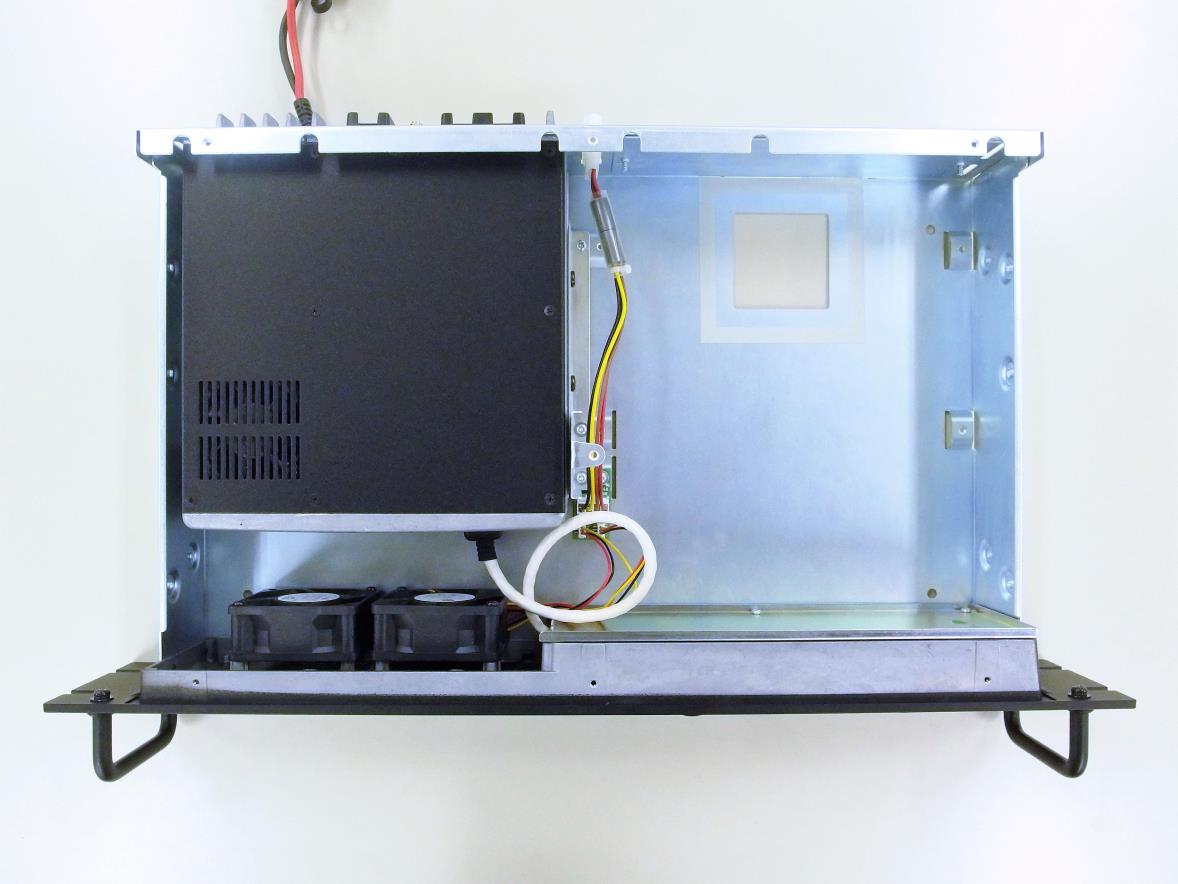

7 UR-FR6300 TOP IN SIDE UR-FR6300 MAIN BOARD SIDE-A 8 UR-FR6300 MAIN BOARD SIDE-B IC-FR6300 FRONT BOARD SIDE-A 9 IC-FR6300 FRONT BOARD SIDE-B UR-FR6300 CONNECT BOARD SIDE-A 10 UR-FR6300 CONNECT BOARD SIDE-B UC-FR6300 MAIN BOARD SIDE-A 11 UC-FR6300 MAIN BOARD SIDE-B IC-FR6300 FAN BOARD SIDE-A 12 IC-FR6300 FAN BOARD SIDE-B

FCC Parts 2, 22, 74, 80 and 90 Subpart I Page 72 of 90 UHF DIGITAL REPEATER FCC ID: AFJ409202 ULTRATECH GROUP OF LABS File #: 20ICOM519_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 June 9, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.13. RF EXPOSURE REQUIREMENTS [§§ 1.1310 & 2.1091] [RSS Gen Sec 5.6 & RSS-102] 5.13.1. Limits § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 6141.63*(100) 6 3.0-30 1842/f4.89/f*(900/f 2 ) 6 30-300 61.40.1631.0 6 300-1500 f/300 6 1500-100,000 5 6 f = frequency in MHz * = Plane-wave equivalent power density Note 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. FCC Parts 2, 22, 74, 80 and 90 Subpart I Page 73 of 90 UHF DIGITAL REPEATER FCC ID: AFJ409202 ULTRATECH GROUP OF LABS File #: 20ICOM519_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 June 9, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.13.2. Method of Measurements Calculation Method of RF Safety Distance : 22 44r EIRP r PG S      Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm S EIRP S PG r     44 FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device. 5.13.3. Evaluation of RF Exposure Compliance Requirements Note: EUT is specified OCCUPATION ENVIRONMENT ONLY no intended for general population/uncontrolled environment. Maximum RF Power conducted, P conducted [W]: 50.35 Maximum Antenna Gain, G[dBi]: 0 Maximum EIRP, P EIRP [W]: 50.35 User-based time-average for PTT 50% FCC MPE Limit for Occupational/Controlled Exposure, S controlled [mW/cm 2 ]: 1.5 Min Calculated RF Safety Distance for Occupational/Controlled Exposure, r safetycontrolled [cm]: FCC 37 User manual specified distance=50cm Calculated power density S for this distance=0.833 mW/Cm 2 (8.33 W/m 2 )

This Te s Tri M. Lu Vice Pre UltraTec Date: J u Report P Issued D  The res  This re  This tes st report is Iss uu, BASc, esident of Eng ch Group of L une 9, 2020 Prepared by: Date: June 9, sults in this Test Re eport must not be us st report shall not b Web Mod Federal 47 CFR Ultr sued under th gineering Labs Santhosh Fe 2020 eport apply only to sed by the client to be reproduced, exc 30 bsite: www.ultratech APEC TEL CA0001 UHF DIGI del No.: IC FCC ID A ICOM 1-1-32, Kam Osaka, J Tested in l Communic R, Parts 2, 22 raTech's File he Authority o rnandez the sample(s) teste o claim product end cept in full, without Ult 00 Bristol Circle, O Tel.: (905) 829-15 h-labs.com, Email: 1309 46 ITAL REPE C-FR6300/ U D: AFJ4092 Applicant: M Incorporat miminami, H Japan, 547- n Accordance cations Com 2, 74, 80 an e No.: 20ICOM of Tested b Test Da ed, and the sample dorsement by any a a written approval traTech Oakville, Ontario, Ca 570 Fax.: (90 vic@ultratech-labs 6390-2049 EATER UR-FR6300 202 ted Hirano-ku -0003 e With mmission (F d 90 (Subpa M519_FCC90 by: Nimisha D tes: June 2- 9 e tested is randomly agency of the US G from UltraTech. h anada, L6H 6G4 05) 829-8050 s.com, Email: tri@u AT-1945 0 FCC) art I) 0 Desai 9, 2020 y selected. Government. ultratech-labs.com SL2-IN-E 1119R Korea KCC-RR A E- CA0001 A FCC Parts 2, 22, 74, 80 and 90 Subpart I Contents i UHF DIGITAL REPEATER FCC ID: AFJ409202 ULTRATECH GROUP OF LABS File #: 20ICOM519_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 June 9, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ....................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ................................................................................................. 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ..................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ................................................................................................................................................. 4 2.5. ANCILLARY EQUIPMENT ......................................................................................................................................... 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ................................... 5 3.1. CLIMATE TEST CONDITIONS ................................................................................................................................... 5 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS .................................................. 5 EXHIBIT 4. SUMMARY OF TEST RESULTS .................................................................................................................. 6 4.1. LOCATION OF TESTS ................................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMISSION TEST RESULTS ............................................................................ 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ............................................ 6 4.3.1. DEVIATION OF STANDARD TEST PROCEDURES ............................................................................................ 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS .................................. 7 5.1. TEST PROCEDURES .................................................................................................................................................... 7 5.2. MEASUREMENT UNCERTAINTIES .......................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED ....................................................................................................................... 7 5.4. ESSENTIAL/PRIMARY FUNCTIONS AS DECLARED BY THE MANUFACTURER ............................................ 7 5.5. RF POWER OUTPUT [§§ 2.1046, 22.565, 74.461, 80.215 & 90.205] [RSS-119 § 5.4] ................................................. 8 5.5.1. Limits ...................................................................................................................................................................... 8 5.5.2. Method of Measurements ........................................................................................................................................ 8 5.5.3. Test Data ................................................................................................................................................................. 8 5.6. AUDIO FREQUENCY RESPONSE [§ 2.1047(A), 80.213(E) & 90.242(B)(8)] ....................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated IC‐FR6300/ UR‐FR6300 FCC ID: AFJ409202 Radiated Setup ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated IC‐FR6300/ UR‐FR6300 FCC ID: AFJ409202 ANNEX 1 - TEST SETUP PHOTOGRAPHS ICOM Incorporated IC‐FR6300/ UR‐FR6300 FCC ID: AFJ409202
