AFJ410900Linear Amplifier

Date: June 10, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Part 2.911(d)(7) Filing Applicant: Icom Inc FCC ID: AFJ410900 FRN: 0005855366 Dear Sir/Madam: Icom Inc, (“the applicant”) certifies that, as of the date of the filing of the application, Icom America Inc is our designated U.S. agent for service of process for the above referenced FCC ID. Icom Inc accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. Icom America Inc accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: • FRN 0001585587 • Name: Icom America Inc • Address: 12421 Willows Road NE Kirkland, WA 98034 • Contact Person: Jim Backeland • Tel.: 425-454-8155 • Email: [email protected] Sincerely, US Agent: Applicant: Jim Backeland Tatsuo Yano Icom America Inc. Icom Inc President General Manager of Quality Assurance Department 1-1-32 kamiminami Hirano-ku Osaka Japan. Phone : +81 66793-5301 Fax : +81 66793-0013 e-mail: [email protected] URL : https://www.icomjapan.com/

Date: June 10, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Attestation Statements Parts 2.911(d)(5)(i) and 2.911(d)(5)(ii) Filing Applicant: Icom Inc Product: Lenear amplifier Model: IC-PW2 FCC ID: AFJ410900 Attestation for 47 CFR section 2.911(d)(5)(i) Icom Inc, (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Attestation for 47 CFR section 2.911(d)(5)(ii) Icom Inc, (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Cover List Link: (https://www.fcc.gov/supplychain/coveredlist) Sincerely, Icom Inc Tatsuo Yano General Manager of Quality Assurance Department 1-1-32 kamiminami Hirano-ku Osaka Japan. Phone : +81 66793-5301 Fax : +81 66793-0013 e-mail: [email protected] URL : https://www.icomjapan.com/

Date: June 10, 2024 To Whom It May Concern Subject: Confidentiality and Short-Term Confidentiality Letter Applicant: Icom Incorporated FCC ID: AFJ410900 Dear Sir/Madam: The applicant would like to request the following documents submitted with this application for certification be withheld from public disclosure as per Section 0.457 & 0.459 of FCC Rules. Confidential 1. Operational Description 2. Block Diagram 3. Schematics 4. Parts List 5. Tuning Info Short-Term Confidential for 120 days 6. Internal Photos 7. Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation shall not be made. Regards Icom Incorporated Tatsuo Yano General Manager of Quality Assurance Department 1-1-32 kamiminami Hirano-ku Osaka Japan. Phone : +81 66793-5301 Fax : +81 66793-0013 e-mail: [email protected] URL : https://www.icomjapan.com/

Date: June 10, 2024 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: Icom Incorporated Product: Lenear amplifier Model: IC-PW2 FCC ID: AFJ410900 Dear Sir/Madam, We hereby appoint Sharon Hoffman of TIMCO ENGINEERING, Inc. to act as our agent in preparation of this application for authorization of above equipment under F.C.C. Rules. We hereby certify that neither the application nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 because of a conviction for possession or distribution of a controlled substance. See 47 CRF 1.2002(b) for the definition of a “party” for these purposes. We also certify that the information provided, property describe the device or system for which authorization is required. Best regards Icom Incorporated Tatsuo Yano General Manager of Quality Assurance Department 1-1-32 kamiminami Hirano-ku Osaka Japan. Phone : +81 66793-5301 Fax : +81 66793-0013 e-mail: [email protected] URL : https://www.icomjapan.com/

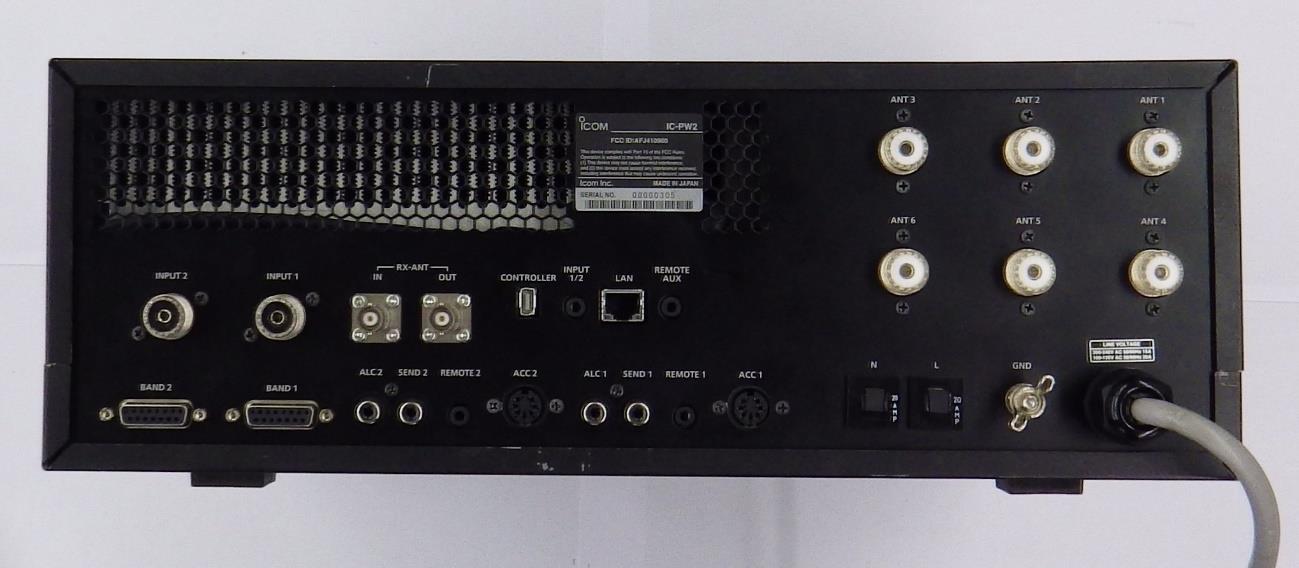

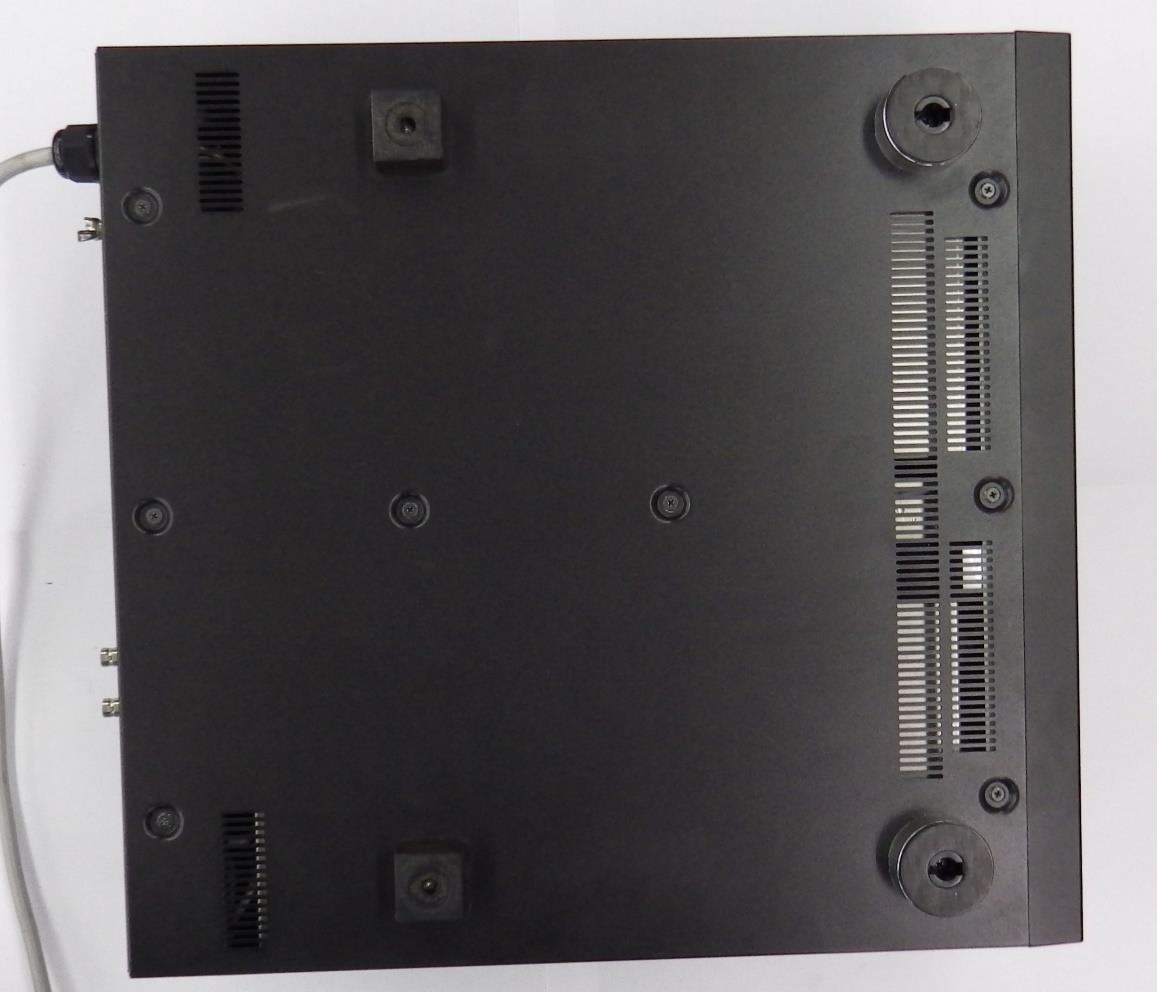

FRONT REAR LEFT_Side RIGHT_Side TOP BOTTOM

Test Report# TR_13789-24_FCC 1.1310/ MPE_ Revision: 2 Te s t Report - FCC Par t 1.1310/ MPE Applicant: Icom Incorporated Signature: Name & Title: Tim Royer, EMC Engineer Date of Signature 6/3/2024 Signature: Name & Title: Kristoffer Costa, EMC Technician Date of Signature 6/3/2024 This test report relates only to the items tested as identified and is not valid for any subsequent changes or modifications made to the equipment under test. 13146 NW 86 th Drive, Suite 400, Alachua, Florida 32615 (352) 472-5500 / [email protected] Page 2 of 9 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc., a subsidiary of Industrial Inspection & Analysis, Inc. (IIA). Table of Contents 1. APPLICANT INFORMATION ........................................................................................................................................................................... 3 2. LOCATION OF TESTING ................................................................................................................................................................................. 3 2.1 TEST LABORATORY ...................................................................................................................................................................... 3 3. TEST SAMPLE(S) (EUT/DUT) ........................................................................................................................................................................... 4 3.1 DESCRIPTION OF THE EUT .......................................................................................................................................................... 4 4. TEST METHODS & APPLICABLE REGULATORY LIMITS ............................................................................................................................ 5 4.1 TEST METHODS/STANDARDS/GUIDANCE: .................................................................................................................................... 5 4.1.1 FCC Limits for Maximum Permissible Exposure (MPE) .......................................................................................... 5 4.2 EQUATIONS ................................................................................................................................................................................ 6 5. RF EXPOSURE RESULTS .................................................................................................................................................................................. 7 6. HISTORY OF TEST REPORT CHANGES ........................................................................................................................................................ 8 13146 NW 86 th Drive, Suite 400, Alachua, Florida 32615 (352) 472-5500 / [email protected] Page 3 of 9 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc., a subsidiary of Industrial Inspection & Analysis, Inc. (IIA). 1. Applicant Information Applicant: Icom Incorporated Address: 1-1-32 Kamininami Hirano-Ku Osaka, 547-0003, Japan 2. Location of Testing 2.1 Test Laboratory Timco Engineering Inc. is a subsidiary of Industrial Inspection & Analysis, Inc. (“IIA”). Testing was performed at IIA’s permanent laboratory located at 13146 NW 86 th Drive, Suite 400, Alachua, Florida 32615. FCC test firm # 578780 FCC Designation # US1070 FCC site registration is under A2LA certificate # 0955.01 ISED Canada test site registration # 2056A EU Notified Body # 1177 For all designations see A2LA scope # 0955.01 13146 NW 86 th Drive, Suite 400, Alachua, Florida 32615 (352) 472-5500 / [email protected] Page 4 of 9 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc., a subsidiary of Industrial Inspection & Analysis, Inc. (IIA). 3. Test Sample(s) (EUT/DUT) The test sample was received: 5/20/2024 Dates of Testing: 5/23/2024 – 5/31/2024 3.1 Description of the EUT A description as well as unambiguous identification of the EUT(s) tested. Where more than one sample is required for technical reasons (such as the use of connected units for the purpose of conducted output power testing where the product units will have integral antennas), each specific test shall identify which unit was tested. Identification FCC ID: AFJ410900 Brief Description Linear Amplifier Model(s) # IC-PW2 Firmware version N/A Software version N/A Serial Number N/A Technical Characteristics Frequency Range 1.8 MHz- 54 MHz RF O/P Power (Max.) 1000W Modulation FM Number of Channels N/A Duty Cycle 100% Antenna Connector N Type Voltage Rating (AC or Batt.) 90-132 VAC/ 500W Antenna Characteristics Antenna Frequency Range Mode / BW Antenna Gain 1 n/a n/a 0 dBi - Note: Information such as antenna gain, firmware/software numbers are provided by manufacturer and cannot be validated by the test lab. 13146 NW 86 th Drive, Suite 400, Alachua, Florida 32615 (352) 472-5500 / [email protected] Page 5 of 9 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc., a subsidiary of Industrial Inspection & Analysis, Inc. (IIA). 4. Test methods & Applicable Regulatory Limits 4.1 Test methods/Standards/Guidance: The following guidance FCC KDB 447498 D01 General RF Exposure Guidance v06 was used for RF exposure evaluation as per FCC Part 1.1310 and FCC Part 2.1091 and part 2.1093. Full test results are available in this report. 4.1.1 FCC Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging Time (minutes) A Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1,500 f/300 <6 1,500-100,000 5…

Text truncated - open the document above for the full version.

Test Report# TR_13789-24_FCC 97_ Revision: 2 Test Report - FCC Par t 97 Applicant: Icom Incorporated Signature: Name & Title: Tim Royer, EMC Engineer Date of Signature 6/5/2024 Signature: Name & Title: Kristoffer Costa, EMC Technician Date of Signature 6/5/2024 This test report relates only to the items tested as identified and is not valid for any subsequent changes or modifications made to the equipment under test. 13146 NW 86 th Drive, Suite 400, Alachua, Florida 32615 (352) 472-5500 / [email protected] Page 2 of 47 This test report shall not be reproduced except in full without the written and signed permission of Timco Engineering Inc., a subsidiary of Industrial Inspection & Analysis, Inc. (IIA). Table of Contents 1. APPLICANT INFORMATION ........................................................................................................................................................................... 4 1.1 PART 97 TEST RESULT SUMMARY ............................................................................................................................................................................4 2. LOCATION OF TESTING ................................................................................................................................................................................. 5 2.1 TEST LABORATORY .................................................................................................................................................................................................... 5 3. TEST SAMPLE(S) (EUT/DUT) ........................................................................................................................................................................... 5 3.1 DESCRIPTION OF THE EUT ........................................................................................................................................................................................ 6 3.2 CONFIGURATION OF EUT ......................................................................................................................................................................................... 7 3.3 TEST SETUP OF EUT .................................................................................................................................................................................................. 7 4. TEST METHODS & APPLICABLE REGULATORY LIMITS ............................................................................................................................ 8 4.1 TEST METHODS/STANDARDS/GUIDANCE: ............................................................................................................................................................... 8 4.2 APPLIED LIMITS AND REGULATORY LIMITS: .............................................................................................................................................................. 8 5. MEASUREMENT UNCERTAINTY .................................................................................................................................................................... 8 6. ENVIRONMENTAL CONDITIONS ................................................................................................................................................................. 8 6.1 TEMPERATURE & HUMIDITY ...................................................................................................................................................................................... 8 7. LIST OF TEST EQUIPMENT AND TEST FACILITY ........................................................................................................................................ 9 7.1 LIST OF TEST EQUIPMENT ......................................................................................................................................................................................... 9 8. TEST RESULTS ................................................................................................................................................................................................. 10 8.1 POWER AT THE FINAL AMPLIFIER ............................................................................................................................................................................. 11 8.2 RF OUTPUT POWER ................................................................................................................................................................................................ 12 8.3 EMISSION LIMITATIONS, OUT-OF-BAND ............................................................................................................................................................... 14 8.3.1 Conducted Emissions, Below 1GHz, 1.915 MHz ............................................................................................................................. 15 8.3.2 Conducted Emissions Above 1GHz, 1.915 MHz.............................................................................................................................. 16 8.3.3 Conducted Emissions Below 1GHz, 3.5 MHz .................................................................................................................................. 17 8.3.4 Conducted Emissions Above 1GHz, 3.5 MHz ................................................................................................................................. 18 8.3.5 Conducted Emissions Below 1GHz, 7 MHz ..................................................................................................................................... 19 8.3.6 Conducted Emissions Above 1GHz, 7 MHz .................................................................................................................................... 20 8.3.7 Conducted Emissions, Below 1GHz, 10.12 MHz ...................................................…

Text truncated - open the document above for the full version.

OUTPUT Power and GAIN AC230V １000Watts Output Frequency （ＭＨｚ） Ｏｕｔ Power Input Poweｒ GAIN Mode RTTY [W] [W] [dB] 1.81 985.1 66.8 11.69 1.99 986.5 65.7 11.77 3.51 978.6 55.4 12.47 3.99 984.0 45.9 13.31 7.01 997.2 46.7 13.29 7.29 991.8 42.7 13.66 10.11 987.6 52.4 12.75 10.14 987.6 52.6 12.74 14.01 995.5 42.8 13.67 14.34 997.5 41.1 13.85 18.07 992.2 40.2 13.92 18.16 991.8 40.0 13.94 21.01 986.8 50.8 12.88 21.44 990.0 54.2 12.62 24.90 980.0 61.8 12.00 24.98 988.5 61.9 12.03 26.01 65.9 72.8 -0.43 27.00 64.9 72.2 -0.46 27.99 68.7 76.9 -0.49 28.01 1000.8 63.5 11.98 29.68 990.5 60.0 12.18 50.10 999.8 52.7 12.78 53.98 1013.8 63.9 12.00 spec Lower than 15dB APVD CHKD PREP REVISION MODEL PAGE 2024/05/15 Y.Torii SERIAL No. 305 Ｂ－１ ＩＣＯＭ ＩＮＣＯＲＰＯＲＡＴＥＤ OUTPUT Power and GAIN AC230V 500Watts Output Frequency （ＭＨｚ） Ｏｕｔ Power Input Power GAIN Mode RTTY [W] [W] [dB] 1.81 495.3 28.9 12.34 1.99 496.1 27.2 12.61 3.51 490.9 19.9 13.92 3.99 490.9 17.8 14.41 7.01 493.7 17.0 14.63 7.29 492.9 16.3 14.81 10.11 497.3 19.3 14.11 10.14 493.8 19.4 14.06 14.01 499.5 17.5 14.55 14.34 500.1 17.2 14.64 18.07 490.2 18.2 14.30 18.16 489.8 18.2 14.30 21.01 490.2 19.3 14.05 21.44 494.3 19.5 14.04 24.90 497.2 22.7 13.41 24.98 496.5 22.9 13.36 26.01 64.3 71.4 -0.45 27.00 62.3 69.8 -0.49 27.99 66.7 74.4 -0.47 28.01 508.3 24.1 13.24 29.68 511.6 23.7 13.34 50.10 501.8 23.4 13.31 53.98 516.4 29.9 12.37 spec Lower than 15dB APVD CHKD PREP REVISION MODEL PAGE 2024/05/15 Y.Torii SERIAL No. 305 ＩＣＯＭ ＩＮＣＯＲＰＯＲＡＴＥＤ OUTPUT Power and GAIN AC120V 500Watts Output Frequency （ＭＨｚ） Ｏｕｔ Power Input Power GAIN Mode RTTY [W] [W] [dB] 1.81 509.3 34.3 11.72 1.99 508.8 33.6 11.80 3.51 499.4 28.0 12.51 3.99 501.4 22.7 13.44 7.01 502.5 23.1 13.38 7.29 502.7 21.4 13.71 10.11 505.7 21.6 13.69 10.14 500.4 21.8 13.61 14.01 507.6 22.4 13.55 14.34 508.5 21.4 13.76 18.07 500.2 21.5 13.67 18.16 499.8 21.4 13.68 21.01 497.6 25.1 12.97 21.44 500.9 25.7 12.90 24.90 502.7 30.7 12.14 24.98 502.8 30.7 12.14 26.01 63.9 71.1 -0.46 27.00 63.5 70.5 -0.45 27.99 67.6 74.7 -0.43 28.01 518.2 32.4 12.04 29.68 506.3 30.4 12.22 50.10 498.3 30.8 12.09 53.98 514.8 35.5 11.61 spec Lower than 15dB APVD CHKD PREP REVISION MODEL PAGE 2024/05/15 Y.Torii SERIAL No. 305 ＩＣＯＭ ＩＮＣＯＲＰＯＲＡＴＥＤ

ANNEX B – Test Setup Photograph Exhibit Icom Incorporated Model: IC-PW2 FCC ID: AFJ410900 Conducted Test Setup Radiated Testing, Table Setup #1 Radiated Testing, Below 1 GHz #1 Radiated Testing, Below 1 GHz #2 Radiated Testing, Below 1 GHz #3
