AFJ417900VHF-FM Land-Mobile Portable Transceiver

PRECAUTIONS RWARNING! NEVER use or charge Icom battery packs with non-Icom transceivers or non-Icom chargers. Only Icom battery packs are tested and approved for use with Icom transceivers or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst. RWARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. RWARNING! NEVER operate the transceiver with a headset or other audio accessories at high volume levels. The continuous high volume operation may cause a ringing in your ears. If you experience the ringing, reduce the volume level or discontinue use. CAUTION: DO NOT short the terminals of the battery pack. Shorting may occur if the terminals touch metal objects such as a key, so be careful when placing the battery packs (or the transceiver) in bags, and so on. Carry them so that shorting cannot occur with metal objects. Shorting may damage not only the battery pack, but also the transceiver. CAUTION: DO NOT use harsh solvents such as Benzine or alcohol when cleaning. This could damage the equipment surfaces. If the surface becomes dusty or dirty, wipe it clean with a soft, dry cloth. CAUTION: DO NOT place or leave the transceiver in excessively dusty environments. This could damage the transceiver. NOTE: DO NOT place or leave the transceiver in areas with temperatures below –30°C (–22°F) or above +60°C (+140°F), or in areas subject to direct sunlight, such as the dashboard. BE CAREFUL! The transceiver meets IP67* requirements for dust tight and waterproof protection. However, once the transceiver has been dropped, dust protection and splash resistance cannot be guaranteed due to the fact that the transceiver may be cracked, or the waterproof seal damaged, and so on. * Only when the jack cover, or the optional speaker microphone is attached. Icom is not responsible for the destruction, damage to, or performance of any Icom or non-Icom equipment, if the malfunction is because of: • Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, other natural disasters, disturbances, riots, war, or radioactive contamination. • The use of Icom transceivers with any equipment that is not manufactured or approved by Icom. FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION: Changes or modifications to this transceiver, not expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. RECOMMENDATION CLEAN THE TRANSCEIVER THOROUGHLY IN A BOWL OF FRESH WATER after exposure to saltwater, and dry it before operating. Otherwise, the transceiver’s keys and switches may become unusable, due to salt crystallization, and/or the charging terminals of the battery pack may corrode. NOTE: If the transceiver’s waterproof protection appears defective, carefully clean the transceiver with a soft, damp (fresh water) cloth, then dry it before operating. The transceiver may lose its waterproof protection if the case, jack cap, or connector cover is cracked or broken, or the transceiver has been dropped. Contact your Icom distributor or your dealer for advice. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. AquaQuake is a trademark of Icom Incorporated. AMBE+2 is a trademark and property of Digital Voice Systems Inc. Other trademarks and trade names are those of their respective owners. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Icom Inc. is under license. All other products or brands are registered trademarks or trademarks of their respective holders. EXPLICIT DEFINITIONS WORDDEFINITION RDANGER!Personal death, serious injury or an explosion may occur. RWARNING!Personal injury, fire hazard or electric shock may occur. CAUTIONEquipment damage may occur. NOTEIf disregarded, inconvenience only. No risk of personal injury, fire or electric shock. DBattery caution Misuse of Li-ion batteries may result in the following hazards: smoke, fire, or the battery may rupture. Misuse can also cause damage to the battery or degradation of battery performance. RDANGER! NEVER place battery packs near a fire. Fire or heat may cause them to rupture or explode. Dispose of used battery packs in accordance with local regulations. RDANGER! NEVER let fluid from inside the battery get in your eyes. This can cause blindness. Rinse your eyes with clean water, without rubbing them, and immediately get medical treatment from an eye doctor. RWARNING! NEVER solder the battery terminals, or NEVER modify the battery pack. This may cause heat generation, and the battery may burst, emit smoke or catch fire. RWARNING! NEVER place or leave battery packs in areas with temperatures above 60°C (140°F). High temperature buildup in the battery cells, such as could occur near fires or stoves, inside a sun-heated vehicle, or in direct sunlight for long periods of time may cause the battery c…

Text truncated - open the document above for the full version.

7 FOR YOUR REFERENCE 6 SET MODE 5 OTHER FUNCTIONS 4 USING THE IDAS MODE 3 USING THE CELLULAR MODE 2 BEFORE USING 1 ACCESSORIES INTRODUCTION INSTRUCTION MANUAL HYBRID IP TRANSCEIVER IP730D IP740D i INTRODUCTION Thank you for choosing this Icom product. This product is designed and built with Icom’s state of the art technology and craftsmanship. With proper care, this product should provide you with years of trouble-free operation. IMPORTANT FIRST, CAREFULLY READ INSTRUCTIONS that is boxed with the transceiver. SAVE THIS INSTRUCTION MANUAL— This instruction manual contains additional important operating instructions for the transceiver. Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Icom Inc. is under license. AquaQuake TM is a trademark of Icom Incorporated. All other products or brands are registered trademarks or trademarks of their respective holders. Icom is not responsible for the destruction, damage to, or performance of any Icom or non-Icom equipment, if the malfunction is because of: • Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, other natural disasters, disturbances, riots, war, or radioactive contamination. • The use of Icom transceivers with any equipment that is not manufactured or approved by Icom. 1-1 Section 1 ACCESSORIES Supplied accessories1-2 Attachable accessories1-2 DAntenna 1-2 DBattery pack/Battery case 1-3 DBelt clip 1-3 1 ACCESSORIES 1-2 Supplied accessories Attachable accessories DAntenna Connect an optional antenna to the antenna connector CAUTION: •DO NOT carry the transceiver by holding only the antenna •DO NOT connect an antenna other than the supplied antenna, or those listed in this manual •DO NOT transmit without an antenna NOTE: Some accessories are not supplied, or the shape is different, depending on the transceiver version. Battery packBelt clip Connector cover and screw 1 ACCESSORIES 1-3 DBattery pack/Battery case CAUTION: •DO NOT attach or detach the battery pack or the battery case when the transceiver is wet or soiled This may result in water or dust getting into the transceiver, battery pack, or battery case and may damage them CAUTION: Keep the battery pack terminals clean It’s a good idea to occasionally clean them To attach: 1 Slide the battery pack in the direction of the arrow (1) 2 Push the battery pack until the battery sliding locks make a ‘click’ sound (2) To detach: 1 Pull both battery sliding locks in the direction of the arrow (1) 2 Lift up to detach the battery pack (2) DBelt clip To attach: 1 Remove the battery pack from the transceiver, if it is attached 2 Slide the belt clip in the direction of the arrow until the belt clip is locked and makes a ‘click’ sound To detach: 1 Remove the battery pack from the transceiver, if it is attached 2 Lift the tab up (1), and slide the belt clip in the direction of the arrow (2) LBe careful not to break your fingernail. Attachable accessories (Continued) 1 2 1 1 2 Battery sliding locks 1 2 Ta b 2-1 Section 2 BEFORE USING Panel description ������������������������������������������������������������������������������������2-2 DFront, top and side panels ��������������������������������������������������������������2-2 DStatus indicator �������������������������������������������������������������������������������2-2 DMulti-connector �������������������������������������������������������������������������������2-2 DAbout the assignable key functions ������������������������������������������������2-2 Function display��������������������������������������������������������������������������������������2-3 DCellular mode ����������������������������������������������������������������������������������2-3 DIDAS mode �������������������������������������������������������������������������������������2-3 DCellular/IDAS mode ������������������������������������������������������������������������2-3 Basic operation ���������������������������������������������������������������������������������������2-4 DTurning ON the transceiver �������������������������������������������������������������2-4 DAdjusting the volume level ��������������������������������������������������������������2-4 DUsing the Key Lock function �����������������������������������������������������������2-4 DSelecting the operation mode ���������������������������������������������������������2-4 2 BEFORE USING 2-2 Panel description DFront, top and side panels Rotary Selector [Emer] [PTT] Function display Status indicator Microphone [VOL] Multi- connector Speaker Antenna Connector [Sub PTT] [Side 1] [Side 2] [FUNC] [CLR/Lock] [Address] [Call History] [▲]/[▼] DStatus indicator • Lights red: Transmitting� • Lights green: Receiving or squelch is open� • Lights yellow: Receiving and transmitting in the Full-Duplex mode� DMulti-connector Connects to an optional speaker microphone or headset� LTurn OFF the transceiver before attaching or detaching the microphone� CAUTION: DO NOT use the transceiver without the connector cover or optional equipment attached� The transceiver meets IP67 requirements for dust- tight and waterproof protection only when the connector cover or the optional speaker microphone is attached� See page 7-4 for the usable speaker microphones� DAbout the assignable key functio…

Text truncated - open the document above for the full version.

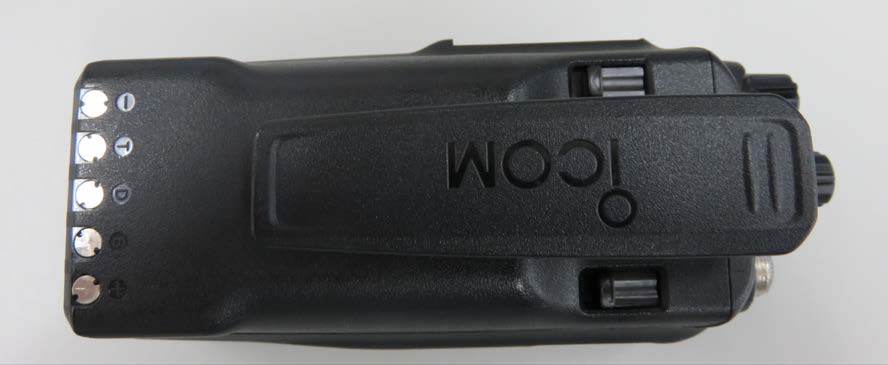

Picture Front view Rear view Picture Top view Bottom view Picture Right view(IC-F2100D/DS) Left view(IC-F2100D/DS)

Serial Plate IP730D #11 IP730D #12 Picture Serial view

Electronic Label Refer to the "Certification" screen for certifications acquired with the transceiver. 1. Turn OFF the transceiver, if it is turned ON. 2. While holding down [FUNC], rotate [VOL] to turn ON the transceiver. The Set mode is displayed. 3. Rotate Rotary Selector or push [▲] or [▼] to Select “Certification” and then push [FUNC] to display certifications. Cellular CERT Bluetooth CERT Bluetooth CERT Push [FUNC] Push [FUNC] Push [FUNC] Push [ጴጵጶጷጸጹ] Push [ጴጵጶጷጸጹ] Push [ጴጵጶጷጸጹ] Cellular CERT

Picture Front Panel Open view Main Board and CHASSIS Picture MAIN Board side-A view Picture MAIN Board side-B view Picture Front Board side-A view Front Board side-B view

© 2020 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION ICOM, Inc. Dates of Test: December 2-11, 2020 1-1-32 Kamiminami Hirano-ku Test Report Number: SAR.20201208 Osaka 547-0003 Revision B Japan This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for controlled environment/occupational and uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and IEC 62209-2:2010 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: AFJ417900 IC Certificate: 202D-417900 Model(s): IP730D HVIN: 417900-01 Test Sample: Engineering Unit Same as Production Serial No.: Eng 1 Equipment Type: Push-To-Talk Handheld Radio for Occupational Population Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 136 – 174 MHz, 699 – 716 MHz; 824 – 849 MHz; 1710 – 1755 MHz; 1850 – 1910 MHz; 2402 – 2480 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 150 MHz (FM) – 36.99 dBm, 750 MHz (LTE) – 25.7 dBm, 835 MHz (WCDMA) – 25.0 dBm, 1750 MHz (LTE) – 25.7 dBm, 1900 MHz (WCDMA) – 25.0 dBm, 1900 MHz (LTE) -24.0 dBm, 2450 MHz (BT) – 4.0 dBm Conducted Signal Modulation: FM, QPSK, 16QAM, DSSS, GFSK Body Worn: MB-133, MB-136, MB-96F, MB-96FL, MB-96N, MB57L, LC-195 Audio Accessories: HM-163MC, HM-184, HM-184H, HM-222, HM-222H, HM-236, HM-238MC, HM-245T, SP16-BW, SP-26, SP-27, SP-28, SP-29, SP- 40, HS-94, HS-95, HS-97, VS-3, VS-4MC, VS-5MC, AD-135 Antenna Type: FA-SC25V, FA-SC26VS, FA-SC27VS, FA-SC28V, FA-SC29V, FA-SC55V, FA-SC56VS, FA-SC57VS, FA-SC61VC and Internal Antenna For Cellular/BT Battery: BP-302, BP-303, BP-305 Application Type: Certification FCC Rule Parts: Part 2, 15, 22, 24, 27, 90 KDB Test Methodology: KDB 447498 D01 v06, KDB 643646 D01 v01r03, KDB 941225 D05 v02r05, KDB 865664 D01 v01r04, KDB 865664 D02 v01r02 Industry Canada: RSS-102 Issue 5, Safety Code 6 Max. Stand Alone SAR Value: 0.43 W/kg for Face; 0.20 for Body Reported Max. Simultaneous SAR Value: 0.39 W/kg Reported; 0.12 For Ratio Limit Separation Distance: 25 mm for Face; 0 mm for Body Report Number: SAR.20201208 © 2020 RF Exposure Lab, LLC Page 2 of 153 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................ 4 SAR Definition [5] ................................................................................................................... 5 2. SAR Measurement Setup ................................................................................................... 6 Robotic System ...................................................................................................................... 6 System Hardware ................................................................................................................... 6 System Electronics ................................................................................................................. 7 Probe Measurement System .................................................................................................. 7 3. Probe and Dipole Calibration .............................................................................................15 4. Phantom & Simulating Tissue Specifications .....................................................................16 Head & Body Simulating Mixture Characterization ................................................................16 5. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2] ..............................................................17 Uncontrolled Environment .....................................................................................................17 Controlled Environment .........................................................................................................17 6. Measurement Uncertainty .................................................................................................18 7. System Validation..............................................................................................................19 Tissue Verification .................................................................................................................19 Test System Verification ........................................................................................................19 8. LTE Document Checklist ...................................................................................................20 9. SAR Test Data Summary ..................................................................................................23 Procedures Used To Establish Test Signal ...........................................................................23 Device Test Condition ...........................................................................................................23 10. 3G Measurement Procedures ........................................................................................37 10.1 Procedures Used to Establish RF S…
