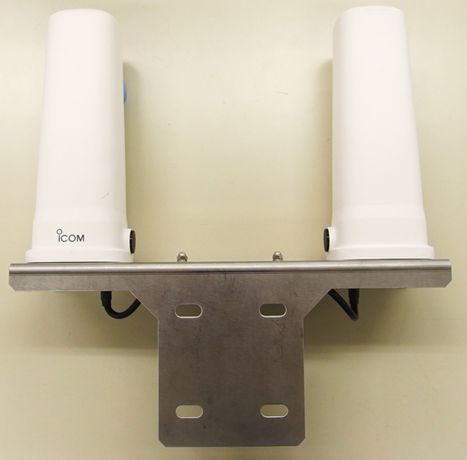

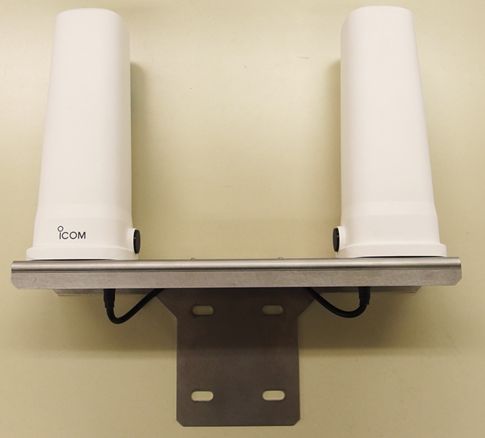

AFJ420300Iridium Active Antenna

INSTRUCTIONS Thank you for choosing this Icom product. READ ALL INSTRUCTIONS carefully and completely before using this product. SATELLITE ANTENNA AH-41 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan AXXXXW-1EX Printed in Japan © 2020 Icom Inc. Jul. 2020 PRECAUTIONS RWARNING HIGH RF VOLTAGE! NEVER touch an antenna or antenna connector while transmitting. This could cause an electrical shock or burn. RWARNING HIGH RF VOLTAGE! NEVER install the antenna at any place that person easily touch the antenna while transmitting. This could cause an electrical shock or burn. RWARNING! NEVER disassemble, modify or repair the antenna. This may result in an electrical shock, cause a fi re or damage the antenna. RWARNING! NEVER touch the antenna with wet hands. This may result in an electrical shock or damage the antenna. CAUTION: DO NOT put the antenna in any unstable place, such as on a slanted surface or a place that vibrates. This may cause an injury and/or damage the antenna. CAUTION: DO NOT use the antenna in strong magnetic fi elds or in an area with high static electricity. This could damage the antenna. CAUTION: DO NOT use harsh solvents such as benzine or alcohol to clean the antenna, as they can damage the antenna’s surfaces. If the antenna becomes dusty or dirty, wipe it clean with a dry, soft cloth. CAUTION: The antenna meets IP67 requirements for dust- tight and waterproof protection. However, once the antenna has been dropped, dust-tight and waterproof protection cannot be guaranteed because of possible damage to the antenna’s case or the waterproof seal. DO NOT place or leave the antenna in excessively dusty environments. EXPLICIT DEFINITIONS WORDDEFINITION RWARNING! Personal injury, fi re hazard or electric shock may occur. CAUTIONEquipment damage may occur. NOTEIf disregarded, inconvenience only. No risk of personal injury, fi re or electric shock. DISPOSAL The crossed-out wheeled-bin symbol on your product, literature, or packaging reminds you that in the European Union, all electrical and electronic products, batteries, and accumulators (rechargeable batteries) must be taken to designated collection locations at the end of their working life. Do not dispose of these products as unsorted municipal waste. Dispose of them according to the laws in your area. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. Icom is not responsible for the destruction, damage to, or performance of any Icom or non-Icom equipment, if the malfunction is because of: •Force majeure, including, but not limited to, fi res, earthquakes, storms, fl oods, lightning, other natural disasters, disturbances, riots, war, or radioactive contamination. • The use of Icom antennas with any equipment that is not manufactured or approved by Icom. INSTALLING THE ANTENNA Install the antenna on a 40 ~ 60 mm (1.6 ~ 2.4 inch) diameter pole using the supplied accessories, as shown below. Install the antenna in a place with a clear view of the sky. Confi rm no other antennas are placed within 10 m (32 feet). Do not tilt the antenna. Keep the antenna pole vertical to the ground. Installation example: Antenna Flat washer (M6) U-bolt Butterfl y nut (M6) or Nut (M6) S-washer (M6) Pole clamp ENGLISH U-boltPole clampFlat-Washer (M6) S-Washer (M6) Butterfl y nut (M6) Nut (M6)Self-tapping screw(6 × 30 mm)* Connection cable Power unit Power adapter *Used to secure the power unit to the wall. SAFETY TRAINING INFORMATION Your Icom antenna generates RF electromagnetic energy while transmitting. This antenna is designed for and classifi ed as for “Occupational Use Only.” This means it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This antenna is NOT intended for use by the “General Population” in an uncontrolled environment. This antenna has been tested and complies with the FCC and IC RF exposure limits for “Occupational Use Only”. In addition, your Icom antenna complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC KDB Publication 447498 D03, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-2010), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-2002), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields– RF and Microwave. • The accessories listed on this sheet are authorized for use with this product. Use of accessories other than those specifi ed may result in RF exposure levels exceeding the FCC requirements for wireless RF exposure. • Health Canada Safety Code 6 - Limits of Human Exposure to Electromagnetic Energy in the Frequency Range from 3 kHz to 300 GHz. To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: •DO NOT operate the radio without a proper antenna attached, as this may damage the radio and may also cause you to exceed FCC RF exposure limits. A proper antenna is the antenna supplied with this radio by the manufacturer or an antenna specifi cally authorized by the manufacturer for use with this radio. • DO NOT transmit for more than 50% of the total radio use time (“50% duty cycle”). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded. •ALWAYS keep the antenna at least 20 cm (7.9 inch) away from the body when transmitting to ensure FCC and IC RF exposure compliance requirements are not exceeded. The information listed above provides the user with th…

Text truncated - open the document above for the full version.

1.AH-41 ･Frequency range1616.02MHz to 1626.48MHz (TX Unit / RX Unit) 1575.42MHz to 1605.4MHz (RX Unit, GNSS L1 Band) ･Antenna impedance50 ohms nominal ･Operating temperature range- 25 °C to + 55 °C ･Current drain (approx.)≦ 1.50A (at relay) ≦ 0.50A (stand by) @ Input voltage 28.0V ･DimensionsW 310 x H 326 x D 89 mm （Excluding protrusions) ･Weight1.4 kgrams approx. ･TX output power+32.5dBm±1dBm @ +23.3 dBm Input ･TX EVM≦7% ･TX Spurious emissions≦ -13dBm ・RX Gain+17dB ± 5dB @ -80 dBm input ・RX Noise figure≦ 5.0dB ･RX Spurious emissions≦ -13dBm 2.BC-253 ･Pass Loss1.5dB±0.3dB ･Output voltage28.5V±5 % ･Output Current1.0A±0.2 A ･DimensionsW 70 x H 40 x D 100 mm （Excluding protrusions) ･Weight300 grams approx.

1-6-19,Kamikuratsukuri,Hirano-ku,Osaka Japan. Phone : +81 6 6793 8424 Fax : +81 6 6793 3336 e-mail: [email protected] URL : http://www.icom.co.jp/world Date: July 3, 2020 To Whom It May Concern Subject: FCC Application for FCC ID: AFJ420330 Dear Sir/Madam, We, the undersigned, hereby attest to the fact that we will apply the Verification Authorization procedure pursuant to Part15B – Unintentional Radiators, portion of this composite filing. Best regards Icom Incorporated Atsushi Tomiyama General Manager of Quality Assurance Department

1-6-19,Kamikuratsukuri,Hirano-ku,Osaka Japan. Phone : +81 6 6793 8424 Fax : +81 6 6793 3336 e-mail: [email protected] URL : http://www.icom.co.jp/world Date: July 3, 2020 To Whom It May Concern Subject: Manufacture’s Letter Applicant: Icom Incorporated Product: Iridium active antenna Model: AH-41 FCC ID: AFJ420330 Dear Sir/Madam, Please be advised that the manufacture will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Icom Incorporated Atsushi Tomiyama General Manager of Quality Assurance Department

For USA Only Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: Trade Name : ICOM Model Name: : AH-41 Responsible party: Company name : Icom America Inc. Address : 12421 Willows Road NE Kirkland, WA 98034 U.S. Contact Information: 800-USA-ICOM (800-872-4266) Monday - Friday 7AM to 5PM PST FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

August 18, 2020 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Equipment Authorization under FCC 47 CFR, Parts 2 and 25 (Subpart C) - Amplifier Operating in the Frequency Band 1616.0 MHz to 1626.5 MHz Applicant: ICOM Incorporated Product: Iridium Active Antenna Model: AH-41 FCC ID: AFJ420300 Dear Sir/Madam: As appointed agent for ICOM Incorporated, we submit the application for FCC certification of the above product. Kindly review all required documents uploaded to your E-Filing Site. If you have any queries, please do not hesitate to contact us. Yours truly, Dan Huynh Dan Huynh Authorized Agent UltraTech Group of Labs FCC TCB & ISED CB Accreditations: APEC TEL CA0001 1309 CA0001/2049 AT-1945 SL2-IN-E-1119R Korea KCC-RRA CA0001 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

-Adjust- Idling current 1 • TX unit only • 50Ω termination • Apply 28V DC to TX unit only • Adjust idling current TX Unit R120 80mA -Adjust- Output power 2 • 50Ω termination • with BC-253/OPC-2461/OPC-2462 • Apply 13.8V DC to BC-253 • Input 1621 MHz/+23.3dBm signal to Tx Unit • Adjust output power TX Unit R120 32.5 dBm BC-253 is no adjustment. AH-41 ADJUSTMENT ADJUSTMENTCONDITIONOPERATION ADJUSTMENT ITEM VALUE

FCC Parts 2 and 25 Page 27 of 30 Iridium Active Antenna, Model: AH-41 FCC ID: AFJ420300 ULTRATECH GROUP OF LABS File #: 20ICOM528_FCC25 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 18, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.5. EXPOSURE OF HUMANS TO RF FIELD [[§§ 1.1310 & 2.1091] § 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 6141.63*(100) 6 3.0-30 1842/f4.89/f*(900/f 2 ) 6 30-300 61.40.1631.0 6 300-1500 f/300 6 1500-100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 6141.63*(100) 30 1.34-30 824/f2.19/f*(180/f 2 ) 30 30-300 27.50.0730.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC Parts 2 and 25 Page 28 of 30 Iridium Active Antenna, Model: AH-41 FCC ID: AFJ420300 ULTRATECH GROUP OF LABS File #: 20ICOM528_FCC25 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 18, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 5.5.1. Method of Measurements Calculation Method of Power Density/RF Safety Distance : 22 44r EIRP r PG S      or S EIRP S GP r      44 Where, P: power input to the antenna in mW EIRP: Equivalent (effective) isotropic radiated power. S: power density mW/cm 2 G: numeric gain of antenna relative to isotropic radiator r: distance to centre of radiation in cm 5.5.2. RF Evaluation Frequency (MHz) Max. Conducted Power (dBm) Max. Antenna Gain (dBi) EIRP (dBm) EIRP (mW) Evaluation Distance, r (cm) Power Density, S (mW/cm 2 ) MPE Limit (mW/cm2) 1616.0 33.29 -0.2 33.09 2037.04 20 0.41 5

Iridium Active Antenna Model: AH-41 FCC ID: AFJ420300 Applicant: ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku Osaka, Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) 47 CFR, Parts 2 and 25 (Subpart C) UltraTech's File No.: 20ICOM528_FCC25 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: August 18, 2020 Report Prepared by: Dan Huynh Issued Date: August 18, 2020 Tested by: Hung Trinh Test Dates: July 21, 2020 August 4, 5, 6,10 & 18, 2020  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by any agency of the US Government.  This test report shall not be reproduced, except in full, without a written approval from UltraTech UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC-RRA APEC TEL CA0001 1309CA0001-2049 AT-1945SL2-IN-E-1119R CA0001 FCC Parts 2 and 25 Contents i Iridium Active Antenna, Model: AH-41 FCC ID: AFJ420300 ULTRATECH GROUP OF LABS File #: 20ICOM528_FCC25 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 18, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION .............................................................................................................................................. 1 1.1. SCOPE ........................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................... 1 1.3. NORMATIVE REFERENCES....................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................................................... 2 2.1. CLIENT INFORMATION .............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .................................................................................................... 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ....................................................................................................................... 3 2.4. LIST OF EUT’S PORTS ............................................................................................................................................... 3 2.5. ANCILLARY EQUIPMENT ........................................................................................................................................... 3 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS .............................................. 4 3.1. CLIMATE TEST CONDITIONS .................................................................................................................................... 4 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNALS ........................................................ 4 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................................... 5 4.1. LOCATION OF TESTS ................................................................................................................................................. 5 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ......................................................................... 5 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES.................................................. 5 4.4. DEVIATION OF STANDARD TEST PROCEDURES .................................................................................................... 5 EXHIBIT 5. TEST DATA ..................................................................................................................................................... 6 5.1. RF POWER OUTPUT [§§ 2.1046 & 25.204(A)] ............................................................................................................. 6 5.2. OCCUPIED BANDWIDTH AND EMISSION LIMITATIONS [§§ 2.1049 & 25.202(F)] ..................................................... 8 5.3. TRANSMITTER SPURIOUS EMISSIONS AT ANTENNA TERMINALS [§§ 2.1053, 25.202 & 25.216] ....................... 16 5.4. TRANSMITTER SPURIOUS/HARMONIC RADIATED EMISSIONS [§§ 2.1053 25.202 & 25.216] ............................. 24 5.5. EXPOSURE OF HUMANS TO RF FIELD [[§§ 1.1310 & 2.1091] ................................................................................. 27 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................................... 29 EXHIBIT 7. MEASUREMENT UNCERTAINTY ................................................................................................................ 30 7.1. RADIATED EMISSION MEASUREMENT UNCERTAINTY ........................................................................................ 30 FCC Parts 2 and 25 Page 1 of 30 Iridium Active Antenna, Model: AH-41 FCC ID: AFJ420300 ULTRATECH GROUP OF LABS File #: 20ICOM528_FCC25 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 August 18, 2020 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test res…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Iridium Active Antenna, Model AH-41 FCC ID: AFJ420300 A1 - 1 Radiated Emissions at 3 m, 30 - 1000 MHz ANNEX 1 - TEST SETUP PHOTOS ICOM Incorporated Iridium Active Antenna, Model AH-41 FCC ID: AFJ420300 A1 - 2 Radiated Emissions at 3 m, Above 1 GHz
