AFJ439101UHF TRANSCEIVER

INSTRUCTIONS Thank you for choosing this Icom product. READ ALL INSTRUCTIONS carefully and completely before using this product. UHF TRANSCEIVER |F200 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A7725D-1EX-0a Printed in Japan © 2023 Icom Inc. Mar. 2023 IMPORTANT SAVE THESE INSTRUCTIONS— These instructions contain basic operating instructions for the IC-F200 UHF TRANSCEIVER. The transceiver may have other functions and operations that are not described in this instruction manual. Ask your dealer for details. EXPLICIT DEFINITIONS WORDDEFINITION RDANGER! Personal death, serious injury or an explosion may occur. RWARNING! Personal injury, fire hazard or electric shock may occur. CAUTION Equipment damage may occur. NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock. Icom is not responsible for the destruction, damage to, or performance of any Icom or non-Icom equipment, if the malfunction is because of: •Force majeure, including, but not limited to, fires, earthquakes, storms, floods, lightning, other natural disasters, disturbances, riots, war, or radioactive contamination. • The use of Icom transceivers with any equipment that is not manufactured or approved by Icom. Icom and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries. All other products or brands are registered trademarks or trademarks of their respective holders. PRECAUTIONS RDANGER! NEVER operate the transceiver near unshielded electrical blasting caps or in an explosive atmosphere. This could cause an explosion and death. RWARNING! NEVER use or charge Icom battery packs with non-Icom transceivers or non-Icom chargers. Only Icom battery packs are tested and approved for use with Icom transceivers or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst. RWARNING RF EXPOSURE! This transceiver emits Radio Frequency (RF) energy. Extreme caution should be observed when operating this transceiver. If you have any questions regarding RF exposure and safety standards, please refer to the Federal Communications Commission Office of Engineering and Technology’s report on Evaluating Compliance with FCC Guidelines for Human Radio Frequency Electromagnetic Fields (OET Bulletin 65). RWARNING! NEVER hold the transceiver so that the antenna is very close to, or touching exposed parts of the body, especially the face or eyes, while transmitting. RWARNING! NEVER operate or touch the transceiver with wet hands. This could cause an electric shock or damage the transceiver. RWARNING! NEVER operate the transceiver with earphones, a headset or other audio accessories at high volume levels. The continuous high volume operation may cause a ringing in your ears. If you experience the ringing in your ears, reduce a volume level or discontinue use. CAUTION: DO NOT use or leave the transceiver in excessively dusty environments. This could damage the transceiver. CAUTION: DO NOT short the terminals of the battery pack. Shorting may occur if the terminals touch metal objects such as a key, so be careful when placing the battery packs (or the transceiver) in bags, and so on. Carry them so that shorting cannot occur with metal objects. Shorting may damage not only the battery pack but also the transceiver. CAUTION: DO NOT change the internal settings of the equipment. This may reduce equipment performance and/or cause extensive and expensive damage to the equipment. The equipment warranty does not cover any problems caused by unauthorized internal adjustments. SAFETY TRAINING INFORMATION Your Icom radio generates RF electromagnetic energy while transmitting. This radio is designed for and classified as for “Occupational Use Only.” This means it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is NOT intended for use by the “General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: • FCC KDB Publication 447498 D03, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-2019), IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz • American National Standards Institute (C95.3-2021), IEEE Recommended Practice for Measurements and Computations of Electric, Magnetic, and Electromagnetic Fields with Respect to Human Exposure to Such Fields, 0 Hz to 300 GHz • The batteries, belt clips, speaker-microphone, and other accessories that are listed in “OPTIONS” on this sheet, are authorized for use with this product. Use of accessories other than those specified may result in RF exposure levels exceeding the FCC requirements for wireless RF exposure. • Health Canada Safety Code 6 - Limits of Human Exposure to Electromagnetic Energy in the Frequency Range from 3 kHz to 300 GHz. FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfu…

Text truncated - open the document above for the full version.

Customer : Specification No.: Model No.: 1, Application The antenna specified in this specification is applicable for the radio-communication 2, Dimensions 3, Materials 4, Electrical Characteristics 1) Resonate Frequency : 447±10MHz Copper Plate 173mm. 2) Impedance : 50 ohm Nominal 3) Radiation Pattern : Omni Directional 4) Polarization : Vertical 5) Standing Wave Ratio (S.W.R): 2.0 or less at Resonate point 6) Insulation resistance : 500 M ohm at DC 500V 7) Waterproof grade : IP68 Antenna submerged 1m, 60 minutes, no electrical abnormalities and associated institutions. 9)Save the temperature range: - 30 ~ + 65 10) Gain 2.14dBi or less 5, Mechanical characteristics: The strength of fixing between sleeve and stud shall withstand the following stresses 1)Vertical pull test: Top down to the bottom of the time fixed for five seconds at the top of the suspension 20Kg static load, without electrical and institutions related exceptions 2) Rotational torque test: In addition to the bottom and sticking with all the antenna is not deformed jig is fixed to the bottom of the shaft to rotate the direction of each of the two reversing torque 10kg, no electrical and institutions related exceptions. 3) Buckling test: Plus or minus 20 degrees reciprocating buckling Angle after 1000 times of shaking, confirm the vertical tensile endurance. Vertical tensile strength requirement is more than 10 kg. Electrical, abnormal happens on institutions. 6, Others: Any modification of this specification has to be agreed by us Prepared By:Checked By:Approval: RUBBER ANTENNA SPECIFICATION 8) Using temperature range: -30 ~ + 60

For USA Only Suppliers Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: Trade Name : ICOM Model Name: : IC-F200 and IC-U20GM Responsible party: Company name : Icom America Inc. Address : 12421 Willows Road NE Kirkland, WA 98034 U.S. Contact Information: 800-USA-ICOM (800-872-4266) Monday - Friday 7AM to 5PM PST FCC Compliance Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC TC APE C SL Ko 300 0 Oak Can Tel.: Fax.: Website: w w Email: vic CB & ISED C EC TEL CA0001 1309 A 0001/2049 AT-1945 2-IN-E-1119R rea KCC-RRA CA0001 0 Bristol Circle, kville, Ontario, nada L6H 6G4 (905) 829-1570 (905) 829-8050 ww.ultratech-labs c@ultratech-labs. Ma Ult r 300 Oak L6H Su b App Pro Mo FC C De a As for fili n If y o Yo u San San Aut CB s.com .com rch 08, 2023 ratech Engin 00 Bristol Circ kville, Ontario H 6G4 bject: plicant: oduct: del: C ID: ar Sir/Madam appointed ag FCC certifica ng site. ou have any q urs truly, nthosh Fernand nthosh Ferna thorized Agen neering Labs cle o Certificatio n and 90 (Sub Frequency B ICOM Incorp UHF Transc IC-F200 AFJ439101 m: gent for ICOM ation of the ab queries, pleas dez ndez nt s, Inc. n Testing in a part I) - Non- Band 450-470 porated ceiver M Incorporate bove product. se do not hes accordance w -Broadcast R 0MHz (12.5 k ed, we would Please revi e sitate to conta with FCC 47 Radio Transc kHz Channel like to submi t ew all files up act us. CFR, Parts 2 ceivers Oper Spacing) t the applicati loaded to yo u 2, 22, 74, 80 rating in the on to you ur electronic

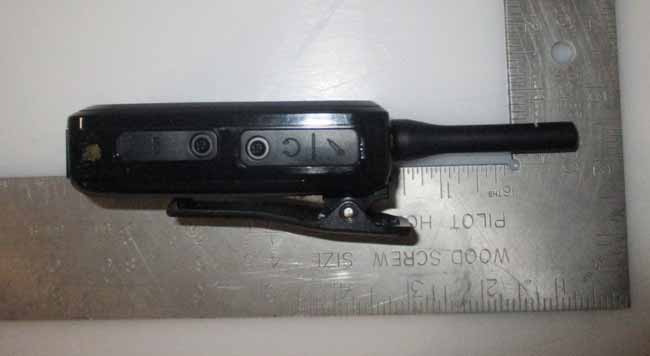

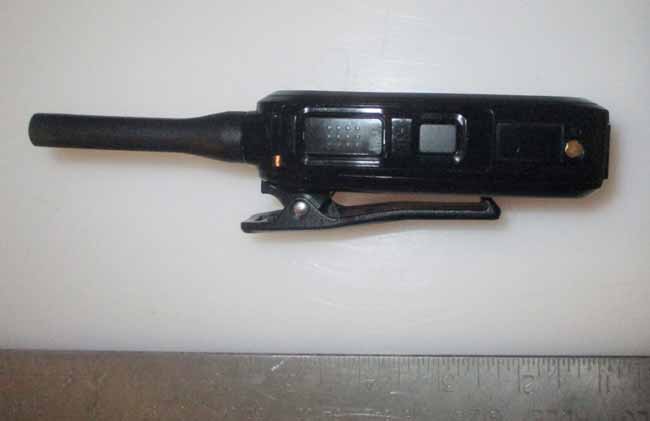

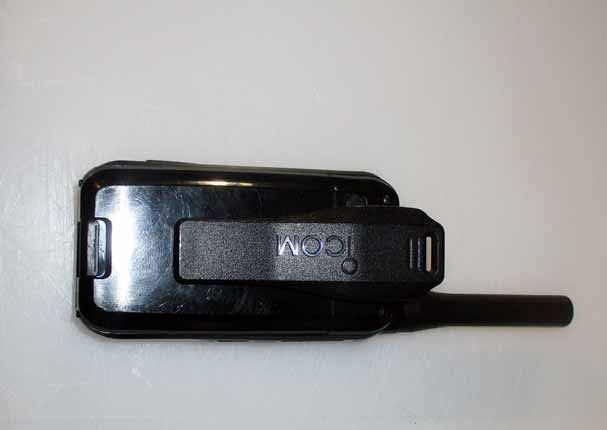

IC‐F200 Front Side IC‐F200 Rear Side IC‐F200 left Side IC‐F200 Right Side IC‐F200 Top Side IC‐F200 Bottom Side IC‐F200 Rear Side with cover battery belt clip removed

IC-F200 Serial Plate

MAIN SIDE A MAIN SIDE B

SPECIFIC ABSORPTION RATE (SAR) Page 1 of 18 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com APPENDIX 1 SAR Measurement Data SPECIFIC ABSORPTION RATE (SAR) Page 2 of 18 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com Contents EXHIBIT 1. PRE-SCANS 450 MHZ SAR MEASUREMENTS ......................................................................................... 3 Pre-scan Body 450 MHz SAR Measurement Summary........................................................................................................... 3 EXHIBIT 2. HEAD 450 MHZ SAR MEASUREMENTS ................................................................................................. 11 Head 450 MHz SAR Measurement Summary ....................................................................................................................... 11 EXHIBIT 3. BODY 450 MHZ SAR MEASUREMENTS ................................................................................................. 15 Body 450 MHz SAR Measurement Summary ........................................................................................................................ 15 SPECIFIC ABSORPTION RATE (SAR) Page 3 of 18 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com EXHIBIT 1. PRE-SCANS 450 MHZ SAR MEASUREMENTS Pre-scan Body 450 MHz SAR Measurement Summary Microphone Power (W) CH. Freq BODY SAR1g BODY SAR10g Power Drift (MHz) (W/Kg) (W/Kg) (dB) HM-153LS 1.340 460.025 3.56 2.48 -0.69 HM-166LS 1.340 460.025 3.24 2.25 -1.06 HM-183LS 1.340 460.025 3.37 2.34 -0.65 HM-186LS 1.340 460.025 2.95 2.05 -1.15 IJKP-HM-1LS-OW 1.340 460.025 2.99 2.09 -0.75 IJKP-HM-2LS-OW 1.340 460.025 3.12 2.18 -1.39 IJKP-HM-3LS-OW 1.340 460.025 3.67 2.57 -1.27 SPECIFIC ABSORPTION RATE (SAR) Page 4 of 18 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com File Name: ICOM-605Q Body IC-F200 460.025 PRESCAN HM-153 LS.da52:0 DUT: IC-F200; Type: UHF Transceiver; Serial: 11000202 Communication System: UID 0, CW (0); Frequency: 460.025 MHz; Duty Cycle: 1:1 Medium parameters used: f = 460.025 MHz; σ = 0.924 S/m; ε r = 54.77; ρ = 1000 kg/m 3 ; Phantom section: Flat Section ; Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration:  Probe: EX3DV4 - SN3673; ConvF(10.34, 10.34, 10.34); Calibrated: 8/30/2022;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn874; Calibrated: 8/25/2022  Phantom: ELI 4.0; Type: QD OVA 001 BB; Serial: 1057  DASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Configuration_Body_IC-F200/Close to Body, d=0mm/Area Scan (81x181x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.88 W/kg Configuration_Body_IC-F200/Close to Body, d=0mm/Zoom Scan (5x5x7) (8x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 77.69 V/m; Power Drift = -0.69 dB Peak SAR (extrapolated) = 5.54 W/kg SAR(1 g) = 3.56 W/kg; SAR(10 g) = 2.48 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 4.75 W/kg 0 dB = 4.88 W/kg = 6.89 dBW/kg SPECIFIC ABSORPTION RATE (SAR) Page 5 of 18 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com File Name: ICOM-605Q Body IC-F200 460.025 PRESCAN HM-166 LS.da52:0 DUT: IC-F200; Type: UHF Transceiver; Serial: 11000202 Communication System: UID 0, CW (0); Frequency: 460.025 MHz; Duty Cycle: 1:1 Medium parameters used: f = 460.025 MHz; σ = 0.924 S/m; ε r = 54.77; ρ = 1000 kg/m 3 ; Phantom section: Flat Section ; Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration:  Probe: EX3DV4 - SN3673; ConvF(10.34, 10.34, 10.34); Calibrated: 8/30/2022;  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn874; Calibrated: 8/25/2022  Phantom: ELI 4.0; Type: QD OVA 001 BB; Serial: 1057  DASY52 52.10.0(1446); SEMCAD X 14.6.10(7417) Configuration_Body_IC-F200/Close to Body, d=0mm/Area Scan (81x181x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 4.52 W/kg Configuration_Body_IC-F200/Close to Body, d=0mm/Zoom Scan (5x5x7) (8x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 77.54 V/m; Power Drift = -1.06 dB Peak SAR (extrapolated) = 5.08 W/kg SAR(1 g) = 3.24 W/kg; SAR(10 g) = 2.25 W/kg (SAR corrected for target medium) Maximum value of SAR (measured) = 4.35 W/kg 0 dB = 4.52 W/kg = 6.55 dBW/kg SPECIFIC ABSORPTION RATE (SAR) Page 6 of 18 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com File Name: ICOM-605Q Body IC-F200 460.025 PRESCAN HM-183 LS.da52:0 DUT: IC-F200; Type: UHF Transceiver; Serial: 11000202 Communication System: UID 0, CW (0); Frequency: 460.025 MHz; Duty Cycle: 1:1 Medium parameters used: f = 460.025 MHz; σ = 0.924 S/m; ε r = 54.77; ρ = 1000 kg/m 3 ; Phantom section: Flat Section ; Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2011) DASY Configuration:  Probe: EX3DV4 - SN3673; ConvF(10.34, 10.34, 10.34); Calib…

Text truncated - open the document above for the full version.

SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 1 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com APPENDIX 3 Body Worn Accessories SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 2 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com TABLE OF CONTENTS BELT-CLIP ................................................................................................................................................................................... 3 HAND-MICROPHONE .................................................................................................................................................................... 3 EARPHONE-MICROPHONE ............................................................................................................................................................ 4 HEADSET-MICROPHONE ............................................................................................................................................................... 5 HEADSET ..................................................................................................................................................................................... 7 CONVERSION CABLE ................................................................................................................................................................... 8 CONNECTION CABLE ................................................................................................................................................................... 9 CLONE CABLE ........................................................................................................................................................................... 10 LI-ION CHARGEABLE BATTERY ................................................................................................................................................. 10 SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 3 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com BELT-CLIP < MB-127 Belt-clip > HAND-MICROPHONE < HM-183LS Hand-Microphone> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 4 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com < HM-186LS Speaker-Microphone> EARPHONE-MICROPHONE < HM-153LS Earphone-Microphone> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 5 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com < HM-166LS Earphone-Microphone> HEADSET-MICROPHONE < IJKP-HM-1LS-OW Headset-Microphone> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 6 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com < IJKP-HM-2LS-OW Headset-Microphone> < IJKP-HM-3LS-OW Headset-Microphone> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 7 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com HEADSET < HS-94 Headset> < HS-95 Headset> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 8 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com < HS-97 Headset> CONVERSION CABLE < OPC-2006LS Conversion Cable> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 9 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com < OPC-2144 Conversion Cable> CONNECTION CABLE < OPC-2328 Connection Cable> SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 10 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com CLONE CABLE < OPC-478UC-1 Clone Cable> LI-ION CHARGEABLE BATTERY < BP-304A Battery > SPECIFIC ABSORPTION RATE (SAR) Appendix 3, Page 11 of 11 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com < BC-263A AC Adapter>

ICOM UHF Transceiver Model No.: IC-F200 FCC ID: AFJ439101 Tested For ICOM Incorporated 1-1-32, Kamiminami, Hirano-ku, Osaka, Japan, 547-0003 In accordance with SAR (Specific Absorption Rate) Requirements using guidelines established in IEEE C95.1-2019, FCC OET Bulletin 65 (Supplement C), FCC 47CFR Part 2.1093 UltraTech’s File No.: ICOM-605Q-SAR This Test report is Issued under the Authority of Tri M. Luu, BASc, Vice President of Engineering UltraTech Group of Labs Date: Apr 03, 2023 Report Prepared by: Pedro G. Moreira, EMC Test Technician Tested by: Pedro G. Moreira, EMC Test Technician Issued Date: Apr 03, 2023 Test Dates: Feb 16, 2023 ~ Feb 24, Mar 29&30, 2023  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government.  This test report shall not be reproduced, except in full, without a written approval from UltraTech Group of Labs. UltraTech Group of Labs 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected] , Email: [email protected] Korea KCC-RRA 91038 1309 46390-2049 AT-1945 SL2-IN-E-1119R CA2049 SPECIFIC ABSORPTION RATE (SAR) Page 1 of 33 M/N: IC-F200 FCC ID:AFJ439101 ULTRATECH GROUP OF LABS File #: ICOM-605Q_SAR 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 2 1.1. SCOPE ............................................................................................................................................................................ 2 1.2. REVISION HISTORY .......................................................................................................................................................... 2 1.3. REFERENCES ............................................................................................................................................................... 3 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 4 2.1. CLIENT AND MANUFACTURER INFORMATION .................................................................................................. 4 2.2. DEVICE UNDER TEST (D.U.T.) DESCRIPTION .......................................................................................................... 4 2.3. SPECIFIC OPERATING AND TEST CONDITIONS .................................................................................................................. 8 EXHIBIT 3. SUMMARY OF TEST RESULTS .................................................................................................................. 9 3.1. LOCATION OF TESTS.................................................................................................................................................. 9 3.2. APPLICABILITY & SUMMARY OF SAR RESULTS ................................................................................................. 9 3.3. SUMMARY OF MEASUREMENT RESULTS ......................................................................................................................... 10 EXHIBIT 4. SAR SYSTEM CONFIGURATION ............................................................................................................. 11 4.1. DASY5 SYSTEM OVERVIEW ...................................................................................................................................... 11 4.2. SAR TEST PHANTOMS ................................................................................................................................................... 14 EXHIBIT 5. SAR DATA ACQUISITION METHODOLOGY ........................................................................................ 15 5.1. SAR MEASUREMENT PROCEDURE ............................................................................................................................. 15 EXHIBIT 6. MEASUREMENTS, EXAMINATIONS & TEST DATA ........................................................................... 19 6.1. TEST CONFIGURATIONS ......................................................................................................................................... 19 6.2. GENERAL TEST SETUP ............................................................................................................................................ 20 6.3. PHOTOGRAPHS OF TISSUE DEPTH AND EUT FOR HEAD & BODY CONFIGURATION......................................................... 21 6.4. PHOTOGRAPHS OF D.U.T. POSITION ..................................................................................................................... 22 EXHIBIT 7. SAR MEASUREMENT SYSTEM VERIFICATION ................................................................................. 23 7.1. STANDARD SOURCE ....................................................................................................................................................... 23 7.2. STANDARD SOURCE INPUT POWER MEASUREMENT ...................................................................................................... 24 7.3. SYSTEM VALIDATION PROCEDURE ................................................................................................................................ 24 7.4. VERIFICATION RESULTS ................................................................................................................................................ 25 EXHIBIT 8. D.U.T. POWER MEASUREMENT .........................................................................…

Text truncated - open the document above for the full version.

This Te s Tri M. Lu Vice Pre UltraTec Date: M Report P Issued D  The res  This re  This tes 0 st report is Iss uu, BASc, esident of Eng ch Group of L arch 08, 2023 Prepared by: Date: March 0 sults in this Test Re eport must not be us st report shall not b Web 0685 TE Federal 47 CFR Ultr sued under th gineering Labs 3 Santhosh Fe 08, 2023 eport apply only to sed by the client to be reproduced, exc 30 bsite: www.ultratec APEC LCA0001 UHF Mode l FCC ID A ICOM 1-1-32, Kam Osaka, J Tested in l Communic R, Parts 2, 22 raTech's File he Authority o rnandez the sample(s) teste o claim product end cept in full, without Ult 00 Bristol Circle, O Tel.: (905) 829- h-labs.com, Email: 1309 C Transceiv l No.: IC-F2 D: AFJ439 Applicant: M Incorporat miminami, H Japan, 547- n Accordance cations Com 2, 74, 80 an e No.: 23ICOM of Tested b Test Da ed, and the sample dorsement by any a a written approval traTech Oakville, Ontario, Ca -1570 Fax.: (905) vic@ultratech-labs A 0001/2049 ver 200 101 ted Hirano-ku -0003 e With mmission (F d 90 (Subpa M605_FCC90 by: Nimisha D tes: February e tested is randomly agency of the US G from UltraTech. h anada, L6H 6G4 ) 829-8050 s.com, Email: tri@u AT-1945 FCC) art I) 0 Desai y 7-15, 2023 y selected. Government. ultratech-labs.com SL2-IN- 1119R Korea KC RRA -E- R CA000 1 CC- 1 FCC Parts 2, 22, 74, 80 and 90 Subpart I, Non-Broadcast Radio Transceivers Contents i UHF Transceiver, Model: IC-F200 FCC ID: AFJ439101 ULTRATECH GROUP OF LABS File #: 23ICOM605_FCC90 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 March 08, 2023 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................................................ 1 1.1. SCOPE ............................................................................................................................................................................ 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 1 1.3. NORMATIVE REFERENCES ....................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .................................................................................................................. 2 2.1. CLIENT INFORMATION ............................................................................................................................................. 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .....................................…

Text truncated - open the document above for the full version.
