AFJIC-M602IC-M602

INSTRUCTION MANUAL iM602VHF MARINE TRANSCEIVER This device complies with Part 15 of the FCC rules. Operation is sub-ject to the following two conditions: (1) This device may not causeharmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation. FOREWORDThank you for purchasing this Icom product. The IC-M602 V HF MARINE TRANSCEIVER is designed and built with Icom’s superior technology and craftsmanship.With proper care, this product should provide you withyears of trouble-free operation.We want to take a couple of moments of your time tothank you for making the IC-M602 your radio of choice,and hope you agree with Icom’s philosophy of “tech-nology first.” Many hours of research and developmentwent into the design of your IC-M602. D FEATURES ❍ Standard 4 × 8 ′′ flush mount design ❍ Built-in DSC meets ITU Class D requirement ❍ Rugged waterproof construction ❍ Large LCD with dot matrix characters ❍ Superior receiver performance ❍ Optional COMMANDMIC TM (2 systems are connectable) Icom, Icom Inc. and the logo are registered trademarks of Icom Incorporated (Japan) in the United states, the UnitedKingdom, Germany, France, Spain, Russia and/or other coun-tries. IMPORTANTREAD THIS INSTRUCTION MANUALCAREFULLY before attempting to operate the trans- ceiver. SAVE THIS INSTRUCTION MANUAL. This manual contains important safety and operating in-structions for the IC-M602. CLEAN THE TRANSCEIVER AND MICROPHONETHOROUGHLY WITH FRESH WATER after exposure to water including solt water, otherwise, the keys andswitches may become inoperable due to salt crystallization. i ii IN CASE OF EMERGENCYIf your vessel requires assistance, contact other vessels andthe Coast Guard by sending a distress call on Ch 16.Or, transmit your distress call using digital selective calling onCh 70. USING CHANNEL 16DISTRESS CALL PROCEDURE1. “MAYDAY MAYDAY MAYDAY.”2. “THIS IS ...............” (name of vessel)3. Your call sign or other indication of the vessel (AND 9- digit DSC ID if you have one). 4. “LOCATED AT ...............” (your position)5. The nature of the distress and assistance required.6. Any other information which might facilitate the rescue.USING DIGITAL SELECTIVE CALLING (Ch 70) DISTRESS CALL PROCEDURE1. While lifting up the switch cover, push and hold [DISTRESS] for 5 sec. until you hear 5 short beepschange to one long beep. 2. Wait for an acknowledgment from a coast station. • Channel 16 is automatically selected. 3. Push and hold [PTT], then transmit the appropriate information as at above. WARNING STICKER NOTEA WARNING STICKER is supplied with the transceiver. To comply with FCC regulations, this sticker must be affixed insuch a location as to be readily seen from the operating con-trols of the radio like as follows. Make sure the chosen loca-tion is clean and dry before applying the sticker. (p. 46)EXAMPLE iii Icom requires the radio operator to meet theFCC Requirements for Radio Frequency Expo-sure. An omnidirectional antenna with gain notgreater than 9 dBi must be mounted a minimumof 5 meters (measured from the lowest point of the antenna) vertically above the main deck and all possiblepersonnel. This is the minimum safe separation distance esti-mated to meet all RF exposure compliance requirements. This5 meter distance is based on the FCC Safe Maximum Per-missible Exposure (MPE) distance of 3 meters added to theheight of an adult (2 meters) and is appropriate for all vessels. For watercraft without suitable structures, the antenna mustbe mounted so as to maintain a minimum of 1 meter verticallybetween the antenna, (measured from the lowest point of theantenna), to the heads of all persons AND all persons muststay outside of the 3 meter MPE radius.Do not transmit with radio and antenna when persons arewithin the MPE radius of the antenna, unless such persons(such as driver or radio operator) are shielded from antennafield by a grounded metallic barrier. The MPE Radius is theminimum distance from the antenna axis that person shouldmaintain in order to avoid RF exposure higher than the allow-able MPE level set by FCC. FAILURE TO OBSERVE THESE LIMITS MAY ALLOWTHOSE WITHIN THE MPE RADIUS TO EXPERIENCE RFRADIATION ABSORPTION WHICH EXCEEDS THE FCCMAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT.IT IS THE RESPONSIBILITY OF THE RADIO OPERATORTO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPO-SURE LIMITS ARE OBSERVED AT ALL TIMES DURINGRADIO TRANSMISSION. THE RADIO OPERATOR IS TOENSURE THAT NO BYSTANDERS COME WITHIN THERADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURELIMITS.Determining MPE RadiusTHE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RA-DIUS HAS BEEN ESTIMATED TO BE A RADIUS OFABOUT 3M PER OET BULLETIN 65 OF THE FCC.THIS ESTIMATE IS MADE ASSUMING THE MAXIMUMPOWER OF THE RADIO AND ANTENNAS WITH A MAXI-MUM GAIN OF 9dBi ARE USED FOR A SHIP MOUNTEDSYSTEM. RADIO OPERATOR WARNING WARNING FOREWORD ...............................................iIMPORTANT .............................................. iIN CASE OF EMERGENCY ...................... iiNOTE ..........................................................iiRADIO OPERATOR WARNING.................iiiTABLE OF CONTENTS ........................... ivPRECAUTION .......................................... v1 OPERATING RULES .................. 12 PANEL DESCRIPTION .......... 2 – 7  Panel description ............................ 2  Function display .............................. 6  Microphone ..................................... 7 3 BASIC OPERATION ............ 8 – 12  Channel selection ........................... 8  Receiving and transmitting ........... 10  Call channel programming ............ 11  Channel names ............................. 11  Optional voice scrambler operation ....................................... 12 4 DUALWATCH/TRI-WATCH ....... 13  Description .................................... 13  Operation ...................................... 13 5 SCAN OPERATIONS ......... 14 – 15  Scan types ............…

Text truncated - open the document above for the full version.

Oct. 24, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 80 (Subpart E) - Non-Broadcast Radio Transceivers Operating in the frequency bands 156.050-157.425 MHz [Marine]. Applicant:ICOM Incorporated Product:MOBILE VHF MARINE TRANSCEIVER (for Ship Station) Model:IC-M602 FCC ID:AFJIC-M602 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

iii Icom requires the radio operator to meet theFCC Requirements for Radio Frequency Expo-sure. An omnidirectional antenna with gain notgreater than 9 dBi must be mounted a minimumof 5 meters (measured from the lowest point of the antenna) vertically above the main deck and all possiblepersonnel. This is the minimum safe separation distance esti-mated to meet all RF exposure compliance requirements. This5 meter distance is based on the FCC Safe Maximum Per-missible Exposure (MPE) distance of 3 meters added to theheight of an adult (2 meters) and is appropriate for all vessels. For watercraft without suitable structures, the antenna mustbe mounted so as to maintain a minimum of 1 meter verticallybetween the antenna, (measured from the lowest point of theantenna), to the heads of all persons AND all persons muststay outside of the 3 meter MPE radius.Do not transmit with radio and antenna when persons arewithin the MPE radius of the antenna, unless such persons(such as driver or radio operator) are shielded from antennafield by a grounded metallic barrier. The MPE Radius is theminimum distance from the antenna axis that person shouldmaintain in order to avoid RF exposure higher than the allow-able MPE level set by FCC. FAILURE TO OBSERVE THESE LIMITS MAY ALLOWTHOSE WITHIN THE MPE RADIUS TO EXPERIENCE RFRADIATION ABSORPTION WHICH EXCEEDS THE FCCMAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT.IT IS THE RESPONSIBILITY OF THE RADIO OPERATORTO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPO-SURE LIMITS ARE OBSERVED AT ALL TIMES DURINGRADIO TRANSMISSION. THE RADIO OPERATOR IS TOENSURE THAT NO BYSTANDERS COME WITHIN THERADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURELIMITS.Determining MPE RadiusTHE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RA-DIUS HAS BEEN ESTIMATED TO BE A RADIUS OFABOUT 3M PER OET BULLETIN 65 OF THE FCC.THIS ESTIMATE IS MADE ASSUMING THE MAXIMUMPOWER OF THE RADIO AND ANTENNAS WITH A MAXI-MUM GAIN OF 9dBi ARE USED FOR A SHIP MOUNTEDSYSTEM. RADIO OPERATOR WARNING WARNING

Oct. 24, 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 80 (Subpart E) - Non-Broadcast Radio Transceivers Operating in the frequency bands 156.050-157.425 MHz [Marine]. Applicant:ICOM Incorporated Product:MOBILE VHF MARINE TRANSCEIVER (for Ship Station) Model:IC-M602 FCC ID:AFJIC-M602 Dear Sir/Madam, As appointed agent for ICOM Incorporated, we would like to submit the application to Federal Communications Commission for certification of the above product. Please review all necessary files uploaded to FCC OET site. If you have any queries, please do not hesitate to contact us by our TOLL FREE number: OUR TELEPHONE NO.:1-877-765-4173 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/DH Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] Oct. 24, 2002 ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-0003 Attn.:Mr. Takashi Aoki Subject:Certification Testing in accordance with FCC CFR 47, Parts 2 and 80 (Subpart E) - Non-Broadcast Radio Transceivers Operating in the frequency bands 156.050-157.425 MHz [Marine]. Product:MOBILE VHF MARINE TRANSCEIVER (for Ship Station) Model:IC-M602 Dear Mr. Aoki, The product sample has been tested in accordance with FCC CFR 47, Parts 2 and 80 (Subpart E) - Non-Broadcast Radio Transceivers Operating in the frequency bands 156.050-157.425 MHz [Marine], and the results and observation were recorded in the engineering report, Our File No.: ICOM-043FCC80 Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P.Eng Vice President - Engineering Encl. UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] MOBILE VHF MARINE TRANSCEIVER (for Ship Station) Model No.: IC-M602 FCC ID: AFJIC-M602 Applicant: ICOM Incorporated 1-1-32, Kamiminami Hirano-ku, Osaka Japan, 547-0003 Tested in Accordance With Federal Communications Commission (FCC) CFR 47, PARTS 2 and 80 (Subpart E) UltraTech's File No.: ICOM-043FCC80 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: Oct. 24, 2002 Report Prepared by: Tri M. Luu, P.Eng.Tested by: Hung Trinh Issued Date: Oct. 24, 2002Test Dates: Oct. 07-22/2002 The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SITC-137646390-2049200093-000-034 FCC PARTS 2 & 80 (Subpart E), NON-BROADCAST RADIO TRANSCEIVERS Page 1 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ULTRATECH GROUP OF LABSFile #: ICOM-043FCC80 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4Oct. 24, 2002 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST............................................................................................................................................3 EXHIBIT 2.INTRODUCTION.............................................................................................................................................................4 2.1.SCOPE..............................................................................................................................................................................................4 2.2.RELATED SUBMITAL(S)/GRANT(S)...............................................................................................................................................4 2.3.NORMATIVE REFERENCES........................................................................................................................................................4 EXHIBIT 3.PERFORMANCE ASSESSMENT.................................................................................................................................5 3.1.CLIENT INFORMATION...............................................................................................................................................................5 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION..................................................................................................................5 3.3.EUT’S TECHNICAL SPECIFICATIONS.....................................................................................................................................6 3.4.LIST OF EUT’S PORTS.....................................................................................................................................................................6 3.5.ANCILLARY EQUIPMENT..............................................................................................................................................................6 EXHIBIT 4.EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS.................................................7 4.1.CLIMATE TEST CONDITIONS........................................................................................................................................................7 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TEST SIGNAL…

Text truncated - open the document above for the full version.

ANNEX 1 - 99% OCCUPIED BANDWIDTH Plot # 1 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - 99% OCCUPIED BANDWIDTH Plot # 2 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - 99% OCCUPIED BANDWIDTH Plot # 3 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - 99% OCCUPIED BANDWIDTH Plot # 4 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - 99% OCCUPIED BANDWIDTH Plot # 5 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - 99% OCCUPIED BANDWIDTH Plot # 6 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602

ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 7 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 8 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 9 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 10 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 11 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 12 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 13 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 14 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 15 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 16 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 17 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - EMISSION LIMITATION / EMISSION MASK Plot # 18 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602

ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 19 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 20 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 21 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 22 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 23 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 24 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 25 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 26 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 27 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 1 - TRANSMITTER SPURIOUS/HARMONIC EMISSIONS Plot # 28 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602

FCC PARTS 2 & 80 (Subpart E), NON-BROADCAST RADIO TRANSCEIVERS Page 15 MOBILE VHF MARINE TRANSCEIVER, Model IC-M602 FCC ID: AFJIC-M602 ULTRATECH GROUP OF LABS File #: ICOM-043FCC80 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Oct. 24, 2002 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 6.6.3. Test Data Antenna Gain Limit specified by Manufactuer: 9 dBi Frequency (MHz) Measured RF Conducted (Watts) Calculated EIRP (Watts) Laboratory’s Recommended Minimum RF Safety Distance r (meters) Manufacturer's Minimum RF Safety Distance (meters) 156.050 25 199 2.81 3 157.425 25 199 2.81 3 Note 1: RF EXPOSURE DISTANCE LIMITS: r = (PG/4ΠS) 1/2 = (EIRP/4ΠS) 1/2 S = 0.2 mW/cm 2 for Limits for General Population/Uncontrolled Exposure Evaluation of RF Exposure Compliance Requirements RF Exposure Requirements Compliance with FCC Rules Minimum calculated separation distance between antenna and persons required: 2.81 meters Manufacturer’ instruction for separation distance between antenna and persons required: 3 meters. Please refer to page # iii of the Users/ Manual and Radio Operator Warning

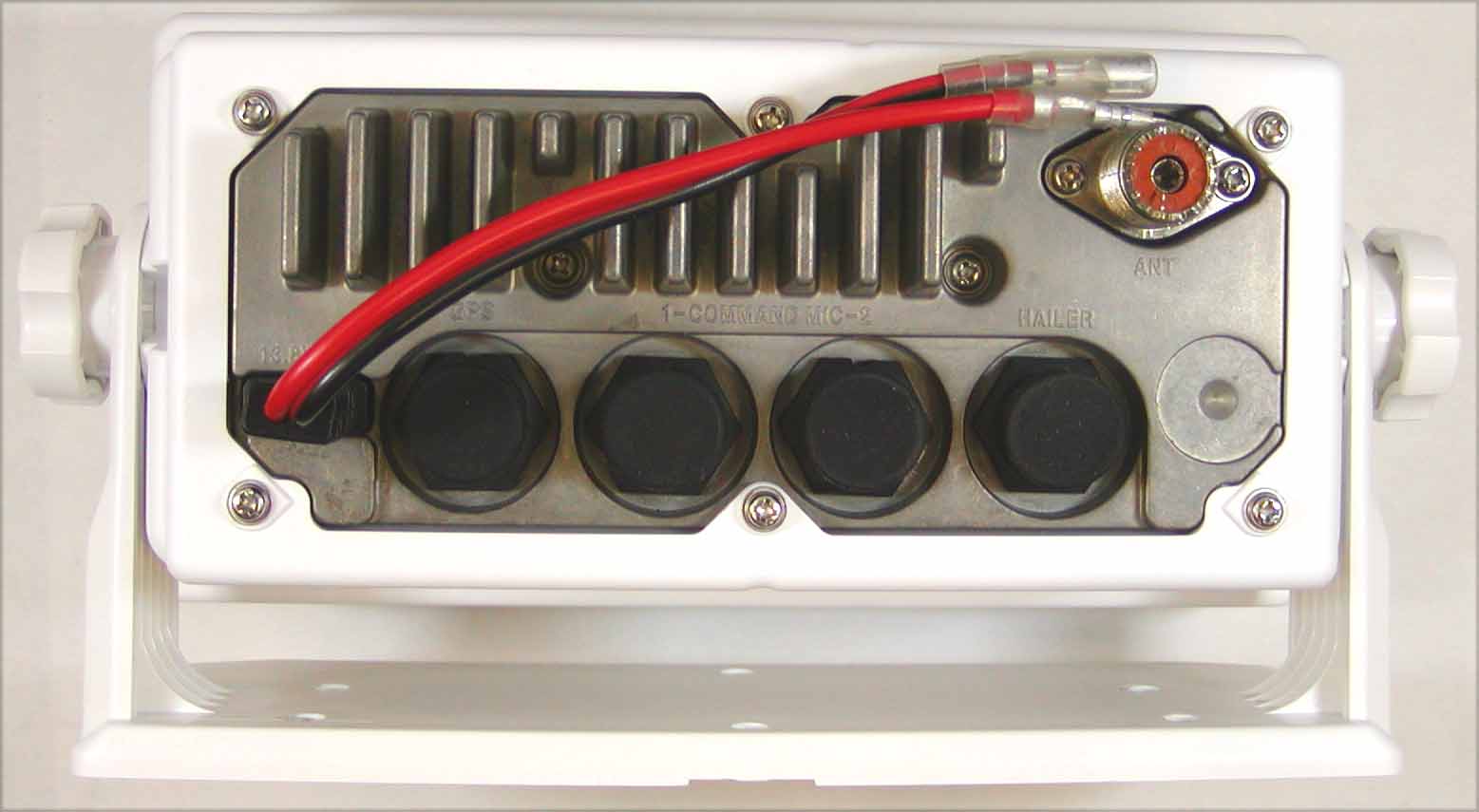

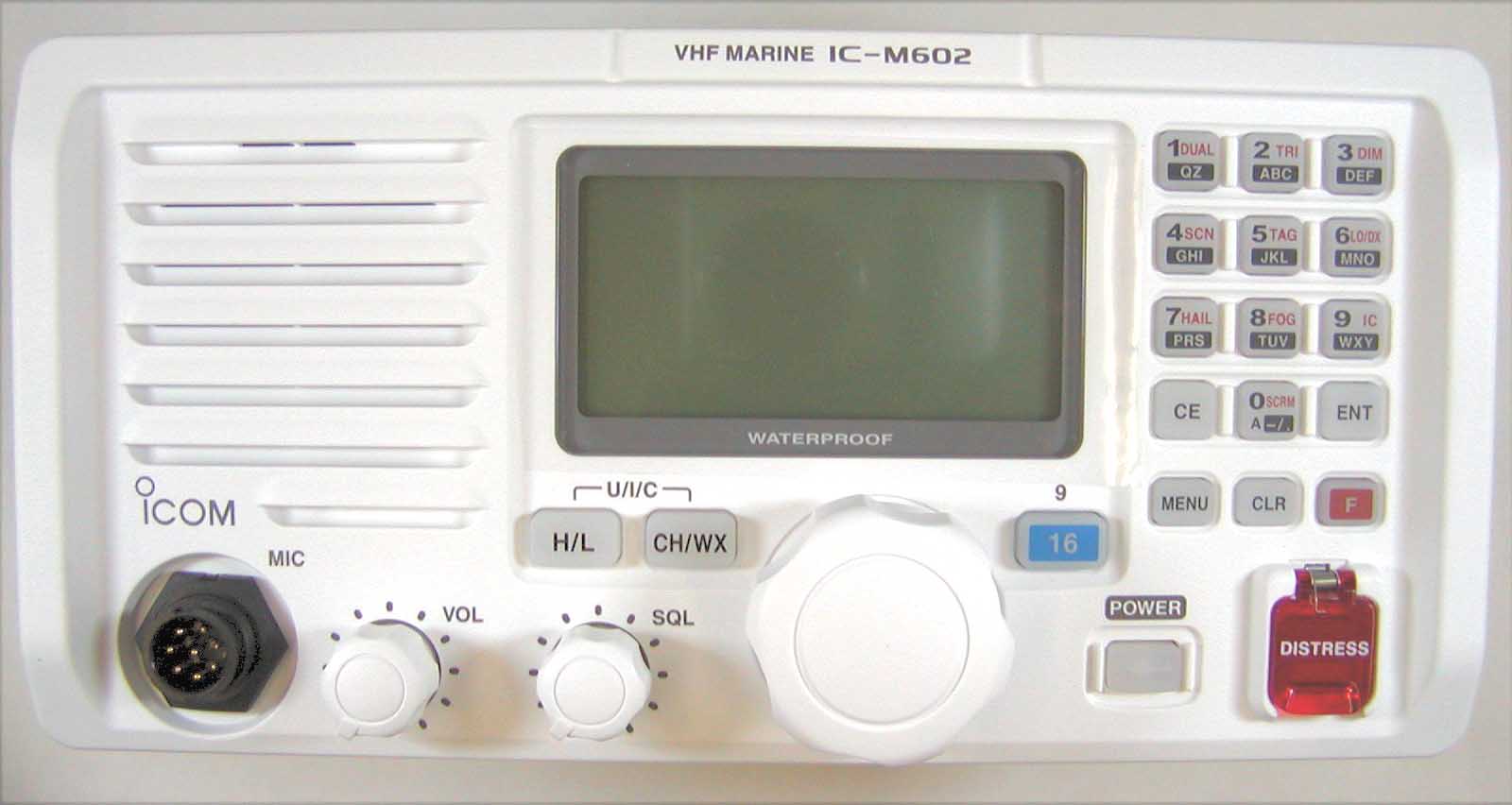

ANNEX 2 - PHOTOGRAPHS OF TEST SETUP FOR RADIATED EMISSIONSPHOTO # 1 VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602 ANNEX 2 - PHOTOGRAPHS OF TEST SETUP FOR RADIATED EMISSIONSPHOTO # 2 VHF MARINE TRANSCEIVER, Model IC-M602FCC ID: AFJIC-M602
