AHOARC318FIX CODE TRANSMITTER

INSTRUCTIONS FOR TRIPLE ENTRY TRANSMITTER Garage Door & Gate Openers Read the following instructions thoroughly before using the remote. Programming Remote Controller to the Opener 1. Remove the Transmitter Cover Remove the access cover from the front of the transmitter by sliding the cover away from the top of the transmitter (Figure A). This will expose the battery and the dip switches. The code can now be changed using a small screwdriver. 2. Setting the codes There are eight (8) dip switches, each of which can be placed in three different positions (+, 0, -). DO NOT set all switches in the same position, such as all +, all -, or all zero (Figure B). WARNING: No other adjustments should be made inside the transmitter. Made note of the button you chose, as this will be the button you must now use to operate your gate. To activate, simply depress your transmitter button until the gate begins to move. If you have more than one gate operator, repeat #3, Commit the code to Memory in Control Board as needed. Be sure to select a different transmitter button to use with each operator. Warning To avoid possible serious injury or death from a garage door or moving gate: -Keep all remote controls out of children’s reach at all times. Never allow children near batteries! -Only activate door or gate when it is in clear view and is in proper working condition. -Always completely monitor garage door and gate opener until completely opened or closed. -Never allow anyone to cross area of opening and closing of moving garage door or gate. -Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Regulations: This device complies with FCC Rules Part 15. Operation is subject to following two conditions: 1) This device may not cause harmful interference. 2) This device must accept an interference that may cause an undesired operation. Transmitter distance may vary due to circumstance beyond our control. Copyright@ Keystone/Heddolf Remotes 2013 Slider the cover for battery replacement Battery Type: 23A Figure A Figure B

Date: 2013/11/08 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: We, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regardingourproductcertificationwhichtheCertificationDivision mayconsidermisleadingorunauthorized; e) uponsuspensionorcancellationofcertification,discontinueuseofall advertisingmatterthatcontainsanyreferencetheretoandreturnany certificationdocumentsasrequiredbytheCertificationDivision; f) usecertificationonlytoindicatetheproductsarecertifiedasbeingin conformitywithspecifiedstandards; g) endeavortoensurethatnocertificateorreportnoranypartthereofis usedinamisleadingmanner; h) ensurethatanyreferencetoourproductcertificationincommunication mediasuchasdocuments,brochuresOfadvertising,complieswiththe requirementsoftheCertificationDivision; i) keeparecordofallcomplaintsmadeknowntotheusrelatingtothe product'scompliancewithrequirementsoftherelevantstandardandto maketheserecordsavailabletotheCertificationDivisionwhen requested; j) takeappropriateactionwithrespecttosuchcomplaintsandany deficienciesfoundinproductsorservicesthataffectcompliancewith therequirementsforcertification; k) documenttheactionstaken. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. SincerelyYours, KeystoneHeddolfInternational P.O.Bo:x428,COTvlFORTTX •

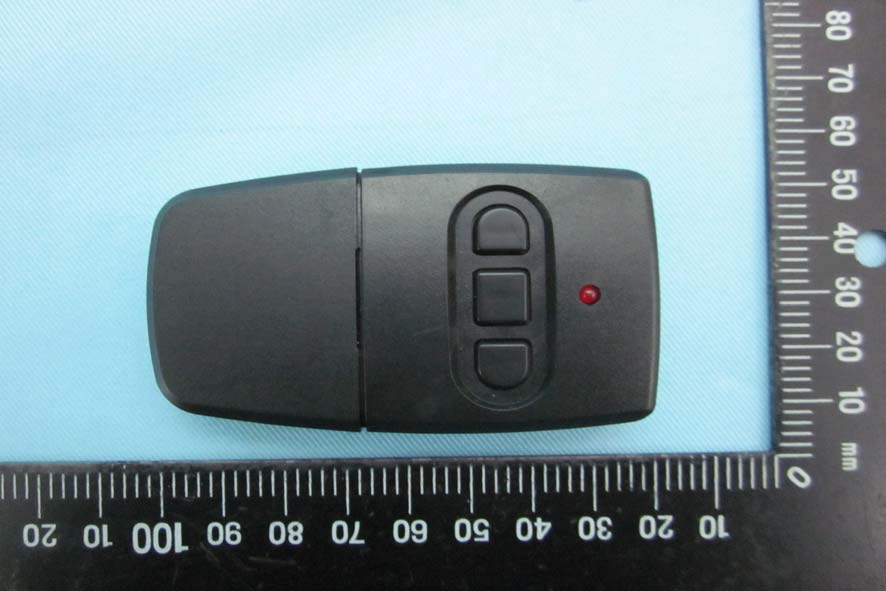

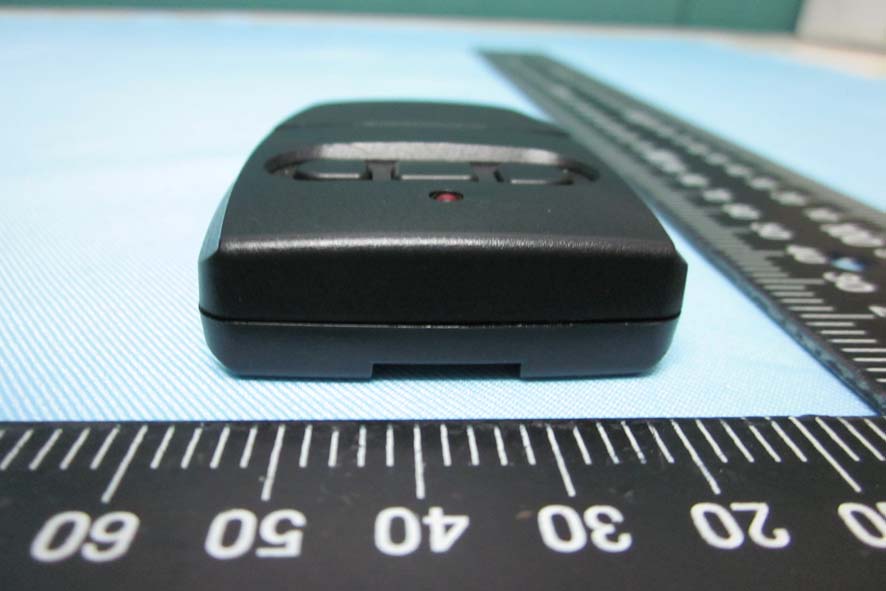

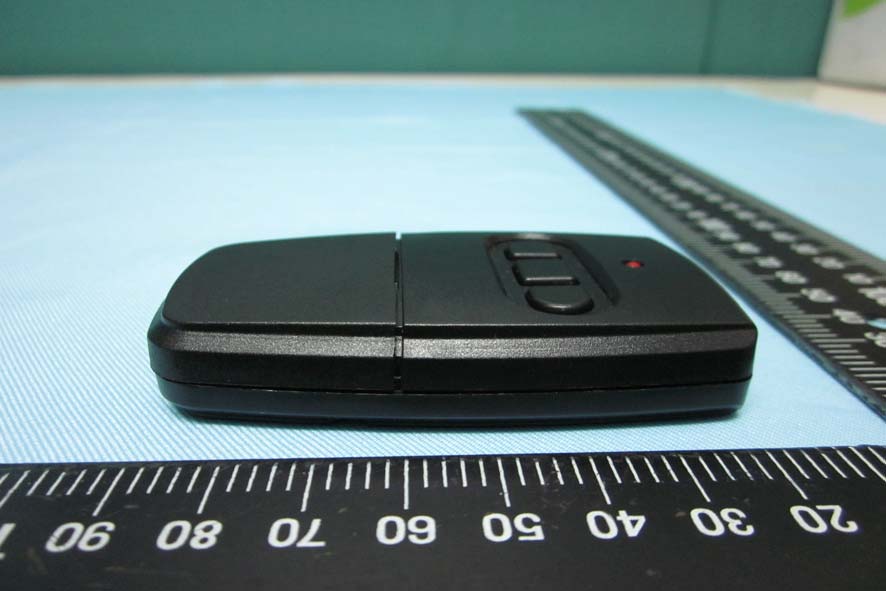

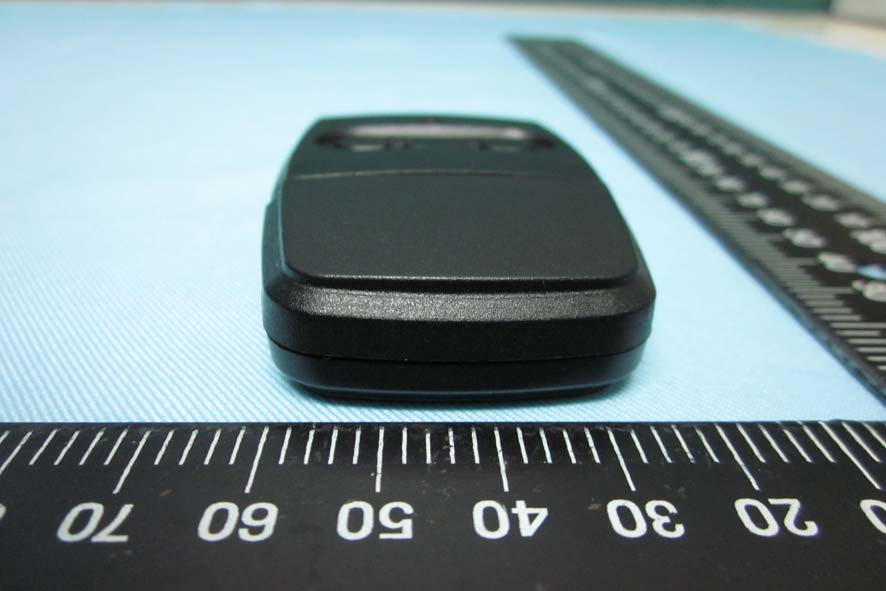

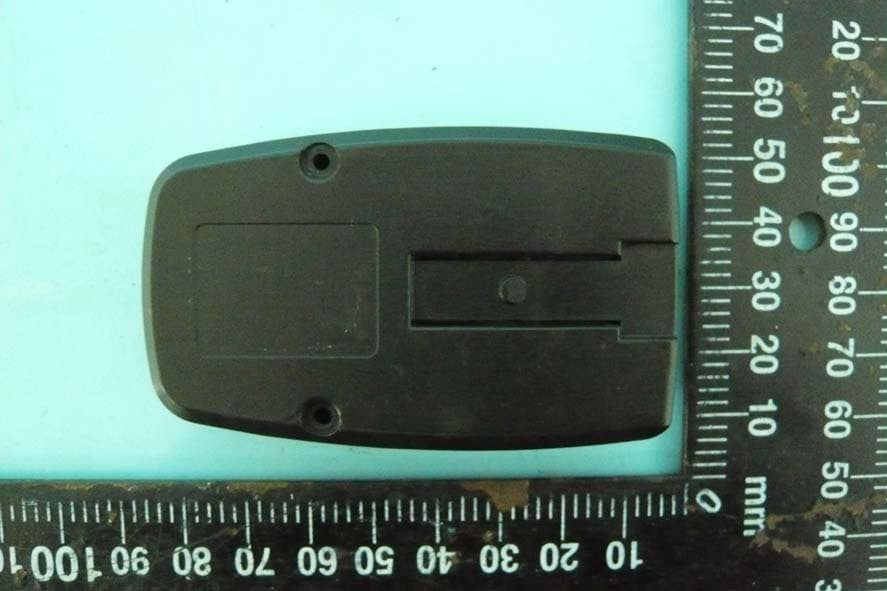

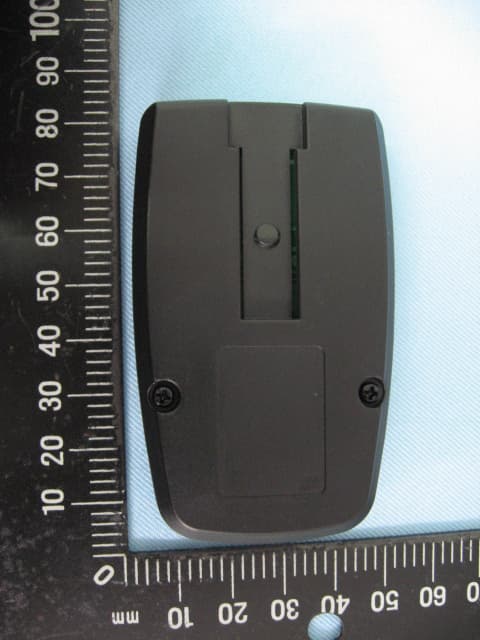

ETC Report No.:13-11-RBF-009 Sheet 1 of 5 Sheets FCC ID.: AHOARC318 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.:13-11-RBF-009 Sheet 2 of 5 Sheets FCC ID.: AHOARC318 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.:13-11-RBF-009 Sheet 3 of 5 Sheets FCC ID.: AHOARC318 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. 6.

ETC Report No.:13-11-RBF-009 Sheet 4 of 5 Sheets FCC ID.: AHOARC318 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.:13-11-RBF-009 Sheet 5 of 5 Sheets FCC ID.: AHOARC318 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : FIX CODE TRANSMITTER FCC ID : AHOARC318 MODEL : P220-3KA; P220-1KA; P220-2KA Workin g Frequency : 318 MHz for APPLICANT : Keystone Heddolf International ADDRESS : P.O. BOX 428, COMFORT, TX Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 13-11-RBF-009 ETC Report No.13-11-RBF-009 FCC ID.: AHOARC318 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Keystone Heddolf International P.O. BOX 428, COMFORT, TX Manufacturer : Allremote Wireless Technology Co., Ltd 2F., No.8, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Description of EUT : a) Type of EUT : FIX CODE TRANSMITTER b) Trade Name : Keystone/Heddolf c) Model No. : P220-3KA; P220-1KA; P220-2KA d) FCC ID : AHOARC318 e) Working Frequency : 318 MHz f) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Dec. 29, 2013 Test Engineer : ( Jiapeng Chen, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.13-11-RBF-009 FCC ID.: AHOARC318 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE:................................................................................................................................ 1 1.3 TEST METHODOLOGY.............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION........................................................................................................................ 2 2.3 LIMITATION............................................................................................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 4 2.5 USER INFORMATION................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD.......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA.............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION........................................................................................................................... 12 4.5 ACTIVATE TIME.................................................................................................................................................... 12 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 12 4.7 RADIATED TEST EQUIPMENT................................................................................................................................. 19 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................... 19 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 20 5. BANDWIDTH OF EMISSION........................................................................................................................... 21 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH..................................................................................... 21 5.2 BANDWIDTH TEST EQUIPMENT..............................…
