AHORCCG223ROLLING CODE TRANSMITTER

INSTRUCTIONS FOR THREE BUTTON, DUAL FREQUENCY (390 & 315 MHz) Garage Door & Gate Openers Read the following instructions thoroughly before using the remote. Programming Remote Controller to the Opener -Garage door opener must have a working light bulb as it will flash indicating successful programming. -Locate learn button on front or rear of garage door/gate opener. -Press and HOLD desired button on hand held remote. -Then press and release the smart/learn button on opener. The LED light will turn on. The opener light bulb will flash when programming is completed. -After light bulb has stopped flashing then test remote control. -Repeat steps above to program additional openers/devices by selecting a different button on remote control. This remote can control up to three openers/devices, one per button. Trouble Shooting -In the event that the remote control fails to operate correctly, check and replace battery if necessary. -If programming is unsuccessful, check to make sure jumper is in correct position for your model opener. You may need to need to change frequency setting. See illustration for jumper location. -Verify light bulb in garage door opener is working. -Check that there are no obstructions to garage door opening and safety beam. Warning To avoid possible serious injury or death from a garage door or moving gate: -Keep all remote controls out of children’s reach at all times. Never allow children near batteries! -Only activate door or gate when it is in clear view and is in proper working condition. -Always completely monitor garage door and gate opener until completely opened or closed. -Never allow anyone to cross area of opening and closing of moving garage door or gate. -Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Regulations: This device complies with FCC Rules Part 15. Operation is subject to following two conditions: 1) This device may not cause harmful interference. 2) This device must accept an interference that may cause an undesired operation. Transmitter distance may vary due to circumstance beyond our control. Copywrite Gemini Remotes 2011 Slider the cover for battery replacement and frequency change. Battery Type: 23A 390MHz 315MHz

1) Multiple model numbers are listed but no explanation as to what the differences are between the models. Please refer to revised test report section 1.1(g). The difference is only the model name and the button number. 2) Duty cycle calculation ‐ the plot is only 100ms long so you cannot tell if a second burst of pulses occurs within 100ms of the first burst. If it did then the duty factor would need to include the part of the second burst that is in the 100ms window. A plot of duration 200ms showing the time between the separate bursts is needed. Please refer to revised test report pulse train plots which show the period of each burst to be 100ms 3) Operational description does not describe the modulation (on‐off keying?) or provide any information about the pulse train (what is the worst‐case sequence of the various pulse widths?). The modulation is OOK. All three buttons were tested and the worst case was chosen for final test in the test report.

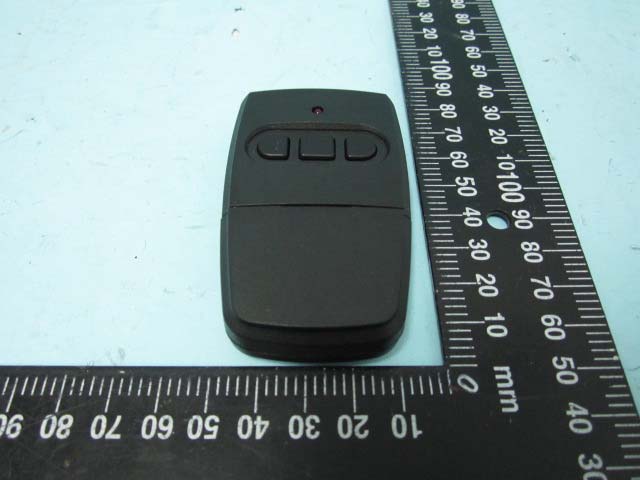

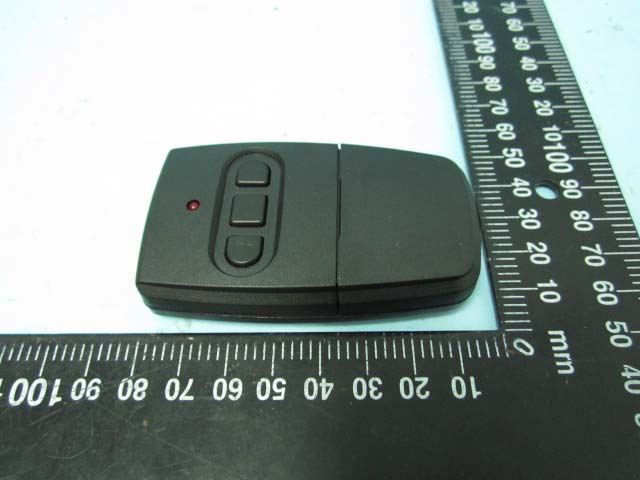

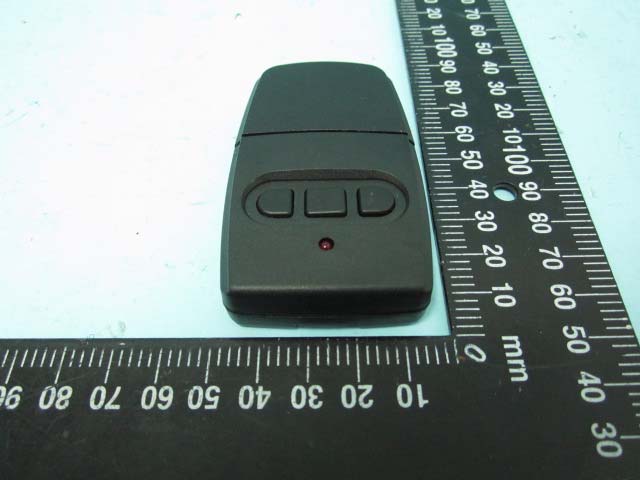

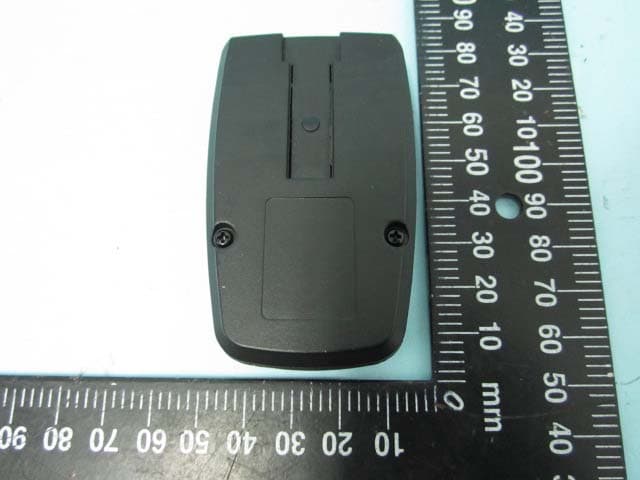

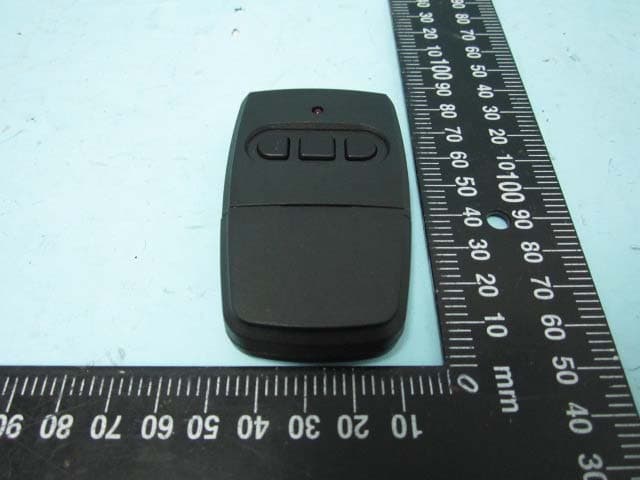

ETC Report No.:11-12-RBF-078 Sheet 1 of 6 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2.Topr View of EUT ETC Report No.:11-12-RBF-078 Sheet 2 of 6 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Side View of EUT 4. Side View of EUT ETC Report No.:11-12-RBF-078 Sheet 3 of 6 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5.Front View of EUT 6. Bottom View of EUT

ETC Report No.:11-12-RBF-078 Sheet 4 of 6 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT(315MHz) 8. Internal View of EUT(390MHz) ETC Report No.:11-12-RBF-078 Sheet 5 of 6 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB (315MHz) 10. Solder View of PCB (315MHz) ETC Report No.:11-12-RBF-078 Sheet 6 of 6 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 11. Component View of PCB (390MHz) 12. Solder View of PCB (390MHz)

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : ROLLING CODE TRANSMITTER FCC ID : AHORCCG223 MODEL : CRC390-1A;CRC315-1A; CRC390-3A;GRC390-1A; GRC315-1A;GRC390-3A Workin g Frequency : 315 & 390 MHz for APPLICANT : Keystone Heddolf lnternational ADDRESS : P.O.BOX 428,COMFORT,TX Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 11-12-RBF-078 ETC Report No.:11-12-RBF-078 FCC ID.: AHORCCG223 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Keystone Heddolf lnternational P.O.BOX 428,COMFORT,TX Manufacturer : Keystone Heddolf lnternational P.O.BOX 428,COMFORT,TX Description of EUT : a) Type of EUT : ROLLING CODE TRANSMITTER b) Trade Name : ---- c) Model No. : CRC390-1A;CRC315-1A; CRC390-3A;GRC390-1A; GRC315-1A;GRC390-3A d) FCC ID : AHORCCG223 e) Working Frequency : 315 & 390MHz f) Power Supply : DC 12 V Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. ETC Report No.:11-12-RBF-078 FCC ID.: AHORCCG223 Rev. No 1.0 Issued Date : Jan. 17, 2011 Test Engineer : (Max Wu, Engineer ) Check By : ( Charles Wang, Supervisor ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:11-12-RBF-078 FCC ID.: AHORCCG223 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION........................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE:................................................................................................................................ 1 1.3 TEST METHODOLOGY.............................................................................................................................................. 1 1.4 TEST FACILITY........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION........................................................................................................................ 2 2.3 LIMITATION............................................................................................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 4 2.5 USER INFORMATION................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM................................................................................................................................5 GRC315-1A;GRC390-3A............................................................................................................................................. 5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD.......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE................................................................................................................................... 6 4.3 TEST DATA.............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION........................................................................................................................... 11 4.5 ACTIVATE TIME.................................................................................................................................................... 11 4.6 CALCULATION OF DUTY FACTOR.......................................................................................................................... 11 4.7 RADIATED TEST EQUIPMENT................................................................................................................................. 22 4.8 MEASURING INSTRUMENT SETUP.......................................................................................................................... 22 4.9 RADIATED MEASUREMENT PHOTOS...................................................................................................................... 23 5. BANDWIDTH OF EMISSION............................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:11-12-RBF-078 Sheet 23 of 28 Sheets FCC ID.: AHORCCG223 Rev. No 1.0 4.9 Radiated Measurement Photos
