AHOG220390FIX CODE TRANSMITTER

INSTRUCTIONS FOR Radio Control Operator Single entry transmitter G220 Read the following instructions thoroughly before using the remote. This transmitter must be adjusted so that the coding switches match the coding on your present operating transmitters or receiver FCC Regulations: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Programming Remote Controller to the Opener 1. Remove the Transmitter Cover Remove the access cover from the front of the transmitter by sliding the cover away from the top of the transmitter (Figure A). This will expose the battery and the dip switches. The code can now be changed using a small screwdriver. 2. Setting the codes You may set your transmitter to any code you desire, but be sure the code you set matches both your transmitter and receiver. There are twelve (12) dip switches, each of which can be placed in two different positions (+,-). DO NOT set all switches in the same position, such as all +, all -, (Figure B). WARNING: No other adjustments should be made inside the transmitter. 3. Terminal block for 9 dip switches receiver For some receivers which only have 9 dip Switches, it will be necessary for you to move the small black code terminal (Open the housing with cross-shaped screwdriver (Figure C) to find terminal block (Figure D) ) to PINS in the middle and 9 .Therefore, the code selection of the 9 dip switches receiver model and the dip switches on your transmitter 1 thru 9 should be set exactly the same. The same as those on your receiver, switches 10, 11,12 on the transmitter should be set in the off position. Open the housing with cross-shaped screwdriver Figure C Slider the cover for battery replacement Battery Type: 23A Figure A Figure B For 9 dip switches receiver, you have to move the small black code terminal to PINS in the middle and 9. Figure D Warning To avoid possible serious injury or death from a garage door or moving gate: -Keep all remote controls out of children’s reach at all times. Never allow children near batteries! -Only activate door or gate when it is in clear view and is in proper working condition. -Always completely monitor garage door and gate opener until completely opened or closed. -Never allow anyone to cross area of opening and closing of moving garage door or gate. -Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Copyright@ Keystone/Heddolf Remotes 2015 ME-71-0001

P.O.Box 428 Boerne, TX 78006 Date:January 2, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize ELECTRONICS TESTING CENTER, TAIWAN, and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ELECTRONICS TESTING CENTER, TAIWAN, on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ETC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement

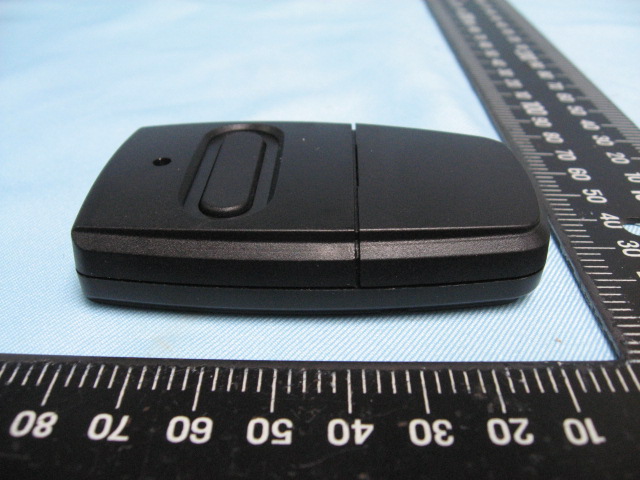

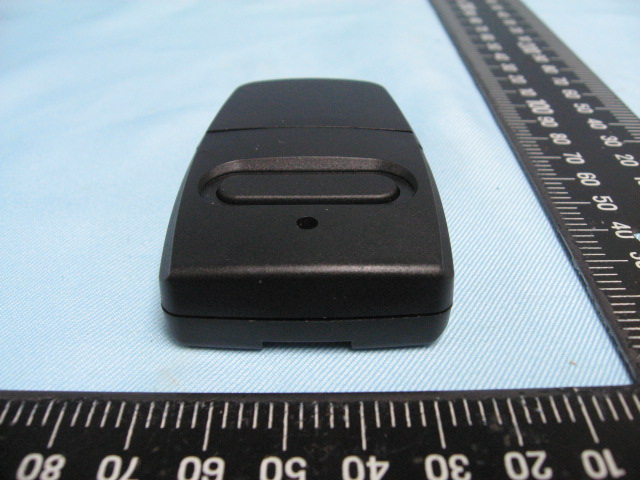

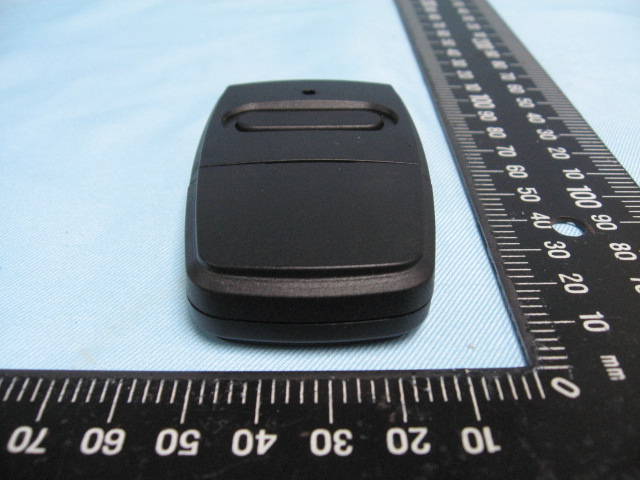

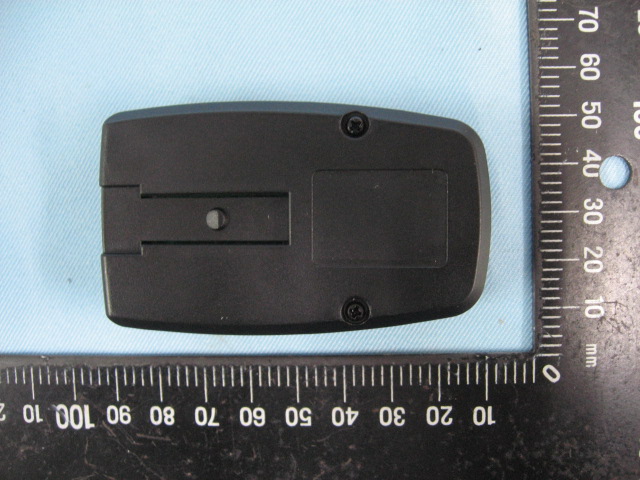

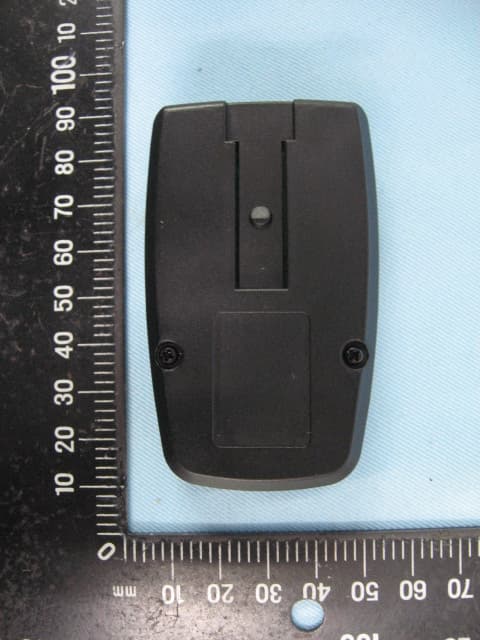

ETC Report No.:14-12-RBF-061 Sheet 1 of 5 Sheets FCC ID: AHOG220390 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.:14-12-RBF-061 Sheet 2 of 5 Sheets FCC ID: AHOG220390 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.:14-12-RBF-061 Sheet 3 of 5 Sheets FCC ID: AHOG220390 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. 6.

ETC Report No.:14-12-RBF-061 Sheet 4 of 5 Sheets FCC ID: AHOG220390 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.:14-12-RBF-061 Sheet 5 of 5 Sheets FCC ID: AHOG220390 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : FIX CODE TRANSMITTER FCC ID : AHOG220390 MODEL : G220-1KB Workin g Frequency : 390 MHz for APPLICANT : Keystone Heddolf International ADDRESS : P.O. BOX 428, COMFORT, TX Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-12-RBF-061 ETC Report No.14-12-RBF-061 FCC ID: AHOG220390 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Keystone Heddolf International P.O. BOX 428, COMFORT, TX Manufacturer : Allremote Wireless Technology Co., Ltd 2F., No.8, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Description of EUT : a) Type of EUT : FIX CODE TRANSMITTER b) Trade Name : Keystone/Heddolf c) Model No. : G220-1KB d) FCC ID : AHOG220390 e) Working Frequency : 390 MHz f) Power Supply : Battery: 12V / 23A Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Jan. 05, 2015 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.14-12-RBF-061 FCC ID: AHOG220390 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION ........................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE:................................................................................................................................ 1 1.3 TEST METHODOLOGY .............................................................................................................................................. 1 1.4 TEST FACILITY ........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION ............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION ........................................................................................................................ 2 2.3 LIMITATION ............................................................................................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 4 2.5 USER INFORMATION ................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION ........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM ................................................................................................................................ 5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD .......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE ................................................................................................................................... 6 4.3 TEST DATA .............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION ........................................................................................................................... 12 4.5 ACTIVATE TIME .................................................................................................................................................... 12 4.6 CALCULATION OF DUTY FACTOR .......................................................................................................................... 12 4.7 RADIATED TEST EQUIPMENT ................................................................................................................................. 15 4.8 MEASURING INSTRUMENT SETUP .......................................................................................................................... 15 4.9 RADIATED MEASUREMENT PHOTOS ...................................................................................................................... 16 5. BANDWIDTH OF EMISSION........................................................................................................................... 17 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH ..................................................................................... 17 5.2 BANDWIDTH TEST EQUIPMENT ..................................…

Text truncated - open the document above for the full version.

ETC Report No.:14-12-RBF-061 Sheet 16 of 20 Sheets FCC ID: AHOG220390 Rev. No 1.0 4.9 Radiated Measurement Photos
