AHOM220300FIX CODE TRANSMITTER

INSTRUCTIONS FOR Radio Control Operator Single entry transmitter, Mini Transmitter, Read the following instructions thoroughly before using the remote. This transmitter must be adjusted so that the coding switches match the coding on your present operating transmitters or receiver FCC Regulations: This device complies with FCC Rules Part 15. Operation is subject to following two conditions: 1) This device may not cause harmful interference. 2) This device must accept an interference that may cause an undesired operation. Transmitter distance may vary due to circumstance beyond our control. Programming Remote Controller to the Opener 1. Remove the Transmitter Cover Remove the access cover from the front of the transmitter by sliding the cover away from the top of the transmitter (Figure A). This will expose the battery and the dip switches. The code can now be changed using a small screwdriver. 2. Setting the codes You may set your transmitter to any code you desire, but be sure the code you set matches both your transmitter and receiver. There are ten (10) dip switches, each of which can be placed in two different positions (+,-). DO NOT set all switches in the same position, such as all +, all -, (Figure B). WARNING: No other adjustments should be made inside the transmitter. Warning To avoid possible serious injury or death from a garage door or moving gate: -Keep all remote controls out of children’s reach at all times. Never allow children near batteries! -Only activate door or gate when it is in clear view and is in proper working condition. -Always completely monitor garage door and gate opener until completely opened or closed. -Never allow anyone to cross area of opening and closing of moving garage door or gate. -Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Copyright@ Keystone/Heddolf Remotes 2014 Slider the cover for battery replacement Battery Type: 23A Figure A Figure B

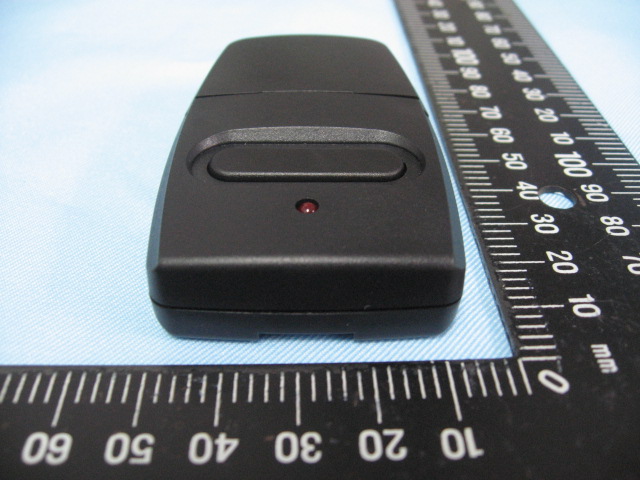

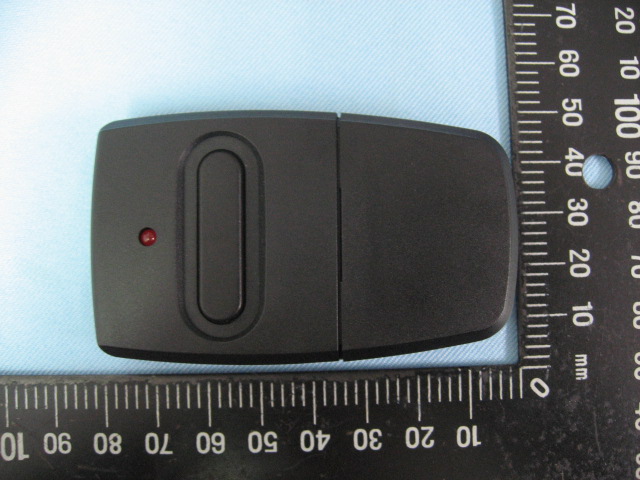

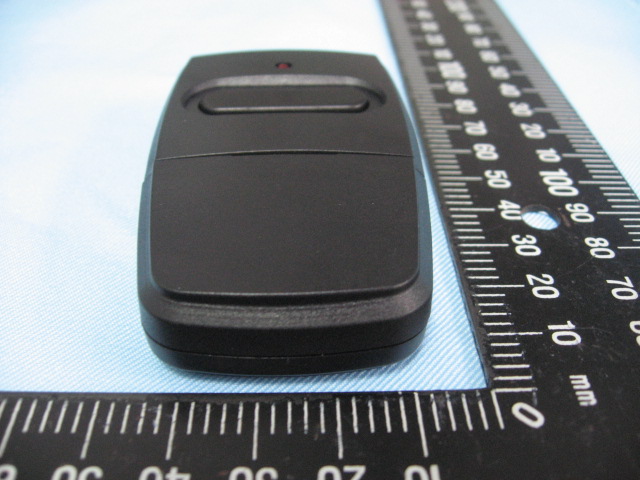

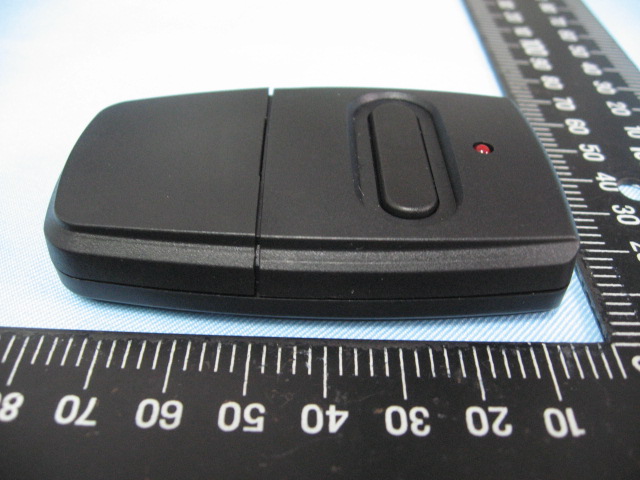

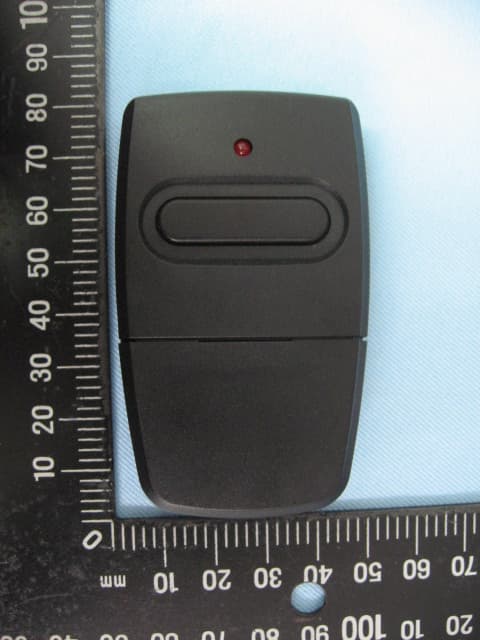

ETC Report No.:14-07-RBF-024 Sheet 1 of 5 Sheets FCC ID:AHOM220300 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No.:14-07-RBF-024 Sheet 2 of 5 Sheets FCC ID:AHOM220300 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No.:14-07-RBF-024 Sheet 3 of 5 Sheets FCC ID:AHOM220300 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. 6.

ETC Report No.:14-07-RBF-024 Sheet 4 of 5 Sheets FCC ID:AHOM220300 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No.:14-07-RBF-024 Sheet 5 of 5 Sheets FCC ID:AHOM220300 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : FIX CODE TRANSMITTER FCC ID : AHOM220300 MODEL : M220-1KB Workin g Frequency : 300 MHz for APPLICANT : Keystone Heddolf International ADDRESS : P.O. BOX 428, BOERNE, TX 78006 Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 14-07-RBF-024 ETC Report No.14-07-RBF-024 FCC ID:AHOM220300 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Keystone Heddolf International P.O. BOX 428, BOERNE, TX 78006 Manufacturer : Allremote Wireless Technology Co., Ltd 2F., No.8, Aly. 16, Ln. 235, Baoqiao Rd., Xindian Dist. New Taipei City 23145, Taiwan Description of EUT : a) Type of EUT : FIX CODE TRANSMITTER b) Trade Name : Keystone/Heddolf c) Model No. : M220-1KB d) FCC ID : AHOM220300 e) Working Frequency : 300 MHz f) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : Jul. 24, 2014 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.14-07-RBF-024 FCC ID:AHOM220300 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................................... 1 1.1 PRODUCT DESCRIPTION ........................................................................................................................................... 1 1.2 CHARACTERISTICS OF DEVICE:................................................................................................................................ 1 1.3 TEST METHODOLOGY .............................................................................................................................................. 1 1.4 TEST FACILITY ........................................................................................................................................................ 1 2. DEFINITION AND LIMITS ................................................................................................................................ 2 2.1 DEFINITION ............................................................................................................................................................. 2 2.2 RESTRICTED BANDS OF OPERATION ........................................................................................................................ 2 2.3 LIMITATION ............................................................................................................................................................. 2 2.4 LABELING REQUIREMENT........................................................................................................................................ 4 2.5 USER INFORMATION ................................................................................................................................................ 4 3 SYSTEM TEST CONFIGURATION ................................................................................................................... 5 3.1 JUSTIFICATION ........................................................................................................................................................ 5 3.2 DEVICES FOR TESTED SYSTEM ................................................................................................................................ 5 4. RADIATED EMISSION MEASUREMENT ...................................................................................................... 6 4.1 APPLICABLE STANDARD .......................................................................................................................................... 6 4.2 MEASUREMENT PROCEDURE ................................................................................................................................... 6 4.3 TEST DATA .............................................................................................................................................................. 8 4.4 FIELD STRENGTH CALCULATION ........................................................................................................................... 12 4.5 ACTIVATE TIME .................................................................................................................................................... 12 4.6 CALCULATION OF DUTY FACTOR .......................................................................................................................... 12 4.7 RADIATED TEST EQUIPMENT ................................................................................................................................. 16 4.8 MEASURING INSTRUMENT SETUP .......................................................................................................................... 16 4.9 RADIATED MEASUREMENT PHOTOS ...................................................................................................................... 17 5. BANDWIDTH OF EMISSION........................................................................................................................... 18 5.1 APPLICABLE STANDARD PLOT GRAPHIC OF BANDWIDTH ..................................................................................... 18 5.2 BANDWIDTH TEST EQUIPMENT ......................................…
