ALH229900800/900MHz Transceiver

© B62-1483-10 (K, K2, K3, K4) 09 08 07 06 05 04 03 02 01 INSTRUCTION MANUAL VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER TK-280/ TK-380 800 MHz FM TRANSCEIVER/ 900 MHz FM TRANSCEIVER TK-480/ TK-481 i THANK YOU We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. MODELS COVERED BY THIS MANUAL ï TK-280: VHF FM Transceiver ï TK-380: UHF FM Transceiver ï TK-480: 800 MHz FM Transceiver ï TK-481: 900 MHz FM Transceiver NOTICES TO THE USER ◆Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆Illegal operation is punishable by fine and/or imprisonment. ◆Refer service to qualified technicians only. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off your transceiver while taking on fuel, or while parked in gasoline service stations. ii One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ïReorient or relocate the receiving antenna. ïIncrease the separation between the equipment and receiver. ïConnect the equipment to an outlet on a circuit different from that to which the receiver is connected. ïConsult the dealer for technical assistance. ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel- cadmium (Ni-Cd) battery packs indicates KENWOODís voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-Cd battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOODís involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. iii CONTENTS UNPACKING AND CHECKING EQUIPMENT................... 1 Supplied Accessories...................................... 1 PREPARATION.................................................. 2 Installing/ Removing the Battery Pack..................... 2 Installing the Antenna..................................... 3 Installing the Belt Clip..................................... 3 Installing the Cover over the Universal Connector..... 4 Installing the (Optional KMC-25) Speaker/ Microphone ... 4 GETTING ACQUAINTED........................................ 5 Display...................................................... 7 PROGRAMMABLE AUXILIARY FUNCTIONS................. 8 OPERATION OVERVIEW....................................... 10 Trunking Format........................................... 10 Conventional Format (TK-280/ TK-380 Only).......... 10 OPERATING BASICS........................................... 11 Switching Power ON/ OFF................................ 11 Adjusting the Volume..................................... 11 Selecting a System/ Group/ Channel................... 11 Time-out Timer (TOT).................................... 12 TRUNKED OPERATION (Trunking Format).................. 13 Placing a Dispatch Call.................................. 13 Receiving a Dispatch Call................................ 13 Placing a Telephone Call (Keypad Models Only)...... 14 Receiving a Telephone Call (Keypad Models Only) ... 14 CONVENTIONAL OPERATION (Trunking Format)........... 15 Transmitting............................................... 15 iv Receiving.................................................. 15 SYSTEM SCAN (Trunking Format)........................... 16 Scanning Trunked Systems.............................. 16 Scanning Conventional Systems........................ 16 Scan Lockout.............................................. 17 Scan Revert................................................ 17 GROUP SCAN (Trunking Format)............................ 18 CONVENTIONAL OPERATION (Conventional Format)..... 19 Transmitting............................................... 19 Receiving.................................................. 19 SCAN (Conventional Format)................................ 20 Priority Scan............................................... 20 2-TONE SIGNALLING (Conventional Format).............. 21 FleetSync™: ALPHANUMERIC 2-WAY PAGING FUNCTION ...22 Key Functions............................................. 22 Selcall (Selective Calling)............................... 23 Status Message........................................... 25 Optional Short Messages Feature......…

Text truncated - open the document above for the full version.

Radio FRequency eneRgy SaFety inFoRmation This Kenwood transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This Kenwood transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by Kenwood . Use only Kenwood authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a Kenwood recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2546-00

January 19, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: TK-481-3, TK-481-4, FCC ID: ALH229900. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

January 19, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

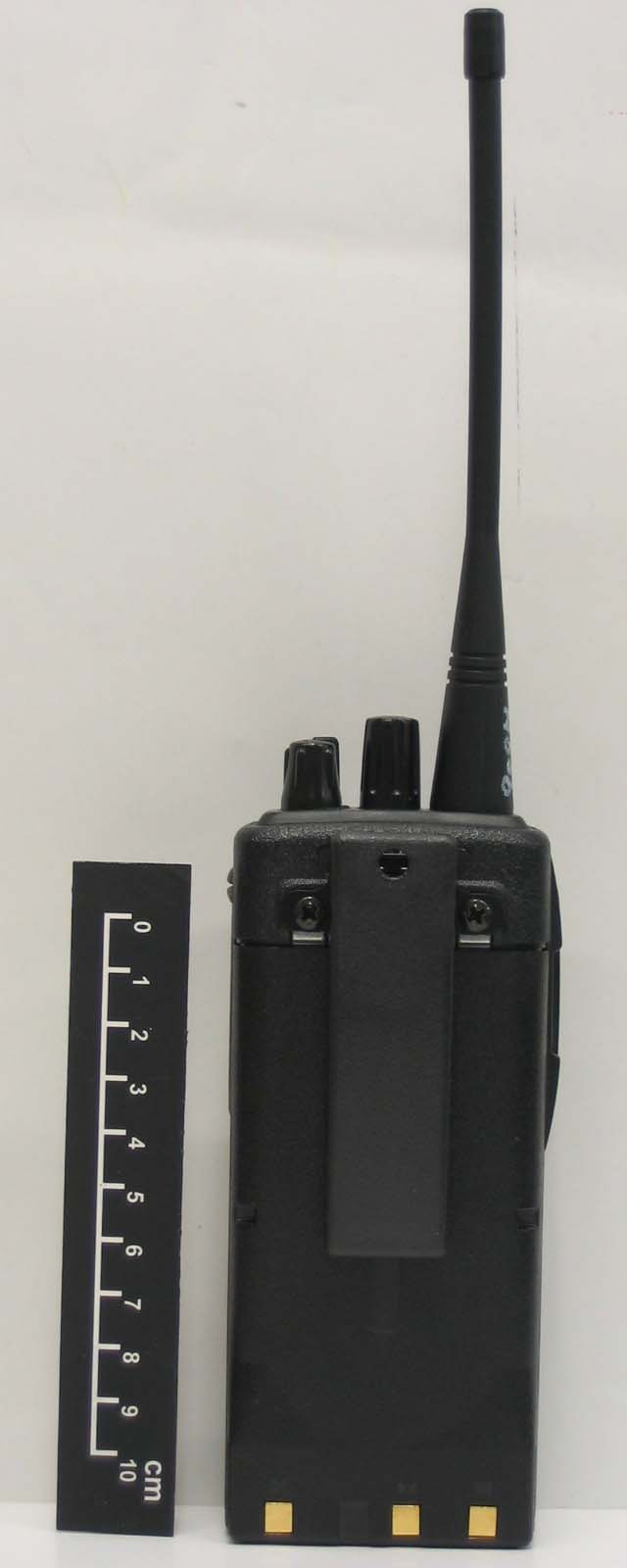

TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 Front View (TK-481-3) Front View (TK-481-4) TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 Left View Right View TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 Top View Bottom View Rear View

TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900

TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 TXRX Component Side View TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 TXRX Foil Side View TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 Display Component Side View TK-481-3, TK-481-4 FCC ID: ALH229900 IC: 282D-229900 Display Foil Side View

Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 SAR TEST REPORT (FCC/IC) R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT / MANUFACTURER KENWOOD USA CORPORATION DEVICE UNDER TEST (DUT) PORTABLE DUAL-BAND PUSH-TO-TALK RADIO TRANSCEIVER MANUF. RATED OUTPUT POWER 2.5 Watts (Conducted) DEVICE MODES OF OPERATION ANALOG FM TRANSMIT FREQUENCY BAND(S) 896 - 901 MHz (Low Band) 935 - 940 MHz (High Band) DEVICE MODEL(S) TK-481-3 (without DTMF) TK-481-4 (with DTMF) DEVICE IDENTIFIER(S) FCC ID: ALH229900 IC: 282D-229900 APPLICATION TYPE FCC/IC Certification FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) FCC KDB 447498 D01v04 Industry Canada RSS-102 Issue 3 IEEE 1528-2003 IEC 62209-1:2005 PROCEDURE(S) APPLIED IEC 62209-2 (Draft) FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Held to Face (TNF) IC DEVICE CLASSIFICATION Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) RF EXPOSURE CATEGORY Occupational / Controlled RF EXPOSURE EVALUATION(S) Face-held & Body-worn DATE(S) OF EVALUATION December 23, 2009 & January 04, 2010 TEST REPORT SERIAL NO. 121509ALH-T999-S90F TEST REPORT REVISION NO. Revision 1.0 Initial Release January 15, 2010 Testing Performed ByTest Report Prepared By TEST REPORT SIGNATORIES Sean Johnston - Celltech Labs Jon Hughes - Celltech Labs Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Standard(s) Applied FCC 47 CFR §2.1093 ICHealth Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (Edition 01-01) FCC KDB 447498 D01v04 (Mobile and Portable RF Exposure Procedures) Procedure(s) Applied IC RSS-102 Issue 3 IEEE1528-2003 IEC62209-1:2005 62209-2 (Draft) FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) Device RF Exposure Category FCC/IC Occupational / Controlled Environment FCC ID: ALH229900 Device Identifier(s) IC: 282D-229900 TK-481-3 (without DTMF) TK-481-4 (with DTMF) Device Model(s) Note: the two models are electrically and mechanically identical except for DTMF function per manuf. Test Sample Model TK-481-4 (with DTMF) Test Sample Serial No.2S-02 (Identical Prototype) Description of Device-Under-Test Portable Dual-Band Push-To-Talk (PTT) FM Radio Transceiver Manufacturer’s Rated Output Power 2.5 W atts DUT Mode(s) of Operation Analog FM Transmit Frequency Band(s) 896 - 901 MHz (Low Band) 935 - 940 MHz (High Band) RF Conducted Output Power Tested 34.2 dBm 2.63 W atts 898.95 MHz 34.2 dBm 2.63 W atts 935.05 MHz Antenna Type(s) Tested Detachable Whip P/N: T90-0640-25 Length: 151 mm Ni-Cd IS Battery Pack 7.2 V 1500 mAh P/N: KNB-17B Ni-MH Battery Pack 7.2 V 1400 mAh P/N: KNB-52N Ni-MH Battery Pack 7.2 V 1600 mAh P/N: KNB-21N Ni-MH Battery Pack 7.2 V 2100 mAh P/N: KNB-22N Ni-MH IS Battery Pack 7.2 V 2100 mAh P/N: KNB-22NC Battery Type(s) Tested Alkaline Battery Case 18 V (12x AA) Energizer Industrial P/N: KBP-4 Body-worn Accessories Tested Belt-Clip Contains Metal Components P/N: KBH-10 Audio Accessories Tested Speaker-Microphone P/N: KMC-25 Face-held 0.950 W/kg 1g50% PTT duty cycle Occupational / Controlled Exposure Max. SAR Level(s) Evaluated Body-worn 3.58 W/kg 1g50% PTT duty cycle Occupational / Controlled Exposure FCC/IC Spatial Peak SAR Limit Head/Body 8.0 W /kg 1g50% PTT duty cycle Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01), Industry Canada RSS-102 Issue 3, IEEE Standard 1528-2003, IEC International Standard 62209-1:2005 and IEC International Standard 62209-2 (Draft). All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervis…

Text truncated - open the document above for the full version.

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 Date: December 21, 2009 Applicant: Kenwood USA Corporation Communications Division 3970 Johns Creek Court, Suite 100 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Equipment: TK-481-3, TK-481-4 FCC ID: ALH229900 FCC Rules: Part 90 Gentlemen: Enclosed please find your copy of the Engineering Test Report for which you are subject to the restrictions as listed on the attached summary. Once a Telecommunication Certification Body (TCB) issues a Grant the Federal Communication Commission (FCC) has 30 days to review the application and request added information. It is your decision whether or not to market the equipment subject to a possible recall before the end of the 30 days. If your equipment is still retained by us, it will be returned to you 30 days after approval is achieved. Our invoice for services has been directed to your Accounts Payable Department. For any additional information please contact us. Thank you. Sincerely yours, John Erhard, Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 Summary of Restrictions 1. All submissions to the FCC are subject to their Examiner's interpretation. 2. Please allow from 60 to 90 days before hearing from the FCC with regard to any submission. 3. The FCC can set aside any action; modify or set aside any action, within 30 days. (FCC Rule 1.108, 1.113). 4. Under Rule 2.803, if device is not type accepted/certificated then it must not be sold, leased, offered for sale, imported, shipped or distributed or advertised for sale. 5. FCC can revoke its certificates at any time if the equipment does not meet or continue to meet their Rules. (Rule Parts 2.927, 2.939). 6. FCC can request a sample at any time (2.936). Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 Date: December 21, 2009 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Kenwood USA Corporation Equipment: TK-481-3, TK-481-4 FCC ID: ALH229900 FCC Rules: Part 90 Dear Gentleman: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Best regards, John Erhard, Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 Test Report for Model: TK-481-3, TK-481-4 to Federal Communications Commission Rule Part 90 Date of report: December 21, 2009 On the Behalf of the Applicant: Kenwood USA Corporation At the Request of: Kenwood USA Corporation Communications Division 3970 Johns Creek Court, Suite 100 Suwanee, GA 30024 Attention of: Joel E. Berger, Research & Development [email protected] (678) 474-4722; FAX: -4731 Reviewed by: John Erhard, Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 Test Report Revision History Revision Date Revised By Reason for revision 1.0 December 21, 2009 G. Corbin Original Document Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 List of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: Kenwood USA Corporation FCC ID: ALH229900 By Applicant: 1. Letter of Authorization 2. Confidentiality Request: 0.457 And 0.459 3. Identification Drawings, 2.1033(c)(11) Label Location of Label Compliance Statement Location of Compliance Statement 4. Photographs, 2.1033(c)(12) 5. Documentation: 2.1033(c) (3) User Manual (9) Tune Up Info (10) Schematic Diagram (10) Circuit Description Block Diagram Parts List Active Devices 6. MPE/SAR Report By Compliance Testing: A. Testimonial & Statement of Certification Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p09a0012, d09c0007 Rev 1.0 The Applicant has been cautioned as to the following: 15.21 Information to the User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall inclu…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 44 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 45 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Spacing from Front of DUT to Planar Phantom DUT with Ni-Cd IS 1500mAh Battery Pack P/N: KNB-17B 2.5 cm 4.3 cm Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 46 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Spacing from Front of DUT to Planar Phantom DUT with Ni-MH 2100mAh Battery Pack P/N: KNB-22NC 2.5 cm 4.3 cm Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 47 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 2.5 cm 4.3 cm FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm Spacing from Front of DUT to Planar Phantom DUT with Alkaline Battery Pack P/N: KBP-4 Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 48 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 BODY-WORN SAR TEST SETUP PHOTOGRAPHS 0.8 cm Belt-Clip Accessory Spacing from Back of DUT (Battery Housing) to Planar Phantom DUT with Ni-Cd 1500mAh Battery Pack P/N: KNB-17B & Speaker-Microphone Audio Accessory 0.8 cm 1.8 cm Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 49 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 1.1 cm 1.8 cm BODY-WORN SAR TEST SETUP PHOTOGRAPHS 1.1 cm Belt-Clip Accessory Spacing from Back of DUT (Battery Housing) to Planar Phantom DUT with Ni-MH 1400mAh Battery Pack P/N: KNB-52N & Speaker-Microphone Audio Accessory Applicant: Kenwood USA Corporation FCC ID: ALH229900 IC: 282D-229900 Model(s): TK-481-3 TK-481-4 DUT Type: Portable Dual-Band PTT FM Radio Transceiver 2010 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 50 of 66 Date(s) of Evaluation Dec. 23, 2009 & Jan. 04, 2010 Test Report Serial No. 121509ALH-T999-S90F Test Report Revision No. Rev. 1.0 (Initial Release) Test Report Issue Date January 15, 2010 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 1.1 cm 1.8 cm BODY-WORN SAR TEST SETUP PHOTOGRAPHS 1.1 cm Belt-Clip Accessory Spacing from Back of DUT (Battery Housing) to Planar Phantom DUT with Ni-MH 1600mAh Battery Pack P/N: KNB-21N & Speaker-Microphone Audio Accessory Applicant: Kenwood USA Corporation FCC ID:…

Text truncated - open the document above for the full version.
