© B62-2493-00 (K, K2, K3, K4, K5, K6, K7) 09 08 07 06 05 04 03 02 01 00 INSTRUCTION MANUAL VHF P25 TRANSCEIVER TK-5210 UHF P25 TRANSCEIVER TK-5310 700/800MHz P25 TRANSCEIVER TK-5410 i THANK YOU We are grateful you have chosen KENWOOD for your land mobile radio applications. MODELS COVERED BY THIS MANUAL The models listed below are covered by this manual: • TK-5210 (K/K2/K3/K7): VHF P25 Transceiver • TK-5310 (K/K2/K3/K4/K5/K6/K7): UHF P25 Transceiver • TK-5410 (K2/K3): 700/800MHz P25 Transceiver NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. ii Terminal Descriptions Universal connector It is possible to use a resin-based cover for the Universal connector. No.Name Description SpecificationI/O 1SSWExt/Int Speaker Switch InputHi: INT, Low: EXTI 2SP+BTL Output + for External SpeakerStandard load 8 ΩO 3SP-BTL Output – for External SpeakerStandard load 8 ΩO 4MSW Ext/Int MIC Switch Input Hi: INT, Low: EXTI 5EMC External MIC InputImpedance: 1.8 kΩI 6ME External MIC GND –– 7PTTExternal PTT InputLow: PTT ONI 8PFProgramable Function Key Input Input voltage: 0 V - 3.3 VI 9OPTAux I/O Port (for EXT Option) I: 0 V - 3.3 V O: Standard load 25 kΩ I/O 10EGNDGND − 115V5V 5V power supply output Max output current: 140 mA O 12TXDSerial Data OutputBaud rate: 115200 bps maxO 13RXDSerial Data InputBaud rate: 115200 bps maxI 14NCNot used–– Antenna Terminal 50 Ω impedance iii One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. iv The RBRC Recycle seal found on KENWOOD nickel-cadmium (Ni-Cd) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-Cd battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. The RBRC Recycle seal found on KENWOOD nickel metal hydride (Ni-MH) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-MH batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-MH batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-MH battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. The RBRC Recycle seal found on KENWOOD lithium-ion (Li-ion) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Li-ion batteries after their operating life has expired. The RBRC program is an alternative to disposing Li-ion batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Li-ion battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. v PRECAUTIONS • Do not charge the transceiver and battery pack when they are wet. • Ensure that there are no metallic items located between the transceiver and the battery pack. • Do not use options not specified by KENWOOD. • If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts. • If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay attention to the volume level when turning the squelch off. • Do not place the microphone cable around your neck while near machinery that may catch the cable. • Do not place the transceiver on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transceiver is used for transmission for many hours, the radiator and chassis will become hot. Do not touch these locations when replacing the battery pack. • Do not immerse the transceiver in water. • When water gets into the microphone opening or the spe…

Text truncated - open the document above for the full version.

RADIO FREQUENCY ENERGY SAFETY INFORMATION This KENWOOD transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by KENWOOD . Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a KENWOOD recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2687-00

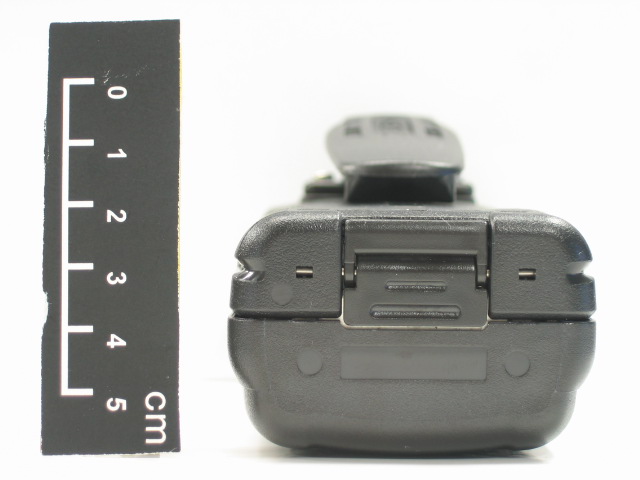

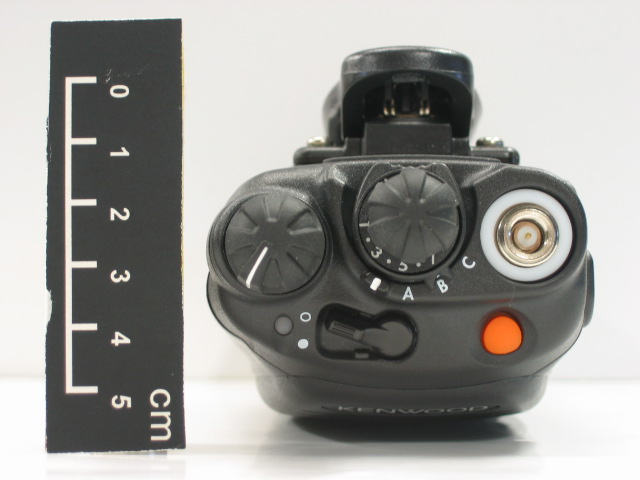

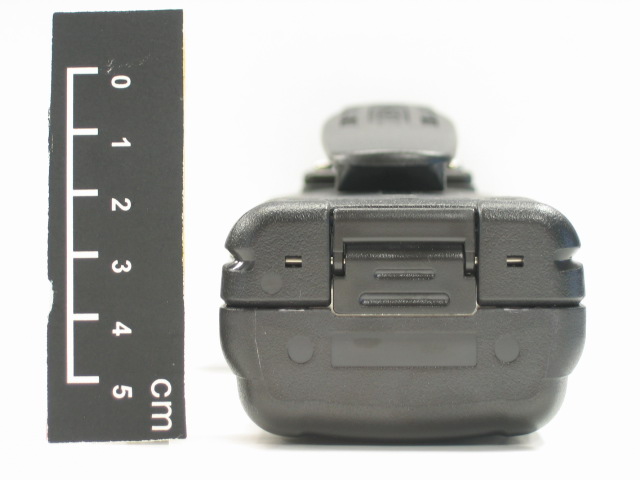

TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K2 Front View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K2 Rear View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K2 Left View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K2 Right View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2 Top View TK-5410 D-K2 Bottom View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K3 Front View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K3 Rear View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K3 Left View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K3 Right View TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K3 Top View TK-5410 D-K3 Bottom View

TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K2 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410 D-K3

TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3 TK-5410D-K2, TK-5410D-K3 FCC ID: ALH468800 IC: 282D-468800 TK-5410D-K2, TK-5410D-K3

Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 DECLARATION OF COMPLIANCE - SAR RF EXPOSURE EVALUATION (FCC/IC) Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Test Lab Accreditation(s) A2LA ISO/IEC 17025:2005 (A2LA Test Lab Certificate No. 2470.01) Name KENWOOD USA CORPORATION Applicant Information Address 3970 Johns Creek Court, Suite 100, Suwanee, GA 30024 United States Application Type(s) FCC TCB Certification IC CB Certification Standard(s) Applied FCC 47 CFR §2.1093 IC Health Canada Safety Code 6 FCC KDB 447498 D01v05r01 FCC KDB 643646 D01v01r01 Procedure(s) Applied IC RSS-102 Issue 4 IEC 62209-2:2010 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) - FCC Part 90 Device Classification(s) IC Land Mobile Radio Transmitter/Receiver (27.41-960 MHz) - RSS-119 Device Identifier(s) FCC ID: ALH468800 IC 282D-468800 Device Model(s) TK-5410D-K2 (4-keypad); TK-5410D-K3 (16-keypad) (Models are electrically identical and differ only in number of buttons on keypad) Device Model(s) Tested TK-5410D-K2 (s/n: B3790005); TK-5410D-K3 (s/n: B3790077) Test Sample Revision No.s Hardware 4.0 Firmware D1.00 Date of Sample Receipt Aug. 14, 2013 Date(s) of SAR Evaluations Aug. 20-22, Oct. 4-10, 2012 Device Description Portable FM UHF Push-To-Talk (PTT) Radio Transceiver FCC 769-775 MHz 799-805 MHz 806-824 MHz 851-869 MHz Transmit Frequency Range IC 768-776 MHz 798-806 MHz 806-824 MHz 851-869 MHz Manuf. Rated Output Power 3.0 W (Conducted) Manuf. Tolerance Specification +/- 0.5 W Antenna Type(s) Tested See manufacturer’s accessory listing (Section 5.0) Battery Type(s) Tested See manufacturer’s accessory listing (Section 5.0) Body-worn Accessories Tested See manufacturer’s accessory listing (Section 5.0) Audio Accessories Tested See manufacturer’s accessory listing (Section 5.0) Face-held (FCC) 0.817 W/kg Face-held (IC) 0.969 W/kg Body-worn (FCC) 2.24 W/kg Max. SAR Level(s) Evaluated Body-worn (IC) 3.00 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exposure FCC Spatial Peak SAR Limit Head/Body 8.0 W/kg 1g 50% PTT duty cycle Occupational / Controlled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada Safety Code 6 for the Occupational / Controlled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC KDB 447498 D01v05r01, Industry Canada RSS-102 Issue 4 and IEC International Standard 62209-2:2010. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Mike Meaker Engineering Technologist Celltech Labs Inc. Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 TABLE OF CONTENTS 1.0 INTRODUCTION___________________________________________________________________ 4 2.0 SAR MEASUREMENT SYSTEM ______________________________________________________ 4 3.0 RF CONDUCTED OUTPUT POWER MEASUREMENTS ___________________________________ 5 4.0 NO. OF TEST CHANNELS (N C ) _______________________________________________________ 5 5.0 MANUFACTURER’S DISCLOSED ACCESSORY LISTING _________________________________ 6 6.0 FLUID DIELECTRIC PARAMETERS ___________________________________________________ 7 7.0 SAR MEASUREMENT SUMMARY ____________________________________________________ 9 8.0 SAR SCALING ___________________________________________________________________ 14 9.0 DETAILS OF SAR EVALUATION ____________________________________________________ 15 10.0 SAR EVALUATION PROCEDURES _________________________________________________ 15 11.0 SYSTEM VERIFICATION __________________________________________________________ 16 12.0 SIMULATED EQUIVALENT TISSUES ________________________________________________ 17 13.0 SAR LIMITS_____________________________________________________________________ 17 14.0 ROBOT SYSTEM SPECIFICATIONS_________________________________________________ 18 15.0 PROBE SPECIFICATION (ET3DV6) _________________________________________________ 19 16.0 PHANTOM______________________________________________________________________ 19 17.0 DEVICE HOLDER ________________________________________________________________ 19 18.0 TEST EQUIPMENT LIST __________________________________________________________…

Text truncated - open the document above for the full version.

Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 51 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 APPENDIX D - SAR TEST SETUP & DUT PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 52 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face-held SAR Configuration Test Setup FACE-HELD SAR TEST SETUP PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 53 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Face-held SAR Configuration - Antenna 1, Battery b Face-held SAR Configuration - Antenna 1, Battery a FACE-HELD SAR TEST SETUP PHOTOGRAPHS 2.5 cm 5.0 cm 5.5 cm 2.5 cm 5.0 cm 5.5 cm Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 54 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body-worn SAR Configuration Test Setup with Belt-Clip BODY-WORN SAR TEST SETUP PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 55 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body-worn SAR Configuration - Antenna 1, Battery b, Audio G1a Body-worn SAR Configuration - Antenna 1, Battery a, Audio G1a BODY-WORN SAR TEST SETUP PHOTOGRAPHS 2.0 cm 2.8 cm 3.4 cm 2.0 cm 2.8 cm 3.4 cm Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 56 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body-worn SAR Configuration Test Setup with Leather Case BODY-WORN SAR TEST SETUP PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 57 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Body-worn SAR Configuration - Antenna 1, Audio G1a BODY-WORN SAR TEST SETUP PHOTOGRAPHS 2.0 cm 2.8 cm 3.4 cm Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 58 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 081413ALH-1249S Test Report Revision No. Rev. 1.1 Test Report Issue Date Aug. 23, 2013 Description of Test(s) Specific Absorption Rate RF Exposure Category Occupational (Controlled) Test Lab Certificate No. 2470.01 Radio Front Radio Left Side Radio Back Radio Right Side Radio Top Radio Bottom TK-5410D-K3 (16-keypad variant) DUT PHOTOGRAPHS Applicant: Kenwood USA Corporation FCC ID: ALH468800 IC ID: 282D-468800 DUT Type: Portable 700/800 PTT Radio Transceiver Models: TK-5410D-K2/K3 768-869 MHz 2013 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 59 of 66 Date(s) of Evaluation Aug 16-20, 2013 Test Report Serial No. 08141…

Text truncated - open the document above for the full version.

FCC PART 90 TEST REPORT APPLICANT KENWOOD USA CORPORATION 3970 JOHNS CREEK COURT, SUITE #100 SUWANEE GA 30024 USA FCC ID ALH468800 MODEL NUMBER TK-5410D-K2, TK-5410D-K3 PRODUCT DESCRIPTION PORTABLE LMR RADIO DATE SAMPLE RECEIVED 7/23/2013 DATE TESTED 8/ 9/2013 TESTED BY NAM NGUYEN APPROVED BY NAM NGUYEN TIMCO REPORT NO. 1264AUT13TestReport_rev1.docx TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: KENWOOD USA CORPORATION FCC ID: ALH468800 Report: K\KENWOOD_ALH\1264AUT13\1264AUT13TestReport_rev1.docx Page 2 of 45 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................... 3 GENERAL INFORMATION ............................................................................................ 4 EQUIPMENT LIST ........................................................................................................ 5 TEST PROCEDURE ...................................................................................................... 6 RF POWER OUTPUT .................................................................................................... 7 MODULATION CHARACTERISTICS.............................................................................. 8 MODULATION CHARACTERISTICS.............................................................................. 9 VOICE MODULATED COMMUNICATION EQUIPMENT .............................................. 11 OCCUPIED BANDWIDTH ........................................................................................... 13 OCCUPIED BANDWIDTH PLOTS ............................................................................... 15 OCCUPIED BANDWIDTH PLOTS (NPSPAC mutual aid channels) ............................... 27 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED)............................ 29 FIELD STRENGTH OF SPURIOUS EMISSIONS .......................................................... 33 FREQUENCY STABILITY ............................................................................................ 38 ADJACENT CHANNEL POWER (ACP) ......................................................................... 40 OUT OF BAND EMISSION .......................................................................................... 42 EA EMISSION MASK .................................................................................................. 43 Applicant: KENWOOD USA CORPORATION FCC ID: ALH468800 Report: K\KENWOOD_ALH\1264AUT13\1264AUT13TestReport_rev1.docx Page 3 of 45 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Nam Nguyen Project Manager/Testing Technician Date: 8/16/2013 Applicant: KENWOOD USA CORPORATION FCC ID: ALH468800 Report: K\KENWOOD_ALH\1264AUT13\1264AUT13TestReport_rev1.docx Page 4 of 45 GENERAL INFORMATION DUT Specification DUT Description PORTABLE LMR RADIO FCC ID ALH468800 Model Number TK-5410D-K2, TK-5410D-K3 Operating Frequency 769-775, 799-805, 806-824, and 851-869 MHz No. of Channels 512 channels per Zone (100 Zone Max) Type of Emission 16K0F3E, 14K0F3E, 11K0F3E 8K10F1E, 8K10F1D, 8K10F1W Modulation FM DUT Power Source 110–120Vac/50– 60Hz DC Power 12V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Test Conditions The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT None Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 90 Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. *1264AUT13TestReport_rev1: adding NPSPAC mutual aid channels. Applicant: KENWOOD USA CORPORATION FCC ID: ALH468800 Report: K\KENWOOD_ALH\1264AUT13\1264AUT13TestReport_rev1.docx Page 5 of 45 EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 10/28/11 10/28/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 10/28/11 10/28/13 EMI Receiver Rohde & Schwarz ESIB40 100274 3/16/12 3/16/14 Antenna: Biconnical Electro- Metrics BIA-25 1171 06/13/12 06/13/14 Antenna: Biconnical Eaton 94455-1 1096 05/10/13 05/10/15 Antenna: Log- Periodic Electro- Metrics LPA-25 1122 05/09/13 05/09/15 Frequency Counter HP 5352B 2632A00165 06/26/13 06/26/15 Signal Generator HP 8640B 2308A21464 02/23/12 02/23/14 Hygro- Thermometer Extech 445703 0602 06/20/13 06/20/15 Digital Multimeter Fluke 77 35053830 09/09/11 09/09/13 Analyzer Tan Tower RF Presel…
