ALH443801UHF Digital Transceiver

NX-240 NX-240V NX-340 NX-340U © B62-2580-00 (K, P) 09 08 07 06 05 04 03 02 01 00 VHF DIGITAL TRANSCEIVER UHF DIGITAL TRANSCEIVER INSTRUCTION MANUAL ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE VHF ÉMETTEUR-RÉCEPTEUR NUMÉRIQUE UHF MODE D’EMPLOI TRANSCEPTOR DIGITAL VHF TRANSCEPTOR DIGITAL UHF MANUAL DE INSTRUCCIONES B62-2580-00_Cover.indd 17/5/13 1:51 PM B62-2580-00_Cover.indd 27/5/13 1:51 PM VHF DIGITAL TRANSCEIVER UHF DIGITAL TRANSCEIVER NX-240 NX-240V NX-340 NX-340U INSTRUCTION MANUAL ENGLISH B62-2580-00_Cover.indd 37/5/13 1:51 PM THANK YOU We are grateful you have chosen KENWOOD for your land mobile radio applications. NOTICES TO THE USER ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control. ◆ Illegal operation is punishable by fine and/or imprisonment. ◆ Refer service to qualified technicians only. Safety: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. Terminal Descriptions Speaker/ Microphone Jacks It is possible to use a resin-based cover for the Speaker/ Microphone jacks. No.NameDescriptionImpedanceI/O 1PTT / RXDExternal PTT Input / Serial Data Input47 kΩI 2MICINExternal MIC Input1.8 kΩI 3MICOInternal MIC Output1.8 kΩO 4OPTDET External Option DetectHigh ImpedanceI 5 50V5V Output100 ΩO 6 AEGNDGND − 7TXDSerial Data Output6.9 kΩO 8NCNo Connection −− 9NCNo Connection −− 10SPOReceived Audio Output8 ΩO Antenna Terminal 50 Ω impedance Battery Terminal The battery terminal uses a spring plate. The negative terminal connects to the chassis ground. The battery is mounted on the rear side of the transceiver using a latch mounting method. B62-2580-00_000.indd 17/5/13 1:55 PM i One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. B62-2580-00_0i-vi.indd 17/5/13 1:56 PM ii PRECAUTIONS • Do not charge the transceiver and battery pack when they are wet. • Ensure that there are no metallic items located between the transceiver and the battery pack. • Do not use options not specified by KENWOOD. • If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts. • If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay attention to the volume level when turning the squelch off. • Do not place the microphone cable around your neck while near machinery that may catch the cable. • Do not place the transceiver on unstable surfaces. • Ensure that the end of the antenna does not touch your eyes. • When the transceiver is used for transmission for many hours, the radiator and chassis will become hot. Do not touch these locations when replacing the battery pack. • Do not immerse the transceiver in water. • Always switch the transceiver power off before installing optional accessories. • The charger is the device that disconnects the unit from the AC mains line. The AC plug should be readily accessible. ATTENTION: The RBRC Recycle seal found on KENWOOD lithium- ion (Li-ion) battery packs indicates KENWOOD ’s voluntary participation in an industry program to collect and recycle Li-ion batteries after their operating life has expired. The RBRC program is an alternative to disposing Li-ion batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Li-ion battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD ’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. B62-2580-00_0i-vi.indd 27/5/13 1:56 PM iii Turn the transceiver power off in the following locations: • In explosive atmospheres (inflammable gas, dust particles, metallic powders, grain powders, etc.). • While taking on fuel or while parked at gasoline service stations. • Near explosives or blasting sites. • In aircraft. (Any use of the transceiver must follow the instructions and regulations provided by the airline crew.) • Where restrictions or warnings are posted regarding the use of radio devices, including but not limited to medical facilities. • Near persons using pacemakers. • Do not disassemble or modify the transceiver for any reason. • Do not place the transceiver on or near airbag equipment while the vehicle is running. When the airbag inflates, the transceiver may be ejected and strike the driver or passengers. • Do not transmit while touching the antenna terminal or if any metallic parts are exposed from the antenna covering. Transmitting at such a time may result in a high-freque…

Text truncated - open the document above for the full version.

Kenwood USA Corporation 3970 Johns Creek Court, Suwanee, GA 30024 (678) 474-4700 October 10th, 2013 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely,

Oct. 10th, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer RE: CONFIDENTIALITY REQUEST FOR MODEL: NX-340-K2/-M2/-M3, NX-340U-K2, FCC ID: ALH443801. To Whom It May Concern: This letter serves as an official request for permanent confidentiality pursuant to 47 CFR Section 0.459 of the Commission Rules. We have requested that the Block Diagram, Schematic Diagrams, Circuit Description, Parts List, Active Devices and Tuning Procedure required to be submitted with this application be withheld from public review. The documents are company proprietary information that should never get into the possession of our competition. Please contact me if you require any additional information. Sincerely,

Oct. 10th, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Reviewing Engineer Subject: Justify Extended Frequency Range for MODEL: NX-340-K2/-M2/-M3, NX-340U-K2, FCC ID: ALH443801 To Whom It May Concern: This letter serves justification for extended frequencies This device has design capability to operate in the frequency band 406.1 to 470 MHz and complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transit frequencies using the normally accessible external controls. Please note that Licensed End Users do not have access to any external controls that will allow them to program the equipment. Equipment programming is the responsibility of KENWOOD approved Service Agents. In addition to Parts 90 usage, this device is utilized in systems such as Federal and Public Safety agencies, e.g. police, fire, and emergency medical, etc. as indicated in the following table: Table 1 – Frequency Range and Rule Parts - (47 CFR Part 2.106) It is understood that a grant note code may be added to the grant which indicates this required operation. In addition, we acknowledge that it is a violation of FCC rules if the device operates on unauthorized frequencies. Please contact me if you require any additional information. Sincerely, Freq. Range (MHz) Part 90 Federal Customers 406.100 - 454.000 x 454.000 - 456.000 x 456.000 - 462.5375 x 462.5375-462.7375 x 462.7375-467.5375 x 467.5375-467.7375 x 467.7375-470.000 x

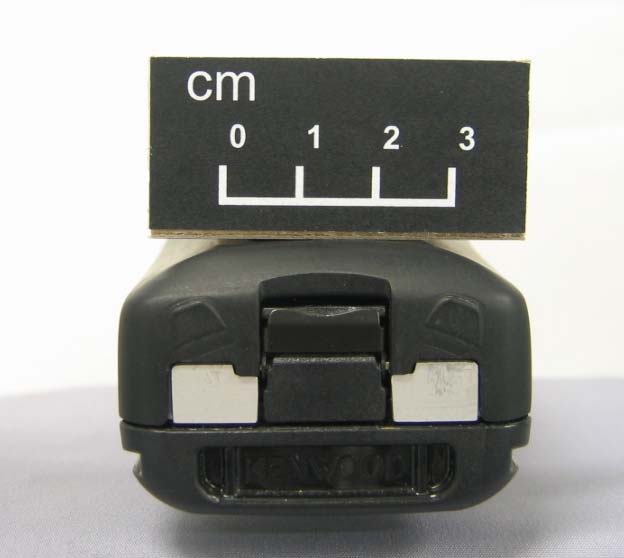

NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801 Front View NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801 Rear View NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801 Left View NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801 Right View NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801 T op View Bottom V iew

NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801 NX-340-K2/-M2/-M3, NX-340U-K2 FCC ID: ALH443801 NX-340-P IC: 282D-443801

RADIO FREQUENCY ENERGY SAFETY INFORMATION This KENWOOD transceiver has been tested and complies with the standards listed below, in regards to Radio Frequency (RF) energy and electromagnetic energy (EME) generated by the transceiver. • FCC RF exposure limits for Occupational Use Only. RF Exposure limits adopted by the FCC are generally based on recommendations from the National Council on Radiation Protection and Measurements, & the American National Standards Institute. • FCC OET Bulletin 65 Edition 97-01 Supplement C • American National Standards Institute (C95.1 – 1992) • American National Standards Institute (C95.3 – 1992) This KENWOOD transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric & Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter’s antenna. RF energy exposure is determined primarily by the distance to and the power of the transmitting device. In general, RF exposure is minimized when the lowest possible power is used or transmission time is kept to the minimum required for consistent communications, and the greatest distance possible from the antenna to the body is maintained. The transceiver has been designed for and is classified for Occupational Use Only. Occupational/ controlled exposure limits are applicable to situations in which persons are exposed to RF energy as a consequence of their employment, and such persons have been made aware of the potential for exposure and can exercise control over their exposure. This means you can use the transceiver only if you are aware of the potential hazards of operating a transceiver and are familiar in ways to minimize these hazards. This transceiver is not intended for use by the general public in uncontrolled environments. Uncontrolled environment exposure limits are applicable to situations in which the general public may be exposed to RF energy, or in which the persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. The following list provides you with the information required to ensure that you are aware of RF exposure and of how to operate this transceiver so that the FCC RF exposure limitations are not exceeded. • While transmitting (holding the PTT switch or speaking with VOX enabled), always keep the antenna and the radio at least 3 cm (1 3/16 inches) from your body or face, as well as from any bystanders. A LED on the top of the radio shows red when the transmitter is operating in both PTT and VOX modes. • Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time, 5% reception time, and 90% stand-by time. • Use only the specified antenna for this transceiver; this may be either the antenna provided with the transceiver or another antenna authorized by KENWOOD . Use only KENWOOD authorized accessories (antennas, battery packs, belt clips, Speaker/ Mics or headsets etc.): When worn on the body, always place the radio in a KENWOOD recommended clip or carrying case meant for this product. The use of other than recommended or approved body- worn accessories may result in RF exposure levels which exceed the FCC’s occupational/ controlled environment RF exposure limits. To ensure that your exposure to RF EME is within the FCC limits for occupational use, you must observe and adhere to the above points. Electromagnetic Interference Compatibility Electronic devices are susceptible to electromagnetic interference (EMI) if they are not adequately shielded or designed for electromagnetic compatibility. Because this transceiver generates RF energy, it can cause interference to such equipment. • Turn OFF your transceiver where signs are posted to do so. Hospitals and health care facilities use equipment that is sensitive to electromagnetic radiation. • Turn OFF your transceiver while on board an aircraft when so instructed. Use of the transceiver must be in accordance with airline regulations and/or crew instructions. B59-2687-00

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Kenwood USA Corporation Dates of Test: October 1, 2013 3970 Johns Creek Court, Suite 100 Test Report Number: SAR.20131001 Suwanee, GA 30024 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, and OET Bulletin 65 Supp. C (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: ALH443801 Model(s): NX-340-K@, NX-340-M2, NX-340-M3, NX-340U-K2 Test Sample: Engineering Unit Same as Production Serial Number: p1390004 Equipment Type: Push-To-Talk Handheld Radio for Occupational Use Classification: Portable Transmitter Next to Face and Body TX Frequency Range: 406.1 – 470 MHz (FCC); 406.1 – 430 MHz and 450 – 470 MHz (IC) Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 450 MHz – 37.00 dB Conducted Signal Modulation: FM Body Worn Accessories: Model KBH-10 Audio Accessories: Model KMC-45, KMC-48GPS, KHS-26, KHS-27, KHS-31 Antenna Type: KRA-27M (440-490 MHz), KRA-27M3 (400-450 MHz) Battery: Standard (Model KNB-45L) Application Type: Certification FCC Rule Parts: Part 2, 90 KDB Test Methodology: KDB 447498 D01 v05, KDB 643646 D01 v01r01 Maximum SAR Value: Face – 3.43 W/kg (Reported); Body – 3.47 W/kg (Reported) Separation Distance: 25 mm for Face; 0 mm for Body © 2013 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. FCC ID: ALH443801 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................11 4. Phantom & Simulating Tissue Specifications .....................................................................12 Head & Body Simulating Mixture Characterization ................................................................12 Device Holder .......................................................................................................................12 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................13 Uncontrolled Environment .....................................................................................................13 Controlled Environment .........................................................................................................13 6. Measurement Uncertainty .................................................................................................14 7. System Validation..............................................................................................................15 Tissue Verification .................................................................................................................15 Test System Verification ........................................................................................................15 8. SAR Test Data Summary ..................................................................................................16 Procedures Used To Establish Test Signal ...........................................................................16 Device Test Condition ...........................................................................................................16 SAR Data Summary – Head SAR in Front of Face Measurements .......................................20 SAR Data Summary – Body SAR Measurements – Standard Battery ...................................21 9. Test Equipment List ...........................................................................................................22 10. Conclusion ....................................................................................................................23 11. References ....................................................................................................................24 Appendix A – System Validation Plots and Data .......................................................................25 Appendix B – SAR Test Data Plots ...........................................................................................30 Appendix C – SAR Test Setup Photos ......................................................................................35 Appen…

Text truncated - open the document above for the full version.

P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 Test Report Prepared for: Kenwood USA Corporation Model: NX-340-K2, NX-340-M2, NX-340-M3, NX-340U-K2 and NX-340-P Description: UHF Digital Transceiver FCC ID: ALH443801 To FCC Part 90 Date of Issue: October 11, 2013 On the behalf of the applicant: Kenwood USA Corporation Communications Division 3970 Johns Creek Court Suwanee, GA 30024 Attention of: Joel Berger, Research & Development Ph: (678) 474-4722 E-Mail: [email protected] Prepared By Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1390004 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 October 11, 2013 Alex Macon Original Document P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 Table of Contents Description Page Standard Test Conditions and Engineering Practices 6 Test Result Summary 7 Carrier Output Power (Conducted) 8 Conducted Spurious Emissions 9 Field Strength of Spurious Radiation 16 Emission Masks (Occupied Bandwidth) 19 Transient Frequency Behavior 29 Audio Low Pass Filter (Voice Input) 31 Audio Frequency Response 32 Modulation Limiting 33 Frequency Stability (Temperature Variation) 34 Necessary Bandwidth Calculations 35 Test Equipment Utilized 37 P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 The Applicant has been cautioned as to the following: 15.21: Information to the User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II, Part 2, Subpart J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and the following individual Parts 90. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/TIA 603C, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 26.5 - 36.3 11.1 – 36.5 959.5 – 967.3 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: NX-340-K2, NX-340-M2, NX-340-M3, NX-340U-K2 and NX-340-P Description: UHF Digital Transceiver Additional Information: The EUT is a push to talk occupational radio EUT Operation during Tests The EUT was in a normal operating condition for testing. Both a radiated and conducted sample were provided. Accessories: None Cables: None Modifications: None P1390004_FCC_Part 90_Rev 1.0 Page 29 of 29 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 2.1046 Carrier Output Power (Conducted) Pass 2.1051 Unwanted Emissions (Transmitter Conducted) Pass 2.1053 Field Strength of Spurious Radiation Pass 90.210, 2.1049 Emission Masks (Occupied Bandwidth) Pass 2.1047 Audio Low Pass Filter (Voice Input) Pass 2.1047 Audio Frequency Response Pass 2.1047(a) Modulation Limiting Pass 90.213 Frequency Stability (Temperature Variation) Pass 90.213 Frequency Stability (Voltage Variation) Pass 90.214 Tra…

Text truncated - open the document above for the full version.

Page 1 of 3 Test Setup Photos: FCC ID: ALH443801 IC: 282D-443801 Page 2 of 3 Page 3 of 3
