ALH29463120VHF-FM Hand Held Transceiver

©B62-1129-10(K)(MC) 09 08 07 06 05 04 03 02 01 00 VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES TRANSCEPTOR DE FM VHF/ TRANSCEPTOR DE FM UHF KENWOOD CORPORATION TK-260G/TK-360G ENGLISH VHF FM TRANSCEIVER/ UHF FM TRANSCEIVER INSTRUCTION MANUAL TK-260G/TK-360G One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer for technical assistance. ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-cadmium (Ni-Cd) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-Cd battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. i MODELS COVERED BY THIS MANUAL •TK-260G: VHF FM Transceiver •TK-360G: UHF FM Transceiver NOTICES TO THE USER WARNING: GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE TERRITORIES UNDER GOVERNMENT CONTROL. ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH. REFER SERVICE TO A QUALIFIED LICENSED OR CERTIFIED TECHNICIAN ONLY. SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. WARNING: EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.) Turn off and do not operate your transceiver while taking on fuel, or while parked in gasoline service stations. ii PRECAUTIONS Please observe the following precautions to prevent fire, personal injury, and transceiver damage: • Do not modify this transceiver for any reason. • Do not expose the transceiver to long periods of direct sunlight, nor place the transceiver close to heating appliances. • Do not place the transceiver in excessively dusty areas, humid areas, nor on unstable surfaces. • If an abnormal odor or smoke is detected coming from the transceiver, switch OFF the power immediately and remove the optional battery pack from the transceiver. Contact your KENWOOD dealer. iii CONTENTS FCC WARNINGS/ BATTERY ADVISORY......................Inside Front Cover MODELS COVERED BY THIS MANUAL...................... i NOTICES TO THE USER............................................. i PRECAUTIONS........................................................... ii THANK YOU!.............................................................. 1 UNPACKING AND CHECKING EQUIPMENT............. 1 Supplied Accessories........................................ 2 PREPARATION.......................................................... 3 Installing/Removing the Optional Battery Pack .. 3 Installing the Antenna........................................ 5 Installing the Cap over the Speaker-Mic Jacks .. 6 Installing the Speaker-Microphone.................... 6 Installing the Belt Hook..................................... 7 GETTING ACQUAINTED............................................ 8 RECEIVING............................................................... 11 CALLING.................................................................. 12 Time-Out Timer (TOT)..................................... 13 Busy Channel Lockout.................................... 13 Battery Voltage Level...................................... 14 CHANNEL CHART................................................... 15 1 THANK YOU! We are grateful you chose KENWOOD for your land mobile applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with this product’s quality and features. UNPACKING AND CHECKING EQUIPMENT Note: The following instructions are for use by your KENWOOD dealer, an authorized KENWOOD service facility, or the factory. Carefully unpack the transceiver. We recommend that you identify the items listed on the following page before discarding the packing material. If any damage has occurred during shipment, file a claim with the carrier immediately. 2 nSupplied Accessories Locking bracket Speaker-mic jacks cap Screw set Belt hook ItemPart NumberQty. 1 1 1 1 1 1 Belt hook Screw set Speaker-mic jacks cap Locking bracket (for speaker-mic) Warranty card Instruction manual J29-0624-XX N99-2012 -XX B09-0351-XX J21-4493-XX — …

Text truncated - open the document above for the full version.

(FCC ID:ALH29463120) (FCC ID:ALH29473140) TK-260G/TK-270G and TK-360G/TK-370G Tuning Procedure Before attempting to tune the transceiver, connect the unit to a suitable power supply. Whenever the transmitter tuned, must be connected to a suitable dummy load, unless the instruction specify otherwise. The speaker output connector must be terminated with a 8ohms dummy load at any time during the tuning and connected to an AC voltmeter and an audio distortion meter or a SINAD measurement meter at all the time during the tuning. 1-1 Adjusting Mode Connect with the Radio and Personal Computer to COMPUTER PROGRAMMING INTERFACE(KPG-8 or KPG-22) 1-2 Tuning Items  Battery Warning Level  RF Power  Squelch Threshold Level(Tight)  Squelch Threshold Level(Open)  QT Deviation  DQT Deviation  QT Balance  DQT Balance  DTMF Deviation  Single Tone Deviation 1-3 Test Mode Starting Test Mode, select the Tuning Frequency and Signaling. 1-3-1 Open the Program Menu of Window. 1-3-2 Press [T] or use [↓][↑] keys to Test Mode, then Press the [Enter]. 1-3-3 Starting the Test Mode channel and Signaling after Tuning Data Read. 1-3-4 Use [←][→] keys to select channel then use [↓][↑] keys to select channel number then Press the [Enter]. 1-3-5 Use [←][→] keys to select Signaling then use [↓][↑] keys to select Signaling number 12 waves. 1-3-6 Press the [Space],[F2] then Transmitter on. 1-3-7 Back to Reception during transmitter use [Space],[F2]. (FCC ID:ALH29463120) (FCC ID:ALH29473140) 2-1 Tuning Mode Starting Tuning Mode from Test Mode. 2-1-1 Press the [F10] during the TEST MODE CHANNEL & SIGNALING MODE then starting Tuning Mode and message Window open. Tuning Mode Battery Warning Level RF High Power RF Low Power QT VCO Balance QT TCXO Balance DQT VCO Balance DQT TCXO Balance Max Deviation QT Fine Deviation DQT Fine Deviation DTMF Fine Deviation Single Tone Fine Deviation Sensitivity Squelch(Tight) Squelch(Open) 2-1-2 Use [↓][↑] keys select tuning item [Battery Warning Level] then press [Enter]. 2-1-3 Use [←][→] keys to adjust the level then press [Enter]. 2-1-4 Select tuning item [RF High Power] then press [Enter]. 2-1-5 Use [←][→] keys to adjust the level then press [Enter]. 2-1-6 Select tuning item [RF Low Power] then press [Enter]. 2-1-7 Use [←][→] keys to adjust the level then press [Enter]. 2-1-8 Select tuning item [QT VCO Balance] then press [Enter]. 2-1-9 Use [←][→] keys to adjust the level then press [Enter]. 2-1-10 Select tuning item [QT TCXO Balance] then press [Enter]. 2-1-11 Use [←][→] keys to adjust the level then press [Enter]. 2-1-12 Select tuning item [DQT VCO Balance] then press [Enter]. 2-1-13 Use [←][→] keys to adjust the level then press [Enter]. 2-1-14 Select tuning item [DQT TCXO Balance] then press [Enter]. 2-1-15 Use [←][→] keys to adjust the level then press [Enter]. (FCC ID:ALH29463120) (FCC ID:ALH29473140) 2-1-16 Select tuning item [Max Deviation] then press [Enter]. 2-1-17 Use [←][→] keys to adjust the level then press [Enter]. 2-1-18 Select tuning item [QT Fine Deviation] then press [Enter]. 2-1-19 Use [←][→] keys to adjust the level then press [Enter]. 2-1-20 Select tuning item [DQT Fine Deviation] then press [Enter]. 2-1-21 Use [←][→] keys to adjust the level then press [Enter]. 2-1-22 Select tuning item [DTMF Fine Deviation] then press [Enter]. 2-1-23 Use [←][→] keys to adjust the level then press [Enter]. 2-1-24 Select tuning item [Single Tone Fine Deviation] then press [Enter]. 2-1-25 Use [←][→] keys to adjust the level then press [Enter]. 2-1-26 Select tuning item [Sensitivity] then press [Enter]. 2-1-27 Use [←][→] keys to adjust the level then press [Enter]. 2-1-28 Select tuning item [Squelch(Tight)] then press [Enter]. 2-1-29 Use [←][→] keys to adjust the level then press [Enter]. 2-1-30 Select tuning item [Squelch(Open)] then press [Enter]. 2-1-31 Use [←][→] keys to adjust the level then press [Enter]. Press [Esc] then finish the TEST MODE.

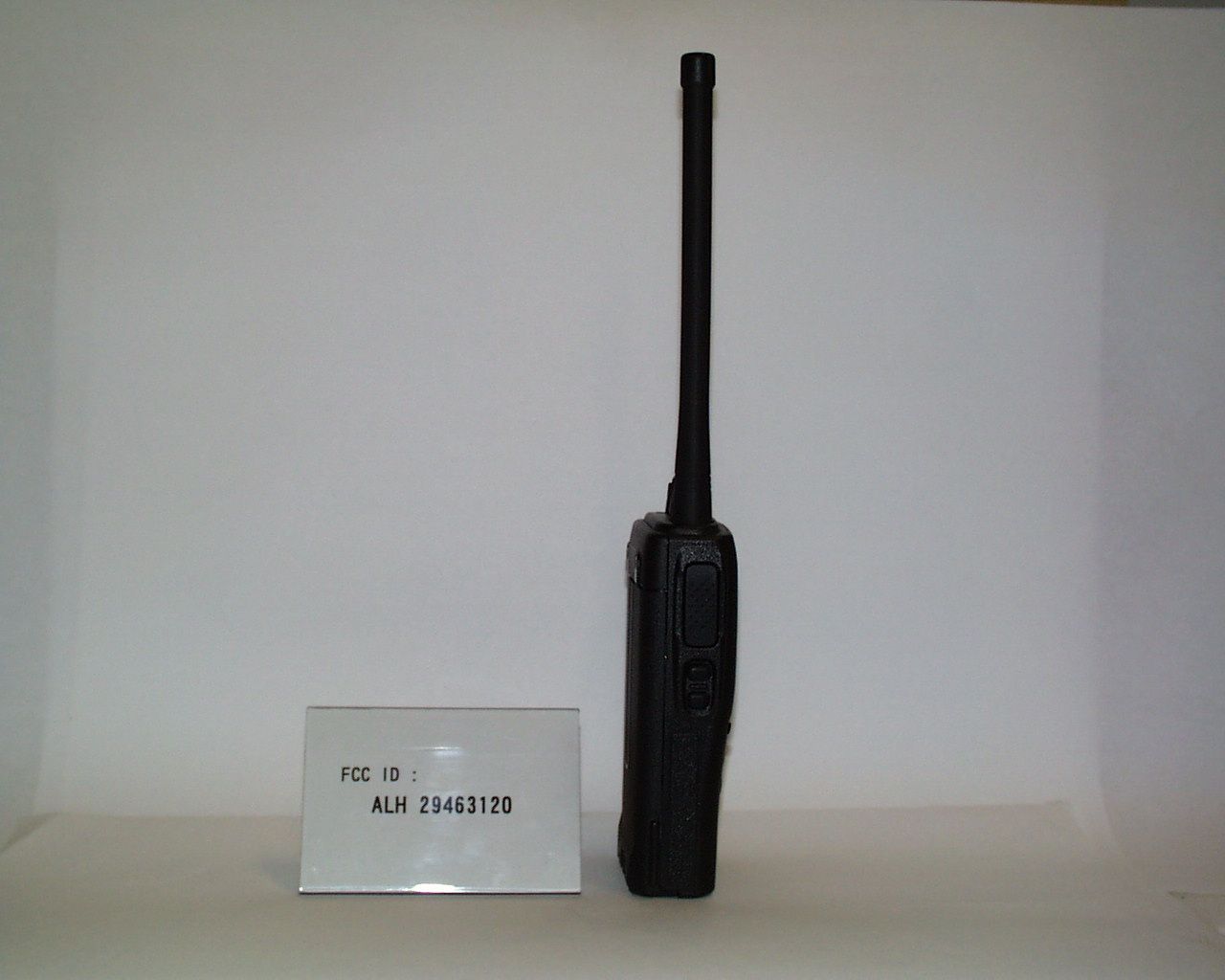

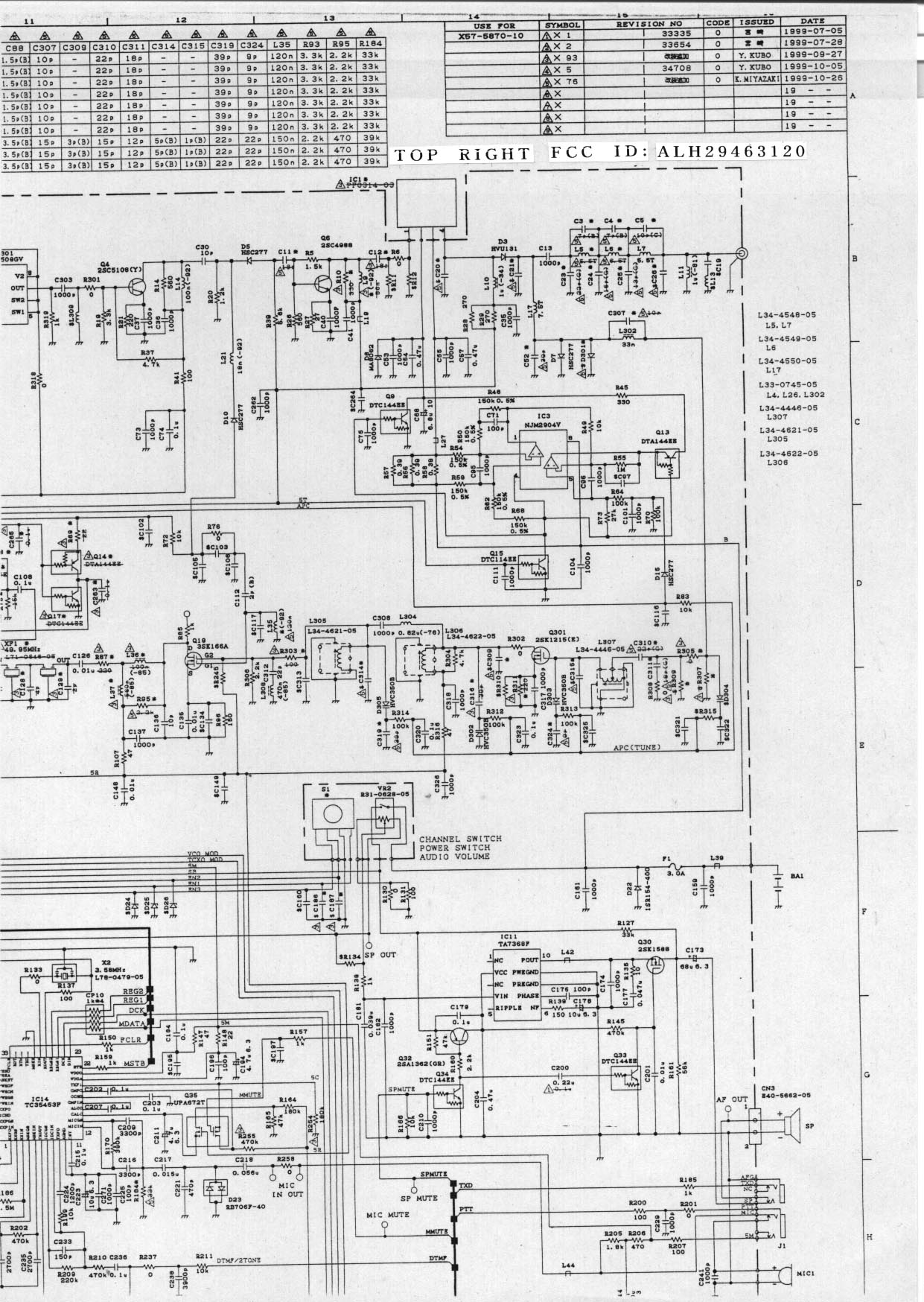

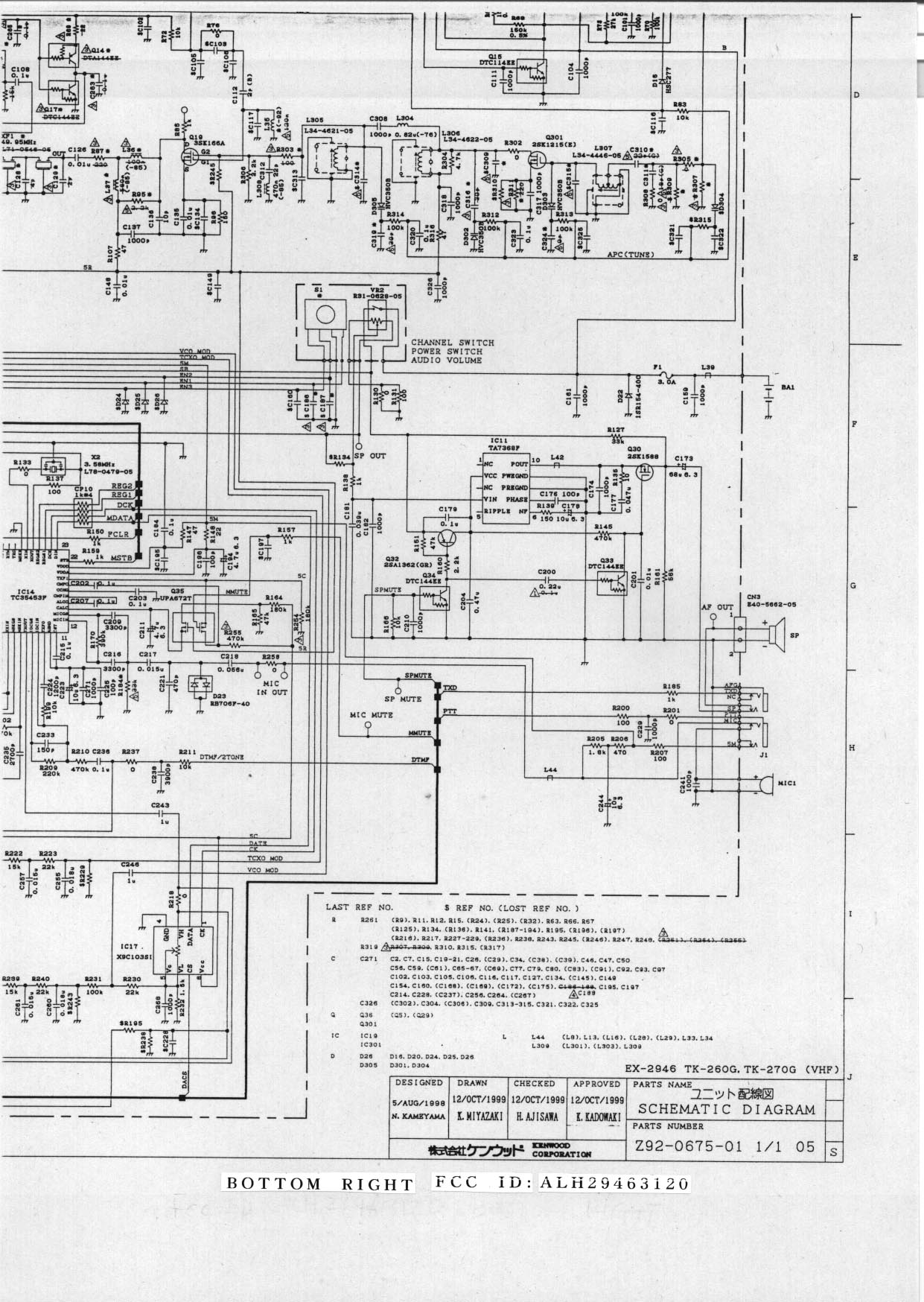

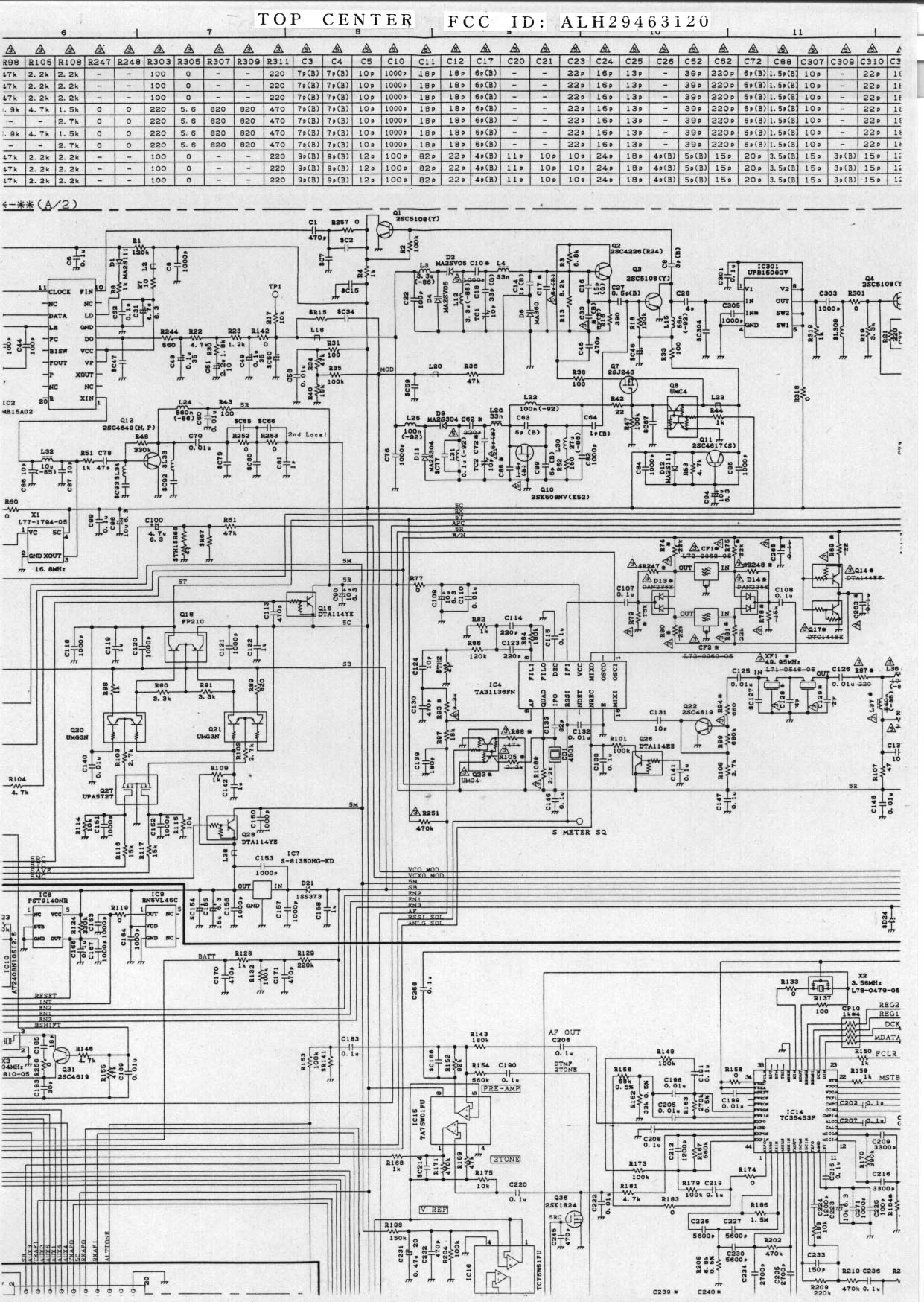

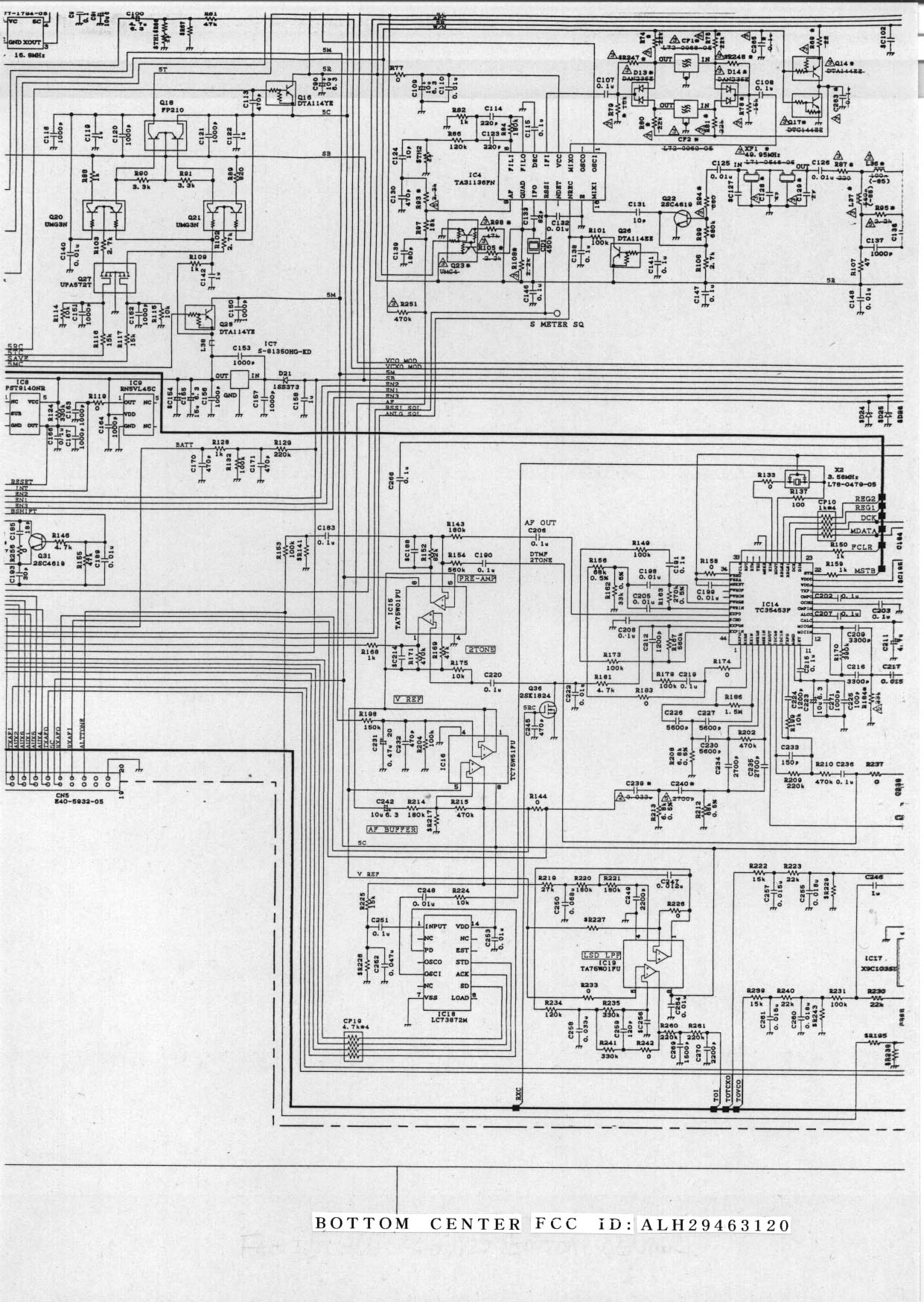

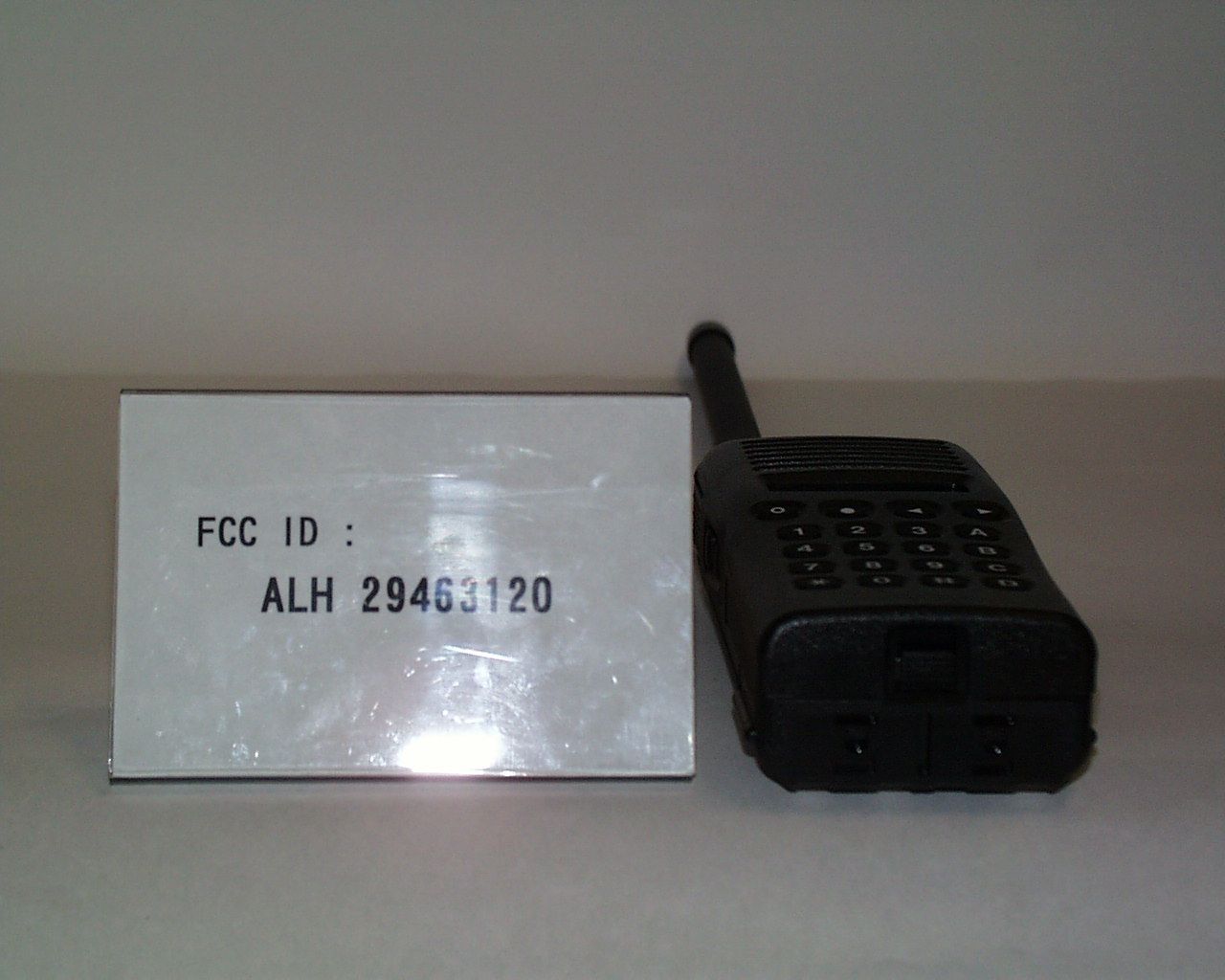

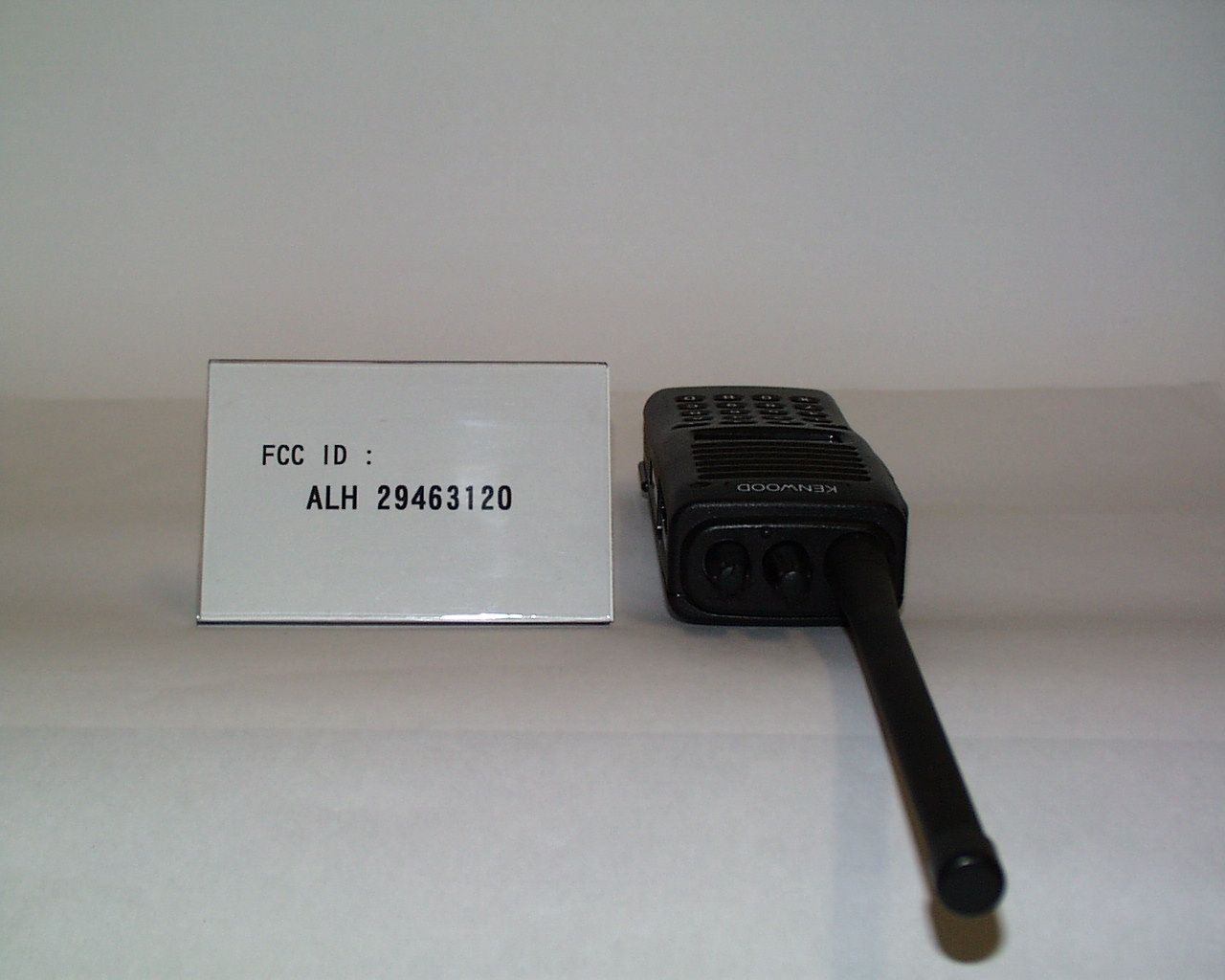

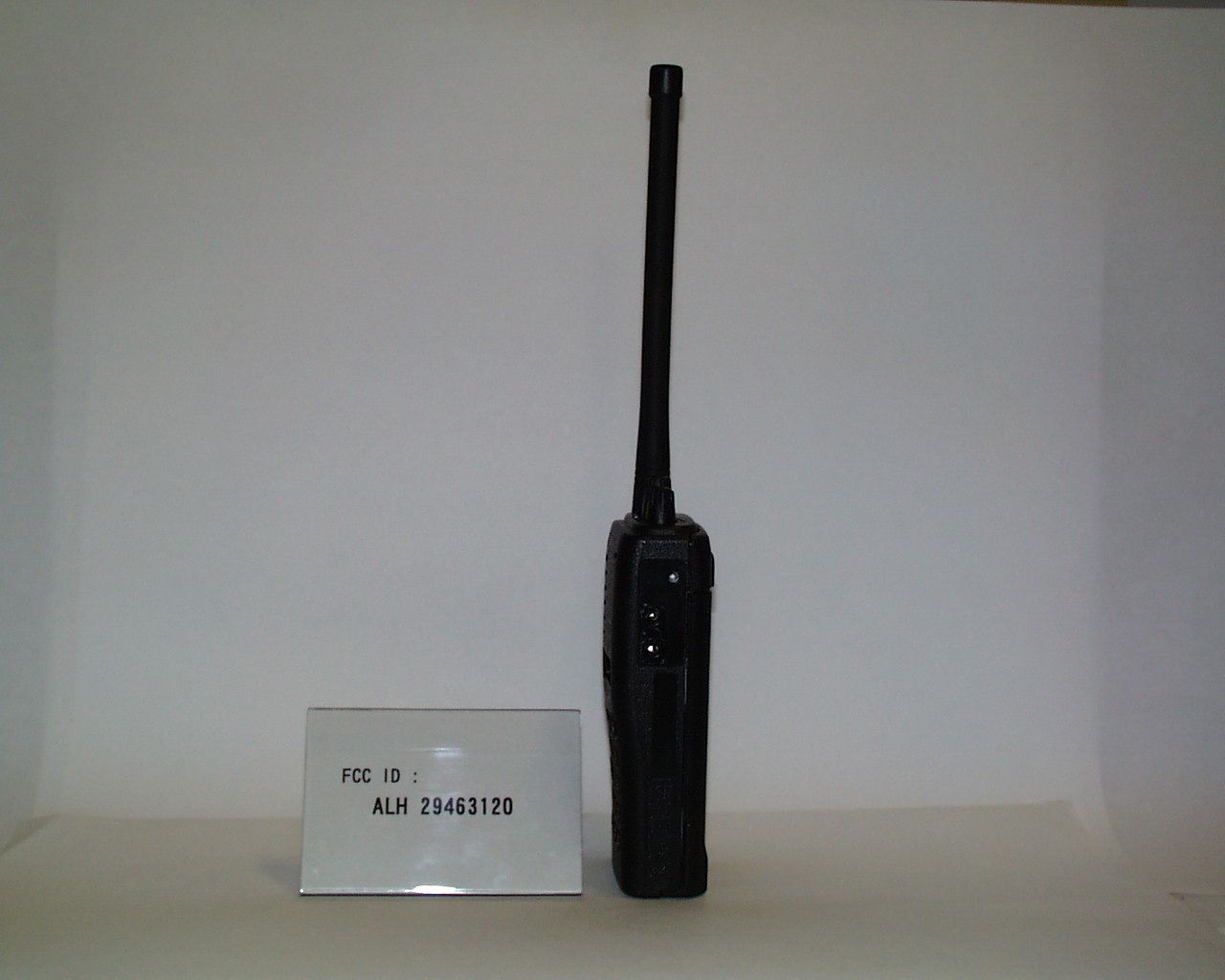

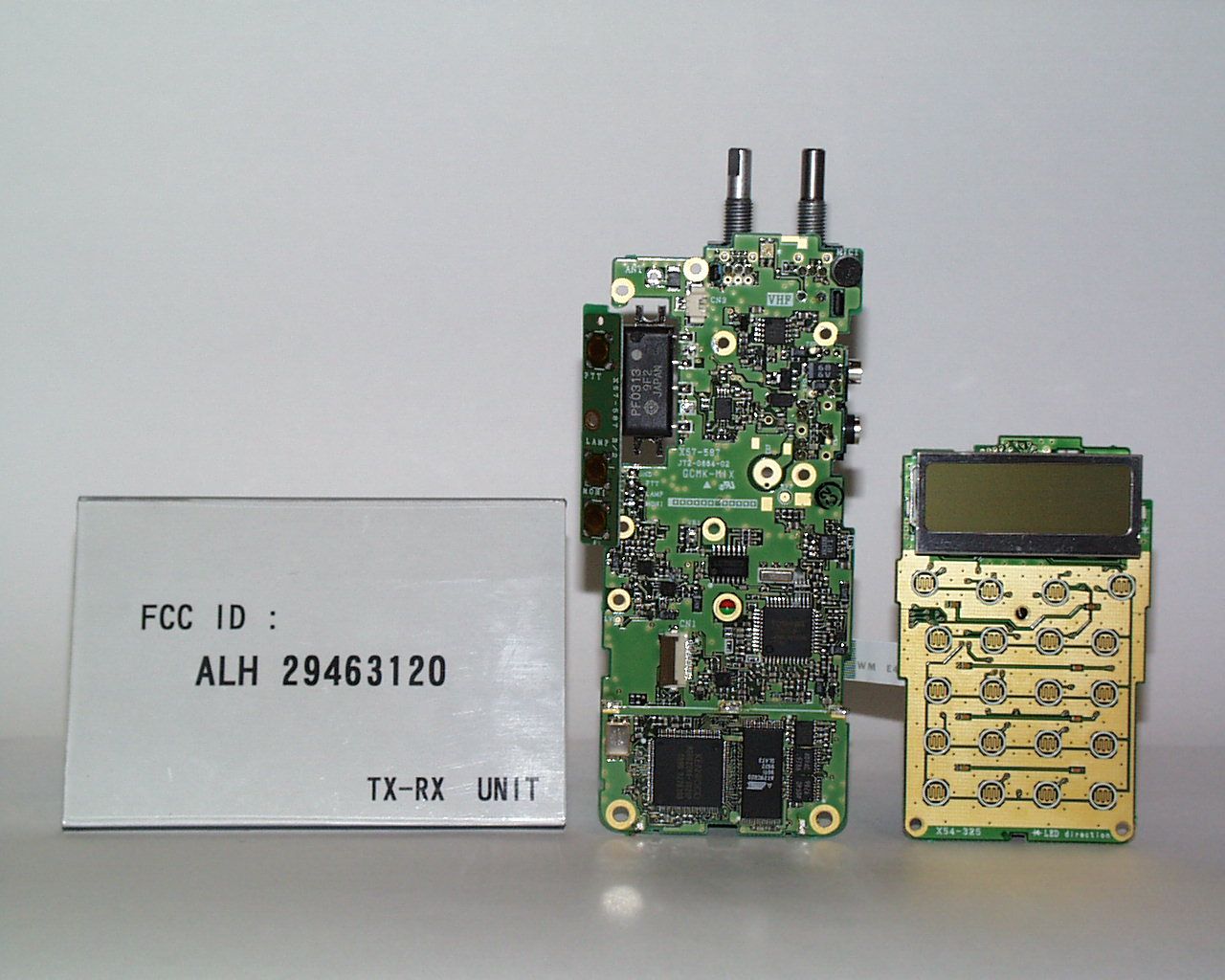

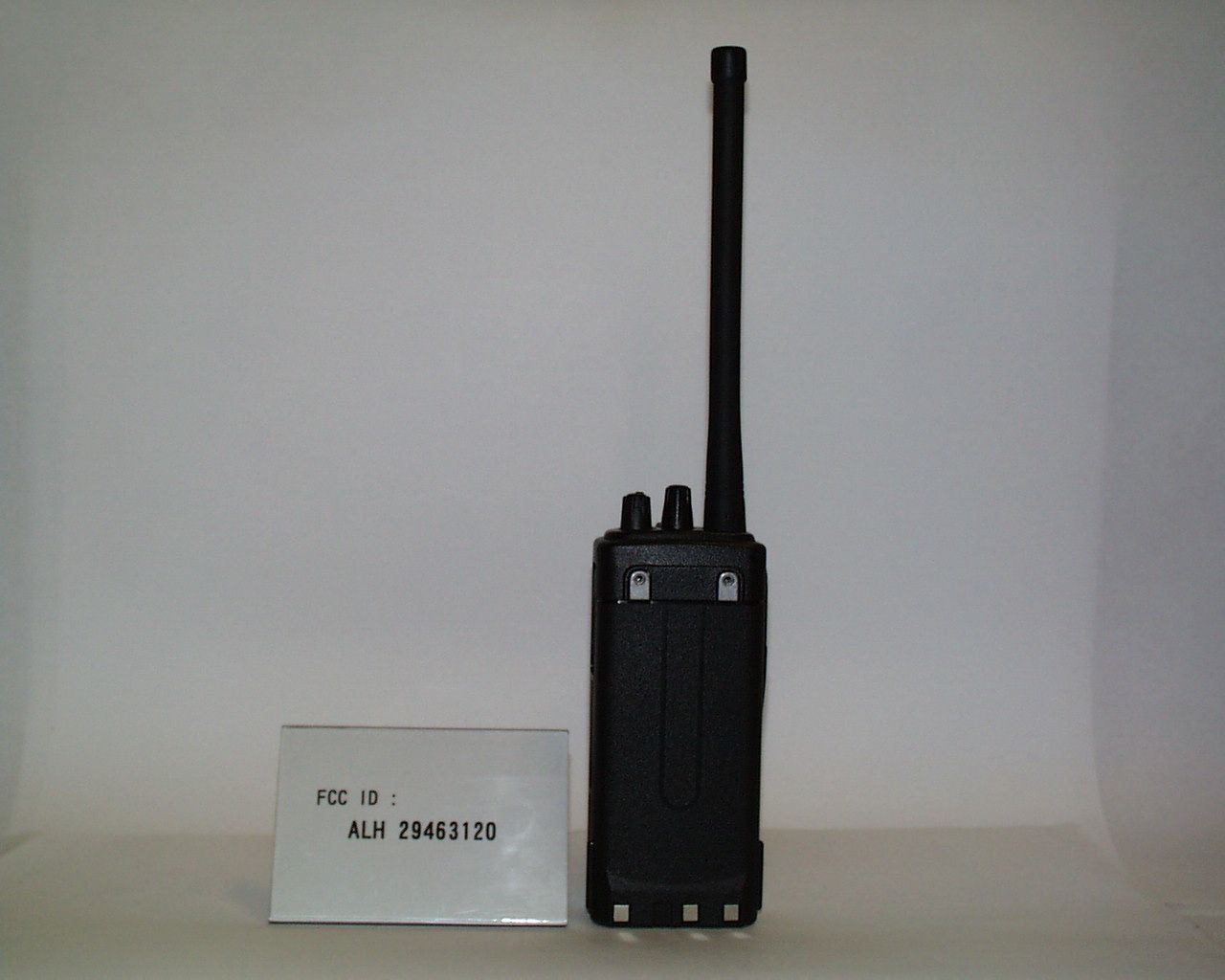

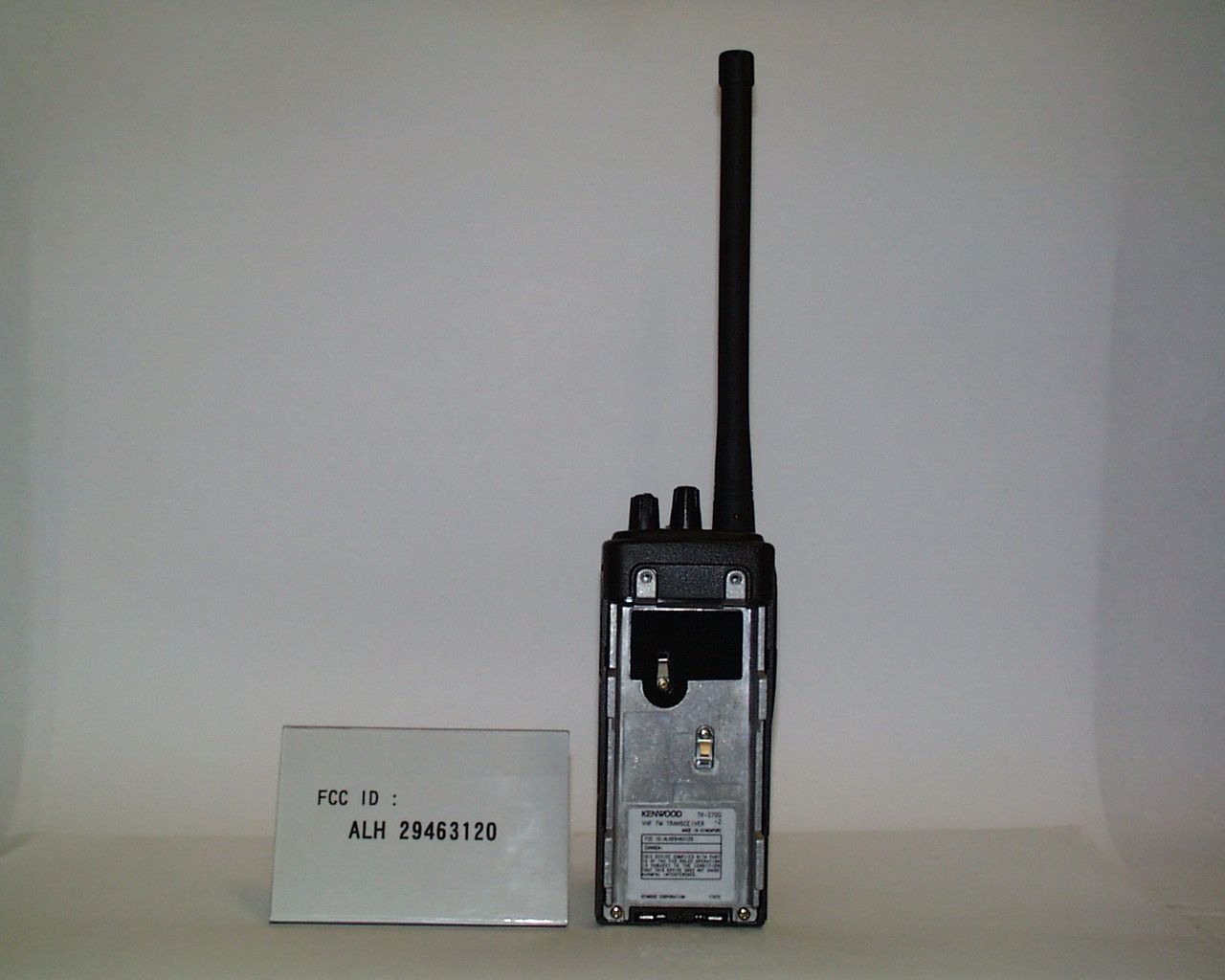

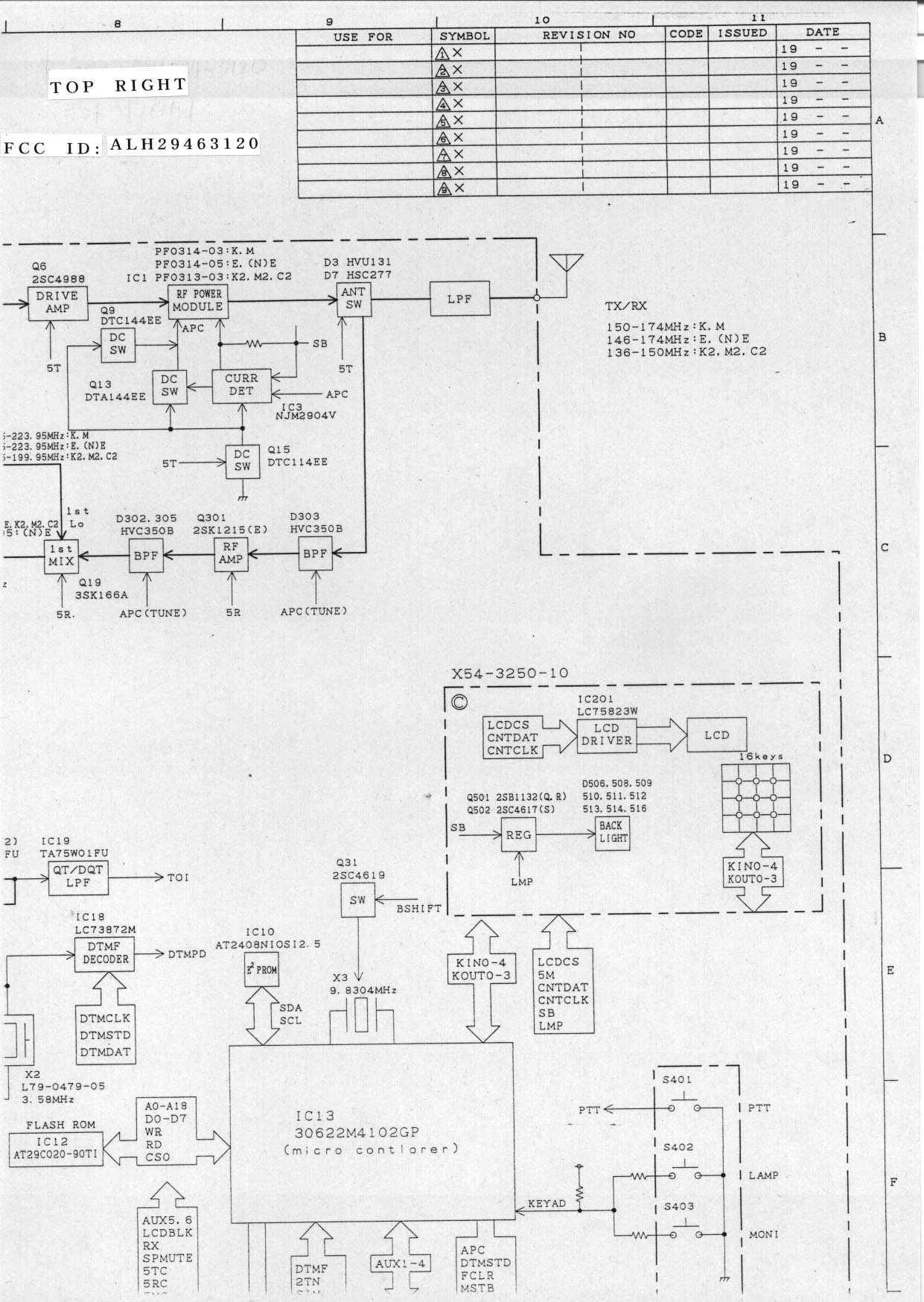

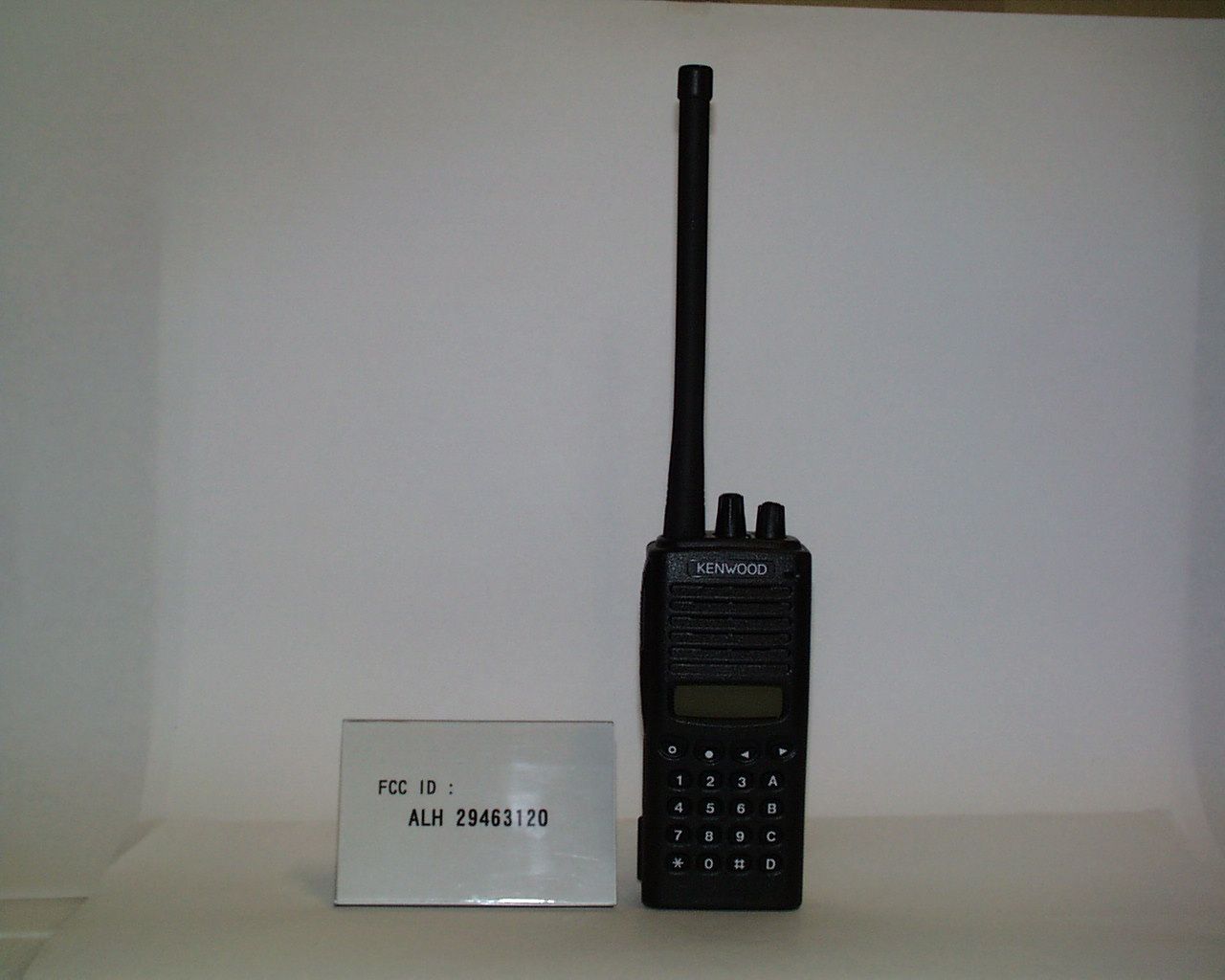

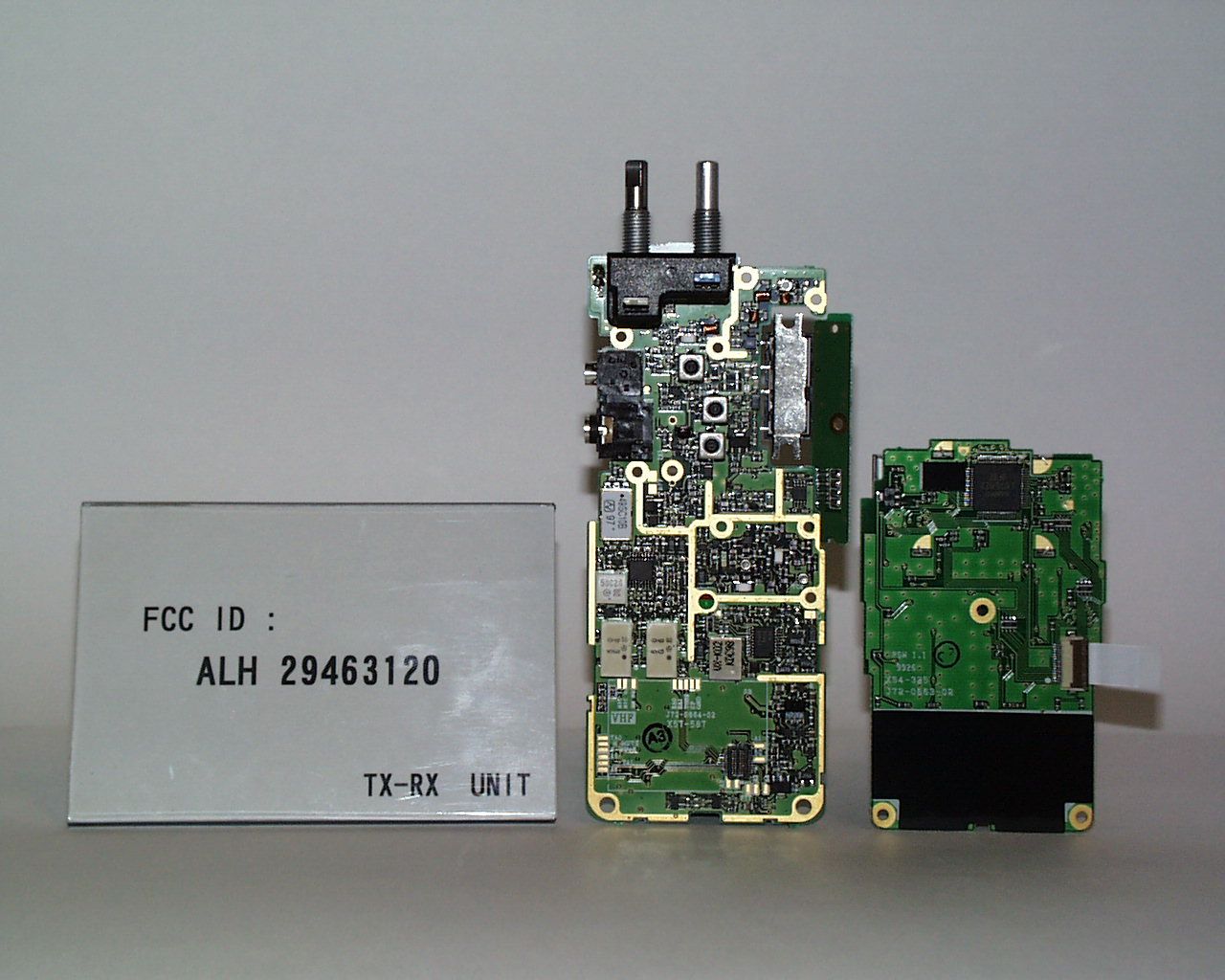

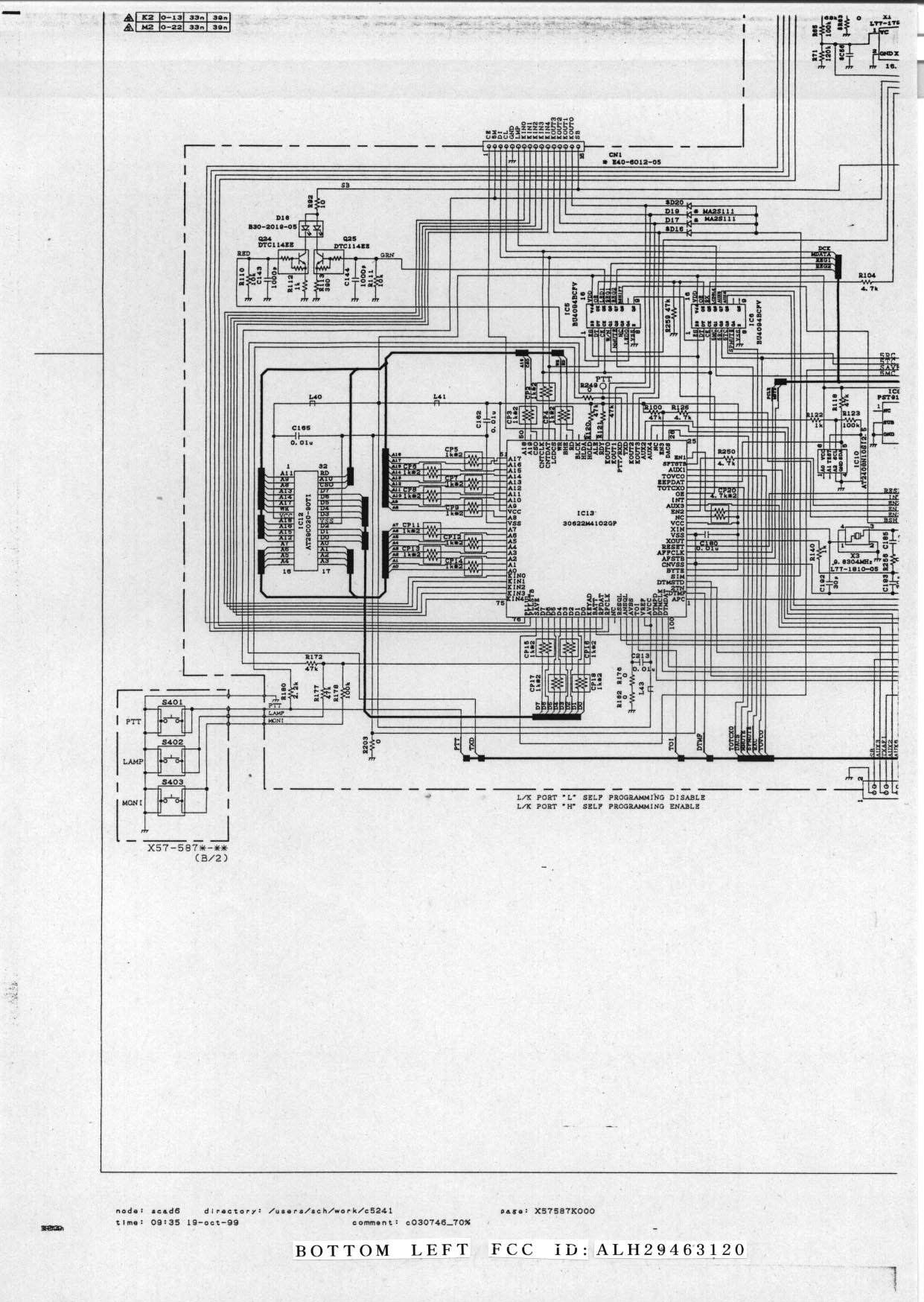

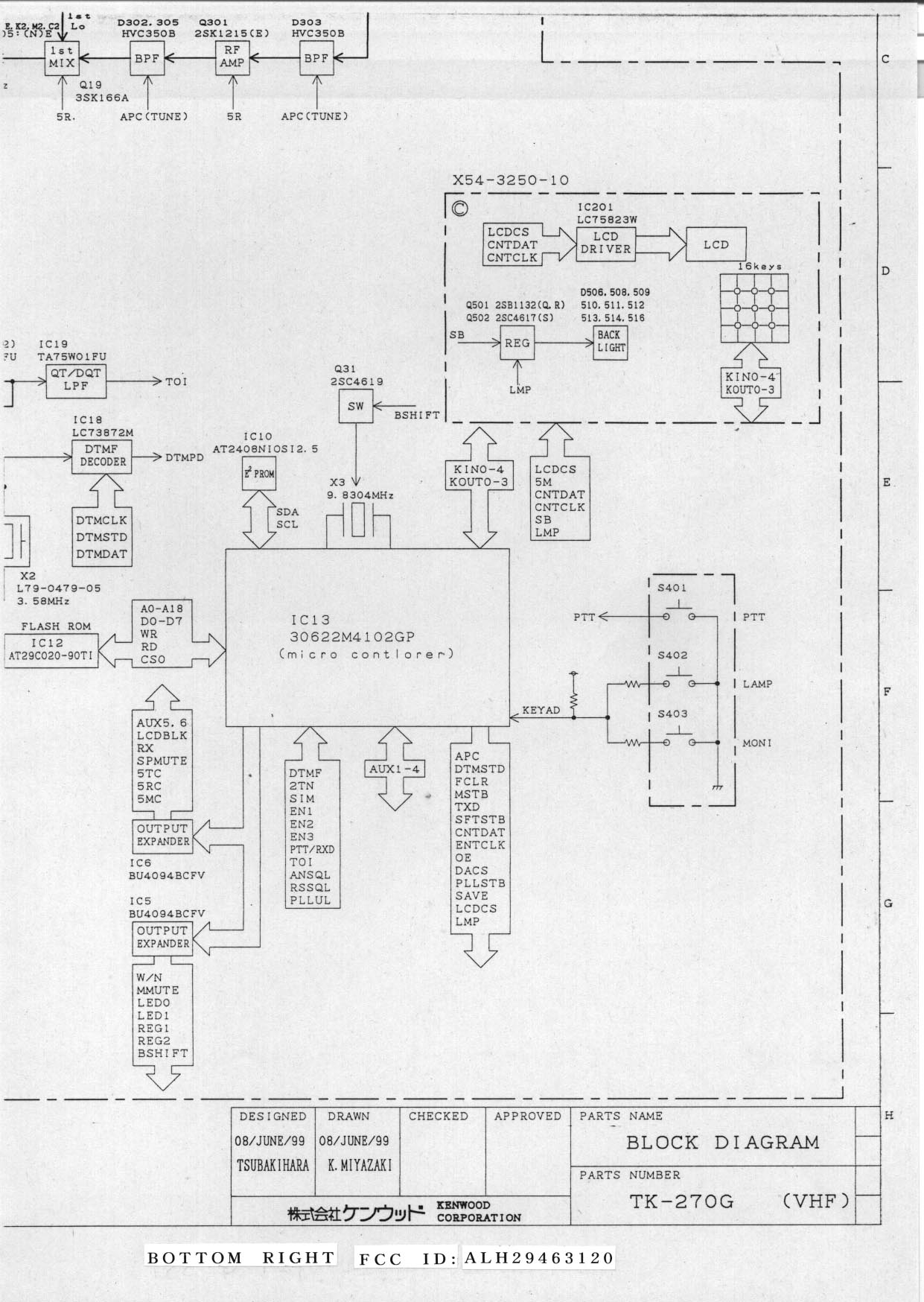

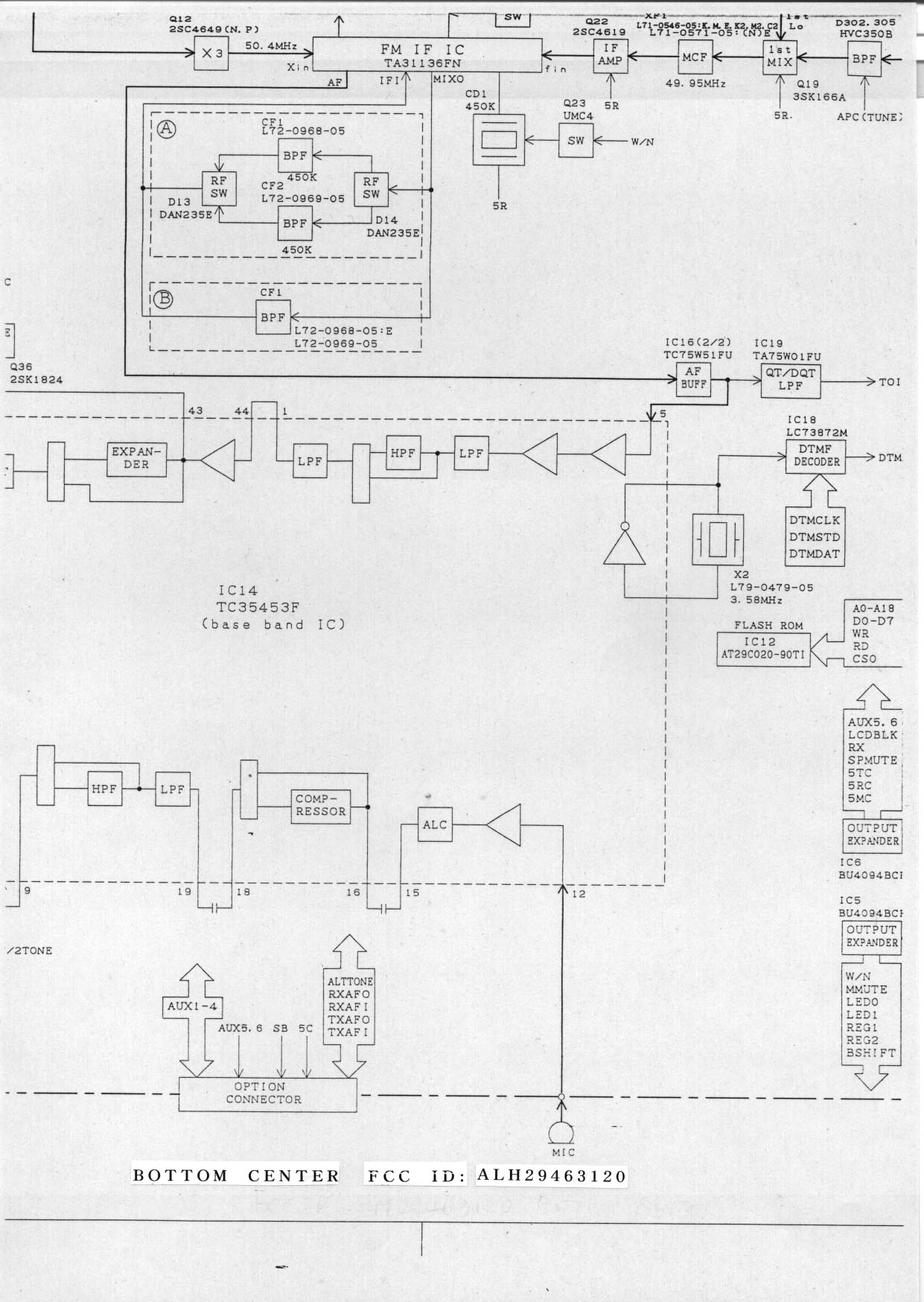

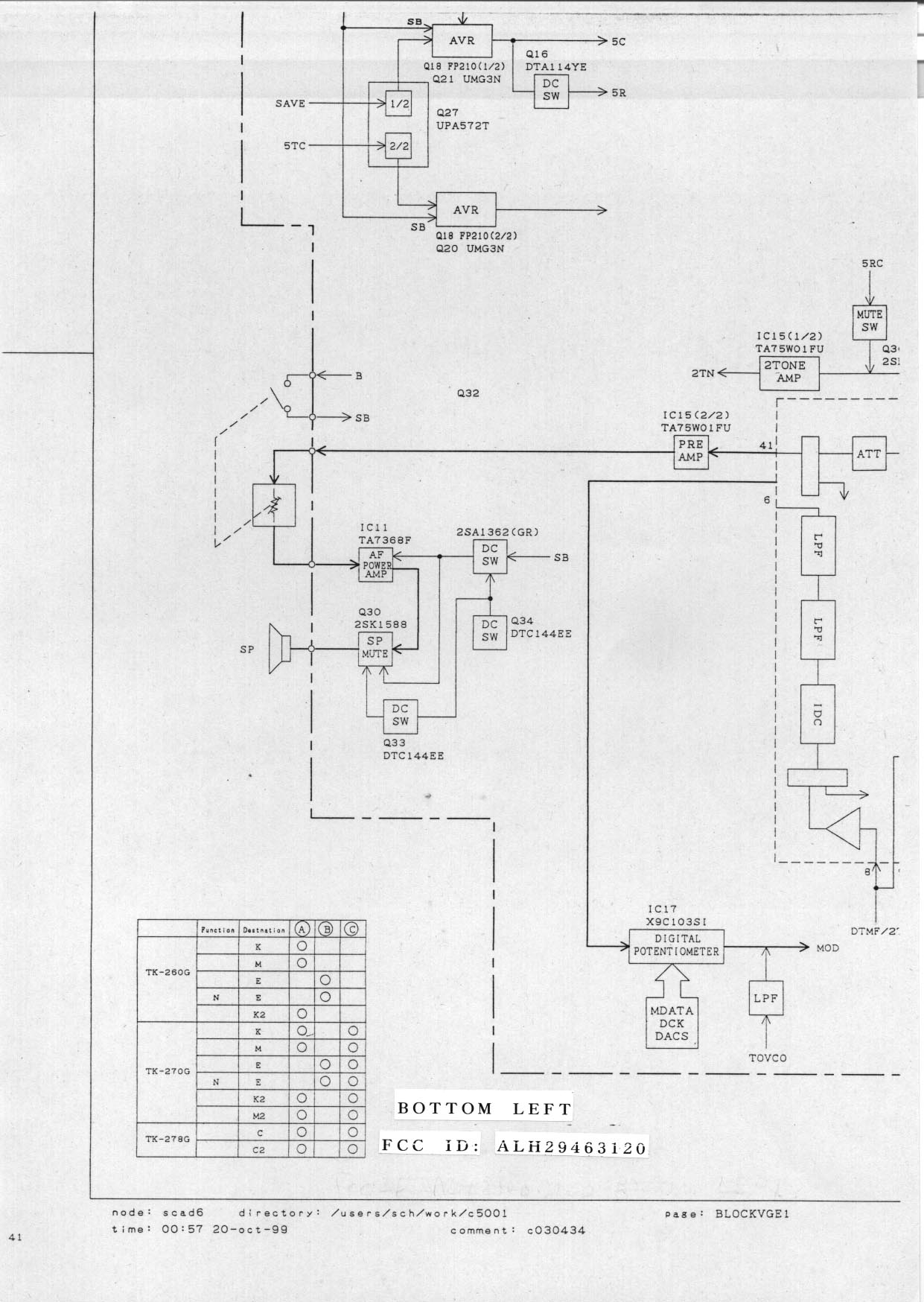

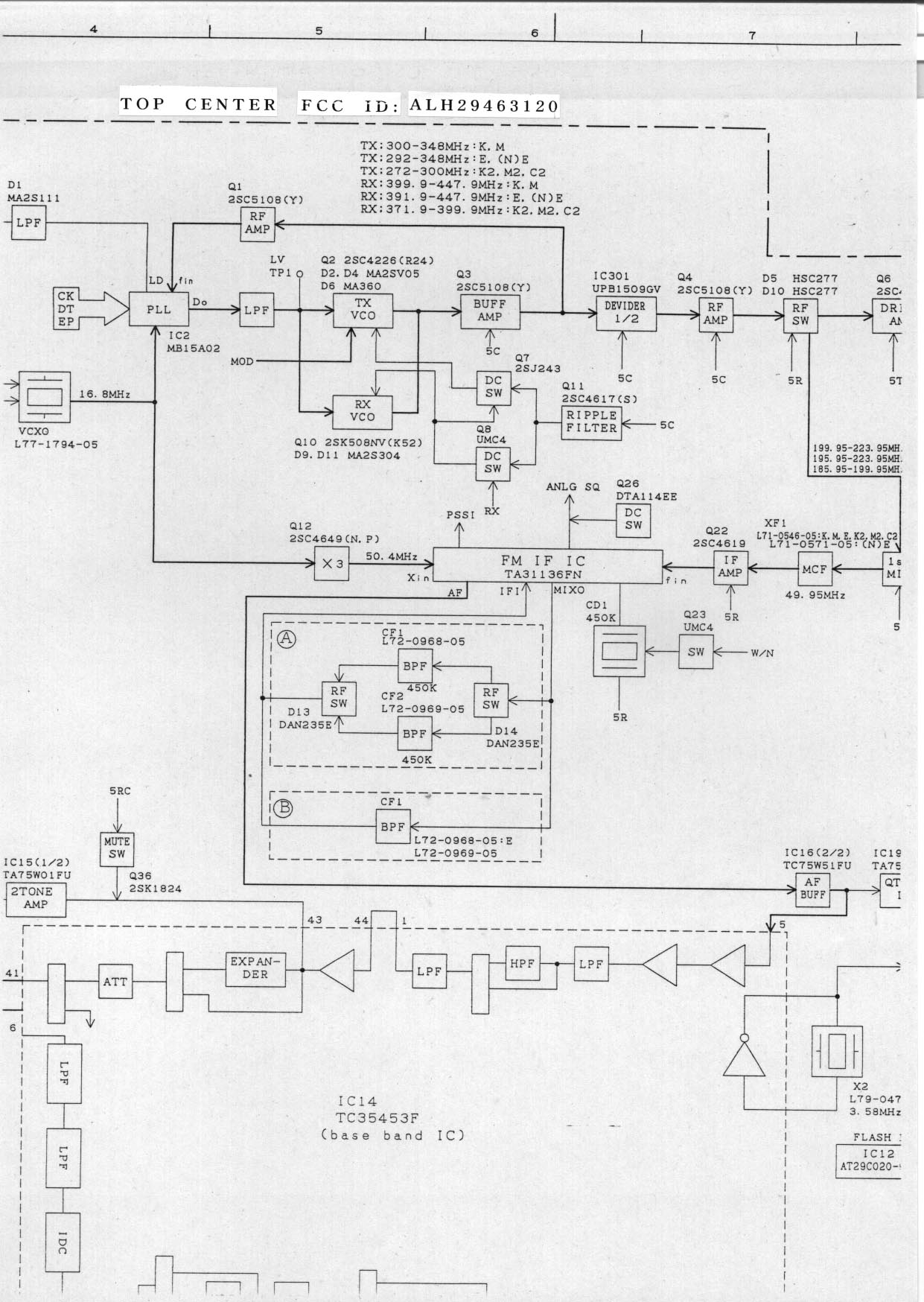

FCC ID: ALH29463120 MFA p99b0009, d99c0059 Date:December 22, 1999 Federal Communications Commission Via: Electronic Filing Attention:Authorization & Evaluation Division Applicant:Kenwood Communications Corporation Equipment:TK-270G-2 (128 Ch.) TK-260G-2 (8 Ch.) FCC ID:ALH29463120 FCC Rules:90 Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, William H. Graff, Director of Engineering enclosure(s) cc: Applicant WHG/cvr FCC ID: ALH29463120 MFA p99b0009, d99c0059 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT:Kenwood Communications Corporation FCC ID:ALH29463120 BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3)USER MANUAL (9)TUNE UP INFO (10)SCHEMATIC DIAGRAM (10) CIRCUIT DESCRIPTION 5. PART 90.203(e) & (g) ATTESTATION BY M.F.A. INC. A.TESTIMONIAL & STATEMENT OF CERTIFICATION B.STATEMENT OF QUALIFICATIONS FCC ID: ALH29463120 MFA p99b0009, d99c0059 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: ALH29463120 NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT December 22, 1999 SUPERVISED BY:William H. Graff, Director of Engineering FCC ID: ALH29463120 MFA p99b0009, d99c0059 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a)SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: ALH29463120 MFA p99b0009, d99c0059 TABLE OF CONTENTS RULEDESCRIPTIONPAGE .Test Report1 2.1033(c)General Information Required2 2.1033(c)(14) Rule Summary5 .Standard Test Conditions and Engineering Practices6 2.1046(a) Carrier Output Power (Conducted)7 2.1051 Unwanted Emissions (Transmitter Conducted)9 2.1053(a) Field Strength of Spurious Radiation13 2.1049(c)(1) Emission Masks (Occupied Bandwidth)16 90.214 Transient Frequency Behavior23 2.1047(a) Audio Low Pass Filter (Voice Input)33 2.1047(a) Audio Frequency Response36 2.1047(b) Modulation Limiting38 2.1055(a)(1) Frequency Stability (Temperature Variation)41 2.1055(b)(1)Frequency Stability (Voltage Variation)44 2.202(g) Necessary Bandwidth and Emission Bandwidth45 FCC ID: ALH29463120 MFA p99b0009, d99c0059 PAGE NO.1 of 45. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a)TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85224 c) Report Number:d99c0059 d) Client:Kenwood Communications Corporation P.O. Box 22745 Long Beach, CA 90801-5745 e) Identification:TK-270G-2 (128 Ch.) TK-260G-2 (8 Ch.) FCC ID: ALH29463120 Description:VHF FM Handheld Transceiver f) EUT Condition:Not required unless specified in individual tests. g) Report Date:December 22, 1999 EUT Received:November 15, 1999 h, j, k):As indicated in individual tests. i) Sampling method:No sampling procedure used. l) Uncertainty:In accordance with MFA internal quality manual. m) Supervised by: William H. Graff, Director of Engineering n) Results:The results presented in this report relate only to the item tested. o) Reproduction:This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: ALH29463120 MFA p99b0009, d99c0059 PAGE NO.2 of 45. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 90 Sub-part 2.1033 (c)(1):NAME AND ADDRESS OF APPLICANT: Kenwood Communications Corporation 2201 E. Dominguez St P.O. Box 22745 Long Beach, CA 90801-5745 MANUFACTURER: Kenwood Technologies Pte. Ltd. 1 Ang Mo Kio Street 63 Singapore 569110 (c)(2):FCC ID:ALH29463120 MODEL NO’S:TK-270G-2 (128 Ch.) TK-260G-2 (8 Ch.) (c)(3):INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4):TYPE OF EMISSION:16K0F3E, 11K0F3E (c)(5):FREQUENCY RANGE, MHz: 136 to 150 (c)(6):POWER RATING, Watts:0.5 to 5 SwitchablexVariableN/A (c)(7):MAXIMUM POWER RATING, Watts:300 FCC ID: ALH29463120 MFA p99b0009, d99c0059 PAGE NO.3 of 45. M. Flom Associates, Inc. is accredited by the American Association for Laborator…

Text truncated - open the document above for the full version.
