ALH30923130UHF FM Handheld Transmitter

INSTRUCTION MANUAL © B62-1163-10 (K,M) 09 08 07 06 05 04 03 02 01 VHF FM TRANSCEIVER KENWOOD CORPORATION TK-2102/ TK-2107 UHF FM TRANSCEIVER TK-3102/ TK-3107 THANK YOU! We are grateful for your purchase of this KENWOOD transceiver. We believe this easy-to-use transceiver will provide you with dependable and reliable communications. KENWOOD MEANS WIRELESS Founded more than 50 years ago, KENWOOD’s Car and Home Audio products are in demand around the world. KENWOOD is also a major developer and producer of wireless and digital wireless communications products. KENWOOD provides top quality Amateur Radio products for the serious hobbyist, and commercial radio products and systems for business, industry, and public safety users, worldwide. MODELS COVERED BY THIS MANUAL TK-2102: 2-channel VHF FM Transceiver TK-2107: 16-channel VHF FM Transceiver TK-3102: 2-channel UHF FM Transceiver TK-3107: 16-channel UHF FM Transceiver i PRECAUTIONS • Refer service to qualified technicians only. • Do not operate the transceiver or charge a battery pack in an explosive atmosphere (gases, dust, fumes, etc.). • Turn OFF the transceiver while taking on fuel or while parked in a gasoline service station. • Do not modify or attempt to adjust this transceiver for any reason. • Do not expose the transceiver to long periods of direct sunlight, nor place it close to heating appliances. • Do not place the transceiver in excessively dusty, humid, and/or wet areas, nor on unstable surfaces. SAFETY: It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. ii CONTENTS UNPACKING AND CHECKING EQUIPMENT................... 1 Supplied Accessories...................................... 1 PREPARATION.................................................. 3 Charging the NiCd Battery Pack.......................... 3 Installing/ Removing the Battery Pack.................. 5 Installing the Antenna..................................... 6 Installing the Belt Clip..................................... 6 Installing the Cover over the Speaker/ Microphone Jacks.......................................... 7 Installing the Optional Speaker/ Microphone........... 7 GETTING ACQUAINTED (TK-2102/ TK-3102)................ 8 TK-2102/ TK-3102 OPERATION............................... 9 GETTING ACQUAINTED (TK-2107/ TK-3107)............... 10 TK-2107/ TK-3107 OPERATION.............................. 11 AUXILIARY FUNCTIONS...................................... 12 Time-out Timer............................................ 12 Battery Save............................................... 12 Low Battery Warning..................................... 12 Monitor..................................................... 13 Quiet Talk (QT) and Digital Quiet Talk (DQT).......... 13 OPTIONAL ACCESSORIES.................................... 14 TROUBLESHOOTING GUIDE.................................. 15 FREQUENCY CHART.......................................... 16 1 UNPACKING AND CHECKING EQUIPMENT Carefully unpack the transceiver. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. nSupplied Accessories metIrebmuNtraPytQ annetnA /2012-KT 7012-KT M,K5X-5960-09T 1 2M,2K5X-1860-09T /2013-KT 7013-KT 2M,2K,M,K5X-4960-09T 3M,3K5X-3860-09T 4K5X-4860-09T regrahcyrettaB )ylno2013-KT/2012-KT( 5X-8950-80W1 rotpadaCA 2013-KT/2012-KT( )ylno K5X-9740-80W 1 M5X-8550-80W )A51-BNK(kcapyrettabdCiN )ylno2013-KT/2012-KT( 5X-0490-90W1 revockcajenohporcim/rekaepS3X-1530-90B1 gnikcolenohporcim/rekaepS tekcarb 4X-3944-12J1 pilctleB3X-4260-92J1 teswercS5X-6930-99N1 dracytnarraWK––1 launamnoitcurtsnIXX-3611-26B1 Note: A market code (K, K2, K3, K4, M, M2, M3) can be found on the label attached to the package box. 2 Belt clip Speaker/ microphone jack cover Screw set Speaker/ microphone locking bracket AC adaptor (K market) (TK-2102/ TK-3102 only) NiCd battery pack (KNB-15A) (TK-2102/ TK-3102 only) Antenna (TK-2102/ TK-2107) Battery charger (TK-2102/ TK-3102 only) Antenna (TK-3102/ TK-3107) AC adaptor (M market) (TK-2102/ TK-3102 only) 3 nCharging the NiCd Battery Pack The battery pack is not charged at the factory; charge it before use. Initially charging the battery pack after purchase or extended storage (greater than 2 months) will not bring the battery pack to its normal operating capacity. After repeating the charge/discharge cycle two or three times, the operating capacity will increase to normal. uDO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE THE LIFE OF THE BATTERY PACK TO SHORTEN OR THE BATTERY PACK MAY BE DAMAGED. uAFTER RECHARGING THE BATTERY PACK, DISCONNECT IT FROM THE CHARGER. CHARGING THE BATTERY PACK FOR MORE THAN 5 DAYS MAY REDUCE THE BATTERY PACK LIFE DUE TO OVERCHARGING. Note: uThe ambient temperature should be between 41 and 104°F (5 and 40 °C) while charging is in progress. Charging outside this range may not fully charge the battery. uAlways switch OFF the transceiver equipped with a NiCd battery pack before charging. Using the transceiver while charging its battery pack will interfere with correct charging. uThe battery pack life is over when its operating time decreases even though it is fully and correctly charged. Replace the battery pack. PREPARATION 4 Note: It takes approximately 6 hours to fully charge the optional KNB-14 battery pack. Plug the AC adaptor cable into the adaptor jack located on the rear of the charger. Plug the AC adaptor into an AC outlet. Slide the NiCd battery pack or transceiver with a NiCd battery pack into the charger. •Make sure the battery pack contacts are in contact with the charging terminals. •The charger LED lights and charging begins. After charging the supplied KNB-15A battery pack for 8 hours, remove it or the transceiver equipped with it from the charger. •The charger does not turn OFF automatica…

Text truncated - open the document above for the full version.

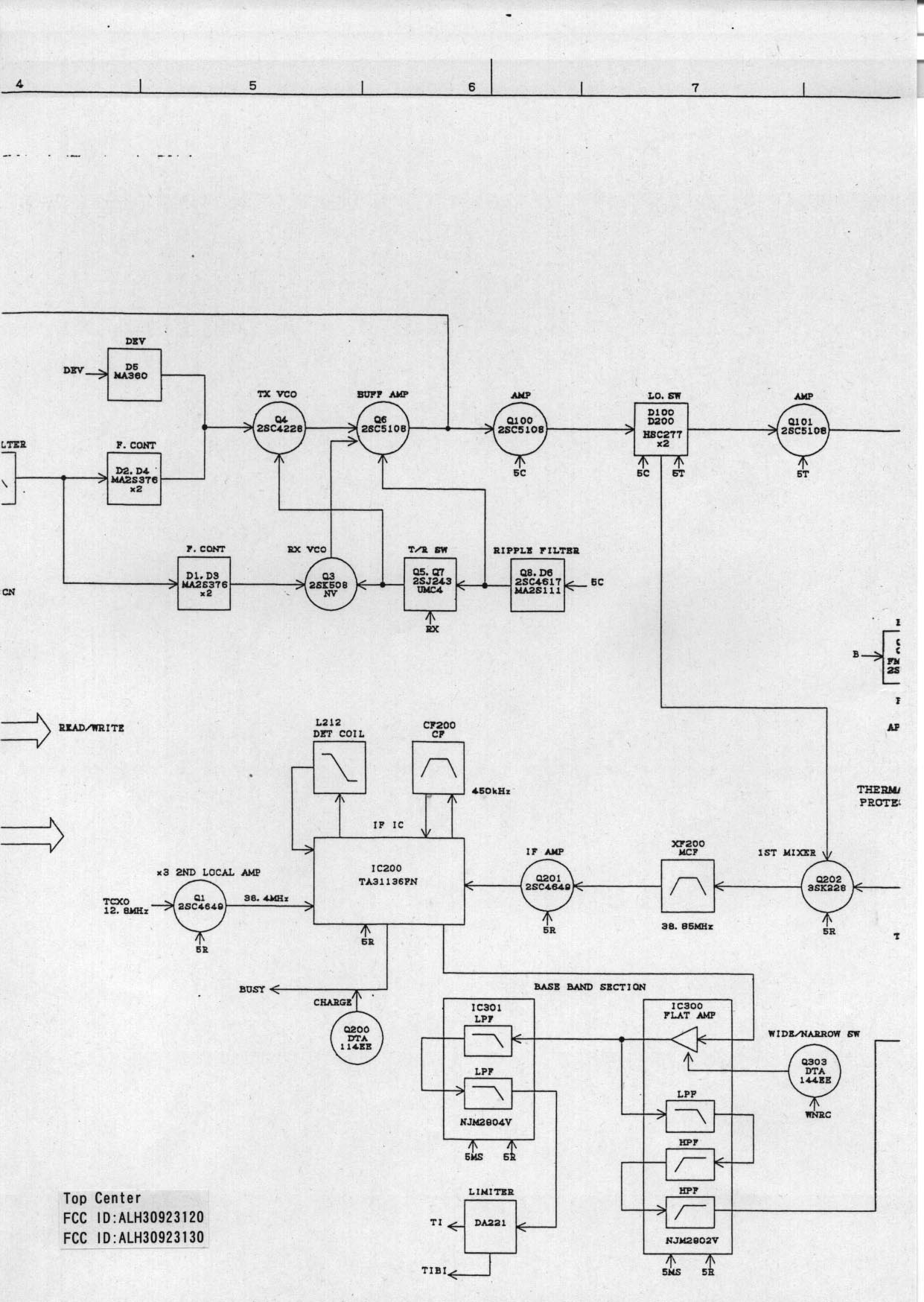

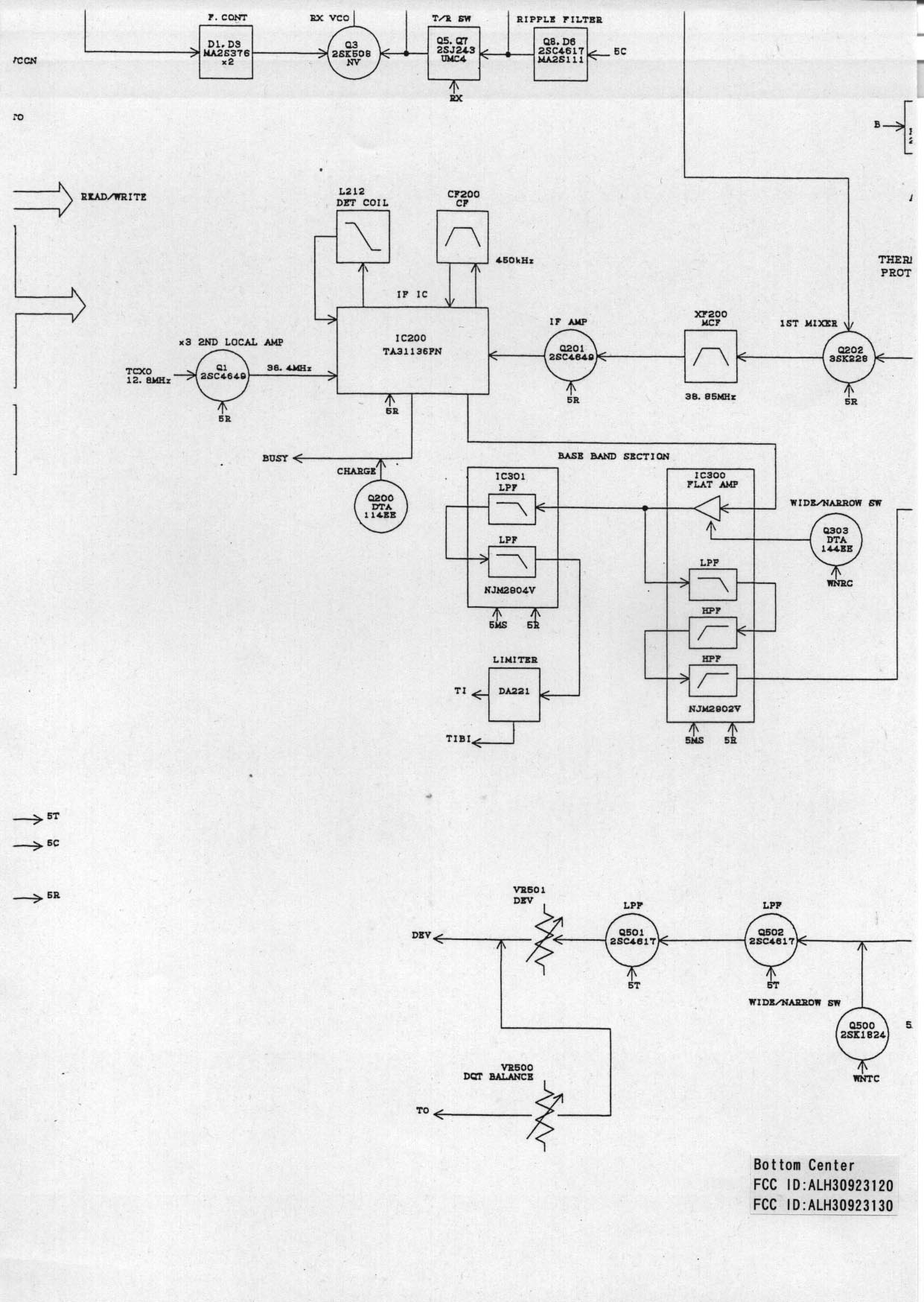

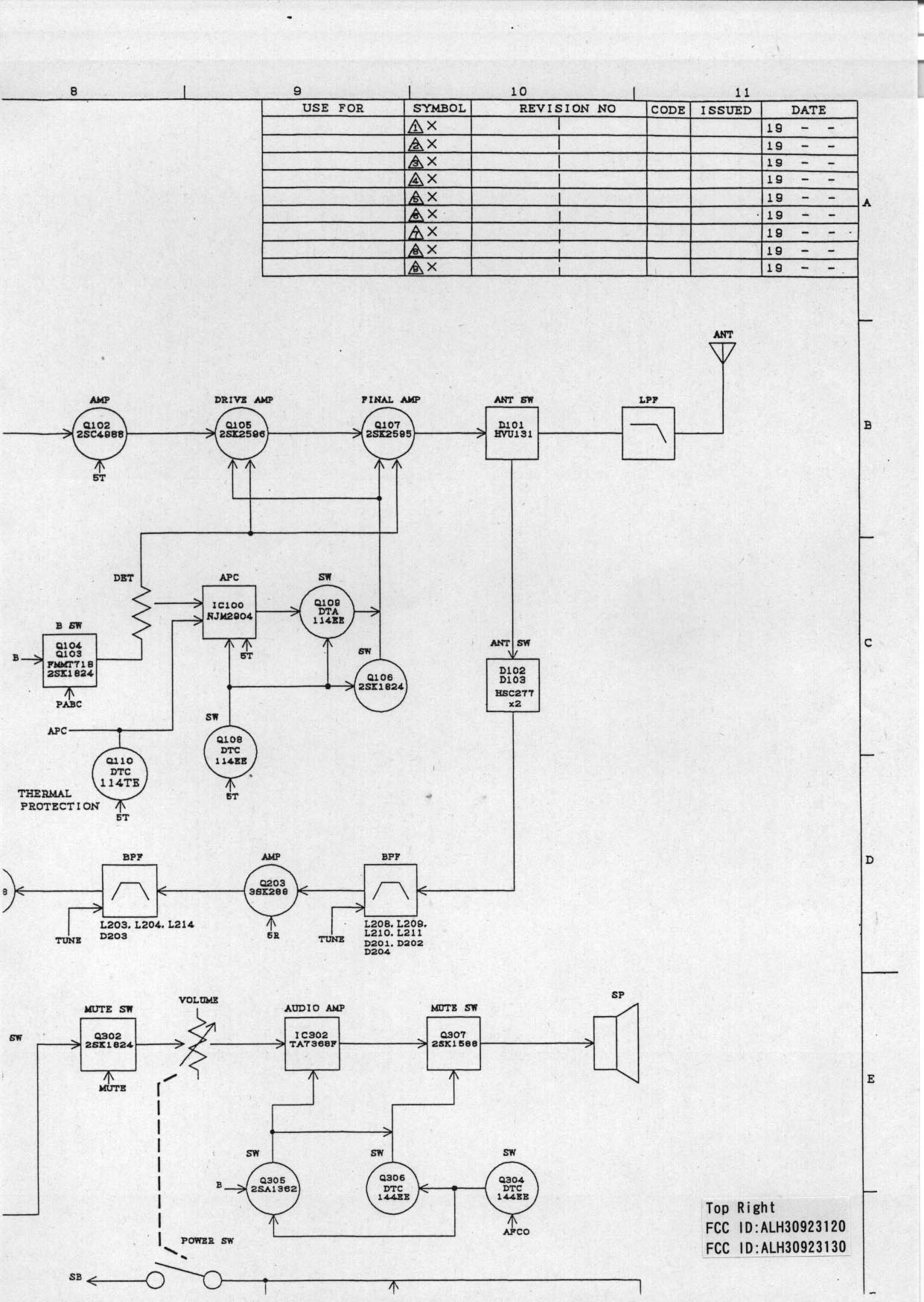

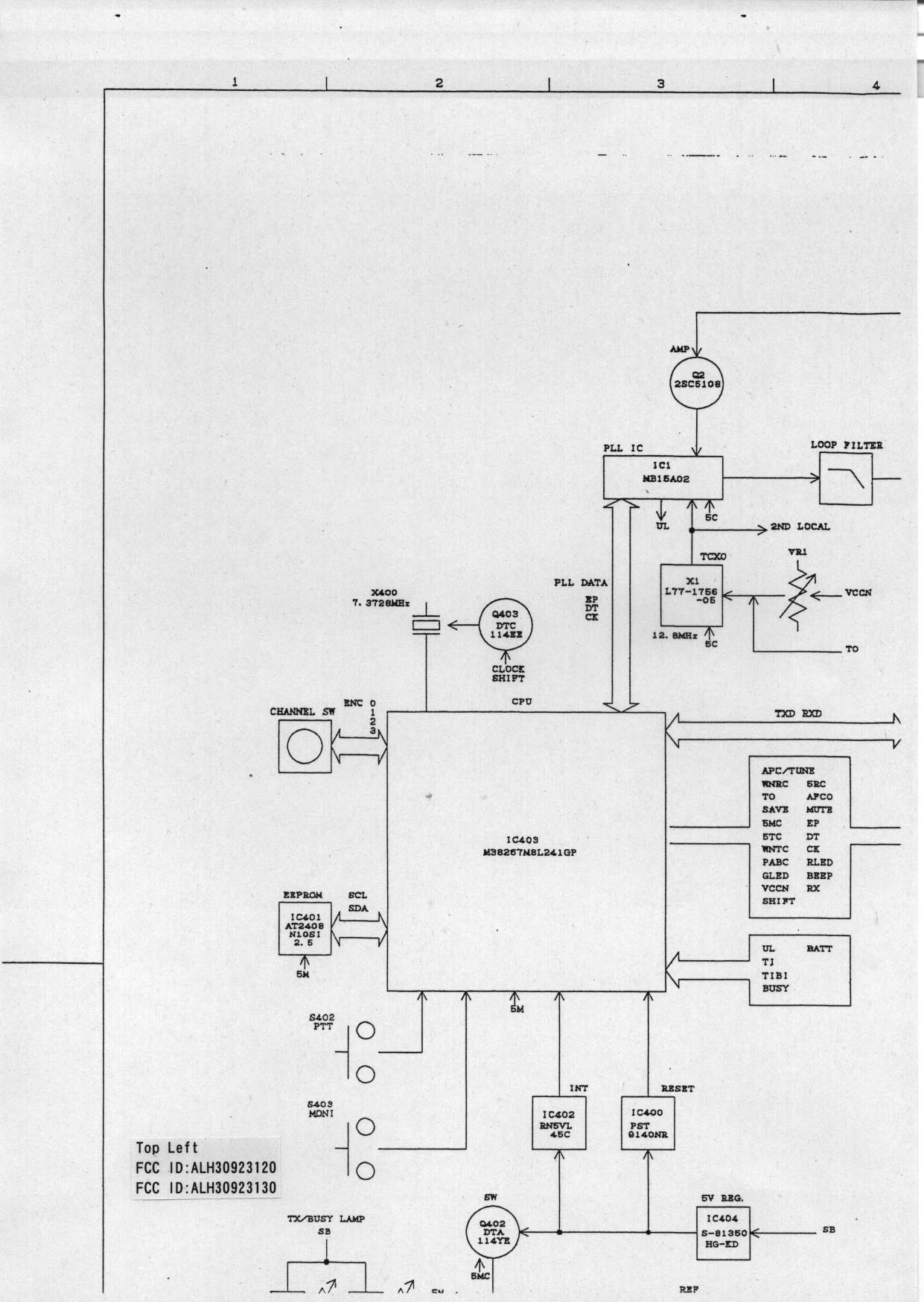

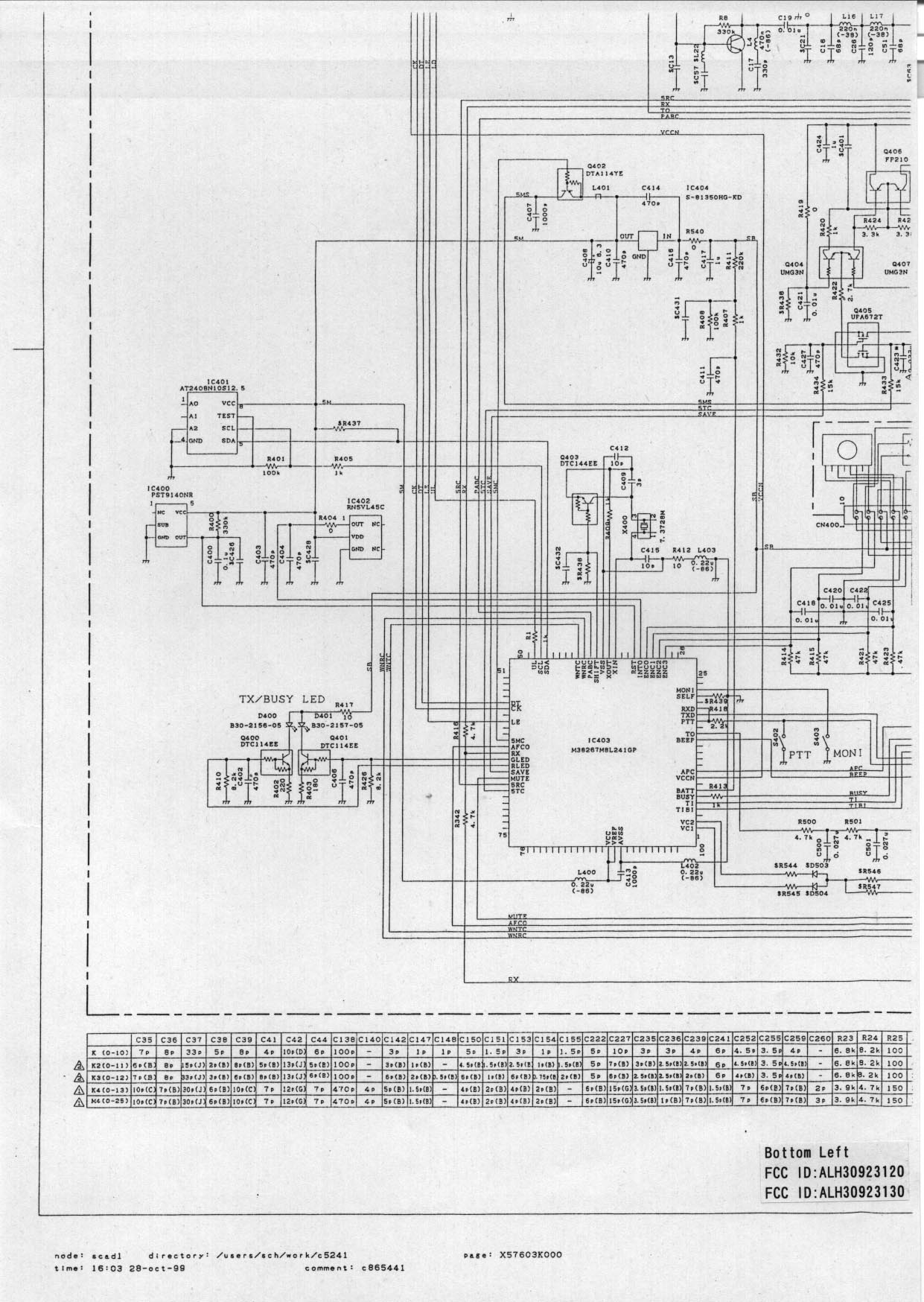

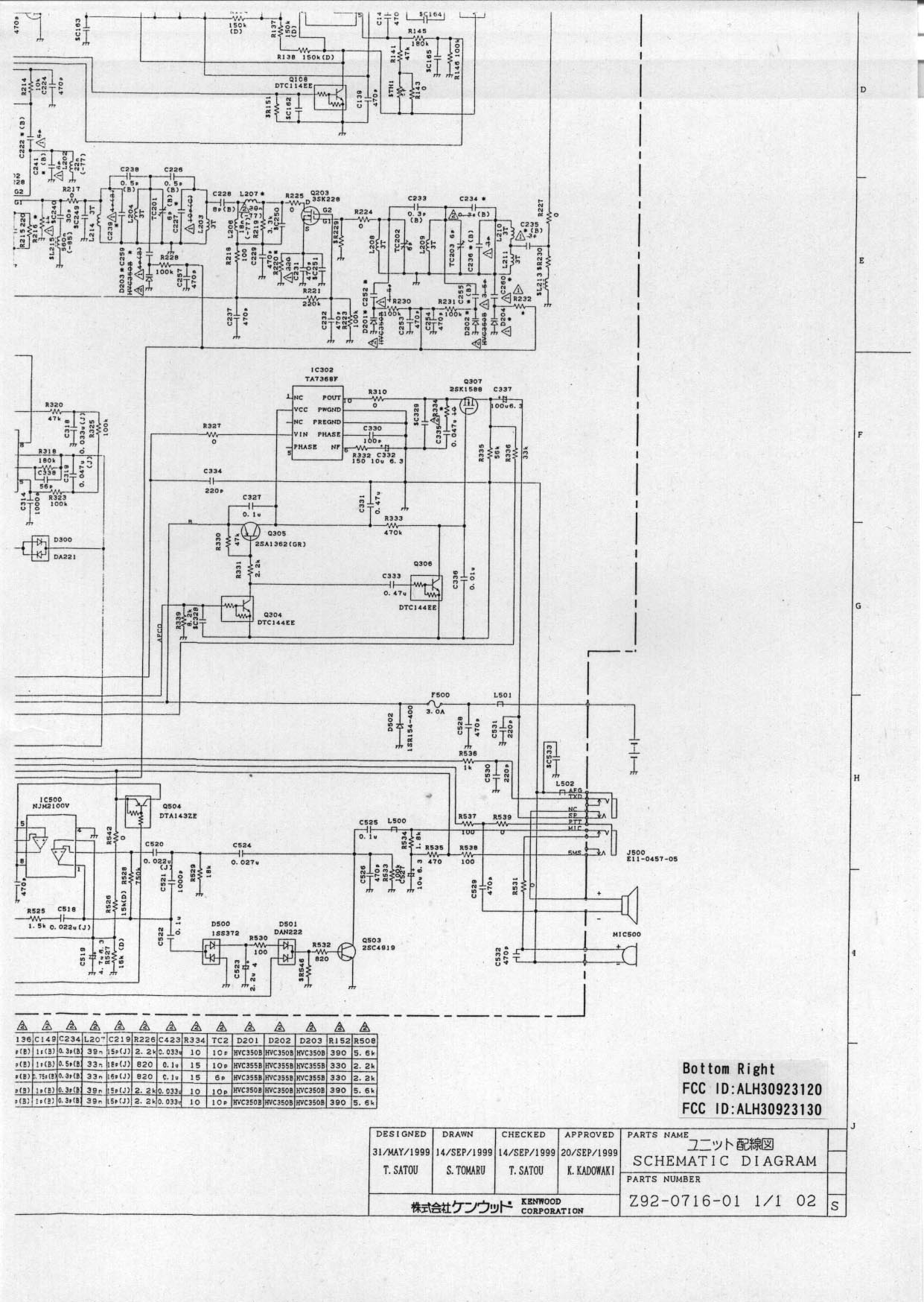

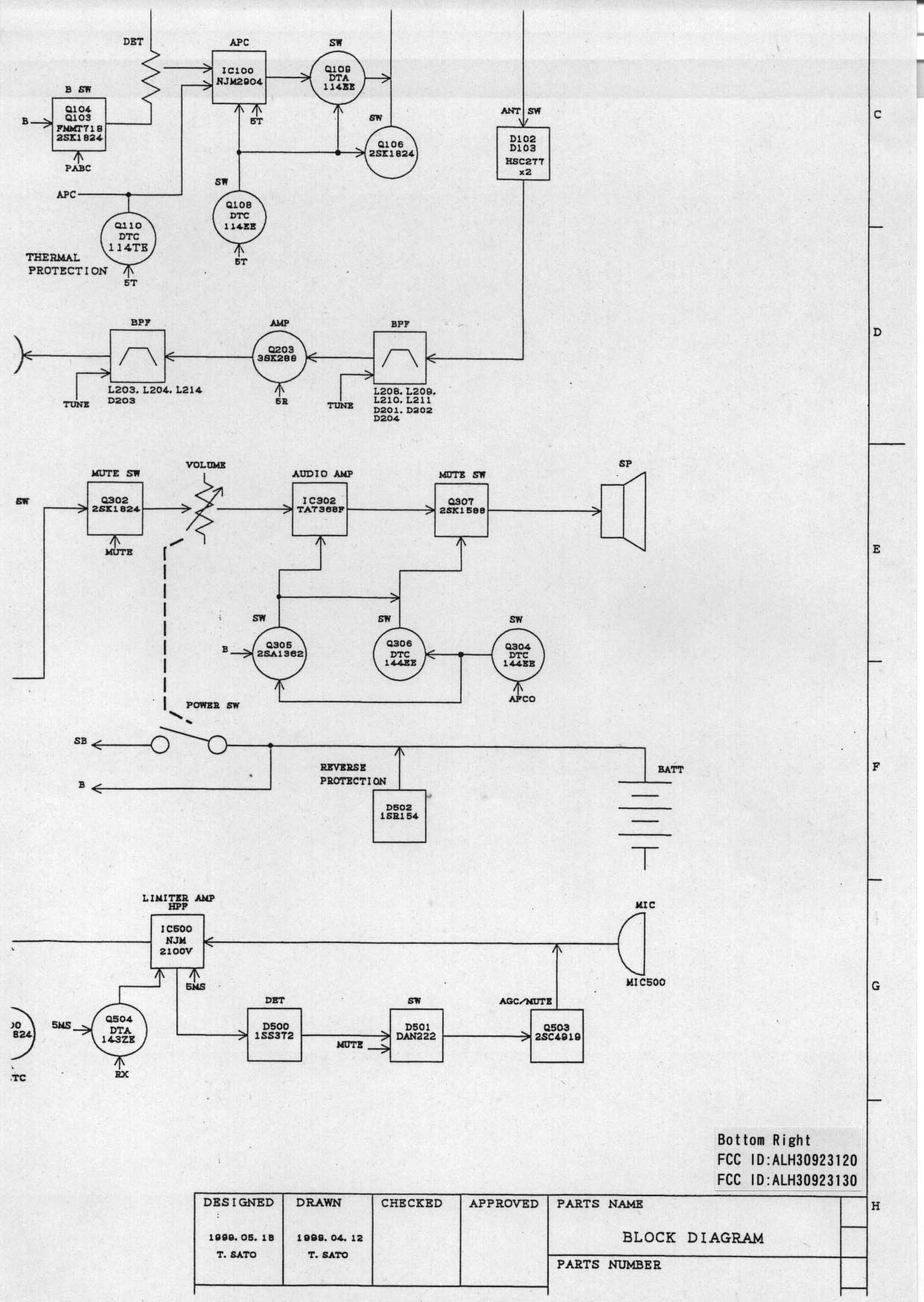

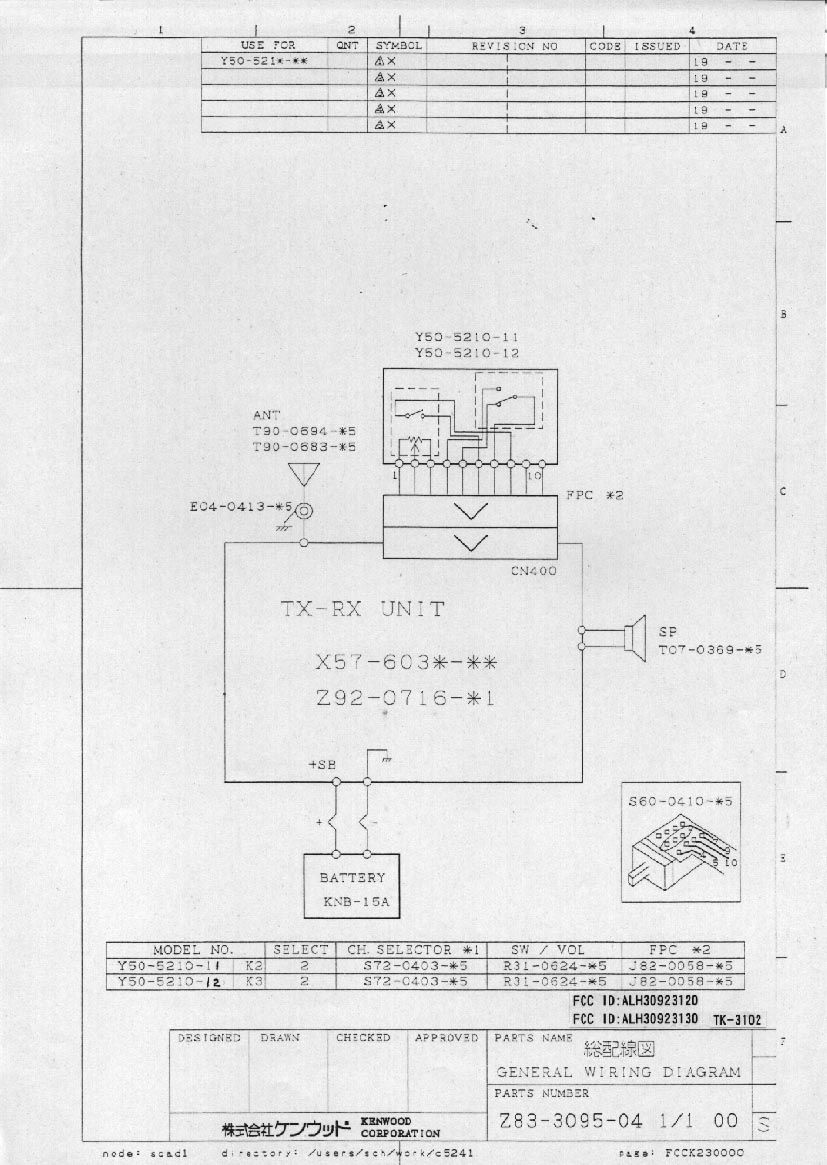

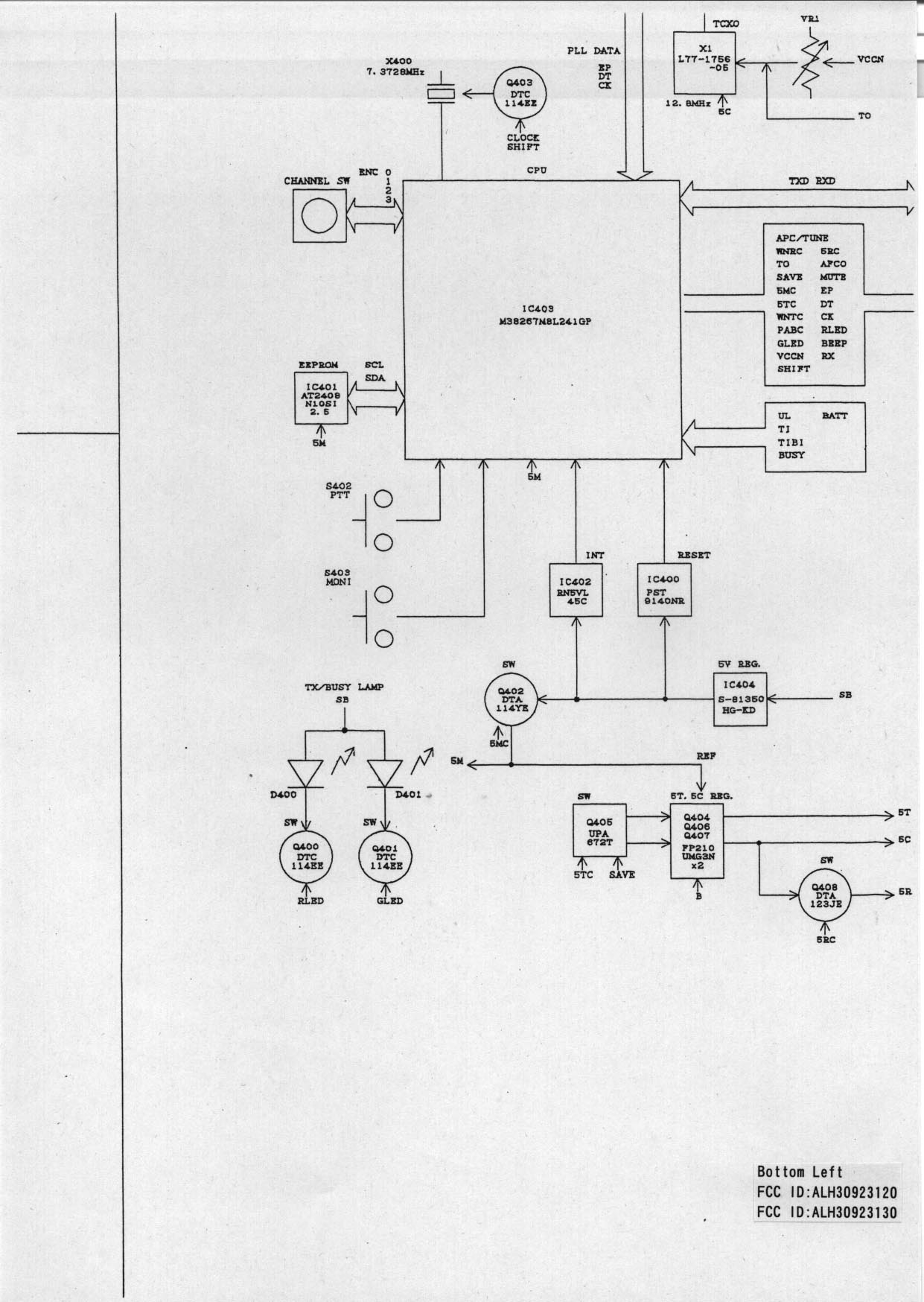

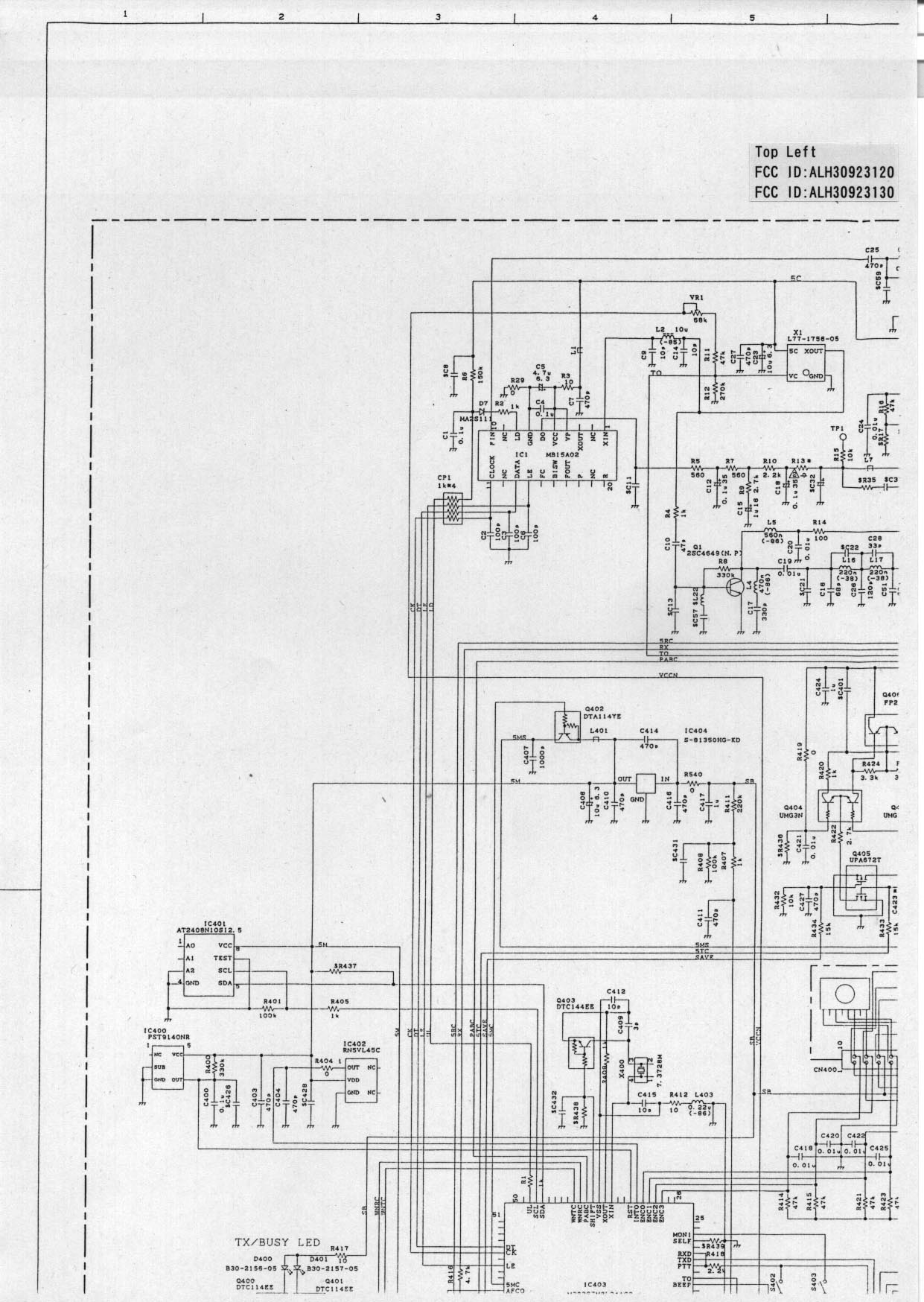

(FCC ID:ALH30923110) ALH30923130 TK-3102 CIRCUIT DESCRIPTION The KENWOOD model TK-3102 is UHF/FM hand-held transceiver designed to operate in the frequency range of 490 to 512MHz. The unit consists of a receiver, a transmitter, a phase-locked loop (PLL) frequency synthesizer, a digital control circuit, power supply circuit and a signaling circuit. 1. RECEIVER CIRCUIT The receiver is double conversion superheterodyne, designed to operate in the frequency range of 490 to 512MHz. 1.1 FRONT-END RF AMPLIFIER An incoming signal from the antenna is applied to on RF amplifier (Q203) after passing through a transmit/receive switch circuit (D102 and D103 are off) and a 3- pole LC filter. After the signal is amplified (Q203), the signal is filtered by a 3-pole LC filter to eliminate unwanted signals before it is passed to the first mixer. 1.2 FIRST MIXER The signal from the RF amplifier is heterodyned with the first local oscillator signal from the PLL frequency synthesizer circuit at the first mixer (Q202) to become a 38.85MHz first intermediate frequency (1st IF) signal. The first IF signal is fed through two monolithic crystal filters (MCFs:XF200) to further remove spurious signals. 1.3 IF AMPLIFIER The first IF signal is amplified by Q201, and then enters IC200 (FM processing IC). The signal is heterodyned again with a second local oscillator signal within IC200 to become a 450kHz second IF signal. The second IF signal is fed through a 450kHz ceramic filter to further eliminate unwanted signals before it is amplified and FM detected in IC200. 1.4 AUDIO AMPLIFIER The recovered audio signal obtained from IC200 is amplified by IC300 (1/4) low pass- filter by IC300(2/4) and high-pass filtered by Q300 (3/4) and Q300 (4/4), and de- empfasized by R303 and C306. The audio signal is then passed through an audio frequency switch (Q303). The processed audio signal passes through an audio volume control and is amplified to a sufficient level to drive a loud speaker by an audio power amplifier (IC302). 1.5 SQUELCH AND MUTE CIRCUIT The output signal from the squelch circuit, which consists of IC200, is applied to the microprocessor. The microprocessor controls the mute control line (MUTE) according to the input signal and the microprocessor task condition. (FCC ID:ALH30923110) 2. TRANSMITTER 2.1 MICROPHONE CIRCUIT The signal from the microphone is high-pass filtered by IC500 (1/2), passed through microphone mute circuit (Q503), limited and pre-emphasized by IC500 (2/2). The signal component above the audio pass-band circuit is attenuated by splatter filter comprised of Q501 and Q502. 2.2 MODULATOR CIRCUIT The output from the microphone amplifier passes through a variable resistor (VR501) for maximum deviation adjustment and is applied to a varactor diode (D5) in the voltage controlled oscillator (VCO) located in the frequency synthesizer section. 2.3 DRIVER AND FINAL POWER AMPLIFIER CIRCUITS The transmit signal obtained from the VCO buffer amplifier Q100, is amplified to approximately 17dBm by Q101 and Q102. This amplified signal is passed to the power amplifier Q105 and Q107,which consists of a 2-stage FET amplifier and is capable of producing up to 4W of RF power. 2.4 TRANSMIT/RECEIVE SWITCHING CIRCUIT The power module output signal is passed through a low-pass filter network and a transmit/receive switching circuit before it is passed to the antenna terminal. The transmit/receive switching circuit is comprised of D101, D102 and D103. D100 is turned on (conductive) in transmit mode and turned off (isolated) in receive mode. 2.5 AUTOMATIC POWER CONTROL CIRCUIT AND TRANSMITTER OUTPUT LEVEL SWITCH The automatic power control (APC) circuit stabilizes the transmitter output power at a pre-determined level by sensing the collector current of the final amplifier Field effect transistor (FET). The voltage comparator IC100 (2/2) compares the voltage obtained by the above drain current with a reference voltage, set using the microprocessor and. An APC voltage proportional to the difference between the sensed voltage and the reference voltage appears at the output of IC100 (1/2). This output voltage controls the gate of FET power amplifier, which keeps the transmitter output power constant. The transmitter output power can be varied by the microprocessor, which in turn changes the reference voltage and hence the output power. 3. PLL FREQUENCY SYNTHESIZER 3.1 PLL The frequency step of the PLL circuit is 5 or 6.25kHz. A 12.8MHz reference oscillator signal is divided at IC1 by a fixed counter to produce the 5 or 6.25kHz reference frequency. The VCO output signal is buffer amplified by Q2, then divided in IC1, by a dual-modules programmable counter in this case. The divided signal is compared in phase with the 5 or 6.25kHz reference signal in the phase comparator also in IC1. The output signal from the phase comparator is low-pass filtered and passed to the (FCC ID:ALH30923110) VCO to control the oscillator frequency. 3.2 VOLTAGE CONTROLLED OSCILLATOR (VCO) The operating frequency is generated by Q4 in transmit mode and Q3 in receive mode. The oscillator frequency is controlled by applying the VCO control voltage, obtained from the phase comparator, to the varactor diodes (D2 and D4 in transmit mode and D1 and D3 in receive mode). The T/R pin is set high in receive mode causing Q5 and Q7 to turn off Q4, and turn on Q3, and is set low for transmit mode. The outputs from Q3 and Q4 are amplified by Q6 and outputted to the buffer amplifiers. 3.3 UNLOCK DETECTOR CIRCUIT If a pulse signal appears at the LD pin of IC1, an unlock condition occurs, the DC voltage, obtained from D7, R6 and C1, causes the voltage applied to the UL pin of the microprocessor to go low. When the microprocessor detects this condition, the transmitter is disabled by ignoring the push-to-talk switch input signal. 4. DIGITAL CONTROL CIRCUIT 4.1 KEY SWITCHES AND CHANNEL SELECTOR INPUT CIRCUIT The key switches and channel selector information are entered di…

Text truncated - open the document above for the full version.

FCC ID:ALH30923120(TK-3102K2) FCC ID:ALH30923130(TK-3102K3) TK-3102 Tuning Procedure Before attempting to tune the transceiver, connect the unit to a suitable power supply. Whenever the transmitter tuned, must be connected to a suitable dummy load, unless the instruction specify otherwise. The speaker output connector must be terminated with a 8ohms dummy load at any time during the tuning and connected to an AC voltmeter and an audio distortion meter or a SINAD measurement meter at all the time during the tuning. 1-1 Adjusting Mode Connect with the Radio and Personal Computer to COMPUTER PROGRAMMING INTERFACE(KPG-8 or KPG-22) 1-2 Tuning Items  Frequency Adjust  RF Power  Standard Battery Voltage  Squelch Threshold Level(Tight)  Squelch Threshold Level(Open)  QT Deviation(Wide)  DQT Deviation(Wide)  QT Deviation(Narrow)  DQT Deviation(Narrow) 1-3 Test Mode Starting Test Mode, select the Tuning Frequency and Signaling. 1-3-1 Open the Program Menu of Window. 1-3-2 Press[T] or use [↓][↑]keys to Test Mode, then Press the [Enter]. 1-3-3 Starting the Test Mode channel and Signaling after Tuning Data Read. 1-3-4 Use[←][→]keys to select channel then use [↓][↑]keys to select channel number then Press the [Enter]. 1-3-5 Use[←][→]keys to select Signaling then use [↓][↑]keys to select Signaling number 38 waves. 1-3-6 Press the [Space/ S+ Space],[F2/S+F2] then Transmitter on. 1-3-7 Back to Reception during transmitter use[Space/S + Space],[F2/ S+ F2] keys. FCC ID:ALH30923120(TK-3102K2) FCC ID:ALH30923130(TK-3102K3) 2-1 Tuning Mode Starting Tuning Mode from Test Mode. 2-1-1 Press the [F10] during the TEST MODE CHANNEL & SIGNALING MODE then starting Tuning Mode and message Window open. Tuning Mode Frequency Tune RF Power Battery Squelch(Tight) Squelch(Open) QT Deviation(Wide) DQT Deviation(Wide) QT Deviation(Narrow) DQT Deviation(Narrow) 2-1-2 Use[↓][↑]keys select tuning item[Frequency Tune]then press [Enter]. 2-1-3 Use[←][→]keys to adjust the level then press [Enter]. 2-1-4 Select tuning item [RF Power]then press [Enter]. 2-1-5 Use [←][→]keys to adjust the level then press[Enter]. 2-1-6 Select tuning item[BATTERY] then press [Enter]. 2-1-7 Use [←][→]keys to adjust the level then press [Enter]. 2-1-8 Select tuning item [Squelch(Tight)]then press [Enter]. 2-1-9 Use [←][→]keys to adjust the level then press [Enter]. 2-1-10 Select tuning item [Squelch(Open)] then press [Enter]. 2-1-11 Use [←][→]keys to adjust the level then press [Enter]. 2-1-12 Select tuning item [QT Deviation(Wide)] then press [Enter]. 2-1-13 Use [←][→]keys to adjust the level then press [Enter]. 2-1-14 Select tuning item [DQT Deviation(Wide)] then press [Enter]. 2-1-15 Use [←][→]keys to adjust the level then press [Enter]. 2-1-16 Select tuning item [QT Deviation(Narrow)] then press [Enter]. 2-1-17 Use [←][→]keys to adjust the level then press [Enter]. 2-1-18 Select tuning item [DQT Deviation(Narrow)]then press [Enter]. 2-1-19 Use [←][→]keys to adjust the level then press [Enter].

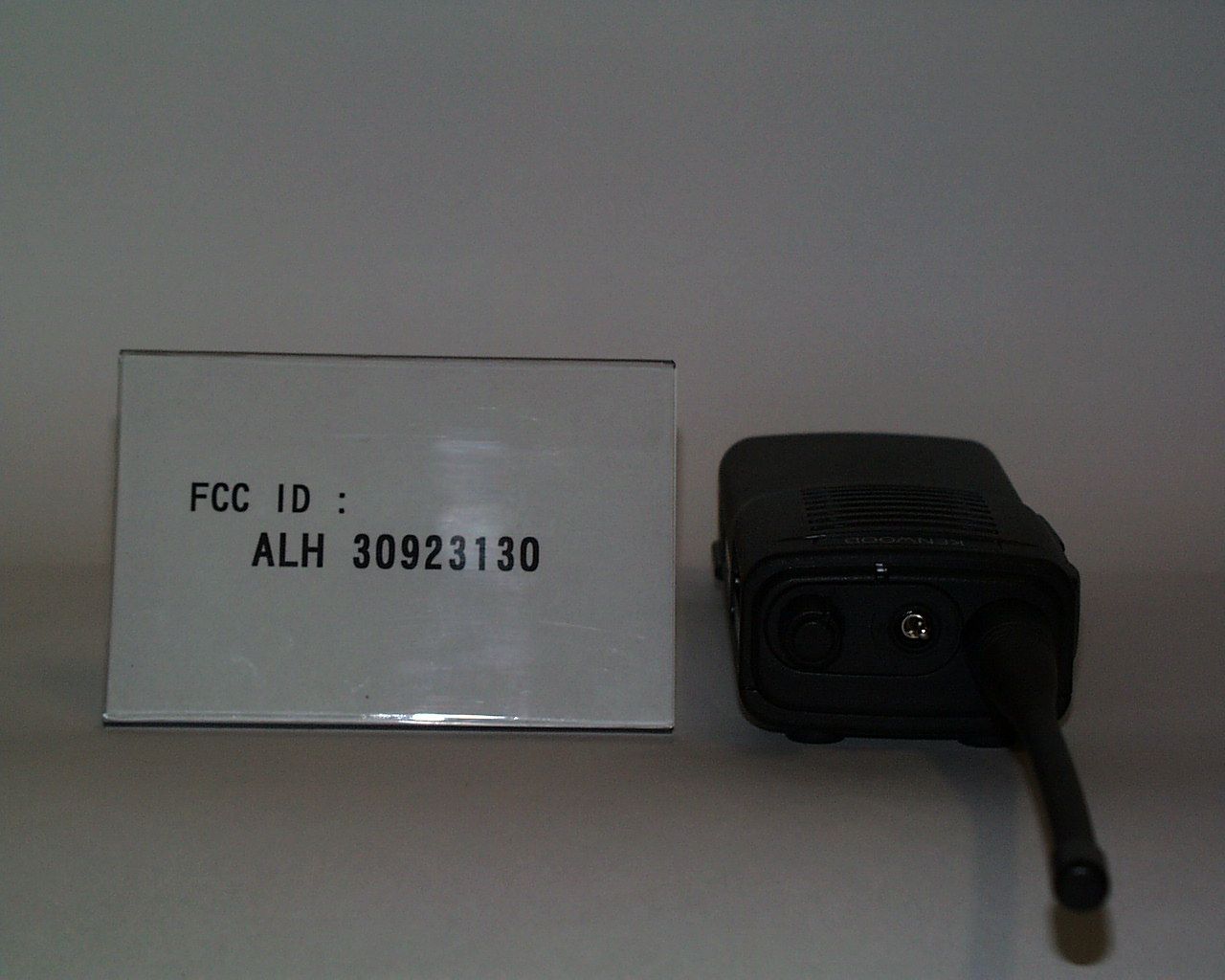

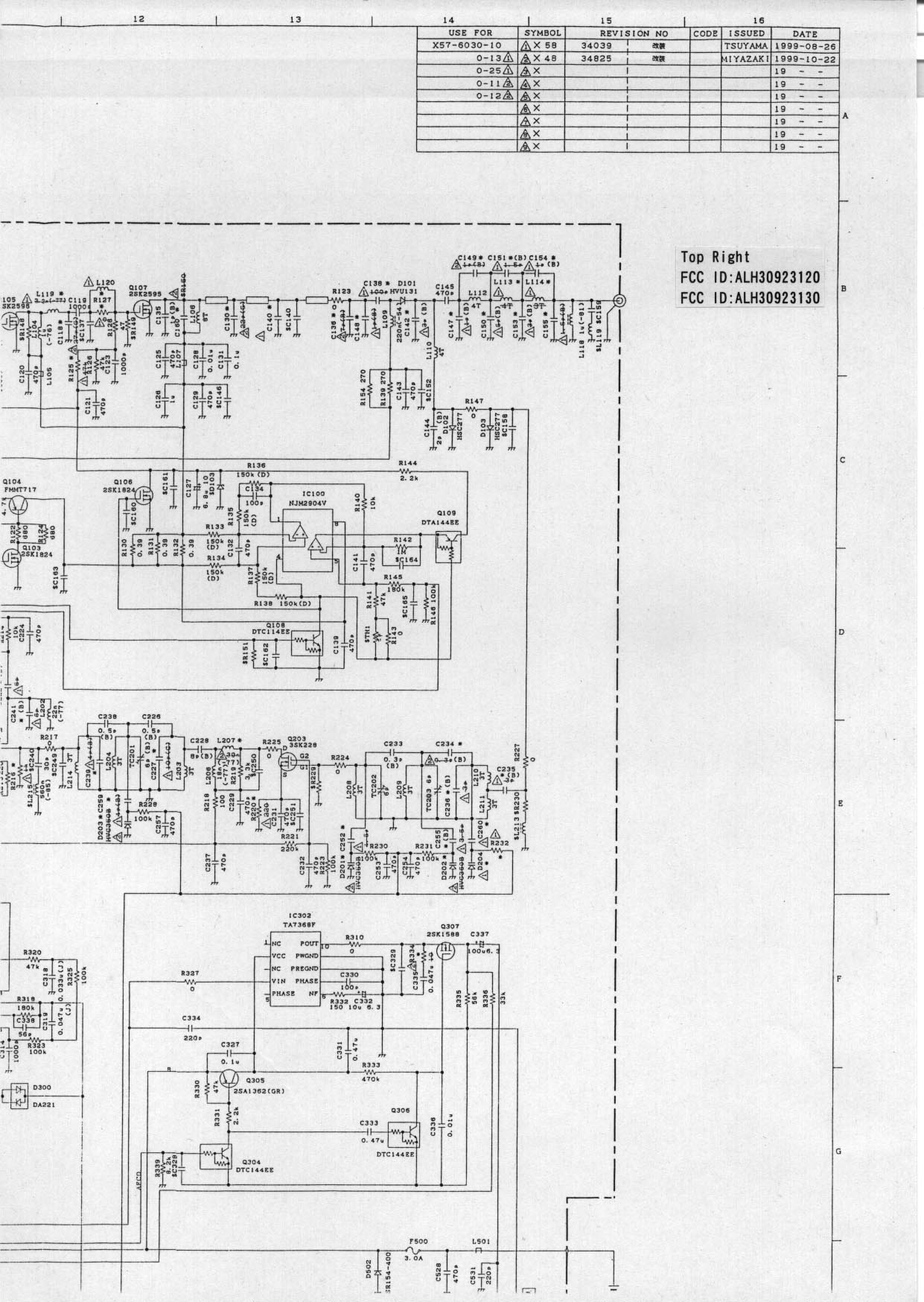

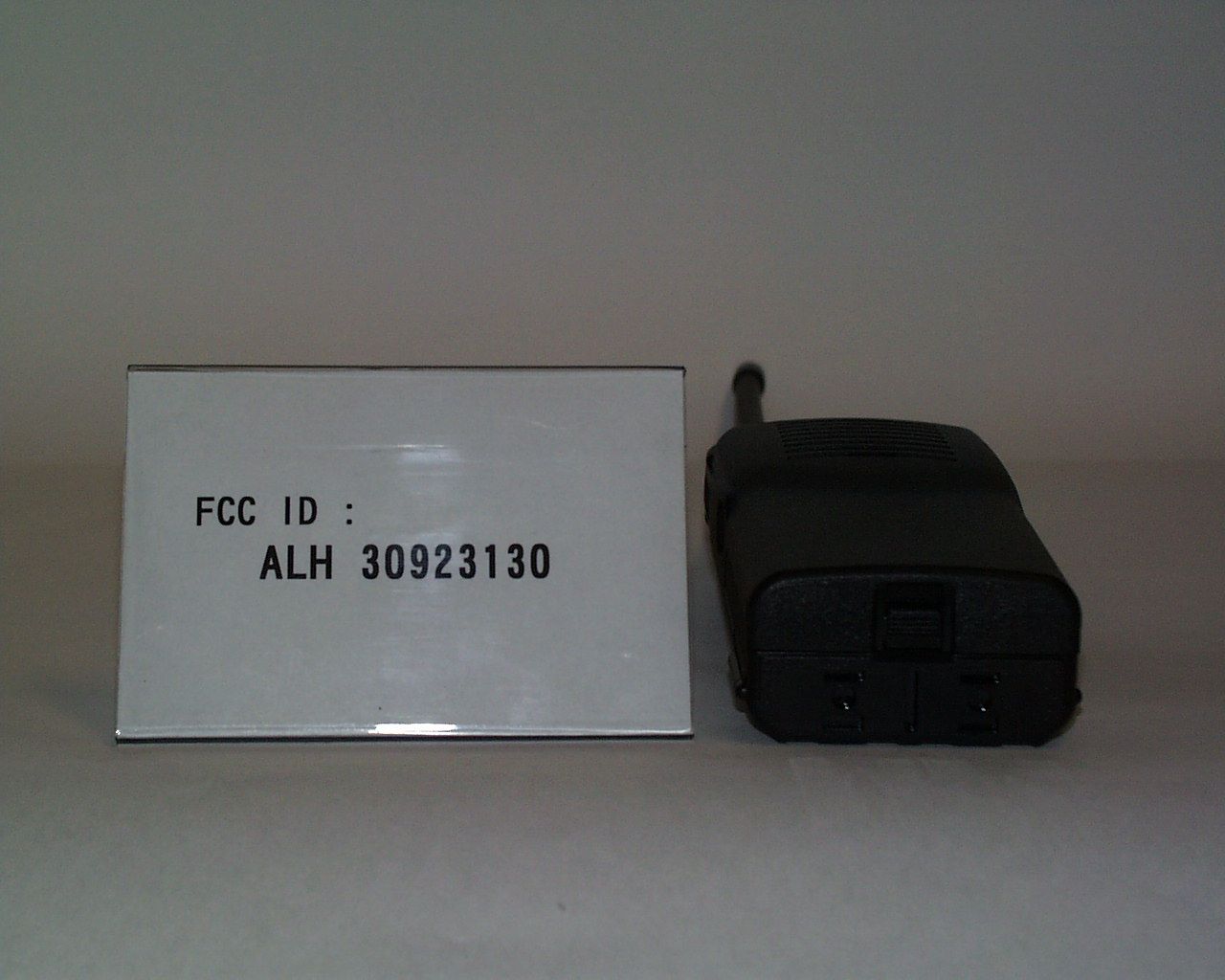

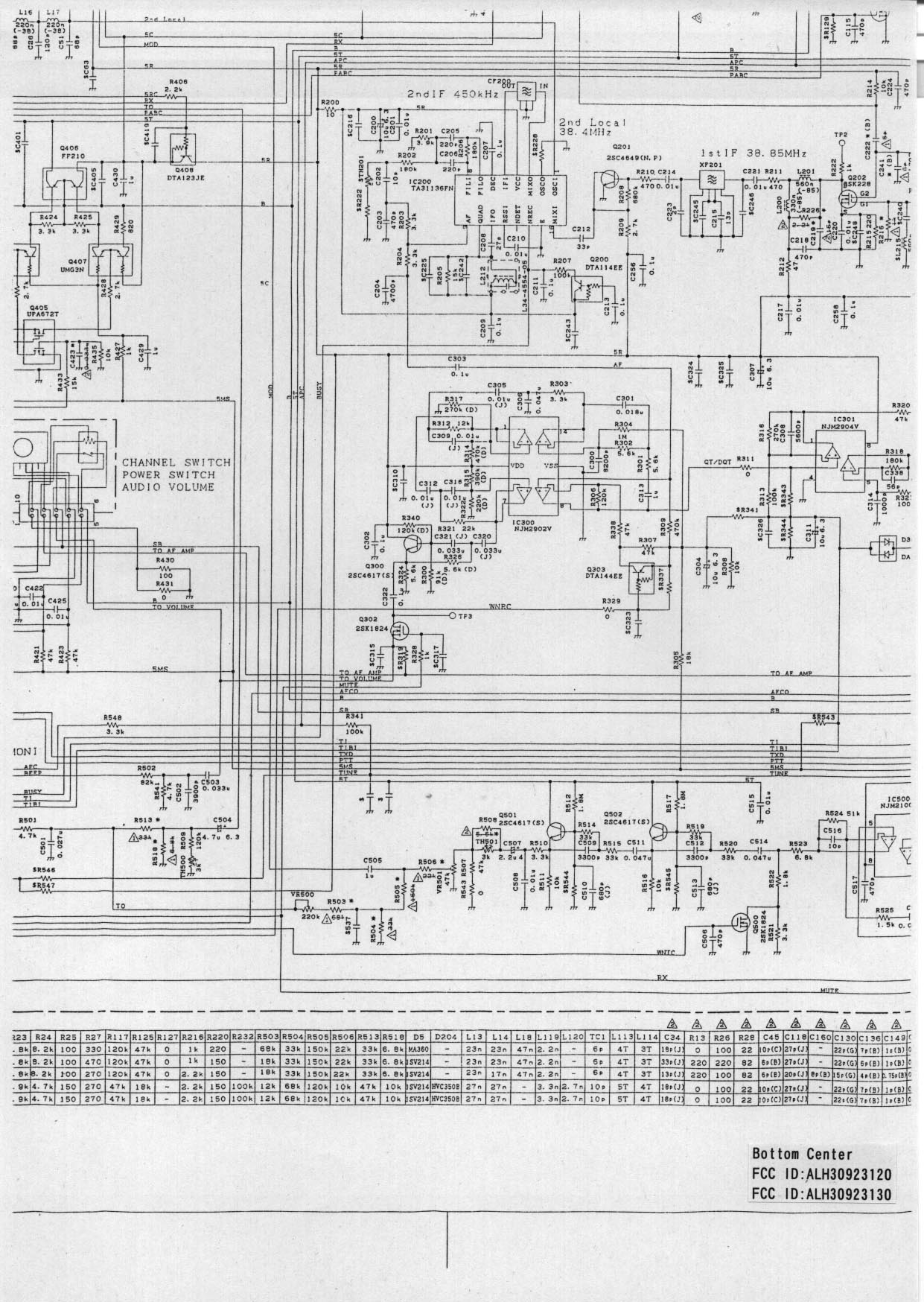

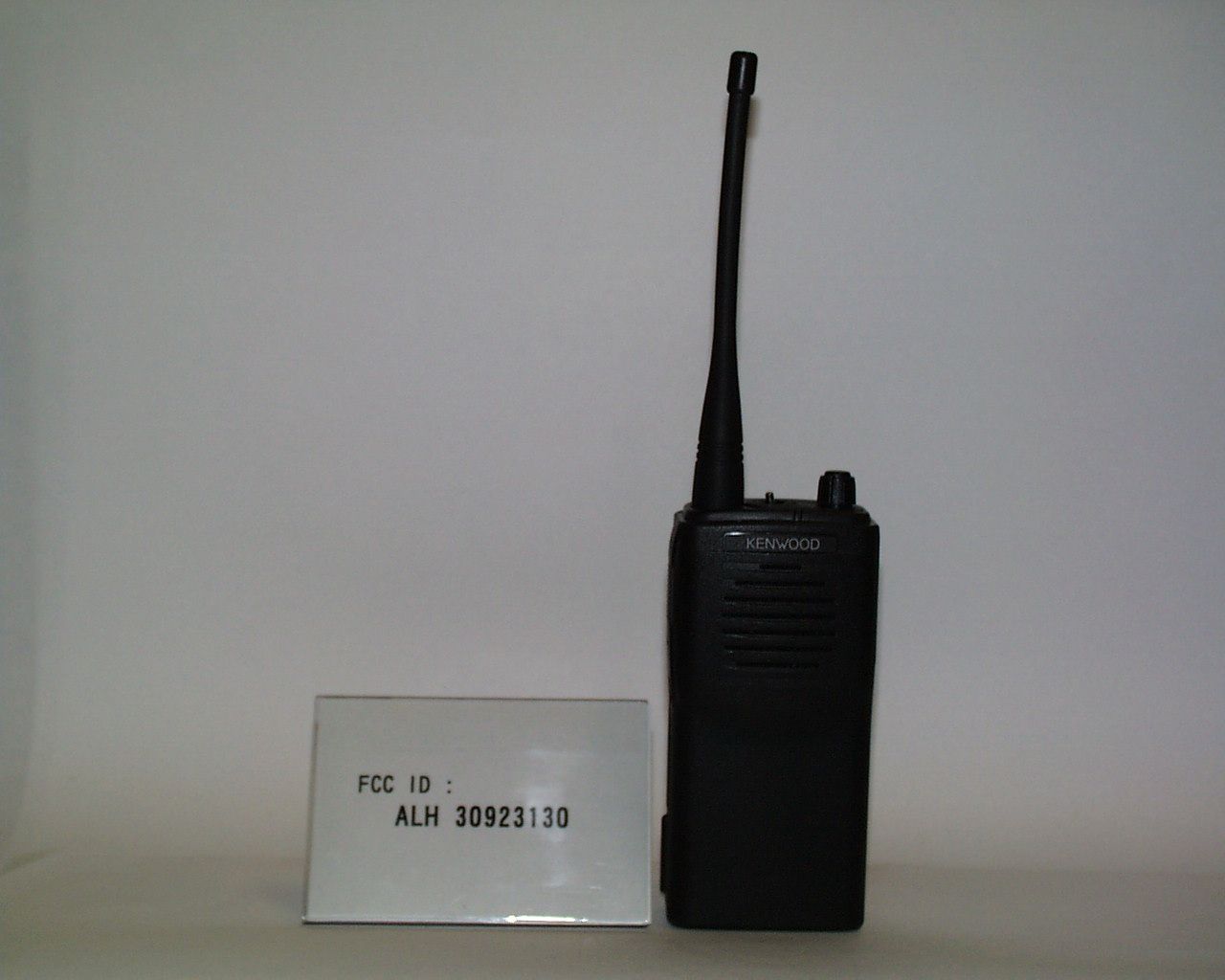

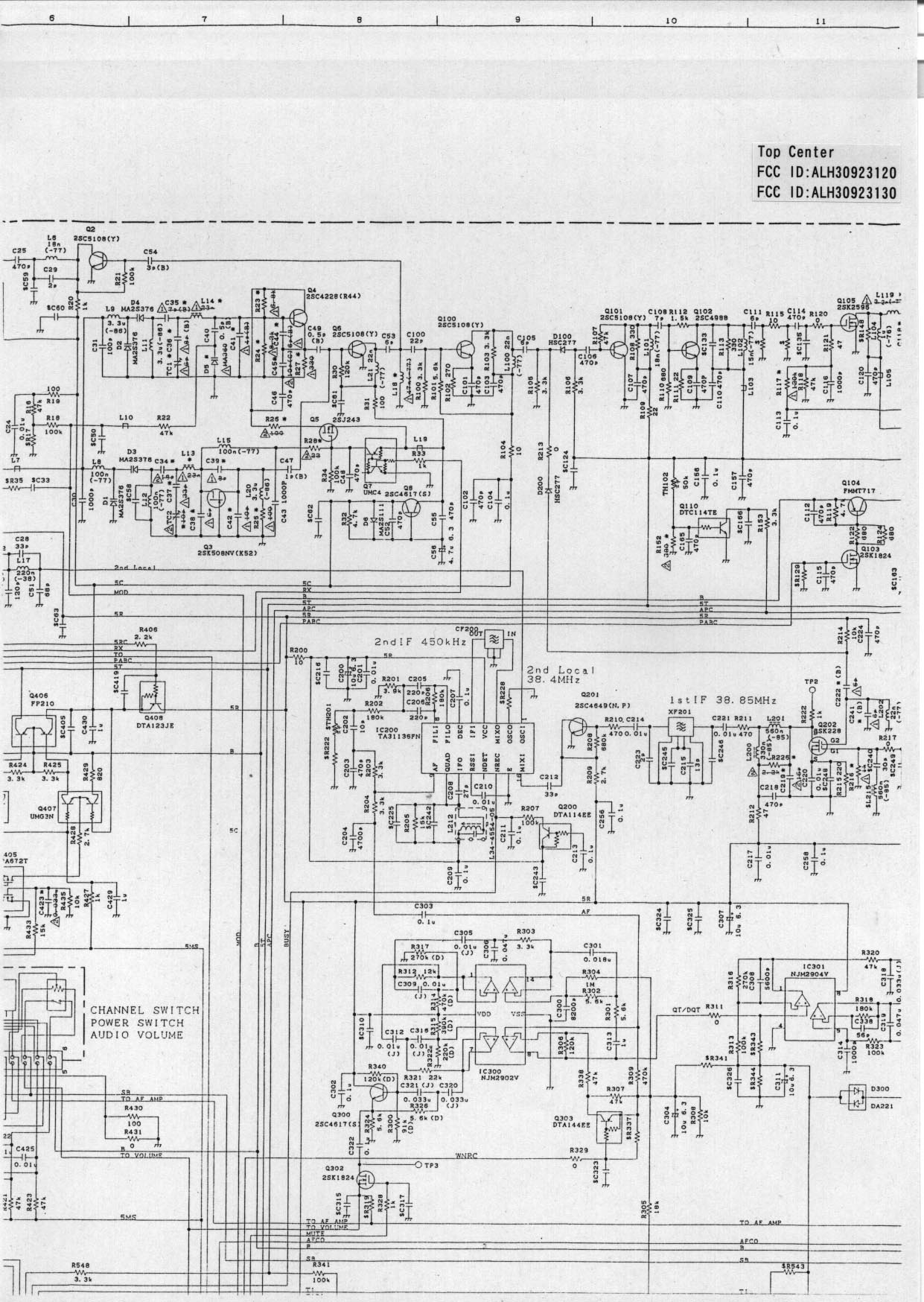

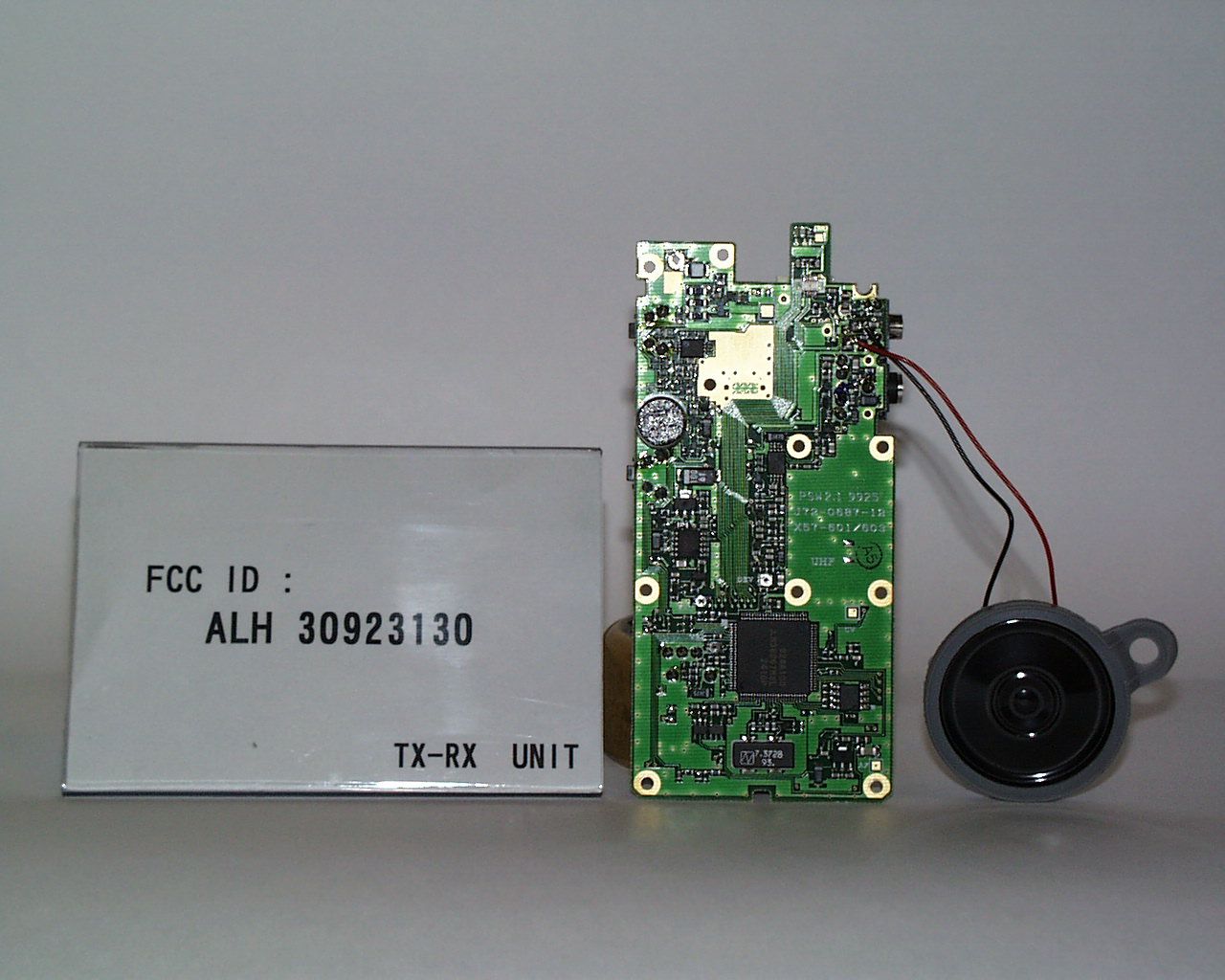

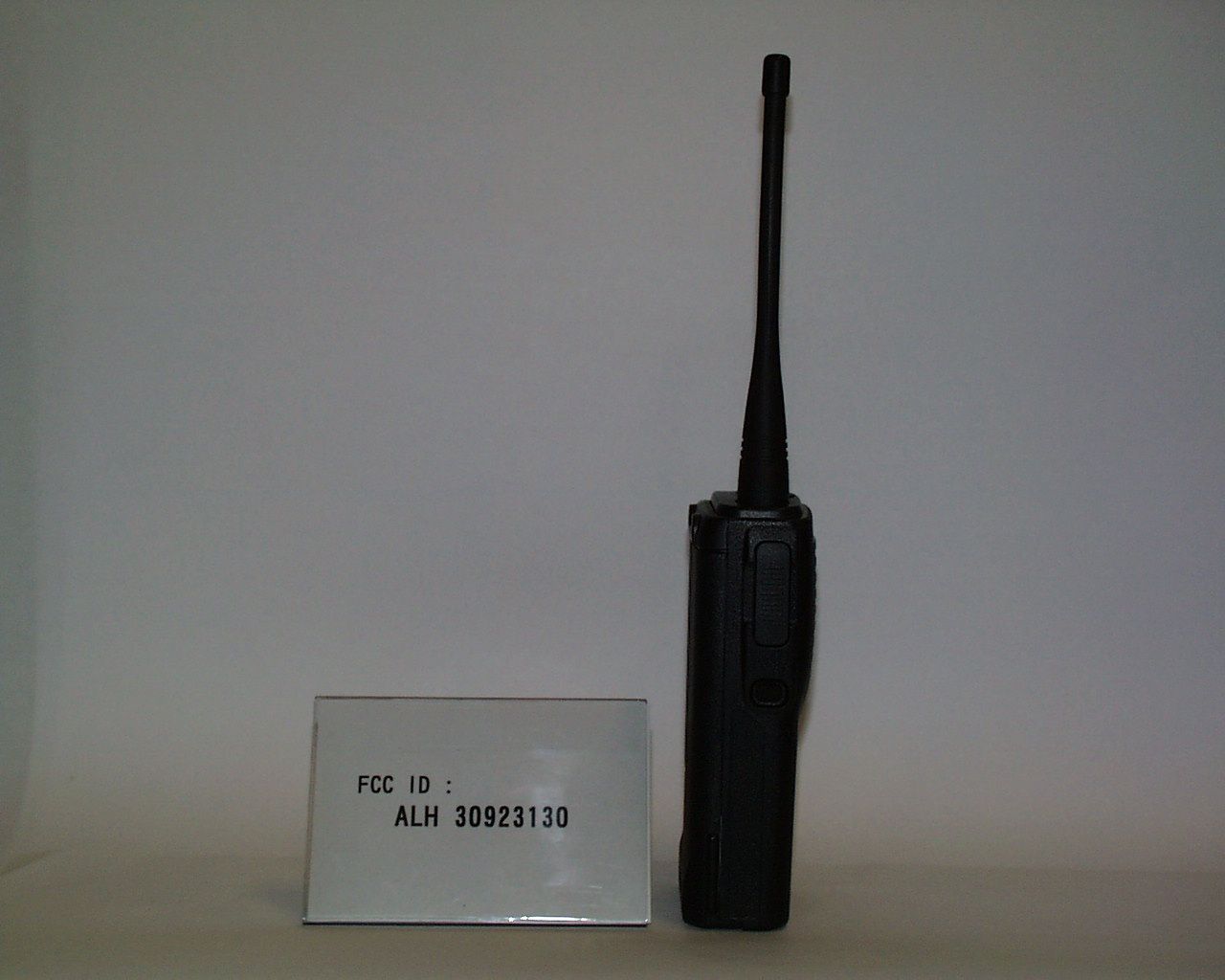

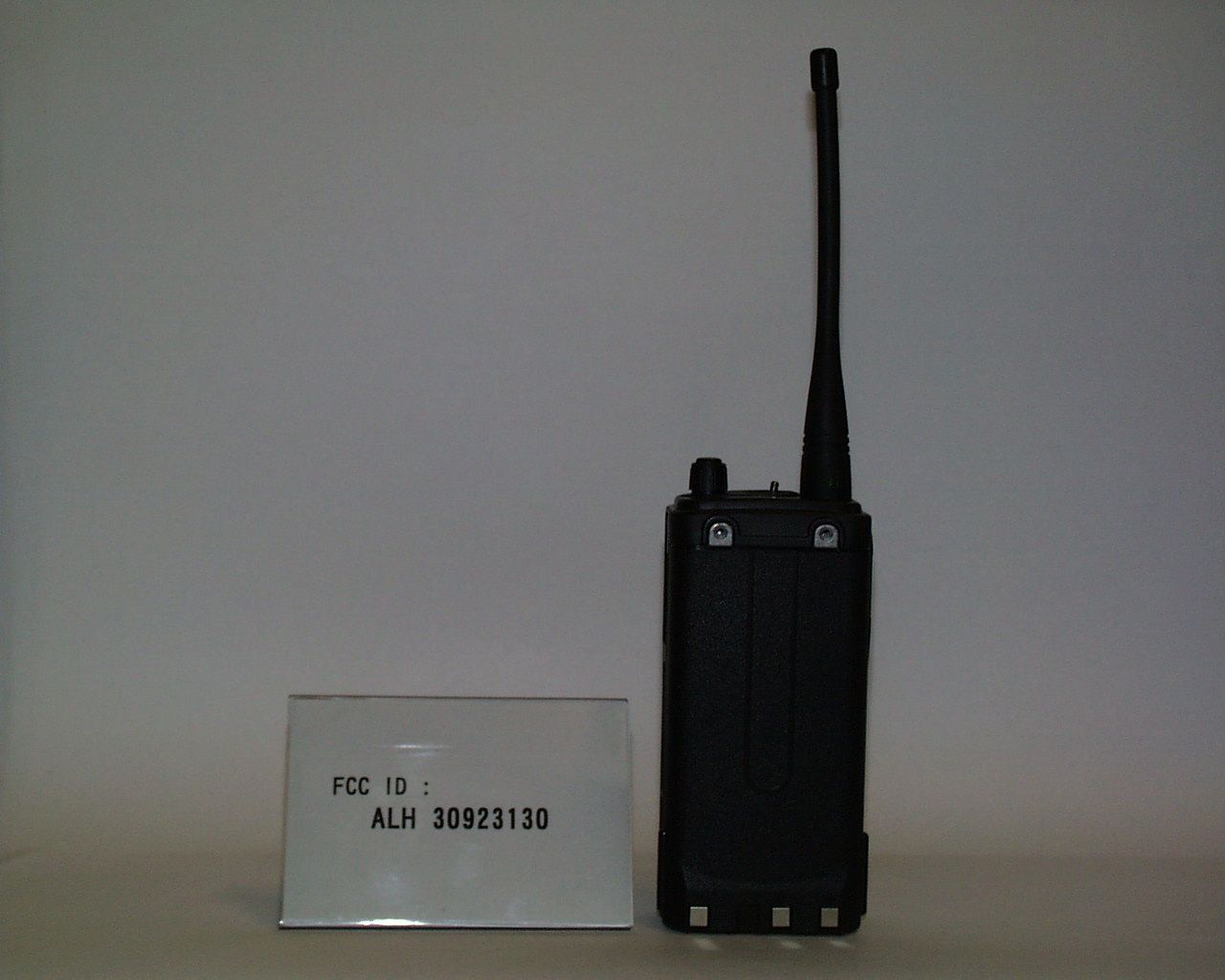

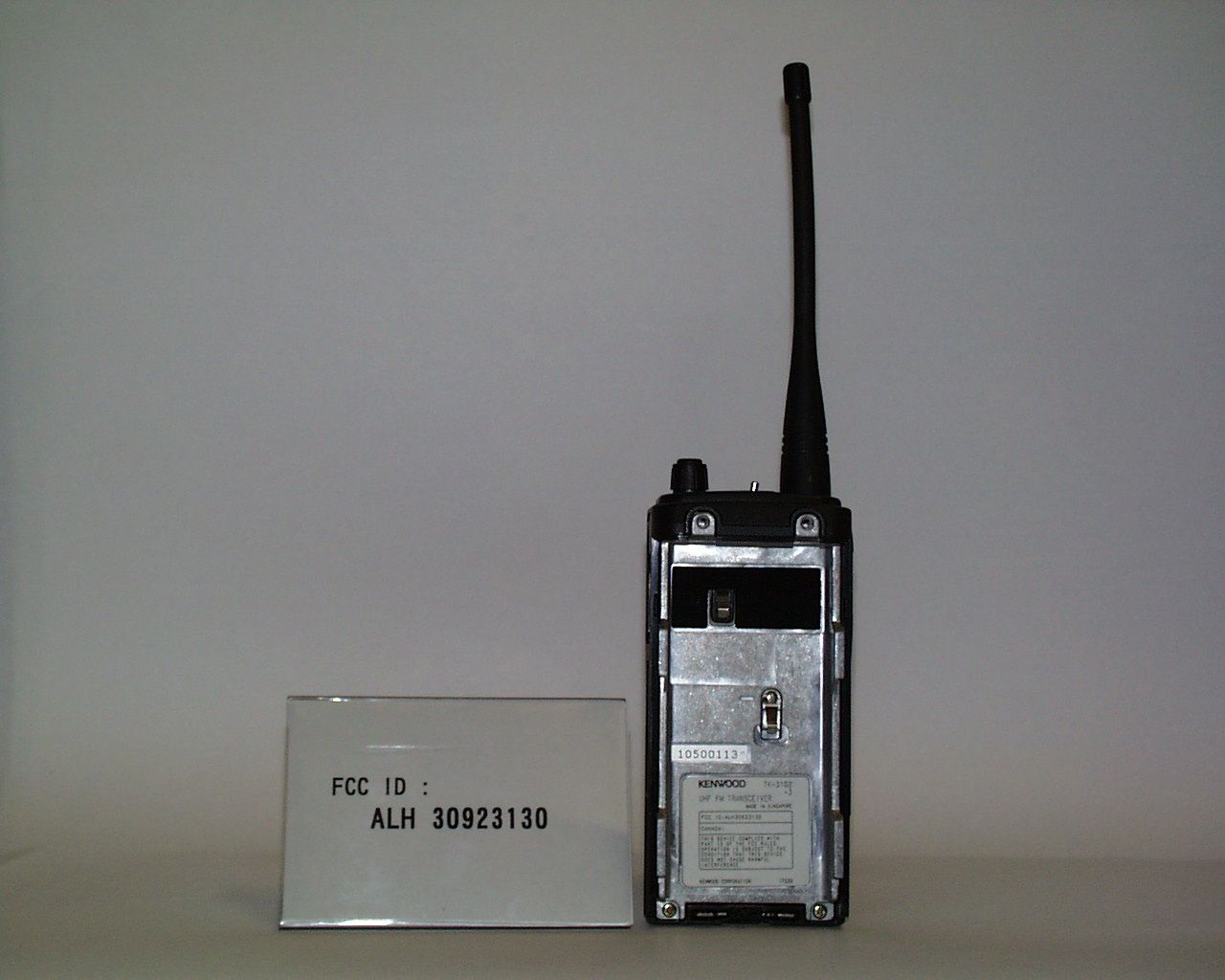

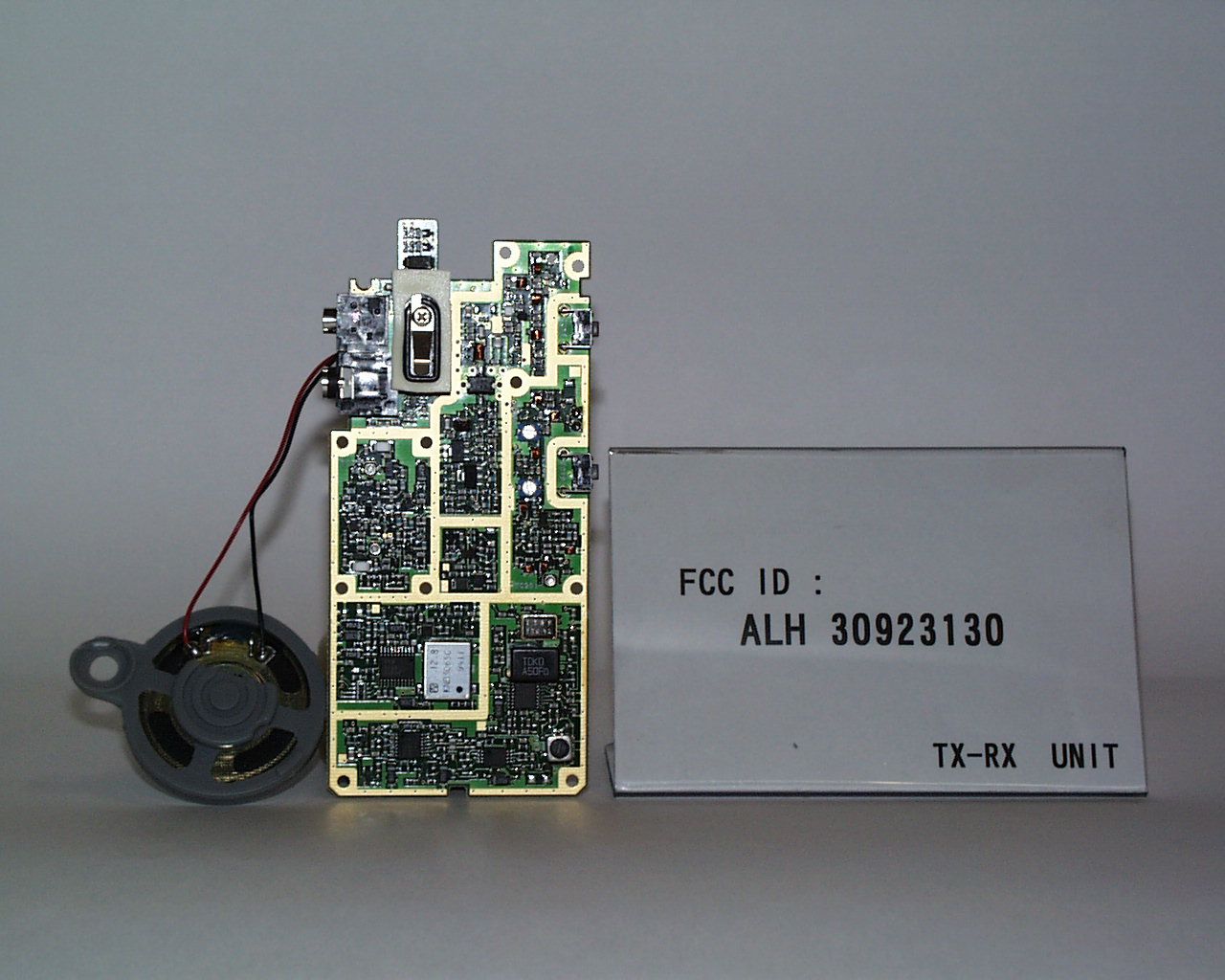

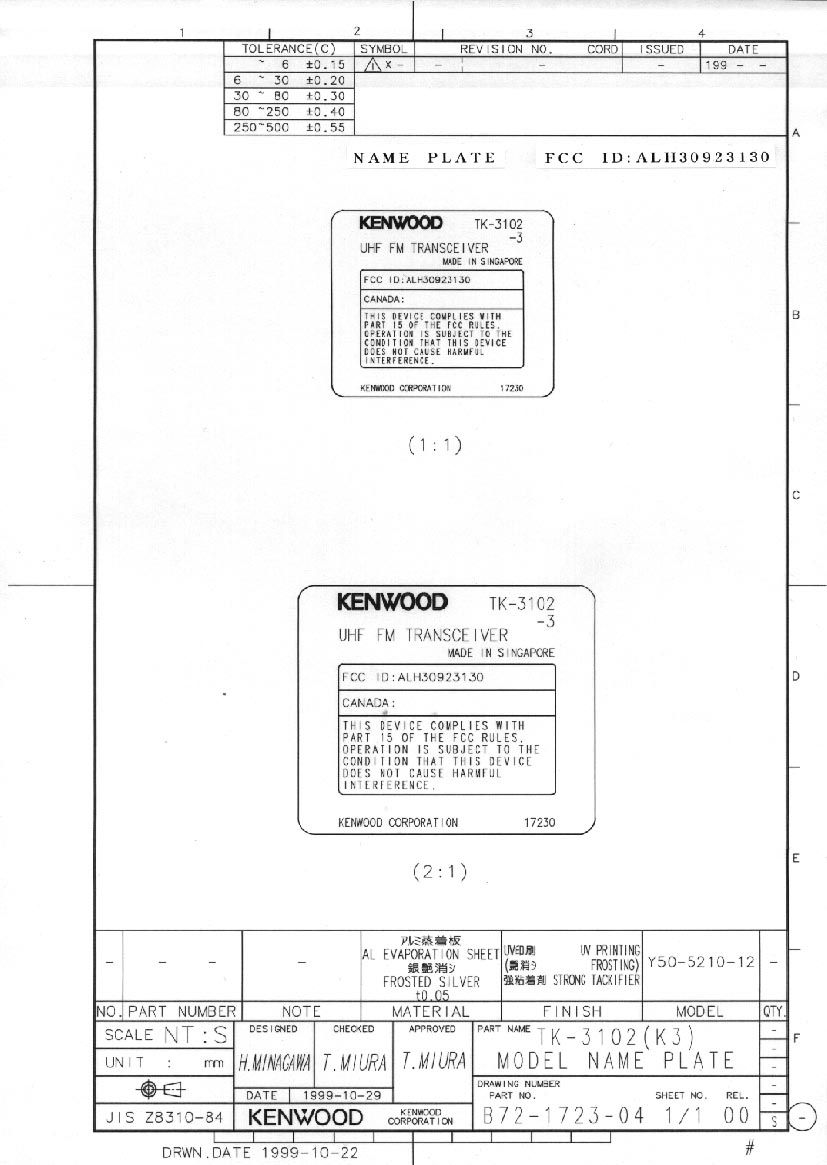

FCC ID: ALH30923130 MFA p99b0013, d99c0004 Date:December 2, 1999 Federal Communications Commission Via: Electronic Filing Attention:Authorization & Evaluation Division Applicant:Kenwood Communications Corporation Equipment:TK-3102-3 FCC ID:ALH30923130 FCC Rules:22, 90 Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, William H. Graff, Director of Engineering enclosure(s) cc: Applicant WHG/cvr FCC ID: ALH30923130 MFA p99b0013, d99c0004 LIST OF EXHIBITS (FCC CERTIFICATION (TRANSMITTERS) - REVISED 9/28/98) APPLICANT:Kenwood Communications Corporation FCC ID:ALH30923130 BY APPLICANT: 1. LETTER OF AUTHORIZATION 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) LABEL LOCATION OF LABEL COMPLIANCE STATEMENT LOCATION OF COMPLIANCE STATEMENT 3. PHOTOGRAPHS, 2.1033(c)(12) 4. DOCUMENTATION: 2.1033(c) (3)USER MANUAL (9)TUNE UP INFO (10)SCHEMATIC DIAGRAM (10) CIRCUIT DESCRIPTION 5. PART 90.203(e) & (g) ATTESTATION BY M.F.A. INC. A.TESTIMONIAL & STATEMENT OF CERTIFICATION B.STATEMENT OF QUALIFICATIONS FCC ID: ALH30923130 MFA p99b0013, d99c0004 Sub-part 2.1033(c): EQUIPMENT IDENTIFICATION FCC ID: ALH30923130 NAMEPLATE DRAWING ATTACHED, EXHIBIT 1. LOCATION AS PER LABEL DRAWING(S) DATE OF REPORT December 2, 1999 SUPERVISED BY:William H. Graff, Director of Engineering FCC ID: ALH30923130 MFA p99b0013, d99c0004 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a)SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: ALH30923130 MFA p99b0013, d99c0004 TABLE OF CONTENTS RULEDESCRIPTIONPAGE .Test Report1 2.1033(c)General Information Required2 2.1033(c)(14) Rule Summary5 .Standard Test Conditions and Engineering Practices6 2.1046(a) Carrier Output Power (Conducted)7 2.1051 Unwanted Emissions (Transmitter Conducted)9 2.1053(a) Field Strength of Spurious Radiation13 2.1049(c)(1) Emission Masks (Occupied Bandwidth)16 90.214 Transient Frequency Behavior23 2.1047(a) Audio Low Pass Filter (Voice Input)33 2.1047(a) Audio Frequency Response36 2.1047(b) Modulation Limiting38 2.1055(a)(1) Frequency Stability (Temperature Variation)41 2.1055(b)(1)Frequency Stability (Voltage Variation)44 2.202(g) Necessary Bandwidth and Emission Bandwidth45 FCC ID: ALH30923130 MFA p99b0013, d99c0004 PAGE NO.1 of 45. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a)TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85224 c) Report Number:d99c0004 d) Client:Kenwood Communications Corporation P.O. Box 22745 Long Beach, CA 90801-5745 e) Identification:TK-3102-3 FCC ID: ALH30923130 Description:UHF FM Handheld Transceiver f) EUT Condition:Not required unless specified in individual tests. g) Report Date:December 2, 1999 EUT Received:November 17, 1999 h, j, k):As indicated in individual tests. i) Sampling method:No sampling procedure used. l) Uncertainty:In accordance with MFA internal quality manual. m) Supervised by: William H. Graff, Director of Engineering n) Results:The results presented in this report relate only to the item tested. o) Reproduction:This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: ALH30923130 MFA p99b0013, d99c0004 PAGE NO.2 of 45. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 22, 90 Sub-part 2.1033 (c)(1):NAME AND ADDRESS OF APPLICANT: Kenwood Communications Corporation 2201 E. Dominguez St P.O. Box 22745 Long Beach, CA 90801-5745 MANUFACTURER: Kenwood Technologies Pte. Ltd. 1 Ang Mo Kio Street 63 Singapore 569110 (c)(2):FCC ID:ALH30923130 MODEL NO:TK-3102-3 (c)(3):INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4):TYPE OF EMISSION:16K0F3E, 11K0F3E (c)(5):FREQUENCY RANGE, MHz: 490 to 512 (c)(6):POWER RATING, Watts:1 to 4 SwitchablexVariableN/A (c)(7):MAXIMUM POWER RATING, Watts:300 FCC ID: ALH30923130 MFA p99b0013, d99c0004 PAGE NO.3 of 45. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by…

Text truncated - open the document above for the full version.
