ALH33293110UHF FM Transceiver

© B62-1486-00 (K) 09 08 07 06 05 04 03 02 01 00 UHF FM TRANSCEIVER TK-3130 Instruction Manual i THANK YOU We are grateful for your purchase of this KENWOOD product and welcome you to the Business Radio Service (BRS). Your KENWOOD 2-way Business Radio is called a “transceiver”, meaning “transmitter & receiver”. We believe this easy-to-use transceiver will provide you with dependable and reliable communications. This KENWOOD transceiver is a precision device. Treat it with care, and you will enjoy years of reliable operation. FEATURES •Sliding battery pack which simplifies installing, removing, and charging. •8 channels with 121 tone/code settings for each channel, allowing you to ignore unwanted calls. •Voice scrambler, giving you complete privacy for your conversations. •Automatic battery power saver, providing you with longer battery usage. •Low battery power warning. •Key lock, preventing you from accidentally changing your transceiver settings. •Hands free operation when using an optional external microphone. •Communication range of up to 2 miles (3.2 km) in open locations (less in buildings, vehicles, and residential areas). ii FCC LICENSE INFORMATION Your KENWOOD radio operates on communications frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment. Application for license must be made on FCC form 600, and schedules D, E, and G. FAX: Forms can be obtained by fax from the FCC Fax-On-Demand system. Call 1-202-418-0177 from your fax machine and request document number 000600 for the form, schedules, and instructions. MAIL: Forms can be ordered by telephone, and will be sent to you by first class mail. Call the FCC Forms Hotline at 1-800- 418-FORM (1-800-418-3676). INTERNET: Form 600 and instructions can be downloaded from the FCC Forms website at: http://www.fcc.gov/formpage.html Before filling out your Form 600 application Technical Data section, you must decide which frequency (or frequencies) you will operate on. Refer to the frequency chart on page 26. Questions? Call the FCC for license application questions at 1-888-CALL-FCC (1-888-225-5322). iii PRECAUTIONS •Refer service to qualified technicians only. Do not modify or attempt to adjust the transceiver for any reason. •Do not expose the transceiver to long periods of direct sunlight, nor place it close to heating appliances. •Do not place the transceiver in excessively dusty, humid, or wet areas, nor on unstable surfaces. •Avoid extremes in exposure to weather, heat, and cold. This transceiver can be used in mild weather conditions, but it is not waterproof. •Turn OFF your transceiver while taking on fuel or while parked in gasoline service stations. •Do not operate your transceiver or charge your battery pack in an explosive atmosphere (gases, dust, fumes, etc.). •If an abnormal odor or smoke is detected coming from the transceiver, immediately switch OFF the power and remove the batteries from the transceiver. Contact your KENWOOD dealer. uGovernment law prohibits the operation of unlicensed radio transmitters within the territories under government control. uIllegal operation is punishable by fine and/or imprisonment SAFETY: It is important that the operator is aware of and understands hazards common to the operation of any transceiver. ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-cadmium (Ni-Cd) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. For information on Ni-Cd battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources. iv CONTENTS UNPACKING AND CHECKING EQUIPMENT ......................... 1 SUPPLIED ACCESSORIES.......................................................... 1 ORIENTATION .......................................................................... 2 DISPLAY................................................................................ 3 PREPARATION ........................................................................ 4 INSTALLING/ REMOVING THE BATTERY PACK................................ 4 CHARGING THE BATTERY PACK................................................. 5 INSTALLING/ REMOVING THE BELT HOOK.................................... 7 INSTALLING/ REMOVING OPTIONAL ACCESSORIES........................ 7 GETTING STARTED ................................................................ 8 QUIET TALK/ DIGITAL QUIET TALK .................................... 10 SCANNING THE CHANNELS ............................................... 11 R EVERT CHANNEL................................................................ 12 MONITORING A CHANNEL .................................................. 13 VOICE ACTIVATED CONTROL (VOX) .................................. 14 VOICE SCRAMBLER ............................................................. 16 OPERATING FEATURES ....................................................... 17 TRANSMISSION POWER.......................................................... 17 KEY LOCK........................................................................... 17 DISPLAY ILLUMINATION........................................................... 18 TIME-OUT TIMER................................................................. 18 B ATTERY POWER SAVER....................................................... 19 LOW BATTERY WARNING....................................................... 19 CALL TONES........................................................................ 20 BUSY CHANNEL LOCKOUT............…

Text truncated - open the document above for the full version.

August 27, 2001 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter will authorize the appointment of MORTON FLOM, P. Eng. and/or M. Flom Associates, Inc. to act as our agent in all FCC matters. This appointment is effective until you are otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The application is not subject to a denial of federal benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 8.62, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Kenwood Communications Corporation Joel E. Berger Joel E. Berger Staff Engineer Research & Development Department Kenwood Communications Corporation Corporate Headquarters Kenwood Communications Corporation 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 678-474-4700 Distribution: 2201 E. Dominguez St. Long Beach, CA 90810 (310) 639-4200 Mailing Address: P.O. Box 22745 Long Beach, CA 90801-5745

August 27, 2001 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Reference: This equipment meets the requirements of FCC Rules, Parts 90.203(e) and (g) as applicable. Programming of this product’s transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment’s external operation controls. Sincerely, Kenwood Communications Corporation Joel E. Berger Joel. E. Berger Staff Engineer Kenwood Communications Corporation Research & Development Department Corporate Headquarters Kenwood Communications Corporation 3975 Johns Creek Court, Suite 300 Suwanee, GA 30024 678-474-4700 Distribution: 2201 E. Dominguez St. Long Beach, CA 90810 (310) 639-4200 Mailing Address: P.O. Box 22745 Long Beach, CA 90801-5745

Date: December 12, 2001 Attention: Joe Dichoso Applicant: Kenwood Communications Corp. FCC ID: ALH33293110 EA102753 Correspondence: 21453 Item 1) Please find specific sections 22.563, 74.402, 74.431, 90.35, 90.20, 95.639, 95.621. 2) Please find amended page 8 of the Test Report showing 1.57 watts (as is listed on the Form 731). 3) R.F. Safety information in manual corrections: a) Face-Held should be 2.5 cm separation distance; 2) Body-warn should be 1.0 separation distance; 3) Indication that device is for Occupational use only. 4) Warning label and training information for Occupational use: CAUTION: See User and Installer Instructions regarding FCC RF Exposure Limits. To be placed in Manual: WARNING:This radio has been tested and complies with the FCC RF Exposure Limits for Occupational use and work –related operations, where the operator must have knowledge to control RF Exposure Conditions. When transmitting, hold the radio in a vertical position at a distance of 2.5 cm from the mouth and at lest 1.5 cm from the head and body. Do not transmit more than 50% of the duty cycle. Transmitting for more that 50 % of the duty cycle can cause the FCC RF Exposure limits to be exceeded. Use only Kenwood authorized accessories. 5) and 6) Please see cover letter and amended SAR Report. We trust this meets the requirements of the Commission and the Grant will be issued. Regards, Morton Flom, P. Eng.

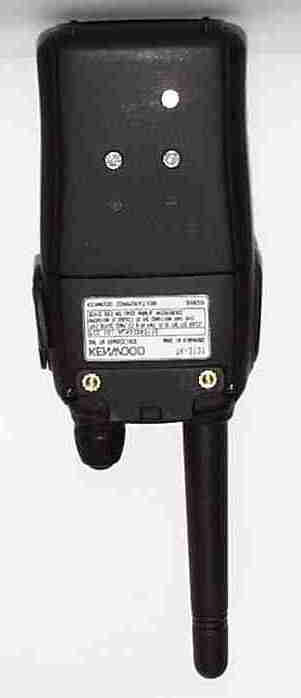

External Photos FCC ID: ALH33293110 Model Name: TK-3130/3131 Front view Top view Bottom view Rear view External Photos FCC ID: ALH33293110 Model Name: TK-3130/3131 Right view Left view

FCC ID Labels FCC ID: ALH33293110 Model Name: TK-3130/3131 FCC ID Label TK-3130 FCC ID Label TK-3131 Caution Label

External Photos FCC ID: ALH33293110 Model Name: TK-3130/3131 FCC ID Label Location

Internal Photos FCC ID: ALH33293110 Model Name: TK-3130/3131 PC Board: Front view PC Board: Rear view

Circuit Description FCC ID: ALH33293110 Model Name: TK-3130/3131 1 TK-3130/3131 Circuit Description The KENWOOD model TK-3130/3131 is UHF/FM hand-held transceiver designed to operate in the frequency range of 460 to 470MHz. The unit consists of a receiver, a transmitter, a phase-locked loop (PLL) frequency synthesizer, a digital control circuit, power supply circuit and a signaling circuit. 1. RECEIVER CIRCUIT The receiver is double conversion super heterodyne, designed to operate in the frequency range of 460 to 470MHz. 1.1 FRONT-END RF AMPLIFIER An incoming signal from the antenna is applied to on RF amplifier (Q18) after passing through a transmit/receive switch circuit (D13 is off) and SAW filter. After the signal is amplified (Q18), goes to the first mixer. 1.2 FIRST MIXER The signal from the RF amplifier is heterodyned with the first local oscillator signal from the PLL frequency synthesizer circuit at the first mixer (Q19) to become a 38.85MHz first intermediate frequency (1st IF) signal. The first IF signal is fed through two monolithic crystal filters (MCFs:XF1) to further remove spurious signals. 1.3 IF AMPLIFIER The first IF signal is amplified by Q20, and then enters IC2 (FM processing IC). The signal is heterodyned again with a second local oscillator signal within IC2 to become a 450kHz second IF signal. The second IF signal is fed through a 450kHz ceramic filter to further eliminate unwanted signals before it is amplified and FM detected in IC2. 1.4 AUDIO AMPLIFIER The demodulated signal from IC2 goes through high-pass filtered, and is amplified in the base band IC (IC205), low-pass filtered, high-pass filtered, and de-emphasized. The processed audio signal passes through an audio volume control and is amplified to a sufficient level to drive a loud speaker by an audio power amplifier (IC208). 1.5 SQUELCH AND MUTE CIRCUIT It amplifies the demodulated noise signal from FM IC (IC2) after filtering through BPF circuit. Then, the amplified signal is converted signal is fed through the microprocessor (IC204). The microprocessor controls the mute control line (MUTE) according to the input signal and the microprocessor task condition. Circuit Description FCC ID: ALH33293110 Model Name: TK-3130/3131 2 2. TRANSMITTER 2.1 MICROPHONE CIRCUIT The signal from the microphone is amplified by IC207, passed through microphone mute circuit (Q210), limited and pre-emphasized by IC207. The signal component above the audio pass-band circuit is attenuated by splatter filter comprised of base band IC (IC205). 2.2 MODULATOR CIRCUIT The output from the microphone amplifier passes through a variable resistor (VR201) for maximum deviation adjustment and is applied to a varactor diode (D8) in the voltage controlled oscillator (VCO) located in the frequency synthesizer section. 2.3 DRIVER AND FINAL POWER AMPLIFIER CIRCUITS The transmit signal obtained from the VCO buffer amplifier Q6, is amplified to approximately 12dBm by Q7 and Q8. This amplified signal is passed to the power amplifier Q9 and Q10, which consists of a 2-stage FET amplifier and is capable of producing up to 1W of RF power. 2.4 TRANSMIT/RECEIVE SWITCHING CIRCUIT The power module output signal is passed through a low-pass filter network and a transmit/receive switching circuit before it is passed to the antenna terminal. The transmit/receive switching circuit is comprised of D12 and D13. D10 is turned on (conductive) in transmit mode and turned off (isolated) in receive mode. 3. PLL FREQUENCY SYNTHESIZER 3.1 PLL The frequency step of the PLL circuit is 5 or 6.25kHz. A 12.8MHz reference oscillator signal is divided at IC1 by a fixed counter to produce the 5 or 6.25kHz reference frequency. The VCO output signal is buffer amplified by Q1, then divided in IC1, by a dual-modules programmable counter in this case. The divided signal is compared in phase with the 5 or 6.25kHz reference signal in the phase comparator also in IC1. The output signal from the phase comparator is low-pass filtered and passed to the VCO to control the oscillator frequency. 3.2 VOLTAGE CONTROLLED OSCILLATOR (VCO) The operating frequency is generated by Q4. The oscillator frequency is controlled by applying the VCO control voltage, obtained from the phase comparator, to the varactor diodes (D4). Q2 performs a change of the oscillation frequency of transmit/receive (turn on: transmit mode, turn off: receive mode). The outputs from Q4 is amplified by Q5 and outputted to the buffer amplifiers. 3.3 UNLOCK DETECTOR CIRCUIT If a pulse signal appears at the LD pin of IC1, an unlock condition occurs, the DC voltage, obtained from D1, R4 and C13, causes the voltage applied to the UL pin of the microprocessor to go low. When the microprocessor detects this condition, the transmitter is disabled by ignoring the push-to-talk switch input signal. Circuit Description FCC ID: ALH33293110 Model Name: TK-3130/3131 3 4. DIGITAL CONTROL CIRCUIT 4.1 KEY SWITCHES INPUT CIRCUIT The key switches in information are entered directly into the microprocessor (IC204). 4.2 RESET CIRCUIT When the power is initially turned on, IC201 detects a 2.7V reference voltage rise, then output a high level signal to reset the microprocessor (IC204). 5. POWER SUPPLY CIRCUIT 5.1 POWER SWITCHING CIRCUIT A 5V reference voltage [3M] supply for the control circuit is derived from an internal battery by IC213. Voltage for transmission [3T], voltage for receive [3R], and common voltage [3C] are supplied by IC209. 5.2 BATTERY SAVER CIRCUIT If no activity is detected (squelch closed) on the channel, the unit’s enters into the battery save mode controlled by the microprocessor. 6.ADDITIONAL CIRCUIT 6.1 QT, DQT ENCODE The QT, DQT encoder tone is set by the data from the microprocessor. QT, DQT tone is generated by the microprocessor (IC204). The output is applied to the VCO and TCXO (X1). 6.2 QT, DQT DECODE A part of the recovered audio signal obtained at the amplifier IC205 are the QT and DQT tones and are low pass filt…

Text truncated - open the document above for the full version.

Semiconductor List FCC ID: ALH33293110 Model Name: TK-3130/3131 REF.NOPARTNO'0-10PART NAME(E)DESCRIPTION D1MA2S11191DIODEUNLOCK DETECT D3MA2S11191DIODECURRENT STEERING D4MA36091VARIABLE CAPACITANCE DIODEFREQ. CONTROL D8MA36091VARIABLE CAPACITANCE DIODETX MODULATION D9HSC27791DIODERF SWITCH D10HSC27791DIODERF SWITCH D12HVC13191DIODEANTENNA SWITCH D13HSC27791DIODEANTENNA SWITCH D16MA74291DIODENOISE DETECT D17HSC27791DIODECURRENT STEERING D200B30-2143-0591LEDLCD BACKLIGHT D201NB30-2242-0591LEDTX/BUSY D202MA74291DIODEAF DETECT D204DAN22291DIODEMIC MUTE/AGC SWITCH D2051SS37291DIODEAGC DETECT D207MA2S11191DIODEPROTECTION D208NHZU3CLL91DIODESURGE ABSORPTION D2091SR154-40091DIODEREVERSE PROTECTION D210KDZ4.7EV91ZENER DIODEVOLTAGE PROTECTION IC1TB31202FN91MOS ICPHASE LOCKED LOOP SYSTEM IC2TA31136FN91MOS ICIF SYSTEM IC200NXC61CN2902N81MOS ICVOLTAGE DETECT IC201NXC61CN2702N81MOS ICRESET SWITCH IC20324LC08BT-ISN91ROM ICEEPROM IC204NMN101C54AKA71MPUMICRO PROCESSOR IC205NAK236881MOS ICBASE BAND IC206NJM2100V91MOS ICACTIVE FILTER IC207NJM2100V91MOS ICMIC AMP/LIMIT IC208NLM4865M91BI-POLAR ICAUDIO POWER AMP IC209NTK71530ASCL91MOS ICVOLTAGE REGULATER IC213NTK71530ASCL91MOS ICVOLTAGE REGULATER IC214TC7W74FU81MOS ICDIVIDER TK-3130/3131 Semiconductor List 1 Semiconductor List FCC ID: ALH33293110 Model Name: TK-3130/3131 REF.NOPARTNO'0-10PART NAME(E)DESCRIPTION Q12SC5108(Y)91TRANSISTORRF AMP Q2DTC144EE91TRANSISTORDC SWITCH (T/R) Q32SC4617(S)91TRANSISTORRIPPLE FILTER Q42SC5066(O)91TRANSISTORVCO Q52SC5108(Y)91TRANSISTORRF BUFFER AMP Q62SC5108(Y)91TRANSISTORRF AMP Q72SC5108(Y)91TRANSISTORRF AMP Q82SC4226(R24)91TRANSISTORTX PRE-DRIVE Q9N2SK307891FETTX DRIVE Q10NNE5510279A81FETTX FINAL Q11DTC114TE91TRANSISTORTEMPERATURE PROTECTION SWITCH Q132SK182491FETDC SWITCH Q14DTC144EE91TRANSISTORDC SWITCH (Hi/Lo) Q183SK27491FETRF AMP Q193SK32091FETMIXER Q20KTC408291TRANSISTORIF AMP Q212SC4738(GR)91TRANSISTORNOISE AMP Q22KTC408291TRANSISTORTRIPLER Q200DTC114EE91TRANSISTORDC SWITCH Q201DTC114EE91TRANSISTORDC SWITCH Q202DTC114EE91TRANSISTORDC SWITCH Q2102SC491991TRANSISTORMIC MUTE/AGC Q2122SC4617(R,S)91TRANSISTORDC SWITCH Q2132SK182491FETAUDIO MUTE SWITCH Q214KTA1298(Y)91TRANSISTORAF AMP POWER SUPPLY Q2163LN02C91FETVIBRATION SWITCH Q2172SK182491FETVOX AMP Q218DTA123JE91TRANSISTORDC SWITCH Q219DTA123JE91TRANSISTORDC SWITCH Q220DTA123JE91TRANSISTORDC SWITCH Q221DTC114YE91TRANSISTORBEAT SHIFT SWITCH 2 Parts List FCC ID: ALH33293110 Model Name: TK-3130/3131 PARTNOPS'0-10PART NAME(E) Z92-0855-02XUNIT WIRING DIAGRAM Z92-0856-02XUNIT WIRING DIAGRAM J72-0857-0991/2PRINTED WIRING BOARD A13-1634-031 FRAME B11-1285-031 ILLUMINATION GUIDE B38-0866-051 LCD E11-0457-051 PHONE JACK E29-1194-041 INTER CONNECTOR E40-6213-0591PIN ASS'Y E40-6214-0591PIN ASS'Y SOCKET F10-2418-041 SHIELDING CASE F53-0217-0591FUSE G13-1751-041 CUSHION J21-8427-041 HARDWARE FIXTURE J30-1212-041 SPACER N39-2030-461 PAN HEAD MACHINE SCREW S70-0434-051 TACT SWITCH T42-0335-051 MOTOR T91-0631-051 MIC ELEMENT DAN22291DIODE HSC27794DIODE HVC13191DIODE MA2S11193DIODE MA74292DIODE 1SR154-40091DIODE 1SS37291DIODE B30-2143-0591LED B30-2242-0591LED KDZ3.3V91ZENER DIODE KDZ4.7EV91ZENER DIODE MA36092VARIABLE CAPACITANCE DIODE 2SC4226(R24)91TRANSISTOR 2SC4617(S)91TRANSISTOR 2SC4738(GR)91TRANSISTOR 2SC491991TRANSISTOR 2SC5066(O)91TRANSISTOR 2SC5108(Y)94TRANSISTOR DTA123JE93TRANSISTOR DTC114EE94TRANSISTOR DTC114TE92TRANSISTOR DTC144EE91TRANSISTOR TK-3130/3131 Parts List 1 Parts List FCC ID: ALH33293110 Model Name: TK-3130/3131 PARTNOPS'0-10PART NAME(E) KTA1298(Y)91TRANSISTOR KTC408292TRANSISTOR NE5510279A81FET 2SK182494FET 2SK307891FET 3LN02C91FET 3SK27491FET 3SK32091FET 157-503-6500191THERMISTOR AK236881MOS IC LM4865M91BI-POLAR IC MN101C54AKA71MPU NJM2100V92MOS IC TA31136FN91MOS IC TB31202FN91MOS IC TC7W74FU81MOS IC TK71530ASCL92MOS IC XC61CN2702N81MOS IC XC61CN2902N81MOS IC 24LC08BT-ISN91ROM IC R12-7488-0591SEMI FIXED VARIABLE RESISTOR R12-7491-0591SEMI FIXED VARIABLE RESISTOR R12-7494-0591SEMI FIXED VARIABLE RESISTOR R92-1252-0592METAL GLAZE RESISTOR (0 OHM) R92-1368-05914METAL GLAZE RESISTOR (0 OHM) R31-0640-051 VARIABLE RESISTOR R32-0647-0591SEMI FIXED VARIABLE RESISTOR 2

Tuning Procedure FCC ID: ALH33293110 Model Name: TK-3130/3131 1 TK-3130/3131 Tuning Procedure Before attempting to tune the transceiver, connect the unit to a suitable power supply. Whenever the transmitter tuned, must be connected to a suitable dummy load, unless the instruction specify otherwise. The speaker output connector must be terminated with a 8ohms dummy load at any time during the tuning and connected to an AC voltmeter and an audio distortion meter or a SINAD measurement meter at all the time during the tuning. 1-1 Adjusting Mode Connect with the Radio and Personal Computer to COMPUTER PROGRAMMING INTERFACE (KPG-75D) 1-2 Tuning Items • Frequency Adjust • RF Power • Standard Battery Voltage • Squelch Threshold Level (Open) • QT Deviation (Wide) • DQT Deviation (Wide) 1-3 Test Mode Starting Test Mode, select the Tuning Frequency and Signaling. 1-3-1 Open the Program Menu of Window. 1-3-2 Press [T] or use [i] [h] keys to Test Mode, then Press the [Enter]. 1-3-3 Starting the Test Mode channel and Signaling after Tuning Data Read. 1-3-4 Use [TAB] keys to select channel then use [i] [h] keys to select channel number then Press the [Enter]. 1-3-5 Use [TAB] keys to select Signaling then use [i] [h] keys to select the special signaling number the Press the [Enter]. 1-3-6 Press the [Space/ S+ Space] then Transmitter on. 1-3-7 Back to Reception during transmitter use [Space/S + Space] keys. Tuning Procedure FCC ID: ALH33293110 Model Name: TK-3130/3131 2 2-1 Tuning Mode Starting Tuning Mode from Test Mode. 2-1-1 Use [TAB] keys to select Tuning Mode Selection window. Tuning Mode Selection QT Fine Deviation DQT Fine Deviation Squelch Level Battery Indicator Level VOX level 2-1-2 Use [i] [h] keys select tuning item [QT Fine Deviation] then press [Enter]. 2-1-3 Use [f] [g] keys to adjust the level then press [Enter]. 2-1-4 Select tuning item [DQT Fine Deviation] then press [Enter]. 2-1-5 Use [f] [g] keys to adjust the level then press [Enter]. 2-1-6 Select tuning item [Squelch Level] then press [Enter]. 2-1-7 Use [f] [g] keys to adjust the level then press [Enter]. 2-1-8 Select tuning item [Battery Indicator Level] then press [Enter]. 2-1-9 Use [f] [g] keys to adjust the level then press [Enter]. 2-1-10 Select tuning item [VOX Level] then press [Enter]. 2-1-11 Use [f] [g] keys to adjust the level then press [Enter].

(The following will be placed in the Instruction Manual) MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS & USERS Use only manufacturer or dealer supplied antenna. Antenna Minimum Safe Distance: 2.5 cm . Antenna Gain: zero dBd referenced to a dipole. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy which is below the OSHA (Occupational Safety and Health Act) limits. Antenna Mounting:The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person or persons can come closer than the above indicated minimum safe distance to the antenna i.e. 2.5 cm. To comply with current FCC RF Exposure limits, the antenna must be installed at or exceeding the minimum safe distance shown above, and in accordance with the requirements of the antenna manufacturer or supplier. Base Station Installation: The antenna should be fixed-mounted on an outdoor permanent structure. RF Exposure compliance must be addressed at the time of installation. Antenna Substitution:Do not substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person or persons to harmful radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. WARNING: Maintain a separation distance from the antenna to a person(s) of at least 2.5 cm. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF Exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use. transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna.

CELLTECH RESEARCH INC. Test Report S/N: 100501-173ALH 1955 Moss Court, Kelowna Date(s) of Tests: Oct. 12, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for controlled environment / occupational exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information: KENWOOD COMMUNICATIONS CORP. 2201 East Dominguez Street PO Box 22745 Long Beach, CA 90801-5745 FCC ID: ALH33293110 Model(s): TK-3130 EUT Type: Portable UHF PTT Radio Transceiver Modulation: FM Tx Frequency Range: 460.000 - 470.000 MHz Conducted Power Tested: 1.57 Watts FCC Rule Part(s): 2.1093; ET Docket 96-326 IC Rule Part(s): RSS-102 Issue 1 CELLTECH RESEARCH INC. Test Report S/N: 100501-173ALH 1955 Moss Court, Kelowna Date(s) of Tests: Oct. 12, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 SAR MEASUREMENT SUMMARY.......................................... 3-4 5.0 DETAILS OF SAR EVALUATION............................................ 5 6.0 EVALUATION PROCEDURES................................................. 5 7.0 SAR LIMITS........................................................................ 6 8.0 SYSTEM VALIDATION.......................................................... 6 9.0 SIMULATED EQUIVALENT TISSUES...................................... 7 10.0 TISSUE PARAMETERS......................................................... 7 11.0 SYSTEM SPECIFICATIONS.................................................... 8 12.0 PROBE SPECIFICATION....................................................... 9 13.0 SAM PHANTOM.................................................................... 9 14.0 DEVICE HOLDER................................................................. 9 15.0 TEST EQUIPMENT LIST........................................................ 10 16.0 MEASUREMENT UNCERTAINTIES........................................ 11 17.0 REFERENCES...................................................................... 12 APPENDIX A - SAR MEASUREMENT DATA........................................ 13 APPENDIX B - DIPOLE VALIDATION................................................ 14 APPENDIX C - PROBE CALIBRATION............................................... 15 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS............................... 16 CELLTECH RESEARCH INC. Test Report S/N: 100501-173ALH 1955 Moss Court, Kelowna Date(s) of Tests: Oct. 12, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. KENWOOD COMMUNICATIONS FCC ID: ALH33293110 1 Portable UHF PTT Radio Transceiver (460.000-470.000MHz) 1.0 INTRODUCTION This measurement report shows compliance of the KENWOOD COMMUNICATIONS CORP. Model: TK-3130 Portable UHF PTT Radio Transceiver FCC ID: ALH33293110 with the regulations and procedures specified in FCC Part 2.1093, ET Docket 96-326 Rules, and RSS-102 Issue 1 of Industry Canada for mobile and portable devices (controlled exposure). The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65, Supplement C (Edition 01-01) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) Rule Part(s) FCC 2.1093 ET Docket 96.326 IC RSS-102 Issue 1 Modulation FM EUT Type Portable UHF PTT Radio Transceiver Tx Frequency Range (MHz) 460.000 - 470.000 FCC ID ALH33293110 Conducted Power Tested 1.57 Watts Model No.(s) TK-3130 Antenna Type(s) Fixed Serial No. Pre-production Power Supply 1.5V AA Batteries (x3) Front of EUT Back of EUT Left of EUT Right of EUT CELLTECH RESEARCH INC. Test Report S/N: 100501-173ALH 1955 Moss Court, Kelowna Date(s) of Tests: Oct. 12, 2001 B.C. Canada V1Y 9L3 FCC SAR Evaluation _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. KENWOOD COMMUNICATIONS FCC ID: ALH33293110 2 Portable UHF PTT Radio Transceiver (460.000-470.0…

Text truncated - open the document above for the full version.
